Sayfa 3-20 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11273 - EXR LHD EURO2/3/4 WITH 3STEPS ▶ 3 - Brakes, Brake System ▶ 3-20 - AIR TANK ▶

3-20 — AIR TANK (#57794) — 217 parça

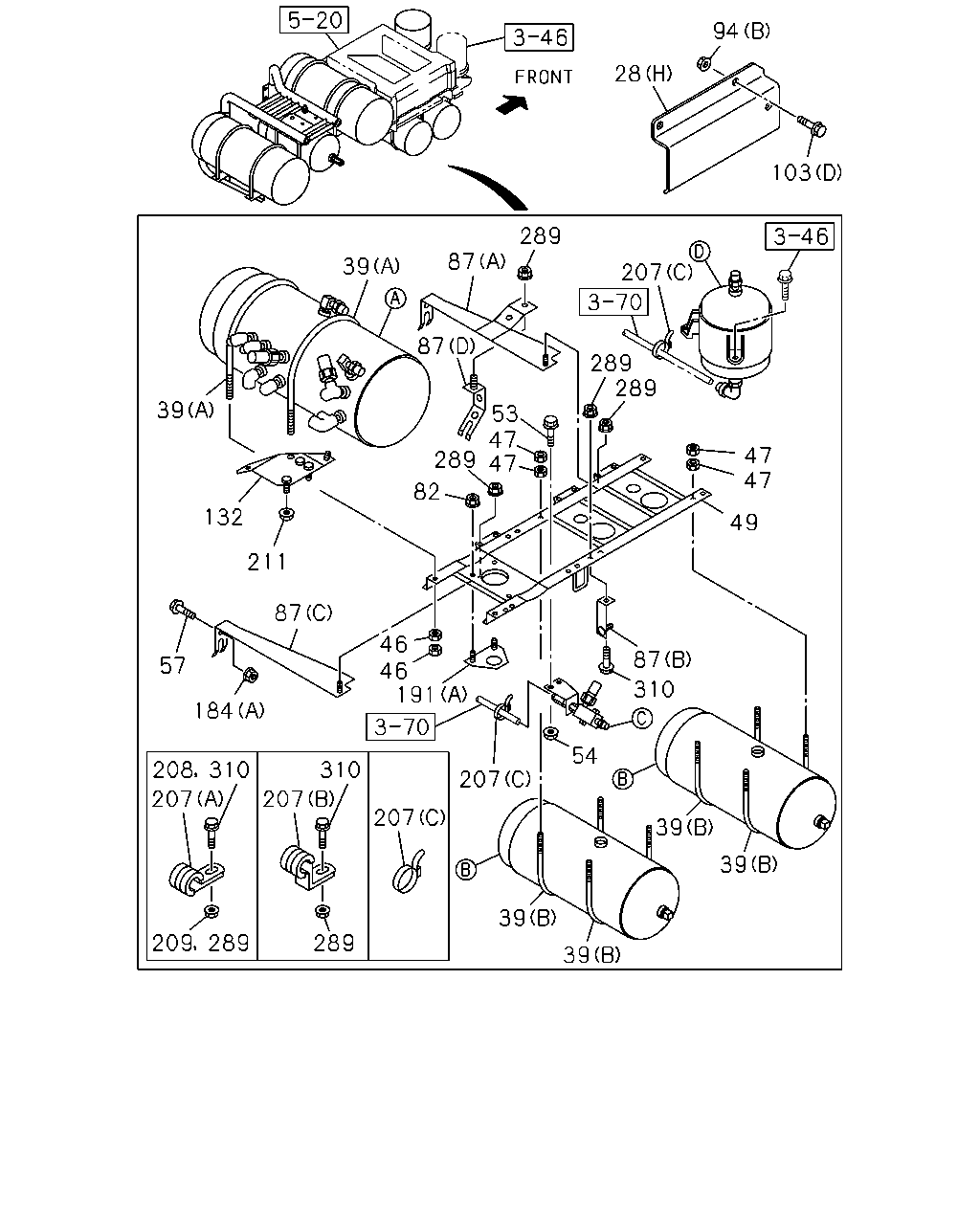

94 28 103 289 207 87 39 87 289 289 53 47 47 39 47 47 289 82 132 49 211 87 46 46 191 87 57 310 184 54 208 310 310 207 207 207 207 39 39 39 209 289 289 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
28	BRACKET; AIR TANK (A)	1-47471-153-0	01	1	1008-
28	BRACKET; AIR TANK (F)	1-48316-024-3	01	1	1008-
28	BRACKET; AIR TANK (D)	1-48316-026-0	01	1	1008-
28	BRACKET; AIR TANK (B)	1-48317-473-2	01	1	1008-
28	BRACKET; AIR TANK (E)	1-48317-985-1	01	1	1008-
28	BRACKET; AIR TANK (C)	1-48317-994-2	01	1	1008-
28	BRACKET; AIR TANK (G)	8-97627-750-3	01	1	1008-
28	BRACKET; AIR TANK RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (H)	8-98172-056-0	01	1	1008-
39	U-BOLT; AIR TANK (A) L=303	1-48317-087-2	04	1	1008-
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	1008-
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	04	1	1008-
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1008-
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1008-
47	NUT; LK,U BOLT,AIR TANK M8	0-91110-508-0	16	1	1008-
49	BRACKET; AIR TANK	1-48316-065-1	01	1	1008-
53	BOLT; STAY,AIR TANK M8X20 FLANGE	0-28650-820-0	02	1	1008-
54	NUT; STAY M8 FLANGE	0-91180-108-0	02	1	1008-
57	BOLT; BRKT,AIR TANK TO FRAME M10X25 FLANGE	0-28651-025-0	04	1	1008-
82	NUT; STAY,AIR MASTER BRKT M8 FLANGE	0-91180-108-0	02	1	1008-
87	BRACKET; AIR PIPE JOINT (B)	1-47471-189-0	02	1	1008-
87	BRACKET; AIR PIPE JOINT (C)	1-47471-241-0	01	1	1008-
87	BRACKET; AIR PIPE JOINT (E)	8-98053-747-0	01	1	1008-
87	BRACKET; AIR PIPE JOINT (A)	8-98054-525-0	01	1	1008-
87	BRACKET; AIR PIPE JOINT (D)	8-98060-053-0	01	1	1008-
94	NUT; BRKT FIX (A) M10 FLANGE	0-91180-210-0	02	1	1008-
94	NUT; BRKT FIX RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (B) M8 FLANGE	0-91180-108-0	02	1	1008-
103	BOLT; BRKT (A) M14X35	0-20851-435-0	04	1	1008-
103	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	04	1	1008-
103	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	06	1	1008-
103	BOLT; BRKT RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (D) M8X30 FLANGE	0-28650-830-0	02	1	1008-
132	BRACKET; STRING GUIDE	8-98140-096-0	01	1	1008-
184	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	04	1	1008-
184	NUT; BRKT (B) M12 FLANGE	0-91180-212-0	01	1	1008-
191	BRACKET; STOPPER,AIR TANK (B)	1-48316-014-1	01	1	1008-
191	BRACKET; STOPPER,AIR TANK (A)	1-48316-015-1	01	1	1008-
207	CLIP; AIR PIPE (A) ID=7 L=20	0-95234-635-0	01	1	1008-
207	CLIP; AIR PIPE (A) ID=16 L=20	0-95235-535-0	01	1	1008-
207	CLIP; AIR PIPE (A) ID=35 L=33	1-09700-945-0	02	1	1008-
207	CLIP; AIR PIPE (B) ID=31 H=30 L=35	1-09700-994-0	01	1	1008-
207	CLIP; AIR PIPE (C) L=350	1-09707-183-0	13	1	1008-
207	CLIP; AIR PIPE (C) L=256	1-09707-189-0	02	1	1008-
207	CLIP; AIR PIPE 6WF1 TC-C(1B8) (C) L=350	1-09707-183-0	01	1	1008-
208	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	1008-
209	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1008-
211	NUT; STRING GUIDE M8 FLANGE	0-91180-108-0	02	1	1008-
289	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	06	1	1008-
310	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28650-820-0	06	1	1008-

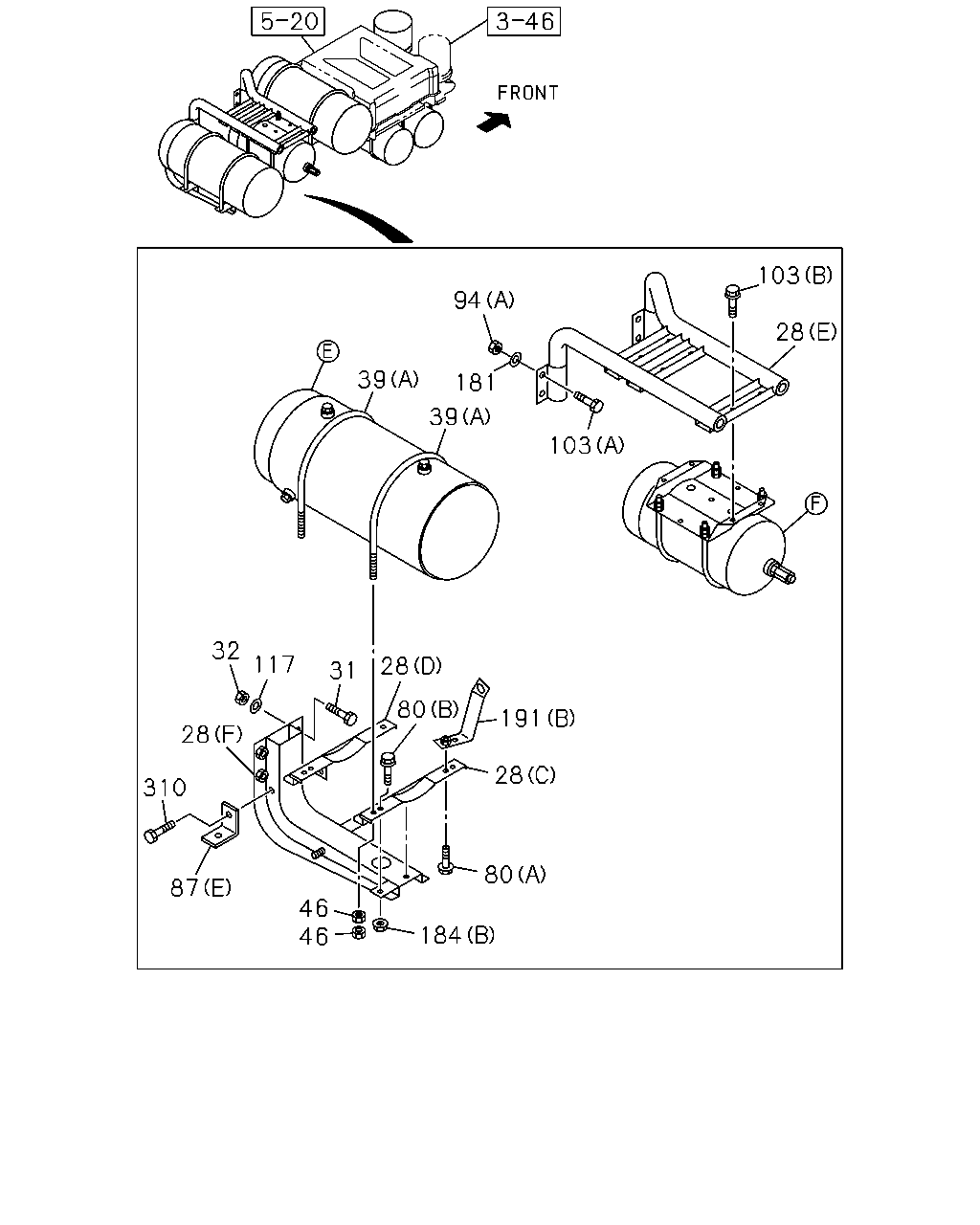

103 94 28 39 181 39 103 32 117 28 31 80 191 28 28 310 80 87 46 46 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
28	BRACKET; AIR TANK (A)	1-47471-153-0	01	1	1008-
28	BRACKET; AIR TANK (F)	1-48316-024-3	01	1	1008-
28	BRACKET; AIR TANK (D)	1-48316-026-0	01	1	1008-
28	BRACKET; AIR TANK (B)	1-48317-473-2	01	1	1008-
28	BRACKET; AIR TANK (E)	1-48317-985-1	01	1	1008-
28	BRACKET; AIR TANK (C)	1-48317-994-2	01	1	1008-
28	BRACKET; AIR TANK (G)	8-97627-750-3	01	1	1008-
28	BRACKET; AIR TANK RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (H)	8-98172-056-0	01	1	1008-
31	BOLT; BRKT TO FRAME M14X50	0-20851-450-0	04	1	1008-
32	NUT; BRKT TO FRAME M14	0-91110-514-0	04	1	1008-
39	U-BOLT; AIR TANK (A) L=303	1-48317-087-2	04	1	1008-
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	1008-
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	04	1	1008-
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1008-
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1008-
80	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1008-
80	BOLT; BRKT (B) M12X25 FLANGE	0-28651-225-0	04	1	1008-
87	BRACKET; AIR PIPE JOINT (B)	1-47471-189-0	02	1	1008-
87	BRACKET; AIR PIPE JOINT (C)	1-47471-241-0	01	1	1008-
87	BRACKET; AIR PIPE JOINT (E)	8-98053-747-0	01	1	1008-
87	BRACKET; AIR PIPE JOINT (A)	8-98054-525-0	01	1	1008-
87	BRACKET; AIR PIPE JOINT (D)	8-98060-053-0	01	1	1008-
94	NUT; BRKT FIX (A) M10 FLANGE	0-91180-210-0	02	1	1008-
94	NUT; BRKT FIX RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (B) M8 FLANGE	0-91180-108-0	02	1	1008-
103	BOLT; BRKT (A) M14X35	0-20851-435-0	04	1	1008-
103	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	04	1	1008-
103	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	06	1	1008-
103	BOLT; BRKT RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (D) M8X30 FLANGE	0-28650-830-0	02	1	1008-
117	WASHER; LK,BRKT ID=14.2	0-91510-514-0	04	1	1008-
181	WASHER; LK,AIR TANK ID=14.2	0-91510-514-0	04	1	1008-
184	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	04	1	1008-
184	NUT; BRKT (B) M12 FLANGE	0-91180-212-0	01	1	1008-
191	BRACKET; STOPPER,AIR TANK (B)	1-48316-014-1	01	1	1008-
191	BRACKET; STOPPER,AIR TANK (A)	1-48316-015-1	01	1	1008-
310	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28650-820-0	06	1	1008-

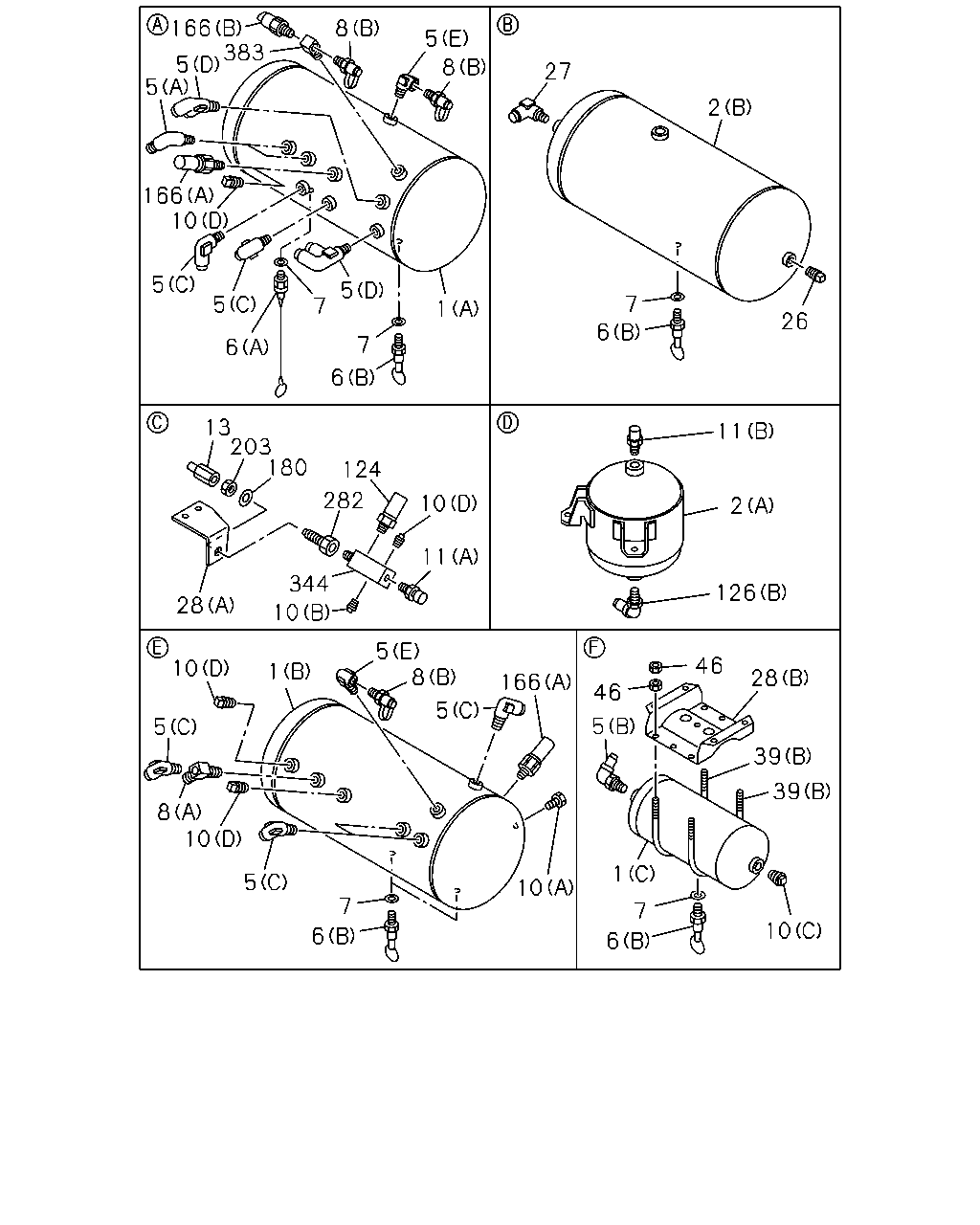

166 383 5 5 8 5 8 27 2 166 10 5 5 7 6 5 7 1 26 7 6 6 13 203 180 11 124 282 10 2 11 344 126 28 10 5 8 46 10 1 28 166 46 5 5 5 39 39 8 10 1 5 10 7 7 10 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (C)	1-48371-165-3	01	1	1008-
1	TANK ASM; AIR (A)	1-48371-387-1	01	1	1008-
1	TANK ASM; AIR (B)	1-48371-434-1	01	1	1008-
1	TANK ASM; AIR (D)	8-97626-720-0	01	1	1008-
2	TANK; AIR (A)	1-48371-166-3	01	1	1008-
2	TANK; AIR (B)	1-48371-389-1	02	1	1008-
5	UNION; AIR TANK (E) PT1/4 2WAY	1-09660-693-0	02	1	1008-
5	UNION; AIR TANK (C) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1008-
5	UNION; AIR TANK (D) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	1008-
5	UNION; AIR TANK (B) DIN12 & M22 ELBOW	1-09661-497-0	01	1	1008-
5	UNION; AIR TANK (A)	1-09661-550-0	02	1	1008-
6	COCK; DRAIN,AIR TANK (A)	1-48312-006-1	01	1	1008-
6	COCK; DRAIN,AIR TANK (B)	1-48312-017-0	01	1	1008-
6	COCK; DRAIN,AIR TANK (B)	1-48312-017-0	03	1	1008-
6	COCK; DRAIN,AIR TANK (B)	1-48312-017-0	03	1	1008-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1008-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	1008-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	1008-
8	CONNECTOR; AIR TANK (A) DIN8 & R3/8 & RC3/8 3WAY	1-09661-271-0	01	1	1008-
8	CONNECTOR; AIR TANK RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	04	1	1008-
8	CONNECTOR; AIR TANK EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1008-
10	PLUG; AIR TANK (A) M22	1-09661-502-0	01	1	1008-
10	PLUG; AIR TANK (A) M22	1-09661-502-0	02	1	1008-
10	PLUG; AIR TANK (E)	1-09661-569-0	01	1	1008-
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	1008-
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	1008-
10	PLUG; AIR TANK (C) PT3/4	9-09204-526-0	01	1	1008-
10	PLUG; AIR TANK 6WF1 TC-C(1B8) EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (D) PT1/4	9-99204-513-0	01	1	1008-
10	PLUG; AIR TANK (D) PT1/4	9-99204-513-0	01	1	1008-
10	PLUG; AIR TANK 6WG1 TC-R(75L) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (D) PT1/4	9-99204-513-0	02	1	1008-
10	PLUG; AIR TANK 6WG1 TC-R(75L) EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (D) PT1/4	9-99204-513-0	03	1	1008-
11	VALVE; SAFETY,AIR TANK (A)	1-48320-012-2	01	1	1008-
11	VALVE; SAFETY,AIR TANK (B)	1-48320-047-2	01	1	1008-
13	ADAPTER; NYLON TUBE DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	1008-
26	PLUG; SUB AIR TANK PT3/8	9-09204-517-0	02	1	1008-
27	UNION; ELBOW,AIR TANK DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1008-
28	BRACKET; AIR TANK (A)	1-47471-153-0	01	1	1008-
28	BRACKET; AIR TANK (F)	1-48316-024-3	01	1	1008-
28	BRACKET; AIR TANK (D)	1-48316-026-0	01	1	1008-
28	BRACKET; AIR TANK (B)	1-48317-473-2	01	1	1008-
28	BRACKET; AIR TANK (E)	1-48317-985-1	01	1	1008-
28	BRACKET; AIR TANK (C)	1-48317-994-2	01	1	1008-
28	BRACKET; AIR TANK (G)	8-97627-750-3	01	1	1008-
28	BRACKET; AIR TANK RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (H)	8-98172-056-0	01	1	1008-
39	U-BOLT; AIR TANK (A) L=303	1-48317-087-2	04	1	1008-
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	1008-
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	04	1	1008-
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1008-
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1008-
124	SWITCH; AIR PRESSURE 6WF1 TC-C(1B8)	1-48340-065-0	01	1	1008-
124	SWITCH; AIR PRESSURE 6WG1 TC-R(75L) STAMP 5.5	8-97609-249-0	01	1	1008-
126	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1008-
126	CONNECTOR; ELBOW (B) DIN8 & M22 ELBOW	1-09661-495-0	01	1	1008-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 6WF1 TC-C(1B8) (A)	1-48340-058-2	02	1	1008-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 6WF1 TC-C(1B8) (B)	1-48340-065-0	01	1	1008-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 6WG1 TC-R(75L) (B) STAMP 5.5	8-97609-249-0	01	1	1008-
180	WASHER; LK ID=16.2	0-91510-516-0	01	1	1008-
203	NUT M16	0-91110-516-0	01	1	1008-
282	UNION; 2 WAY	1-09650-222-1	01	1	1008-
344	CONNECTOR; 4WAY	1-09660-521-2	01	1	1008-
383	UNION; 3 WAY	1-09660-363-0	01	1	1008-

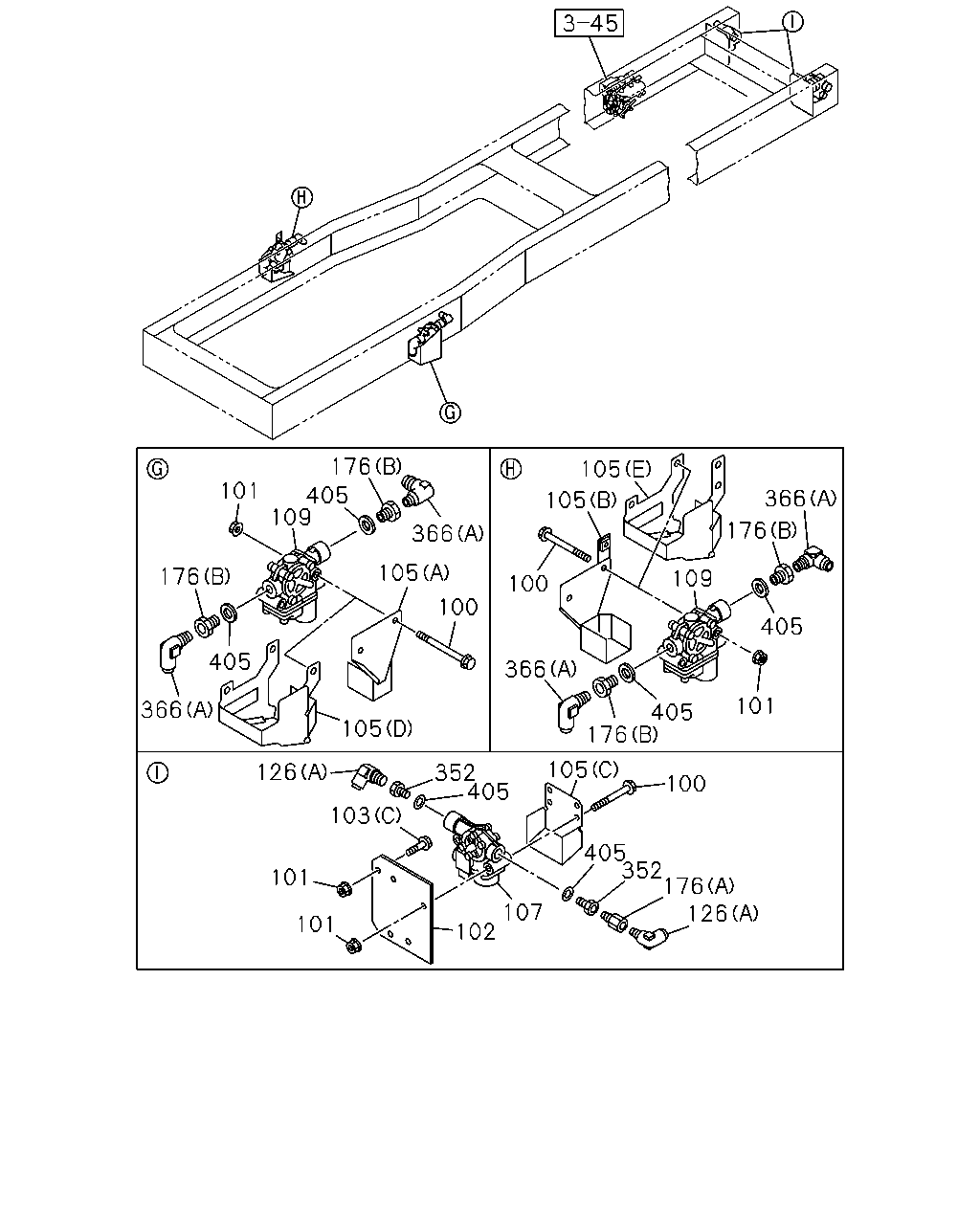

101 176 405 105 100 366 105 405 366 176 109 126 352 405 103 101 101 102 405 107 352 176 126 100 105 101 405 109 405 176 366 100 105 176 105 366

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	BOLT; MODULATOR M8X85	1-09044-074-0	04	1	1505-
100	BOLT; MODULATOR M8X80 FLANGE	0-28050-880-0	08	1	1008-1504
100	BOLT; MODULATOR M8X80 FLANGE	0-28050-880-0	04	1	1505-
101	NUT; MODULATOR M8 FLANGE	0-91180-108-0	08	1	1008-
102	BRACKET; MODULATOR	1-47471-369-0	02	1	1008-1504
102	BRACKET; MODULATOR	8-98300-007-0	02	1	1505-
103	BOLT; BRKT (A) M14X35	0-20851-435-0	04	1	1008-
103	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	04	1	1008-
103	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	06	1	1008-
103	BOLT; BRKT RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (D) M8X30 FLANGE	0-28650-830-0	02	1	1008-
105	COVER; MODULATOR (C)	8-98302-925-0	01	1	1505-
105	COVER; MODULATOR (C)	1-47471-354-0	02	1	1008-1504
105	COVER; MODULATOR (C)	8-98302-924-0	01	1	1505-
105	COVER; MODULATOR (A)	8-98147-199-0	01	1	1008-1504
105	COVER; MODULATOR (D)	8-98300-150-0	01	1	1505-
105	COVER; MODULATOR (B)	8-98147-206-0	01	1	1008-1504
105	COVER; MODULATOR (E)	8-98300-154-0	01	1	1505-
107	MODULATOR; RR	1-48240-115-0	02	1	1008-1504
107	MODULATOR; RR	8-98215-454-0	02	1	1505-
109	MODULATOR; FRT	1-48240-115-0	02	1	1008-1504
109	MODULATOR; FRT	8-98215-454-0	02	1	1505-
126	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1008-
126	CONNECTOR; ELBOW (B) DIN8 & M22 ELBOW	1-09661-495-0	01	1	1008-
176	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1008-
176	ADAPTER (A) PT3/8	1-09664-210-0	02	1	1008-
352	CONNECTOR; STRAIGHT INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1008-
366	CONNECTOR; NYLON TUBE (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1008-
366	CONNECTOR; NYLON TUBE (B) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	1008-
366	CONNECTOR; NYLON TUBE (C) DIN12 & M22 ELBOW	1-09661-497-0	01	1	1008-
366	CONNECTOR; NYLON TUBE (D)	1-09661-501-0	01	1	1008-
405	GASKET ID=22.5	9-09571-422-0	08	1	1008-

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	BOLT; SET,CONT VLV M8X30 W/LK&PL WASHER	0-50640-830-0	01	1	1008-

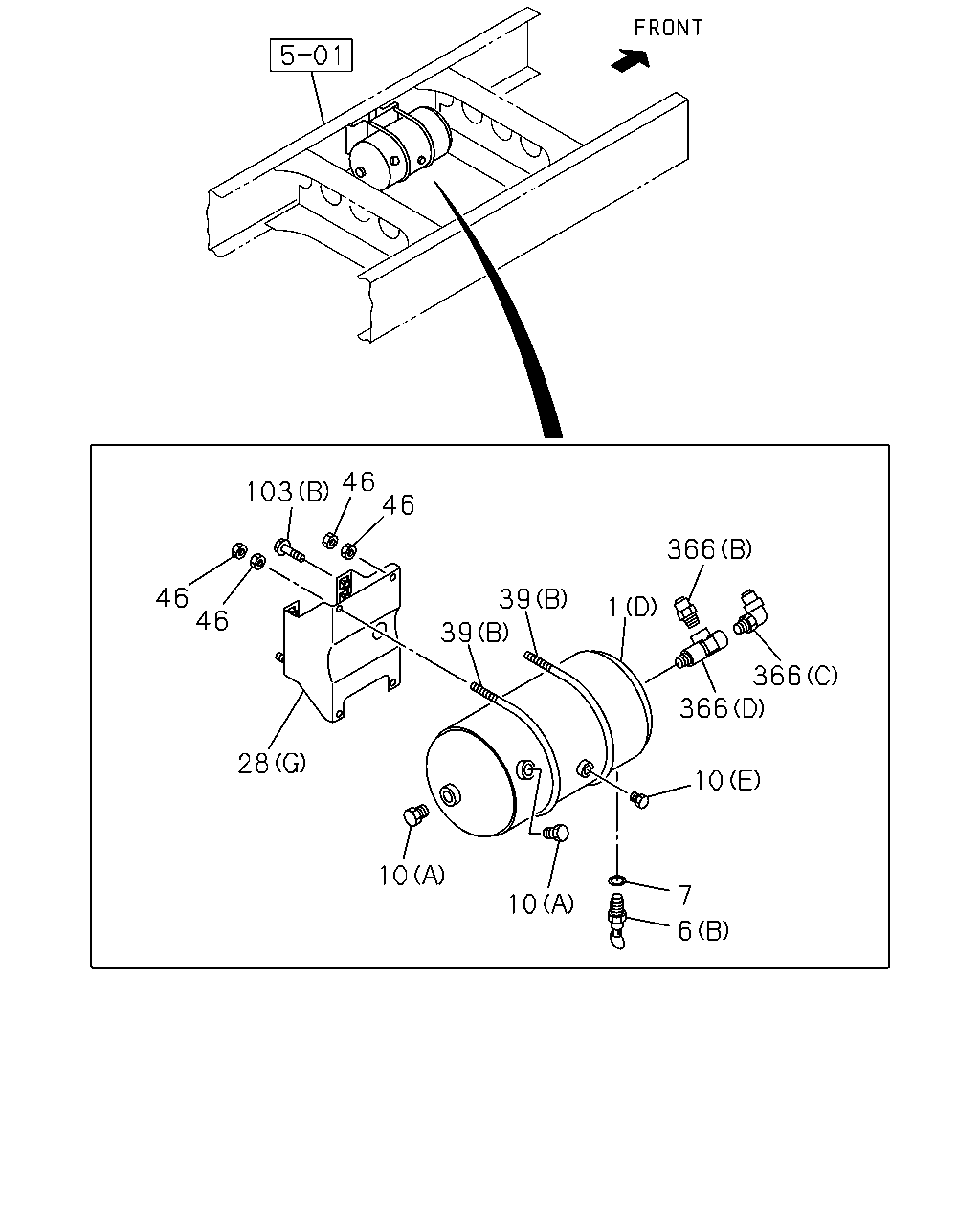

46 46 103 366 46 46 39 1 39 366 366 28 10 10 7 10 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (C)	1-48371-165-3	01	1	1008-
1	TANK ASM; AIR (A)	1-48371-387-1	01	1	1008-
1	TANK ASM; AIR (B)	1-48371-434-1	01	1	1008-
1	TANK ASM; AIR (D)	8-97626-720-0	01	1	1008-
6	COCK; DRAIN,AIR TANK (A)	1-48312-006-1	01	1	1008-
6	COCK; DRAIN,AIR TANK (B)	1-48312-017-0	01	1	1008-
6	COCK; DRAIN,AIR TANK (B)	1-48312-017-0	03	1	1008-
6	COCK; DRAIN,AIR TANK (B)	1-48312-017-0	03	1	1008-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1008-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	1008-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	1008-
10	PLUG; AIR TANK (A) M22	1-09661-502-0	01	1	1008-
10	PLUG; AIR TANK (A) M22	1-09661-502-0	02	1	1008-
10	PLUG; AIR TANK (E)	1-09661-569-0	01	1	1008-
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	1008-
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	1008-
10	PLUG; AIR TANK (C) PT3/4	9-09204-526-0	01	1	1008-
10	PLUG; AIR TANK 6WF1 TC-C(1B8) EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (D) PT1/4	9-99204-513-0	01	1	1008-
10	PLUG; AIR TANK (D) PT1/4	9-99204-513-0	01	1	1008-
10	PLUG; AIR TANK 6WG1 TC-R(75L) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (D) PT1/4	9-99204-513-0	02	1	1008-
10	PLUG; AIR TANK 6WG1 TC-R(75L) EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (D) PT1/4	9-99204-513-0	03	1	1008-
28	BRACKET; AIR TANK (A)	1-47471-153-0	01	1	1008-
28	BRACKET; AIR TANK (F)	1-48316-024-3	01	1	1008-
28	BRACKET; AIR TANK (D)	1-48316-026-0	01	1	1008-
28	BRACKET; AIR TANK (B)	1-48317-473-2	01	1	1008-
28	BRACKET; AIR TANK (E)	1-48317-985-1	01	1	1008-
28	BRACKET; AIR TANK (C)	1-48317-994-2	01	1	1008-
28	BRACKET; AIR TANK (G)	8-97627-750-3	01	1	1008-
28	BRACKET; AIR TANK RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (H)	8-98172-056-0	01	1	1008-
39	U-BOLT; AIR TANK (A) L=303	1-48317-087-2	04	1	1008-
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	1008-
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	04	1	1008-
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1008-
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1008-
103	BOLT; BRKT (A) M14X35	0-20851-435-0	04	1	1008-
103	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	04	1	1008-
103	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	06	1	1008-
103	BOLT; BRKT RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (D) M8X30 FLANGE	0-28650-830-0	02	1	1008-
366	CONNECTOR; NYLON TUBE (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1008-
366	CONNECTOR; NYLON TUBE (B) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	1008-
366	CONNECTOR; NYLON TUBE (C) DIN12 & M22 ELBOW	1-09661-497-0	01	1	1008-
366	CONNECTOR; NYLON TUBE (D)	1-09661-501-0	01	1	1008-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
