2-85 — POWER TAKE OFF CONTROL (#57789) — 26 parça

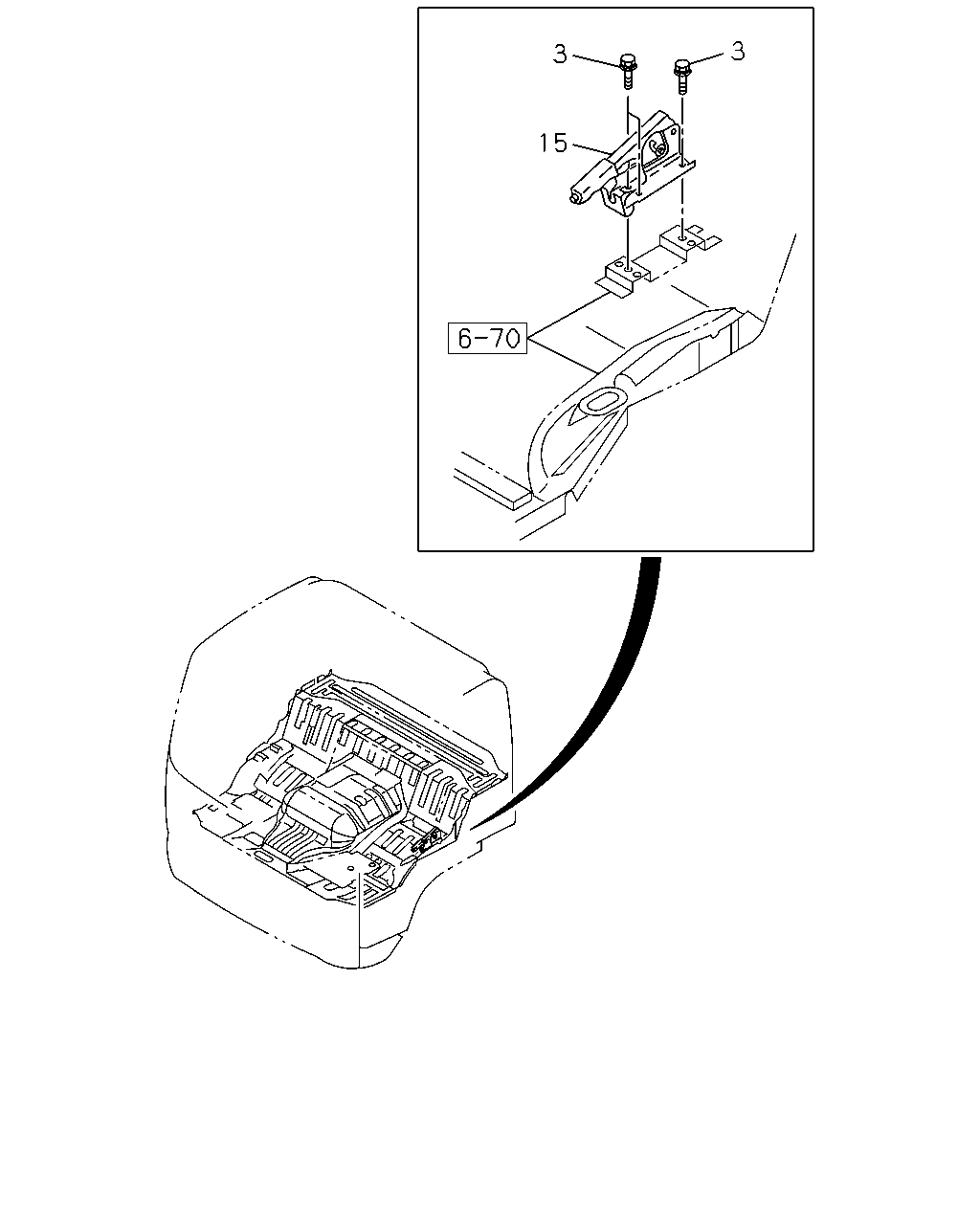

çizim 166026
3 3 15
BalonParca AdiParca NoAdetTipApplied Date
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0906-
15 LEVER ASM; PTO CONT
DUMP CONTROL LEVER<RC4> 		1-79996-092-0 01 1 0906-

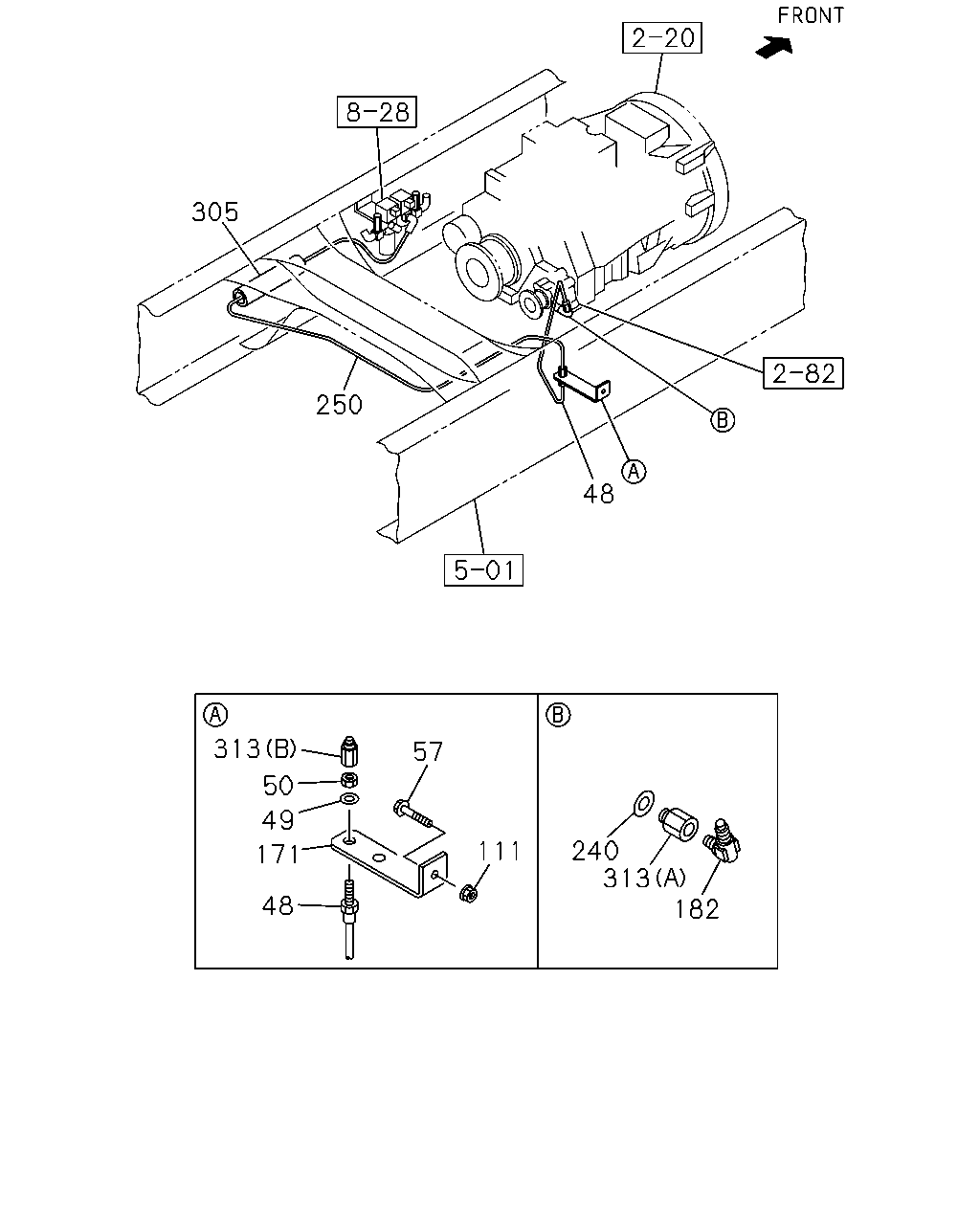

çizim 166037
305 250 48 313 57 50 49 240 313 111 171 182 48
BalonParca AdiParca NoAdetTipApplied Date
48 HOSE; FLEX,PTO
MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) L=450 		1-09363-965-0 01 1 1012-
48 HOSE; FLEX,PTO
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) PTO ZF TRANS RR(BDM) L=230 		1-09363-666-0 01 1 0906-1005
48 HOSE; FLEX,PTO
ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) PTO ZF TRANS RR(BDM) L=230 		1-09363-666-0 01 1 1006-
48 HOSE; FLEX,PTO
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) PTO ZF TRANS RR(BDM) L=280 		1-09363-610-0 01 1 0906-1005
48 HOSE; FLEX,PTO
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) PTO ZF TRANS RR(BDM) L=280 		1-09363-610-0 01 1 1006-
49 WASHER; LK,FLEX HOSE
PTO ZF TRANS RR(BDM) ID=12.2 		0-91510-812-0 01 1 0906-1011
50 NUT; FLEX HOSE
PTO ZF TRANS RR(BDM) M12 		9-09840-280-0 01 1 0906-
57 BOLT; BRKT
PTO ZF TRANS RR(BDM) M8X30 FLANGE 		0-28650-830-0 01 1 0906-
111 NUT; BRKT
PTO ZF TRANS RR(BDM) M8 FLANGE 		0-91180-108-0 01 1 0906-
171 BRACKET; FLEX HOSE
PTO ZF TRANS RR(BDM) 		8-98100-228-0 01 1 0906-
182 CONNECTOR; FLARE
PTO ZF TRANS RR(BDM) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0906-
240 GASKET; CONNECTOR,PTO
PTO ZF TRANS RR(BDM) ID=12.2 		1-09630-084-0 01 1 0906-1312
240 GASKET; CONNECTOR,PTO
PTO ZF TRANS RR(BDM) ID=12.2 		8-98251-344-0 01 1 1401-
250 TUBE; NYLON
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0906-
305 TUBE; CORRUGATE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) PTO ZF TRANS RR(BDM) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0912-
305 TUBE; CORRUGATE
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 0906-0911
305 TUBE; CORRUGATE
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) PTO ZF TRANS RR(BDM) SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 0912-
313 ADAPTER
PTO ZF TRANS RR(BDM) (B) 		1-09654-396-0 01 1 0906-
313 ADAPTER
PTO ZF TRANS RR(BDM) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0906-

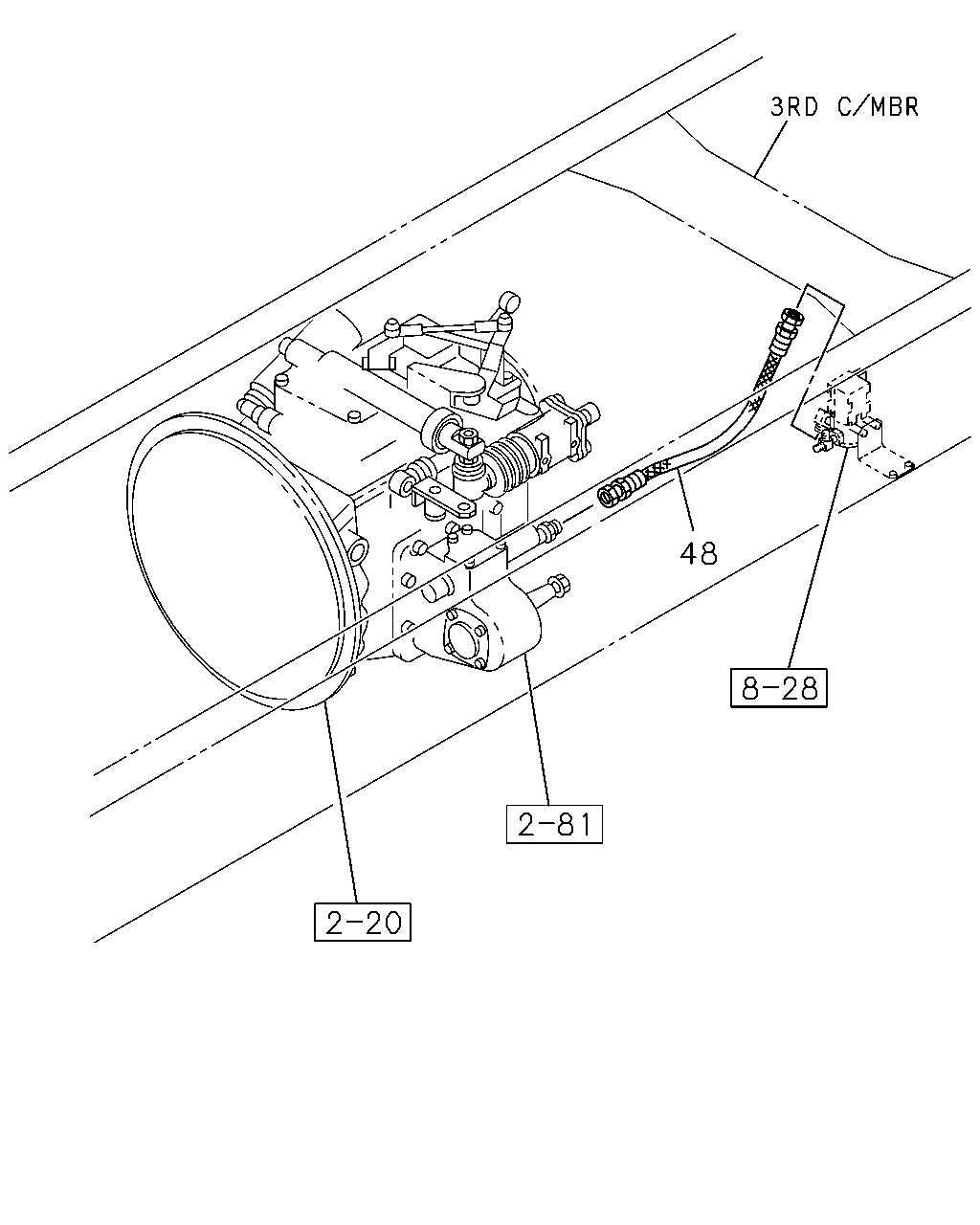

çizim 166304
48
BalonParca AdiParca NoAdetTipApplied Date
48 HOSE; FLEX,PTO
MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) L=450 		1-09363-965-0 01 1 1012-
48 HOSE; FLEX,PTO
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) PTO ZF TRANS RR(BDM) L=230 		1-09363-666-0 01 1 0906-1005
48 HOSE; FLEX,PTO
ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) PTO ZF TRANS RR(BDM) L=230 		1-09363-666-0 01 1 1006-
48 HOSE; FLEX,PTO
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) PTO ZF TRANS RR(BDM) L=280 		1-09363-610-0 01 1 0906-1005
48 HOSE; FLEX,PTO
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) PTO ZF TRANS RR(BDM) L=280 		1-09363-610-0 01 1 1006-
