2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#57784) — 44 parça

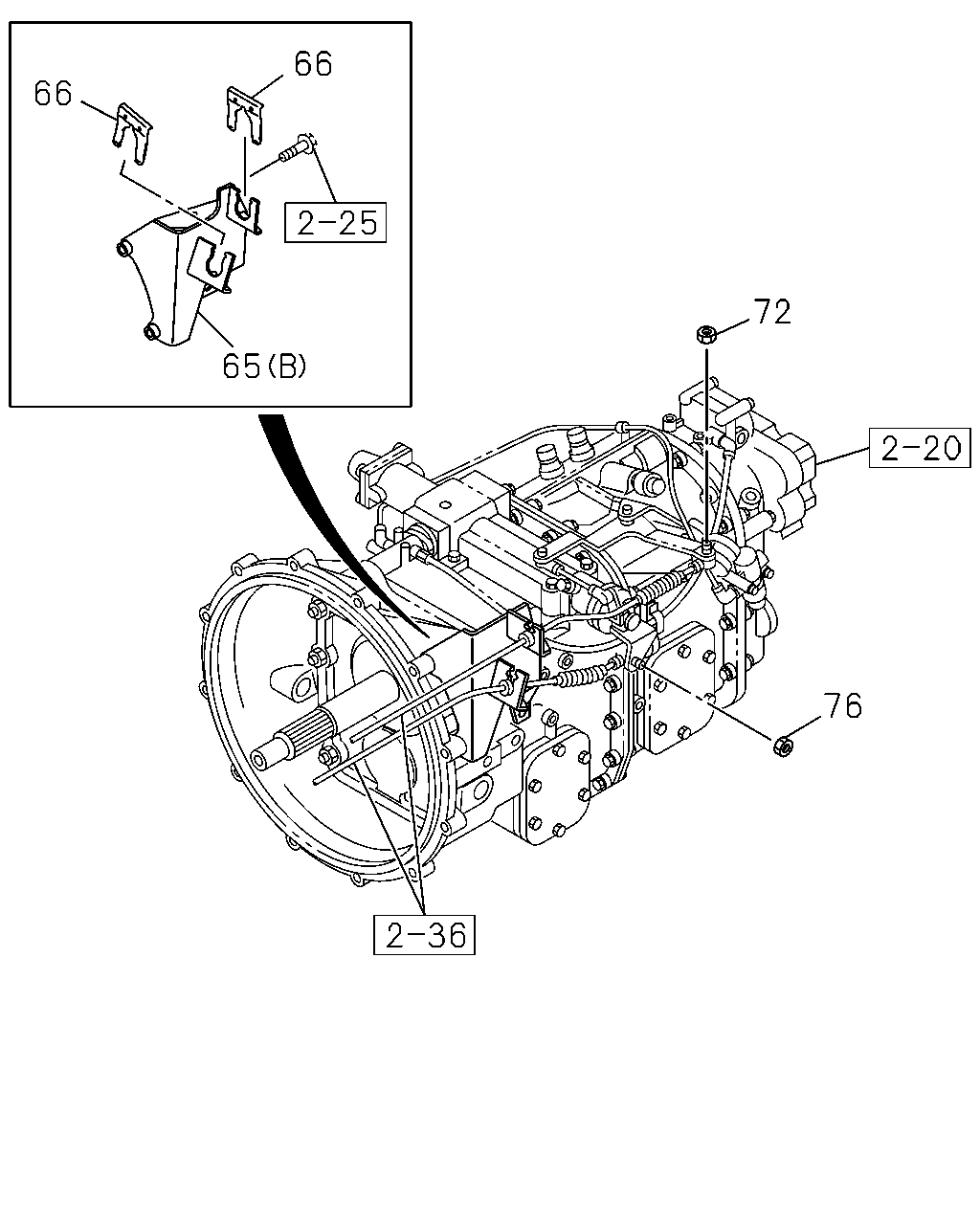

66 66 72 65 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
65	BRACKET; SHIFT TO SELECT,TRANS CONT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (C)	8-98010-160-0	01	1	1012-
65	BRACKET; SHIFT TO SELECT,TRANS CONT MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98017-428-0	01	1	1012-
65	BRACKET; SHIFT TO SELECT,TRANS CONT ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98060-386-0	01	1	1009-
65	BRACKET; SHIFT TO SELECT,TRANS CONT FULLER FSO5206B OD M/T(Y4V) (B)	8-98131-609-0	01	1	0906-
65	BRACKET; SHIFT TO SELECT,TRANS CONT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A)	8-98049-613-1	01	1	0906-
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	0906-
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	0906-
76	NUT; BALL JOINT,SELECT WIRE ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	1-09440-056-0	01	1	1009-
76	NUT; BALL JOINT,SELECT WIRE FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	1-09440-049-0	01	1	0906-1011
76	NUT; BALL JOINT,SELECT WIRE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-049-0	01	1	0906-1011
76	NUT; BALL JOINT,SELECT WIRE MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	1-09440-049-0	01	1	1012-
76	NUT; BALL JOINT,SELECT WIRE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-049-0	01	1	1012-

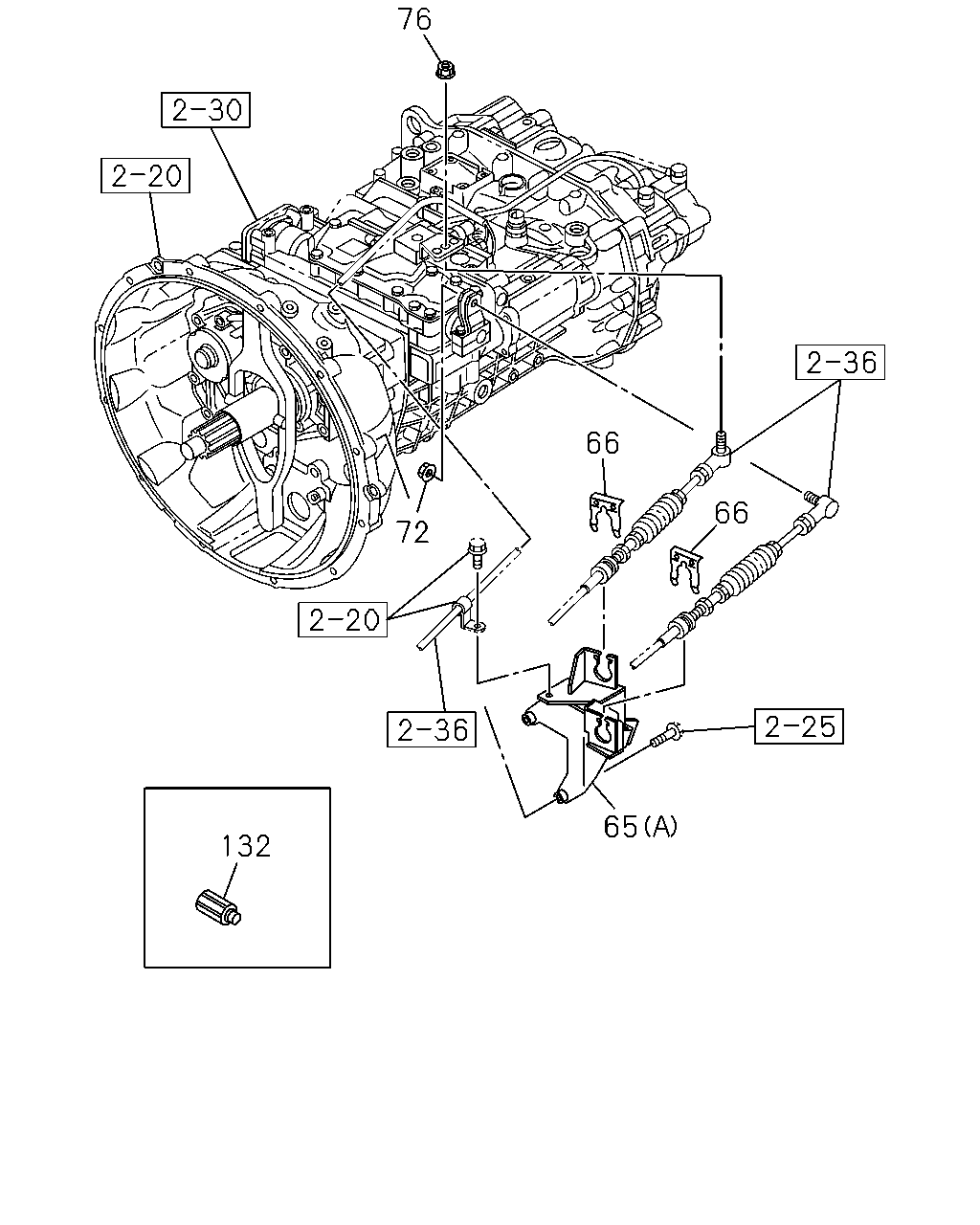

76 66 66 72 65 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
65	BRACKET; SHIFT TO SELECT,TRANS CONT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (C)	8-98010-160-0	01	1	1012-
65	BRACKET; SHIFT TO SELECT,TRANS CONT MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98017-428-0	01	1	1012-
65	BRACKET; SHIFT TO SELECT,TRANS CONT ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98060-386-0	01	1	1009-
65	BRACKET; SHIFT TO SELECT,TRANS CONT FULLER FSO5206B OD M/T(Y4V) (B)	8-98131-609-0	01	1	0906-
65	BRACKET; SHIFT TO SELECT,TRANS CONT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A)	8-98049-613-1	01	1	0906-
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	0906-
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	0906-
76	NUT; BALL JOINT,SELECT WIRE ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	1-09440-056-0	01	1	1009-
76	NUT; BALL JOINT,SELECT WIRE FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	1-09440-049-0	01	1	0906-1011
76	NUT; BALL JOINT,SELECT WIRE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-049-0	01	1	0906-1011
76	NUT; BALL JOINT,SELECT WIRE MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	1-09440-049-0	01	1	1012-
76	NUT; BALL JOINT,SELECT WIRE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-049-0	01	1	1012-
132	CONNECTOR; FLEX HOSE ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0908-

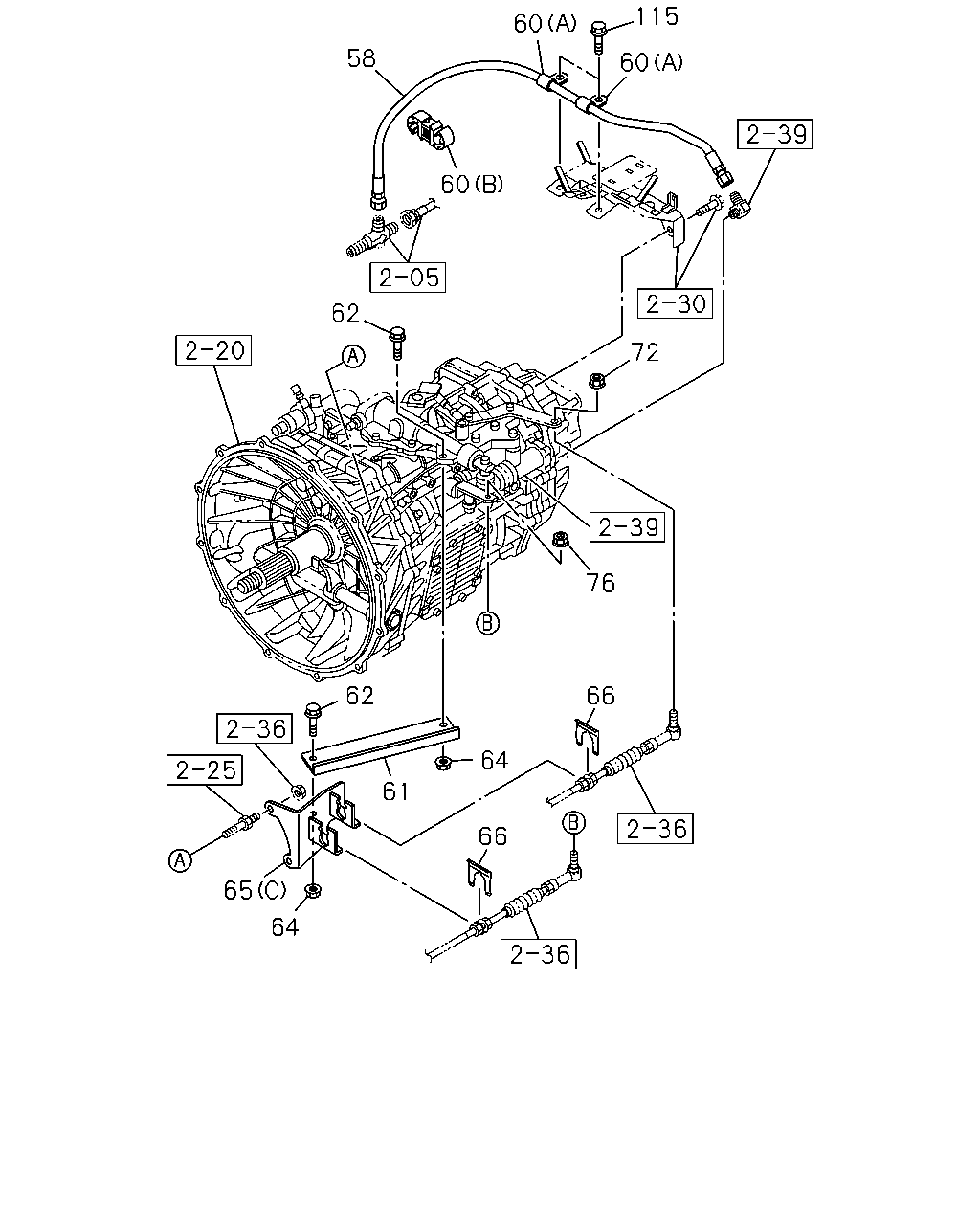

115 60 58 60 60 62 72 76 62 66 64 61 66 65 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
58	HOSE; FLEX,POWER ASSISTOR MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=640	1-09363-626-1	01	1	1012-
60	CLIP; FLEX HOSE MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 L=20	0-95235-235-0	02	1	1012-
60	CLIP; FLEX HOSE MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (B) ID=10 & 10	1-09709-277-1	01	1	1012-
61	STAY; BRKT,TRANS CONT MZW6P M/T(RSZ)	1-33657-267-0	01	1	1012-
62	BOLT; STAY MZW6P M/T(RSZ) M10X30 FLANGE	0-28651-030-0	02	1	1012-
64	NUT; STAY MZW6P M/T(RSZ) M10 FLANGE	0-91180-210-0	02	1	1012-
65	BRACKET; SHIFT TO SELECT,TRANS CONT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (C)	8-98010-160-0	01	1	1012-
65	BRACKET; SHIFT TO SELECT,TRANS CONT MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98017-428-0	01	1	1012-
65	BRACKET; SHIFT TO SELECT,TRANS CONT ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98060-386-0	01	1	1009-
65	BRACKET; SHIFT TO SELECT,TRANS CONT FULLER FSO5206B OD M/T(Y4V) (B)	8-98131-609-0	01	1	0906-
65	BRACKET; SHIFT TO SELECT,TRANS CONT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A)	8-98049-613-1	01	1	0906-
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	0906-
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	0906-
76	NUT; BALL JOINT,SELECT WIRE ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	1-09440-056-0	01	1	1009-
76	NUT; BALL JOINT,SELECT WIRE FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	1-09440-049-0	01	1	0906-1011
76	NUT; BALL JOINT,SELECT WIRE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-049-0	01	1	0906-1011
76	NUT; BALL JOINT,SELECT WIRE MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	1-09440-049-0	01	1	1012-
76	NUT; BALL JOINT,SELECT WIRE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-049-0	01	1	1012-
115	BOLT; CLIP MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28050-816-0	02	1	1012-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
