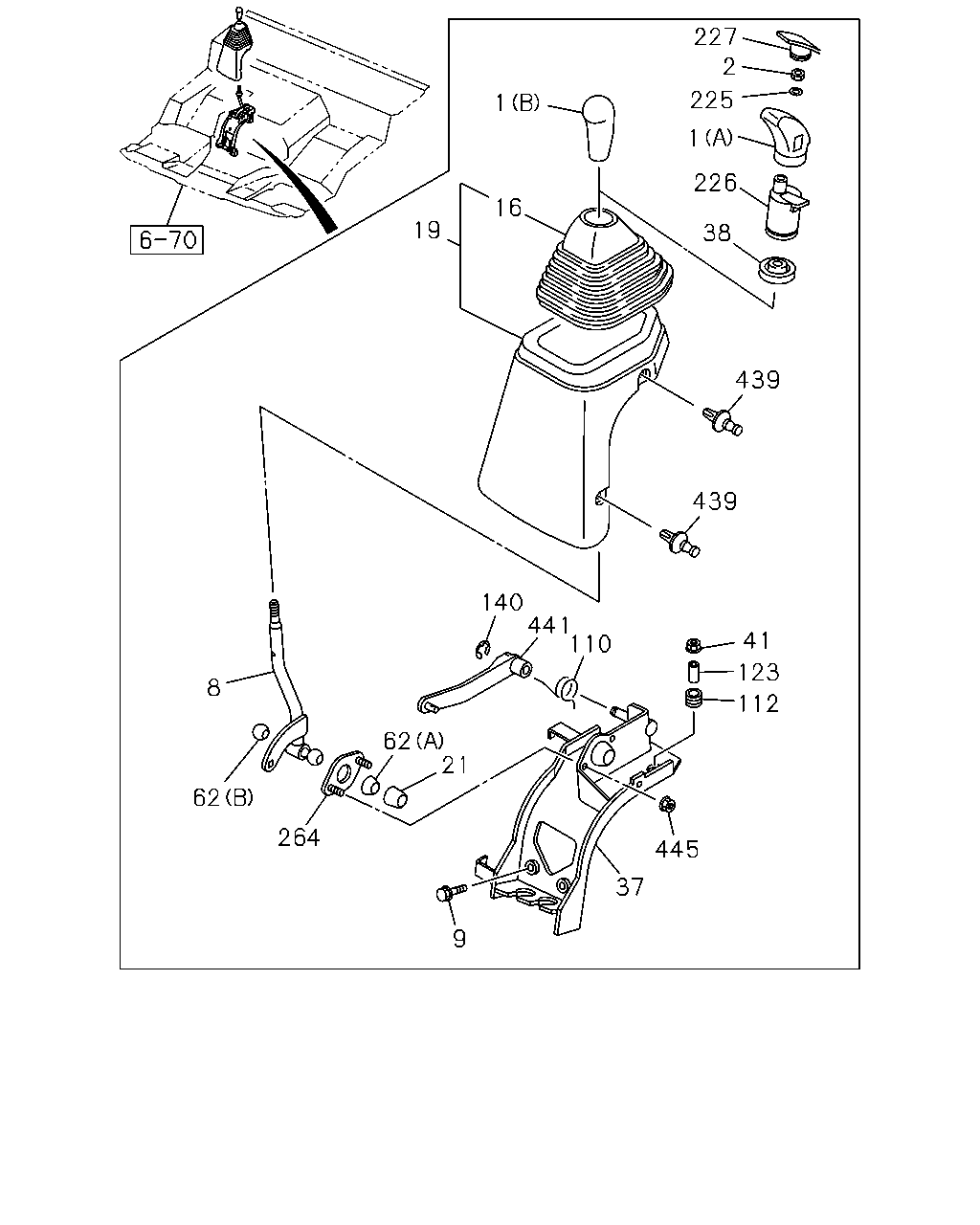

2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#57782) — 117 parça

227 2 225 1 1 226 16 19 38 439 439 140 441 110 41 123 8 112 62 21 62 264 445 37 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	KNOB; CHANGE LEVER ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33611-099-1	01	1	1009-
1	KNOB; CHANGE LEVER FULLER FSO5206B OD M/T(Y4V) (B)	1-33611-070-1	01	1	0906-1011
1	KNOB; CHANGE LEVER MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (B)	1-33611-070-1	01	1	1012-
1	KNOB; CHANGE LEVER ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33611-038-0	01	1	0906-
2	NUT; KNOB ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-210-0	01	1	0906-
8	LEVER; CHANGE MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8>	8-98093-453-0	01	1	1012-1112
8	LEVER; CHANGE MZW6P M/T(RSZ)	8-98093-453-0	01	1	1201-
8	LEVER; CHANGE FULLER FSO5206B OD M/T(Y4V)	8-98093-459-0	01	1	0906-1007
8	LEVER; CHANGE FULLER FSO5206B OD M/T(Y4V)	8-98093-459-0	01	1	1008-1009
8	LEVER; CHANGE EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-459-0	01	1	1010-1011
8	LEVER; CHANGE FULLER FSO5206B OD M/T(Y4V)	8-98093-459-0	01	1	1012-
8	LEVER; CHANGE ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-459-0	01	1	1012-
8	LEVER; CHANGE ASSISTOR SHIFT CONTROL<WX8>	8-98093-454-0	01	1	0906-1011
8	LEVER; CHANGE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98093-454-0	01	1	1012-
9	BOLT; CHANGE LEVER M8X25 W/WAVE&PL WASHER	8-94412-342-0	02	1	0906-
16	BOOT; CHANGE LEVER FULLER FSO5206B OD M/T(Y4V)	1-79998-913-1	01	1	0906-1011
16	BOOT; CHANGE LEVER MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V)	1-79998-913-1	01	1	1012-
16	BOOT; CHANGE LEVER ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-79998-913-1	01	1	1012-
16	BOOT; CHANGE LEVER ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-97893-962-1	01	1	0906-
19	COVER; CHANGE LEVER FULLER FSO5206B OD M/T(Y4V) GRAY	8-97409-847-0	01	1	0906-1011
19	COVER; CHANGE LEVER MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) GRAY	8-97409-847-0	01	1	1012-
19	COVER; CHANGE LEVER ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> GRAY	8-97409-847-0	01	1	1012-
19	COVER; CHANGE LEVER ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> GRAY	8-97411-671-1	01	1	0906-
21	SEAT; CHANGE LEVER	1-33619-429-0	01	1	0906-
37	BRACKET; CHANGE LEVER SUPPORT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8>	8-98093-442-0	01	1	1012-1112
37	BRACKET; CHANGE LEVER SUPPORT MZW6P M/T(RSZ)	8-98093-442-0	01	1	1201-
37	BRACKET; CHANGE LEVER SUPPORT FULLER FSO5206B OD M/T(Y4V)	8-98093-447-0	01	1	0906-1007
37	BRACKET; CHANGE LEVER SUPPORT FULLER FSO5206B OD M/T(Y4V)	8-98093-447-0	01	1	1008-1009
37	BRACKET; CHANGE LEVER SUPPORT EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-447-0	01	1	1010-1011
37	BRACKET; CHANGE LEVER SUPPORT FULLER FSO5206B OD M/T(Y4V)	8-98093-447-0	01	1	1012-
37	BRACKET; CHANGE LEVER SUPPORT ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-447-0	01	1	1012-
37	BRACKET; CHANGE LEVER SUPPORT ASSISTOR SHIFT CONTROL<WX8>	8-98093-451-0	01	1	0906-1011
37	BRACKET; CHANGE LEVER SUPPORT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98093-451-0	01	1	1012-
38	HOLDER; BOOT CHANGE LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98070-460-1	01	1	0906-1011
38	HOLDER; BOOT CHANGE LEVER ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98070-460-1	01	1	1012-
41	NUT; CHANGE LEVER MANUAL TRANSMISSION<X9C> M8 W/DISHED WASHER	8-97329-625-0	02	1	0906-
62	SEAT; BALL,CHANGE LEVER (A)	1-33619-427-0	01	1	0906-
62	SEAT; BALL,CHANGE LEVER (B)	8-97049-147-0	01	1	0906-
110	SPRING; RETURN,CHANGE LEVER FULLER FSO5206B OD M/T(Y4V)	1-33619-435-0	01	1	0906-1007
110	SPRING; RETURN,CHANGE LEVER FULLER FSO5206B OD M/T(Y4V)	1-33619-435-0	01	1	1008-1009
110	SPRING; RETURN,CHANGE LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33619-435-0	01	1	1010-1011
110	SPRING; RETURN,CHANGE LEVER FULLER FSO5206B OD M/T(Y4V)	1-33619-435-0	01	1	1012-
110	SPRING; RETURN,CHANGE LEVER ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33619-435-0	01	1	1012-
110	SPRING; RETURN,CHANGE LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33619-586-0	01	1	0906-1011
110	SPRING; RETURN,CHANGE LEVER MZW6P M/T(RSZ)	1-33619-586-0	01	1	1012-
110	SPRING; RETURN,CHANGE LEVER ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	1-33619-586-0	01	1	1012-
112	RUBBER; CUSHION	1-33619-442-0	04	1	0906-
123	COLLAR; DIST,CHANGE LEVER	1-33619-443-0	04	1	0906-
140	RING; SNAP ID=10	0-91805-510-0	01	1	0906-
225	WASHER; PL,KNOB ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> ID=10.5 OD=22 T=1.6	0-91610-610-0	01	1	0906-
226	VALVE; SELECTOR ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	1-33710-008-0	01	1	0906-
227	COVER; KNOB ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98013-168-0	01	1	0906-
264	PLATE; COVER	1-33619-430-0	01	1	0906-
439	FASTENER; COVER GRAY	8-97407-955-0	04	1	0906-
441	LEVER; SELECT FULLER FSO5206B OD M/T(Y4V)	8-98093-449-0	01	1	0906-1009
441	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-449-0	01	1	1010-1011
441	LEVER; SELECT FULLER FSO5206B OD M/T(Y4V)	8-98093-449-0	01	1	1012-
441	LEVER; SELECT ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-449-0	01	1	1012-
441	LEVER; SELECT ASSISTOR SHIFT CONTROL<WX8>	8-98071-283-0	01	1	0906-1011
441	LEVER; SELECT MZW6P M/T(RSZ)	8-98071-283-0	01	1	1012-
441	LEVER; SELECT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98071-283-0	01	1	1012-
445	NUT; PLATE M6 FLANGE	0-91180-106-0	02	1	0906-

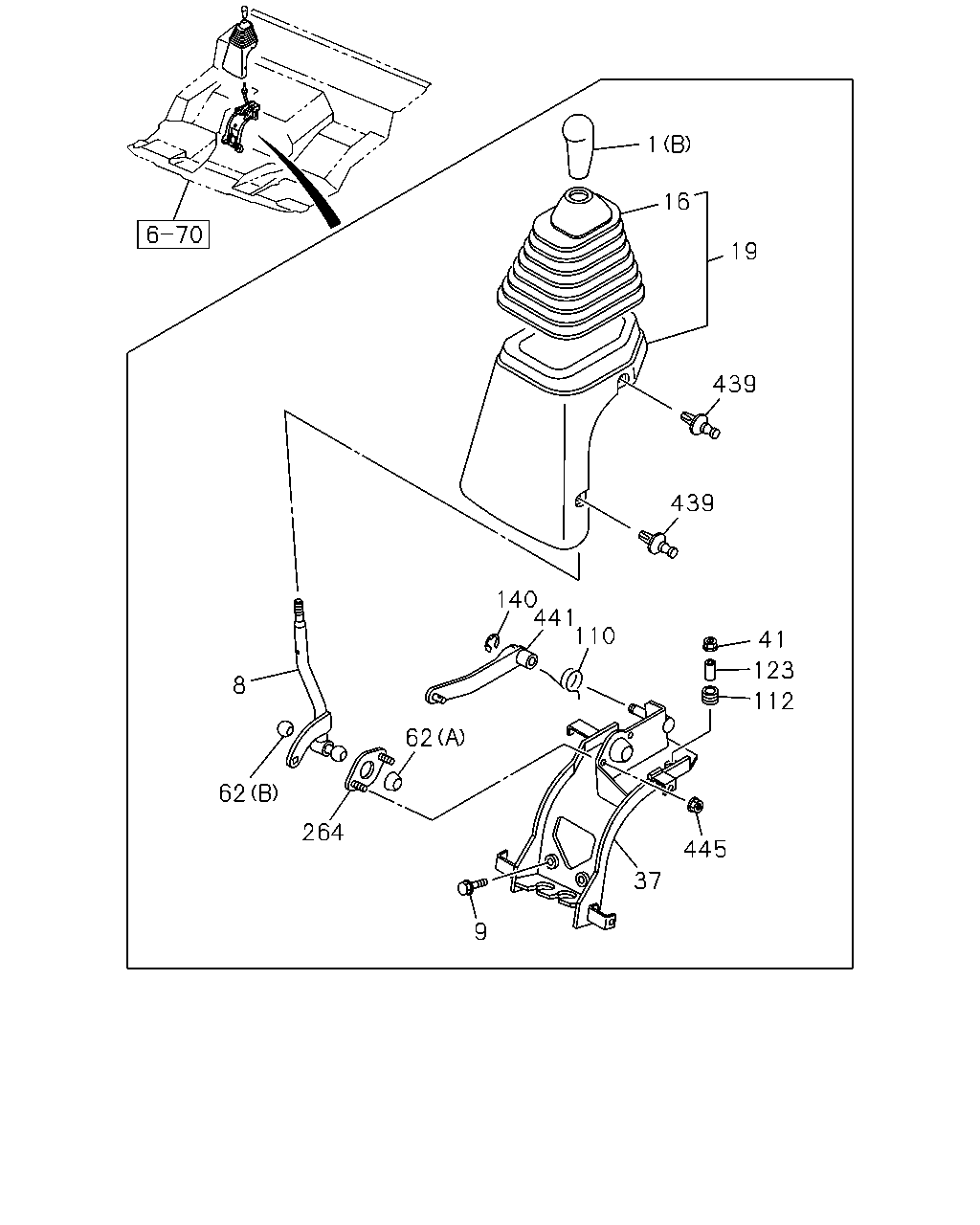

1 16 19 439 439 140 441 110 41 123 8 112 62 62 264 445 37 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	KNOB; CHANGE LEVER ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33611-099-1	01	1	1009-
1	KNOB; CHANGE LEVER FULLER FSO5206B OD M/T(Y4V) (B)	1-33611-070-1	01	1	0906-1011
1	KNOB; CHANGE LEVER MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (B)	1-33611-070-1	01	1	1012-
1	KNOB; CHANGE LEVER ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33611-038-0	01	1	0906-
8	LEVER; CHANGE MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8>	8-98093-453-0	01	1	1012-1112
8	LEVER; CHANGE MZW6P M/T(RSZ)	8-98093-453-0	01	1	1201-
8	LEVER; CHANGE FULLER FSO5206B OD M/T(Y4V)	8-98093-459-0	01	1	0906-1007
8	LEVER; CHANGE FULLER FSO5206B OD M/T(Y4V)	8-98093-459-0	01	1	1008-1009
8	LEVER; CHANGE EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-459-0	01	1	1010-1011
8	LEVER; CHANGE FULLER FSO5206B OD M/T(Y4V)	8-98093-459-0	01	1	1012-
8	LEVER; CHANGE ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-459-0	01	1	1012-
8	LEVER; CHANGE ASSISTOR SHIFT CONTROL<WX8>	8-98093-454-0	01	1	0906-1011
8	LEVER; CHANGE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98093-454-0	01	1	1012-
9	BOLT; CHANGE LEVER M8X25 W/WAVE&PL WASHER	8-94412-342-0	02	1	0906-
16	BOOT; CHANGE LEVER FULLER FSO5206B OD M/T(Y4V)	1-79998-913-1	01	1	0906-1011
16	BOOT; CHANGE LEVER MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V)	1-79998-913-1	01	1	1012-
16	BOOT; CHANGE LEVER ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-79998-913-1	01	1	1012-
16	BOOT; CHANGE LEVER ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-97893-962-1	01	1	0906-
19	COVER; CHANGE LEVER FULLER FSO5206B OD M/T(Y4V) GRAY	8-97409-847-0	01	1	0906-1011
19	COVER; CHANGE LEVER MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) GRAY	8-97409-847-0	01	1	1012-
19	COVER; CHANGE LEVER ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> GRAY	8-97409-847-0	01	1	1012-
19	COVER; CHANGE LEVER ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> GRAY	8-97411-671-1	01	1	0906-
37	BRACKET; CHANGE LEVER SUPPORT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8>	8-98093-442-0	01	1	1012-1112
37	BRACKET; CHANGE LEVER SUPPORT MZW6P M/T(RSZ)	8-98093-442-0	01	1	1201-
37	BRACKET; CHANGE LEVER SUPPORT FULLER FSO5206B OD M/T(Y4V)	8-98093-447-0	01	1	0906-1007
37	BRACKET; CHANGE LEVER SUPPORT FULLER FSO5206B OD M/T(Y4V)	8-98093-447-0	01	1	1008-1009
37	BRACKET; CHANGE LEVER SUPPORT EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-447-0	01	1	1010-1011
37	BRACKET; CHANGE LEVER SUPPORT FULLER FSO5206B OD M/T(Y4V)	8-98093-447-0	01	1	1012-
37	BRACKET; CHANGE LEVER SUPPORT ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-447-0	01	1	1012-
37	BRACKET; CHANGE LEVER SUPPORT ASSISTOR SHIFT CONTROL<WX8>	8-98093-451-0	01	1	0906-1011
37	BRACKET; CHANGE LEVER SUPPORT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98093-451-0	01	1	1012-
41	NUT; CHANGE LEVER MANUAL TRANSMISSION<X9C> M8 W/DISHED WASHER	8-97329-625-0	02	1	0906-
62	SEAT; BALL,CHANGE LEVER (A)	1-33619-427-0	01	1	0906-
62	SEAT; BALL,CHANGE LEVER (B)	8-97049-147-0	01	1	0906-
110	SPRING; RETURN,CHANGE LEVER FULLER FSO5206B OD M/T(Y4V)	1-33619-435-0	01	1	0906-1007
110	SPRING; RETURN,CHANGE LEVER FULLER FSO5206B OD M/T(Y4V)	1-33619-435-0	01	1	1008-1009
110	SPRING; RETURN,CHANGE LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33619-435-0	01	1	1010-1011
110	SPRING; RETURN,CHANGE LEVER FULLER FSO5206B OD M/T(Y4V)	1-33619-435-0	01	1	1012-
110	SPRING; RETURN,CHANGE LEVER ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33619-435-0	01	1	1012-
110	SPRING; RETURN,CHANGE LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33619-586-0	01	1	0906-1011
110	SPRING; RETURN,CHANGE LEVER MZW6P M/T(RSZ)	1-33619-586-0	01	1	1012-
110	SPRING; RETURN,CHANGE LEVER ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	1-33619-586-0	01	1	1012-
112	RUBBER; CUSHION	1-33619-442-0	04	1	0906-
123	COLLAR; DIST,CHANGE LEVER	1-33619-443-0	04	1	0906-
140	RING; SNAP ID=10	0-91805-510-0	01	1	0906-
264	PLATE; COVER	1-33619-430-0	01	1	0906-
439	FASTENER; COVER GRAY	8-97407-955-0	04	1	0906-
441	LEVER; SELECT FULLER FSO5206B OD M/T(Y4V)	8-98093-449-0	01	1	0906-1009
441	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-449-0	01	1	1010-1011
441	LEVER; SELECT FULLER FSO5206B OD M/T(Y4V)	8-98093-449-0	01	1	1012-
441	LEVER; SELECT ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-449-0	01	1	1012-
441	LEVER; SELECT ASSISTOR SHIFT CONTROL<WX8>	8-98071-283-0	01	1	0906-1011
441	LEVER; SELECT MZW6P M/T(RSZ)	8-98071-283-0	01	1	1012-
441	LEVER; SELECT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98071-283-0	01	1	1012-
445	NUT; PLATE M6 FLANGE	0-91180-106-0	02	1	0906-
