2-26C — MANUAL TRANSMISSION GEAR (#57778) — 131 parça

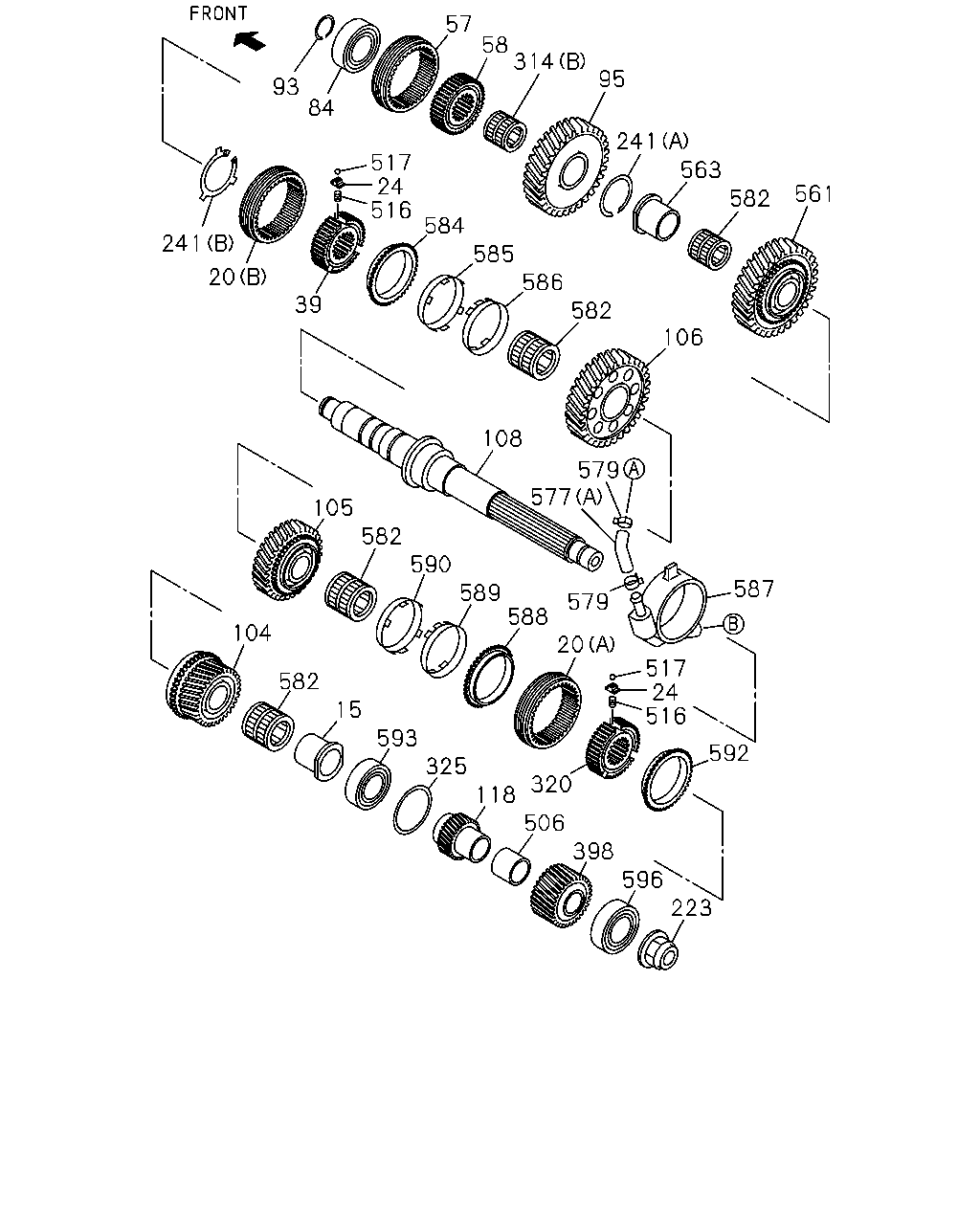

çizim 166265
57 58 314 95 93 84 241 517 24 516 563 561 582 584 241 585 20 586 39 582 106 108 579 577 105 582 590 587 589 588 20 579 104 517 24 516 582 15 593 592 325 320 118 506 398 596 223
BalonParca AdiParca NoAdetTipApplied Date
15 COLLAR; 4TH GEAR 8-98146-345-0 01 1 1012-
20 SLEEVE
(A) Z=45 		8-97241-296-1 02 1 1012-1210
20 SLEEVE
(A) Z=45 		8-97241-296-1 03 1 1211-1308
20 SLEEVE
(A) Z=45 		8-97241-296-1 02 1 1309-1311
20 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1312-
20 SLEEVE
(B) Z=45 		8-98034-769-0 01 1 1012-1210
20 SLEEVE
(B) Z=45 		8-98034-769-0 01 1 1309-
24 BLOCK; INDEX,SYN 8-97241-313-1 09 1 1012-
39 HUB; CLU,LOW & 2ND
Z=45 		8-98075-732-0 01 1 1012-
57 SLEEVE; REV
Z=45 		8-94421-871-1 01 1 1012-
58 HUB; CLU,REV
Z=45-27 		8-98005-296-0 01 1 1012-
84 BEARING; COUNTER SHAFT,FRT 8-97377-957-0 01 1 1012-
93 RING; SNAP,COUNTER FRT BRG 8-97377-958-0 01 1 1012-
95 GEAR; REV,COUNTER
Z=44 		8-98005-229-0 01 1 1012-
104 GEAR; 4TH,COUNTER
Z=29 		8-98168-502-0 01 1 1012-1203
104 GEAR; 4TH,COUNTER
Z=29 		8-98198-297-0 01 1 1204-
105 GEAR; 3RD,COUNTER
Z=35 		8-98168-501-0 01 1 1012-
106 GEAR; 2ND,COUNTER
Z=44 		8-98140-884-0 01 1 1012-
108 SHAFT; COUNTER
Z=27-42-26 		8-98160-120-0 01 1 1012-1209
108 SHAFT; COUNTER
Z=27-42-26 		8-98223-607-0 01 1 1210-
118 GEAR; 6TH,COUNTER
Z=17 		8-98005-292-1 01 1 1012-
223 NUT; COUNTER SHAFT END
M34 FLANGE 		8-98005-894-0 01 1 1012-
241 RING; SNAP
(A) ID=46.5 T=1.8 		8-97254-743-0 01 1 1012-
241 RING; SNAP
(B) ID=96 T=2.5 		8-98009-391-0 01 1 1012-
314 BEARING; NEEDLE,REV GEAR
(A) KOYO 		1-09811-017-0 02 1 1012-
314 BEARING; NEEDLE,REV GEAR
(B) NSK 		8-97253-111-0 01 1 1012-
320 HUB; CLU,4TH & 3RD 8-98075-733-0 01 1 1012-
325 SHIM; COUNTER SHAFT BRG
T=1.56 		8-97377-994-0 01 1 1012-
325 SHIM; COUNTER SHAFT BRG
T=1.62 		8-97377-995-0 01 1 1012-
325 SHIM; COUNTER SHAFT BRG
T=1.68 		8-97377-996-0 01 1 1012-
325 SHIM; COUNTER SHAFT BRG
T=1.74 		8-97377-997-0 01 1 1012-
325 SHIM; COUNTER SHAFT BRG
T=1.80 		8-97377-998-0 01 1 1012-
325 SHIM; COUNTER SHAFT BRG
T=1.26 		8-98009-373-0 01 1 1012-
325 SHIM; COUNTER SHAFT BRG
T=1.32 		8-98009-374-0 01 1 1012-
325 SHIM; COUNTER SHAFT BRG
T=1.38 		8-98009-375-0 01 1 1012-
325 SHIM; COUNTER SHAFT BRG
T=1.44 		8-98009-376-0 01 1 1012-
325 SHIM; COUNTER SHAFT BRG
T=1.50 		8-98009-377-0 01 1 1012-
325 SHIM; COUNTER SHAFT BRG
T=1.14 		8-98022-218-0 01 1 1012-
325 SHIM; COUNTER SHAFT BRG
T=1.20 		8-98022-219-0 01 1 1012-
398 GEAR; COUNTER
Z=22 		8-97380-568-0 01 1 1012-
506 COLLAR; 6TH,COUNTER 8-97377-965-0 01 1 1012-
516 SPRING; SYNCHRO,INDEX 8-98032-197-0 09 1 1012-
517 BALL; SYNCHRO,INDEX 8-97252-935-0 09 1 1012-
561 GEAR; LOW,COUNTER
Z=44 		8-98000-330-0 01 1 1012-
563 COLLAR; 1ST GEAR 8-98146-345-0 01 1 1012-
577 HOSE; OIL PUMP
(A) 		8-98033-981-0 02 1 1012-
577 HOSE; OIL PUMP
(B) 		8-98033-982-0 01 1 1012-
579 CLAMP; HOSE
ID=16 		8-97329-628-0 06 1 1012-1205
579 CLAMP; HOSE
ID=16 		8-97329-628-0 07 1 1206-
582 BEARING; NEEDLE,COUNTER GEAR 8-97253-110-0 04 1 1012-
584 RING; BLOCK,2ND
Z=45 		8-98034-770-0 01 1 1012-1210
584 RING; BLOCK,2ND
Z=45 		8-98223-605-1 01 1 1211-1308
584 RING; BLOCK,2ND
Z=45 		8-98034-770-0 01 1 1309-
585 RING; OUTSIDE,2ND 8-97241-309-1 01 1 1012-
586 RING; INSIDE,2ND 8-97241-312-1 01 1 1012-1210
586 RING; INSIDE,2ND 8-98223-606-1 01 1 1211-1308
586 RING; INSIDE,2ND 8-97241-312-1 01 1 1309-
587 CASE; PUMP,COUNTER 8-97377-959-0 01 1 1012-1205
587 CASE; PUMP,COUNTER 8-98212-196-0 01 1 1206-
588 RING; BLOCK,3RD
Z=45 		8-97241-306-1 01 1 1012-1209
588 RING; BLOCK,3RD
Z=45 		8-98223-605-1 01 1 1210-1308
588 RING; BLOCK,3RD
Z=45 		8-97241-306-1 01 1 1309-
589 RING; OUTSIDE,3RD 8-97241-309-1 01 1 1012-
590 RING; INSIDE,3RD 8-97241-312-1 01 1 1012-1209
590 RING; INSIDE,3RD 8-98223-606-1 01 1 1210-1308
590 RING; INSIDE,3RD 8-97241-312-1 01 1 1309-
592 RING; BLOCK,4TH
Z=45 		8-97241-306-1 01 1 1012-
593 BEARING; COUNTER MIDDLE 8-97377-976-0 01 1 1012-
596 BEARING; ROOLER,COUNTER END 8-97377-968-0 01 1 1012-

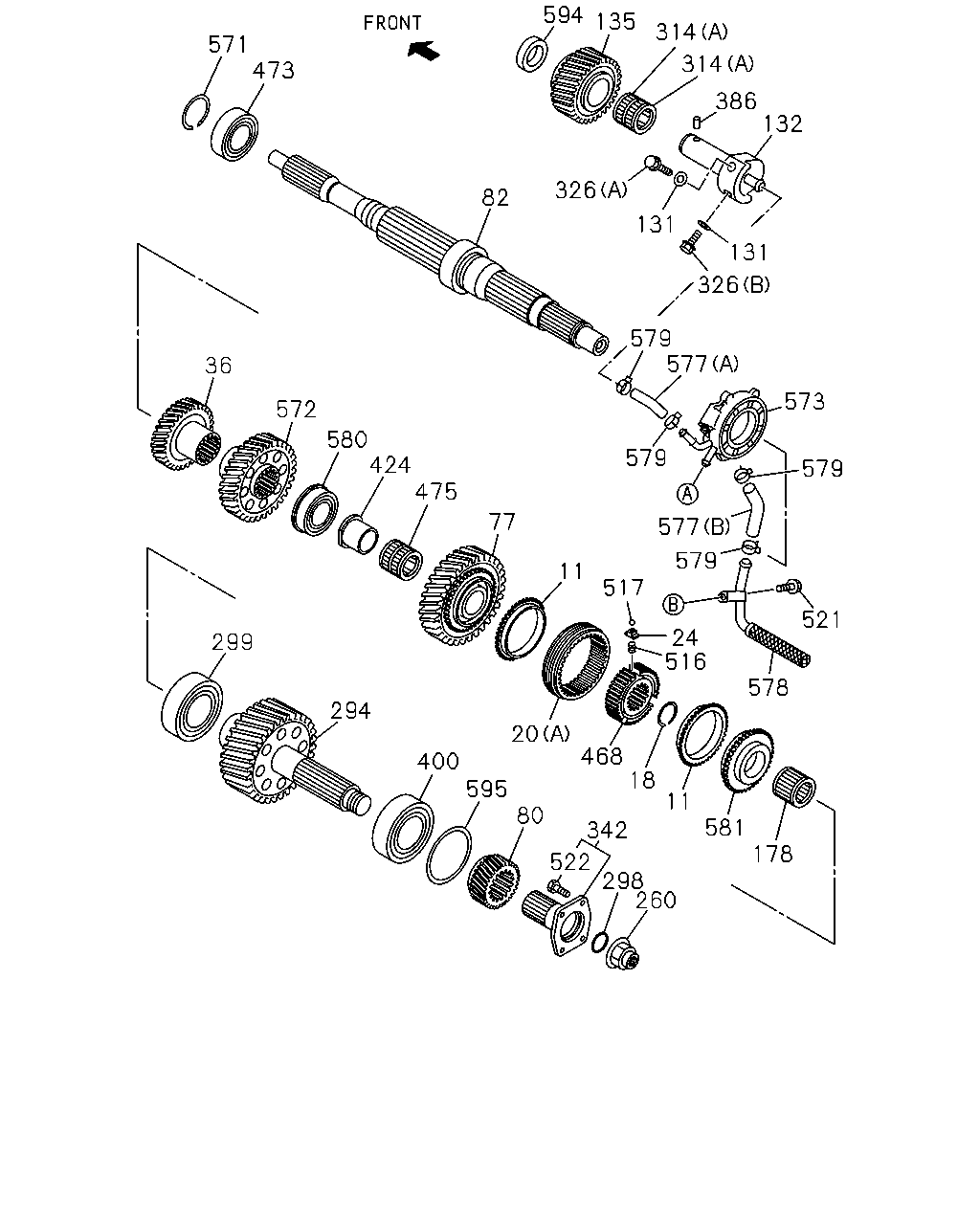

çizim 166283
594 135 314 571 473 314 386 132 326 82 131 131 326 579 577 36 573 572 580 424 475 579 579 77 577 579 11 517 521 24 516 299 578 294 20 468 18 400 595 80 11 581 342 178 522 298 260
BalonParca AdiParca NoAdetTipApplied Date
11 RING; BLOCK,5TH & 6TH
Z=45 		8-97241-306-1 02 1 1012-
18 RING; SNAP,CLU HUB
ID=35.7 T=1.8 		8-97256-855-0 01 1 1012-
20 SLEEVE
(A) Z=45 		8-97241-296-1 02 1 1012-1210
20 SLEEVE
(A) Z=45 		8-97241-296-1 03 1 1211-1308
20 SLEEVE
(A) Z=45 		8-97241-296-1 02 1 1309-1311
20 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1312-
20 SLEEVE
(B) Z=45 		8-98034-769-0 01 1 1012-1210
20 SLEEVE
(B) Z=45 		8-98034-769-0 01 1 1309-
24 BLOCK; INDEX,SYN 8-97241-313-1 09 1 1012-
36 GEAR; 3RD,MAINSHAFT
Z=29 		8-98168-499-0 01 1 1012-
77 GEAR; 6TH,MAINSHAFT
Z=46 		8-98049-406-1 01 1 1012-1203
77 GEAR; 6TH,MAINSHAFT
Z=46 		8-98137-256-0 01 1 1204-
80 GEAR; SPD DRIVE
Z=5 		8-97377-978-0 01 1 1012-
82 SHAFT; MAIN,TRANS
Z=13-21-19-26 		8-98140-880-0 01 1 1012-1308
82 SHAFT; MAIN,TRANS
Z=13-21-19-26 		8-98245-057-0 01 1 1309-
131 GASKET; REV SHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=10.2 OD=16.0 		9-09571-410-0 02 1 1012-
132 SHAFT; REV 8-98009-372-0 01 1 1012-
135 GEAR; REV IDLER
Z=27 		8-98005-601-1 01 1 1012-
178 BEARING; NEEDLE,MAINSHAFT 8-97253-099-1 01 1 1012-
260 NUT; MAINSHAFT END
M36 FLANGE 		8-98014-140-0 01 1 1012-
294 SHAFT; OUTPUT
Z=43 		8-97380-571-0 01 1 1012-
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5 		1-09623-380-0 01 1 1012-
299 BEARING; OUTPUT SHAFT FRT 8-97377-970-0 01 1 1012-
314 BEARING; NEEDLE,REV GEAR
(A) KOYO 		1-09811-017-0 02 1 1012-
314 BEARING; NEEDLE,REV GEAR
(B) NSK 		8-97253-111-0 01 1 1012-
326 BOLT; REV SHAFT
(A) M10X50 FLANGE 		0-29261-050-0 01 1 1012-
326 BOLT; REV SHAFT
(B) M10X50 		8-98014-738-0 01 1 1012-
342 FLANGE; OUTPUT 8-98155-332-0 01 1 1012-
386 PIN; REV SHAFT 9-08150-408-0 01 1 1012-
400 BEARING; OUTPUT SHAFT RR 8-97377-977-0 01 1 1012-
424 COLLAR; 6TH GEAR 8-98125-318-0 01 1 1012-
468 HUB; CLU,5TH & 6TH 8-98075-734-0 01 1 1012-
473 BEARING; INPUT SHAFT 8-97377-950-0 01 1 1012-
475 BEARING; 6TH
COLLAR OD=-49.999 		8-98101-505-0 01 1 1012-
475 BEARING; 6TH
COLLAR OD=50.000- 		8-98142-265-0 01 1 1012-
516 SPRING; SYNCHRO,INDEX 8-98032-197-0 09 1 1012-
517 BALL; SYNCHRO,INDEX 8-97252-935-0 09 1 1012-
521 BOLT
M8X12 FLANGE 		0-28050-812-0 01 1 1012-
522 BOLT; FLANGE
M16X51 W/MARK 		1-46219-086-0 04 1 1012-
571 RING; SNAP,BRG 8-97377-951-0 01 1 1012-
572 GEAR; 4TH,INPUT
Z=37 		8-98168-500-0 01 1 1012-
573 PUMP ASM; OIL 8-98044-683-0 01 1 1012-1205
573 PUMP ASM; OIL 8-98212-241-0 01 1 1206-
577 HOSE; OIL PUMP
(A) 		8-98033-981-0 02 1 1012-
577 HOSE; OIL PUMP
(B) 		8-98033-982-0 01 1 1012-
578 SCREEN; OIL PUMP 8-98009-345-0 01 1 1012-
579 CLAMP; HOSE
ID=16 		8-97329-628-0 06 1 1012-1205
579 CLAMP; HOSE
ID=16 		8-97329-628-0 07 1 1206-
580 BEARING; MAINSHAFT RR 8-97377-953-0 01 1 1012-
581 CLUTCH; DOG,5TH GEAR 8-97377-956-0 01 1 1012-
594 WASHER; THRUST,REV IDLE 8-98005-633-0 01 1 1012-
595 SHIM; OUTPUT SHAFT
T=1.44 		8-97377-984-0 01 1 1012-
595 SHIM; OUTPUT SHAFT
T=1.50 		8-97377-985-0 01 1 1012-
595 SHIM; OUTPUT SHAFT
T=1.56 		8-97377-986-0 01 1 1012-
595 SHIM; OUTPUT SHAFT
T=1.62 		8-97377-987-0 01 1 1012-
595 SHIM; OUTPUT SHAFT
T=1.68 		8-97377-988-0 01 1 1012-
595 SHIM; OUTPUT SHAFT
T=1.74 		8-97377-989-0 01 1 1012-
595 SHIM; OUTPUT SHAFT
T=1.80 		8-97377-990-0 01 1 1012-
595 SHIM; OUTPUT SHAFT
T=1.86 		8-97377-991-0 01 1 1012-
595 SHIM; OUTPUT SHAFT
T=1.38 		8-98009-379-0 01 1 1012-
595 SHIM; OUTPUT SHAFT
T=1.26 		8-98022-221-0 01 1 1012-
595 SHIM; OUTPUT SHAFT
T=1.32 		8-98022-222-0 01 1 1012-
