Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#57764) — 218 parça

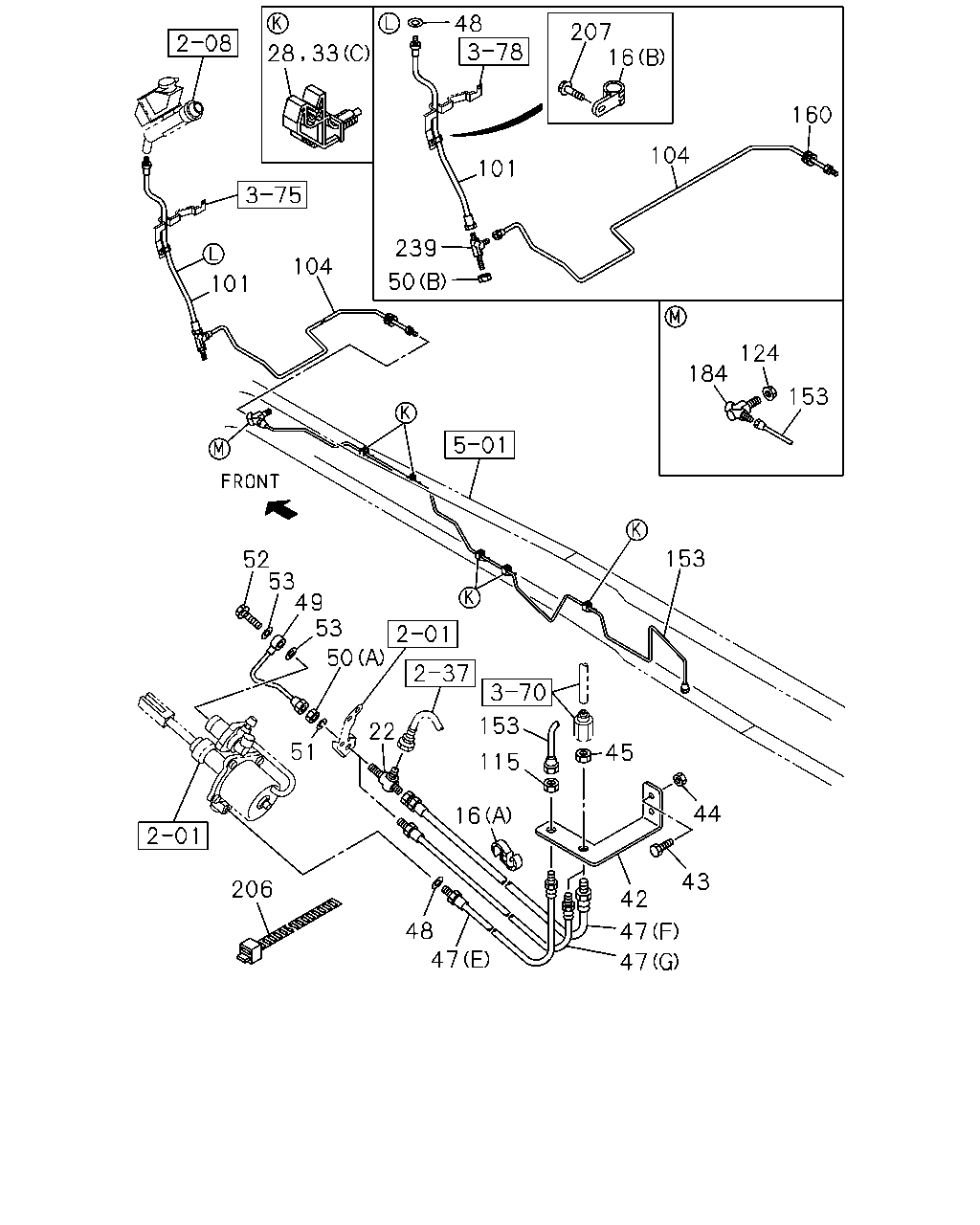

106 48 101 33 239 50 160 180 104 124 109 106 49 53 153 52 53 131 115 116 44 115 47 45 46 43 42 47 47 47 48 207 16 34 29 33 28 35 26 46 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; FLEX HOSE (B) ID=18 L=28	1-09701-067-0	01	1	0906-
16	CLIP; FLEX HOSE (A) ID=10 & 12	1-09709-278-1	01	1	0906-
26	NUT; CLIP,OIL PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	01	1	0906-
28	CLIP; OIL PIPE MZW6P M/T(RSZ) ID=6.35	1-09701-247-1	01	1	1012-
28	CLIP; OIL PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ID=8 H=20 L=20	1-09700-604-0	01	1	0906-
29	BOLT; CLIP,OIL PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	01	1	0906-0906
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	01	1	0907-
29	BOLT; CLIP,OIL PIPE FULLER FSO5206B OD M/T(Y4V) M8X25 FLANGE	0-28650-825-0	01	1	0906-
33	CLIP; OIL PIPE MZW6P M/T(RSZ) (C) ID=6.35	1-09701-247-1	05	1	1012-
33	CLIP; OIL PIPE FULLER FSO5206B OD M/T(Y4V) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	0906-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	0906-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (A) ID=8.3 & 10	8-94176-792-0	01	1	0906-
34	BOLT; PIPE CLIP FULLER FSO5206B OD M/T(Y4V) M8X30 FLANGE	0-28650-830-0	05	1	0906-
34	BOLT; PIPE CLIP ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	03	1	0906-
35	NUT; PIPE CLIP FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	0-91180-108-0	05	1	0906-
35	NUT; PIPE CLIP ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	03	1	0906-
42	BRACKET; FLEX HOSE,CLU CONT MZW6P M/T(RSZ)	8-98105-654-0	01	1	1012-
42	BRACKET; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V)	8-98100-603-0	01	1	0906-
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E)	8-98099-521-1	01	1	0906-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0906-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0906-
45	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) M12	9-09840-280-0	01	1	1012-
45	NUT; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M12	9-09840-280-0	02	1	0906-
46	WASHER; LK,FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ID=12.2	0-91510-512-0	02	1	0906-1011
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) (E) L=375	1-09364-407-0	01	1	1012-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (F) L=380	1-09363-884-0	01	1	1012-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (G) L=470	1-09363-716-0	01	1	1012-
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (C) L=430	1-09363-726-0	01	1	0906-
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (D) L=330	1-09364-607-0	01	1	0906-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (A) L=500	1-09363-720-0	01	1	0906-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (B) L=500	1-09364-329-0	01	1	0906-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	0906-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZW6P M/T(RSZ) L=239	1-49117-401-0	01	1	1012-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER FSO5206B OD M/T(Y4V)	1-49116-838-0	01	1	0906-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T(Y5E) L=232	1-49124-795-0	01	1	0906-
50	NUT; UNION MZW6P M/T(RSZ) (A) M12	9-09840-280-0	01	1	1012-
50	NUT; UNION (B) M12	0-91111-512-0	01	1	0906-
51	WASHER; LK MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-812-0	01	1	1012-
51	WASHER; LK FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ID=12.2	0-91510-812-0	01	1	1012-
51	WASHER; LK MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-512-0	01	1	1012-
52	BOLT; EYE,AIR PIPE ZF9S1110 M/T(Y5E) M14X27 FLANGE	1-09675-086-0	01	1	0906-1011
52	BOLT; EYE,AIR PIPE MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) M14X27 FLANGE	1-09675-086-0	01	1	1012-
53	GASKET; JOINT BOLT ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	1-09630-085-0	02	1	0906-1011
53	GASKET; JOINT BOLT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	1-09630-085-0	02	1	1012-1312
53	GASKET; JOINT BOLT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=530	8-98072-348-0	01	1	0906-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T(RSZ) L=1270 SERVICED BY L=1370	1-47428-734-0	01	1	1012-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FSO5206B OD M/T(Y4V) L=1235 SERVICED BY L=1250	1-47428-764-0	01	1	0906-0907
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FSO5206B OD M/T(Y4V) L=1225 SERVICED BY L=1250	1-47428-764-0	01	1	0908-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=510 SERVICED BY L=550	1-47428-753-0	01	1	0906-0907
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=512 SERVICED BY L=550	1-47428-753-0	01	1	0908-
106	UNION; OIL PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	0906-
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) (A) M14 STRAIGHT	0-92113-008-0	01	1	0906-
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T(Y5E) L=719 SERVICED BY L=730	1-47428-758-0	01	1	0906-
115	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) M12	9-09840-280-0	01	1	1012-
115	NUT; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M14	0-91111-514-0	01	1	0906-
116	WASHER; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ID=14.2	0-91510-814-0	01	1	0906-1011
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	0906-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> L=203	8-98100-103-0	01	1	0906-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0906-
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T(RSZ) L=2749	8-98152-243-0	01	1	1012-
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743 SERVICED BY L=3000	1-47428-773-0	01	1	0906-0907
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743	8-98152-245-0	01	1	0908-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	0906-
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	0906-
180	PLUG; PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) PT1/4	9-99204-513-0	01	1	0906-
207	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0906-
239	UNION; CLU HOSE MZW6P M/T(RSZ) M12 2WAY	1-09654-059-2	01	1	1012-
239	UNION; CLU HOSE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M12 & M14 2WAY	1-09654-141-2	01	1	0906-

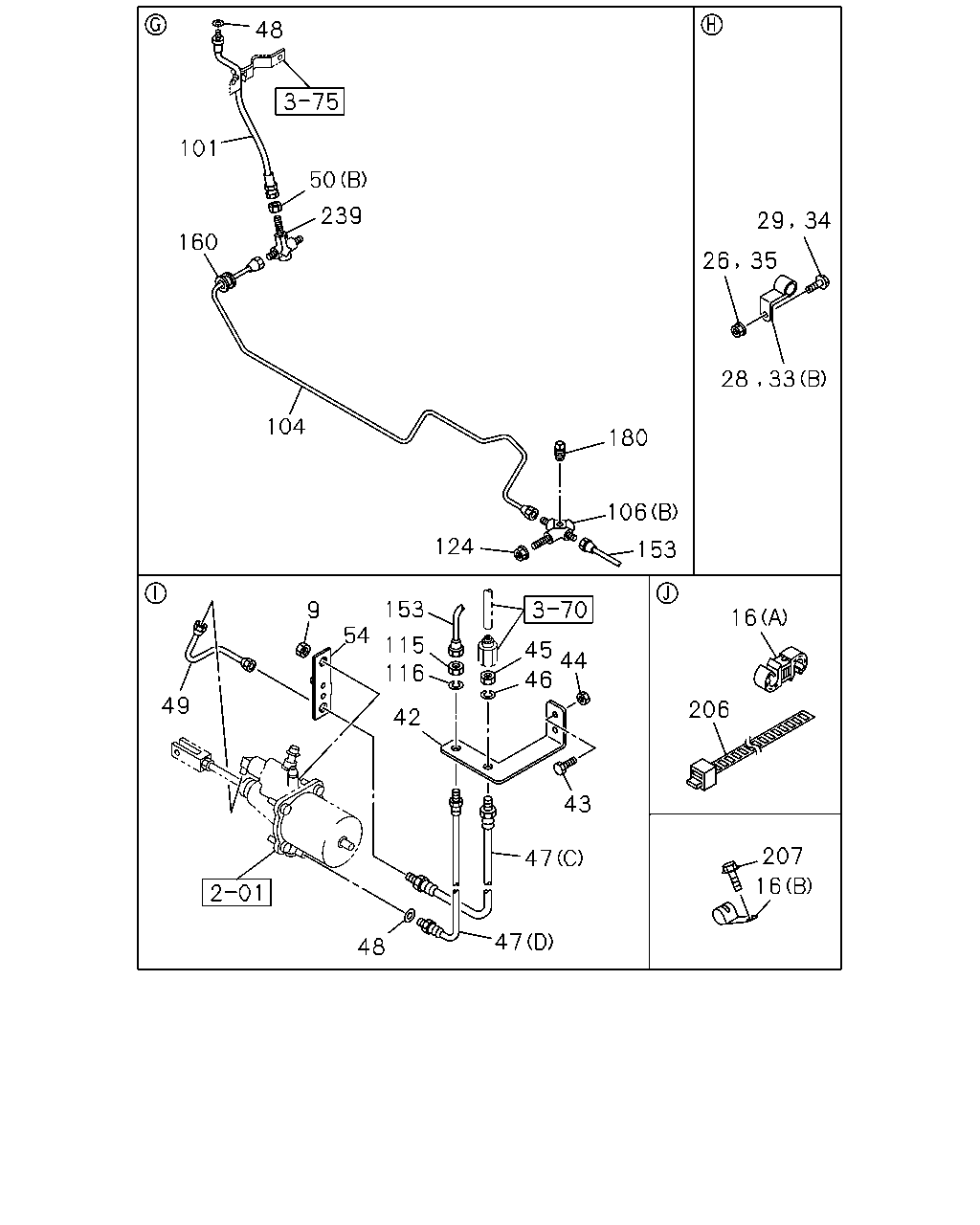

48 101 50 239 29 34 160 26 35 104 180 106 124 153 153 9 16 54 115 116 45 44 46 49 206 42 43 207 47 16 47 48 28 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	NUT; BRKT,FLEX HOSE FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	0-91180-208-0	02	1	0906-
16	CLIP; FLEX HOSE (B) ID=18 L=28	1-09701-067-0	01	1	0906-
16	CLIP; FLEX HOSE (A) ID=10 & 12	1-09709-278-1	01	1	0906-
26	NUT; CLIP,OIL PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	01	1	0906-
28	CLIP; OIL PIPE MZW6P M/T(RSZ) ID=6.35	1-09701-247-1	01	1	1012-
28	CLIP; OIL PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ID=8 H=20 L=20	1-09700-604-0	01	1	0906-
29	BOLT; CLIP,OIL PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	01	1	0906-0906
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	01	1	0907-
29	BOLT; CLIP,OIL PIPE FULLER FSO5206B OD M/T(Y4V) M8X25 FLANGE	0-28650-825-0	01	1	0906-
33	CLIP; OIL PIPE MZW6P M/T(RSZ) (C) ID=6.35	1-09701-247-1	05	1	1012-
33	CLIP; OIL PIPE FULLER FSO5206B OD M/T(Y4V) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	0906-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	0906-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (A) ID=8.3 & 10	8-94176-792-0	01	1	0906-
34	BOLT; PIPE CLIP FULLER FSO5206B OD M/T(Y4V) M8X30 FLANGE	0-28650-830-0	05	1	0906-
34	BOLT; PIPE CLIP ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	03	1	0906-
35	NUT; PIPE CLIP FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	0-91180-108-0	05	1	0906-
35	NUT; PIPE CLIP ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	03	1	0906-
42	BRACKET; FLEX HOSE,CLU CONT MZW6P M/T(RSZ)	8-98105-654-0	01	1	1012-
42	BRACKET; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V)	8-98100-603-0	01	1	0906-
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E)	8-98099-521-1	01	1	0906-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0906-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0906-
45	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) M12	9-09840-280-0	01	1	1012-
45	NUT; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M12	9-09840-280-0	02	1	0906-
46	WASHER; LK,FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ID=12.2	0-91510-512-0	02	1	0906-1011
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) (E) L=375	1-09364-407-0	01	1	1012-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (F) L=380	1-09363-884-0	01	1	1012-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (G) L=470	1-09363-716-0	01	1	1012-
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (C) L=430	1-09363-726-0	01	1	0906-
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (D) L=330	1-09364-607-0	01	1	0906-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (A) L=500	1-09363-720-0	01	1	0906-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (B) L=500	1-09364-329-0	01	1	0906-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	0906-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZW6P M/T(RSZ) L=239	1-49117-401-0	01	1	1012-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER FSO5206B OD M/T(Y4V)	1-49116-838-0	01	1	0906-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T(Y5E) L=232	1-49124-795-0	01	1	0906-
50	NUT; UNION MZW6P M/T(RSZ) (A) M12	9-09840-280-0	01	1	1012-
50	NUT; UNION (B) M12	0-91111-512-0	01	1	0906-
54	BRACKET; AIR,FLEX HOSE FULLER FSO5206B OD M/T(Y4V)	1-47475-372-0	01	1	0906-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=530	8-98072-348-0	01	1	0906-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T(RSZ) L=1270 SERVICED BY L=1370	1-47428-734-0	01	1	1012-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FSO5206B OD M/T(Y4V) L=1235 SERVICED BY L=1250	1-47428-764-0	01	1	0906-0907
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FSO5206B OD M/T(Y4V) L=1225 SERVICED BY L=1250	1-47428-764-0	01	1	0908-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=510 SERVICED BY L=550	1-47428-753-0	01	1	0906-0907
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=512 SERVICED BY L=550	1-47428-753-0	01	1	0908-
106	UNION; OIL PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	0906-
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) (A) M14 STRAIGHT	0-92113-008-0	01	1	0906-
115	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) M12	9-09840-280-0	01	1	1012-
115	NUT; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M14	0-91111-514-0	01	1	0906-
116	WASHER; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ID=14.2	0-91510-814-0	01	1	0906-1011
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	0906-
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T(RSZ) L=2749	8-98152-243-0	01	1	1012-
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743 SERVICED BY L=3000	1-47428-773-0	01	1	0906-0907
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743	8-98152-245-0	01	1	0908-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	0906-
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	0906-
180	PLUG; PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) PT1/4	9-99204-513-0	01	1	0906-
206	CLIP; TUBE FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) L=350	1-09707-183-0	01	1	0906-1011
206	CLIP; TUBE MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) L=350	1-09707-183-0	01	1	1012-
207	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0906-
239	UNION; CLU HOSE MZW6P M/T(RSZ) M12 2WAY	1-09654-059-2	01	1	1012-
239	UNION; CLU HOSE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M12 & M14 2WAY	1-09654-141-2	01	1	0906-

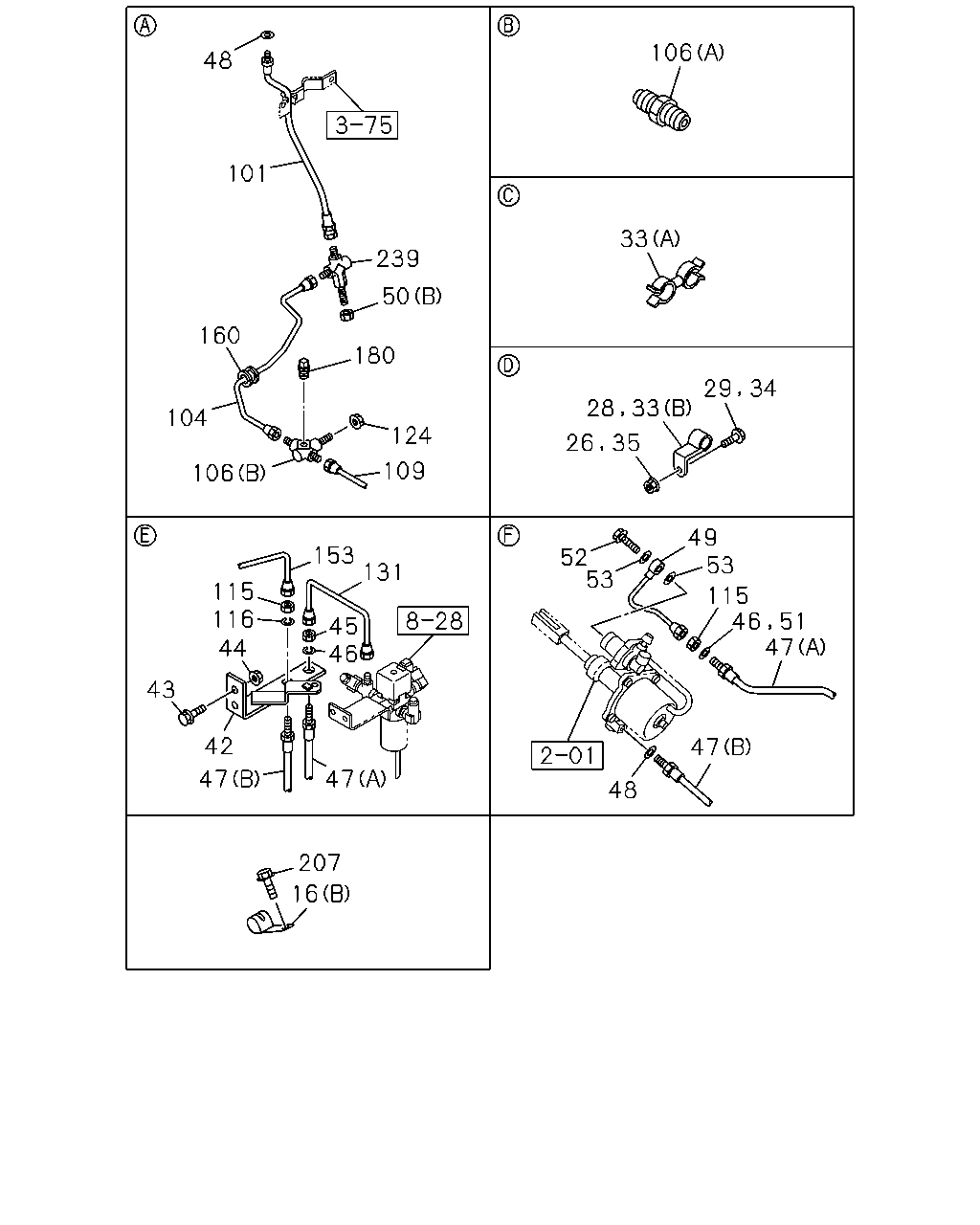

109 47 153 131 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) (E) L=375	1-09364-407-0	01	1	1012-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (F) L=380	1-09363-884-0	01	1	1012-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (G) L=470	1-09363-716-0	01	1	1012-
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (C) L=430	1-09363-726-0	01	1	0906-
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (D) L=330	1-09364-607-0	01	1	0906-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (A) L=500	1-09363-720-0	01	1	0906-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (B) L=500	1-09364-329-0	01	1	0906-
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T(Y5E) L=719 SERVICED BY L=730	1-47428-758-0	01	1	0906-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> L=203	8-98100-103-0	01	1	0906-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0906-
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T(RSZ) L=2749	8-98152-243-0	01	1	1012-
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743 SERVICED BY L=3000	1-47428-773-0	01	1	0906-0907
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743	8-98152-245-0	01	1	0908-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	0906-

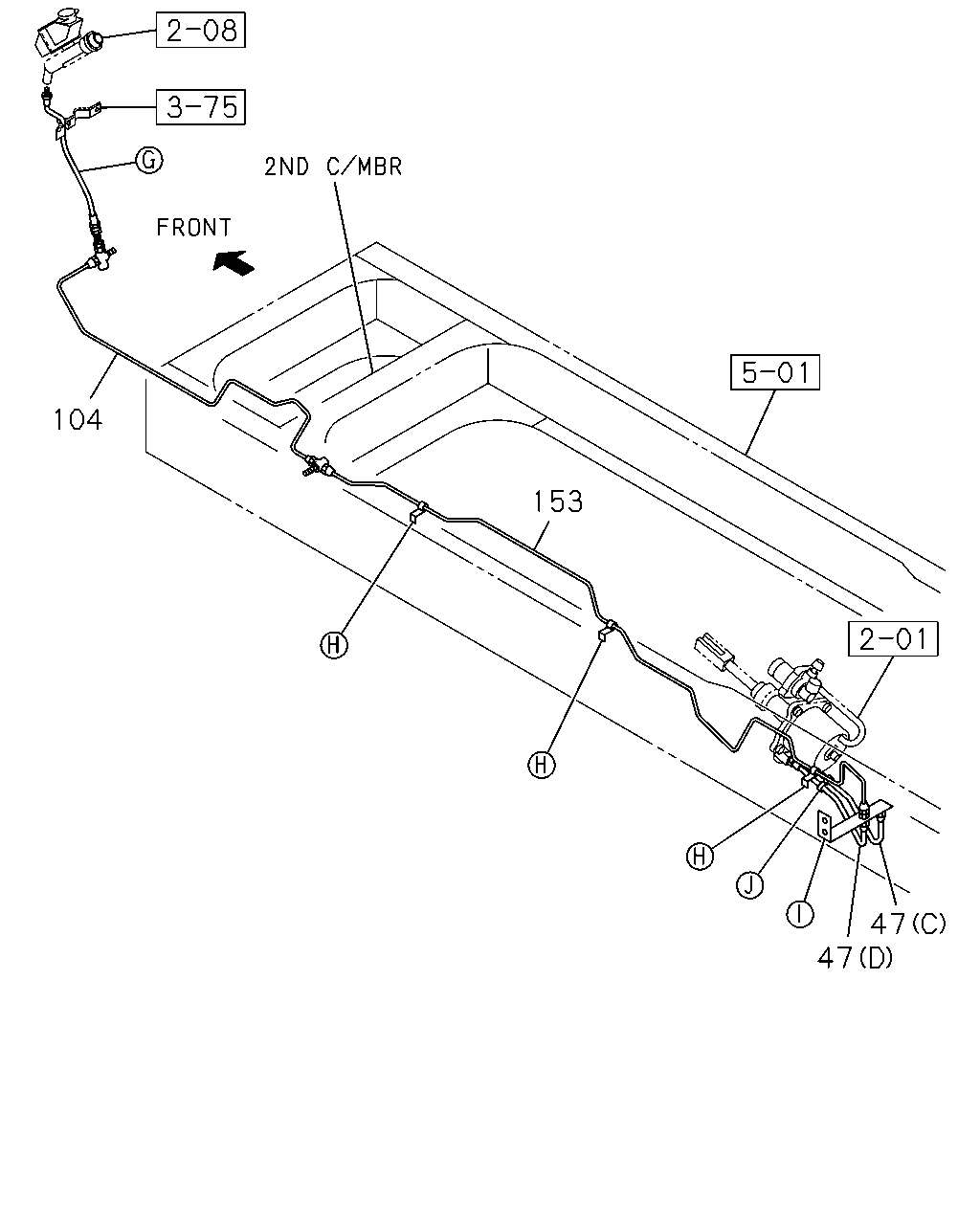

104 153 47 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) (E) L=375	1-09364-407-0	01	1	1012-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (F) L=380	1-09363-884-0	01	1	1012-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (G) L=470	1-09363-716-0	01	1	1012-
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (C) L=430	1-09363-726-0	01	1	0906-
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (D) L=330	1-09364-607-0	01	1	0906-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (A) L=500	1-09363-720-0	01	1	0906-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (B) L=500	1-09364-329-0	01	1	0906-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T(RSZ) L=1270 SERVICED BY L=1370	1-47428-734-0	01	1	1012-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FSO5206B OD M/T(Y4V) L=1235 SERVICED BY L=1250	1-47428-764-0	01	1	0906-0907
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FSO5206B OD M/T(Y4V) L=1225 SERVICED BY L=1250	1-47428-764-0	01	1	0908-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=510 SERVICED BY L=550	1-47428-753-0	01	1	0906-0907
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=512 SERVICED BY L=550	1-47428-753-0	01	1	0908-
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T(RSZ) L=2749	8-98152-243-0	01	1	1012-
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743 SERVICED BY L=3000	1-47428-773-0	01	1	0906-0907
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743	8-98152-245-0	01	1	0908-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	0906-

28 33 207 16 101 104 160 124 153 184 153 52 53 49 53 50 22 51 206 48 47 47 42 44 43 16 115 153 45 239 50 104 101 48 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; FLEX HOSE (B) ID=18 L=28	1-09701-067-0	01	1	0906-
16	CLIP; FLEX HOSE (A) ID=10 & 12	1-09709-278-1	01	1	0906-
22	UNION; CLU PIPE MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY	0-92138-706-0	01	1	1012-
28	CLIP; OIL PIPE MZW6P M/T(RSZ) ID=6.35	1-09701-247-1	01	1	1012-
28	CLIP; OIL PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ID=8 H=20 L=20	1-09700-604-0	01	1	0906-
33	CLIP; OIL PIPE MZW6P M/T(RSZ) (C) ID=6.35	1-09701-247-1	05	1	1012-
33	CLIP; OIL PIPE FULLER FSO5206B OD M/T(Y4V) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	0906-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	0906-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (A) ID=8.3 & 10	8-94176-792-0	01	1	0906-
42	BRACKET; FLEX HOSE,CLU CONT MZW6P M/T(RSZ)	8-98105-654-0	01	1	1012-
42	BRACKET; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V)	8-98100-603-0	01	1	0906-
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E)	8-98099-521-1	01	1	0906-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0906-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0906-
45	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) M12	9-09840-280-0	01	1	1012-
45	NUT; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M12	9-09840-280-0	02	1	0906-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) (E) L=375	1-09364-407-0	01	1	1012-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (F) L=380	1-09363-884-0	01	1	1012-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (G) L=470	1-09363-716-0	01	1	1012-
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (C) L=430	1-09363-726-0	01	1	0906-
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (D) L=330	1-09364-607-0	01	1	0906-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (A) L=500	1-09363-720-0	01	1	0906-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (B) L=500	1-09364-329-0	01	1	0906-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	0906-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZW6P M/T(RSZ) L=239	1-49117-401-0	01	1	1012-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER FSO5206B OD M/T(Y4V)	1-49116-838-0	01	1	0906-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T(Y5E) L=232	1-49124-795-0	01	1	0906-
50	NUT; UNION MZW6P M/T(RSZ) (A) M12	9-09840-280-0	01	1	1012-
50	NUT; UNION (B) M12	0-91111-512-0	01	1	0906-
51	WASHER; LK MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-812-0	01	1	1012-
51	WASHER; LK FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ID=12.2	0-91510-812-0	01	1	1012-
51	WASHER; LK MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-512-0	01	1	1012-
52	BOLT; EYE,AIR PIPE ZF9S1110 M/T(Y5E) M14X27 FLANGE	1-09675-086-0	01	1	0906-1011
52	BOLT; EYE,AIR PIPE MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) M14X27 FLANGE	1-09675-086-0	01	1	1012-
53	GASKET; JOINT BOLT ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	1-09630-085-0	02	1	0906-1011
53	GASKET; JOINT BOLT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	1-09630-085-0	02	1	1012-1312
53	GASKET; JOINT BOLT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=530	8-98072-348-0	01	1	0906-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T(RSZ) L=1270 SERVICED BY L=1370	1-47428-734-0	01	1	1012-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FSO5206B OD M/T(Y4V) L=1235 SERVICED BY L=1250	1-47428-764-0	01	1	0906-0907
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FSO5206B OD M/T(Y4V) L=1225 SERVICED BY L=1250	1-47428-764-0	01	1	0908-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=510 SERVICED BY L=550	1-47428-753-0	01	1	0906-0907
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=512 SERVICED BY L=550	1-47428-753-0	01	1	0908-
115	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) M12	9-09840-280-0	01	1	1012-
115	NUT; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M14	0-91111-514-0	01	1	0906-
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	0906-
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T(RSZ) L=2749	8-98152-243-0	01	1	1012-
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743 SERVICED BY L=3000	1-47428-773-0	01	1	0906-0907
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743	8-98152-245-0	01	1	0908-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	0906-
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	0906-
184	UNION; FLEX HOSE MZW6P M/T(RSZ)	8-98150-865-0	01	1	1012-
206	CLIP; TUBE FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) L=350	1-09707-183-0	01	1	0906-1011
206	CLIP; TUBE MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) L=350	1-09707-183-0	01	1	1012-
207	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0906-
239	UNION; CLU HOSE MZW6P M/T(RSZ) M12 2WAY	1-09654-059-2	01	1	1012-
239	UNION; CLU HOSE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M12 & M14 2WAY	1-09654-141-2	01	1	0906-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
