◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11239 - FVR-LHD(EUROPE)EURO5 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-56 - EXHAUST BRAKE SYSTEM ▶
1-56 — EXHAUST BRAKE SYSTEM (#57759) — 98 parça

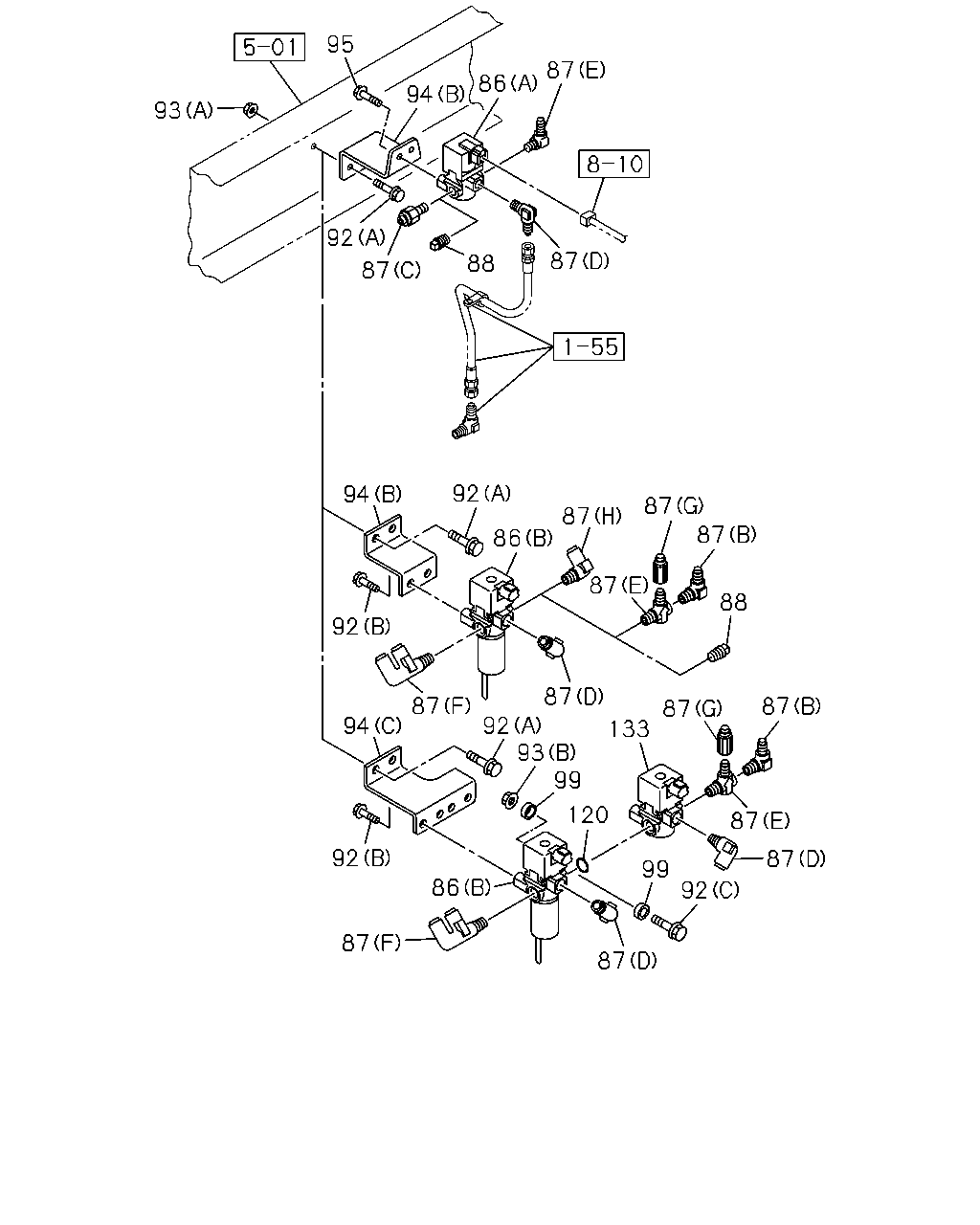

çizim 165986
95 87 86 94 93 92 87 88 87 92 94 87 87 87 86 87 88 92 87 87 94 87 87 92 93 99 133 120 87 92 87 99 86 92 87 87
BalonParca AdiParca NoAdetTipApplied Date A B
86 VALVE; MAG,EXH BRK
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (B) 		8-97633-075-0 01 1 1112- ●
86 VALVE; MAG,EXH BRK
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) 		8-97633-075-0 01 1 1112- ●
86 VALVE; MAG,EXH BRK
(A) 		1-82563-871-2 01 1 0906- ● ●
87 CONNECTOR
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (H) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1112- ●
87 CONNECTOR
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (F) 		8-98179-708-0 01 1 1112- ●
87 CONNECTOR
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (F) 		8-98179-708-0 01 1 1112- ●
87 CONNECTOR
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (G) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1112- ●
87 CONNECTOR
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0906-1111 ● ●
87 CONNECTOR
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112- ● ●
87 CONNECTOR
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112- ●
87 CONNECTOR
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112- ●
87 CONNECTOR
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0906- ● ●
87 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0906-1111 ● ●
87 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1112- ● ●
87 CONNECTOR
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1112- ●
87 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0906- ● ●
87 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0906-1111 ● ●
87 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1112- ● ●
87 CONNECTOR
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) PTO CONTROL<SV6> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1112- ●
87 CONNECTOR
ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0906-1111 ● ●
87 CONNECTOR
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112- ●
87 CONNECTOR
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. PTO CONTROL<SV6> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112- ●
87 CONNECTOR
ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112- ●
88 PLUG
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) PT1/4 		9-99204-513-0 01 1 0906-1011 ● ●
88 PLUG
FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) PT1/4 		9-99204-513-0 01 1 0906-1011 ● ●
88 PLUG
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) PT1/4 		9-99204-513-0 01 1 1012- ● ●
88 PLUG
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) PT1/4 		9-99204-513-0 01 1 1012- ● ●
92 BOLT; MAG VLV
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1112- ●
92 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1112- ●
92 BOLT; MAG VLV
MZW6P M/T(RSZ) PTO CONTROL<SV6> (C) M6X50 FLANGE 		0-28050-650-0 01 1 1112- ●
92 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) PTO CONTROL<SV6> (C) M6X50 FLANGE 		0-28050-650-0 01 1 1112- ●
92 BOLT; MAG VLV
(A) M8X35 FLANGE 		0-28650-835-0 02 1 0906- ● ●
92 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE 		0-28650-830-0 02 1 0906- ●
93 NUT; MAG VLV
MZW6P M/T(RSZ) PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 1112- ●
93 NUT; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 1112- ●
93 NUT; MAG VLV
(A) M8 FLANGE 		0-91180-108-0 02 1 0906- ● ●
93 NUT; MAG VLV
ZF9S1110 M/T(Y5E) (A) M8 FLANGE 		0-91180-108-0 02 1 0906- ●
94 BRACKET; MAG VLV,EXH BRAKE
MZW6P M/T(RSZ) PTO CONTROL<SV6> (C) 		8-98101-296-0 01 1 1112- ●
94 BRACKET; MAG VLV,EXH BRAKE
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) PTO CONTROL<SV6> (C) 		8-98101-296-0 01 1 1112- ●
94 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (A) 		8-98057-863-0 01 1 0906- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) 		1-47471-374-1 01 1 0906-1004 ● ●
94 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) 		8-98154-633-0 01 1 1005-1111 ● ●
94 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) 		8-98154-633-0 01 1 1112- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) EXC. PTO CONTROL<SV6> (B) 		8-98154-633-0 01 1 1112- ●
94 BRACKET; MAG VLV,EXH BRAKE
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. PTO CONTROL<SV6> (B) 		8-98154-633-0 01 1 1112- ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 0906- ● ●
99 WASHER; MAG VLV
MZW6P M/T(RSZ) PTO CONTROL<SV6> 		1-82569-266-0 02 1 1112- ●
99 WASHER; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) PTO CONTROL<SV6> 		1-82569-266-0 02 1 1112- ●
120 GASKET; MAG VLV
MZW6P M/T(RSZ) PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 1112- ●
120 GASKET; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 1112- ●
133 VALVE; MAG,PTO CONT
MZW6P M/T(RSZ) PTO CONTROL<SV6> 		1-82563-871-2 01 1 1112- ●
133 VALVE; MAG,PTO CONT
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) PTO CONTROL<SV6> 		1-82563-871-2 01 1 1112- ●

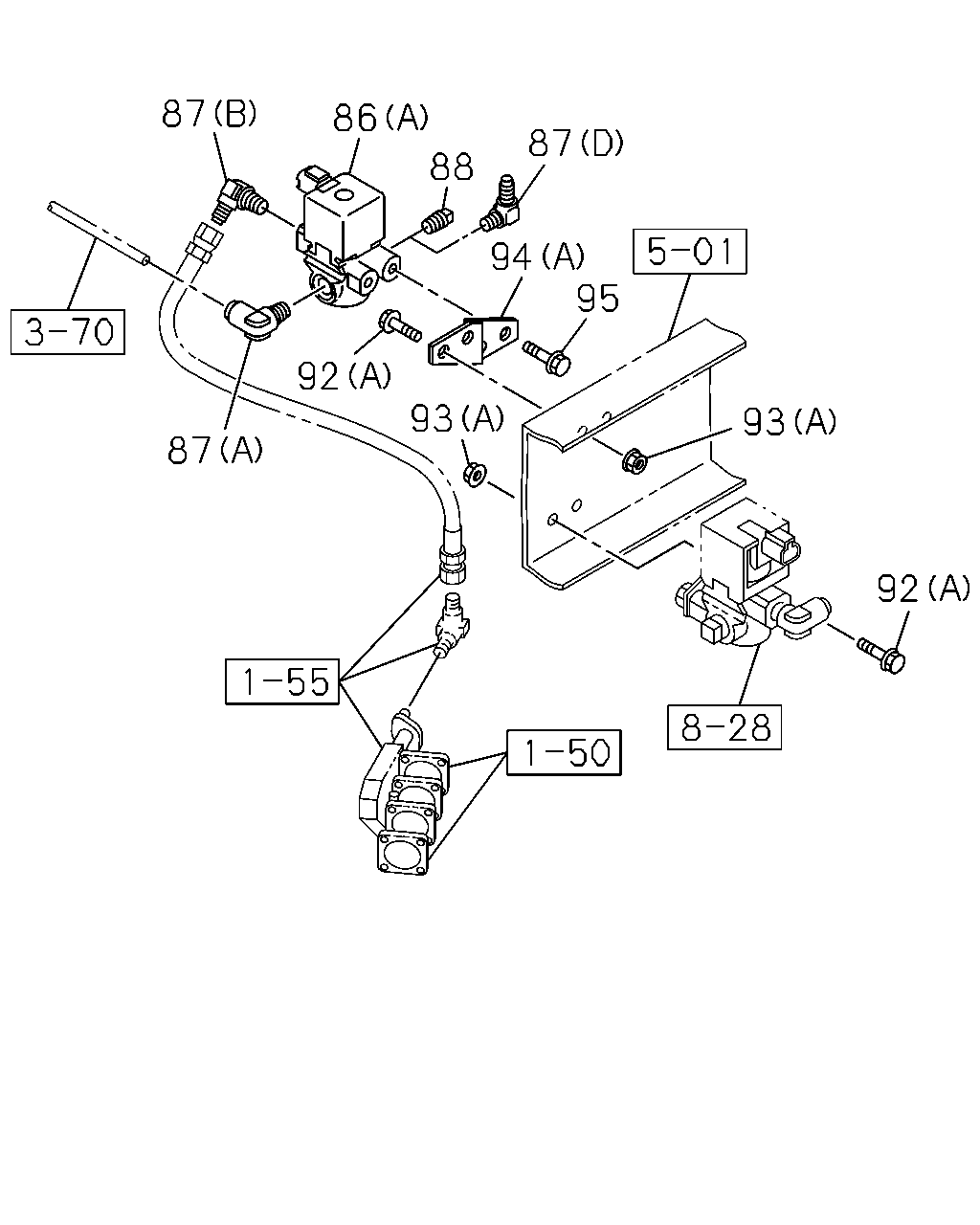

çizim 165998
87 86 87 88 94 95 92 93 93 87 92
BalonParca AdiParca NoAdetTipApplied Date A B
86 VALVE; MAG,EXH BRK
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (B) 		8-97633-075-0 01 1 1112- ●
86 VALVE; MAG,EXH BRK
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) 		8-97633-075-0 01 1 1112- ●
86 VALVE; MAG,EXH BRK
(A) 		1-82563-871-2 01 1 0906- ● ●
87 CONNECTOR
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (H) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1112- ●
87 CONNECTOR
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (F) 		8-98179-708-0 01 1 1112- ●
87 CONNECTOR
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (F) 		8-98179-708-0 01 1 1112- ●
87 CONNECTOR
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (G) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1112- ●
87 CONNECTOR
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0906-1111 ● ●
87 CONNECTOR
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112- ● ●
87 CONNECTOR
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112- ●
87 CONNECTOR
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112- ●
87 CONNECTOR
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0906- ● ●
87 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0906-1111 ● ●
87 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1112- ● ●
87 CONNECTOR
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1112- ●
87 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0906- ● ●
87 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0906-1111 ● ●
87 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1112- ● ●
87 CONNECTOR
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) PTO CONTROL<SV6> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1112- ●
87 CONNECTOR
ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0906-1111 ● ●
87 CONNECTOR
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112- ●
87 CONNECTOR
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. PTO CONTROL<SV6> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112- ●
87 CONNECTOR
ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112- ●
88 PLUG
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) PT1/4 		9-99204-513-0 01 1 0906-1011 ● ●
88 PLUG
FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) PT1/4 		9-99204-513-0 01 1 0906-1011 ● ●
88 PLUG
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) PT1/4 		9-99204-513-0 01 1 1012- ● ●
88 PLUG
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) PT1/4 		9-99204-513-0 01 1 1012- ● ●
92 BOLT; MAG VLV
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1112- ●
92 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1112- ●
92 BOLT; MAG VLV
MZW6P M/T(RSZ) PTO CONTROL<SV6> (C) M6X50 FLANGE 		0-28050-650-0 01 1 1112- ●
92 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) PTO CONTROL<SV6> (C) M6X50 FLANGE 		0-28050-650-0 01 1 1112- ●
92 BOLT; MAG VLV
(A) M8X35 FLANGE 		0-28650-835-0 02 1 0906- ● ●
92 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE 		0-28650-830-0 02 1 0906- ●
93 NUT; MAG VLV
MZW6P M/T(RSZ) PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 1112- ●
93 NUT; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 1112- ●
93 NUT; MAG VLV
(A) M8 FLANGE 		0-91180-108-0 02 1 0906- ● ●
93 NUT; MAG VLV
ZF9S1110 M/T(Y5E) (A) M8 FLANGE 		0-91180-108-0 02 1 0906- ●
94 BRACKET; MAG VLV,EXH BRAKE
MZW6P M/T(RSZ) PTO CONTROL<SV6> (C) 		8-98101-296-0 01 1 1112- ●
94 BRACKET; MAG VLV,EXH BRAKE
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) PTO CONTROL<SV6> (C) 		8-98101-296-0 01 1 1112- ●
94 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (A) 		8-98057-863-0 01 1 0906- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) 		1-47471-374-1 01 1 0906-1004 ● ●
94 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) 		8-98154-633-0 01 1 1005-1111 ● ●
94 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) 		8-98154-633-0 01 1 1112- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) EXC. PTO CONTROL<SV6> (B) 		8-98154-633-0 01 1 1112- ●
94 BRACKET; MAG VLV,EXH BRAKE
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. PTO CONTROL<SV6> (B) 		8-98154-633-0 01 1 1112- ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 0906- ● ●
