Sayfa 2-37B - Isuzu EPC

2-37B — MANUAL TRANSMISSION CONT; MISSION SIDE (#5775) — 205 parça

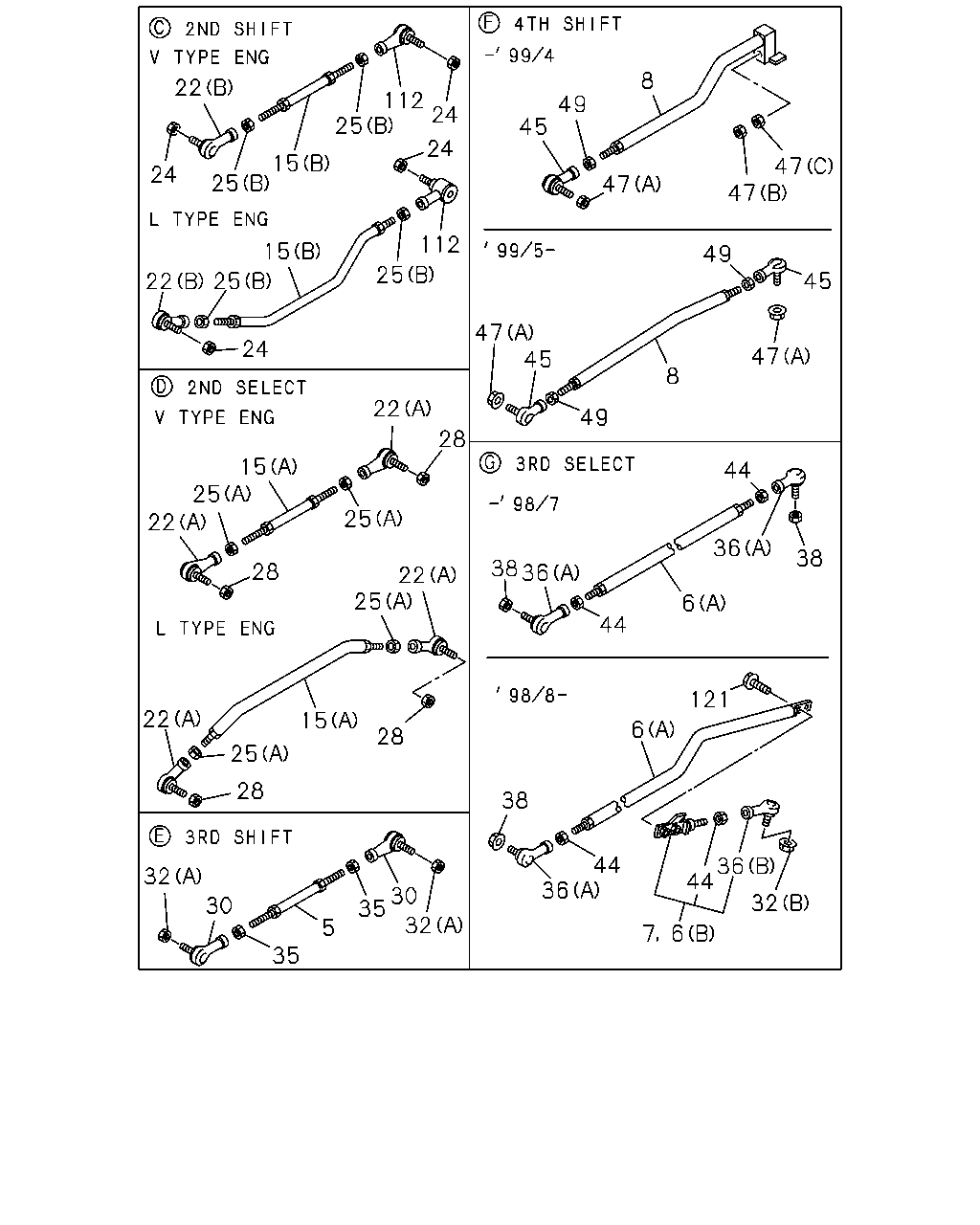

8 22 112 24 25 49 45 24 15 25 47 47 24 47 112 15 49 25 45 47 45 24 47 8 22 49 28 15 44 25 25 22 36 38 38 36 28 22 25 6 44 121 22 15 6 28 25 28 38 44 36 44 32 36 30 35 32 30 32 5 6 7 35 22 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	ROD; LINK,3RD SHIFT L TYPE ENG<90L> CAB UP +110MM<TGG> L=1120	1-33652-603-0	01	1	9905-	●	●
5	ROD; LINK,3RD SHIFT L TYPE ENG<90L> L=1110	1-33652-623-0	01	1	9603-9804	●
5	ROD; LINK,3RD SHIFT L TYPE ENG<90L> L=1110	1-33652-623-0	01	1	9805-9904	●
5	ROD; LINK,3RD SHIFT L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> L=1110	1-33652-623-0	01	1	9905-	●	●
5	ROD; LINK,3RD SHIFT V TYPE ENG<91L> L=855	1-33652-321-0	01	1	9603-9904	●
5	ROD; LINK,3RD SHIFT V TYPE ENG<91L> L=855	1-33652-321-0	01	1	9905-	●	●
6	ROD; LINK,3RD SELECT L TYPE ENG<90L> (A) L=1454	1-33652-745-0	01	1	9603-9807	●
6	ROD; LINK,3RD SELECT L TYPE ENG<90L> (A) L=1412	1-33652-860-0	01	1	9808-9904	●
6	ROD; LINK,3RD SELECT L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (A) L=1412	1-33652-860-0	01	1	9905-	●	●
6	ROD; LINK,3RD SELECT 10PE1S(60L) (A) L=1266	1-33652-741-0	01	1	9603-9807	●
6	ROD; LINK,3RD SELECT 10PE1S(60L) (A) L=1189	1-33652-861-0	01	1	9808-9904	●
6	ROD; LINK,3RD SELECT V TYPE ENG<91L> (A) L=1189	1-33652-861-0	01	1	9905-	●	●
6	ROD; LINK,3RD SELECT L TYPE ENG<90L> (B) L=125	1-33671-333-0	01	1	0001-	●	●
6	ROD; LINK,3RD SELECT L TYPE ENG<90L> CAB UP +110MM<TGG> (A) L=1423	1-33652-827-0	01	1	9905-	●	●
6	ROD; LINK,3RD SELECT V TYPE ENG<91L> (B) L=125	1-33671-454-0	01	1	0001-	●	●
7	ROD ASM; CONT,SELECT L=125	1-33671-333-0	01	1	9808-9904	●
7	ROD ASM; CONT,SELECT L TYPE ENG<90L> L=125	1-33671-333-0	01	1	9905-9912	●
7	ROD ASM; CONT,SELECT V TYPE ENG<91L> L=125	1-33671-454-0	01	1	9905-9912	●	●
8	ROD; LINK,4TH SHIFT L TYPE ENG<90L> L=477	1-33652-718-0	01	1	9603-9904	●
8	ROD; LINK,4TH SHIFT L TYPE ENG<90L> L=485	1-33652-859-0	01	1	9905-	●	●
8	ROD; LINK,4TH SHIFT V TYPE ENG<91L> L=492	1-33652-702-1	01	1	9603-9904	●
8	ROD; LINK,4TH SHIFT V TYPE ENG<91L> L=523	1-33652-858-0	01	1	9905-	●	●
15	ROD; LINK 1ST SHIFT SHORT CHASSIS&RHD(EXZ5MC) (C) 1ST SELECT L=435	1-33652-696-0	01	1	9603-9904	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> (A) 2ND SELECT L=438	1-33652-682-0	01	1	9603-9706	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> (A) 2ND SELECT L=438	1-33652-682-0	01	1	9707-9711	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> (A) 2ND SELECT L=428	1-33652-781-0	01	1	9712-9804	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> (A) 2ND SELECT L=428	1-33652-781-0	01	1	9805-9904	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (A) 2ND SELECT L=428	1-33652-781-1	01	1	9905-	●	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> (B) 2ND SHIFT L=497	1-33652-716-0	01	1	9603-9706	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> (B) 2ND SHIFT L=497	1-33652-716-0	01	1	9707-9711	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> (B) 2ND SHIFT L=490	1-33652-780-0	01	1	9712-9804	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> (B) 2ND SHIFT L=490	1-33652-780-0	01	1	9805-9904	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (B) 2ND SHIFT L=490	1-33652-780-0	01	1	9905-	●	●
15	ROD; LINK 1ST SHIFT 10PE1S(60L) (A) 2ND SELECT L=440	1-33652-672-0	01	1	9603-9904	●
15	ROD; LINK 1ST SHIFT V TYPE ENG<91L> (A) 2ND SELECT L=440	1-33652-672-0	01	1	9905-	●	●
15	ROD; LINK 1ST SHIFT 10PE1S(60L) (B) 2ND SHIFT L=490	1-33652-700-0	01	1	9603-9904	●
15	ROD; LINK 1ST SHIFT V TYPE ENG<91L> (B) 2ND SHIFT L=490	1-33652-700-0	01	1	9905-	●	●
15	ROD; LINK 1ST SHIFT SHORT CHASSIS&LHD(EXZ6MC) (C) 1ST SELECT L=556	1-33652-744-0	01	1	9603-9904	●
15	ROD; LINK 1ST SHIFT SHORT CHASSIS&LHD(EXZ6MC) (C) 1ST SELECT L=556	1-33652-744-0	01	1	9905-	●	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> CAB UP +110MM<TGG> (A) 2ND SELECT L=423	1-33652-804-1	01	1	9905-	●	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> CAB UP +110MM<TGG> (B) 2ND SHIFT L=474	1-33652-803-0	01	1	9905-	●	●
22	JOINT; BALL,SCREW,LINK ROD (B) 2ND SHIFT L=64.5	1-09760-111-0	01	1	9603-9710	●
22	JOINT; BALL,SCREW,LINK ROD L TYPE ENG<90L> (A) 2ND SELECT	1-09760-109-0	02	1	9603-9706	●
22	JOINT; BALL,SCREW,LINK ROD L TYPE ENG<90L> (A) 2ND SELECT	1-09760-109-0	02	1	9707-9904	●
22	JOINT; BALL,SCREW,LINK ROD L TYPE ENG<90L> (A) 2ND SELECT	1-09760-109-0	02	1	9905-	●	●
22	JOINT; BALL,SCREW,LINK ROD 10PE1S(60L) (A) 2ND SELECT	1-09760-108-0	02	1	9603-9904	●
22	JOINT; BALL,SCREW,LINK ROD V TYPE ENG<91L> (A) 2ND SELECT	1-09760-108-0	02	1	9905-	●	●
22	JOINT; BALL,SCREW,LINK ROD (B) 2ND SHIFT	1-09760-125-0	01	1	9711-9804	●
22	JOINT; BALL,SCREW,LINK ROD (B) 2ND SHIFT	1-09760-125-0	01	1	9805-9904	●
22	JOINT; BALL,SCREW,LINK ROD (B) 2ND SHIFT	1-09760-125-0	01	1	9905-	●	●
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-050-0	02	1	9603-9708	●
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-050-0	01	1	9709-9710	●
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-056-0	01	1	9709-9710	●
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-056-0	02	1	9711-9802	●
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	9803-9904	●
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	9905-	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD (B) 2ND SHIFT M12	9-99111-412-0	02	1	9603-9804	●
25	NUT; LK,RIGHT SCREW,LINK ROD (B) 2ND SHIFT M12	9-99111-412-0	02	1	9805-9904	●
25	NUT; LK,RIGHT SCREW,LINK ROD (B) 2ND SHIFT M12	9-99111-412-0	02	1	9905-	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD L TYPE ENG<90L> (A) 2ND SELECT M10	9-09111-410-0	02	1	9603-9706	●
25	NUT; LK,RIGHT SCREW,LINK ROD L TYPE ENG<90L> (A) 2ND SELECT M10	9-09111-410-0	02	1	9707-9804	●
25	NUT; LK,RIGHT SCREW,LINK ROD L TYPE ENG<90L> (A) 2ND SELECT M10	9-09111-410-0	02	1	9805-9904	●
25	NUT; LK,RIGHT SCREW,LINK ROD L TYPE ENG<90L> (A) 2ND SELECT M10	9-09111-410-0	02	1	9905-	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L) (A) 2ND SELECT M8	9-09111-408-0	02	1	9603-9904	●
25	NUT; LK,RIGHT SCREW,LINK ROD V TYPE ENG<91L> (A) 2ND SELECT M8	9-09111-408-0	02	1	9905-	●	●
28	NUT; 2ND LINK ROD 2ND SELECT M8 FLANGE	1-09440-049-0	02	1	9603-9804	●
28	NUT; 2ND LINK ROD 2ND SELECT M8 FLANGE	1-09440-062-1	02	1	9805-9904	●
28	NUT; 2ND LINK ROD 2ND SELECT M8 FLANGE	1-09440-062-1	02	1	9905-	●	●
30	JOINT; BALL,RIGHT SCREW,LINK ROD 3RD SHIFT	1-09760-110-0	02	1	9603-9710	●
30	JOINT; BALL,RIGHT SCREW,LINK ROD 3RD SHIFT	1-09760-124-0	02	1	9711-9804	●
30	JOINT; BALL,RIGHT SCREW,LINK ROD 3RD SHIFT	1-09760-124-0	02	1	9805-9904	●
30	JOINT; BALL,RIGHT SCREW,LINK ROD 3RD SHIFT	1-09760-124-0	02	1	9905-	●	●
32	NUT; 3RD LINK ROD (A) M10 FLANGE	1-09440-050-0	02	1	9603-9710	●
32	NUT; 3RD LINK ROD (A) M10 FLANGE	1-09440-056-0	02	1	9711-9802	●
32	NUT; 3RD LINK ROD (A) M10 FLANGE	1-09440-061-0	02	1	9803-9904	●
32	NUT; 3RD LINK ROD (A) M10 FLANGE	1-09440-061-0	02	1	9905-	●	●
32	NUT; 3RD LINK ROD (B) M8 FLANGE	1-09440-062-1	01	1	9808-9904	●
32	NUT; 3RD LINK ROD (B) M8 FLANGE	1-09440-062-1	01	1	9905-9912	●	●
35	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	9603-9804	●
35	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	9805-9904	●
35	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	9905-	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD L TYPE ENG<90L> (A) 3RD SELECT	1-09760-109-0	02	1	9603-9807	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD L TYPE ENG<90L> (B) 3RD SELECT	1-09760-109-0	02	1	9905-9912	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD (B) 3RD SELECT	1-09760-109-0	01	1	0001-	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD 10PE1S(60L) (A) 3RD SELECT	1-09760-108-0	02	1	9603-9807	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD 10PE1S(60L) (B) 3RD SELECT	1-09760-108-0	01	1	9808-9904	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD V TYPE ENG<91L> (B) 3RD SELECT	1-09760-108-0	01	1	9905-	●	●
38	NUT; 3RD LINK ROD M8 FLANGE	1-09440-049-0	02	1	9603-9804	●
38	NUT; 3RD LINK ROD M8 FLANGE	1-09440-062-0	02	1	9805-9807	●
38	NUT; 3RD LINK ROD M8 FLANGE	1-09440-062-1	01	1	9808-9904	●
38	NUT; 3RD LINK ROD M8 FLANGE	1-09440-062-1	01	1	9907-9912	●
44	NUT; LK,RIGHT SCREW,LINK ROD L TYPE ENG<90L> M10	9-09111-410-0	02	1	9603-9807	●
44	NUT; LK,RIGHT SCREW,LINK ROD L TYPE ENG<90L> M10	9-09111-410-0	02	1	9905-9912	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	01	1	0001-	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD M8	9-09111-408-0	02	1	9603-9807	●
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L) M8	9-09111-408-0	02	1	9808-9904	●
44	NUT; LK,RIGHT SCREW,LINK ROD V TYPE ENG<91L> M8	9-09111-408-0	02	1	9905-	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD 6WA1 TC-C(55L),6WA1 TC-S(56L) M10	9-09111-410-0	02	1	9808-9904	●
45	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-117-0	01	1	9603-9710	●
45	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-125-0	01	1	9711-9904	●
45	JOINT; BALL,RIGHT SCREW,LINK ROD 4TH SHIFT	1-09760-125-0	02	1	9905-	●	●
47	NUT; 4TH LINK ROD (A) 4TH SHIFT M10 FLANGE	1-09440-061-0	02	1	9905-	●	●
47	NUT; 4TH LINK ROD (A) M10 FLANGE	1-09440-050-0	01	1	9603-9710	●
47	NUT; 4TH LINK ROD (A) M10 FLANGE	1-09440-056-0	01	1	9711-9802	●
47	NUT; 4TH LINK ROD (A) M10 FLANGE	1-09440-061-0	01	1	9803-9904	●
47	NUT; 4TH LINK ROD (C) M14	9-99110-414-0	01	1	9603-9904	●
47	NUT; 4TH LINK ROD (B) M14	9-99111-414-0	01	1	9603-9904	●
49	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	01	1	9707-9904	●
49	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	9905-	●	●
112	JOINT; RUBBER 1ST SHIFT	1-33670-413-1	01	1	9603-9804	●
112	JOINT; RUBBER 1ST SHIFT	1-33670-413-1	01	1	9603-9804	●
112	JOINT; RUBBER 1ST SHIFT	1-33670-413-1	01	1	9805-9904	●
112	JOINT; RUBBER 1ST SHIFT	1-33670-413-1	01	1	9805-9904	●
112	JOINT; RUBBER 1ST SHIFT	1-33670-413-1	01	1	9905-	●	●
112	JOINT; RUBBER 1ST SHIFT	1-33670-413-1	01	1	9905-	●	●
121	BOLT; LINK ROD	1-09044-103-0	02	1	9808-9904	●
121	BOLT; LINK ROD	1-09044-103-0	02	1	9905-	●	●

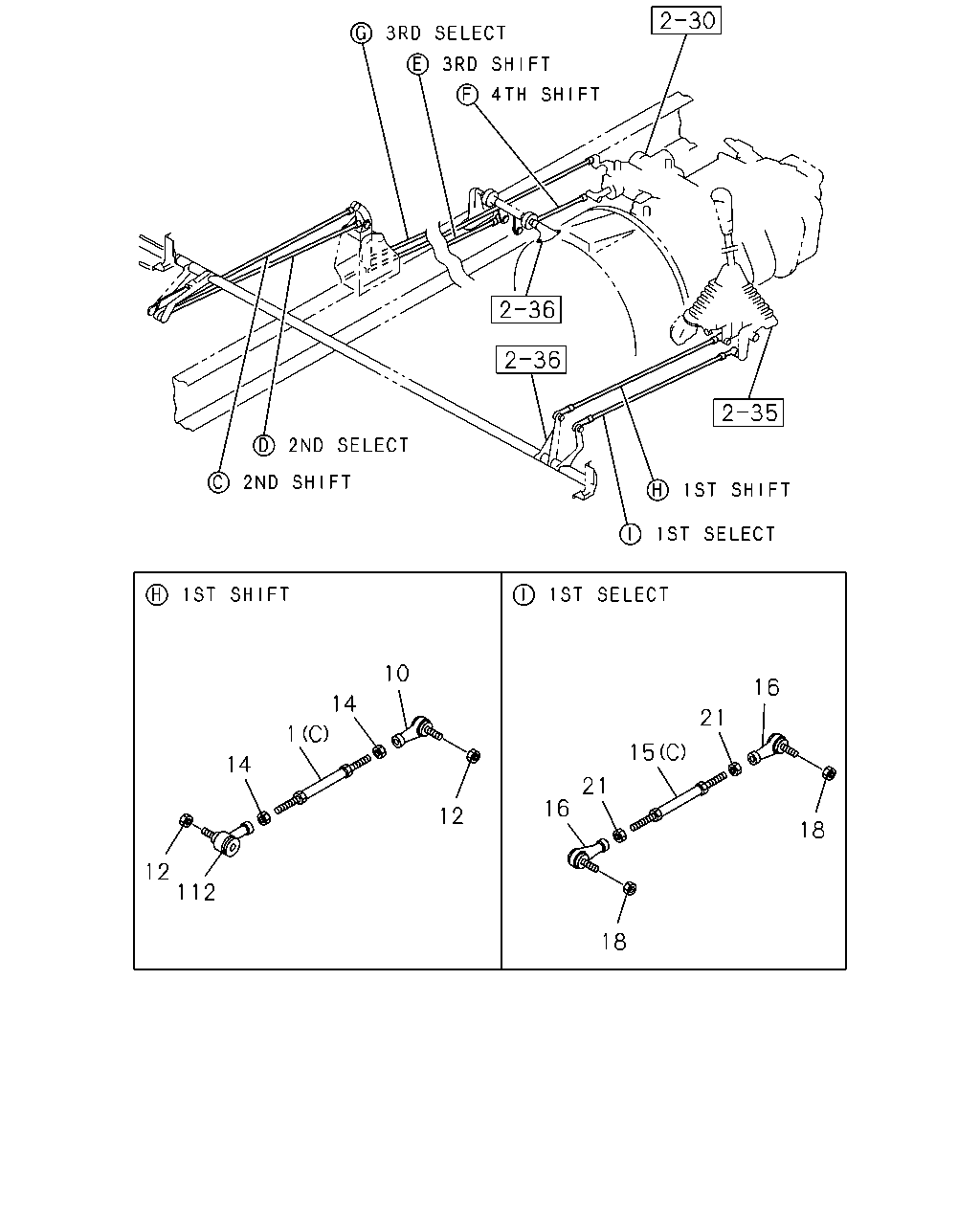

16 12 10 14 21 18 15 1 21 16 14 112 18 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ROD; LINK,1ST SHIFT (C) L=480	9-08401-248-0	01	1	9603-9904	●
1	ROD; LINK,1ST SHIFT (C) L=480	9-08401-248-0	01	1	9905-	●	●
10	JOINT ASM; BALL,SELECT ROD 1ST SHIFT	1-09760-117-0	01	1	9603-9710	●
10	JOINT ASM; BALL,SELECT ROD 1ST SHIFT	1-09760-125-0	01	1	9711-9904	●
10	JOINT ASM; BALL,SELECT ROD 1ST SHIFT	1-09760-125-0	01	1	9905-	●	●
10	JOINT ASM; BALL,SELECT ROD 1ST SHIFT	1-09760-125-0	01	1	9803-9904	●
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-050-0	02	1	9603-9708	●
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-056-0	02	1	9709-9802	●
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	9803-9904	●
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	9905-	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	9603-9904	●
14	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	9905-	●	●
15	ROD; LINK 1ST SHIFT SHORT CHASSIS&RHD(EXZ5MC) (C) 1ST SELECT L=435	1-33652-696-0	01	1	9603-9904	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> (A) 2ND SELECT L=438	1-33652-682-0	01	1	9603-9706	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> (A) 2ND SELECT L=438	1-33652-682-0	01	1	9707-9711	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> (A) 2ND SELECT L=428	1-33652-781-0	01	1	9712-9804	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> (A) 2ND SELECT L=428	1-33652-781-0	01	1	9805-9904	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (A) 2ND SELECT L=428	1-33652-781-1	01	1	9905-	●	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> (B) 2ND SHIFT L=497	1-33652-716-0	01	1	9603-9706	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> (B) 2ND SHIFT L=497	1-33652-716-0	01	1	9707-9711	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> (B) 2ND SHIFT L=490	1-33652-780-0	01	1	9712-9804	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> (B) 2ND SHIFT L=490	1-33652-780-0	01	1	9805-9904	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (B) 2ND SHIFT L=490	1-33652-780-0	01	1	9905-	●	●
15	ROD; LINK 1ST SHIFT 10PE1S(60L) (A) 2ND SELECT L=440	1-33652-672-0	01	1	9603-9904	●
15	ROD; LINK 1ST SHIFT V TYPE ENG<91L> (A) 2ND SELECT L=440	1-33652-672-0	01	1	9905-	●	●
15	ROD; LINK 1ST SHIFT 10PE1S(60L) (B) 2ND SHIFT L=490	1-33652-700-0	01	1	9603-9904	●
15	ROD; LINK 1ST SHIFT V TYPE ENG<91L> (B) 2ND SHIFT L=490	1-33652-700-0	01	1	9905-	●	●
15	ROD; LINK 1ST SHIFT SHORT CHASSIS&LHD(EXZ6MC) (C) 1ST SELECT L=556	1-33652-744-0	01	1	9603-9904	●
15	ROD; LINK 1ST SHIFT SHORT CHASSIS&LHD(EXZ6MC) (C) 1ST SELECT L=556	1-33652-744-0	01	1	9905-	●	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> CAB UP +110MM<TGG> (A) 2ND SELECT L=423	1-33652-804-1	01	1	9905-	●	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> CAB UP +110MM<TGG> (B) 2ND SHIFT L=474	1-33652-803-0	01	1	9905-	●	●
16	JOINT ASM; BALL,CONT ROD 1ST SELECT	1-09760-108-0	02	1	9603-9904	●
16	JOINT ASM; BALL,CONT ROD 1ST SELECT	1-09760-108-0	02	1	9905-	●	●
18	NUT; 1ST LINK ROD M8 FLANGE	1-09440-049-0	02	1	9603-9804	●
18	NUT; 1ST LINK ROD M8 FLANGE	1-09440-062-1	02	1	9805-9904	●
18	NUT; 1ST LINK ROD M8 FLANGE	1-09440-062-1	02	1	9905-	●	●
21	NUT; LK,RIGHT SCREW,LINK ROD M8	9-09111-408-0	02	1	9603-9904	●
21	NUT; LK,RIGHT SCREW,LINK ROD M8	9-09111-408-0	02	1	9905-	●	●
112	JOINT; RUBBER 1ST SHIFT	1-33670-413-1	01	1	9603-9804	●
112	JOINT; RUBBER 1ST SHIFT	1-33670-413-1	01	1	9603-9804	●
112	JOINT; RUBBER 1ST SHIFT	1-33670-413-1	01	1	9805-9904	●
112	JOINT; RUBBER 1ST SHIFT	1-33670-413-1	01	1	9805-9904	●
112	JOINT; RUBBER 1ST SHIFT	1-33670-413-1	01	1	9905-	●	●
112	JOINT; RUBBER 1ST SHIFT	1-33670-413-1	01	1	9905-	●	●

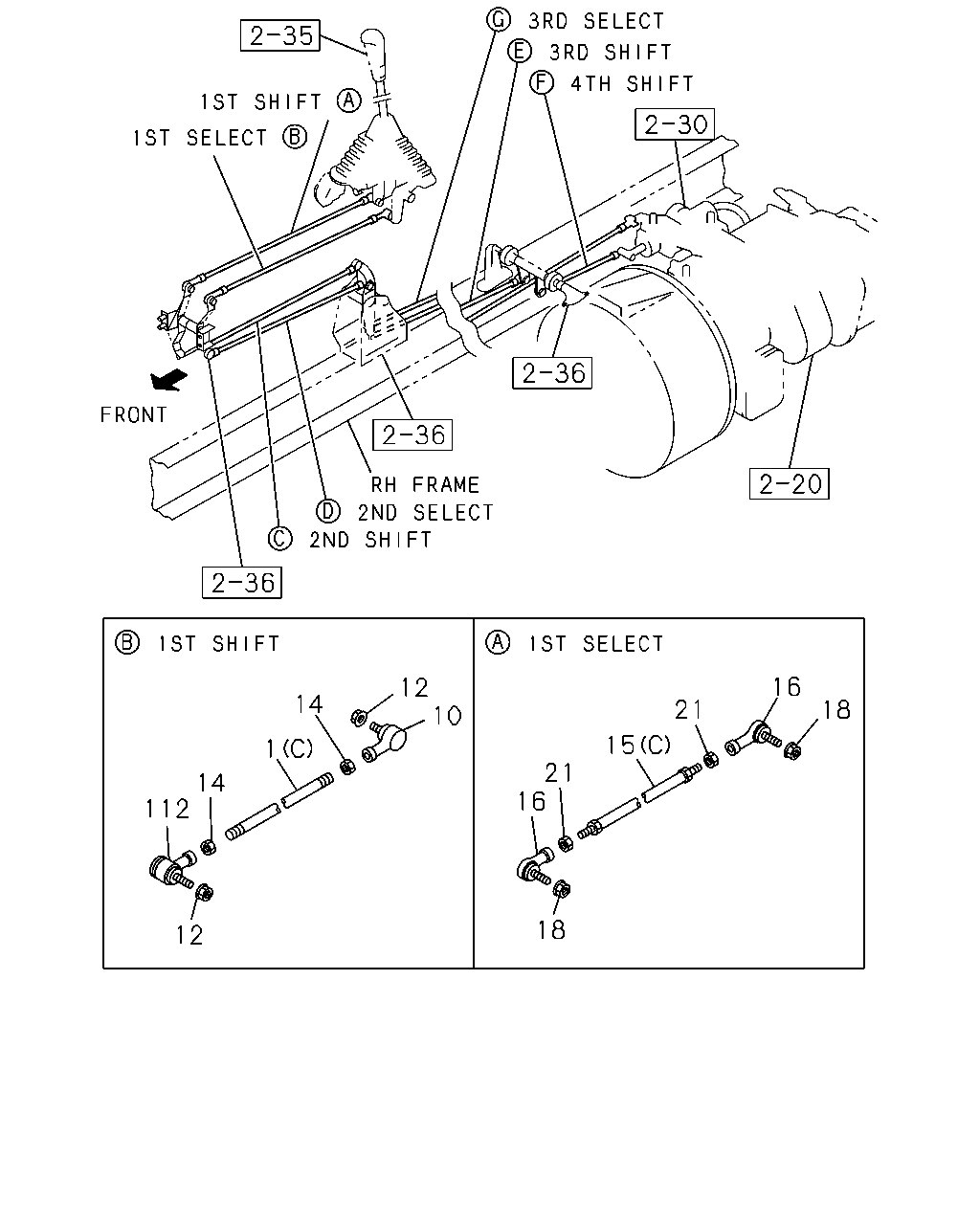

10 16 14 21 1 15 14 21 16 12 18 12 112 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ROD; LINK,1ST SHIFT (C) L=480	9-08401-248-0	01	1	9603-9904	●
1	ROD; LINK,1ST SHIFT (C) L=480	9-08401-248-0	01	1	9905-	●	●
10	JOINT ASM; BALL,SELECT ROD 1ST SHIFT	1-09760-117-0	01	1	9603-9710	●
10	JOINT ASM; BALL,SELECT ROD 1ST SHIFT	1-09760-125-0	01	1	9711-9904	●
10	JOINT ASM; BALL,SELECT ROD 1ST SHIFT	1-09760-125-0	01	1	9905-	●	●
10	JOINT ASM; BALL,SELECT ROD 1ST SHIFT	1-09760-125-0	01	1	9803-9904	●
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-050-0	02	1	9603-9708	●
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-056-0	02	1	9709-9802	●
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	9803-9904	●
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	9905-	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	9603-9904	●
14	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	9905-	●	●
15	ROD; LINK 1ST SHIFT SHORT CHASSIS&RHD(EXZ5MC) (C) 1ST SELECT L=435	1-33652-696-0	01	1	9603-9904	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> (A) 2ND SELECT L=438	1-33652-682-0	01	1	9603-9706	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> (A) 2ND SELECT L=438	1-33652-682-0	01	1	9707-9711	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> (A) 2ND SELECT L=428	1-33652-781-0	01	1	9712-9804	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> (A) 2ND SELECT L=428	1-33652-781-0	01	1	9805-9904	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (A) 2ND SELECT L=428	1-33652-781-1	01	1	9905-	●	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> (B) 2ND SHIFT L=497	1-33652-716-0	01	1	9603-9706	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> (B) 2ND SHIFT L=497	1-33652-716-0	01	1	9707-9711	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> (B) 2ND SHIFT L=490	1-33652-780-0	01	1	9712-9804	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> (B) 2ND SHIFT L=490	1-33652-780-0	01	1	9805-9904	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (B) 2ND SHIFT L=490	1-33652-780-0	01	1	9905-	●	●
15	ROD; LINK 1ST SHIFT 10PE1S(60L) (A) 2ND SELECT L=440	1-33652-672-0	01	1	9603-9904	●
15	ROD; LINK 1ST SHIFT V TYPE ENG<91L> (A) 2ND SELECT L=440	1-33652-672-0	01	1	9905-	●	●
15	ROD; LINK 1ST SHIFT 10PE1S(60L) (B) 2ND SHIFT L=490	1-33652-700-0	01	1	9603-9904	●
15	ROD; LINK 1ST SHIFT V TYPE ENG<91L> (B) 2ND SHIFT L=490	1-33652-700-0	01	1	9905-	●	●
15	ROD; LINK 1ST SHIFT SHORT CHASSIS&LHD(EXZ6MC) (C) 1ST SELECT L=556	1-33652-744-0	01	1	9603-9904	●
15	ROD; LINK 1ST SHIFT SHORT CHASSIS&LHD(EXZ6MC) (C) 1ST SELECT L=556	1-33652-744-0	01	1	9905-	●	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> CAB UP +110MM<TGG> (A) 2ND SELECT L=423	1-33652-804-1	01	1	9905-	●	●
15	ROD; LINK 1ST SHIFT L TYPE ENG<90L> CAB UP +110MM<TGG> (B) 2ND SHIFT L=474	1-33652-803-0	01	1	9905-	●	●
16	JOINT ASM; BALL,CONT ROD 1ST SELECT	1-09760-108-0	02	1	9603-9904	●
16	JOINT ASM; BALL,CONT ROD 1ST SELECT	1-09760-108-0	02	1	9905-	●	●
18	NUT; 1ST LINK ROD M8 FLANGE	1-09440-049-0	02	1	9603-9804	●
18	NUT; 1ST LINK ROD M8 FLANGE	1-09440-062-1	02	1	9805-9904	●
18	NUT; 1ST LINK ROD M8 FLANGE	1-09440-062-1	02	1	9905-	●	●
21	NUT; LK,RIGHT SCREW,LINK ROD M8	9-09111-408-0	02	1	9603-9904	●
21	NUT; LK,RIGHT SCREW,LINK ROD M8	9-09111-408-0	02	1	9905-	●	●
112	JOINT; RUBBER 1ST SHIFT	1-33670-413-1	01	1	9603-9804	●
112	JOINT; RUBBER 1ST SHIFT	1-33670-413-1	01	1	9603-9804	●
112	JOINT; RUBBER 1ST SHIFT	1-33670-413-1	01	1	9805-9904	●
112	JOINT; RUBBER 1ST SHIFT	1-33670-413-1	01	1	9805-9904	●
112	JOINT; RUBBER 1ST SHIFT	1-33670-413-1	01	1	9905-	●	●
112	JOINT; RUBBER 1ST SHIFT	1-33670-413-1	01	1	9905-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
