◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXM ▶ 11144 - FXM EXC.EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#57740) — 48 parça

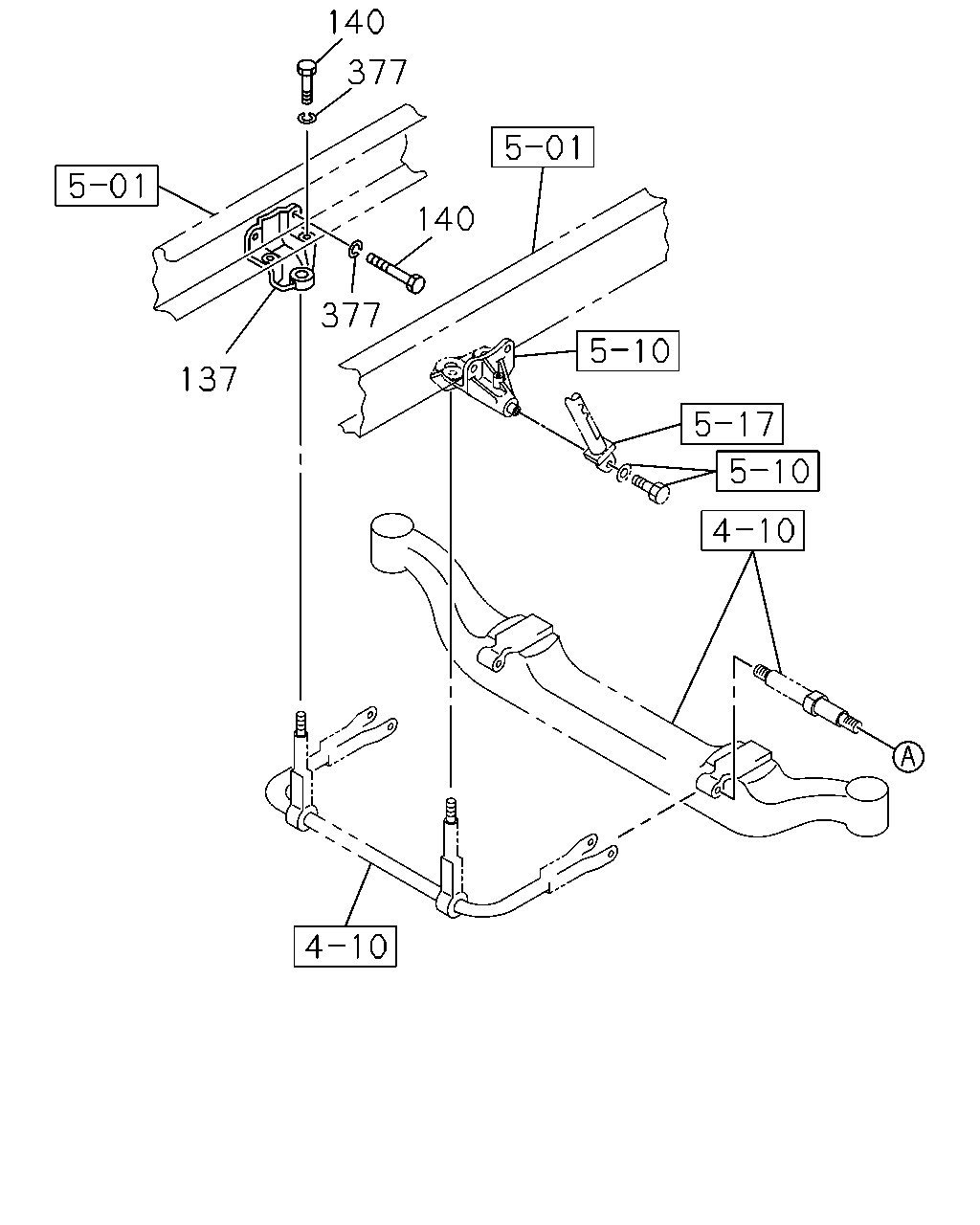

çizim 161492
140 377 140 377 137
BalonParca AdiParca NoAdetTipApplied Date
137 BRACKET; STAB BAR TO FRAME 1-51781-111-0 01 1 0801-
140 BOLT; BRKT
M14X50 		0-20951-450-0 04 1 0801-
377 WASHER; LK,BRKT
ID=15 		8-98010-627-1 04 1 0801-

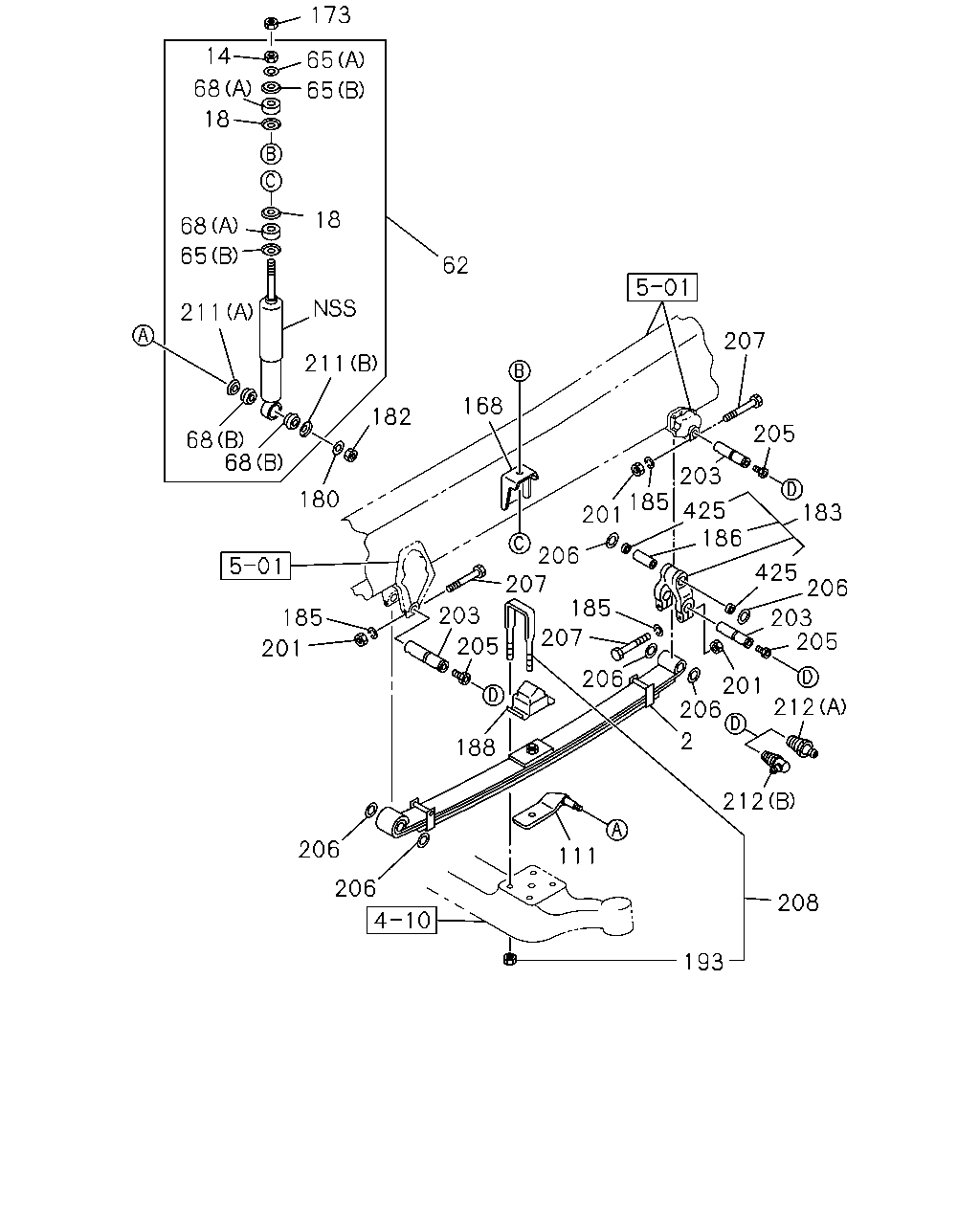

çizim 161494
173 14 65 68 65 18 18 68 65 62 211 207 211 168 182 205 68 68 203 183 180 185 425 186 201 206 207 425 206 185 203 185 203 205 207 205 201 206 201 206 212 2 188 212 206 111 206 208 193
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> 8-LEAF 		8-98098-675-0 02 1 0801-0801
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF 		8-98053-122-0 02 1 0801-
14 NUT; S/ABS,UPR
MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> M14 		9-99111-414-0 02 1 0801-0801
14 NUT; S/ABS,UPR
FRT TAPER LEAF SUSPENSION<SAR> M14 		9-99111-414-0 02 1 0802-
18 WASHER; CENTERING,S/ABS
MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> ID=24 		1-51631-067-0 04 1 0801-0801
18 WASHER; CENTERING,S/ABS
FRT TAPER LEAF SUSPENSION<SAR> ID=24 		1-51631-067-0 04 1 0802-
62 ABSORBER ASM; SHOCK,FRT
MULTI LEAF SUSPENSION FRT<SAQ> 		1-51630-417-0 02 1 0801-0801
62 ABSORBER ASM; SHOCK,FRT
FRT TAPER LEAF SUSPENSION<SAR> 		1-51630-830-0 02 1 0801-
65 WASHER; S/ABS
MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (A) ID=16.5 		1-09503-266-0 02 1 0801-0801
65 WASHER; S/ABS
FRT TAPER LEAF SUSPENSION<SAR> (A) ID=16.5 		1-09503-266-0 02 1 0802-
65 WASHER; S/ABS
MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (B) ID=16.5 		1-51631-068-0 04 1 0801-0801
65 WASHER; S/ABS
FRT TAPER LEAF SUSPENSION<SAR> (B) ID=16.5 		1-51631-068-0 04 1 0802-
68 BUSHING; S/ABS
MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (A) ID=16 T=25 		1-51631-069-0 04 1 0801-0801
68 BUSHING; S/ABS
FRT TAPER LEAF SUSPENSION<SAR> (A) ID=16 T=25 		1-51631-069-0 04 1 0802-
68 BUSHING; S/ABS
MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (B) 		9-51631-026-0 04 1 0801-0801
68 BUSHING; S/ABS
FRT TAPER LEAF SUSPENSION<SAR> (B) 		9-51631-026-0 04 1 0802-
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-826-1 01 1 0801-1004
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98121-195-0 01 1 1005-
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-825-1 01 1 0801-1004
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98121-193-0 01 1 1005-
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 0801-
173 NUT; S/ABS
M14 		0-91111-514-0 02 1 0801-
180 WASHER; PL,PIN
ID=21 		0-91610-520-0 02 1 0801-
182 NUT; S/ABS LWR
M20 		0-91110-520-0 02 1 0801-
183 SHACKLE; FRT SUSP 1-51162-071-0 02 1 0801-1005
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1006-
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 12 1 0801-
186 BUSHING; SHACKLE
OD=42 		1-51351-044-0 02 1 0801-1005
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1006-
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-096-2 02 1 0801-
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0801-1206
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207-
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 0801-
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 0801-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0801-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 0801-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 0801-
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-2 04 1 0801-
211 WASHER; BRKT,SHOCK
MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (A) ID=27 		9-51631-027-0 02 1 0801-0801
211 WASHER; BRKT,SHOCK
FRT TAPER LEAF SUSPENSION<SAR> (A) ID=27 		9-51631-027-0 02 1 0802-
211 WASHER; BRKT,SHOCK
MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (B) ID=21 		9-51631-028-0 02 1 0801-0801
211 WASHER; BRKT,SHOCK
FRT TAPER LEAF SUSPENSION<SAR> (B) ID=21 		9-51631-028-0 02 1 0802-
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0801-
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 04 1 0801-
425 SEAL; DUST 1-51177-321-0 04 1 0801-1005
