2-37A — MANUAL TRANSMISSION CONT; MISSION SIDE (#5774) — 295 parça

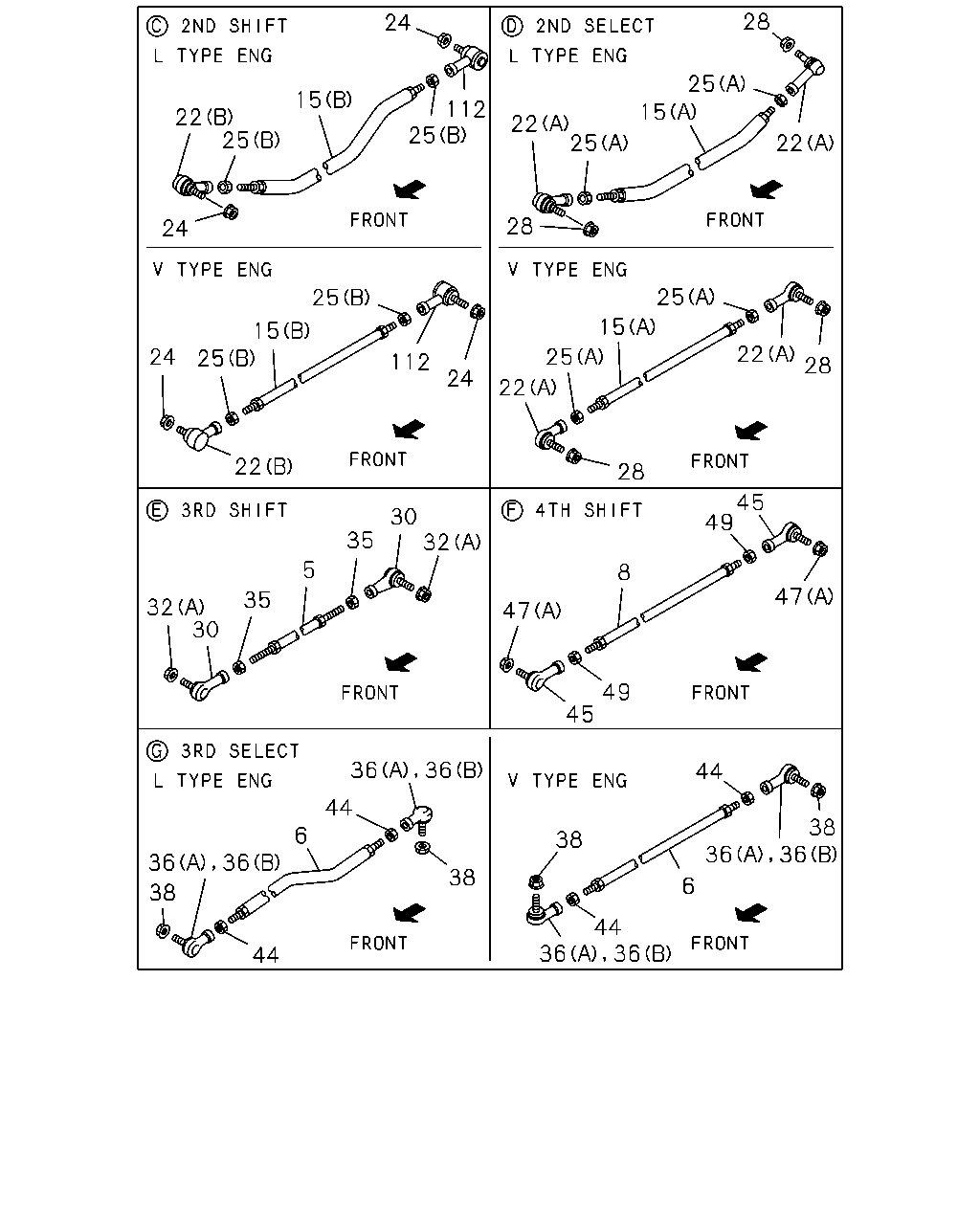

çizim 6993
28 24 25 15 112 25 15 22 25 22 5 22 28 24 25 25 15 15 25 22 28 24 25 112 24 22 22 28 45 49 30 32 35 5 8 47 35 32 30 47 49 45 36 36 44 44 38 36 6 38 36 36 36 38 6 38 44 36 36 44
BalonParca AdiParca NoAdetTipApplied Date A B
5 ROD; LINK,3RD SHIFT
L TYPE ENG<90L> CAB UP +110MM<TGG> L=1120 		1-33652-603-0 01 1 9905- ●
5 ROD; LINK,3RD SHIFT
L TYPE ENG<90L> L=1110 		1-33652-623-0 01 1 9603-9804 ● ●
5 ROD; LINK,3RD SHIFT
L TYPE ENG<90L> L=1110 		1-33652-623-0 01 1 9805-9904 ●
5 ROD; LINK,3RD SHIFT
L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> L=1110 		1-33652-623-0 01 1 9905- ●
5 ROD; LINK,3RD SHIFT
V TYPE ENG<91L> L=855 		1-33652-321-0 01 1 9603-9904 ● ●
5 ROD; LINK,3RD SHIFT
V TYPE ENG<91L> L=855 		1-33652-321-0 01 1 9905- ● ●
6 ROD; LINK,3RD SELECT
L TYPE ENG<90L> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=1624 		1-33652-637-0 01 1 9603-9904 ●
6 ROD; LINK,3RD SELECT
L TYPE ENG<90L> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. CAB UP +110MM<TGG> L=1624 		1-33652-637-0 01 1 9905- ●
6 ROD; LINK,3RD SELECT
L TYPE ENG<90L> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CAB UP +110MM<TGG> L=1585 		1-33652-660-0 01 1 9603- ●
6 ROD; LINK,3RD SELECT
L TYPE ENG<90L> CAB UP +110MM<TGG> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=1635 		1-33652-769-0 01 1 9905- ● ●
6 ROD; LINK,3RD SELECT
L TYPE ENG<90L> CAB UP +110MM<TGG> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=1594 		1-33652-881-0 01 1 9905- ● ●
6 ROD; LINK,3RD SELECT
L TYPE ENG<90L> CAB UP +110MM<TGG> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=1656 		1-33671-483-0 01 1 9905- ● ●
6 ROD; LINK,3RD SELECT
V TYPE ENG<91L> ASSISTER SHIFT CONTROL<WX8> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 15.5"TWIN PLATE STRAP DRIVE(TBV) L=1400 		1-33652-735-0 01 1 9603-9807 ● ●
6 ROD; LINK,3RD SELECT
V TYPE ENG<91L> ASSISTER SHIFT CONTROL<WX8> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 15.5"TWIN PLATE STRAP DRIVE(TBV) L=1403 		1-33652-824-1 01 1 9808- ● ●
6 ROD; LINK,3RD SELECT
V TYPE ENG<91L> FRAME ENG MTG SEPARATE TYPE<SGM> ASSISTER SHIFT CONTROL<WX8> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=1308 		1-33652-708-0 01 1 9603-9807 ● ●
6 ROD; LINK,3RD SELECT
V TYPE ENG<91L> FRAME ENG MTG SEPARATE TYPE<SGM> ASSISTER SHIFT CONTROL<WX8> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=1384 		1-33652-819-0 01 1 9808- ● ●
6 ROD; LINK,3RD SELECT
V TYPE ENG<91L> FRAME ENG MTG SEPARATE TYPE<SGM> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), ASSISTER SHIFT CONTROL<WX8> L=1389 		1-33652-758-0 01 1 9603- ● ●
6 ROD; LINK,3RD SELECT
V TYPE ENG<91L> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 15.5"TWIN PLATE STRAP DRIVE(TBV),ASSISTER SHIFT CONTROL<WX8> L=1409 		1-33652-444-0 01 1 9603- ● ●
8 ROD; LINK,4TH SHIFT
L TYPE ENG<90L> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=370 		1-33652-654-1 01 1 9603- ●
8 ROD; LINK,4TH SHIFT
ASSISTER SHIFT CONTROL<WX8> 10PE1S(60L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 15.5"TWIN PLATE STRAP DRIVE(TBV) L=330 		1-33652-653-1 01 1 9603-9804 ● ●
8 ROD; LINK,4TH SHIFT
6WA1 TC-S(56L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=330 		1-33652-653-1 01 1 9603-9804 ● ●
8 ROD; LINK,4TH SHIFT
V TYPE ENG<91L> ASSISTER SHIFT CONTROL<WX8> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 15.5"TWIN PLATE STRAP DRIVE(TBV) L=330 		1-33652-653-1 01 1 9805- ● ●
8 ROD; LINK,4TH SHIFT
L TYPE ENG<90L> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=330 		1-33652-653-1 01 1 9805- ●
8 ROD; LINK,4TH SHIFT
V TYPE ENG<91L> FRAME ENG MTG SEPARATE TYPE<SGM> ASSISTER SHIFT CONTROL<WX8> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=324 		1-33652-643-1 01 1 9603- ● ●
8 ROD; LINK,4TH SHIFT
V TYPE ENG<91L> FRAME ENG MTG SEPARATE TYPE<SGM> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), ASSISTER SHIFT CONTROL<WX8> L=494 		1-33652-664-1 01 1 9603- ● ●
8 ROD; LINK,4TH SHIFT
V TYPE ENG<91L> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 15.5"TWIN PLATE STRAP DRIVE(TBV),ASSISTER SHIFT CONTROL<WX8> L=490 		1-33652-749-0 01 1 9603- ● ●
15 ROD; LINK 1ST SHIFT
SHORT CHASSIS&RHD(EXZ5MC) HONG KONG EQUIPMENT(PQ1) (F) 1ST SELECT L=345 		1-33652-736-0 01 1 9603-9904 ●
15 ROD; LINK 1ST SHIFT
SHORT CHASSIS&RHD(EXZ5MC) PARKING BRAKE VALVE LEVER TYPE<W48> (F) 1ST SELECT L=345 		1-33652-736-0 01 1 9905- ●
15 ROD; LINK 1ST SHIFT
SHORT CHASSIS&RHD(EXZ5MC) HONG KONG EQUIPMENT(PQ1) (G) 1ST SELECT L=88 		1-33652-740-0 01 1 9603-9904 ●
15 ROD; LINK 1ST SHIFT
SHORT CHASSIS&RHD(EXZ5MC) PARKING BRAKE VALVE LEVER TYPE<W48> (G) 1ST SELECT L=88 		1-33652-740-0 01 1 9905- ●
15 ROD; LINK 1ST SHIFT
SHORT CHASSIS&RHD(EXZ5MC) EXC. HONG KONG EQUIPMENT(PQ1) (C) 1ST SELECT L=435 		1-33652-696-0 01 1 9603-9904 ●
15 ROD; LINK 1ST SHIFT
SHORT CHASSIS&RHD(EXZ5MC) (C) 1ST SELECT L=435 		1-33652-696-0 01 1 9603-9904 ●
15 ROD; LINK 1ST SHIFT
SHORT CHASSIS&RHD(EXZ5MC) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) 1ST SELECT L=435 		1-33652-696-0 01 1 9905- ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (A) 2ND SELECT L=438 		1-33652-682-0 01 1 9603-9706 ● ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (A) 2ND SELECT L=438 		1-33652-682-0 01 1 9707-9711 ● ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (A) 2ND SELECT L=428 		1-33652-781-0 01 1 9712-9804 ● ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (A) 2ND SELECT L=428 		1-33652-781-0 01 1 9805-9904 ● ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (A) 2ND SELECT L=428 		1-33652-781-1 01 1 9905- ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (B) 2ND SHIFT L=497 		1-33652-716-0 01 1 9603-9706 ● ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (B) 2ND SHIFT L=497 		1-33652-716-0 01 1 9707-9711 ● ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (B) 2ND SHIFT L=490 		1-33652-780-0 01 1 9712-9804 ● ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (B) 2ND SHIFT L=490 		1-33652-780-0 01 1 9805-9904 ● ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (B) 2ND SHIFT L=490 		1-33652-780-0 01 1 9905- ●
15 ROD; LINK 1ST SHIFT
10PE1S(60L) (A) 2ND SELECT L=440 		1-33652-672-0 01 1 9603-9904 ● ●
15 ROD; LINK 1ST SHIFT
V TYPE ENG<91L> (A) 2ND SELECT L=440 		1-33652-672-0 01 1 9905- ● ●
15 ROD; LINK 1ST SHIFT
10PE1S(60L) (B) 2ND SHIFT L=490 		1-33652-700-0 01 1 9603-9904 ● ●
15 ROD; LINK 1ST SHIFT
V TYPE ENG<91L> (B) 2ND SHIFT L=490 		1-33652-700-0 01 1 9905- ● ●
15 ROD; LINK 1ST SHIFT
SHORT CHASSIS&LHD(EXZ6MC) (C) 1ST SELECT L=556 		1-33652-744-0 01 1 9603-9904 ● ●
15 ROD; LINK 1ST SHIFT
SHORT CHASSIS&LHD(EXZ6MC) (C) 1ST SELECT L=556 		1-33652-744-0 01 1 9905- ● ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> CAB UP +110MM<TGG> (A) 2ND SELECT L=423 		1-33652-804-1 01 1 9905- ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> CAB UP +110MM<TGG> (B) 2ND SHIFT L=474 		1-33652-803-0 01 1 9905- ●
22 JOINT; BALL,SCREW,LINK ROD
(B) 2ND SHIFT L=64.5 		1-09760-111-0 01 1 9603-9710 ● ●
22 JOINT; BALL,SCREW,LINK ROD
L TYPE ENG<90L> (A) 2ND SELECT 		1-09760-109-0 02 1 9603-9706 ● ●
22 JOINT; BALL,SCREW,LINK ROD
L TYPE ENG<90L> (A) 2ND SELECT 		1-09760-109-0 02 1 9707-9904 ● ●
22 JOINT; BALL,SCREW,LINK ROD
L TYPE ENG<90L> (A) 2ND SELECT 		1-09760-109-0 02 1 9905- ● ●
22 JOINT; BALL,SCREW,LINK ROD
10PE1S(60L) (A) 2ND SELECT 		1-09760-108-0 02 1 9603-9904 ● ●
22 JOINT; BALL,SCREW,LINK ROD
V TYPE ENG<91L> (A) 2ND SELECT 		1-09760-108-0 02 1 9905- ● ●
22 JOINT; BALL,SCREW,LINK ROD
(B) 2ND SHIFT 		1-09760-125-0 01 1 9711-9804 ● ●
22 JOINT; BALL,SCREW,LINK ROD
(B) 2ND SHIFT 		1-09760-125-0 01 1 9805-9904 ● ●
22 JOINT; BALL,SCREW,LINK ROD
(B) 2ND SHIFT 		1-09760-125-0 01 1 9905- ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-050-0 02 1 9603-9708 ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-050-0 01 1 9709-9710 ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-056-0 01 1 9709-9710 ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-056-0 02 1 9711-9802 ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 9803-9904 ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 9905- ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
SHORT CHASSIS&RHD(EXZ5MC) HONG KONG EQUIPMENT(PQ1) (C) M10 LH THREAD 		9-09840-167-0 02 1 9603-9904 ●
25 NUT; LK,RIGHT SCREW,LINK ROD
SHORT CHASSIS&RHD(EXZ5MC) PARKING BRAKE VALVE LEVER TYPE<W48> (C) M10 LH THREAD 		9-09840-167-0 02 1 9905- ●
25 NUT; LK,RIGHT SCREW,LINK ROD
(B) 2ND SHIFT M12 		9-99111-412-0 02 1 9603-9804 ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
(B) 2ND SHIFT M12 		9-99111-412-0 02 1 9805-9904 ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
(B) 2ND SHIFT M12 		9-99111-412-0 02 1 9905- ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
L TYPE ENG<90L> (A) 2ND SELECT M10 		9-09111-410-0 02 1 9603-9706 ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
L TYPE ENG<90L> (A) 2ND SELECT M10 		9-09111-410-0 02 1 9707-9804 ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
L TYPE ENG<90L> (A) 2ND SELECT M10 		9-09111-410-0 02 1 9805-9904 ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
L TYPE ENG<90L> (A) 2ND SELECT M10 		9-09111-410-0 02 1 9905- ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
10PE1S(60L) (A) 2ND SELECT M8 		9-09111-408-0 02 1 9603-9904 ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
V TYPE ENG<91L> (A) 2ND SELECT M8 		9-09111-408-0 02 1 9905- ● ●
28 NUT; 2ND LINK ROD
2ND SELECT M8 FLANGE 		1-09440-049-0 02 1 9603-9804 ● ●
28 NUT; 2ND LINK ROD
2ND SELECT M8 FLANGE 		1-09440-062-1 02 1 9805-9904 ● ●
28 NUT; 2ND LINK ROD
2ND SELECT M8 FLANGE 		1-09440-062-1 02 1 9905- ● ●
30 JOINT; BALL,RIGHT SCREW,LINK ROD
3RD SHIFT 		1-09760-110-0 02 1 9603-9710 ● ●
30 JOINT; BALL,RIGHT SCREW,LINK ROD
3RD SHIFT 		1-09760-124-0 02 1 9711-9804 ● ●
30 JOINT; BALL,RIGHT SCREW,LINK ROD
3RD SHIFT 		1-09760-124-0 02 1 9805-9904 ● ●
30 JOINT; BALL,RIGHT SCREW,LINK ROD
3RD SHIFT 		1-09760-124-0 02 1 9905- ● ●
32 NUT; 3RD LINK ROD
(A) M10 FLANGE 		1-09440-050-0 02 1 9603-9710 ● ●
32 NUT; 3RD LINK ROD
(A) M10 FLANGE 		1-09440-056-0 02 1 9711-9802 ● ●
32 NUT; 3RD LINK ROD
(A) M10 FLANGE 		1-09440-061-0 02 1 9803-9904 ● ●
32 NUT; 3RD LINK ROD
(A) M10 FLANGE 		1-09440-061-0 02 1 9905- ● ●
35 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9603-9804 ● ●
35 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9805-9904 ● ●
35 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9905- ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
L TYPE ENG<90L> (A) 3RD SELECT 		1-09760-109-0 02 1 9603-9807 ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
L TYPE ENG<90L> (A) 3RD SELECT 		1-09760-109-0 02 1 9808-9904 ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
L TYPE ENG<90L> (A) 3RD SELECT 		1-09760-109-0 02 1 9905- ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
V TYPE ENG<91L> (A) 3RD SELECT 		1-09760-108-0 02 1 9603-9807 ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
V TYPE ENG<91L> (B) 3RD SELECT 		1-09760-108-0 02 1 9808- ● ●
38 NUT; 3RD LINK ROD
M8 FLANGE 		1-09440-049-0 02 1 9603-9804 ● ●
38 NUT; 3RD LINK ROD
M8 FLANGE 		1-09440-062-0 02 1 9805-9807 ● ●
38 NUT; 3RD LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9905-9906 ● ●
38 NUT; 3RD LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 0001- ● ●
38 NUT; 3RD LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9808-9904 ● ●
38 NUT; 3RD LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9907-9912 ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
L TYPE ENG<90L> M10 		9-09111-410-0 02 1 9603-9807 ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
L TYPE ENG<90L> M10 		9-09111-410-0 02 1 9808-9904 ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
V TYPE ENG<91L> M8 		9-09111-408-0 02 1 9603-9807 ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
V TYPE ENG<91L> M8 		9-09111-408-0 02 1 9808- ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
L TYPE ENG<90L> M10 		9-09111-410-0 02 1 9905- ● ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD
4TH SHIFT 		1-09760-117-0 02 1 9603-9710 ● ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD
4TH SHIFT 		1-09760-125-0 02 1 9711-9804 ● ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD
4TH SHIFT 		1-09760-125-0 02 1 9805-9904 ● ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD
4TH SHIFT 		1-09760-125-0 02 1 9905- ● ●
47 NUT; 4TH LINK ROD
(A) 4TH SHIFT M10 FLANGE 		1-09440-050-0 02 1 9603-9710 ● ●
47 NUT; 4TH LINK ROD
(A) 4TH SHIFT M10 FLANGE 		1-09440-056-0 02 1 9711-9802 ● ●
47 NUT; 4TH LINK ROD
(A) 4TH SHIFT M10 FLANGE 		1-09440-056-0 02 1 9803-9803 ● ●
47 NUT; 4TH LINK ROD
(A) 4TH SHIFT M10 FLANGE 		1-09440-061-0 02 1 9803-9904 ● ●
47 NUT; 4TH LINK ROD
(A) 4TH SHIFT M10 FLANGE 		1-09440-061-0 02 1 9905- ● ●
49 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 9603-9706 ● ●
49 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 9905- ● ●
49 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 9707-9804 ● ●
49 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 9805-9904 ● ●
112 JOINT; RUBBER
1ST SHIFT 		1-33670-413-1 01 1 9603-9804 ● ●
112 JOINT; RUBBER
1ST SHIFT 		1-33670-413-1 01 1 9603-9804 ● ●
112 JOINT; RUBBER
1ST SHIFT 		1-33670-413-1 01 1 9805-9904 ● ●
112 JOINT; RUBBER
1ST SHIFT 		1-33670-413-1 01 1 9805-9904 ● ●
112 JOINT; RUBBER
1ST SHIFT 		1-33670-413-1 01 1 9905- ● ●
112 JOINT; RUBBER
1ST SHIFT 		1-33670-413-1 01 1 9905- ● ●

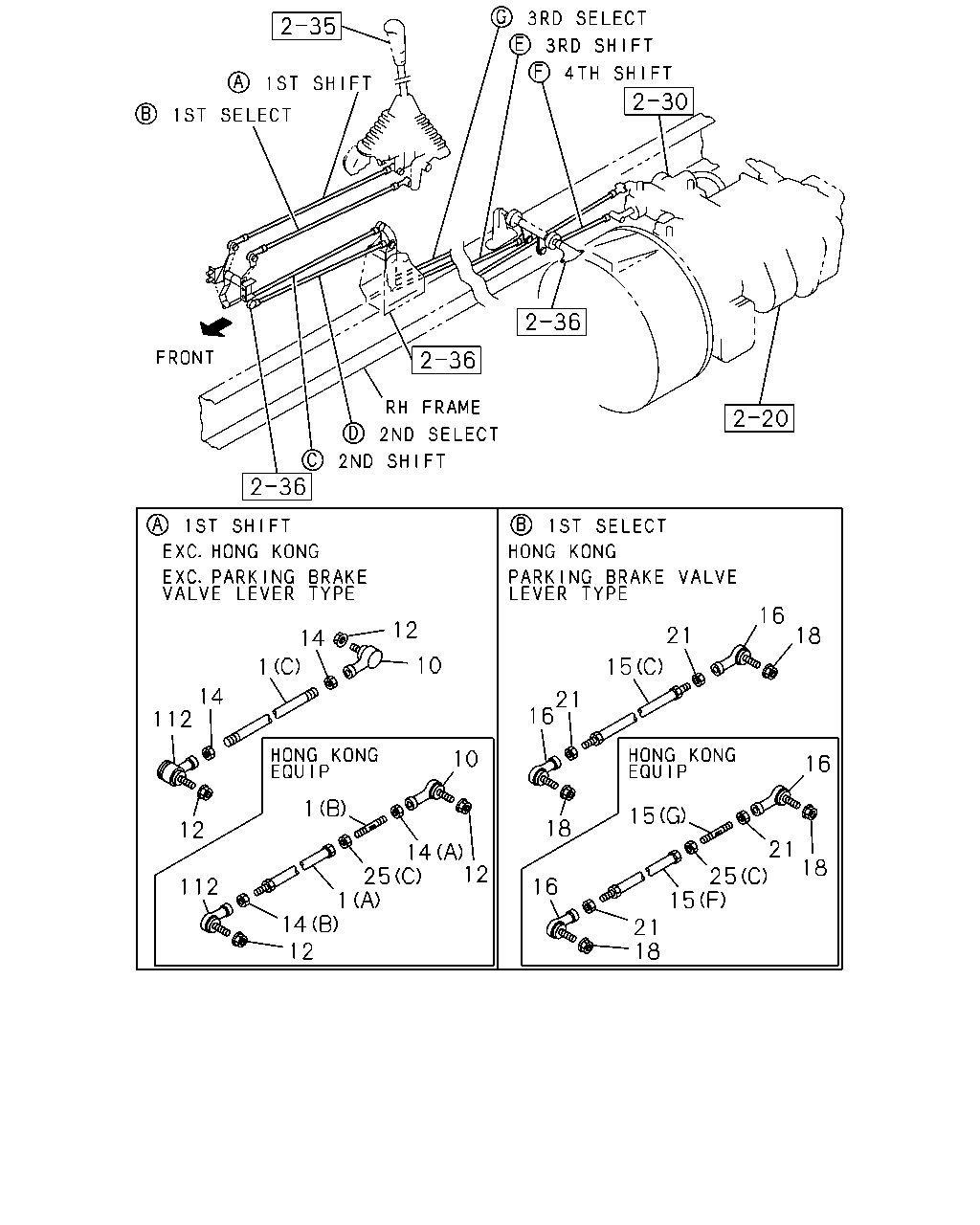

çizim 39063
16 12 21 18 14 10 1 15 14 112 21 16 10 16 1 15 18 12 21 25 15 14 25 1 14 12 12 18 112 16 21 18
BalonParca AdiParca NoAdetTipApplied Date A B
1 ROD; LINK,1ST SHIFT
EXC. HONG KONG EQUIPMENT(PQ1) (C) L=480 		9-08401-248-0 01 1 9603-9904 ●
1 ROD; LINK,1ST SHIFT
(C) L=480 		9-08401-248-0 01 1 9603-9904 ●
1 ROD; LINK,1ST SHIFT
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) L=480 		9-08401-248-0 01 1 9905- ●
1 ROD; LINK,1ST SHIFT
(C) L=480 		9-08401-248-0 01 1 9905- ●
1 ROD; LINK,1ST SHIFT
SHORT CHASSIS&RHD(EXZ5MC) HONG KONG EQUIPMENT(PQ1) (A) L=421 		1-33652-738-0 01 1 9603-9904 ●
1 ROD; LINK,1ST SHIFT
SHORT CHASSIS&RHD(EXZ5MC) PARKING BRAKE VALVE LEVER TYPE<W48> (A) L=421 		1-33652-738-0 01 1 9905- ●
1 ROD; LINK,1ST SHIFT
SHORT CHASSIS&RHD(EXZ5MC) HONG KONG EQUIPMENT(PQ1) (B) L=88 		1-33652-740-0 01 1 9603-9904 ●
1 ROD; LINK,1ST SHIFT
SHORT CHASSIS&RHD(EXZ5MC) PARKING BRAKE VALVE LEVER TYPE<W48> (B) L=88 		1-33652-740-0 01 1 9905- ●
10 JOINT ASM; BALL,SELECT ROD
EXC. HONG KONG EQUIPMENT(PQ1) 1ST SHIFT 		1-09760-117-0 01 1 9603-9710 ●
10 JOINT ASM; BALL,SELECT ROD
1ST SHIFT 		1-09760-117-0 01 1 9603-9710 ●
10 JOINT ASM; BALL,SELECT ROD
EXC. HONG KONG EQUIPMENT(PQ1) 1ST SHIFT 		1-09760-125-0 01 1 9711-9904 ●
10 JOINT ASM; BALL,SELECT ROD
1ST SHIFT 		1-09760-125-0 01 1 9711-9904 ●
10 JOINT ASM; BALL,SELECT ROD
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 1ST SHIFT 		1-09760-125-0 01 1 9905- ●
10 JOINT ASM; BALL,SELECT ROD
1ST SHIFT 		1-09760-125-0 01 1 9905- ●
10 JOINT ASM; BALL,SELECT ROD
EXC. HONG KONG EQUIPMENT(PQ1) 1ST SHIFT 		1-09760-125-0 01 1 9803-9904 ●
10 JOINT ASM; BALL,SELECT ROD
1ST SHIFT 		1-09760-125-0 01 1 9803-9904 ●
10 JOINT ASM; BALL,SELECT ROD
SHORT CHASSIS&RHD(EXZ5MC) HONG KONG EQUIPMENT(PQ1) 1ST SHIFT 		1-09760-110-0 01 1 9603-9710 ●
10 JOINT ASM; BALL,SELECT ROD
SHORT CHASSIS&RHD(EXZ5MC) HONG KONG EQUIPMENT(PQ1) 1ST SHIFT 		1-09760-124-0 01 1 9711-9904 ●
10 JOINT ASM; BALL,SELECT ROD
SHORT CHASSIS&RHD(EXZ5MC) PARKING BRAKE VALVE LEVER TYPE<W48> 1ST SHIFT 		1-09760-124-0 01 1 9905- ●
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-050-0 02 1 9603-9708 ● ●
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-056-0 02 1 9709-9802 ● ●
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 9803-9904 ● ●
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 9905- ● ●
14 NUT; LK,RIGHT SCREW,LINK ROD
EXC. HONG KONG EQUIPMENT(PQ1) M12 		9-99111-412-0 02 1 9603-9904 ●
14 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 9603-9904 ●
14 NUT; LK,RIGHT SCREW,LINK ROD
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M12 		9-99111-412-0 02 1 9905- ●
14 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 9905- ●
14 NUT; LK,RIGHT SCREW,LINK ROD
SHORT CHASSIS&RHD(EXZ5MC) HONG KONG EQUIPMENT(PQ1) (A) M10 		9-09111-410-0 01 1 9603-9904 ●
14 NUT; LK,RIGHT SCREW,LINK ROD
SHORT CHASSIS&RHD(EXZ5MC) PARKING BRAKE VALVE LEVER TYPE<W48> (A) M10 		9-09111-410-0 01 1 9905- ●
14 NUT; LK,RIGHT SCREW,LINK ROD
SHORT CHASSIS&RHD(EXZ5MC) HONG KONG EQUIPMENT(PQ1) (B) M12 		9-99111-412-0 01 1 9603-9904 ●
14 NUT; LK,RIGHT SCREW,LINK ROD
SHORT CHASSIS&RHD(EXZ5MC) PARKING BRAKE VALVE LEVER TYPE<W48> (B) M12 		9-99111-412-0 01 1 9905- ●
15 ROD; LINK 1ST SHIFT
SHORT CHASSIS&RHD(EXZ5MC) HONG KONG EQUIPMENT(PQ1) (F) 1ST SELECT L=345 		1-33652-736-0 01 1 9603-9904 ●
15 ROD; LINK 1ST SHIFT
SHORT CHASSIS&RHD(EXZ5MC) PARKING BRAKE VALVE LEVER TYPE<W48> (F) 1ST SELECT L=345 		1-33652-736-0 01 1 9905- ●
15 ROD; LINK 1ST SHIFT
SHORT CHASSIS&RHD(EXZ5MC) HONG KONG EQUIPMENT(PQ1) (G) 1ST SELECT L=88 		1-33652-740-0 01 1 9603-9904 ●
15 ROD; LINK 1ST SHIFT
SHORT CHASSIS&RHD(EXZ5MC) PARKING BRAKE VALVE LEVER TYPE<W48> (G) 1ST SELECT L=88 		1-33652-740-0 01 1 9905- ●
15 ROD; LINK 1ST SHIFT
SHORT CHASSIS&RHD(EXZ5MC) EXC. HONG KONG EQUIPMENT(PQ1) (C) 1ST SELECT L=435 		1-33652-696-0 01 1 9603-9904 ●
15 ROD; LINK 1ST SHIFT
SHORT CHASSIS&RHD(EXZ5MC) (C) 1ST SELECT L=435 		1-33652-696-0 01 1 9603-9904 ●
15 ROD; LINK 1ST SHIFT
SHORT CHASSIS&RHD(EXZ5MC) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) 1ST SELECT L=435 		1-33652-696-0 01 1 9905- ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (A) 2ND SELECT L=438 		1-33652-682-0 01 1 9603-9706 ● ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (A) 2ND SELECT L=438 		1-33652-682-0 01 1 9707-9711 ● ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (A) 2ND SELECT L=428 		1-33652-781-0 01 1 9712-9804 ● ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (A) 2ND SELECT L=428 		1-33652-781-0 01 1 9805-9904 ● ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (A) 2ND SELECT L=428 		1-33652-781-1 01 1 9905- ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (B) 2ND SHIFT L=497 		1-33652-716-0 01 1 9603-9706 ● ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (B) 2ND SHIFT L=497 		1-33652-716-0 01 1 9707-9711 ● ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (B) 2ND SHIFT L=490 		1-33652-780-0 01 1 9712-9804 ● ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (B) 2ND SHIFT L=490 		1-33652-780-0 01 1 9805-9904 ● ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (B) 2ND SHIFT L=490 		1-33652-780-0 01 1 9905- ●
15 ROD; LINK 1ST SHIFT
10PE1S(60L) (A) 2ND SELECT L=440 		1-33652-672-0 01 1 9603-9904 ● ●
15 ROD; LINK 1ST SHIFT
V TYPE ENG<91L> (A) 2ND SELECT L=440 		1-33652-672-0 01 1 9905- ● ●
15 ROD; LINK 1ST SHIFT
10PE1S(60L) (B) 2ND SHIFT L=490 		1-33652-700-0 01 1 9603-9904 ● ●
15 ROD; LINK 1ST SHIFT
V TYPE ENG<91L> (B) 2ND SHIFT L=490 		1-33652-700-0 01 1 9905- ● ●
15 ROD; LINK 1ST SHIFT
SHORT CHASSIS&LHD(EXZ6MC) (C) 1ST SELECT L=556 		1-33652-744-0 01 1 9603-9904 ● ●
15 ROD; LINK 1ST SHIFT
SHORT CHASSIS&LHD(EXZ6MC) (C) 1ST SELECT L=556 		1-33652-744-0 01 1 9905- ● ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> CAB UP +110MM<TGG> (A) 2ND SELECT L=423 		1-33652-804-1 01 1 9905- ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> CAB UP +110MM<TGG> (B) 2ND SHIFT L=474 		1-33652-803-0 01 1 9905- ●
16 JOINT ASM; BALL,CONT ROD
EXC. HONG KONG EQUIPMENT(PQ1) 1ST SELECT 		1-09760-108-0 02 1 9603-9904 ●
16 JOINT ASM; BALL,CONT ROD
1ST SELECT 		1-09760-108-0 02 1 9603-9904 ●
16 JOINT ASM; BALL,CONT ROD
SHORT CHASSIS&RHD(EXZ5MC) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 1ST SELECT 		1-09760-108-0 02 1 9905- ●
16 JOINT ASM; BALL,CONT ROD
SHORT CHASSIS&LHD(EXZ6MC) 1ST SELECT 		1-09760-108-0 02 1 9905- ●
16 JOINT ASM; BALL,CONT ROD
SHORT CHASSIS&RHD(EXZ5MC) HONG KONG EQUIPMENT(PQ1) 1ST SELECT 		1-09760-109-0 02 1 9603-9904 ●
16 JOINT ASM; BALL,CONT ROD
SHORT CHASSIS&RHD(EXZ5MC) PARKING BRAKE VALVE LEVER TYPE<W48> 1ST SELECT 		1-09760-109-0 02 1 9905- ●
18 NUT; 1ST LINK ROD
M8 FLANGE 		1-09440-049-0 02 1 9603-9804 ● ●
18 NUT; 1ST LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9805-9904 ● ●
18 NUT; 1ST LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9905- ● ●
21 NUT; LK,RIGHT SCREW,LINK ROD
EXC. HONG KONG EQUIPMENT(PQ1) M8 		9-09111-408-0 02 1 9603-9904 ●
21 NUT; LK,RIGHT SCREW,LINK ROD
M8 		9-09111-408-0 02 1 9603-9904 ●
21 NUT; LK,RIGHT SCREW,LINK ROD
SHORT CHASSIS&RHD(EXZ5MC) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8 		9-09111-408-0 02 1 9905- ●
21 NUT; LK,RIGHT SCREW,LINK ROD
SHORT CHASSIS&LHD(EXZ6MC) M8 		9-09111-408-0 02 1 9905- ●
21 NUT; LK,RIGHT SCREW,LINK ROD
SHORT CHASSIS&RHD(EXZ5MC) HONG KONG EQUIPMENT(PQ1) M10 		9-09111-410-0 02 1 9603-9904 ●
21 NUT; LK,RIGHT SCREW,LINK ROD
SHORT CHASSIS&RHD(EXZ5MC) PARKING BRAKE VALVE LEVER TYPE<W48> M10 		9-09111-410-0 02 1 9905- ●
25 NUT; LK,RIGHT SCREW,LINK ROD
SHORT CHASSIS&RHD(EXZ5MC) HONG KONG EQUIPMENT(PQ1) (C) M10 LH THREAD 		9-09840-167-0 02 1 9603-9904 ●
25 NUT; LK,RIGHT SCREW,LINK ROD
SHORT CHASSIS&RHD(EXZ5MC) PARKING BRAKE VALVE LEVER TYPE<W48> (C) M10 LH THREAD 		9-09840-167-0 02 1 9905- ●
25 NUT; LK,RIGHT SCREW,LINK ROD
(B) 2ND SHIFT M12 		9-99111-412-0 02 1 9603-9804 ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
(B) 2ND SHIFT M12 		9-99111-412-0 02 1 9805-9904 ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
(B) 2ND SHIFT M12 		9-99111-412-0 02 1 9905- ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
L TYPE ENG<90L> (A) 2ND SELECT M10 		9-09111-410-0 02 1 9603-9706 ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
L TYPE ENG<90L> (A) 2ND SELECT M10 		9-09111-410-0 02 1 9707-9804 ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
L TYPE ENG<90L> (A) 2ND SELECT M10 		9-09111-410-0 02 1 9805-9904 ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
L TYPE ENG<90L> (A) 2ND SELECT M10 		9-09111-410-0 02 1 9905- ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
10PE1S(60L) (A) 2ND SELECT M8 		9-09111-408-0 02 1 9603-9904 ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
V TYPE ENG<91L> (A) 2ND SELECT M8 		9-09111-408-0 02 1 9905- ● ●
112 JOINT; RUBBER
1ST SHIFT 		1-33670-413-1 01 1 9603-9804 ● ●
112 JOINT; RUBBER
1ST SHIFT 		1-33670-413-1 01 1 9603-9804 ● ●
112 JOINT; RUBBER
1ST SHIFT 		1-33670-413-1 01 1 9805-9904 ● ●
112 JOINT; RUBBER
1ST SHIFT 		1-33670-413-1 01 1 9805-9904 ● ●
112 JOINT; RUBBER
1ST SHIFT 		1-33670-413-1 01 1 9905- ● ●
112 JOINT; RUBBER
1ST SHIFT 		1-33670-413-1 01 1 9905- ● ●

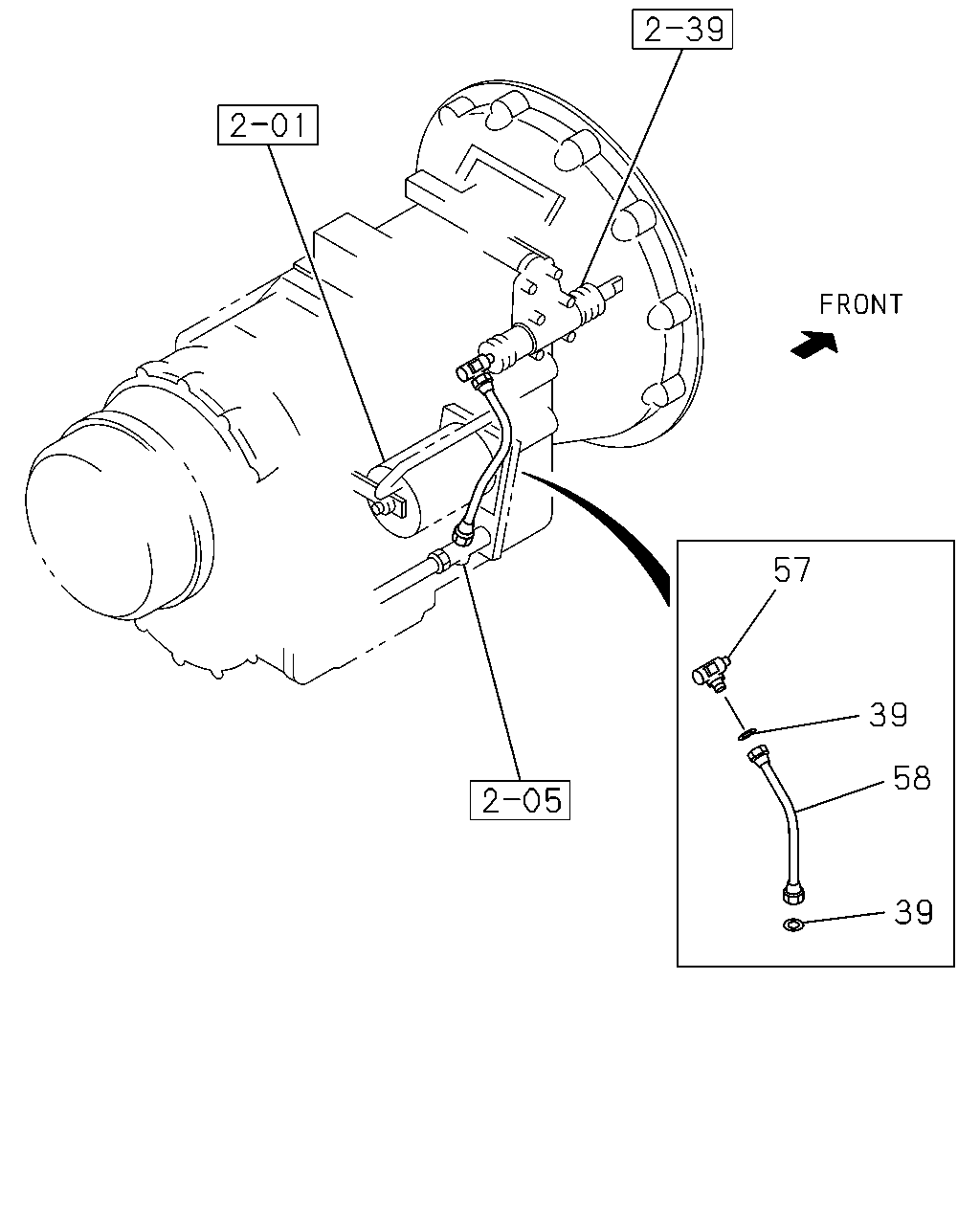

çizim 40910
57 39 58 39
BalonParca AdiParca NoAdetTipApplied Date A B
39 GASKET; FLEX HOSE
ASSISTER SHIFT CONTROL<WX8> ID=11 OD=18 		9-09572-510-0 02 1 9603- ● ●
57 NIPPLE; POWER ASSISTOR
ASSISTER SHIFT CONTROL<WX8> M20 & PT1/4 ELBOW 		1-09660-681-0 01 1 9603-9909 ● ●
57 NIPPLE; POWER ASSISTOR
ASSISTER SHIFT CONTROL<WX8> M20 & PT1/4 ELBOW 		1-09660-681-0 01 1 9910- ● ●
58 HOSE; FLEX,POWER ASSISTOR
ASSISTER SHIFT CONTROL<WX8> L=360 		0-07150-360-0 01 1 9603- ● ●

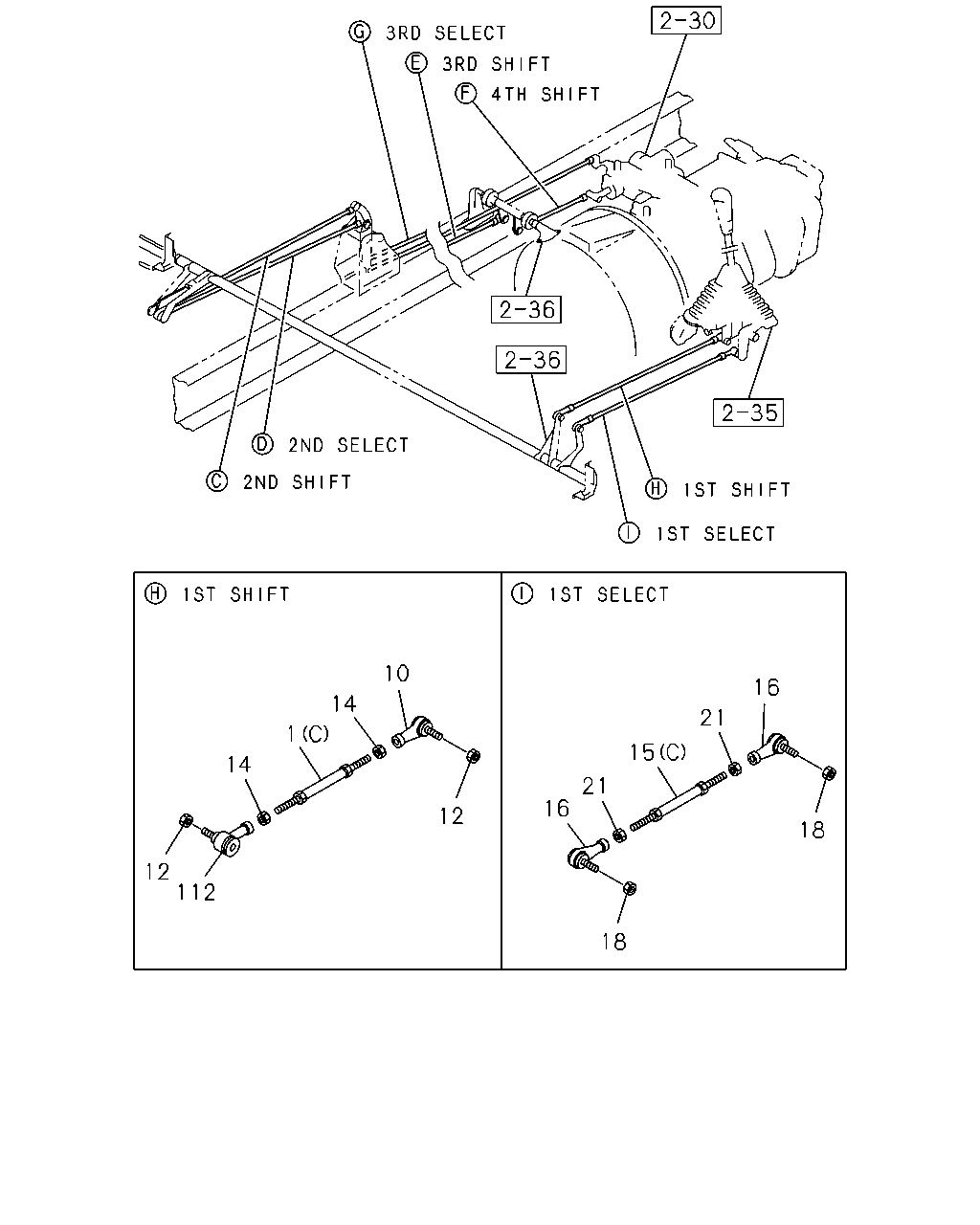

çizim 43028
10 16 14 21 1 15 14 21 16 12 18 12 112 18
BalonParca AdiParca NoAdetTipApplied Date A B
1 ROD; LINK,1ST SHIFT
EXC. HONG KONG EQUIPMENT(PQ1) (C) L=480 		9-08401-248-0 01 1 9603-9904 ●
1 ROD; LINK,1ST SHIFT
(C) L=480 		9-08401-248-0 01 1 9603-9904 ●
1 ROD; LINK,1ST SHIFT
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) L=480 		9-08401-248-0 01 1 9905- ●
1 ROD; LINK,1ST SHIFT
(C) L=480 		9-08401-248-0 01 1 9905- ●
1 ROD; LINK,1ST SHIFT
SHORT CHASSIS&RHD(EXZ5MC) HONG KONG EQUIPMENT(PQ1) (A) L=421 		1-33652-738-0 01 1 9603-9904 ●
1 ROD; LINK,1ST SHIFT
SHORT CHASSIS&RHD(EXZ5MC) PARKING BRAKE VALVE LEVER TYPE<W48> (A) L=421 		1-33652-738-0 01 1 9905- ●
1 ROD; LINK,1ST SHIFT
SHORT CHASSIS&RHD(EXZ5MC) HONG KONG EQUIPMENT(PQ1) (B) L=88 		1-33652-740-0 01 1 9603-9904 ●
1 ROD; LINK,1ST SHIFT
SHORT CHASSIS&RHD(EXZ5MC) PARKING BRAKE VALVE LEVER TYPE<W48> (B) L=88 		1-33652-740-0 01 1 9905- ●
10 JOINT ASM; BALL,SELECT ROD
EXC. HONG KONG EQUIPMENT(PQ1) 1ST SHIFT 		1-09760-117-0 01 1 9603-9710 ●
10 JOINT ASM; BALL,SELECT ROD
1ST SHIFT 		1-09760-117-0 01 1 9603-9710 ●
10 JOINT ASM; BALL,SELECT ROD
EXC. HONG KONG EQUIPMENT(PQ1) 1ST SHIFT 		1-09760-125-0 01 1 9711-9904 ●
10 JOINT ASM; BALL,SELECT ROD
1ST SHIFT 		1-09760-125-0 01 1 9711-9904 ●
10 JOINT ASM; BALL,SELECT ROD
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 1ST SHIFT 		1-09760-125-0 01 1 9905- ●
10 JOINT ASM; BALL,SELECT ROD
1ST SHIFT 		1-09760-125-0 01 1 9905- ●
10 JOINT ASM; BALL,SELECT ROD
EXC. HONG KONG EQUIPMENT(PQ1) 1ST SHIFT 		1-09760-125-0 01 1 9803-9904 ●
10 JOINT ASM; BALL,SELECT ROD
1ST SHIFT 		1-09760-125-0 01 1 9803-9904 ●
10 JOINT ASM; BALL,SELECT ROD
SHORT CHASSIS&RHD(EXZ5MC) HONG KONG EQUIPMENT(PQ1) 1ST SHIFT 		1-09760-110-0 01 1 9603-9710 ●
10 JOINT ASM; BALL,SELECT ROD
SHORT CHASSIS&RHD(EXZ5MC) HONG KONG EQUIPMENT(PQ1) 1ST SHIFT 		1-09760-124-0 01 1 9711-9904 ●
10 JOINT ASM; BALL,SELECT ROD
SHORT CHASSIS&RHD(EXZ5MC) PARKING BRAKE VALVE LEVER TYPE<W48> 1ST SHIFT 		1-09760-124-0 01 1 9905- ●
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-050-0 02 1 9603-9708 ● ●
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-056-0 02 1 9709-9802 ● ●
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 9803-9904 ● ●
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 9905- ● ●
14 NUT; LK,RIGHT SCREW,LINK ROD
EXC. HONG KONG EQUIPMENT(PQ1) M12 		9-99111-412-0 02 1 9603-9904 ●
14 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 9603-9904 ●
14 NUT; LK,RIGHT SCREW,LINK ROD
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M12 		9-99111-412-0 02 1 9905- ●
14 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 9905- ●
14 NUT; LK,RIGHT SCREW,LINK ROD
SHORT CHASSIS&RHD(EXZ5MC) HONG KONG EQUIPMENT(PQ1) (A) M10 		9-09111-410-0 01 1 9603-9904 ●
14 NUT; LK,RIGHT SCREW,LINK ROD
SHORT CHASSIS&RHD(EXZ5MC) PARKING BRAKE VALVE LEVER TYPE<W48> (A) M10 		9-09111-410-0 01 1 9905- ●
14 NUT; LK,RIGHT SCREW,LINK ROD
SHORT CHASSIS&RHD(EXZ5MC) HONG KONG EQUIPMENT(PQ1) (B) M12 		9-99111-412-0 01 1 9603-9904 ●
14 NUT; LK,RIGHT SCREW,LINK ROD
SHORT CHASSIS&RHD(EXZ5MC) PARKING BRAKE VALVE LEVER TYPE<W48> (B) M12 		9-99111-412-0 01 1 9905- ●
15 ROD; LINK 1ST SHIFT
SHORT CHASSIS&RHD(EXZ5MC) HONG KONG EQUIPMENT(PQ1) (F) 1ST SELECT L=345 		1-33652-736-0 01 1 9603-9904 ●
15 ROD; LINK 1ST SHIFT
SHORT CHASSIS&RHD(EXZ5MC) PARKING BRAKE VALVE LEVER TYPE<W48> (F) 1ST SELECT L=345 		1-33652-736-0 01 1 9905- ●
15 ROD; LINK 1ST SHIFT
SHORT CHASSIS&RHD(EXZ5MC) HONG KONG EQUIPMENT(PQ1) (G) 1ST SELECT L=88 		1-33652-740-0 01 1 9603-9904 ●
15 ROD; LINK 1ST SHIFT
SHORT CHASSIS&RHD(EXZ5MC) PARKING BRAKE VALVE LEVER TYPE<W48> (G) 1ST SELECT L=88 		1-33652-740-0 01 1 9905- ●
15 ROD; LINK 1ST SHIFT
SHORT CHASSIS&RHD(EXZ5MC) EXC. HONG KONG EQUIPMENT(PQ1) (C) 1ST SELECT L=435 		1-33652-696-0 01 1 9603-9904 ●
15 ROD; LINK 1ST SHIFT
SHORT CHASSIS&RHD(EXZ5MC) (C) 1ST SELECT L=435 		1-33652-696-0 01 1 9603-9904 ●
15 ROD; LINK 1ST SHIFT
SHORT CHASSIS&RHD(EXZ5MC) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) 1ST SELECT L=435 		1-33652-696-0 01 1 9905- ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (A) 2ND SELECT L=438 		1-33652-682-0 01 1 9603-9706 ● ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (A) 2ND SELECT L=438 		1-33652-682-0 01 1 9707-9711 ● ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (A) 2ND SELECT L=428 		1-33652-781-0 01 1 9712-9804 ● ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (A) 2ND SELECT L=428 		1-33652-781-0 01 1 9805-9904 ● ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (A) 2ND SELECT L=428 		1-33652-781-1 01 1 9905- ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (B) 2ND SHIFT L=497 		1-33652-716-0 01 1 9603-9706 ● ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (B) 2ND SHIFT L=497 		1-33652-716-0 01 1 9707-9711 ● ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (B) 2ND SHIFT L=490 		1-33652-780-0 01 1 9712-9804 ● ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (B) 2ND SHIFT L=490 		1-33652-780-0 01 1 9805-9904 ● ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (B) 2ND SHIFT L=490 		1-33652-780-0 01 1 9905- ●
15 ROD; LINK 1ST SHIFT
10PE1S(60L) (A) 2ND SELECT L=440 		1-33652-672-0 01 1 9603-9904 ● ●
15 ROD; LINK 1ST SHIFT
V TYPE ENG<91L> (A) 2ND SELECT L=440 		1-33652-672-0 01 1 9905- ● ●
15 ROD; LINK 1ST SHIFT
10PE1S(60L) (B) 2ND SHIFT L=490 		1-33652-700-0 01 1 9603-9904 ● ●
15 ROD; LINK 1ST SHIFT
V TYPE ENG<91L> (B) 2ND SHIFT L=490 		1-33652-700-0 01 1 9905- ● ●
15 ROD; LINK 1ST SHIFT
SHORT CHASSIS&LHD(EXZ6MC) (C) 1ST SELECT L=556 		1-33652-744-0 01 1 9603-9904 ● ●
15 ROD; LINK 1ST SHIFT
SHORT CHASSIS&LHD(EXZ6MC) (C) 1ST SELECT L=556 		1-33652-744-0 01 1 9905- ● ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> CAB UP +110MM<TGG> (A) 2ND SELECT L=423 		1-33652-804-1 01 1 9905- ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> CAB UP +110MM<TGG> (B) 2ND SHIFT L=474 		1-33652-803-0 01 1 9905- ●
16 JOINT ASM; BALL,CONT ROD
EXC. HONG KONG EQUIPMENT(PQ1) 1ST SELECT 		1-09760-108-0 02 1 9603-9904 ●
16 JOINT ASM; BALL,CONT ROD
1ST SELECT 		1-09760-108-0 02 1 9603-9904 ●
16 JOINT ASM; BALL,CONT ROD
SHORT CHASSIS&RHD(EXZ5MC) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 1ST SELECT 		1-09760-108-0 02 1 9905- ●
16 JOINT ASM; BALL,CONT ROD
SHORT CHASSIS&LHD(EXZ6MC) 1ST SELECT 		1-09760-108-0 02 1 9905- ●
16 JOINT ASM; BALL,CONT ROD
SHORT CHASSIS&RHD(EXZ5MC) HONG KONG EQUIPMENT(PQ1) 1ST SELECT 		1-09760-109-0 02 1 9603-9904 ●
16 JOINT ASM; BALL,CONT ROD
SHORT CHASSIS&RHD(EXZ5MC) PARKING BRAKE VALVE LEVER TYPE<W48> 1ST SELECT 		1-09760-109-0 02 1 9905- ●
18 NUT; 1ST LINK ROD
M8 FLANGE 		1-09440-049-0 02 1 9603-9804 ● ●
18 NUT; 1ST LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9805-9904 ● ●
18 NUT; 1ST LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9905- ● ●
21 NUT; LK,RIGHT SCREW,LINK ROD
EXC. HONG KONG EQUIPMENT(PQ1) M8 		9-09111-408-0 02 1 9603-9904 ●
21 NUT; LK,RIGHT SCREW,LINK ROD
M8 		9-09111-408-0 02 1 9603-9904 ●
21 NUT; LK,RIGHT SCREW,LINK ROD
SHORT CHASSIS&RHD(EXZ5MC) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8 		9-09111-408-0 02 1 9905- ●
21 NUT; LK,RIGHT SCREW,LINK ROD
SHORT CHASSIS&LHD(EXZ6MC) M8 		9-09111-408-0 02 1 9905- ●
21 NUT; LK,RIGHT SCREW,LINK ROD
SHORT CHASSIS&RHD(EXZ5MC) HONG KONG EQUIPMENT(PQ1) M10 		9-09111-410-0 02 1 9603-9904 ●
21 NUT; LK,RIGHT SCREW,LINK ROD
SHORT CHASSIS&RHD(EXZ5MC) PARKING BRAKE VALVE LEVER TYPE<W48> M10 		9-09111-410-0 02 1 9905- ●
112 JOINT; RUBBER
1ST SHIFT 		1-33670-413-1 01 1 9603-9804 ● ●
112 JOINT; RUBBER
1ST SHIFT 		1-33670-413-1 01 1 9603-9804 ● ●
112 JOINT; RUBBER
1ST SHIFT 		1-33670-413-1 01 1 9805-9904 ● ●
112 JOINT; RUBBER
1ST SHIFT 		1-33670-413-1 01 1 9805-9904 ● ●
112 JOINT; RUBBER
1ST SHIFT 		1-33670-413-1 01 1 9905- ● ●
112 JOINT; RUBBER
1ST SHIFT 		1-33670-413-1 01 1 9905- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
