4-11 — FRONT HUB AND DRUM OR ROTOR (#57730) — 43 parça

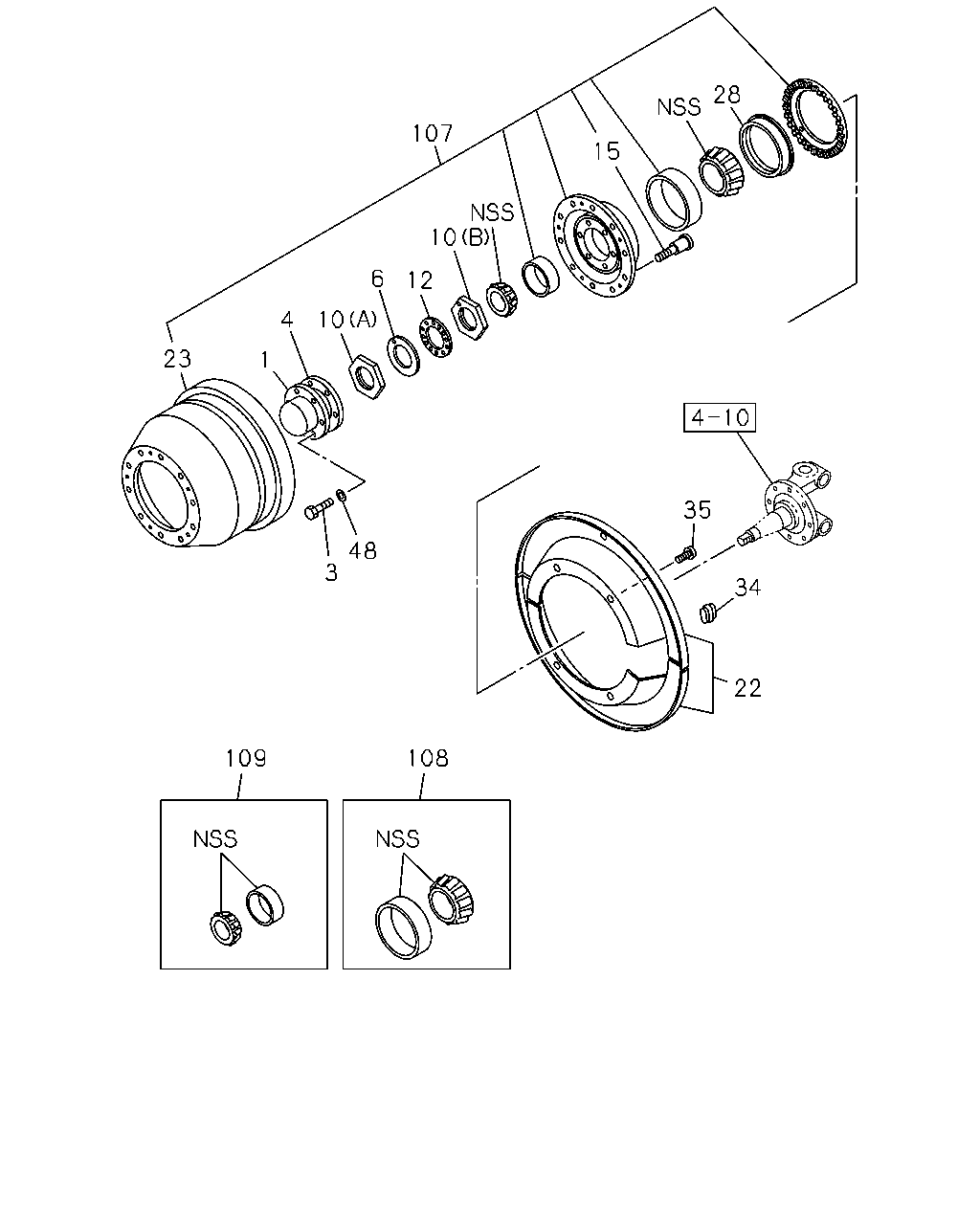

107 23 4 10 6 12 10 15 28 3 109 108 48 35 34 22 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CAP; HUB,FRT AXLE ANTILOCK BRAKE SYSTEM(BFA)	1-42313-028-0	02	1	0801-1507
1	CAP; HUB,FRT AXLE ANTILOCK BRAKE SYSTEM(BFA)	8-98329-296-0	02	1	1508-
3	BOLT; HUB CAP,FRT WHEEL ANTILOCK BRAKE SYSTEM(BFA)	1-42319-189-0	12	1	0801-
4	GASKET; HUB CAP,FRT WHEEL ANTILOCK BRAKE SYSTEM(BFA)	1-42319-186-0	02	1	0801-1507
4	GASKET; HUB CAP,FRT WHEEL ANTILOCK BRAKE SYSTEM(BFA)	8-98329-302-0	02	1	1508-
6	WASHER; LK,FRT HUB ANTILOCK BRAKE SYSTEM(BFA)	1-42329-018-0	02	1	0801-
10	NUT; FRT HUB BRG ANTILOCK BRAKE SYSTEM(BFA) (A)	1-42329-016-0	02	1	0801-
10	NUT; FRT HUB BRG ANTILOCK BRAKE SYSTEM(BFA) (B)	1-42329-017-0	02	1	0801-
12	WASHER; LK,FRT HUB BRG ANTILOCK BRAKE SYSTEM(BFA)	1-42329-015-0	02	1	0801-
15	PIN; WHEEL,FRT AXLE ANTILOCK BRAKE SYSTEM(BFA)	1-42337-063-0	20	1	0801-
22	COVER SET; FRT BRK DRUM ANTILOCK BRAKE SYSTEM(BFA)	1-47151-708-0	02	1	0801-
23	DRUM; BRK,FRT ANTILOCK BRAKE SYSTEM(BFA)	1-42315-378-0	02	1	0801-1204
23	DRUM; BRK,FRT ANTILOCK BRAKE SYSTEM(BFA)	1-42315-420-0	02	1	1205-
28	SEAL; OIL,FRT HUB ANTILOCK BRAKE SYSTEM(BFA)	1-09625-636-0	02	1	0801-
34	COVER; CHECK HOLE,DRUM COVER ANTILOCK BRAKE SYSTEM(BFA)	1-87050-011-0	04	1	0801-
35	BOLT; DRUM COVER ANTILOCK BRAKE SYSTEM(BFA)	1-47159-176-0	12	1	0801-
48	WASHER; LK,HUB CAP,FRT WHEEL ANTILOCK BRAKE SYSTEM(BFA)	1-42319-190-0	12	1	0801-1507
48	WASHER; LK,HUB CAP,FRT WHEEL ANTILOCK BRAKE SYSTEM(BFA)	1-41519-055-0	12	1	1508-
107	HUB & DRUM ASM ANTILOCK BRAKE SYSTEM(BFA)	1-42311-152-0	02	1	0801-1204
108	BEARING SET; HUB,INNER ANTILOCK BRAKE SYSTEM(BFA)	1-85573-010-0	02	1	0801-
109	BEARING SET; HUB,OUTER ANTILOCK BRAKE SYSTEM(BFA)	1-85573-011-0	02	1	0801-

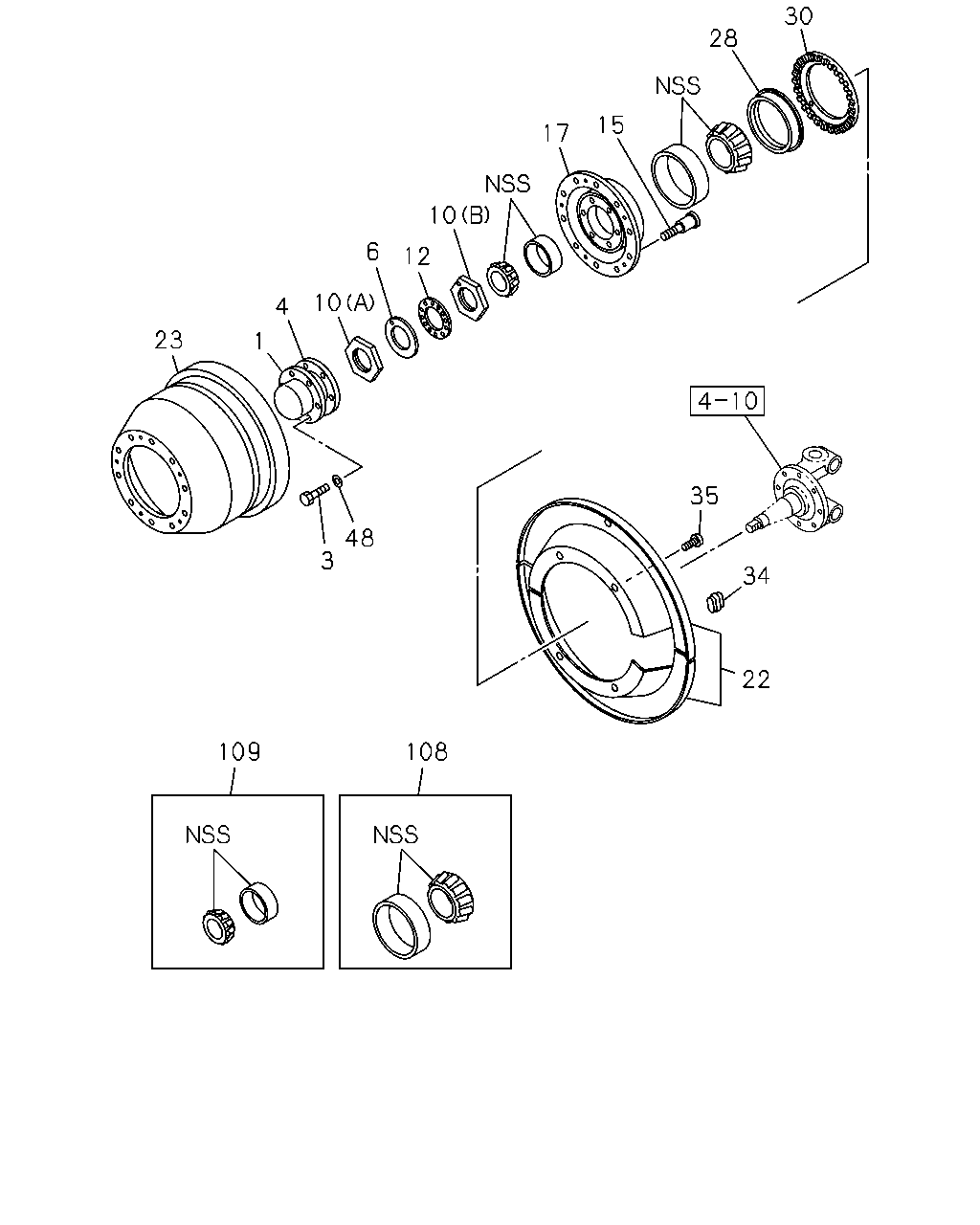

3 1 4 23 10 6 10 12 17 15 28 30 35 34 22 108 109 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CAP; HUB,FRT AXLE ANTILOCK BRAKE SYSTEM(BFA)	1-42313-028-0	02	1	0801-1507
1	CAP; HUB,FRT AXLE ANTILOCK BRAKE SYSTEM(BFA)	8-98329-296-0	02	1	1508-
3	BOLT; HUB CAP,FRT WHEEL ANTILOCK BRAKE SYSTEM(BFA)	1-42319-189-0	12	1	0801-
4	GASKET; HUB CAP,FRT WHEEL ANTILOCK BRAKE SYSTEM(BFA)	1-42319-186-0	02	1	0801-1507
4	GASKET; HUB CAP,FRT WHEEL ANTILOCK BRAKE SYSTEM(BFA)	8-98329-302-0	02	1	1508-
6	WASHER; LK,FRT HUB ANTILOCK BRAKE SYSTEM(BFA)	1-42329-018-0	02	1	0801-
10	NUT; FRT HUB BRG ANTILOCK BRAKE SYSTEM(BFA) (A)	1-42329-016-0	02	1	0801-
10	NUT; FRT HUB BRG ANTILOCK BRAKE SYSTEM(BFA) (B)	1-42329-017-0	02	1	0801-
12	WASHER; LK,FRT HUB BRG ANTILOCK BRAKE SYSTEM(BFA)	1-42329-015-0	02	1	0801-
15	PIN; WHEEL,FRT AXLE ANTILOCK BRAKE SYSTEM(BFA)	1-42337-063-0	20	1	0801-
17	HUB; FRT AXLE ANTILOCK BRAKE SYSTEM(BFA)	1-42311-163-0	02	1	1205-
22	COVER SET; FRT BRK DRUM ANTILOCK BRAKE SYSTEM(BFA)	1-47151-708-0	02	1	0801-
23	DRUM; BRK,FRT ANTILOCK BRAKE SYSTEM(BFA)	1-42315-378-0	02	1	0801-1204
23	DRUM; BRK,FRT ANTILOCK BRAKE SYSTEM(BFA)	1-42315-420-0	02	1	1205-
28	SEAL; OIL,FRT HUB ANTILOCK BRAKE SYSTEM(BFA)	1-09625-636-0	02	1	0801-
30	RING; EXCITER,FRT HUB ANTILOCK BRAKE SYSTEM(BFA)	1-42319-223-0	02	1	1205-
34	COVER; CHECK HOLE,DRUM COVER ANTILOCK BRAKE SYSTEM(BFA)	1-87050-011-0	04	1	0801-
35	BOLT; DRUM COVER ANTILOCK BRAKE SYSTEM(BFA)	1-47159-176-0	12	1	0801-
48	WASHER; LK,HUB CAP,FRT WHEEL ANTILOCK BRAKE SYSTEM(BFA)	1-42319-190-0	12	1	0801-1507
48	WASHER; LK,HUB CAP,FRT WHEEL ANTILOCK BRAKE SYSTEM(BFA)	1-41519-055-0	12	1	1508-
108	BEARING SET; HUB,INNER ANTILOCK BRAKE SYSTEM(BFA)	1-85573-010-0	02	1	0801-
109	BEARING SET; HUB,OUTER ANTILOCK BRAKE SYSTEM(BFA)	1-85573-011-0	02	1	0801-
