Sayfa 2-36C - Isuzu EPC

2-36C — MANUAL TRANSMISSION CONT LINK AND CABLE (#5773) — 278 parça

496 465 192 509 468

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
192	COVER SHORT CHASSIS&RHD(EXZ5MC) ELECTRONIC GOV RED3(KG5)	1-79907-081-0	01	1	9610-9903	●
192	COVER SHORT CHASSIS&RHD(EXZ5MC) ELECTRONIC GOV RED3(KG5)	1-79907-090-0	01	1	9904-9904	●
192	COVER ELECTRONIC GOV RED3(KG5)	1-79907-090-0	01	1	9905-0001		●	●	●	●
192	COVER	1-79907-090-0	01	1	0002-		●	●	●	●
465	BRACKET; CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) ELECTRONIC GOV RED3(KG5)	1-47477-823-0	01	1	9610-9904	●
465	BRACKET; CONNECTOR ELECTRONIC GOV RED3(KG5)	1-47477-823-1	01	1	9905-0001		●	●	●	●
465	BRACKET; CONNECTOR	1-47477-823-2	01	1	0002-		●	●	●	●
468	NUT; BRKT SHORT CHASSIS&RHD(EXZ5MC) ELECTRONIC GOV RED3(KG5) M8 FLANGE	8-94279-517-0	02	1	9610-9611	●
468	NUT; BRKT SHORT CHASSIS&RHD(EXZ5MC) ELECTRONIC GOV RED3(KG5) M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	9612-9904	●
468	NUT; BRKT ELECTRONIC GOV RED3(KG5) M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	9905-0001		●	●	●	●
468	NUT; BRKT M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0002-		●	●	●	●
496	FASTENER SHORT CHASSIS&RHD(EXZ5MC) ELECTRONIC GOV RED3(KG5) ID=6X6 OD=8	1-09987-194-0	02	1	9610-9610	●
496	FASTENER SHORT CHASSIS&RHD(EXZ5MC) ELECTRONIC GOV RED3(KG5) D8X13.5	1-09987-248-1	02	1	9611-9904	●
496	FASTENER ELECTRONIC GOV RED3(KG5) D8X13.5	1-09987-248-1	02	1	9905-0001		●	●	●	●
496	FASTENER D8X13.5	1-09987-248-1	02	1	0002-		●	●	●	●
509	SEAL; BRKT SHORT CHASSIS&RHD(EXZ5MC) ELECTRONIC GOV RED3(KG5)	1-47477-825-1	01	1	9610-9904	●
509	SEAL; BRKT ELECTRONIC GOV RED3(KG5)	1-47477-825-2	01	1	9905-0001		●	●	●	●
509	SEAL; BRKT	1-47477-825-2	01	1	0002-		●	●	●	●

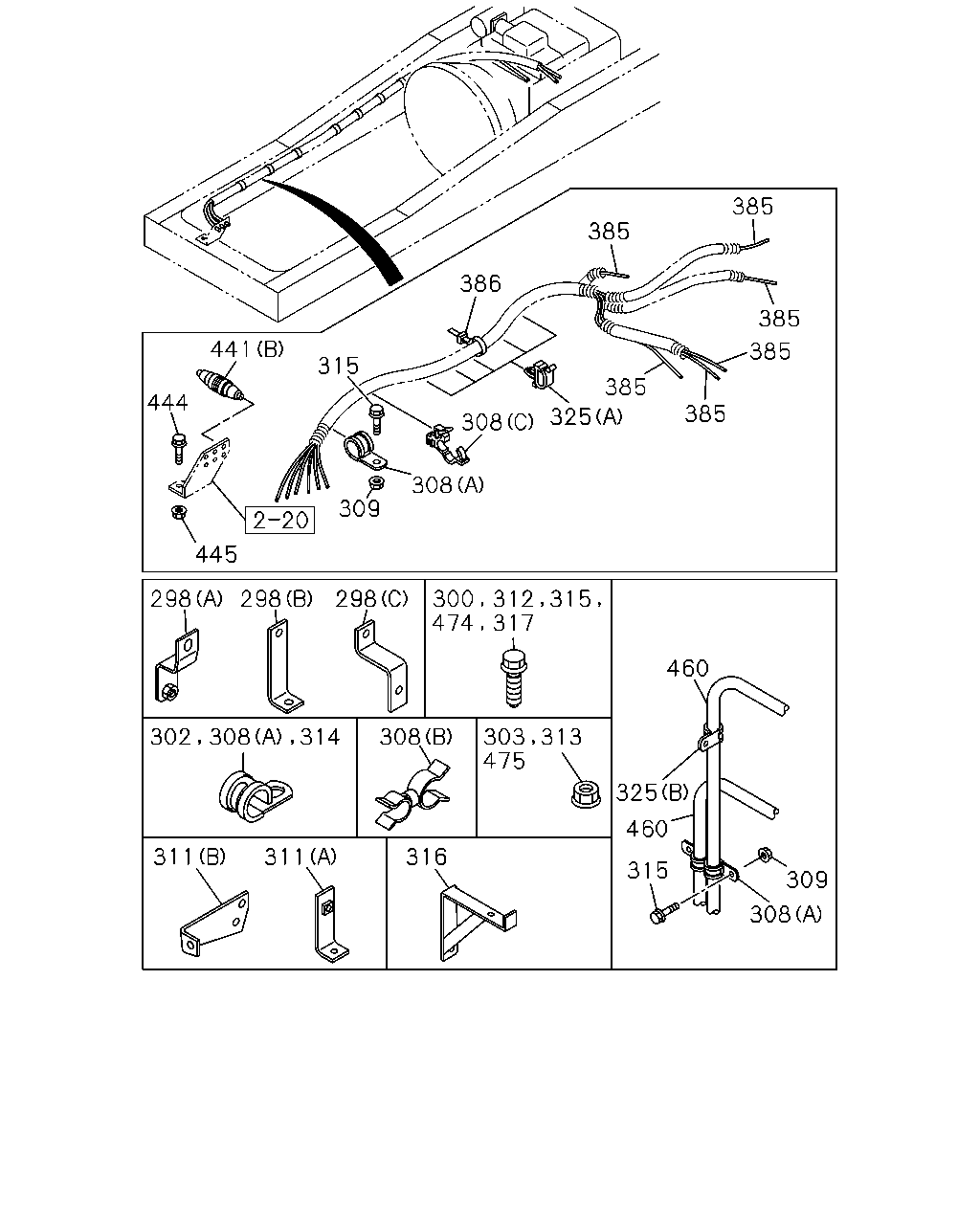

385 385 386 385 441 385 315 385 444 385 325 308 308 309 445 298 298 298 474 460 314 308 303 475 325 460 311 311 316 315 309 308 300 312 315 317 313 308 302

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
298	BRACKET (A)	1-46147-264-0	01	1	9603-9608	●
298	BRACKET (C)	1-47475-881-0	01	1	9607-9608	●
298	BRACKET (B) L=95	1-82699-085-0	01	1	9607-9608	●
300	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	9607-9608	●
300	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	02	1	9607-9608	●
302	CLIP; BAND ID=20 L=24	1-09700-730-1	04	1	9607-9608	●
303	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9607-9608	●
308	CLIP; PIPE (A) ID=20 L=24	1-09700-730-1	03	1	9603-9606	●
308	CLIP; PIPE (A) ID=20 L=24	1-09700-730-1	01	1	9607-9608	●
308	CLIP; PIPE (A) ID=20 L=24	1-09700-730-1	02	1	9607-9608	●
308	CLIP; PIPE (B) ID=12 & 16.5	8-94400-865-0	01	1	9609-9612	●
308	CLIP; PIPE (C) ID=12-16 & 12-16	1-09709-191-0	01	1	9701-9805	●
308	CLIP; PIPE (C) ID=12-16 & 12-16	1-09709-191-0	01	1	9806-9904	●					●
308	CLIP; PIPE (C) ID=12-16 & 12-16	1-09709-191-0	01	1	9905-		●	●	●	●
309	NUT; PIPE CLIP M8	9-09110-408-0	03	1	9603-9606	●
309	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9607-9608	●
309	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	9607-9608	●
311	BRACKET; CLIP,UNDER MBR (A)	1-47477-580-1	01	1	9603-9608	●
311	BRACKET; CLIP,UNDER MBR (B) L=90 B=25	1-47475-530-0	01	1	9607-9608	●
312	BOLT; CLIP BRKT M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●
312	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	03	1	9607-9608	●
313	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	9607-9608	●
314	CLIP; PIPE,UNDER MBR ID=20 L=24	1-09700-730-1	01	1	9603-9608	●
315	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	03	1	9603-9606	●
315	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	04	1	9607-9608	●
316	BRACKET; CLIP	1-46147-169-1	01	1	9603-9608	●
317	BOLT; BRKT,SIDE MBR M8X30 FLANGE	0-28080-830-0	01	1	9603-9606	●
317	BOLT; BRKT,SIDE MBR M8X30 FLANGE	0-28680-830-0	01	1	9607-9608	●
325	CLIP; NYLON TUBE (A) ID=9.5	5-09709-020-0	06	1	9609-9803	●
325	CLIP; NYLON TUBE (A) ID=9.5	5-09709-020-0	06	1	9804-9904	●					●
325	CLIP; NYLON TUBE (A) ID=9.5	5-09709-020-0	06	1	9905-9910		●	●	●	●
325	CLIP; NYLON TUBE COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) ID=9.5	5-09709-020-0	06	1	9911-		●	●	●	●
325	CLIP; NYLON TUBE EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) ID=9.5	5-09709-020-0	04	1	9911-		●	●	●	●
385	TUBE; NYLON L=1530 RED SERVICED BY L=5800 RED	1-33619-362-0	AR	1	9603-9802	●
385	TUBE; NYLON L=1430 BLACK SERVICED BY L=5800 BLACK	1-33619-371-0	AR	1	9603-9802	●
385	TUBE; NYLON L=1530 BLACK SERVICED BY L=6350 BLUE	1-33619-380-0	AR	1	9603-9802	●
385	TUBE; NYLON L=1530 GREEN SERVICED BY L=5800 GREEN	1-33619-389-0	AR	1	9603-9802	●
385	TUBE; NYLON SERVICED BY L=5250 YELLOW	1-33619-392-0	AR	1	9603-9802	●
385	TUBE; NYLON SERVICED BY L=6250 ORANGE	1-33619-400-0	AR	1	9603-9802	●
385	TUBE; NYLON L=1530 RED SERVICED BY L=5800 RED	1-33619-362-0	AR	1	9803-9904	●					●
385	TUBE; NYLON L=1430 BLACK SERVICED BY L=5800 BLACK	1-33619-371-0	AR	1	9803-9904	●					●
385	TUBE; NYLON L=1530 BLACK SERVICED BY L=6350 BLUE	1-33619-380-0	AR	1	9803-9904	●					●
385	TUBE; NYLON L=1530 GREEN SERVICED BY L=5800 GREEN	1-33619-389-0	AR	1	9803-9904	●					●
385	TUBE; NYLON SERVICED BY L=5250 YELLOW	1-33619-392-0	AR	1	9803-9904	●					●
385	TUBE; NYLON SERVICED BY L=6250 ORANGE	1-33619-400-0	AR	1	9803-9904	●					●
385	TUBE; NYLON L=1530 RED SERVICED BY L=5800 RED	1-33619-362-0	AR	1	9905-		●	●	●	●
385	TUBE; NYLON L=1430 BLACK SERVICED BY L=5800 BLACK	1-33619-371-0	AR	1	9905-		●	●	●	●
385	TUBE; NYLON L=1530 BLACK SERVICED BY L=6350 BLUE	1-33619-380-0	AR	1	9905-		●	●	●	●
385	TUBE; NYLON L=1530 GREEN SERVICED BY L=5800 GREEN	1-33619-389-0	AR	1	9905-		●	●	●	●
385	TUBE; NYLON SERVICED BY L=5250 YELLOW	1-33619-392-0	AR	1	9905-		●	●	●	●
385	TUBE; NYLON SERVICED BY L=6250 ORANGE	1-33619-400-0	AR	1	9905-		●	●	●	●
386	CLIP; CONT CABLE & TUBE L=250	1-09707-126-0	04	1	9603-9608	●
386	CLIP; CONT CABLE & TUBE L=250	1-09707-126-0	07	1	9609-9805	●
386	CLIP; CONT CABLE & TUBE L=250	1-09707-126-0	07	1	9806-9904	●					●
386	CLIP; CONT CABLE & TUBE L=250	1-09707-126-0	07	1	9905-9910		●	●	●	●
386	CLIP; CONT CABLE & TUBE L=250	1-09707-126-0	09	1	9911-		●	●	●
441	CONNECTOR; NYLON TUBE (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9603-9802	●
441	CONNECTOR; NYLON TUBE (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9803-9904	●					●
441	CONNECTOR; NYLON TUBE (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9905-		●	●	●	●
441	CONNECTOR; NYLON TUBE (B)	1-09660-975-0	06	1	9609-9803	●
441	CONNECTOR; NYLON TUBE (B)	1-09660-975-0	06	1	9804-9904	●					●
441	CONNECTOR; NYLON TUBE (B)	1-09660-975-0	06	1	9905-9910		●	●	●	●
441	CONNECTOR; NYLON TUBE COUNTER SHAFT BRAKE MULTI DISC<BCP> (B)	1-09660-975-0	06	1	9911-		●	●	●	●
441	CONNECTOR; NYLON TUBE EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (B)	1-09660-975-0	04	1	9911-		●	●	●	●
444	BOLT; BRKT,NIPPLE M8X25 FLANGE	0-28680-825-0	01	1	9609-9803	●
444	BOLT; BRKT,NIPPLE M8X25 FLANGE	0-28680-825-0	01	1	9804-9904	●					●
444	BOLT; BRKT,NIPPLE M8X25 FLANGE	0-28680-825-0	01	1	9905-		●	●	●	●
445	NUT; BRKT,NIPPLE M8 FLANGE	0-91150-108-0	01	1	9609-9803	●
445	NUT; BRKT,NIPPLE M8 FLANGE	0-91150-108-0	01	1	9804-9904	●					●
445	NUT; BRKT,NIPPLE M8 FLANGE	0-91150-108-0	01	1	9905-0001		●	●	●	●
445	NUT; BRKT,NIPPLE M8 FLANGE	0-91150-108-0	01	1	0002-		●	●	●	●
460	TUBE; CORRUGATE	1-83129-031-1	AR	1	9604-9803	●
460	TUBE; CORRUGATE	1-83129-031-1	AR	1	9804-9904	●					●
460	TUBE; CORRUGATE COUNTER SHAFT BRAKE MULTI DISC<BCP>	1-83129-031-1	AR	1	9905-		●	●	●	●
460	TUBE; CORRUGATE L=300 SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	9608-9803	●
460	TUBE; CORRUGATE L=300 SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	9804-9904	●					●
460	TUBE; CORRUGATE L=300 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	9905-		●	●	●	●
460	TUBE; CORRUGATE SHORT CHASSIS&LHD(EXZ6MC) L=3150 SERVICED BY L=4000 ID=13	1-87410-092-0	01	1	9804-9904	●
460	TUBE; CORRUGATE CAB UP +110MM<TGG> L=1030 SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	9905-		●	●	●
460	TUBE; CORRUGATE EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> L=2400 SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	9911-		●	●	●
460	TUBE; CORRUGATE L=2400 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	9905-9910		●	●	●	●
460	TUBE; CORRUGATE COUNTER SHAFT BRAKE MULTI DISC<BCP> L=2400 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	9911-		●	●	●
474	BOLT; BRKT M10X16 FLANGE	0-28081-016-0	01	1	9603-9606	●
474	BOLT; BRKT M10X16 FLANGE	0-28181-016-0	01	1	9607-9608	●
474	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	9607-9608	●
475	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9607-9608	●

366 366 385 366 385 366 460 387 501 441 385 385

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
366	TUBE; NYLON,FULLER CONT L=5250 RED	1-33619-358-0	01	1	9603-9607	●
366	TUBE; NYLON,FULLER CONT L=5250 BLACK	1-33619-368-0	01	1	9603-9607	●
366	TUBE; NYLON,FULLER CONT L=5800 BLUE	1-33619-376-0	01	1	9603-9607	●
366	TUBE; NYLON,FULLER CONT L=5250 GREEN	1-33619-385-0	01	1	9603-9607	●
366	TUBE; NYLON,FULLER CONT L=4850 YELLOW	1-33619-390-0	01	1	9603-9607	●
366	TUBE; NYLON,FULLER CONT L=5800 ORANGE	1-33619-398-0	01	1	9603-9607	●
385	TUBE; NYLON L=1530 RED SERVICED BY L=5800 RED	1-33619-362-0	AR	1	9603-9802	●
385	TUBE; NYLON L=1430 BLACK SERVICED BY L=5800 BLACK	1-33619-371-0	AR	1	9603-9802	●
385	TUBE; NYLON L=1530 BLACK SERVICED BY L=6350 BLUE	1-33619-380-0	AR	1	9603-9802	●
385	TUBE; NYLON L=1530 GREEN SERVICED BY L=5800 GREEN	1-33619-389-0	AR	1	9603-9802	●
385	TUBE; NYLON SERVICED BY L=5250 YELLOW	1-33619-392-0	AR	1	9603-9802	●
385	TUBE; NYLON SERVICED BY L=6250 ORANGE	1-33619-400-0	AR	1	9603-9802	●
385	TUBE; NYLON L=1530 RED SERVICED BY L=5800 RED	1-33619-362-0	AR	1	9803-9904	●					●
385	TUBE; NYLON L=1430 BLACK SERVICED BY L=5800 BLACK	1-33619-371-0	AR	1	9803-9904	●					●
385	TUBE; NYLON L=1530 BLACK SERVICED BY L=6350 BLUE	1-33619-380-0	AR	1	9803-9904	●					●
385	TUBE; NYLON L=1530 GREEN SERVICED BY L=5800 GREEN	1-33619-389-0	AR	1	9803-9904	●					●
385	TUBE; NYLON SERVICED BY L=5250 YELLOW	1-33619-392-0	AR	1	9803-9904	●					●
385	TUBE; NYLON SERVICED BY L=6250 ORANGE	1-33619-400-0	AR	1	9803-9904	●					●
385	TUBE; NYLON L=1530 RED SERVICED BY L=5800 RED	1-33619-362-0	AR	1	9905-		●	●	●	●
385	TUBE; NYLON L=1430 BLACK SERVICED BY L=5800 BLACK	1-33619-371-0	AR	1	9905-		●	●	●	●
385	TUBE; NYLON L=1530 BLACK SERVICED BY L=6350 BLUE	1-33619-380-0	AR	1	9905-		●	●	●	●
385	TUBE; NYLON L=1530 GREEN SERVICED BY L=5800 GREEN	1-33619-389-0	AR	1	9905-		●	●	●	●
385	TUBE; NYLON SERVICED BY L=5250 YELLOW	1-33619-392-0	AR	1	9905-		●	●	●	●
385	TUBE; NYLON SERVICED BY L=6250 ORANGE	1-33619-400-0	AR	1	9905-		●	●	●	●
387	GROMMET; CONT TUBE,FULLER	1-09332-135-0	01	1	9603-9802	●
387	GROMMET; CONT TUBE,FULLER	1-09332-135-0	01	1	9803-9904	●					●
387	GROMMET; CONT TUBE,FULLER	1-09332-135-0	01	1	9905-		●	●	●	●
441	CONNECTOR; NYLON TUBE (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9603-9802	●
441	CONNECTOR; NYLON TUBE (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9803-9904	●					●
441	CONNECTOR; NYLON TUBE (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9905-		●	●	●	●
441	CONNECTOR; NYLON TUBE (B)	1-09660-975-0	06	1	9609-9803	●
441	CONNECTOR; NYLON TUBE (B)	1-09660-975-0	06	1	9804-9904	●					●
441	CONNECTOR; NYLON TUBE (B)	1-09660-975-0	06	1	9905-9910		●	●	●	●
441	CONNECTOR; NYLON TUBE COUNTER SHAFT BRAKE MULTI DISC<BCP> (B)	1-09660-975-0	06	1	9911-		●	●	●	●
441	CONNECTOR; NYLON TUBE EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (B)	1-09660-975-0	04	1	9911-		●	●	●	●
460	TUBE; CORRUGATE	1-83129-031-1	AR	1	9604-9803	●
460	TUBE; CORRUGATE	1-83129-031-1	AR	1	9804-9904	●					●
460	TUBE; CORRUGATE COUNTER SHAFT BRAKE MULTI DISC<BCP>	1-83129-031-1	AR	1	9905-		●	●	●	●
460	TUBE; CORRUGATE L=300 SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	9608-9803	●
460	TUBE; CORRUGATE L=300 SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	9804-9904	●					●
460	TUBE; CORRUGATE L=300 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	9905-		●	●	●	●
460	TUBE; CORRUGATE SHORT CHASSIS&LHD(EXZ6MC) L=3150 SERVICED BY L=4000 ID=13	1-87410-092-0	01	1	9804-9904	●
460	TUBE; CORRUGATE CAB UP +110MM<TGG> L=1030 SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	9905-		●	●	●
460	TUBE; CORRUGATE EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> L=2400 SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	9911-		●	●	●
460	TUBE; CORRUGATE L=2400 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	9905-9910		●	●	●	●
460	TUBE; CORRUGATE COUNTER SHAFT BRAKE MULTI DISC<BCP> L=2400 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	9911-		●	●	●
501	SEAL; HARNESS PROTECTOR 100X30	1-72498-014-1	04	1	9603-9802	●
501	SEAL; HARNESS PROTECTOR 100X30	1-72498-014-1	04	1	9803-9903	●					●
501	SEAL; HARNESS PROTECTOR 100X40	1-72498-022-0	04	1	9904-9904	●					●
501	SEAL; HARNESS PROTECTOR 100X40	1-72498-022-0	04	1	9905-		●	●	●	●

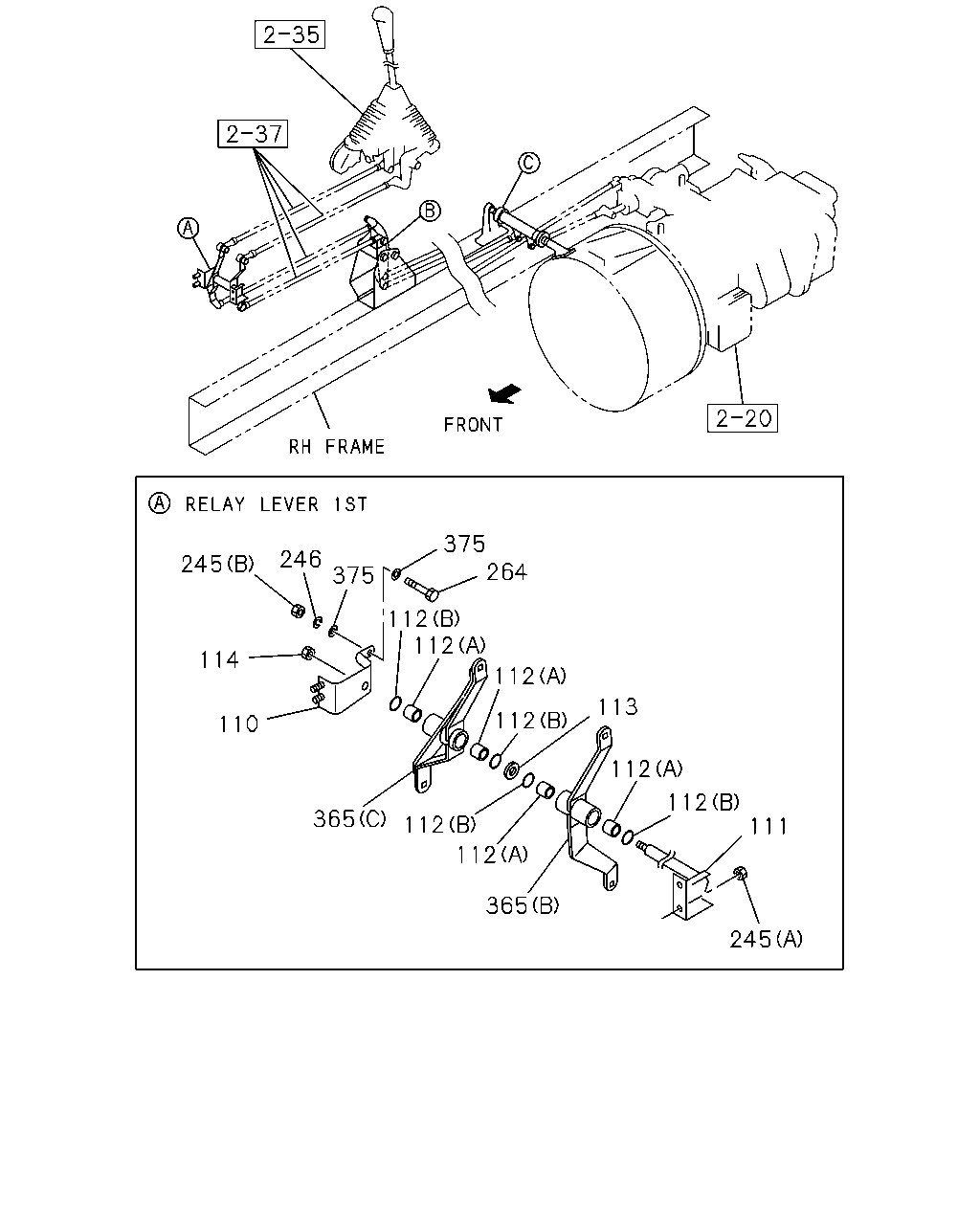

375 264 246 245 375 112 112 114 112 113 112 110 112 112 365 112 111 112 365 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
110	BRACKET; RELAY LEVER,1ST SHORT CHASSIS&RHD(EXZ5MC)	1-33657-598-0	01	1	9603-9904	●
110	BRACKET; RELAY LEVER,1ST	1-33657-598-0	01	1	9905-		●	●	●	●
110	BRACKET; RELAY LEVER,1ST SHORT CHASSIS&RHD(EXZ5MC)	1-33657-598-0	01	1	9805-9904	●					●
111	SHAFT; RELAY LEVER,1ST SHORT CHASSIS&RHD(EXZ5MC)	1-33619-468-0	01	1	9603-9904	●
111	SHAFT; RELAY LEVER,1ST	1-33619-468-0	01	1	9905-		●	●	●	●
111	SHAFT; RELAY LEVER,1ST SHORT CHASSIS&RHD(EXZ5MC)	1-33619-468-0	01	1	9805-9904	●					●
112	BUSHING; RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) (A)	1-09330-119-0	04	1	9603-9904	●
112	BUSHING; RELAY LEVER (A)	1-09330-119-0	04	1	9905-		●	●	●	●
112	BUSHING; RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) (A)	1-09330-119-0	04	1	9805-9904	●					●
112	BUSHING; RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) (B)	1-09623-594-0	04	1	9603-9904	●
112	BUSHING; RELAY LEVER (B)	1-09623-594-0	04	1	9905-		●	●	●	●
112	BUSHING; RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) (B)	1-09623-594-0	04	1	9805-9904	●					●
113	WASHER; RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) ID=17	9-09160-516-0	01	1	9603-9904	●
113	WASHER; RELAY LEVER ID=17	9-09160-516-0	01	1	9905-		●	●	●
113	WASHER; RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) ID=17	9-09160-516-0	01	1	9805-9904	●					●
114	NUT; RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) M10 FLANGE	0-91150-110-0	01	1	9603-9904	●
114	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	01	1	9905-		●	●	●
114	NUT; RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) M10 FLANGE	0-91150-110-0	01	1	9805-9904	●					●
245	NUT; BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) (A) M10 FLANGE	0-91150-210-0	02	1	9603-9904	●
245	NUT; BRKT,RELAY LEVER (A) M10 FLANGE	0-91150-210-0	02	1	9905-		●	●	●	●
245	NUT; BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) (A) M10 FLANGE	0-91150-210-0	02	1	9805-9904	●					●
245	NUT; BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) (B) M10	1-09984-142-0	01	1	9603-9904	●
245	NUT; BRKT,RELAY LEVER (B) M10	1-09984-142-0	01	1	9905-		●	●	●	●
245	NUT; BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) (B) M10	1-09984-142-0	01	1	9805-9904	●					●
246	WASHER; LK,BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) ID=10	1-09985-185-0	01	1	9603-9904	●
246	WASHER; LK,BRKT,RELAY LEVER ID=10	1-09985-185-0	01	1	9905-		●	●	●	●
246	WASHER; LK,BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) ID=10	1-09985-185-0	01	1	9805-9904	●					●
264	BOLT; BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) M10X100	1-09980-547-0	01	1	9603-9904	●
264	BOLT; BRKT,RELAY LEVER M10X100	1-09980-547-0	01	1	9905-		●	●	●	●
264	BOLT; BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) M10X100	1-09980-547-0	01	1	9805-9904	●					●
365	LEVER; RELAY,SELECT (A)	1-33651-628-1	01	1	9603-9804	●
365	LEVER; RELAY,SELECT (A)	1-33651-628-1	01	1	9805-9904	●					●
365	LEVER; RELAY,SELECT (A)	1-33651-628-1	01	1	9905-		●	●	●	●
365	LEVER; RELAY,SELECT SHORT CHASSIS&RHD(EXZ5MC) (B)	1-33651-638-0	01	1	9603-9904	●
365	LEVER; RELAY,SELECT (B)	1-33651-638-0	01	1	9905-		●	●	●	●
365	LEVER; RELAY,SELECT SHORT CHASSIS&RHD(EXZ5MC) (B)	1-33651-638-0	01	1	9805-9904	●					●
365	LEVER; RELAY,SELECT SHORT CHASSIS&RHD(EXZ5MC) (C)	1-33651-649-0	01	1	9603-9904	●
365	LEVER; RELAY,SELECT (C)	1-33651-649-0	01	1	9905-		●	●	●	●
365	LEVER; RELAY,SELECT SHORT CHASSIS&RHD(EXZ5MC) (C)	1-33651-649-0	01	1	9805-9904	●					●
375	WASHER; PL,BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	9603-9904	●
375	WASHER; PL,BRKT,RELAY LEVER ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	9905-		●	●	●	●
375	WASHER; PL,BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	9805-9904	●					●

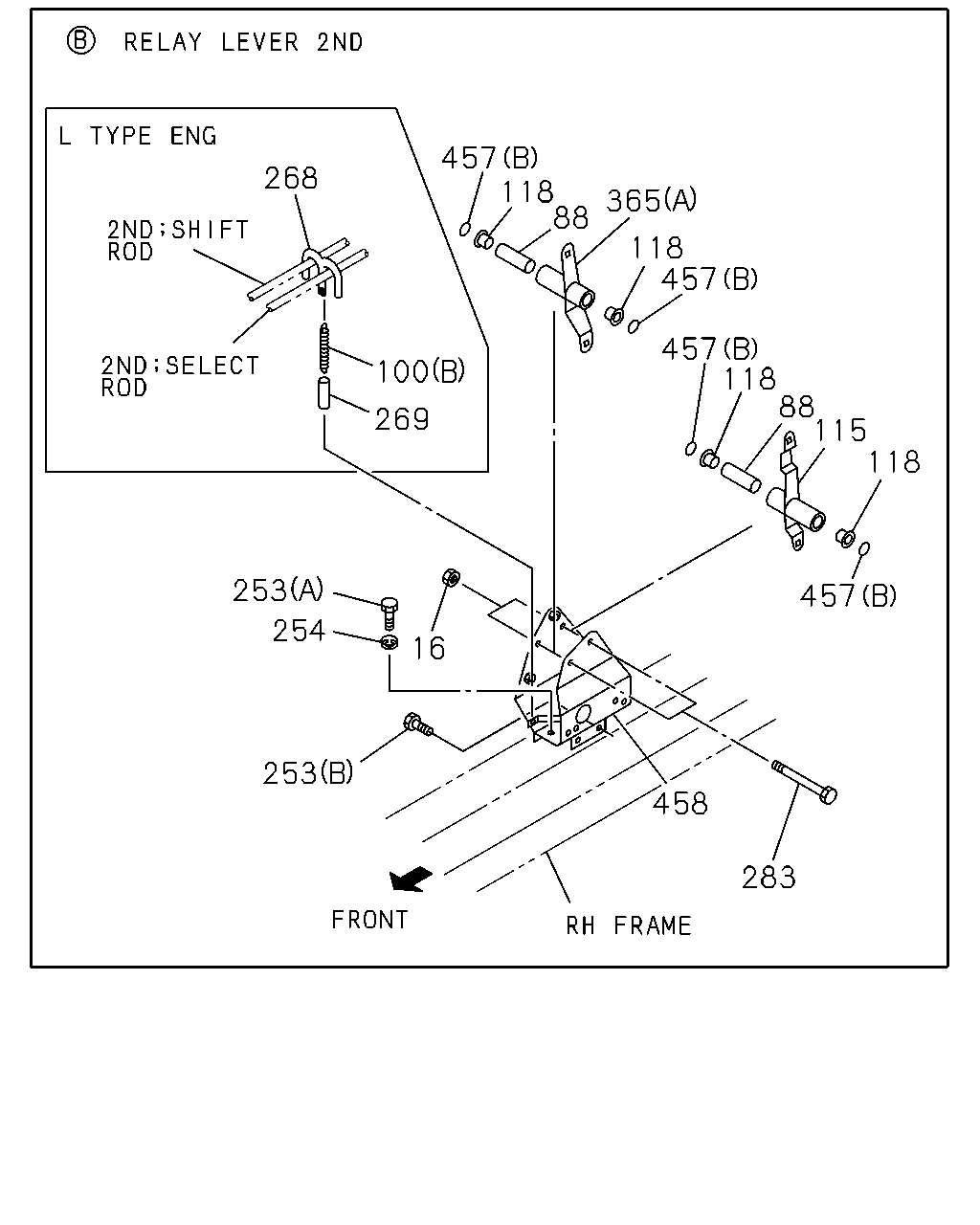

457 118 88 268 365 118 457 457 118 88 115 118 100 269 253 457 254 16 253 458 283

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
16	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	02	1	9603-9804	●
16	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	02	1	9805-9904	●					●
16	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	02	1	9905-		●	●	●	●
88	COLLAR; RELAY LEVER	1-33659-191-1	02	1	9603-9804	●
88	COLLAR; RELAY LEVER	1-33659-191-1	02	1	9805-9904	●					●
88	COLLAR; RELAY LEVER	1-33659-191-1	02	1	9905-		●	●	●	●
100	SPRING (B)	1-09583-218-0	01	1	9603-9904	●
100	SPRING (B)	1-09583-351-0	01	1	9905-		●	●	●	●
100	SPRING (A)	1-09583-319-0	01	1	9603-9804	●
100	SPRING (A)	1-09583-319-0	01	1	9805-9904	●					●
100	SPRING (A)	1-09583-319-0	01	1	9905-		●	●	●	●
115	LEVER; RELAY,2ND SHIFT	1-33651-626-0	01	1	9603-9804	●
115	LEVER; RELAY,2ND SHIFT	1-33651-626-0	01	1	9805-9904	●					●
115	LEVER; RELAY,2ND SHIFT	1-33651-626-0	01	1	9905-		●	●	●	●
118	BUSHING; RELAY LEVER	1-09330-119-0	04	1	9603-9804	●
118	BUSHING; RELAY LEVER	1-09330-119-0	04	1	9805-9904	●					●
118	BUSHING; RELAY LEVER	1-09330-119-0	04	1	9905-		●	●	●	●
253	BOLT; BRKT,2ND RELAY LEVER (A) M14X45	0-20801-445-0	02	1	9603-9904	●
253	BOLT; BRKT,2ND RELAY LEVER (A) M14X45	0-20801-445-0	02	1	9905-		●	●	●	●
253	BOLT; BRKT,2ND RELAY LEVER (A) M14X45	0-20801-445-0	02	1	9805-9904	●					●
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9603-9606	●
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X35 FLANGE	0-28681-035-0	02	1	9805-9904	●					●
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X35 FLANGE	0-28681-035-0	02	1	9905-		●	●	●	●
254	WASHER; LK,RELAY LEVER ID=14.2	9-09150-614-0	02	1	9603-9904	●
254	WASHER; LK,RELAY LEVER ID=14.2	9-09150-614-0	02	1	9905-		●	●	●	●
254	WASHER; LK,RELAY LEVER ID=14.2	9-09150-614-0	02	1	9805-9904	●					●
268	BRACKET; LINK ROD	1-33657-216-0	01	1	9603-9904	●
268	BRACKET; LINK ROD	1-33657-216-0	01	1	9905-		●	●	●	●
269	COVER; SPR	1-15669-002-0	01	1	9603-9904	●
283	BOLT; RELAY LEVER M10X110	9-09801-316-1	02	1	9603-9804	●
283	BOLT; RELAY LEVER M10X110	9-09801-316-1	02	1	9805-9904	●					●
283	BOLT; RELAY LEVER M10X110	9-09801-316-1	02	1	9905-		●	●	●	●
365	LEVER; RELAY,SELECT (A)	1-33651-628-1	01	1	9603-9804	●
365	LEVER; RELAY,SELECT (A)	1-33651-628-1	01	1	9805-9904	●					●
365	LEVER; RELAY,SELECT (A)	1-33651-628-1	01	1	9905-		●	●	●	●
365	LEVER; RELAY,SELECT SHORT CHASSIS&RHD(EXZ5MC) (B)	1-33651-638-0	01	1	9603-9904	●
365	LEVER; RELAY,SELECT (B)	1-33651-638-0	01	1	9905-		●	●	●	●
365	LEVER; RELAY,SELECT SHORT CHASSIS&RHD(EXZ5MC) (B)	1-33651-638-0	01	1	9805-9904	●					●
365	LEVER; RELAY,SELECT SHORT CHASSIS&RHD(EXZ5MC) (C)	1-33651-649-0	01	1	9603-9904	●
365	LEVER; RELAY,SELECT (C)	1-33651-649-0	01	1	9905-		●	●	●	●
365	LEVER; RELAY,SELECT SHORT CHASSIS&RHD(EXZ5MC) (C)	1-33651-649-0	01	1	9805-9904	●					●
457	GASKET (B)	1-09623-594-0	04	1	9603-9804	●
457	GASKET (B)	1-09623-594-0	04	1	9805-9904	●					●
457	GASKET (B)	1-09623-594-0	04	1	9905-		●	●	●	●
458	BRACKET; 2ND RELAY LEVER EXC. CAB UP +110MM<TGG>	1-33657-583-1	01	1	9905-		●	●	●	●
458	BRACKET; 2ND RELAY LEVER	1-33657-573-2	01	1	9603-9804	●
458	BRACKET; 2ND RELAY LEVER	1-33657-573-2	01	1	9805-9904	●					●
458	BRACKET; 2ND RELAY LEVER CAB UP +110MM<TGG>	1-33657-664-1	01	1	9905-		●	●	●	●

507 466 103 35 33 34 162 46 34 71 100 46 242 34 34 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
33	BOLT; BRKT,3RD RELAY LEVER M10X30 W/LK WASHER	0-50041-030-0	03	1	9603-9606	●
33	BOLT; BRKT,3RD RELAY LEVER M10X30 FLANGE	0-28681-030-0	03	1	9607-9706	●
33	BOLT; BRKT,3RD RELAY LEVER M10X30 FLANGE	0-28681-030-0	03	1	9707-9804	●					●
33	BOLT; BRKT,3RD RELAY LEVER M10X30 FLANGE	0-28681-030-0	03	1	9905-		●	●	●	●
34	SEAT; BALL,RELAY LEVER	1-33659-165-0	04	1	9603-9804	●
34	SEAT; BALL,RELAY LEVER	1-33659-165-0	04	1	9805-9904	●					●
34	SEAT; BALL,RELAY LEVER	1-33659-165-0	04	1	9905-		●	●	●	●
35	RING; SNAP,RELAY LEVER OD=34.4	9-09180-132-0	01	1	9603-9804	●
35	RING; SNAP,RELAY LEVER OD=34.4	9-09180-132-0	01	1	9805-9904	●					●
35	RING; SNAP,RELAY LEVER OD=34.4	9-09180-132-0	01	1	9905-		●	●	●	●
46	SEAL; DUST,RELAY LEVER	1-33659-166-0	02	1	9603-9804	●
46	SEAL; DUST,RELAY LEVER	1-33659-166-0	02	1	9805-9904	●					●
46	SEAL; DUST,RELAY LEVER	1-33659-166-0	02	1	9905-		●	●	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME CAB UP +110MM<TGG> (A)	1-33657-657-1	01	1	9905-		●	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME (B)	1-33657-481-0	01	1	9603-9804	●
71	BRACKET; 3RD RELAY LEVER,FRAME (B)	1-33657-481-0	01	1	9805-9904	●					●
71	BRACKET; 3RD RELAY LEVER,FRAME (B)	1-33657-481-0	01	1	9905-		●	●	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME (A)	1-33657-512-0	01	1	9603-9804	●
71	BRACKET; 3RD RELAY LEVER,FRAME (A)	1-33657-512-0	01	1	9805-9904	●					●
71	BRACKET; 3RD RELAY LEVER,FRAME EXC. CAB UP +110MM<TGG> (A)	1-33657-512-0	01	1	9905-		●	●	●
100	SPRING (B)	1-09583-218-0	01	1	9603-9904	●
100	SPRING (B)	1-09583-351-0	01	1	9905-		●	●	●	●
100	SPRING (A)	1-09583-319-0	01	1	9603-9804	●
100	SPRING (A)	1-09583-319-0	01	1	9805-9904	●					●
100	SPRING (A)	1-09583-319-0	01	1	9905-		●	●	●	●
103	NUT CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	01	1	9905-		●	●	●	●
162	LEVER; RELAY	1-33651-625-0	01	1	9603-9804	●
162	LEVER; RELAY	1-33651-625-0	01	1	9805-9904	●					●
162	LEVER; RELAY	1-33651-625-0	01	1	9905-		●	●	●	●
242	NUT; FLANGE 3RD RELAY LEVER M12 FLANGE	0-91150-212-0	03	1	9603-9804	●
242	NUT; FLANGE 3RD RELAY LEVER M12 FLANGE	0-91150-212-0	03	1	9805-9904	●					●
242	NUT; FLANGE 3RD RELAY LEVER M12 FLANGE	0-91150-212-0	03	1	9905-		●	●	●	●
466	BOLT; FIX CAB UP +110MM<TGG> M8X20 FLANGE	0-28680-820-0	02	1	9905-		●	●	●	●
507	PROTECTOR; HEAT CAB UP +110MM<TGG>	1-14181-315-0	01	1	9905-		●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
