Sayfa 4-10 - Isuzu EPC

4-10 — FRONT AXLE (#57729) — 78 parça

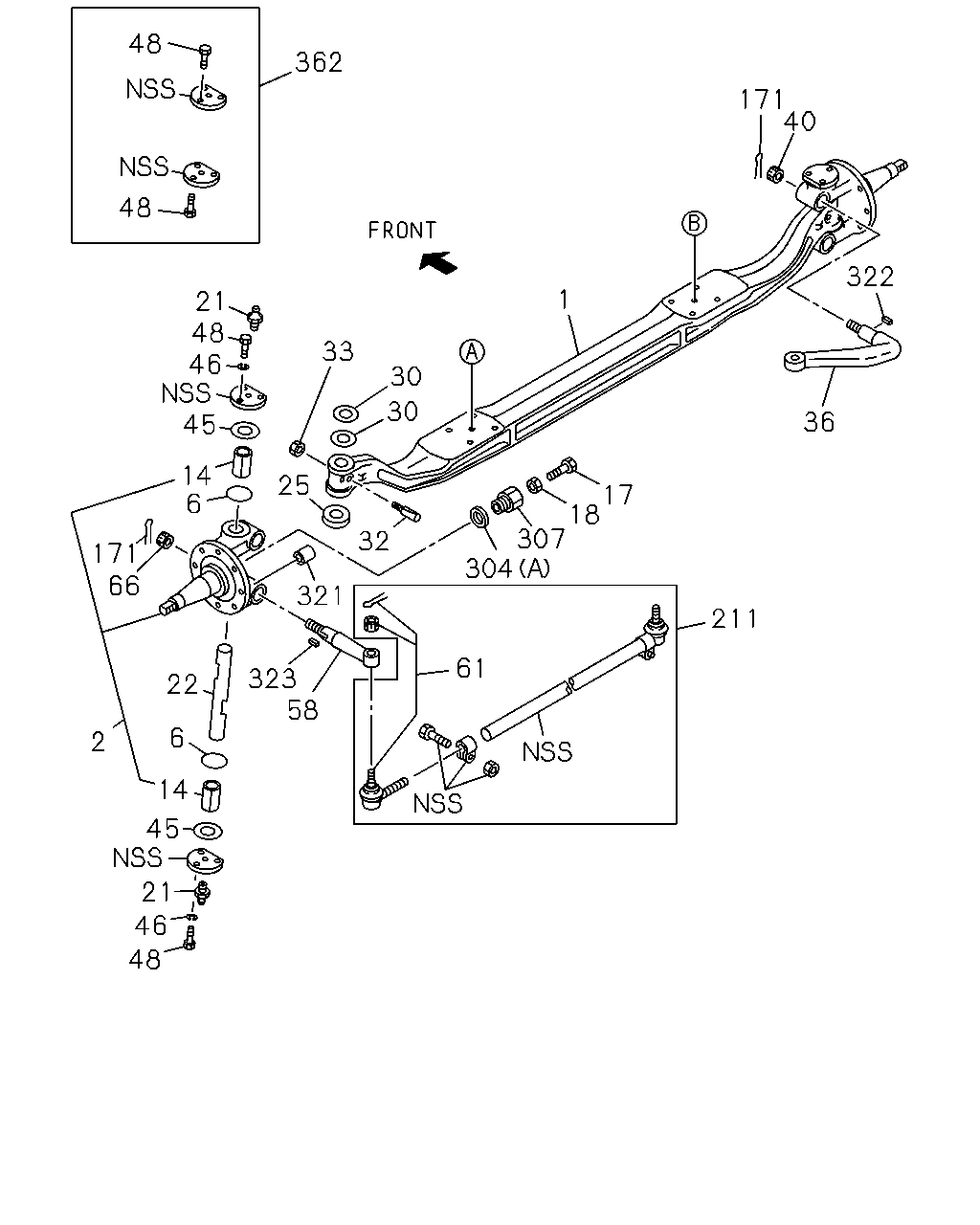

48 362 171 40 322 48 1 21 48 46 45 33 30 30 36 14 6 25 17 18 307 304 32 171 66 321 211 61 323 58 22 6 2 14 45 21 46 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT ANTILOCK BRAKE SYSTEM(BFA)	1-43111-167-0	01	1	0801-
2	KNUCKLE; FRT AXLE ANTILOCK BRAKE SYSTEM(BFA)	1-43131-108-0	01	1	0801-
2	KNUCKLE; FRT AXLE ANTILOCK BRAKE SYSTEM(BFA)	1-43132-107-0	01	1	0801-
6	SEAL; KING PIN ANTILOCK BRAKE SYSTEM(BFA)	1-09625-634-0	04	1	0801-
14	BUSHING; KING PIN ANTILOCK BRAKE SYSTEM(BFA)	1-43149-015-0	04	1	0801-
17	BOLT; STOPPER KNUCKLE ANTILOCK BRAKE SYSTEM(BFA)	1-43149-014-0	02	1	0801-
18	NUT; STOPPER BOLT,KNUCKLE ANTILOCK BRAKE SYSTEM(BFA)	1-43149-013-0	02	1	0801-
21	NIPPLE; GREASE,KING PIN ANTILOCK BRAKE SYSTEM(BFA)	1-48259-253-0	04	1	0801-
22	PIN; KING,FRT AXLE ANTILOCK BRAKE SYSTEM(BFA)	1-43161-016-0	02	1	0801-
25	BEARING; THRUST,KING PIN ANTILOCK BRAKE SYSTEM(BFA)	1-43173-004-0	02	1	0801-
30	WASHER; THRUST,KING PIN ANTILOCK BRAKE SYSTEM(BFA) T=0.015"	1-43171-338-0	AR	1	0801-
30	WASHER; THRUST,KING PIN ANTILOCK BRAKE SYSTEM(BFA) T=0.010"	1-43171-339-0	AR	1	0801-
30	WASHER; THRUST,KING PIN ANTILOCK BRAKE SYSTEM(BFA) T=0.005"	1-43171-340-0	AR	1	0801-
32	BOLT; KEY,KING PIN ANTILOCK BRAKE SYSTEM(BFA) L=98.4	1-43116-014-0	02	1	0801-
32	BOLT; KEY,KING PIN ANTILOCK BRAKE SYSTEM(BFA) L=3.25"	1-43116-006-0	02	1	0801-
33	NUT; KEY BOLT ANTILOCK BRAKE SYSTEM(BFA)	1-43119-002-0	04	1	0801-
36	ARM; KNUCKLE ANTILOCK BRAKE SYSTEM(BFA)	1-43133-088-0	01	1	0801-
40	NUT; KNUCKLE ARM ANTILOCK BRAKE SYSTEM(BFA)	1-43139-059-0	01	1	0801-
45	GASKET; KING PIN COVER ANTILOCK BRAKE SYSTEM(BFA)	1-43139-044-0	04	1	0801-
46	WASHER; LK,COVER ANTILOCK BRAKE SYSTEM(BFA)	1-41519-055-0	12	1	0801-
48	BOLT; COVER ANTILOCK BRAKE SYSTEM(BFA)	1-43139-045-0	12	1	0801-
58	ARM; TIE ROD ANTILOCK BRAKE SYSTEM(BFA)	1-43134-061-0	01	1	0801-
58	ARM; TIE ROD ANTILOCK BRAKE SYSTEM(BFA)	1-43135-066-0	01	1	0801-
61	ROD END; TIE ROD ANTILOCK BRAKE SYSTEM(BFA)	1-43155-058-0	01	1	0801-
61	ROD END; TIE ROD ANTILOCK BRAKE SYSTEM(BFA)	1-43156-058-0	01	1	0801-
66	NUT; TIE ROD END ANTILOCK BRAKE SYSTEM(BFA)	1-43139-052-0	02	1	0801-
171	PIN; SPLIT,STRG ARM ANTILOCK BRAKE SYSTEM(BFA)	1-43139-048-0	03	1	0801-
211	ROD ASM; STEERING TIE ROD ANTILOCK BRAKE SYSTEM(BFA)	1-43150-861-0	01	1	0801-
304	WASHER; PL ANTILOCK BRAKE SYSTEM(BFA) (A)	1-43149-011-0	02	1	0801-
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0801-0907
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	0908-
307	STOPPER; STEERING,RR ANTILOCK BRAKE SYSTEM(BFA)	1-43149-012-0	02	1	0801-
321	BUSHING; KNUCKLE ANTILOCK BRAKE SYSTEM(BFA)	1-42319-213-0	02	1	0801-
322	KEY; KNUCKLE ARM ANTILOCK BRAKE SYSTEM(BFA)	1-43139-046-0	01	1	0801-
323	KEY; TIE ROD ARM ANTILOCK BRAKE SYSTEM(BFA)	1-43139-046-0	02	1	0801-
362	COVER SET; KING PIN ANTILOCK BRAKE SYSTEM(BFA)	1-43175-027-0	02	1	0801-

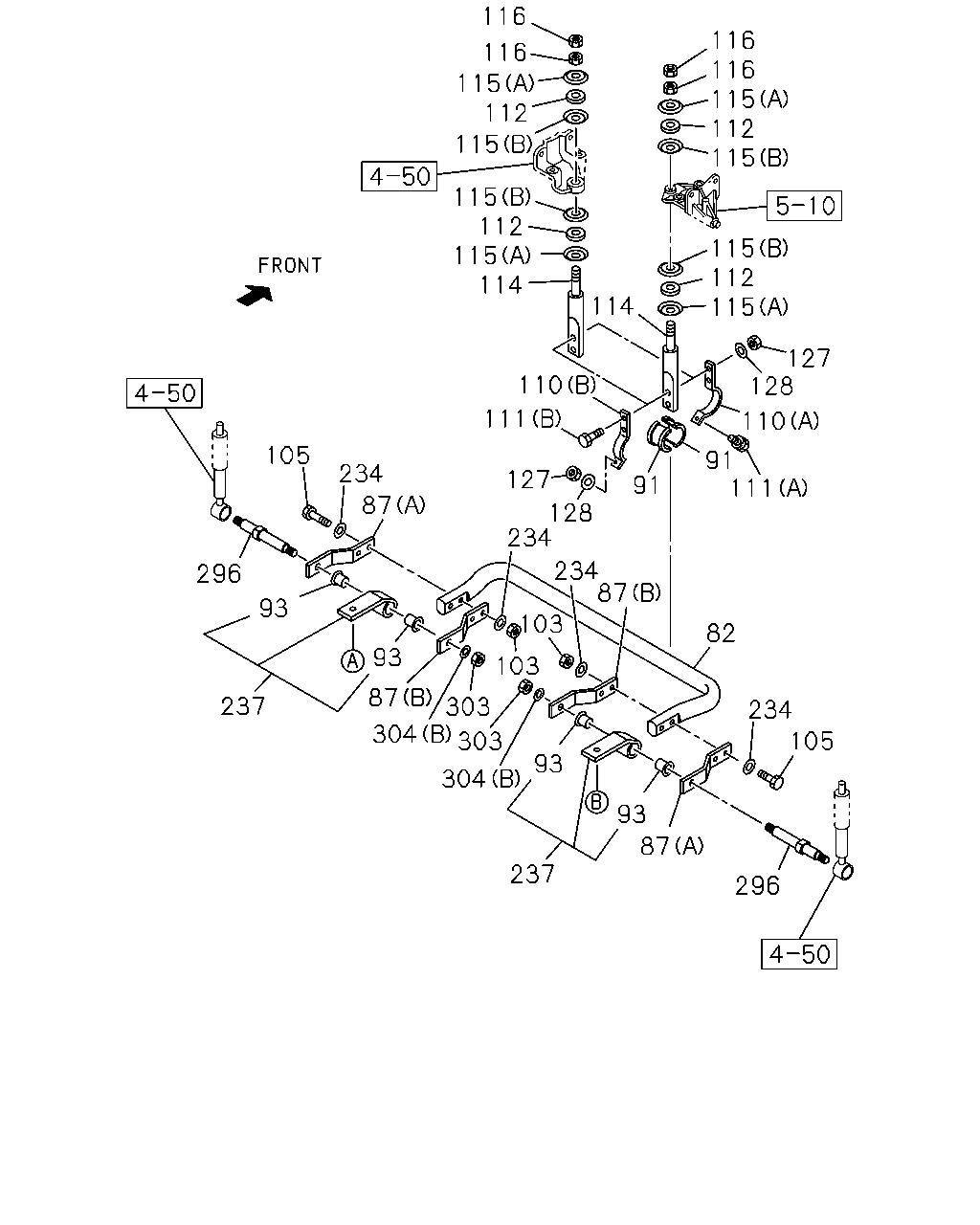

116 116 116 115 112 115 116 115 112 115 115 112 115 114 115 112 115 114 127 128 110 111 110 105 91 111 128 234 234 127 91 87 234 87 296 93 103 82 93 103 87 237 303 304 303 234 105 93 304 93 87 237 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	1-51771-136-1	01	1	0801-
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	1-51781-083-1	02	1	0801-0912
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	8-98012-958-0	02	1	1001-
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	1-51781-084-1	02	1	0801-0912
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	8-98012-959-0	02	1	1001-
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-087-1	04	1	0801-
93	BUSHING; STABILIZER FRONT STABILIZER SHAFT<F59>	1-51689-015-3	04	1	0801-
103	NUT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14	0-91110-514-0	04	1	0801-
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	9-91066-470-0	04	1	0801-0910
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	0-10956-470-0	04	1	0911-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	0801-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	0801-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20801-230-0	02	1	0801-0910
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20851-230-0	02	1	0911-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20801-250-0	04	1	0801-0910
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20851-250-0	04	1	0911-
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-039-0	04	1	0801-
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-072-2	02	1	0801-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=16.5	9-51631-040-0	04	1	0801-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=20.8	9-51631-041-0	04	1	0801-
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	0-91111-514-0	04	1	0801-
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	0-91110-512-0	06	1	0801-
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-512-0	06	1	0801-0912
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-812-0	06	1	1001-
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15	9-09651-069-0	08	1	0801-0910
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15	8-98010-627-1	08	1	0911-
237	SUPPORT; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51681-662-0	02	1	0801-
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	1-51682-145-2	02	1	0801-0907
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	8-98022-874-1	02	1	0908-
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	0-91110-520-0	02	1	0801-
304	WASHER; PL ANTILOCK BRAKE SYSTEM(BFA) (A)	1-43149-011-0	02	1	0801-
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0801-0907
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	0908-

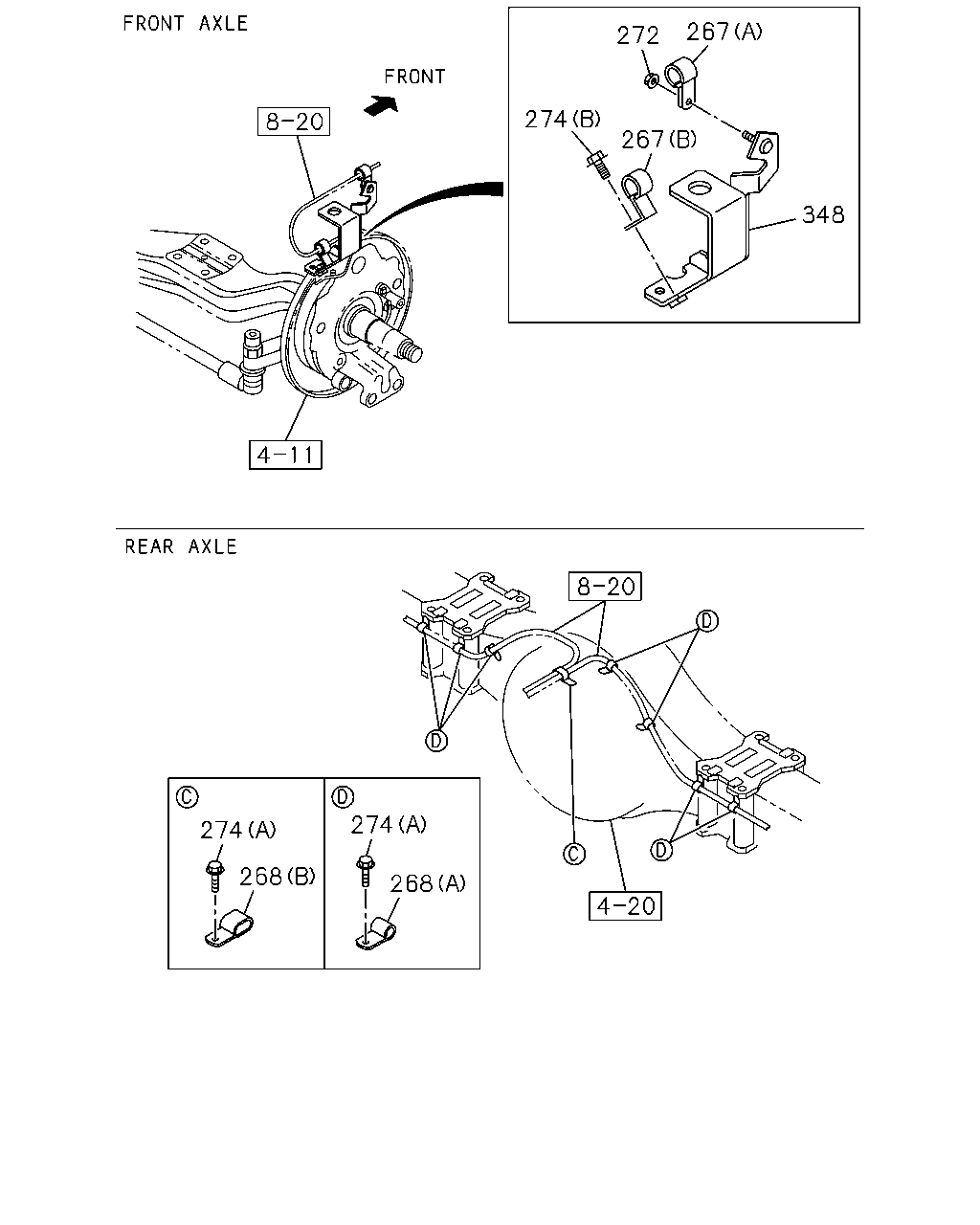

267 272 274 267 348 274 274 268 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
267	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (A) ID=11 L=16	0-95235-025-0	02	1	0801-
267	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (B) ID=11 H=20 L=20	8-98033-780-0	02	1	0801-
268	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	07	1	0801-
268	CLIP; HARNESS (B) ID=11X2 L=16	0-95325-025-0	02	1	0801-
272	NUT; CLIP ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	02	1	0801-
274	BOLT; CLIP ANTILOCK BRAKE SYSTEM(BFA) (B) M8X16 FLANGE	0-28050-816-0	02	1	0801-
274	BOLT; CLIP (A) M8X10 FLANGE	0-28050-810-0	09	1	0801-
348	BRACKET; CLIP ANTILOCK BRAKE SYSTEM(BFA)	8-98072-899-1	01	1	0801-
348	BRACKET; CLIP ANTILOCK BRAKE SYSTEM(BFA)	8-98072-900-1	01	1	0801-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
