◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXM ▶ 11144 - FXM EXC.EURO5 ▶ 3 - Brakes, Brake System ▶ 3-77 - BRAKE PIPING; AIR,REAR ▶
3-77 — BRAKE PIPING; AIR,REAR (#57726) — 128 parça

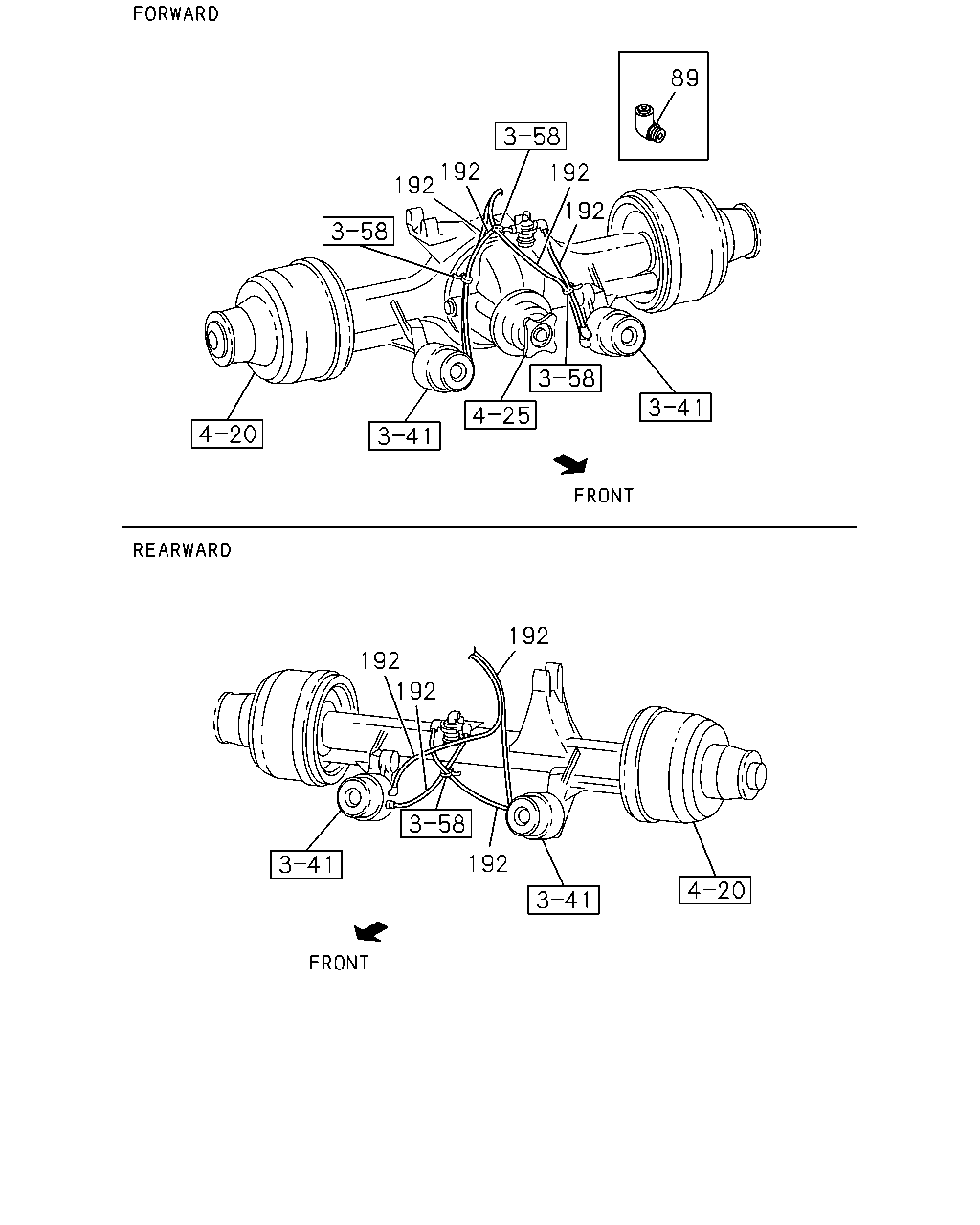

çizim 161168
89 192 192 192 192 192 192 192 192
BalonParca AdiParca NoAdetTipApplied Date
89 CONNECTOR; NYLON TUBE
WHEEL BASE 6600MM(66W) DIFF LOCK<C3N> DIN8 & R1/4 ELBOW 		1-09661-209-0 01 1 0902-
192 TUBE; NYLON
WHEEL BASE 6600MM(66W) SERVICED BY L=4000 OD=12 		1-87411-012-0 02 1 0902-
192 TUBE; NYLON
WHEEL BASE 6600MM(66W) SERVICED BY L=6000 OD=12 		1-87411-013-0 01 1 0902-
192 TUBE; NYLON
WHEEL BASE 6600MM(66W) DIFF LOCK<C3N> SERVICED BY L=4000 OD=8 		1-87411-007-0 02 1 0902-0910
192 TUBE; NYLON
WHEEL BASE 6600MM(66W) DIFF LOCK<C3N> SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 0911-
192 TUBE; NYLON
DIFF LOCK<C3N> SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 0911-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 02 1 0801-
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 01 1 0801-
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 02 1 0801-0808
192 TUBE; NYLON
WHEEL BASE 7100MM(71W) SERVICED BY L=6000 OD=12 		1-87411-013-0 02 1 0809-
192 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87411-014-0 01 1 0801-0808
192 TUBE; NYLON
WHEEL BASE 7100MM(71W) SERVICED BY L=8000 OD=12 		1-87411-014-0 01 1 0809-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 04 1 0801-0802
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 05 1 0803-0910
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 03 1 0911-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0801-0802
192 TUBE; NYLON
SERVICED BY L=6000 OD=6 		1-87411-003-0 01 1 0801-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0801-
192 TUBE; NYLON
SERVICED BY L=12000 OD=8 		1-87411-010-0 02 1 0801-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0801-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 02 1 0801-0910
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 02 1 0801-0910
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 02 1 0911-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 02 1 0911-

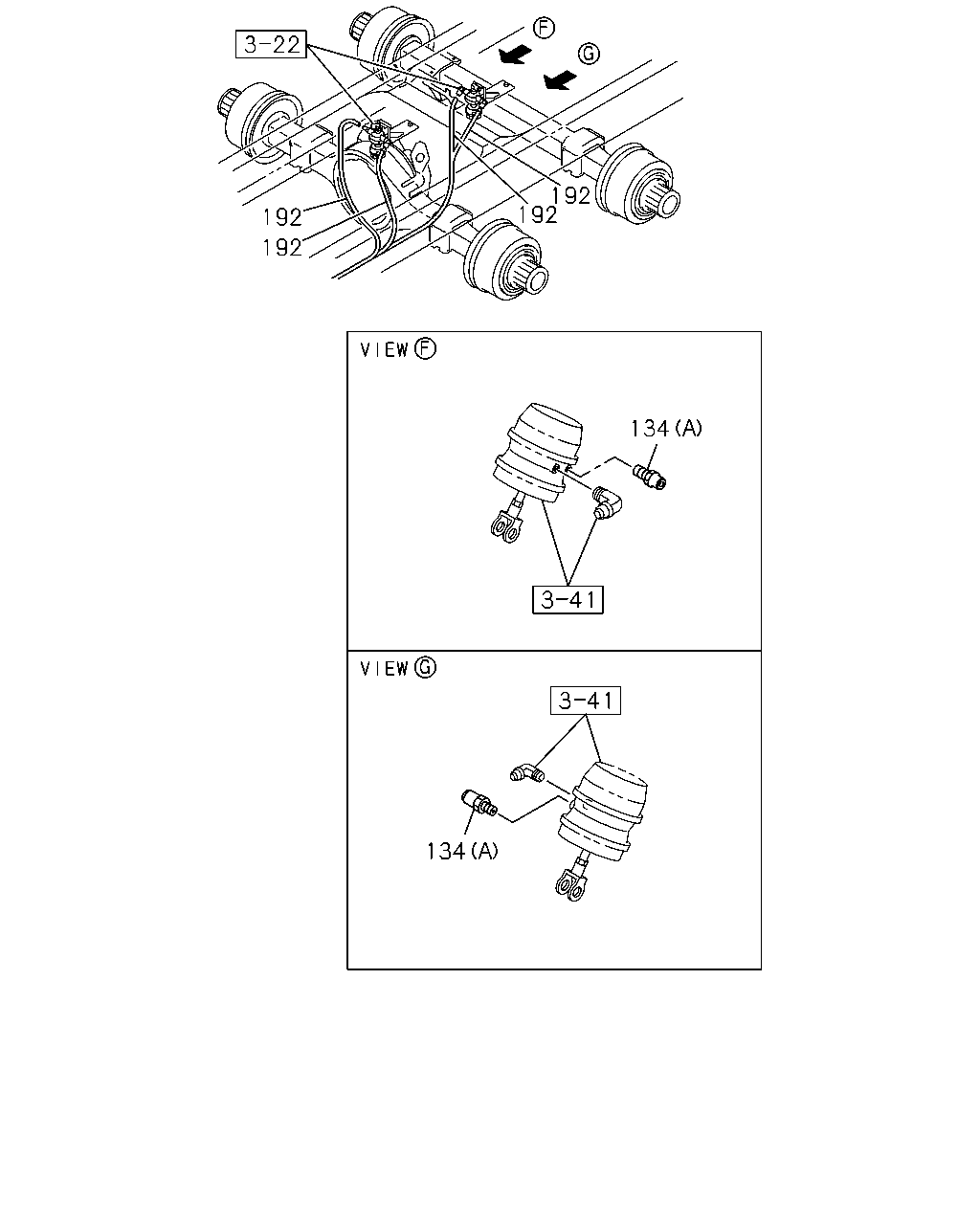

çizim 161477
192 192 192 192 134 134
BalonParca AdiParca NoAdetTipApplied Date
134 CONNECTOR
(A) 		1-09660-968-0 02 1 0801-
134 CONNECTOR
(B) DIN6 & R3/8 ELBOW 		1-09661-234-0 01 1 0801-
192 TUBE; NYLON
WHEEL BASE 6600MM(66W) SERVICED BY L=4000 OD=12 		1-87411-012-0 02 1 0902-
192 TUBE; NYLON
WHEEL BASE 6600MM(66W) SERVICED BY L=6000 OD=12 		1-87411-013-0 01 1 0902-
192 TUBE; NYLON
WHEEL BASE 6600MM(66W) DIFF LOCK<C3N> SERVICED BY L=4000 OD=8 		1-87411-007-0 02 1 0902-0910
192 TUBE; NYLON
WHEEL BASE 6600MM(66W) DIFF LOCK<C3N> SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 0911-
192 TUBE; NYLON
DIFF LOCK<C3N> SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 0911-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 02 1 0801-
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 01 1 0801-
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 02 1 0801-0808
192 TUBE; NYLON
WHEEL BASE 7100MM(71W) SERVICED BY L=6000 OD=12 		1-87411-013-0 02 1 0809-
192 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87411-014-0 01 1 0801-0808
192 TUBE; NYLON
WHEEL BASE 7100MM(71W) SERVICED BY L=8000 OD=12 		1-87411-014-0 01 1 0809-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 04 1 0801-0802
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 05 1 0803-0910
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 03 1 0911-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0801-0802
192 TUBE; NYLON
SERVICED BY L=6000 OD=6 		1-87411-003-0 01 1 0801-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0801-
192 TUBE; NYLON
SERVICED BY L=12000 OD=8 		1-87411-010-0 02 1 0801-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0801-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 02 1 0801-0910
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 02 1 0801-0910
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 02 1 0911-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 02 1 0911-

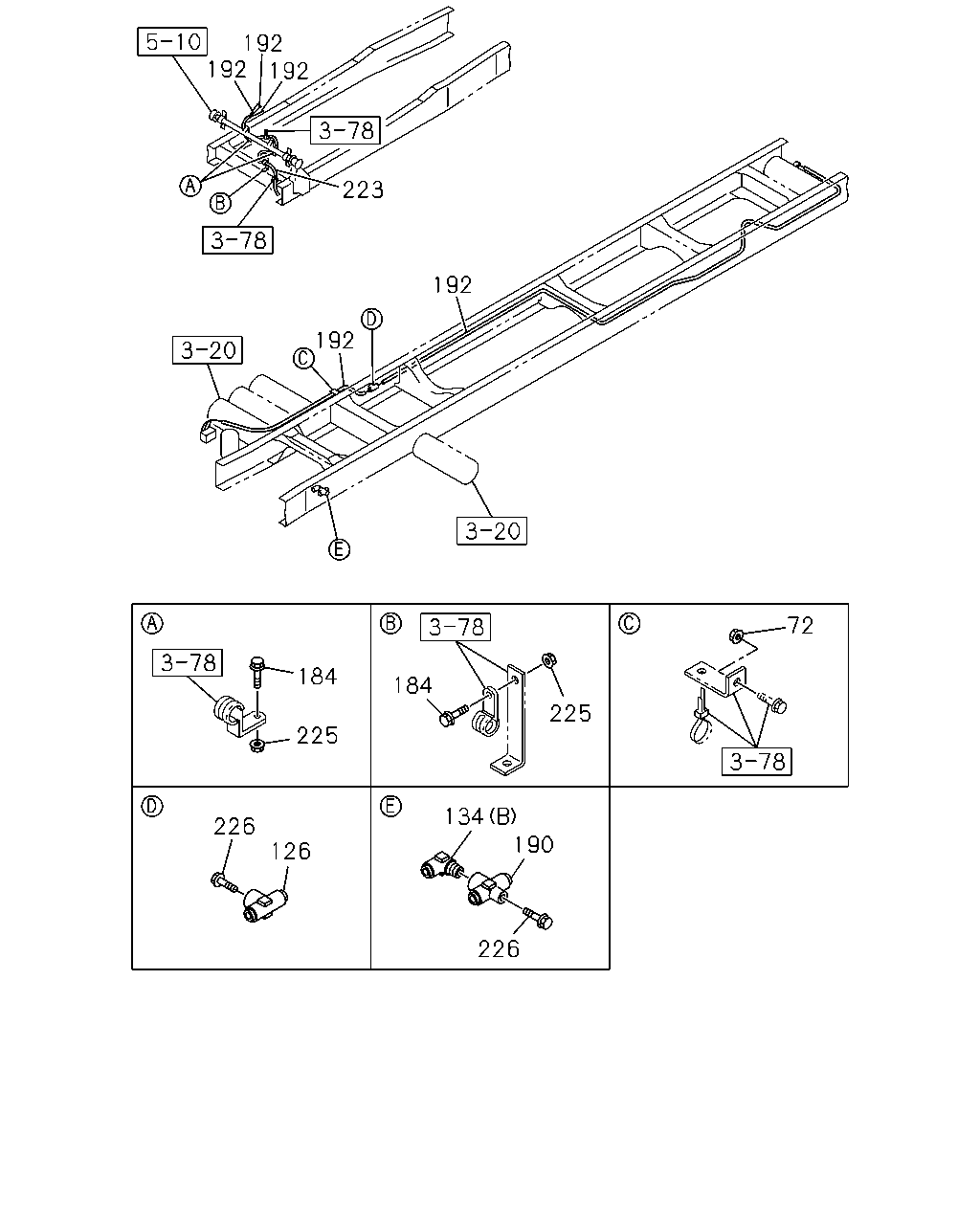

çizim 161480
192 192 192 223 192 192 72 184 184 225 225 134 226 190 126 226
BalonParca AdiParca NoAdetTipApplied Date
72 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0801-0907
72 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0801-0907
72 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0908-
126 UNION; NYLON TUBE 1-09661-128-0 01 1 0801-
134 CONNECTOR
(A) 		1-09660-968-0 02 1 0801-
134 CONNECTOR
(B) DIN6 & R3/8 ELBOW 		1-09661-234-0 01 1 0801-
184 BOLT; TUBE CLIP
M8X35 FLANGE 		0-28650-835-0 02 1 0803-
184 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 03 1 0801-0802
184 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0803-
190 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0801-
192 TUBE; NYLON
WHEEL BASE 6600MM(66W) SERVICED BY L=4000 OD=12 		1-87411-012-0 02 1 0902-
192 TUBE; NYLON
WHEEL BASE 6600MM(66W) SERVICED BY L=6000 OD=12 		1-87411-013-0 01 1 0902-
192 TUBE; NYLON
WHEEL BASE 6600MM(66W) DIFF LOCK<C3N> SERVICED BY L=4000 OD=8 		1-87411-007-0 02 1 0902-0910
192 TUBE; NYLON
WHEEL BASE 6600MM(66W) DIFF LOCK<C3N> SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 0911-
192 TUBE; NYLON
DIFF LOCK<C3N> SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 0911-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 02 1 0801-
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 01 1 0801-
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 02 1 0801-0808
192 TUBE; NYLON
WHEEL BASE 7100MM(71W) SERVICED BY L=6000 OD=12 		1-87411-013-0 02 1 0809-
192 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87411-014-0 01 1 0801-0808
192 TUBE; NYLON
WHEEL BASE 7100MM(71W) SERVICED BY L=8000 OD=12 		1-87411-014-0 01 1 0809-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 04 1 0801-0802
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 05 1 0803-0910
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 03 1 0911-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0801-0802
192 TUBE; NYLON
SERVICED BY L=6000 OD=6 		1-87411-003-0 01 1 0801-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0801-
192 TUBE; NYLON
SERVICED BY L=12000 OD=8 		1-87411-010-0 02 1 0801-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0801-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 02 1 0801-0910
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 02 1 0801-0910
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 02 1 0911-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 02 1 0911-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 02 1 0912-
223 TUBE; CORRUGATE
WHEEL BASE 6600MM(66W) DIFF LOCK<C3N> SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0902-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 02 1 0801-0911
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 01 1 0912-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 01 1 0801-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 01 1 0801-
223 TUBE; CORRUGATE
SERVICED BY L=4000 ID=19 		1-87411-028-0 01 1 0801-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 01 1 0801-0806
225 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 03 1 0801-
226 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 0801-
226 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 0801-

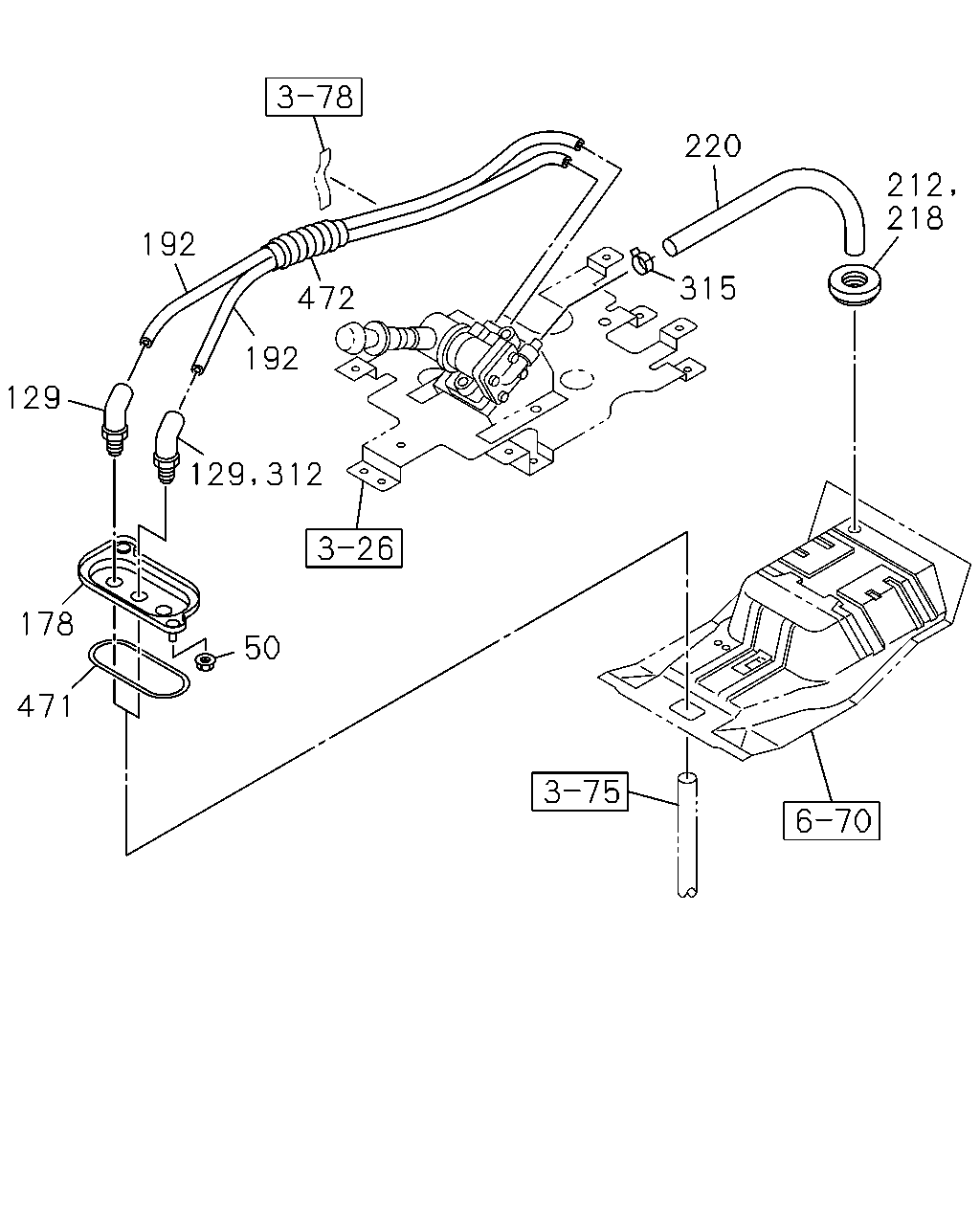

çizim 161486
220 212 218 192 315 472 192 129 178 50 471 129 312
BalonParca AdiParca NoAdetTipApplied Date
50 NUT; UNION BRKT
M8 FLANGE 		0-91180-108-0 02 1 0801-
129 CONNECTOR; NYLON TUBE
DIN13 & M18 ELBOW 		8-97611-963-1 01 1 0801-1101
129 CONNECTOR; NYLON TUBE
DIN13 & M18 ELBOW 		8-97611-963-1 02 1 1102-
178 BRACKET; UNION 8-98017-054-1 01 1 0801-
192 TUBE; NYLON
WHEEL BASE 6600MM(66W) SERVICED BY L=4000 OD=12 		1-87411-012-0 02 1 0902-
192 TUBE; NYLON
WHEEL BASE 6600MM(66W) SERVICED BY L=6000 OD=12 		1-87411-013-0 01 1 0902-
192 TUBE; NYLON
WHEEL BASE 6600MM(66W) DIFF LOCK<C3N> SERVICED BY L=4000 OD=8 		1-87411-007-0 02 1 0902-0910
192 TUBE; NYLON
WHEEL BASE 6600MM(66W) DIFF LOCK<C3N> SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 0911-
192 TUBE; NYLON
DIFF LOCK<C3N> SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 0911-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 02 1 0801-
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 01 1 0801-
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 02 1 0801-0808
192 TUBE; NYLON
WHEEL BASE 7100MM(71W) SERVICED BY L=6000 OD=12 		1-87411-013-0 02 1 0809-
192 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87411-014-0 01 1 0801-0808
192 TUBE; NYLON
WHEEL BASE 7100MM(71W) SERVICED BY L=8000 OD=12 		1-87411-014-0 01 1 0809-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 04 1 0801-0802
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 05 1 0803-0910
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 03 1 0911-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0801-0802
192 TUBE; NYLON
SERVICED BY L=6000 OD=6 		1-87411-003-0 01 1 0801-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0801-
192 TUBE; NYLON
SERVICED BY L=12000 OD=8 		1-87411-010-0 02 1 0801-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0801-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 02 1 0801-0910
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 02 1 0801-0910
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 02 1 0911-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 02 1 0911-
212 GROMMET; AIR PIPE
OD=24 		9-61166-007-0 01 1 1102-1102
218 GROMMET; VINYL HOSE
OD=24 		9-61166-007-0 01 1 1103-
218 GROMMET; VINYL HOSE
OD=24 		9-61166-007-0 01 1 1004-1101
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 1004-
312 CONNECTOR; SUPPLY
DIN13 & M18 ELBOW 		8-97611-963-1 01 1 0801-1101
315 CLIP
ID=14 		8-94238-572-0 01 1 1004-
471 SEAL; BRKT 1-79738-832-0 01 1 0801-
472 TUBE; SPUTTER 8-98108-051-0 01 1 0801-
