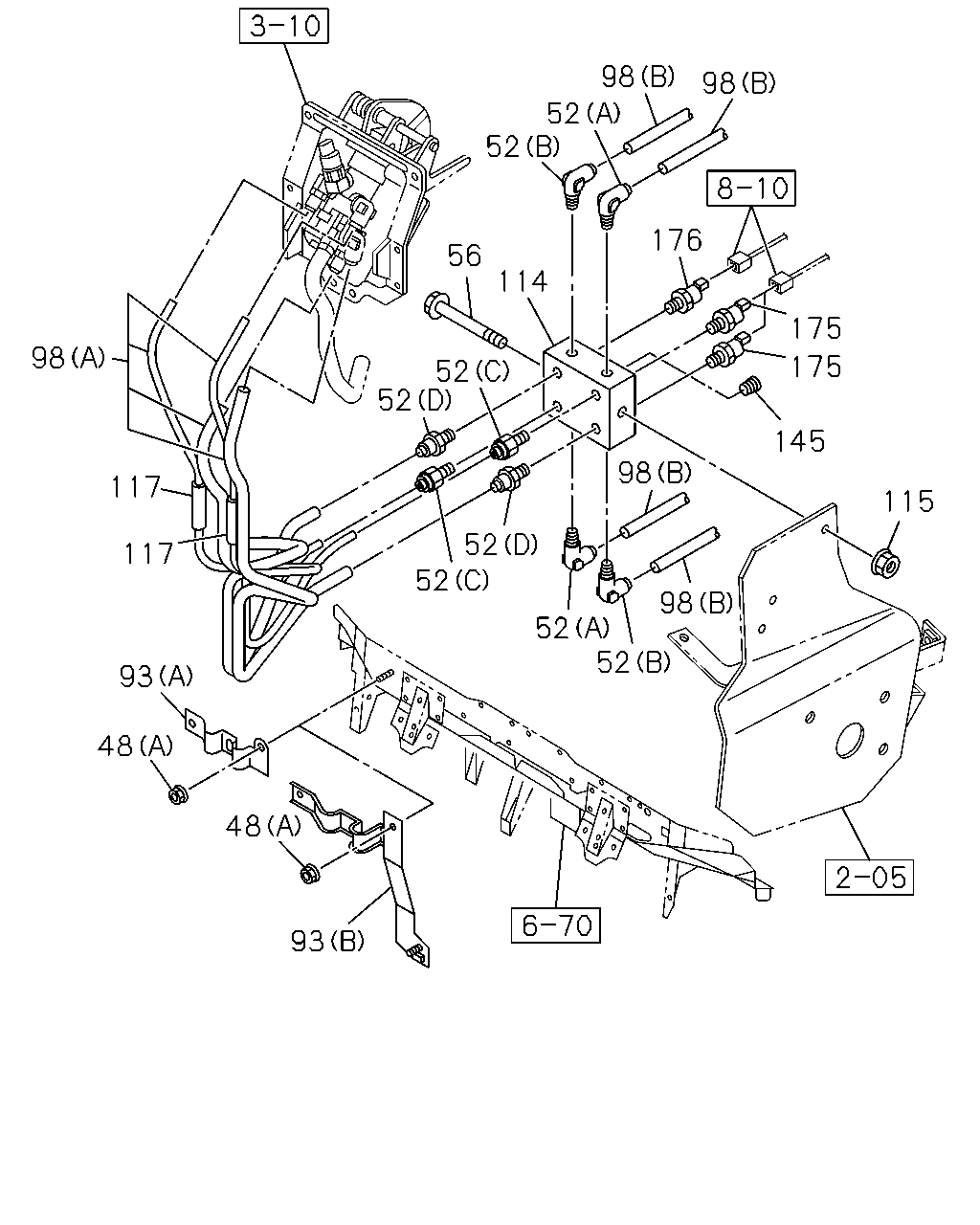

3-75 — BRAKE PIPING; AIR,FRONT (#57725) — 105 parça

98 98 52 52 176 56 114 175 98 175 52 52 145 98 117 115 52 52 117 98 52 52 93 48 48 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	NUT; UNION BRKT (B) M20	0-91111-520-0	01	1	0801-
48	NUT; UNION BRKT (A) M6 FLANGE	0-91180-106-0	02	1	0801-
52	CONNECTOR; NYLON TUBE (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0801-
52	CONNECTOR; NYLON TUBE (B) DIN12 & R1/4 ELBOW	1-09660-958-0	02	1	0801-
52	CONNECTOR; NYLON TUBE (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	0801-
52	CONNECTOR; NYLON TUBE (D) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	0801-
56	BOLT; UNION BRKT M8X100 FLANGE	0-28050-800-0	01	1	0801-
93	BRACKET; UNION,TUBE (A)	8-98044-013-0	01	1	0801-1201
93	BRACKET; UNION,TUBE (B)	8-98186-924-0	01	1	1202-
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (B) L=240 OD=12	8-98096-505-0	02	1	0801-
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (B) SERVICED BY L=4000 OD=12	1-87411-012-0	01	1	0801-
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0801-0808
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0801-0808
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0801-0808
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0801-0808
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0809-0901
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0809-0901
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0809-0901
98	TUBE; NYLON WHEEL BASE 7100MM(71W) (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0809-0901
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0902-
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0902-
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0902-
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0902-
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=6	1-87411-002-0	01	1	0801-
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	01	1	0801-
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	01	1	0801-
98	TUBE; NYLON (B) SERVICED BY L=12000 OD=8	1-87411-010-0	01	1	0801-
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87411-013-0	01	1	0801-
98	TUBE; NYLON (A)	8-98091-307-0	01	1	0801-
114	UNION; NYLON TUBE	8-98057-394-1	01	1	0801-
115	NUT; TUBE UNION M8 FLANGE	0-91180-108-0	02	1	0801-0802
115	NUT; TUBE UNION M8 FLANGE	0-91180-108-0	01	1	0803-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	01	1	0801-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	02	1	0801-
117	TUBE; CORRUGATE ANTILOCK BRAKE SYSTEM(BFA) SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0801-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0801-
117	TUBE; CORRUGATE ANTILOCK BRAKE SYSTEM(BFA) SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	0801-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0801-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	01	1	0801-
145	PLUG PT1/4	9-99204-513-0	01	1	0801-
175	SENSOR; AIR PRESS THREAD R1/4	1-80220-023-1	02	1	0801-
176	SWITCH; AIR PRESS STAMP 0.3	8-98010-857-0	01	1	0801-

35 48 49 75 53 94 15 150 35 2 80 68 177 32 35 48 49 35 94 53 150 75 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	UNION; AIR PIPE ANTILOCK BRAKE SYSTEM(BFA) M20 & M20 ELBOW	1-09654-128-1	02	1	0801-
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0801-0805
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0806-1201
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1202-
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1202-
32	HOSE; FLEX,FRT	0-87847-470-1	02	1	0801-
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	0801-
48	NUT; UNION BRKT (B) M20	0-91111-520-0	01	1	0801-
48	NUT; UNION BRKT (A) M6 FLANGE	0-91180-106-0	02	1	0801-
49	WASHER; LK,UNION BRKT ID=20.2	0-91510-520-0	01	1	0801-
53	UNION; ELBOW M20	1-09654-199-2	02	1	0801-
68	NUT; UNION M20	0-91111-520-0	01	1	0801-
68	NUT; UNION ANTILOCK BRAKE SYSTEM(BFA) M20	0-91111-520-0	02	1	0801-
75	BRACKET; UNION	8-98111-429-0	01	1	0801-
75	BRACKET; UNION	8-98111-430-0	01	1	0801-
80	WASHER; LK,UNION ID=20.2	0-91510-520-0	01	1	0801-
80	WASHER; LK,UNION ANTILOCK BRAKE SYSTEM(BFA) ID=20.2	0-91510-520-0	02	1	0801-
94	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	04	1	0801-
150	ADAPTER; CONT,NEUTRAL BUS STOP DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0801-0805
177	CONNECTOR ANTILOCK BRAKE SYSTEM(BFA) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0801-

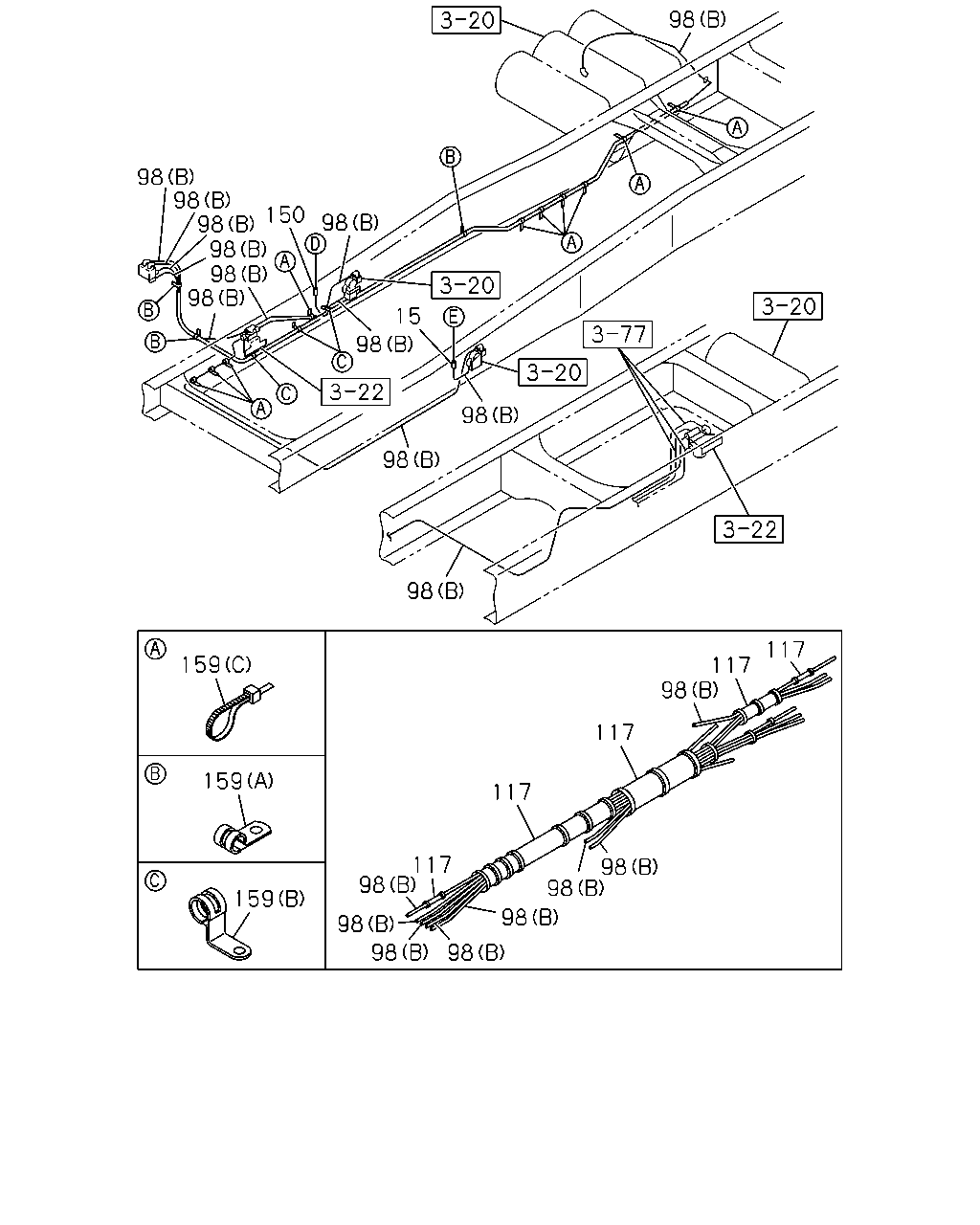

98 98 98 98 98 98 98 150 98 15 98 98 98 98 117 159 117 98 117 159 117 117 98 98 98 159 98 98 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0801-0805
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0806-1201
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1202-
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1202-
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (B) L=240 OD=12	8-98096-505-0	02	1	0801-
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (B) SERVICED BY L=4000 OD=12	1-87411-012-0	01	1	0801-
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0801-0808
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0801-0808
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0801-0808
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0801-0808
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0809-0901
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0809-0901
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0809-0901
98	TUBE; NYLON WHEEL BASE 7100MM(71W) (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0809-0901
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0902-
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0902-
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0902-
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0902-
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=6	1-87411-002-0	01	1	0801-
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	01	1	0801-
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	01	1	0801-
98	TUBE; NYLON (B) SERVICED BY L=12000 OD=8	1-87411-010-0	01	1	0801-
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87411-013-0	01	1	0801-
98	TUBE; NYLON (A)	8-98091-307-0	01	1	0801-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	01	1	0801-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	02	1	0801-
117	TUBE; CORRUGATE ANTILOCK BRAKE SYSTEM(BFA) SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0801-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0801-
117	TUBE; CORRUGATE ANTILOCK BRAKE SYSTEM(BFA) SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	0801-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0801-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	01	1	0801-
150	ADAPTER; CONT,NEUTRAL BUS STOP DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0801-0805
159	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) (C) L=350	1-09707-183-0	16	1	0902-0910
159	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) (C) L=350	1-09707-183-0	17	1	0911-
159	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	15	1	0801-0808
159	CLIP; NYLON TUBE WHEEL BASE 7100MM(71W) (C) L=350	1-09707-183-0	15	1	0809-0910
159	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	16	1	0911-
159	CLIP; NYLON TUBE (A) ID=29 L=35	5-09700-293-1	01	1	0801-
159	CLIP; NYLON TUBE (A) ID=35 L=33	1-09700-945-0	01	1	0801-0801
159	CLIP; NYLON TUBE (A) ID=39 L=33	8-98009-359-0	01	1	0802-
159	CLIP; NYLON TUBE (B) ID=21 L=30 H=40	1-09700-991-1	01	1	0801-0802
159	CLIP; NYLON TUBE (B) ID=31 H=30 L=35	1-09700-994-0	02	1	0801-
159	CLIP; NYLON TUBE (A) ID=26 L=26	1-09701-236-0	01	1	0801-
