3-70 — BRAKE PIPING; AIR,AIR MASTER (#57724) — 109 parça

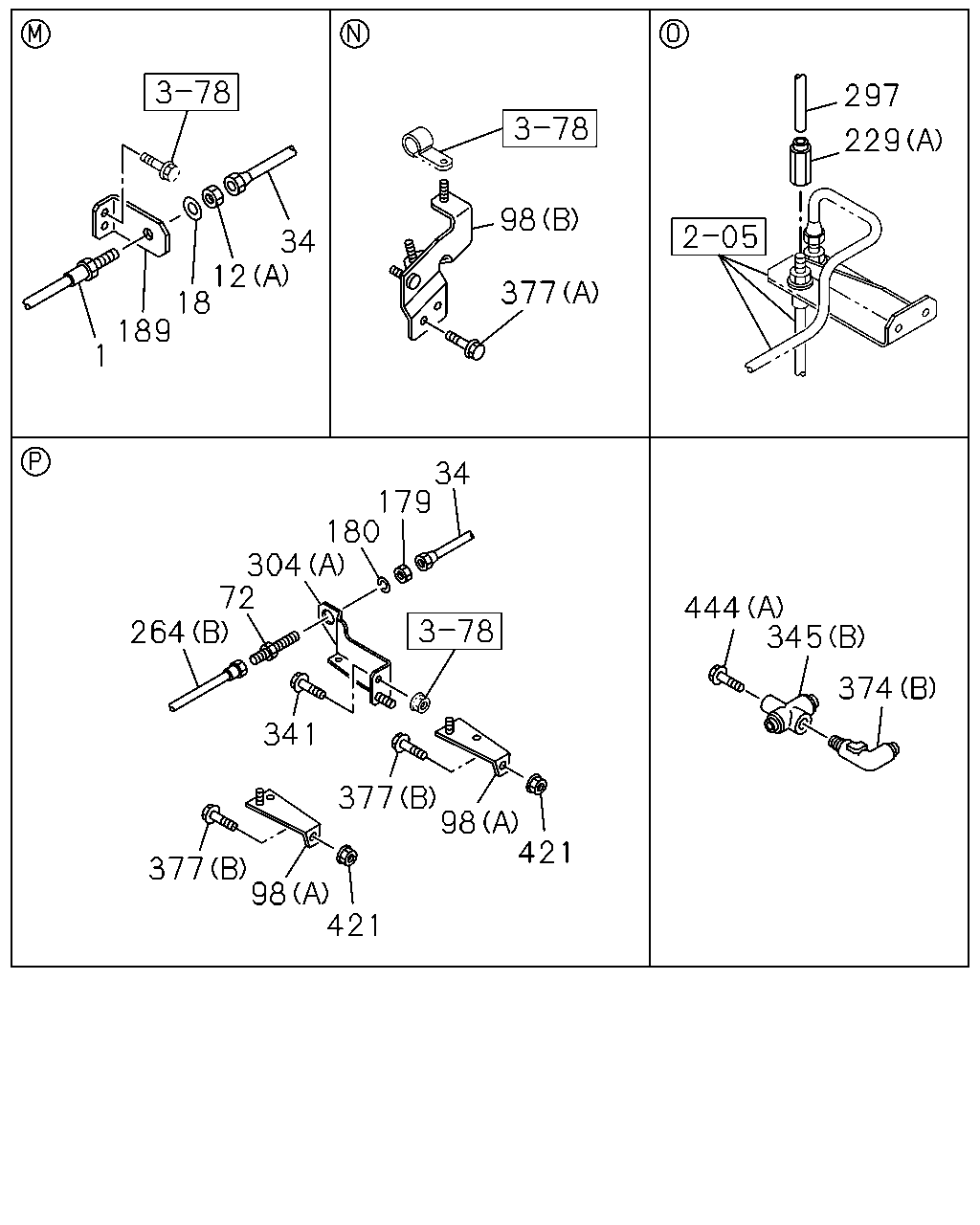

çizim 161205
297 229 98 34 12 18 189 377 1 34 179 180 304 72 264 444 345 374 341 377 98 421 377 98 421
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK 8-98100-332-0 01 1 0801-
12 NUT; UNION
(A) M22 		0-91111-522-0 01 1 0801-
12 NUT; UNION
(B) M8 FLANGE 		0-91180-108-0 02 1 0801-
18 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 0801-
34 PIPE; AIR
L=1258 		8-97618-580-0 01 1 0801-
72 UNION; AIR PIPE
M22 		0-92123-315-0 01 1 0801-
98 BRACKET; AIR PIPE
(A) 		8-97609-096-0 02 1 0801-
98 BRACKET; AIR PIPE
(B) 		8-97610-999-0 01 1 0801-
179 NUT; UNION
M22 		0-91111-522-0 01 1 0801-
180 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 0801-
189 BRACKET; FLEX HOSE 1-47479-473-0 01 1 0801-
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0801-
229 ADAPTER; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0801-
264 HOSE; FLEX
(A) L=360 		1-09363-637-0 01 1 0801-
264 HOSE; FLEX
(B) L=1150 		1-09363-791-0 01 1 0801-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0801-
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 01 1 0801-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0801-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0801-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0801-
304 BRACKET; UNION
(A) 		8-97610-362-1 01 1 0801-
304 BRACKET; UNION
(B) 		8-97615-626-3 01 1 0801-
341 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0801-
345 UNION; AIR PIPE
WHEEL BASE 6600MM(66W) DIFF LOCK<C3N> (B) DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 0902-
345 UNION; AIR PIPE
(A) M12 ELBOW 		0-92125-206-0 01 1 0801-
374 CONNECTOR
WHEEL BASE 6600MM(66W) DIFF LOCK<C3N> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0902-
374 CONNECTOR
(A) PT1/4 2WAY 		1-09660-693-0 01 1 0801-
377 BOLT; BRKT FIX
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0801-
377 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0801-
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0801-
444 BOLT; UNION
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0801-0901
444 BOLT; UNION
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0902-
444 BOLT; UNION
WHEEL BASE 6600MM(66W) DIFF LOCK<C3N> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0902-
444 BOLT; UNION
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0801-
444 BOLT; UNION
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0801-

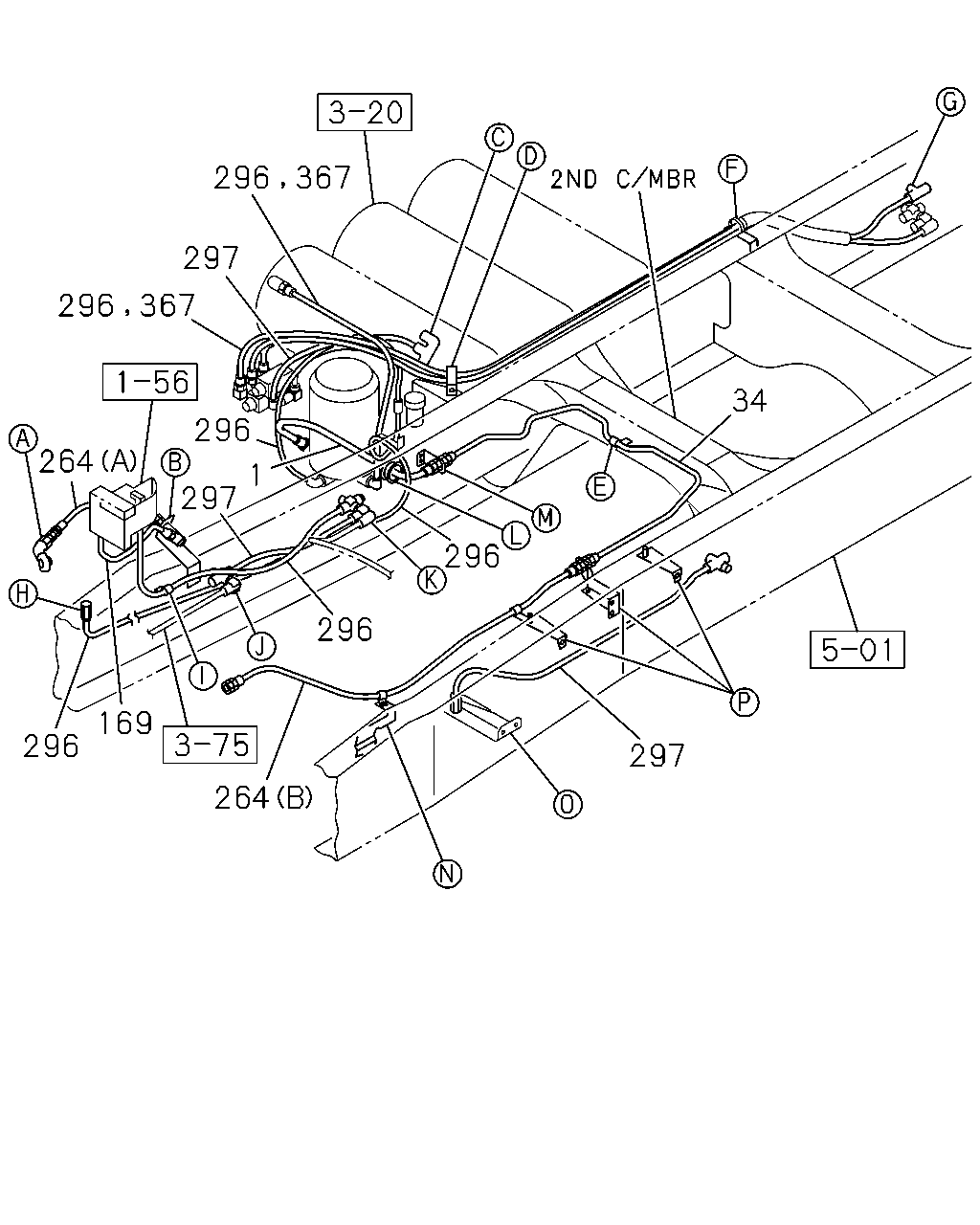

çizim 161462
296 297 296 34 296 297 264 1 296 296 169 296 297 264 367 367
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK 8-98100-332-0 01 1 0801-
34 PIPE; AIR
L=1258 		8-97618-580-0 01 1 0801-
169 PIPE; AIR,UNION TO FLEX HOSE
L=630 SERVICED BY L=650 		1-47428-810-0 01 1 0801-
264 HOSE; FLEX
(A) L=360 		1-09363-637-0 01 1 0801-
264 HOSE; FLEX
(B) L=1150 		1-09363-791-0 01 1 0801-
296 TUBE; NYLON
WHEEL BASE 6600MM(66W) DIFF LOCK<C3N> SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0902-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 01 1 0802-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 03 1 0801-0801
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 0802-1112
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 03 1 0801-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 02 1 0801-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0801-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0801-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0801-
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 01 1 0801-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0801-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0801-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0801-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 02 1 0801-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 02 1 0801-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 01 1 0801-

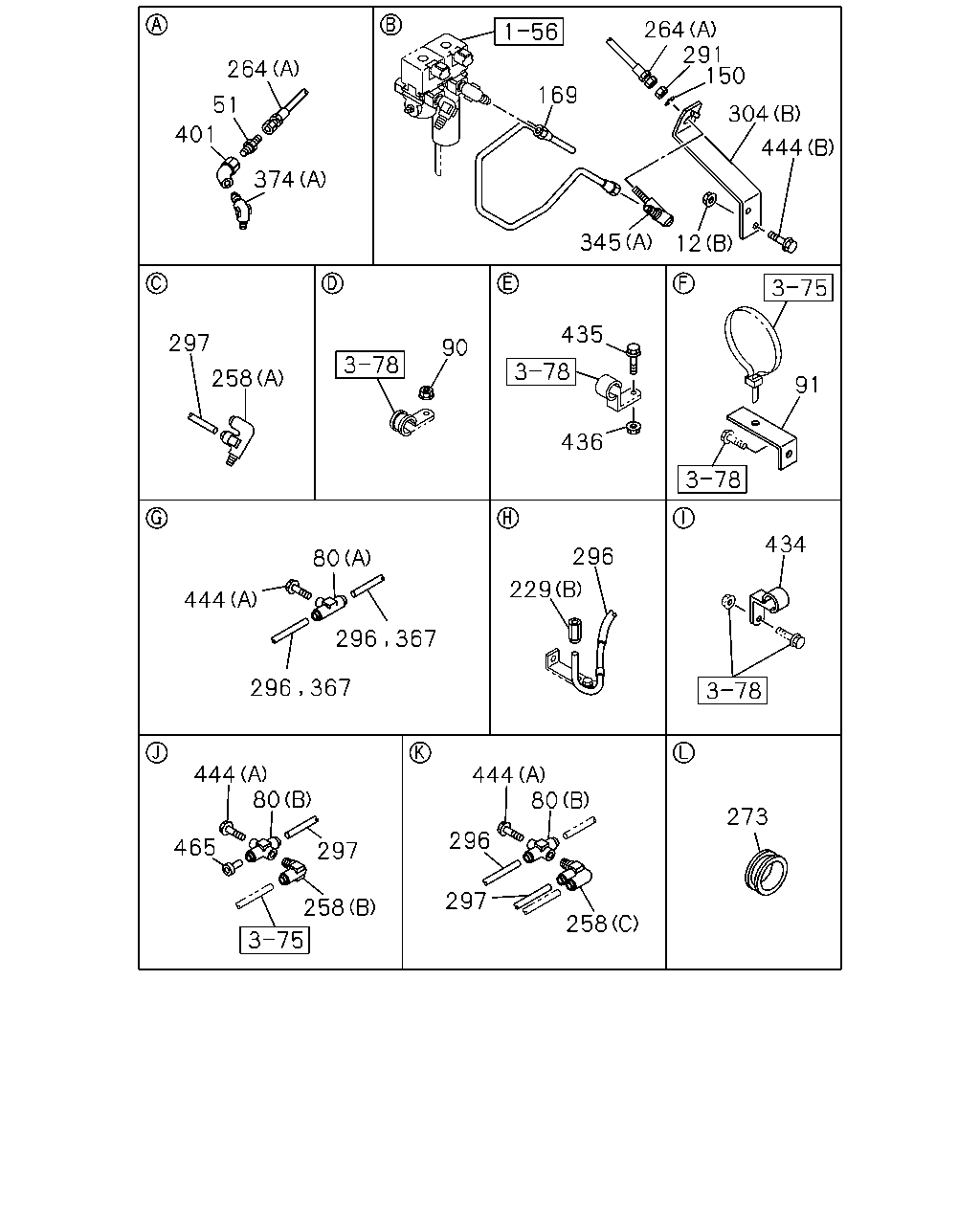

çizim 161463
264 291 150 264 169 51 304 401 444 374 345 12 435 297 90 258 91 436 434 296 80 229 444 444 80 444 80 273 296 465 297 297 258 258 296 367 296 367
BalonParca AdiParca NoAdetTipApplied Date
12 NUT; UNION
(A) M22 		0-91111-522-0 01 1 0801-
12 NUT; UNION
(B) M8 FLANGE 		0-91180-108-0 02 1 0801-
51 UNION
M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0801-
80 UNION; 3 WAY
(A) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0801-
80 UNION; 3 WAY
(B) DIN8 & RC3/8 3WAY 		1-09661-129-0 02 1 0801-0803
80 UNION; 3 WAY
(B) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0804-
80 UNION; 3 WAY
SHIFT PATTERN SINGLE-H<EDY> (B) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0804-
90 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0801-
91 BRACKET; TUBE CLIP
L=60 H=30 		1-47477-716-1 02 1 0801-
150 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 01 1 0801-
169 PIPE; AIR,UNION TO FLEX HOSE
L=630 SERVICED BY L=650 		1-47428-810-0 01 1 0801-
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0801-
229 ADAPTER; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0801-
258 CONNECTOR; NYLON TUBE
(A) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0801-
258 CONNECTOR; NYLON TUBE
(B) DIN6 & R3/8 ELBOW 		1-09661-234-0 01 1 0801-
258 CONNECTOR; NYLON TUBE
(C) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0801-0803
258 CONNECTOR; NYLON TUBE
SHIFT PATTERN SINGLE-H<EDY> (C) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0804-
264 HOSE; FLEX
(A) L=360 		1-09363-637-0 01 1 0801-
264 HOSE; FLEX
(B) L=1150 		1-09363-791-0 01 1 0801-
273 GROMMET
ID=32 OD=40 T=18 		1-09891-003-0 01 1 0801-
291 NUT; UNION
M12 		9-09840-280-0 01 1 0801-
296 TUBE; NYLON
WHEEL BASE 6600MM(66W) DIFF LOCK<C3N> SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0902-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 01 1 0802-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 03 1 0801-0801
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 0802-1112
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 03 1 0801-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 02 1 0801-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0801-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0801-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0801-
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 01 1 0801-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0801-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0801-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0801-
304 BRACKET; UNION
(A) 		8-97610-362-1 01 1 0801-
304 BRACKET; UNION
(B) 		8-97615-626-3 01 1 0801-
345 UNION; AIR PIPE
WHEEL BASE 6600MM(66W) DIFF LOCK<C3N> (B) DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 0902-
345 UNION; AIR PIPE
(A) M12 ELBOW 		0-92125-206-0 01 1 0801-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 02 1 0801-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 02 1 0801-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 01 1 0801-
374 CONNECTOR
WHEEL BASE 6600MM(66W) DIFF LOCK<C3N> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0902-
374 CONNECTOR
(A) PT1/4 2WAY 		1-09660-693-0 01 1 0801-
401 CONNECTOR; FLEX HOSE
R1/4 & RC1/4 		1-09664-211-0 01 1 0801-
434 CLIP
ID=8 H=20 L=20 		1-09700-604-0 01 1 0801-
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0801-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0801-
444 BOLT; UNION
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0801-0901
444 BOLT; UNION
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0902-
444 BOLT; UNION
WHEEL BASE 6600MM(66W) DIFF LOCK<C3N> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0902-
444 BOLT; UNION
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0801-
444 BOLT; UNION
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0801-
465 PLUG
OD=8 		1-09661-616-0 01 1 0801-
