Isuzu WW
▶
TRUCKS
▶
FXM
▶
11144 - FXM EXC.EURO5
▶
3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#57722) — 34 parça
◀

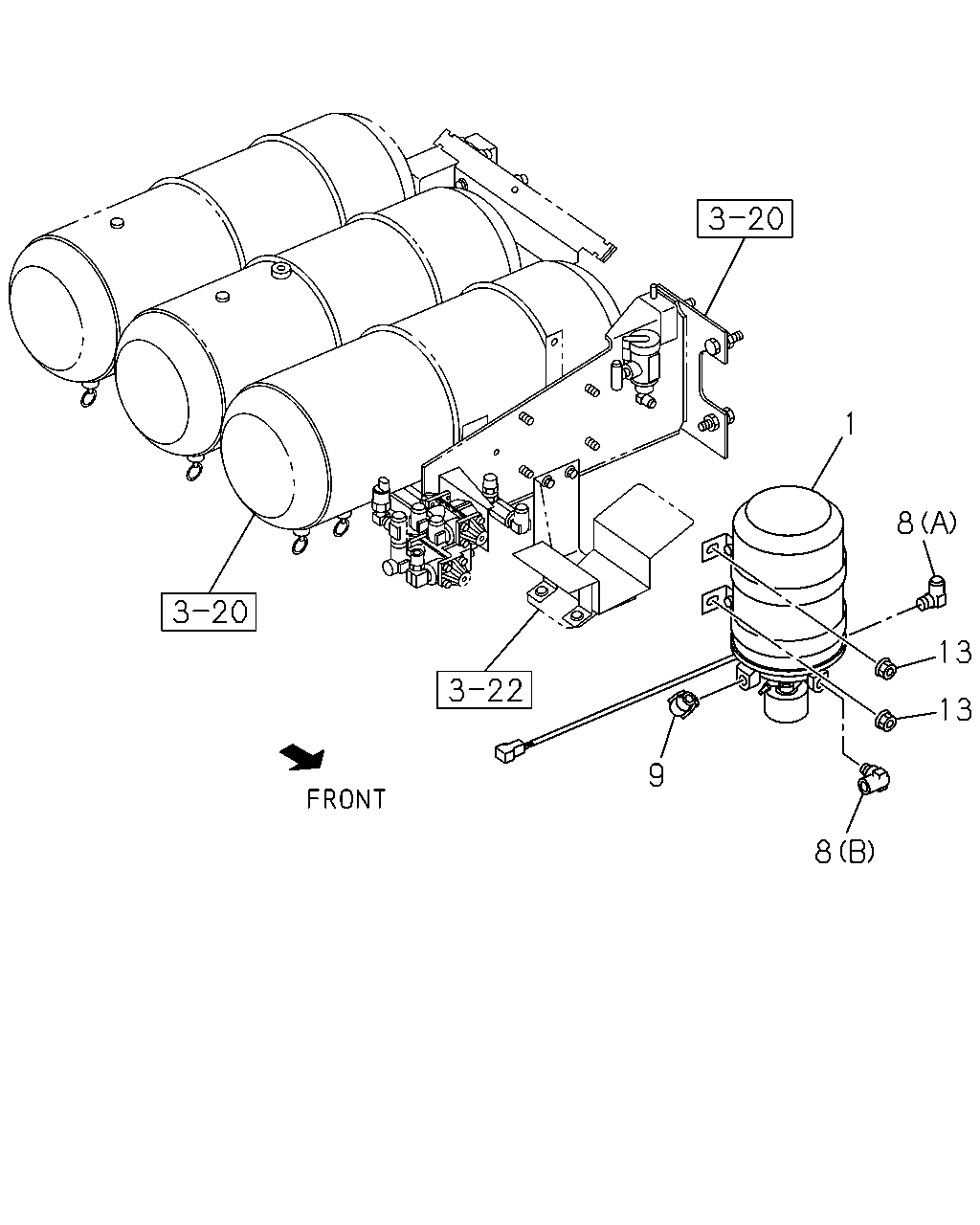

[346A] FIXING (5 parça)
[346A] REPAIR KIT (1 parça)
[346A] COMPONENT (22 parça)
[346A] PISTON KIT AND THEMOSTAT KIT (6 parça)
▶
1
8
13
13
9
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
1-48190-347-1
01
1
0801-
8
CONNECTOR; OUT,AIR DRYER
(A) DIN12 & R1/2 ELBOW
1-09660-960-0
01
1
0801-
8
CONNECTOR; OUT,AIR DRYER
(B) DIN6 & R1/4 ELBOW
1-09661-067-0
01
1
0801-
9
CONNECTOR; PIPE,AIR DRYER
M22 & R1/2 W/VALVE
1-48320-026-2
01
1
0801-
13
NUT; AIR DRYER
M10 FLANGE
0-91180-210-0
04
1
0801-

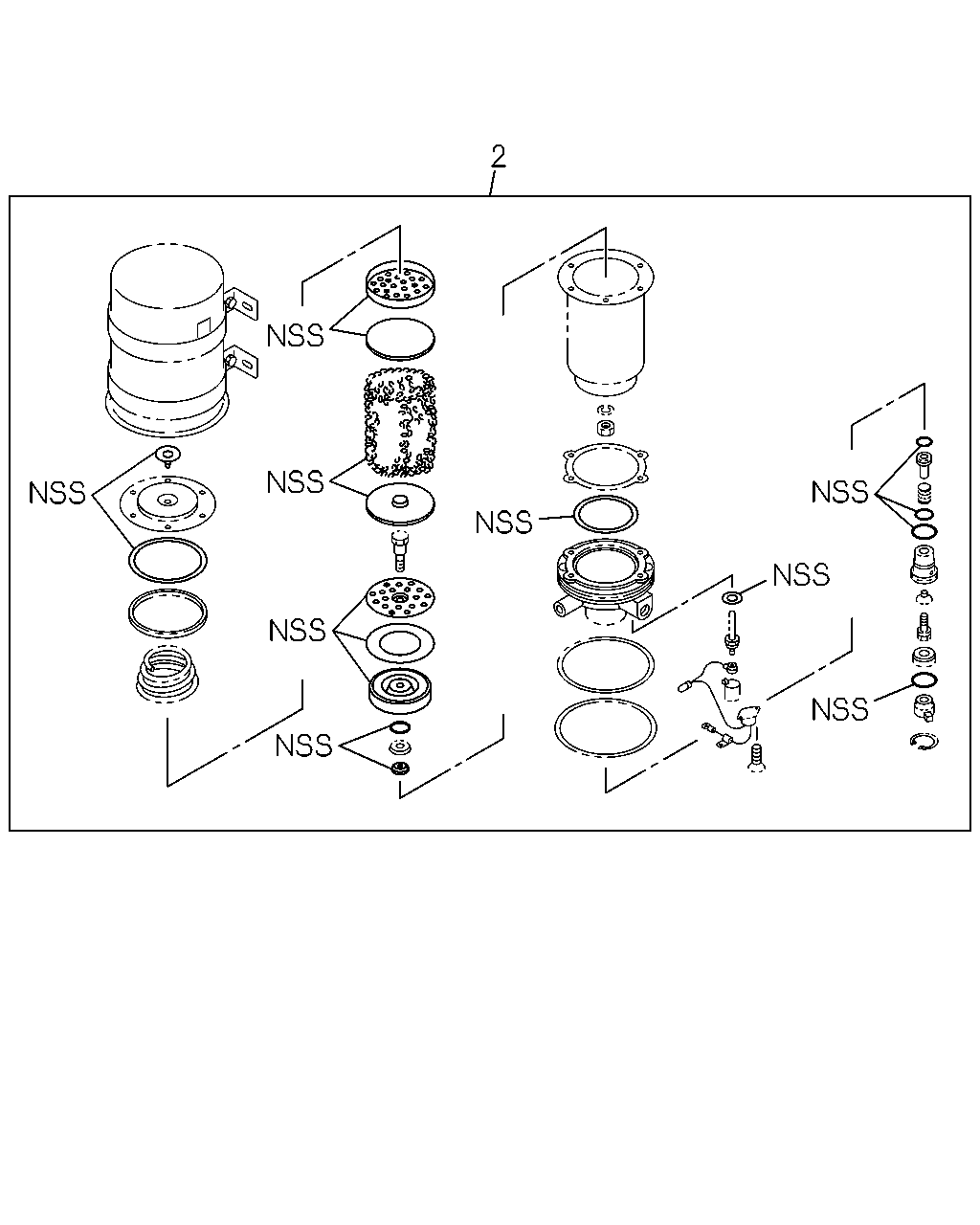

2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
1-85576-226-0
01
1
0801-

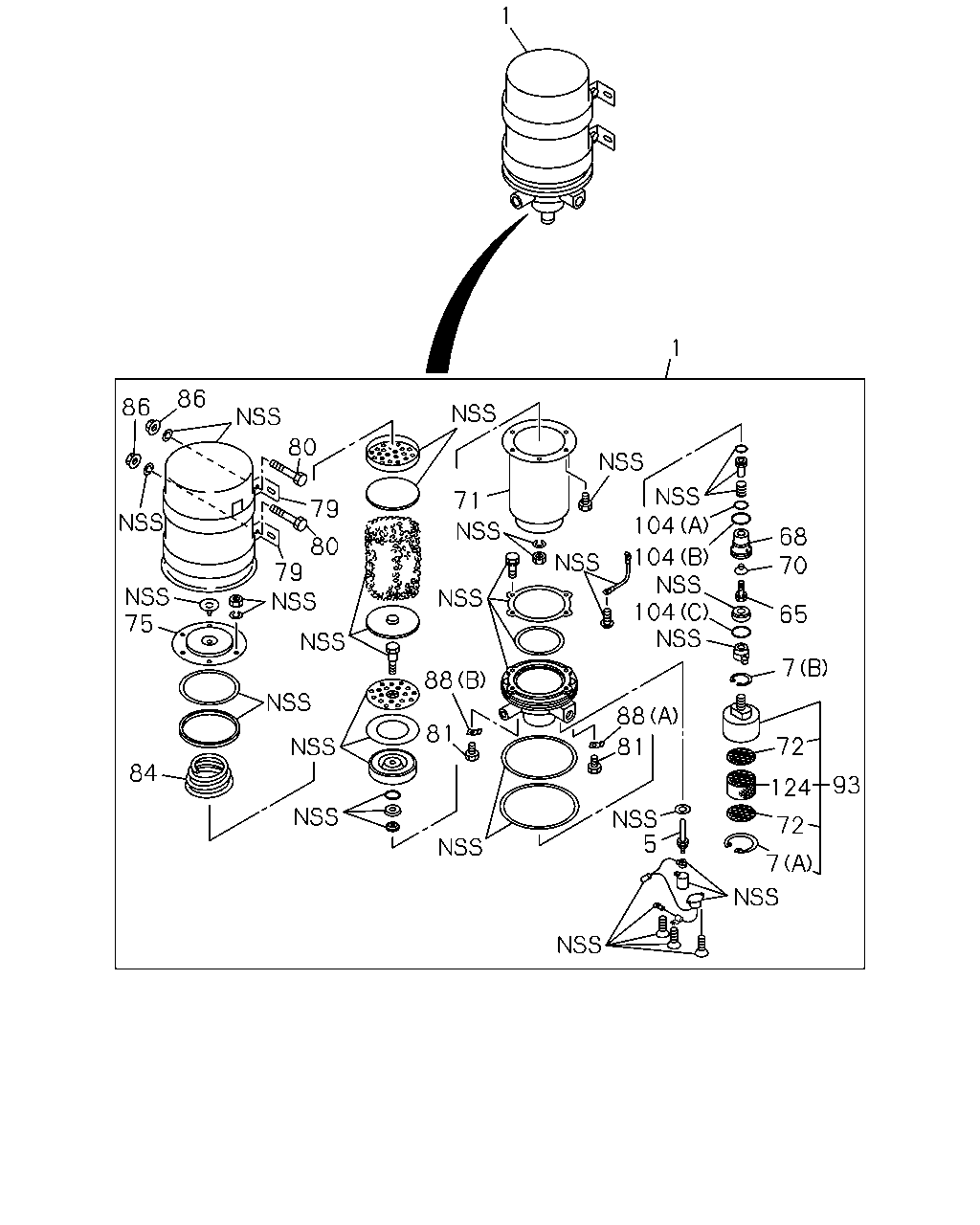

1
86
86
80
104
71
79
68
70
80
79
104
104
75
65
7
88
88
81
72
81
84
93
124
5
72
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
1-48190-347-1
01
1
0801-
5
HEATER ASM; AIR DRYER
1-48199-085-0
02
1
0801-
7
RING; SNAP,AIR DRYER
(A)
1-47769-017-0
01
1
0801-
7
RING; SNAP,AIR DRYER
(B)
1-48199-154-0
01
1
0801-
65
BOLT; PURGE VLV
1-48199-393-0
01
1
0801-
68
BODY; VALVE
1-48199-216-0
01
1
0801-
70
VALVE; AIR DRYER
1-48199-105-0
01
1
0801-
71
CASE; INNER,AIR DRYER
1-48199-156-1
01
1
0801-
72
PLATE; FILTER,AIR DRYER
1-48199-464-0
02
1
0801-
75
COVER; CASE,AIR DRYER
1-48199-167-0
01
1
0801-
79
BRACKET; AIR DRYER
1-48199-189-0
02
1
0801-
80
BOLT; BRKT
1-48199-190-0
02
1
0801-
81
BOLT; CASE,AIR DRYER
1-48199-177-0
02
1
0801-
84
SPRING; AIR DRYER
1-48199-166-0
01
1
0801-
86
NUT; BRKT
1-48199-320-0
02
1
0801-
88
PLATE; STOPPER
(A)
1-48199-178-0
01
1
0801-
88
PLATE; STOPPER
(B)
1-48199-179-0
01
1
0801-
93
SILENCER; AIR DRYER
1-48199-462-0
01
1
0801-
104
GASKET
(A)
1-48199-108-0
01
1
0801-
104
GASKET
(B)
1-48199-109-0
01
1
0801-
104
GASKET
(C)
1-48199-153-0
01
1
0801-
124
FILTER; SILENCER
1-48199-465-0
01
1
0801-
3
68
70
65
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
PISTON KIT; AIR DRYER
1-85576-123-1
01
1
0801-
4
THERMOSTAT KIT; AIR DRYER
1-85576-254-0
01
1
0801-1001
4
THERMOSTAT KIT; AIR DRYER
1-85576-057-1
01
1
1002-
65
BOLT; PURGE VLV
1-48199-393-0
01
1
0801-
68
BODY; VALVE
1-48199-216-0
01
1
0801-
70
VALVE; AIR DRYER
1-48199-105-0
01
1
0801-
