3-22 — AIR CONTROL PARTS (#57717) — 194 parça
çizim 161175
155 279
BalonParca AdiParca NoAdetTipApplied Date
155 REPAIR KIT; RELAY VALVE
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-85576-294-0 02 1 0801-
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-408-0 01 1 0801-
279 REPAIR KIT; SILENCER 1-85576-409-0 01 1 0801-

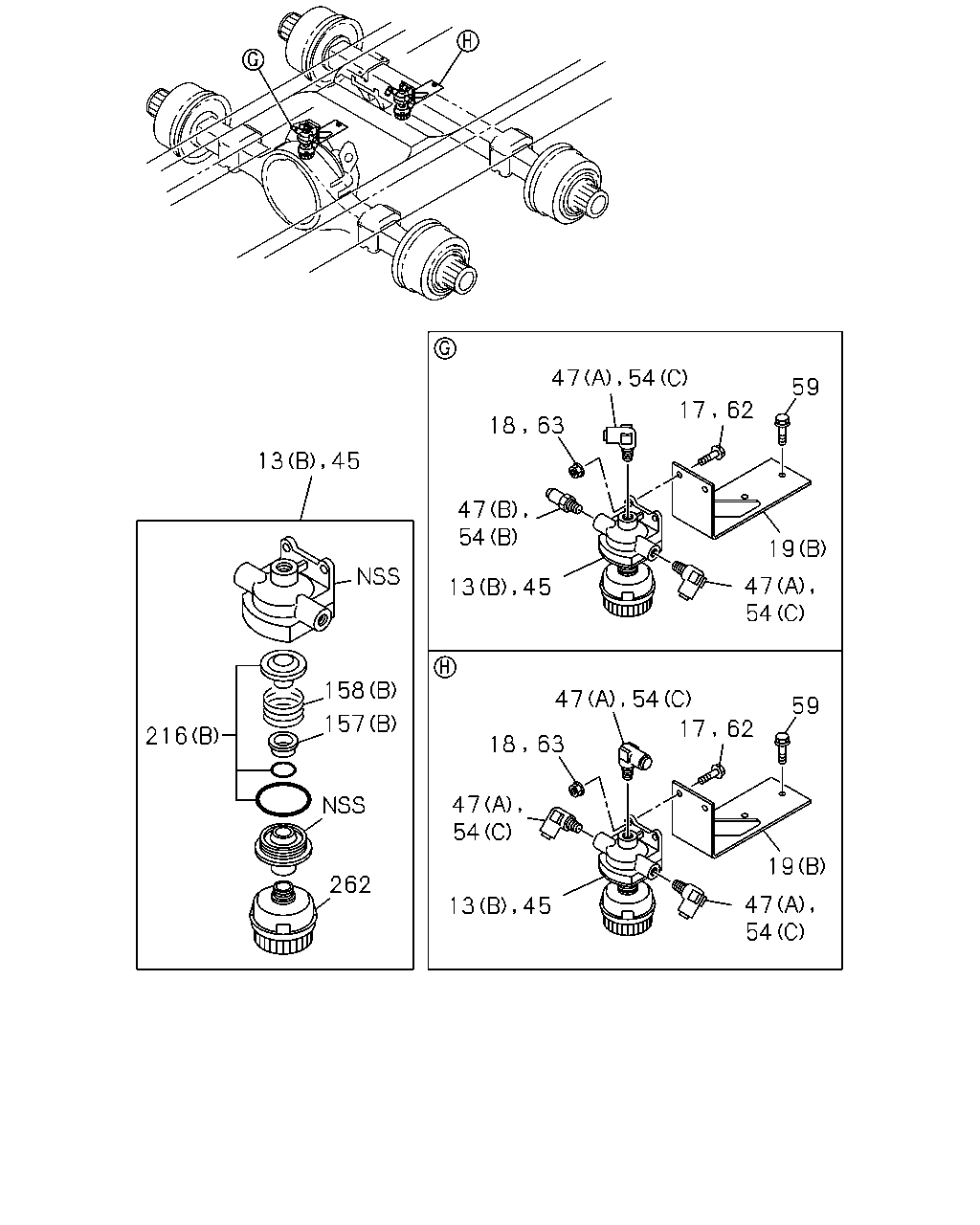

çizim 161200
47 54 59 62 17 18 63 47 54 19 47 54 158 54 47 59 157 17 62 216 18 63 47 54 19 262 47 54 13 45 13 45 13 45
BalonParca AdiParca NoAdetTipApplied Date
13 VALVE ASM; QUICK RELEASE
(B) 		1-48410-733-0 02 1 0803-1008
13 VALVE ASM; QUICK RELEASE
(B) 		8-98170-207-0 02 1 1009-
13 VALVE ASM; QUICK RELEASE
(A) 		1-48410-726-1 01 1 0801-
17 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0803-
18 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0803-
19 BRACKET; QUICK RELEASE VLV
(B) FORWARD 		8-98179-172-0 01 1 1108-
19 BRACKET; QUICK RELEASE VLV
(A) 		1-47471-014-0 01 1 0801-
19 BRACKET; QUICK RELEASE VLV
(B) 		8-98033-795-0 01 1 0801-0802
19 BRACKET; QUICK RELEASE VLV
(B) 		8-98033-795-0 01 1 0801-0802
19 BRACKET; QUICK RELEASE VLV
(B) 		8-98033-795-0 02 1 0803-1107
19 BRACKET; QUICK RELEASE VLV
(B) REARWARD 		8-98033-795-0 01 1 1108-
45 VALVE; QUICK RELEASE 1-48410-733-0 01 1 0801-0802
45 VALVE; QUICK RELEASE 1-48410-733-0 01 1 0801-0802
47 CONNECTOR; RELAY VLV,CONT
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0801-0802
47 CONNECTOR; RELAY VLV,CONT
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0801-0802
47 CONNECTOR; RELAY VLV,CONT
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0801-0802
54 CONNECTOR; QUICK RELEASE VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 05 1 0803-
54 CONNECTOR; QUICK RELEASE VLV
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0803-
54 CONNECTOR; QUICK RELEASE VLV
(A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0801-
54 CONNECTOR; QUICK RELEASE VLV
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0801-
59 BOLT; RELEASE VALVE FIX
M8X16 FLANGE 		0-28050-816-0 04 1 0801-
62 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0801-0802
62 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0801-0802
62 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 02 1 0801-
63 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 02 1 0801-0802
63 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 02 1 0801-0802
63 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 02 1 0801-0802
63 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 02 1 0803-
157 RETAINER; VALVE
(C) 		1-48419-020-0 01 1 0801-
157 RETAINER; VALVE
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-48213-002-0 02 1 0801-
157 RETAINER; VALVE
(B) 		1-48419-036-0 01 1 0801-0802
157 RETAINER; VALVE
(B) 		1-48419-036-0 01 1 0801-0802
157 RETAINER; VALVE
(B) 		1-48419-036-0 02 1 0803-1008
157 RETAINER; VALVE
(B) 		1-48419-020-0 02 1 1009-
158 SPRING; VALVE
(B) 		9-48419-003-0 02 1 0803-
158 SPRING; VALVE
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-47819-089-0 02 1 0801-
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 0801-0802
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 0801-0802
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 0801-0802
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 0803-
216 REPAIR KIT; QUICK RELEASE VLV
(A) 		1-85576-235-0 01 1 0801-1109
216 REPAIR KIT; QUICK RELEASE VLV
(A) 		1-85576-484-0 01 1 1110-
216 REPAIR KIT; QUICK RELEASE VLV
(B) 		1-85579-062-0 01 1 0801-0802
216 REPAIR KIT; QUICK RELEASE VLV
(B) 		1-85579-062-0 01 1 0801-0802
216 REPAIR KIT; QUICK RELEASE VLV
(B) 		1-85579-062-0 02 1 0803-1008
216 REPAIR KIT; QUICK RELEASE VLV
(B) 		8-98171-596-0 02 1 1009-
262 SILENCER; RELAY VALVE
ANTILOCK BRAKE SYSTEM(BFA) 		1-48219-149-0 02 1 0801-0802
262 SILENCER; RELAY VALVE 1-48219-149-0 02 1 0803-
262 SILENCER; RELAY VALVE
ANTILOCK BRAKE SYSTEM(BFA) 		1-48219-149-0 02 1 0803-
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0801-0802
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0801-0802
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0801-0802
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0803-

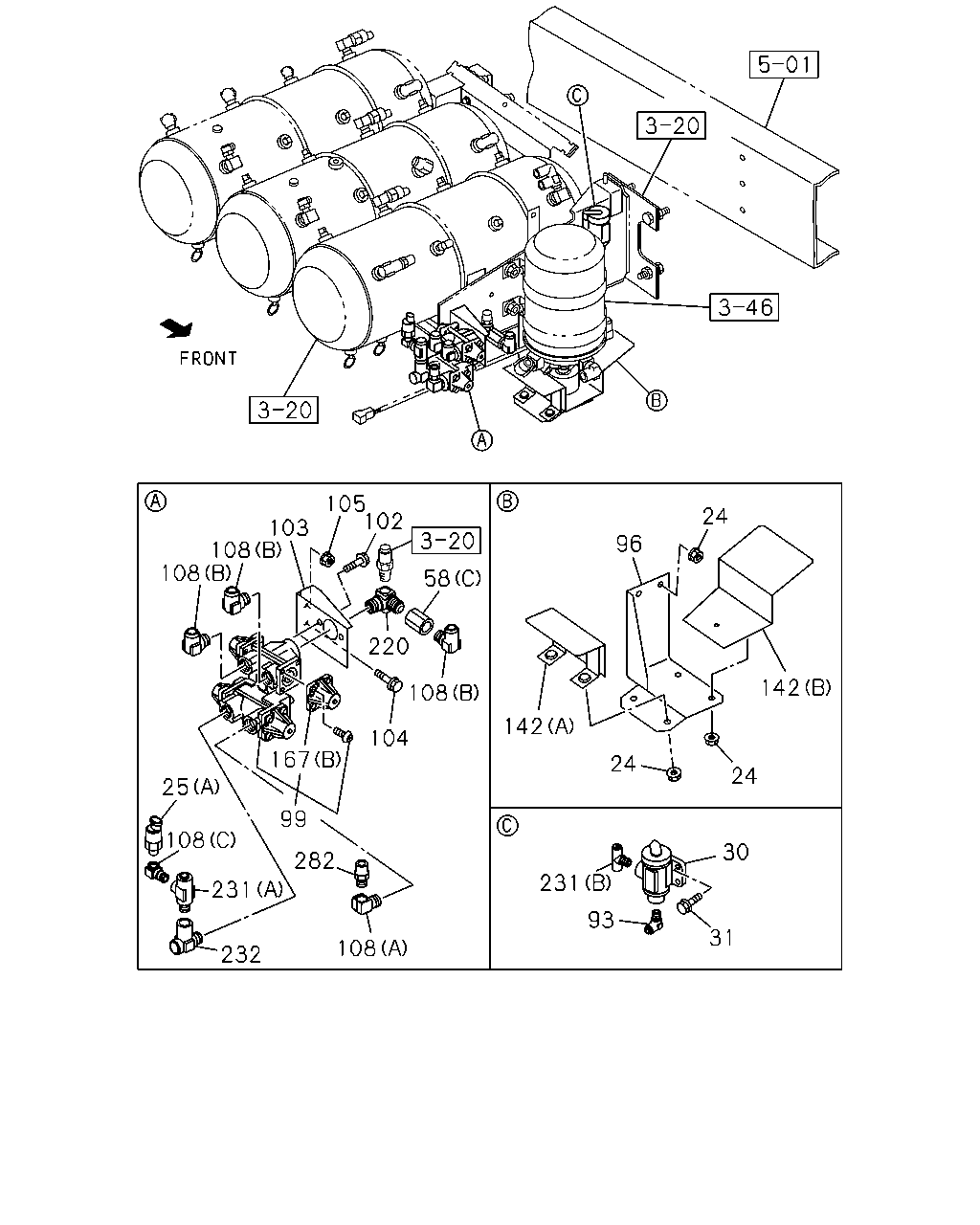

çizim 161439
142 24 24 142 96 30 24 31 93 231 108 220 104 58 102 105 103 108 108 167 25 108 99 282 108 231 232
BalonParca AdiParca NoAdetTipApplied Date
24 NUT
M8 FLANGE 		0-91180-108-0 06 1 0801-
25 SWITCH; PRESSURE
(A) STAMP 5.5 		8-97609-249-0 01 1 0801-
25 SWITCH; PRESSURE
(B) STAMP 2.0 		8-98010-856-2 01 1 0801-
30 GOVERNOR; AIR CONT 1-48350-063-2 01 1 0801-
31 BOLT; GOV TO FRAME
M8X30 FLANGE 		0-28650-830-0 02 1 0801-
58 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-48219-154-0 02 1 0801-
58 ADAPTER
(B) INNER PT3/8,OUTER M22 		1-09650-494-1 05 1 0801-0802
58 ADAPTER
(B) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0803-
58 ADAPTER
(C) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0801-
93 CONNECTOR; GOV
DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0801-
96 BRACKET 8-98093-436-0 01 1 0801-
99 VALVE; PROTECTION 1-48110-294-3 01 1 0801-
102 BOLT; PROTECTION VALVE
M8X16 FLANGE 		0-28050-816-0 02 1 0801-
103 BRACKET; PROTECTION VALVE 8-98093-563-0 01 1 0801-
104 BOLT; BRKT,VALVE
M10X20 FLANGE 		0-28651-020-0 01 1 0801-
105 NUT; BRKT,VALVE
M10 FLANGE 		0-91180-210-0 01 1 0801-
108 CONNECTOR; ELBOW
(A) PT3/8 ELBOW 		1-09660-696-0 01 1 0801-
108 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0801-
108 CONNECTOR; ELBOW
(C) PT1/4 2WAY 		1-09660-693-0 01 1 0801-
142 PROTECTOR; HEAT
(A) 		8-98093-437-1 01 1 0801-
142 PROTECTOR; HEAT
(B) 		8-98093-438-1 01 1 0801-
167 COVER; VALVE
(B) 		1-48119-625-0 04 1 0801-
167 COVER; VALVE
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-48219-070-0 02 1 0801-
220 CONNECTOR; 3WAY 8-98031-238-0 01 1 0801-
231 CONNECTOR; NYLON TUBE
(A) 		1-09661-027-0 01 1 0801-
231 CONNECTOR; NYLON TUBE
(B) 		1-09661-073-0 01 1 0801-
232 VALVE; CHECK
DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 0801-
282 CONNECTOR; STRAIGHT
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0801-

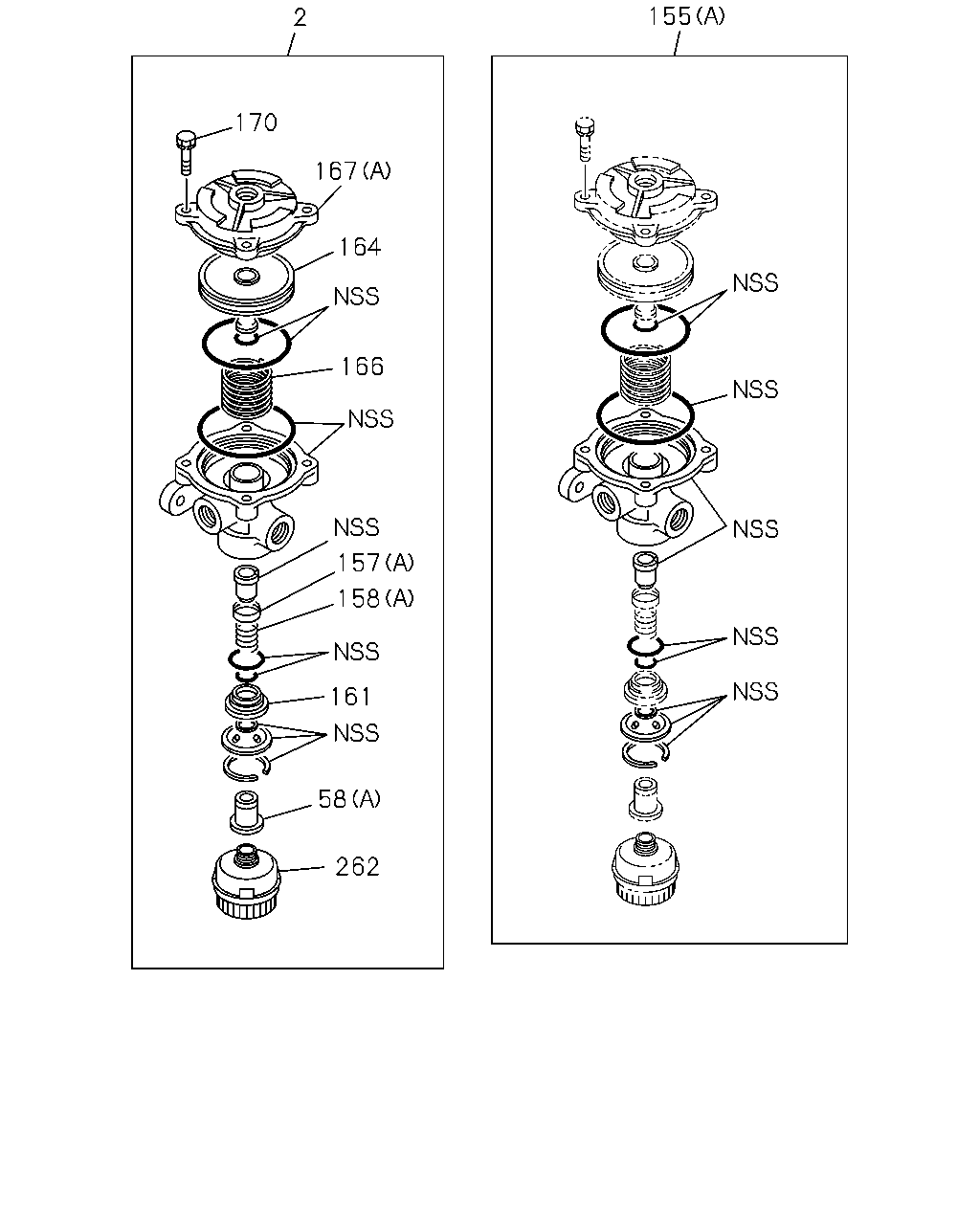

çizim 161444
155 2 170 167 164 166 157 158 161 58 262
BalonParca AdiParca NoAdetTipApplied Date
2 VALVE; RELAY
ANTILOCK BRAKE SYSTEM(BFA) 		1-48210-997-0 02 1 0801-
58 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-48219-154-0 02 1 0801-
58 ADAPTER
(B) INNER PT3/8,OUTER M22 		1-09650-494-1 05 1 0801-0802
58 ADAPTER
(B) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0803-
58 ADAPTER
(C) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0801-
155 REPAIR KIT; RELAY VALVE
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-85576-294-0 02 1 0801-
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-408-0 01 1 0801-
157 RETAINER; VALVE
(C) 		1-48419-020-0 01 1 0801-
157 RETAINER; VALVE
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-48213-002-0 02 1 0801-
157 RETAINER; VALVE
(B) 		1-48419-036-0 01 1 0801-0802
157 RETAINER; VALVE
(B) 		1-48419-036-0 01 1 0801-0802
157 RETAINER; VALVE
(B) 		1-48419-036-0 02 1 0803-1008
157 RETAINER; VALVE
(B) 		1-48419-020-0 02 1 1009-
158 SPRING; VALVE
(B) 		9-48419-003-0 02 1 0803-
158 SPRING; VALVE
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-47819-089-0 02 1 0801-
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 0801-0802
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 0801-0802
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 0801-0802
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 0803-
161 GUIDE; VALVE
ANTILOCK BRAKE SYSTEM(BFA) 		1-48129-014-0 02 1 0801-
164 PISTON; RELAY VALVE
ANTILOCK BRAKE SYSTEM(BFA) 		1-48219-071-0 02 1 0801-
166 SPRING; PISTON
ANTILOCK BRAKE SYSTEM(BFA) 		1-47819-090-0 02 1 0801-
167 COVER; VALVE
(B) 		1-48119-625-0 04 1 0801-
167 COVER; VALVE
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-48219-070-0 02 1 0801-
170 SCREW; COVER TO BODY
ANTILOCK BRAKE SYSTEM(BFA) 		1-48219-039-0 08 1 0801-
262 SILENCER; RELAY VALVE
ANTILOCK BRAKE SYSTEM(BFA) 		1-48219-149-0 02 1 0801-0802
262 SILENCER; RELAY VALVE 1-48219-149-0 02 1 0803-
262 SILENCER; RELAY VALVE
ANTILOCK BRAKE SYSTEM(BFA) 		1-48219-149-0 02 1 0803-
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0801-0802
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0801-0802
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0801-0802
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0803-

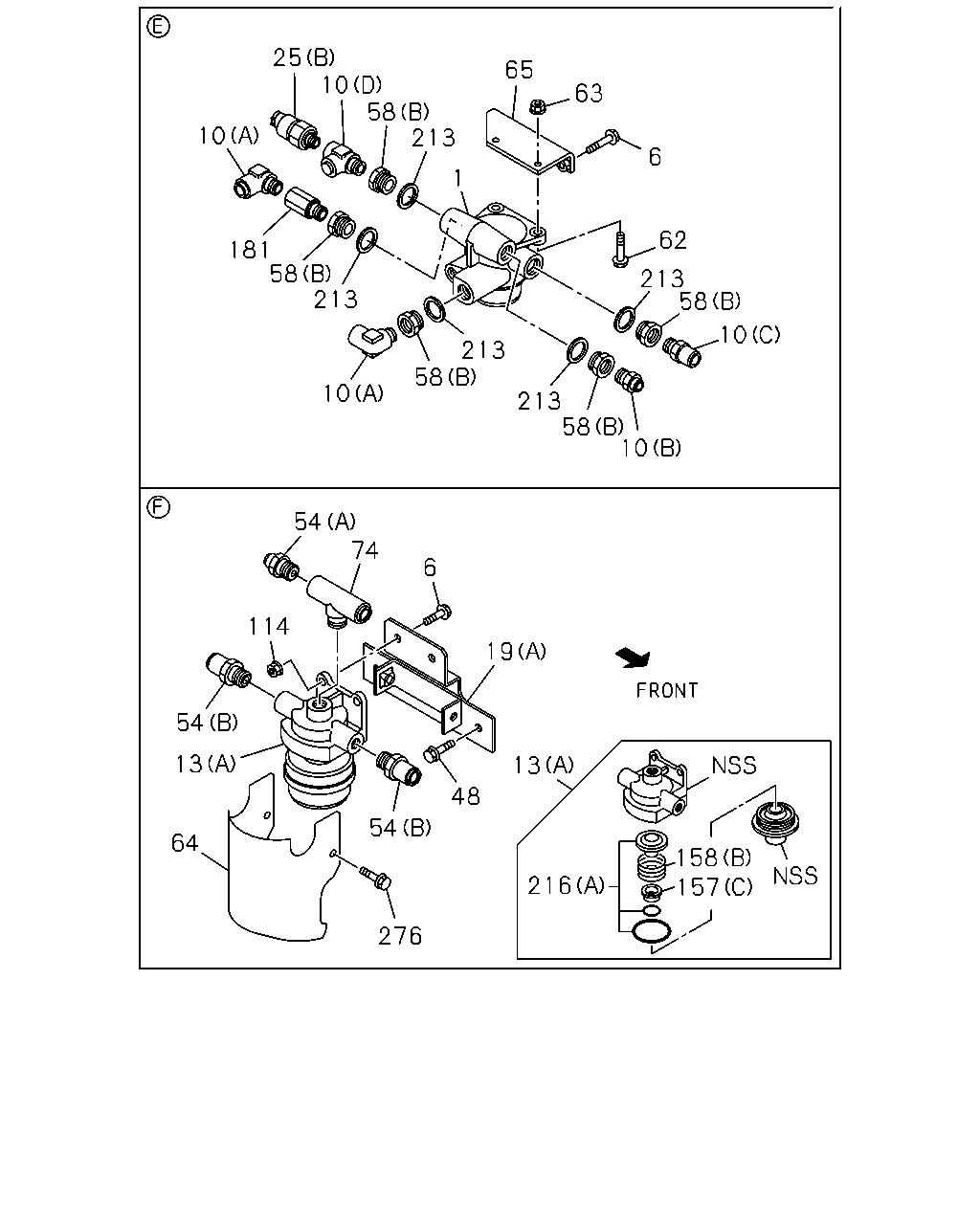

çizim 161450
25 10 58 213 65 63 10 6 1 62 181 58 213 213 58 10 213 58 10 213 58 10 54 74 6 114 19 54 13 13 48 54 64 158 157 216 276
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; RELAY RWD RR 1-48240-354-1 01 1 0801-
6 BOLT; VLV
M8X30 FLANGE 		0-28650-830-0 02 1 0807-
6 BOLT; VLV
M8X25 FLANGE 		0-28650-825-0 04 1 0801-0806
6 BOLT; VLV
M8X25 FLANGE 		0-28650-825-0 02 1 0807-
10 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0801-
10 CONNECTOR
(B) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0801-
10 CONNECTOR
(C) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0801-0802
10 CONNECTOR
(C) DIN12 & M22 STRAIGHT 		1-09661-050-0 01 1 0803-
10 CONNECTOR
(D) DIN8 & RC1/4 & R3/8 3WAY 		1-09661-536-0 01 1 0801-
13 VALVE ASM; QUICK RELEASE
(B) 		1-48410-733-0 02 1 0803-1008
13 VALVE ASM; QUICK RELEASE
(B) 		8-98170-207-0 02 1 1009-
13 VALVE ASM; QUICK RELEASE
(A) 		1-48410-726-1 01 1 0801-
19 BRACKET; QUICK RELEASE VLV
(B) FORWARD 		8-98179-172-0 01 1 1108-
19 BRACKET; QUICK RELEASE VLV
(A) 		1-47471-014-0 01 1 0801-
19 BRACKET; QUICK RELEASE VLV
(B) 		8-98033-795-0 01 1 0801-0802
19 BRACKET; QUICK RELEASE VLV
(B) 		8-98033-795-0 01 1 0801-0802
19 BRACKET; QUICK RELEASE VLV
(B) 		8-98033-795-0 02 1 0803-1107
19 BRACKET; QUICK RELEASE VLV
(B) REARWARD 		8-98033-795-0 01 1 1108-
25 SWITCH; PRESSURE
(A) STAMP 5.5 		8-97609-249-0 01 1 0801-
25 SWITCH; PRESSURE
(B) STAMP 2.0 		8-98010-856-2 01 1 0801-
48 BOLT; QUICK RELEASE VLV
M8X30 FLANGE 		0-28650-830-0 02 1 0801-
54 CONNECTOR; QUICK RELEASE VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 05 1 0803-
54 CONNECTOR; QUICK RELEASE VLV
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0803-
54 CONNECTOR; QUICK RELEASE VLV
(A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0801-
54 CONNECTOR; QUICK RELEASE VLV
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0801-
58 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-48219-154-0 02 1 0801-
58 ADAPTER
(B) INNER PT3/8,OUTER M22 		1-09650-494-1 05 1 0801-0802
58 ADAPTER
(B) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0803-
58 ADAPTER
(C) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0801-
62 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0801-0802
62 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0801-0802
62 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 02 1 0801-
63 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 02 1 0801-0802
63 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 02 1 0801-0802
63 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 02 1 0801-0802
63 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 02 1 0803-
64 PROTECTOR; QUICK RELEASE VALVE 8-98043-421-0 01 1 0801-
65 BRACKET; RELAY VLV RR 1-47471-032-0 01 1 0801-
74 CONNECTOR; 3WAY 1-09661-232-0 01 1 0801-
114 NUT; VLV
M8 FLANGE 		0-91180-108-0 02 1 0801-
157 RETAINER; VALVE
(C) 		1-48419-020-0 01 1 0801-
157 RETAINER; VALVE
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-48213-002-0 02 1 0801-
157 RETAINER; VALVE
(B) 		1-48419-036-0 01 1 0801-0802
157 RETAINER; VALVE
(B) 		1-48419-036-0 01 1 0801-0802
157 RETAINER; VALVE
(B) 		1-48419-036-0 02 1 0803-1008
157 RETAINER; VALVE
(B) 		1-48419-020-0 02 1 1009-
158 SPRING; VALVE
(B) 		9-48419-003-0 02 1 0803-
158 SPRING; VALVE
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-47819-089-0 02 1 0801-
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 0801-0802
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 0801-0802
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 0801-0802
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 0803-
181 ADAPTER; PRESSURE SW
PT3/8 		1-48319-058-0 01 1 0801-
213 GASKET
ID=22.5 		9-09571-422-0 05 1 0801-0802
213 GASKET
ID=22.5 		9-09571-422-0 04 1 0803-
216 REPAIR KIT; QUICK RELEASE VLV
(A) 		1-85576-235-0 01 1 0801-1109
216 REPAIR KIT; QUICK RELEASE VLV
(A) 		1-85576-484-0 01 1 1110-
216 REPAIR KIT; QUICK RELEASE VLV
(B) 		1-85579-062-0 01 1 0801-0802
216 REPAIR KIT; QUICK RELEASE VLV
(B) 		1-85579-062-0 01 1 0801-0802
216 REPAIR KIT; QUICK RELEASE VLV
(B) 		1-85579-062-0 02 1 0803-1008
216 REPAIR KIT; QUICK RELEASE VLV
(B) 		8-98171-596-0 02 1 1009-
276 BOLT; PROTECTOR
M8X20 FLANGE 		0-28650-820-0 02 1 0801-

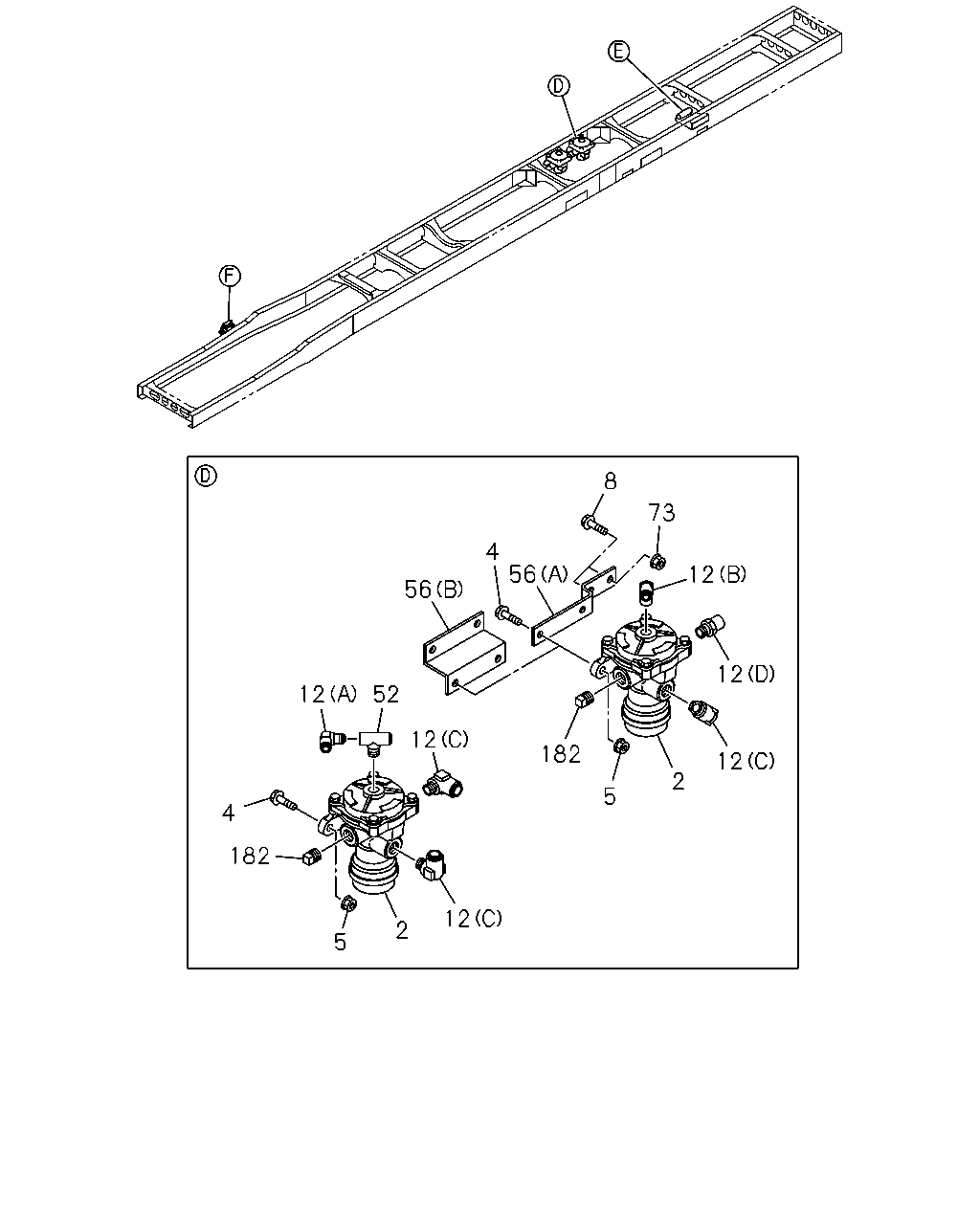

çizim 161455
8 73 4 56 12 56 12 12 52 12 182 12 2 5 4 182 12 2 5
BalonParca AdiParca NoAdetTipApplied Date
2 VALVE; RELAY
ANTILOCK BRAKE SYSTEM(BFA) 		1-48210-997-0 02 1 0801-
4 BOLT; RELAY VLV TO BRKT
ANTILOCK BRAKE SYSTEM(BFA) M10X30 FLANGE 		0-28651-030-0 02 1 0801-0805
4 BOLT; RELAY VLV TO BRKT
ANTILOCK BRAKE SYSTEM(BFA) M10X35 FLANGE 		0-28651-035-0 02 1 0806-
5 NUT
ANTILOCK BRAKE SYSTEM(BFA) M10 FLANGE 		0-91180-210-0 02 1 0801-
8 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M10X35 FLANGE 		0-28651-035-0 04 1 0801-
12 CONNECTOR; RELAY VLV
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0801-
12 CONNECTOR; RELAY VLV
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0801-
12 CONNECTOR; RELAY VLV
ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0801-
12 CONNECTOR; RELAY VLV
ANTILOCK BRAKE SYSTEM(BFA) (D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0801-
52 CONNECTOR; RELAY VLV
ANTILOCK BRAKE SYSTEM(BFA) DIN8 & RC1/4 & R3/8 3WAY 		8-97620-116-0 01 1 0801-
56 BRACKET; RELAY VLV
ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98031-257-0 01 1 0801-0911
56 BRACKET; RELAY VLV
ANTILOCK BRAKE SYSTEM(BFA) (B) 		1-47478-233-0 01 1 0912-
73 NUT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M10 FLANGE 		0-91180-210-0 04 1 0801-
182 PLUG; RELAY VLV
ANTILOCK BRAKE SYSTEM(BFA) PT3/8 		9-09204-517-0 02 1 0801-
çizim 161466
240
BalonParca AdiParca NoAdetTipApplied Date
240 REPAIR KIT; AIR CONT GOV 1-85576-467-0 01 1 0801-
çizim 493457
241
BalonParca AdiParca NoAdetTipApplied Date
241 REPAIR KIT; PROTECTION VALVE 1-85576-451-2 01 1 0801-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
