◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXM ▶ 11144 - FXM EXC.EURO5 ▶ 3 - Brakes, Brake System ▶ 3-20 - AIR TANK ▶
3-20 — AIR TANK (#57716) — 340 parça

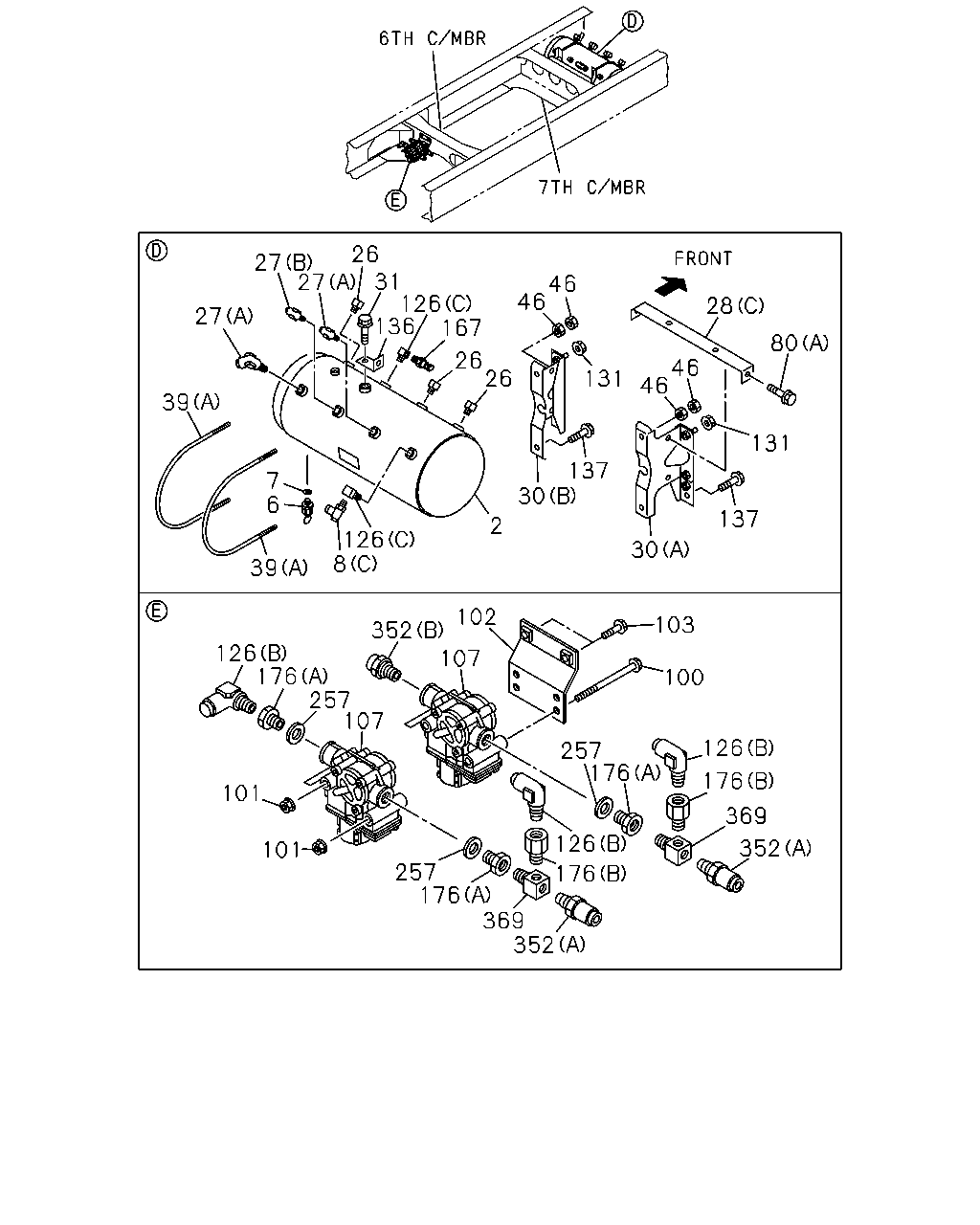

çizim 161190
26 126 136 167 27 27 46 46 28 27 80 26 26 46 46 131 39 131 137 30 7 6 137 2 126 8 30 39 102 103 352 107 126 176 257 107 100 126 257 176 176 101 369 126 352 101 257 176 176 369 352 31
BalonParca AdiParca NoAdetTipApplied Date
2 TANK; AIR
WHEEL BASE 7100MM(71W) 		8-97617-855-1 01 1 0801-0901
2 TANK; AIR 8-97617-855-1 01 1 0902-1106
2 TANK; AIR 8-98187-713-0 01 1 1107-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 0801-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801-0901
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801-0901
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801-0901
6 COCK; DRAIN,AIR TANK
WHEEL BASE 7100MM(71W) 		1-48312-015-0 01 1 0801-0901
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801-0901
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0902-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0902-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0902-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0902-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0902-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0801-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801-0901
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801-0901
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801-0901
7 GASKET; DRAIN COCK
WHEEL BASE 7100MM(71W) ID=14 		1-09630-145-0 01 1 0801-0901
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801-0901
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0902-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0902-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0902-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0902-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0902-
8 CONNECTOR; AIR TANK
(B) 		1-09656-708-0 01 1 0801-
8 CONNECTOR; AIR TANK
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0801-
8 CONNECTOR; AIR TANK
(C) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 0801-0901
8 CONNECTOR; AIR TANK
(C) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 0801-0901
8 CONNECTOR; AIR TANK
WHEEL BASE 7100MM(71W) (C) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 0801-0901
8 CONNECTOR; AIR TANK
(C) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 0902-
8 CONNECTOR; AIR TANK
(C) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 0902-
8 CONNECTOR; AIR TANK
(C) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 0902-
26 PLUG; SUB AIR TANK
PT3/8 		9-09204-517-0 02 1 0801-
26 PLUG; SUB AIR TANK
WHEEL BASE 7100MM(71W) PT3/8 		9-09204-517-0 03 1 0801-0901
26 PLUG; SUB AIR TANK
PT3/8 		9-09204-517-0 03 1 0902-
27 UNION; ELBOW,AIR TANK
WHEEL BASE 7100MM(71W) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0801-0901
27 UNION; ELBOW,AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0902-
27 UNION; ELBOW,AIR TANK
WHEEL BASE 7100MM(71W) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0801-0901
27 UNION; ELBOW,AIR TANK
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0902-
28 BRACKET; AIR TANK
(A) 		8-97618-088-1 01 1 0801-
28 BRACKET; AIR TANK
(B) 		8-97620-996-0 01 1 0801-0806
28 BRACKET; AIR TANK
(B) 		8-98112-257-0 01 1 0807-
28 BRACKET; AIR TANK
WHEEL BASE 7100MM(71W) (C) 		8-97621-120-1 01 1 0801-0901
28 BRACKET; AIR TANK
(C) 		8-97621-120-1 01 1 0902-
28 BRACKET; AIR TANK
(D) 		8-98092-756-1 01 1 0801-
28 BRACKET; AIR TANK
(E) 		8-98093-562-1 01 1 0801-
28 BRACKET; AIR TANK
(F) 		8-98100-984-0 01 1 0801-
30 BRACKET; AIR TANK,SUB
WHEEL BASE 7100MM(71W) (A) 		8-97618-390-1 01 1 0801-0901
30 BRACKET; AIR TANK,SUB
(A) 		8-97618-390-1 01 1 0902-
30 BRACKET; AIR TANK,SUB
WHEEL BASE 7100MM(71W) (B) 		8-97618-391-1 01 1 0801-0901
30 BRACKET; AIR TANK,SUB
(B) 		8-97618-391-1 01 1 0902-
30 BRACKET; AIR TANK,SUB
(C) 		8-97618-393-0 01 1 0801-
30 BRACKET; AIR TANK,SUB
(D) 		8-97618-394-0 02 1 0801-
31 BOLT; BRKT TO FRAME
M8X20 FLANGE 		0-28650-820-0 01 1 0801-
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 06 1 0801-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 0801-
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 0801-0901
39 U-BOLT; AIR TANK
WHEEL BASE 7100MM(71W) (A) L=253 		1-48317-248-1 02 1 0801-0901
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 0902-
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 0902-
46 NUT; U-BOLT
M8 		0-91110-508-0 24 1 0801-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0801-0901
46 NUT; U-BOLT
WHEEL BASE 7100MM(71W) M8 		0-91110-508-0 08 1 0801-0901
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0801-0901
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0902-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0902-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0902-
80 BOLT; BRKT
WHEEL BASE 7100MM(71W) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0801-0901
80 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0902-
80 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0801-
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 04 1 0801-
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X140 FLANGE 		0-28055-814-0 02 1 0801-
101 NUT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 0801-
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) 		8-98034-539-2 01 1 0801-
103 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE 		0-28650-825-0 02 1 0801-
103 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 0801-
103 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 04 1 0801-0803
103 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0804-
107 MODULATOR; RR
ANTILOCK BRAKE SYSTEM(BFA) 		1-48240-115-0 02 1 0801-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW 		1-09660-696-0 02 1 0801-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0801-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0801-
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0801-0803
126 CONNECTOR; ELBOW
(D) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0804-
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0801-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0801-0901
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0801-0901
126 CONNECTOR; ELBOW
WHEEL BASE 7100MM(71W) (C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0801-0901
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0902-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0902-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0902-
131 NUT; BRKT FIX
M12 FLANGE 		0-91180-212-0 02 1 0801-
136 BRACKET; CLIP
L=55 B=25 		1-47478-439-0 01 1 0801-
137 BOLT; BRKT
M12X30 FLANGE 		0-28651-230-0 02 1 0801-
167 SWITCH; LOW PRESS GAUGE,AIR TANK,SUB
WHEEL BASE 7100MM(71W) STAMP 5.5 		8-97609-249-0 01 1 0801-0901
167 SWITCH; LOW PRESS GAUGE,AIR TANK,SUB
STAMP 5.5 		8-97609-249-0 01 1 0902-
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) (A) INNER PT3/8,OUTER M22 		1-09650-494-1 03 1 0801-
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) (A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0801-
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) (B) PT3/8 		1-09664-210-0 02 1 0801-
257 GASKET; PLUG
ANTILOCK BRAKE SYSTEM(BFA) ID=22.5 		9-09571-422-0 03 1 0801-
352 CONNECTOR; STRAIGHT
(C) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0804-
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0801-
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & M22 STRAIGHT 		1-09661-050-0 01 1 0801-
369 CONNECTOR; 3WAY
ANTILOCK BRAKE SYSTEM(BFA) PT3/8 3WAY 		1-09661-300-0 02 1 0801-

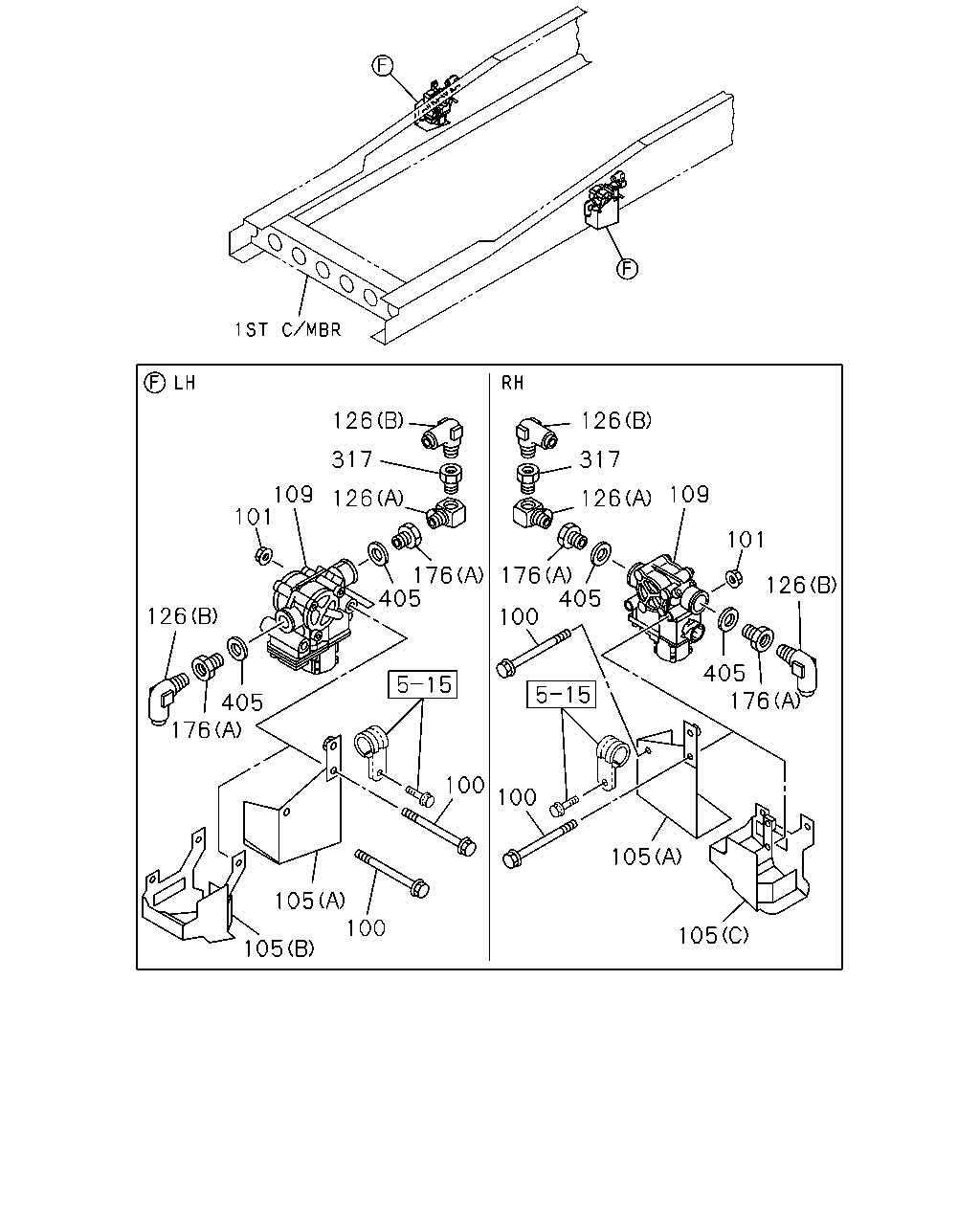

çizim 161442
101 126 405 176 105 100 105 100 100 105 105 176 405 126 101 109 126 317 126 176 405 100 405 126 176 317 126 109
BalonParca AdiParca NoAdetTipApplied Date
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 04 1 0801-
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X140 FLANGE 		0-28055-814-0 02 1 0801-
101 NUT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 0801-
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-47471-388-0 01 1 0801-0810
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98061-815-0 01 1 0811-1504
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (B) 		8-98300-152-0 01 1 1505-
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98049-454-0 01 1 0801-0803
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98081-578-0 01 1 0804-1504
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (C) 		8-98300-153-0 01 1 1505-
109 MODULATOR; FRT
ANTILOCK BRAKE SYSTEM(BFA) 		1-48240-115-0 02 1 0801-1504
109 MODULATOR; FRT
ANTILOCK BRAKE SYSTEM(BFA) 		8-98215-454-0 02 1 1505-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW 		1-09660-696-0 02 1 0801-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0801-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0801-
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0801-0803
126 CONNECTOR; ELBOW
(D) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0804-
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0801-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0801-0901
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0801-0901
126 CONNECTOR; ELBOW
WHEEL BASE 7100MM(71W) (C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0801-0901
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0902-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0902-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0902-
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) (A) INNER PT3/8,OUTER M22 		1-09650-494-1 03 1 0801-
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) (A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0801-
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) (B) PT3/8 		1-09664-210-0 02 1 0801-
317 CONNECTOR; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) PT3/8 		1-09664-210-0 01 1 0804-
405 GASKET
ANTILOCK BRAKE SYSTEM(BFA) ID=22.5 		9-09571-422-0 04 1 0801-

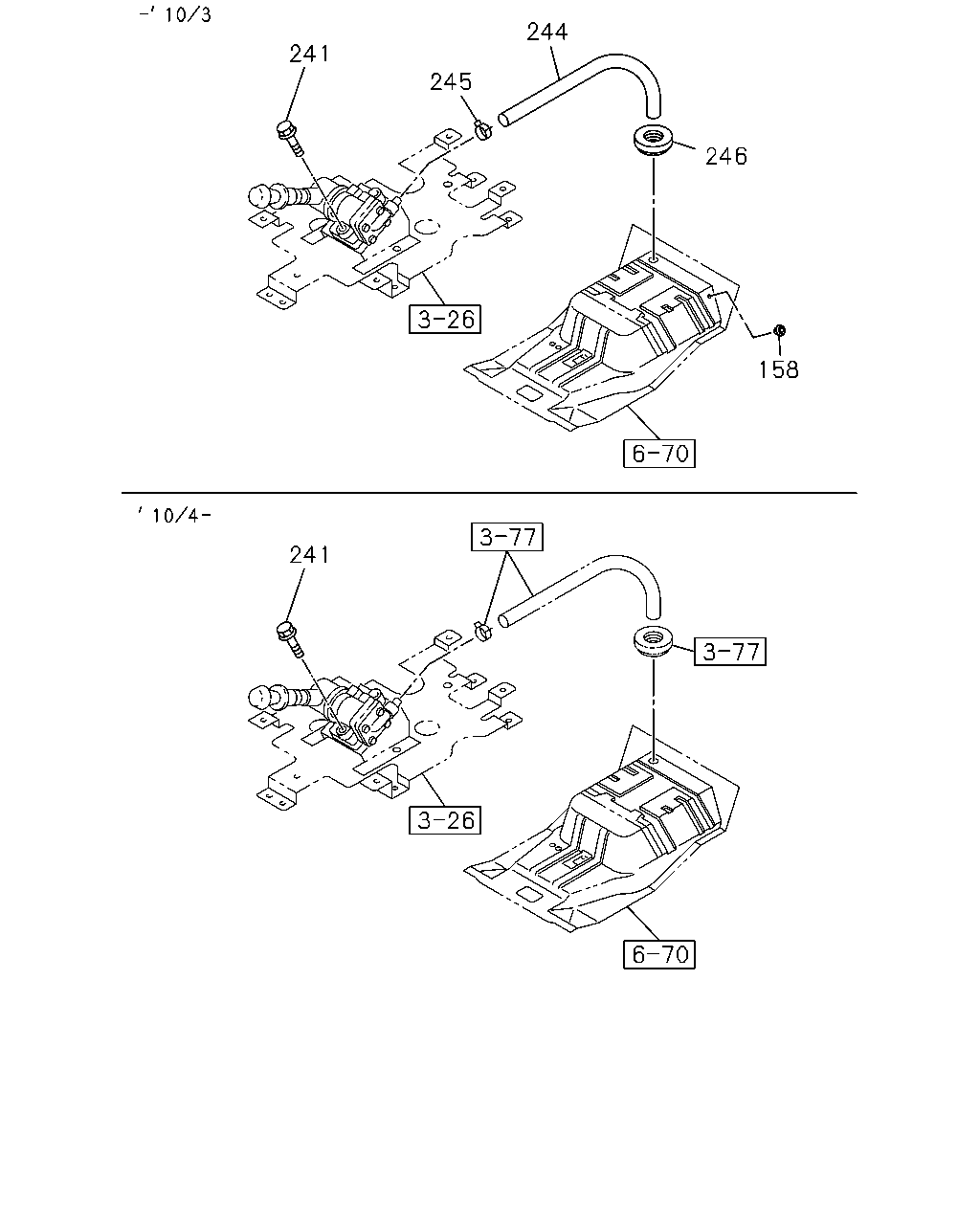

çizim 161446
244 241 245 246 158 241
BalonParca AdiParca NoAdetTipApplied Date
158 GROMMET; PIPE
OD=35 		8-94122-971-0 01 1 0801-
241 BOLT; SET,CONT VLV
M8X70 FLANGE 		0-28050-870-0 02 1 0801-
244 PIPE; VINYL,EXH
L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 0801-1003
245 CLIP; VINYL PIPE
ID=14 		8-94238-572-0 01 1 0801-1003
246 GROMMET; VINYL PIPE
OD=24 		9-61166-007-0 01 1 0801-1003

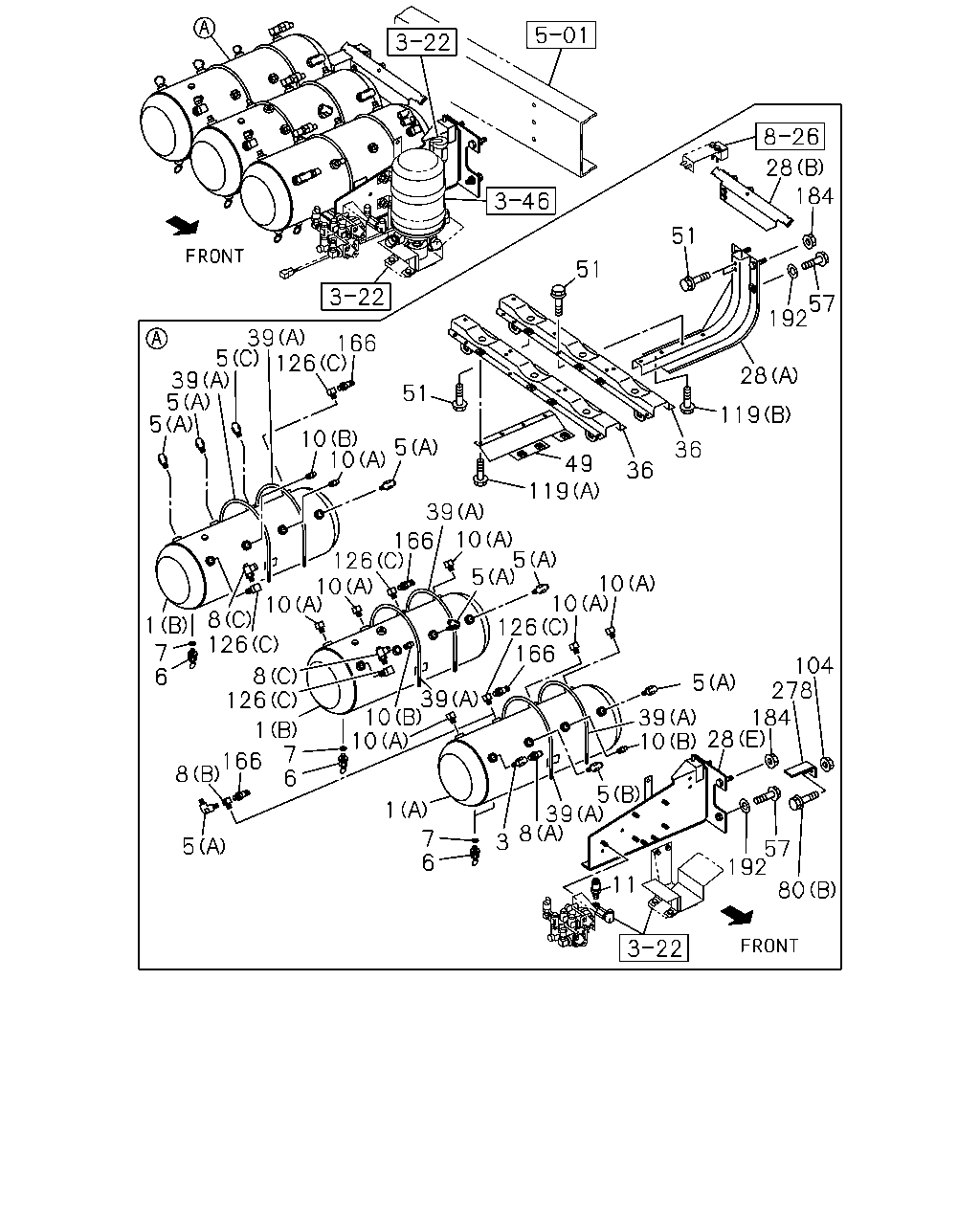

çizim 161470
28 184 57 192 28 119 51 51 36 36 49 119 51 166 126 39 5 39 5 5 10 10 5 39 10 5 5 10 10 126 166 5 104 278 184 28 39 10 57 192 80 11 5 39 8 3 6 7 1 5 8 166 6 7 10 10 39 1 126 8 6 7 1 126 8 10 10 126 166
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(A) 		8-97617-854-0 01 1 0801-1106
1 TANK ASM; AIR
(A) 		8-98187-712-0 01 1 1107-
1 TANK ASM; AIR
(B) 		8-97617-855-1 01 1 0801-1106
1 TANK ASM; AIR
(B) 		8-97617-855-1 01 1 0801-1106
1 TANK ASM; AIR
(B) 		8-97617-855-1 01 1 0801-1106
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1107-
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1107-
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1107-
3 VALVE; CHECK,AIR TANK 1-48320-031-1 01 1 0801-
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0801-
5 UNION; AIR TANK
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0801-
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0801-
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0801-
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0801-
5 UNION; AIR TANK
(B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0801-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 0801-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801-0901
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801-0901
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801-0901
6 COCK; DRAIN,AIR TANK
WHEEL BASE 7100MM(71W) 		1-48312-015-0 01 1 0801-0901
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801-0901
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0902-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0902-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0902-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0902-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0902-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0801-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801-0901
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801-0901
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801-0901
7 GASKET; DRAIN COCK
WHEEL BASE 7100MM(71W) ID=14 		1-09630-145-0 01 1 0801-0901
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801-0901
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0902-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0902-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0902-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0902-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0902-
8 CONNECTOR; AIR TANK
(B) 		1-09656-708-0 01 1 0801-
8 CONNECTOR; AIR TANK
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0801-
8 CONNECTOR; AIR TANK
(C) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 0801-0901
8 CONNECTOR; AIR TANK
(C) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 0801-0901
8 CONNECTOR; AIR TANK
WHEEL BASE 7100MM(71W) (C) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 0801-0901
8 CONNECTOR; AIR TANK
(C) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 0902-
8 CONNECTOR; AIR TANK
(C) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 0902-
8 CONNECTOR; AIR TANK
(C) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 0902-
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 06 1 0801-
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 0801-
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 0801-
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 0801-
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 0801-
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 0801-
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 0801-
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 0801-
11 VALVE; SAFETY,AIR TANK 1-48320-012-2 01 1 0801-
28 BRACKET; AIR TANK
(A) 		8-97618-088-1 01 1 0801-
28 BRACKET; AIR TANK
(B) 		8-97620-996-0 01 1 0801-0806
28 BRACKET; AIR TANK
(B) 		8-98112-257-0 01 1 0807-
28 BRACKET; AIR TANK
WHEEL BASE 7100MM(71W) (C) 		8-97621-120-1 01 1 0801-0901
28 BRACKET; AIR TANK
(C) 		8-97621-120-1 01 1 0902-
28 BRACKET; AIR TANK
(D) 		8-98092-756-1 01 1 0801-
28 BRACKET; AIR TANK
(E) 		8-98093-562-1 01 1 0801-
28 BRACKET; AIR TANK
(F) 		8-98100-984-0 01 1 0801-
36 STAY; MAIN TANK 8-97618-091-1 02 1 0801-
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 06 1 0801-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 0801-
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 0801-0901
39 U-BOLT; AIR TANK
WHEEL BASE 7100MM(71W) (A) L=253 		1-48317-248-1 02 1 0801-0901
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 0902-
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 0902-
49 BRACKET; AIR TANK 8-98110-683-0 01 1 0801-
51 BOLT; STAY TO BRKT
M8X20 FLANGE 		0-28650-820-0 10 1 0801-
57 BOLT; BRKT,AIR TANK TO FRAME
M14X45 		1-09000-764-0 04 1 0801-
80 BOLT; BRKT
WHEEL BASE 7100MM(71W) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0801-0901
80 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0902-
80 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0801-
104 NUT; BRKT
M10 		0-91110-510-0 04 1 0801-
104 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0801-
104 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 0801-
119 BOLT; STAY
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0801-
119 BOLT; STAY
(B) M8X25 FLANGE 		0-28650-825-0 03 1 0801-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW 		1-09660-696-0 02 1 0801-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0801-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0801-
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0801-0803
126 CONNECTOR; ELBOW
(D) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0804-
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0801-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0801-0901
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0801-0901
126 CONNECTOR; ELBOW
WHEEL BASE 7100MM(71W) (C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0801-0901
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0902-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0902-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0902-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 01 1 0801-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 01 1 0801-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 01 1 0801-
184 NUT; BRKT
M14 		1-09440-072-0 04 1 0801-
192 WASHER; LK,BRKT
ID=14.2 		0-91510-514-0 08 1 0801-
278 BRACKET; CONNECTOR
L=75 		1-47478-323-0 01 1 0801-

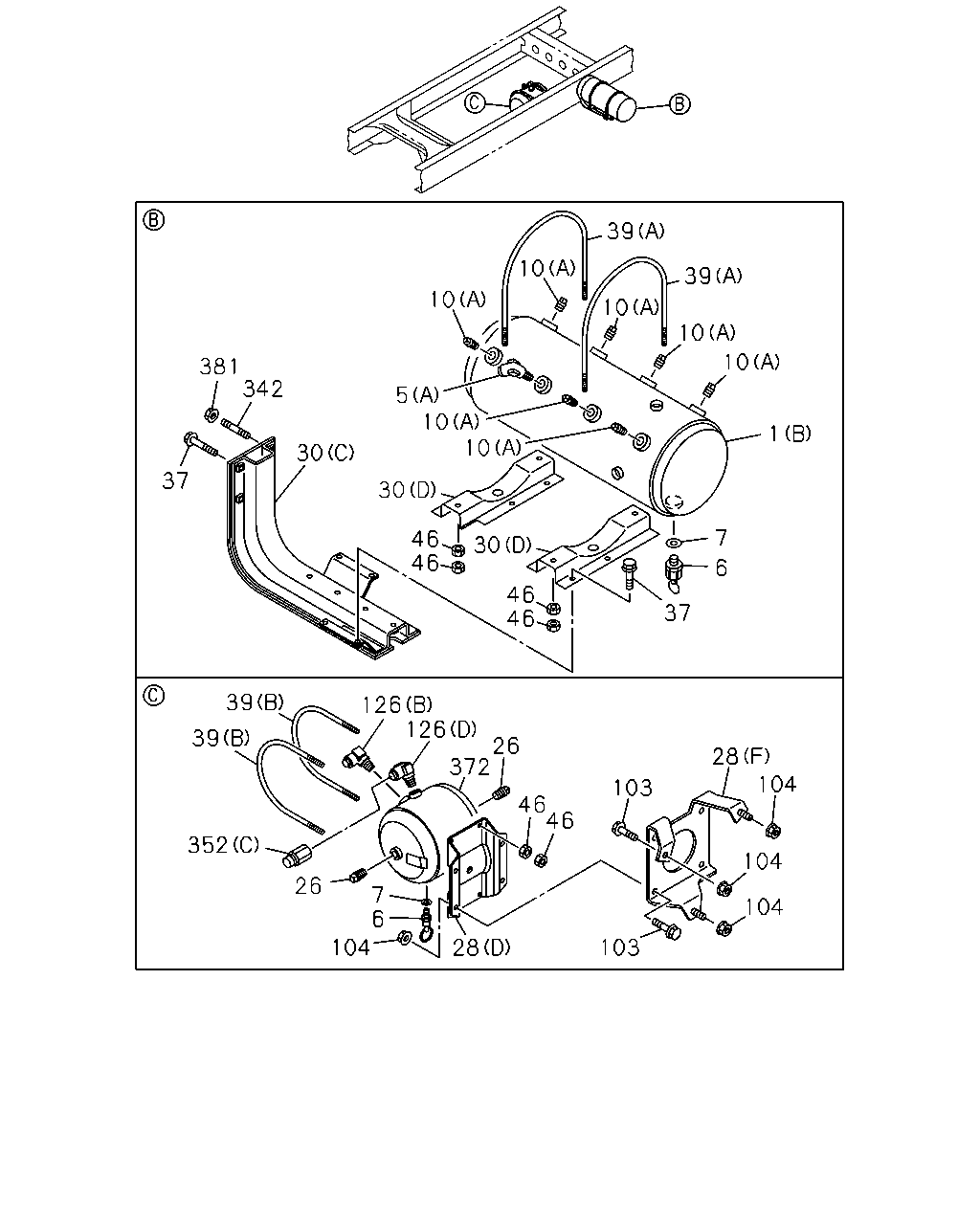

çizim 161472
39 10 39 10 10 10 10 381 342 5 10 10 1 30 37 30 7 46 46 30 6 46 46 37 39 126 126 39 26 372 28 104 103 46 46 352 104 26 7 6 104 104 28 103
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(A) 		8-97617-854-0 01 1 0801-1106
1 TANK ASM; AIR
(A) 		8-98187-712-0 01 1 1107-
1 TANK ASM; AIR
(B) 		8-97617-855-1 01 1 0801-1106
1 TANK ASM; AIR
(B) 		8-97617-855-1 01 1 0801-1106
1 TANK ASM; AIR
(B) 		8-97617-855-1 01 1 0801-1106
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1107-
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1107-
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1107-
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0801-
5 UNION; AIR TANK
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0801-
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0801-
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0801-
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0801-
5 UNION; AIR TANK
(B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0801-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 0801-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801-0901
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801-0901
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801-0901
6 COCK; DRAIN,AIR TANK
WHEEL BASE 7100MM(71W) 		1-48312-015-0 01 1 0801-0901
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801-0901
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0902-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0902-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0902-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0902-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0902-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0801-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801-0901
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801-0901
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801-0901
7 GASKET; DRAIN COCK
WHEEL BASE 7100MM(71W) ID=14 		1-09630-145-0 01 1 0801-0901
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801-0901
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0902-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0902-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0902-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0902-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0902-
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 06 1 0801-
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 0801-
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 0801-
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 0801-
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 0801-
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 0801-
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 0801-
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 0801-
26 PLUG; SUB AIR TANK
PT3/8 		9-09204-517-0 02 1 0801-
26 PLUG; SUB AIR TANK
WHEEL BASE 7100MM(71W) PT3/8 		9-09204-517-0 03 1 0801-0901
26 PLUG; SUB AIR TANK
PT3/8 		9-09204-517-0 03 1 0902-
28 BRACKET; AIR TANK
(A) 		8-97618-088-1 01 1 0801-
28 BRACKET; AIR TANK
(B) 		8-97620-996-0 01 1 0801-0806
28 BRACKET; AIR TANK
(B) 		8-98112-257-0 01 1 0807-
28 BRACKET; AIR TANK
WHEEL BASE 7100MM(71W) (C) 		8-97621-120-1 01 1 0801-0901
28 BRACKET; AIR TANK
(C) 		8-97621-120-1 01 1 0902-
28 BRACKET; AIR TANK
(D) 		8-98092-756-1 01 1 0801-
28 BRACKET; AIR TANK
(E) 		8-98093-562-1 01 1 0801-
28 BRACKET; AIR TANK
(F) 		8-98100-984-0 01 1 0801-
30 BRACKET; AIR TANK,SUB
WHEEL BASE 7100MM(71W) (A) 		8-97618-390-1 01 1 0801-0901
30 BRACKET; AIR TANK,SUB
(A) 		8-97618-390-1 01 1 0902-
30 BRACKET; AIR TANK,SUB
WHEEL BASE 7100MM(71W) (B) 		8-97618-391-1 01 1 0801-0901
30 BRACKET; AIR TANK,SUB
(B) 		8-97618-391-1 01 1 0902-
30 BRACKET; AIR TANK,SUB
(C) 		8-97618-393-0 01 1 0801-
30 BRACKET; AIR TANK,SUB
(D) 		8-97618-394-0 02 1 0801-
37 BOLT; AIR TANK
M10X40 FLANGE 		0-28651-040-0 04 1 0801-0803
37 BOLT; AIR TANK
M10X40 FLANGE 		0-28651-040-0 02 1 0804-
37 BOLT; AIR TANK
M10X20 FLANGE 		0-28651-020-0 08 1 0801-0802
37 BOLT; AIR TANK
M10X25 FLANGE 		0-28651-025-0 08 1 0803-
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 06 1 0801-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 0801-
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 0801-0901
39 U-BOLT; AIR TANK
WHEEL BASE 7100MM(71W) (A) L=253 		1-48317-248-1 02 1 0801-0901
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 0902-
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 0902-
46 NUT; U-BOLT
M8 		0-91110-508-0 24 1 0801-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0801-0901
46 NUT; U-BOLT
WHEEL BASE 7100MM(71W) M8 		0-91110-508-0 08 1 0801-0901
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0801-0901
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0902-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0902-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0902-
103 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE 		0-28650-825-0 02 1 0801-
103 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 0801-
103 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 04 1 0801-0803
103 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0804-
104 NUT; BRKT
M10 		0-91110-510-0 04 1 0801-
104 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0801-
104 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 0801-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW 		1-09660-696-0 02 1 0801-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0801-
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0801-
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0801-0803
126 CONNECTOR; ELBOW
(D) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0804-
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0801-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0801-0901
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0801-0901
126 CONNECTOR; ELBOW
WHEEL BASE 7100MM(71W) (C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0801-0901
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0902-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0902-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0902-
342 STUD
M10X30 L=45 		8-98035-675-0 02 1 0801-
352 CONNECTOR; STRAIGHT
(C) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0804-
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0801-
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & M22 STRAIGHT 		1-09661-050-0 01 1 0801-
372 TANK; AIR,ACCESORY 8-98090-803-1 01 1 0801-
381 NUT; SUB TANK
M10 FLANGE 		0-91180-210-0 04 1 0801-0803
381 NUT; SUB TANK
M10 FLANGE 		0-91180-210-0 02 1 0804-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
