3-05 — REAR WHEEL BRAKE (#57714) — 107 parça

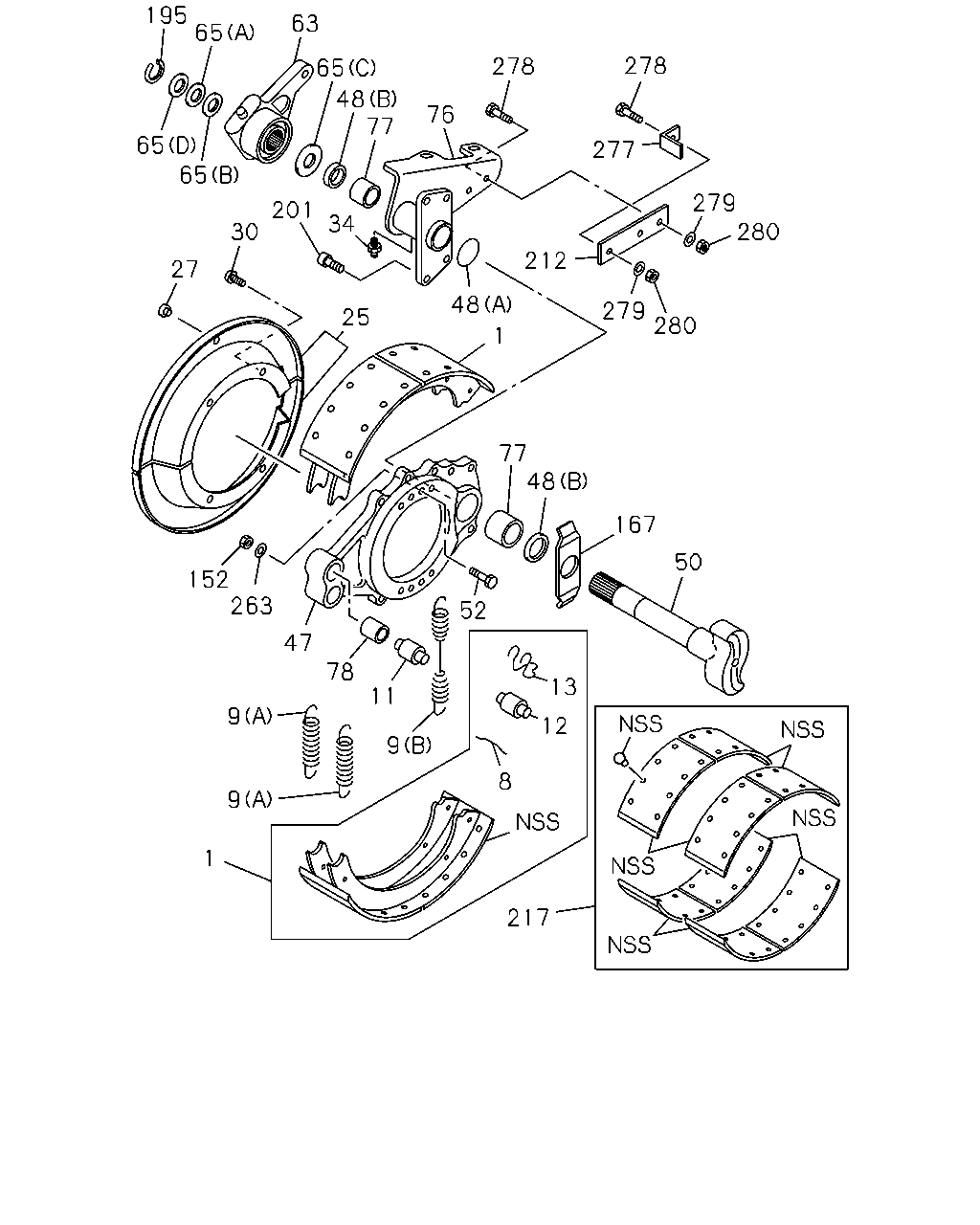

çizim 161448
278 277 279 280 280 279 212 278 76 77 48 65 63 65 195 65 65 30 27 201 34 48 1 25 152 263 47 78 11 9 9 9 1 217 8 12 13 50 167 48 77 52
BalonParca AdiParca NoAdetTipApplied Date
1 SHOE; BRK,RR 1-47120-734-0 04 1 0801-1407
1 SHOE; BRK,RR 1-47120-734-0 04 1 0801-1407
1 SHOE; BRK,RR 1-47120-734-0 04 1 1408-
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-116-0 04 1 0801-1407
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-116-0 04 1 0801-1407
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-116-0 04 1 1408-
9 SPRING; RETURN,BRK SHOE
(A) 		1-47119-114-0 04 1 0801-1407
9 SPRING; RETURN,BRK SHOE
(A) 		1-47119-114-0 04 1 0801-1407
9 SPRING; RETURN,BRK SHOE
(A) 		1-47119-114-0 04 1 1408-
9 SPRING; RETURN,BRK SHOE
(B) 		1-47119-115-0 02 1 0801-1407
9 SPRING; RETURN,BRK SHOE
(B) 		1-47119-115-0 02 1 0801-1407
9 SPRING; RETURN,BRK SHOE
(B) 		1-47119-115-0 02 1 1408-
11 PIN; ANCHOR,RR WHEEL BRK 1-47131-040-0 04 1 0801-1407
11 PIN; ANCHOR,RR WHEEL BRK 1-47131-040-0 04 1 0801-1407
11 PIN; ANCHOR,RR WHEEL BRK 1-47131-040-0 04 1 1408-
12 ROLLER; CAM,BRK SHOE 1-47119-141-0 04 1 0801-1407
12 ROLLER; CAM,BRK SHOE 1-47119-141-0 04 1 0801-1407
12 ROLLER; CAM,BRK SHOE 1-47119-141-0 04 1 1408-
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 04 1 0801-1407
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 04 1 0801-1407
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 04 1 1408-
25 COVER SET; RR BRK DRUM 1-47151-774-0 02 1 0801-1407
25 COVER SET; RR BRK DRUM 1-47151-774-0 02 1 0801-1407
25 COVER SET; RR BRK DRUM 1-47151-774-0 02 1 1408-
27 COVER; CHECK HOLE,DRUM COVER 1-87050-011-0 04 1 0801-1407
27 COVER; CHECK HOLE,DRUM COVER 1-87050-011-0 04 1 0801-1407
27 COVER; CHECK HOLE,DRUM COVER 1-87050-011-0 04 1 1408-
30 BOLT; DRUM COVER 1-47159-176-0 12 1 0801-1407
30 BOLT; DRUM COVER 1-47159-176-0 12 1 0801-1407
30 BOLT; DRUM COVER 1-47159-176-0 12 1 1408-
34 NIPPLE; GREASE,CHAMBER BRKT 1-48259-253-0 02 1 0801-1407
34 NIPPLE; GREASE,CHAMBER BRKT 1-48259-253-0 02 1 0801-1407
34 NIPPLE; GREASE,CHAMBER BRKT 1-48259-253-0 02 1 1408-
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-374-0 02 1 0801-1407
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-374-0 02 1 0801-1407
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-374-0 02 1 1408-
48 SEAL; OIL,CM/SHF,RR BRK
(A) 		1-47149-056-0 02 1 0801-1407
48 SEAL; OIL,CM/SHF,RR BRK
(A) 		1-47149-056-0 02 1 0801-1407
48 SEAL; OIL,CM/SHF,RR BRK
(A) 		1-47149-056-0 02 1 1408-
48 SEAL; OIL,CM/SHF,RR BRK
(B) 		1-47149-057-0 04 1 0801-1407
48 SEAL; OIL,CM/SHF,RR BRK
(B) 		1-47149-057-0 04 1 0801-1407
48 SEAL; OIL,CM/SHF,RR BRK
(B) 		1-47149-057-0 04 1 1408-
50 CAMSHAFT; BRK,RR BRK 1-47141-124-0 01 1 0801-1407
50 CAMSHAFT; BRK,RR BRK 1-47141-124-0 01 1 0801-1407
50 CAMSHAFT; BRK,RR BRK 1-47141-124-0 01 1 1408-
50 CAMSHAFT; BRK,RR BRK 1-47141-125-0 01 1 0801-1407
50 CAMSHAFT; BRK,RR BRK 1-47141-125-0 01 1 0801-1407
50 CAMSHAFT; BRK,RR BRK 1-47141-125-0 01 1 1408-
52 BOLT; ANCHOR BRKT 1-47139-122-0 16 1 0801-1407
52 BOLT; ANCHOR BRKT 1-47139-122-0 16 1 0801-1407
52 BOLT; ANCHOR BRKT 1-47139-122-0 16 1 1408-
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-106-0 02 1 0801-1407
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-106-0 02 1 0801-1407
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-106-0 02 1 1408-
65 SPACER; SLACK ADJ,BRK
(A) T=0.06" 		1-47139-121-0 02 1 0801-1407
65 SPACER; SLACK ADJ,BRK
(A) T=0.06" 		1-47139-121-0 02 1 0801-1407
65 SPACER; SLACK ADJ,BRK
(A) T=0.06" 		1-47139-121-0 02 1 1408-
65 SPACER; SLACK ADJ,BRK
(B) 		1-47149-059-0 02 1 0801-1407
65 SPACER; SLACK ADJ,BRK
(B) 		1-47149-059-0 02 1 0801-1407
65 SPACER; SLACK ADJ,BRK
(B) 		1-47149-059-0 02 1 1408-
65 SPACER; SLACK ADJ,BRK
(D) T=0.03" 		1-47149-060-0 02 1 0801-1407
65 SPACER; SLACK ADJ,BRK
(D) T=0.03" 		1-47149-060-0 02 1 0801-1407
65 SPACER; SLACK ADJ,BRK
(D) T=0.03" 		1-47149-060-0 02 1 1408-
65 SPACER; SLACK ADJ,BRK
(C) 		1-47149-065-0 02 1 0801-1407
65 SPACER; SLACK ADJ,BRK
(C) 		1-47149-065-0 02 1 0801-1407
65 SPACER; SLACK ADJ,BRK
(C) 		1-47149-065-0 02 1 1408-
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-47145-024-0 01 1 0801-1407
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-47145-025-0 01 1 0801-1407
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-47145-022-0 01 1 0801-
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-47145-023-0 01 1 0801-
77 BUSHING 1-47146-012-0 04 1 0801-1407
77 BUSHING 1-47146-012-0 04 1 0801-1407
77 BUSHING 1-47146-012-0 04 1 1408-
78 BUSHING; BRKT 1-47139-117-0 04 1 0801-1407
78 BUSHING; BRKT 1-47139-117-0 04 1 0801-1407
78 BUSHING; BRKT 1-47139-117-0 04 1 1408-
152 NUT; ANCHOR BRKT 1-41229-169-0 16 1 0801-1407
152 NUT; ANCHOR BRKT 1-41229-169-0 16 1 0801-1407
152 NUT; ANCHOR BRKT 1-41229-169-0 16 1 1408-
167 WASHER; ADJ CAM 1-47149-077-0 02 1 0801-1407
167 WASHER; ADJ CAM 1-47149-077-0 02 1 0801-1407
167 WASHER; ADJ CAM 1-47149-077-0 02 1 1408-
195 RING; SNAP,CM/SHF 1-87050-005-0 02 1 0801-1407
195 RING; SNAP,CM/SHF 1-87050-005-0 02 1 0801-1407
195 RING; SNAP,CM/SHF 1-87050-005-0 02 1 1408-
201 BOLT; BRKT,POWER CHAMBER 1-47139-119-0 08 1 0801-1407
201 BOLT; BRKT,POWER CHAMBER 1-47139-119-0 08 1 0801-1407
201 BOLT; BRKT,POWER CHAMBER 1-47139-119-0 08 1 1408-
212 STAY 1-47149-081-0 02 1 0801-1407
212 STAY 1-47149-081-0 02 1 0801-1407
212 STAY 1-47149-081-0 02 1 1408-
217 LINING KIT; RR BRK 1-87050-157-0 01 1 0801-1407
217 LINING KIT; RR BRK 1-87050-157-0 01 1 0801-1407
217 LINING KIT; RR BRK 1-87050-157-0 01 1 1408-
263 WASHER; PL,ANCHOR BRKT 1-41519-038-0 16 1 0801-1407
263 WASHER; PL,ANCHOR BRKT 1-41519-038-0 16 1 0801-1407
263 WASHER; PL,ANCHOR BRKT 1-41519-038-0 16 1 1408-
277 SUPPORT; BRKT 1-47149-099-0 02 1 1205-1407
278 BOLT; SUPPORT 1-41329-038-0 06 1 0801-1407
278 BOLT; SUPPORT 1-41329-038-0 06 1 0801-1407
278 BOLT; SUPPORT 1-41329-038-0 06 1 1408-
279 WASHER; SUPPORT 1-47149-083-0 06 1 0801-1407
279 WASHER; SUPPORT 1-47149-083-0 06 1 0801-1407
279 WASHER; SUPPORT 1-47149-083-0 06 1 1408-
280 NUT; SUPPORT 1-47149-082-0 06 1 0801-1407
280 NUT; SUPPORT 1-47149-082-0 06 1 0801-1407
280 NUT; SUPPORT 1-47149-082-0 06 1 1408-
