3-01 — FRONT WHEEL BRAKE (#57713) — 30 parça

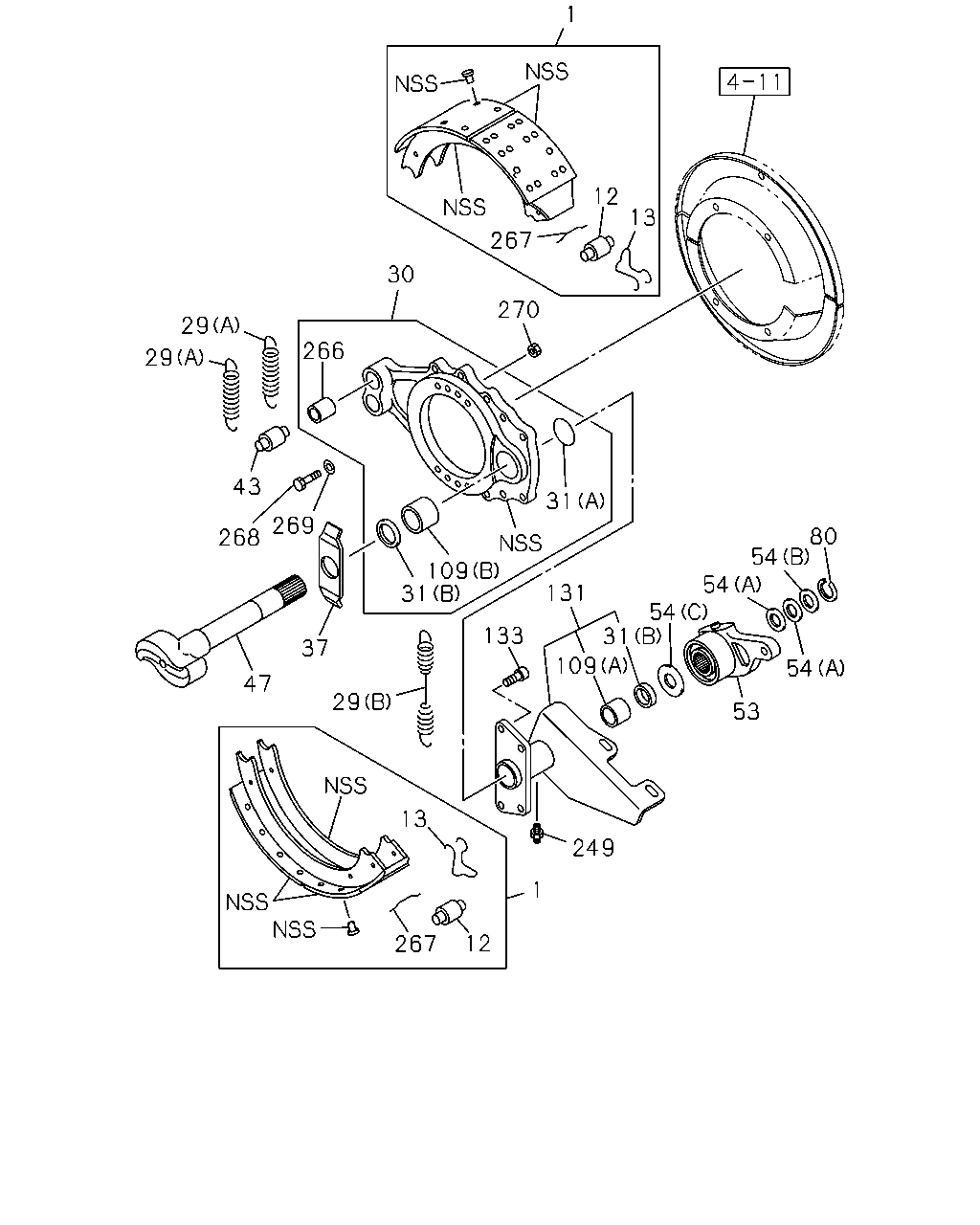

çizim 161440
1 30 267 12 270 13 29 29 266 43 268 269 37 47 109 31 131 133 29 31 109 13 1 12 267 249 54 53 54 54 54 80 31
BalonParca AdiParca NoAdetTipApplied Date
1 SHOE; BRK,FRT
ANTILOCK BRAKE SYSTEM(BFA) 		1-47120-832-0 04 1 0801-
12 ROLLER; CAM,BRK SHOE
ANTILOCK BRAKE SYSTEM(BFA) 		1-47119-141-0 02 1 0801-
13 CLIP; ROLLER PIN,BRK SHOE
ANTILOCK BRAKE SYSTEM(BFA) 		1-47119-118-0 02 1 0801-
29 SPRING; RETURN,FRT BRK SHOE
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-47119-114-0 04 1 0801-
29 SPRING; RETURN,FRT BRK SHOE
ANTILOCK BRAKE SYSTEM(BFA) (B) 		1-47119-119-0 02 1 0801-
30 BRACKET; ANCHOR,FRT
ANTILOCK BRAKE SYSTEM(BFA) 		1-47137-580-0 01 1 0801-
30 BRACKET; ANCHOR,FRT
ANTILOCK BRAKE SYSTEM(BFA) 		1-47137-581-0 01 1 0801-
31 SEAL; OIL,CM/SHF
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-47149-056-0 02 1 0801-
31 SEAL; OIL,CM/SHF
ANTILOCK BRAKE SYSTEM(BFA) (B) 		1-47149-057-0 02 1 0801-
37 WASHER; ADJ CAM
ANTILOCK BRAKE SYSTEM(BFA) 		1-47149-087-0 02 1 0801-
43 PIN; ANCHOR
ANTILOCK BRAKE SYSTEM(BFA) 		1-47131-040-0 04 1 0801-
47 CAMSHAFT; FRT BRK
ANTILOCK BRAKE SYSTEM(BFA) 		1-47141-140-0 01 1 0801-
47 CAMSHAFT; FRT BRK
ANTILOCK BRAKE SYSTEM(BFA) 		1-47141-141-0 01 1 0801-
53 ADJUSTER ASM; SLACK
ANTILOCK BRAKE SYSTEM(BFA) 		1-48270-107-0 02 1 0801-
54 SPACER; CM/SHF
ANTILOCK BRAKE SYSTEM(BFA) (A) T=0.06" 		1-47139-121-0 02 1 0801-
54 SPACER; CM/SHF
ANTILOCK BRAKE SYSTEM(BFA) (B) 		1-47149-059-0 02 1 0801-
54 SPACER; CM/SHF
ANTILOCK BRAKE SYSTEM(BFA) (A) T=0.03" 		1-47149-060-0 02 1 0801-
54 SPACER; CM/SHF
ANTILOCK BRAKE SYSTEM(BFA) (C) 		1-47149-065-0 02 1 0801-
80 RING; SNAP,CM/SHF
ANTILOCK BRAKE SYSTEM(BFA) 		1-87050-005-0 02 1 0801-
109 BUSHING; CM/SHF,FRT BRK
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-47146-012-0 02 1 0801-
109 BUSHING; CM/SHF,FRT BRK
ANTILOCK BRAKE SYSTEM(BFA) (B) 		1-47146-017-0 02 1 0801-
131 BRACKET; POWER CHAMBER
ANTILOCK BRAKE SYSTEM(BFA) 		1-48258-245-0 01 1 0801-
131 BRACKET; POWER CHAMBER
ANTILOCK BRAKE SYSTEM(BFA) 		1-48258-246-0 01 1 0801-
133 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) 		1-47139-116-0 08 1 0801-
249 NIPPLE; GREASE,CHAMBER BRKT
ANTILOCK BRAKE SYSTEM(BFA) 		1-48259-253-0 02 1 0801-
266 BUSHING; BRKT
ANTILOCK BRAKE SYSTEM(BFA) 		1-47139-117-0 04 1 0801-
267 PIN; RETURN SPRING,FRT BRK SHOE
ANTILOCK BRAKE SYSTEM(BFA) 		1-47119-116-0 02 1 0801-
268 BOLT; ANCHOR BRKT
ANTILOCK BRAKE SYSTEM(BFA) 		1-47139-122-0 12 1 0801-
269 WASHER; ANCHOR BRKT
ANTILOCK BRAKE SYSTEM(BFA) 		1-41519-102-0 28 1 0801-
270 NUT; ANCHOR BRKT
ANTILOCK BRAKE SYSTEM(BFA) 		1-41229-169-0 14 1 0801-
