Sayfa 2-36A - Isuzu EPC

2-36A — MANUAL TRANSMISSION CONT LINK AND CABLE (#5771) — 276 parça

496 465 192 509 468

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
192	COVER SHORT CHASSIS&RHD(EXZ5MC) ELECTRONIC GOV RED3(KG5)	1-79907-081-0	01	1	9610-9903	●
192	COVER SHORT CHASSIS&RHD(EXZ5MC) ELECTRONIC GOV RED3(KG5)	1-79907-090-0	01	1	9904-9904	●
192	COVER SHORT CHASSIS&RHD(EXZ5MC) ELECTRONIC GOV RED3(KG5)	1-79907-090-0	01	1	9905-0001	●
192	COVER L TYPE ENG<90L>	1-79907-090-0	01	1	0002-	●	●
465	BRACKET; CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) ELECTRONIC GOV RED3(KG5)	1-47477-823-0	01	1	9610-9904	●
465	BRACKET; CONNECTOR SHORT CHASSIS&RHD(EXZ5MC) ELECTRONIC GOV RED3(KG5)	1-47477-823-1	01	1	9905-0001	●
465	BRACKET; CONNECTOR L TYPE ENG<90L>	1-47477-823-2	01	1	0002-	●	●
468	NUT; BRKT SHORT CHASSIS&RHD(EXZ5MC) ELECTRONIC GOV RED3(KG5) M8 FLANGE	8-94279-517-0	02	1	9610-9611	●
468	NUT; BRKT SHORT CHASSIS&RHD(EXZ5MC) ELECTRONIC GOV RED3(KG5) M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	9612-9904	●
468	NUT; BRKT SHORT CHASSIS&RHD(EXZ5MC) ELECTRONIC GOV RED3(KG5) M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	9905-0001	●
468	NUT; BRKT L TYPE ENG<90L> M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0002-	●	●
496	FASTENER SHORT CHASSIS&RHD(EXZ5MC) ELECTRONIC GOV RED3(KG5) ID=6X6 OD=8	1-09987-194-0	02	1	9610-9610	●
496	FASTENER SHORT CHASSIS&RHD(EXZ5MC) ELECTRONIC GOV RED3(KG5) D8X13.5	1-09987-248-1	02	1	9611-9904	●
496	FASTENER SHORT CHASSIS&RHD(EXZ5MC) ELECTRONIC GOV RED3(KG5) D8X13.5	1-09987-248-1	02	1	9905-0001	●
496	FASTENER L TYPE ENG<90L> D8X13.5	1-09987-248-1	02	1	0002-	●	●
509	SEAL; BRKT SHORT CHASSIS&RHD(EXZ5MC) ELECTRONIC GOV RED3(KG5)	1-47477-825-1	01	1	9610-9904	●
509	SEAL; BRKT SHORT CHASSIS&RHD(EXZ5MC) ELECTRONIC GOV RED3(KG5)	1-47477-825-2	01	1	9905-0001	●
509	SEAL; BRKT L TYPE ENG<90L>	1-47477-825-2	01	1	0002-	●	●

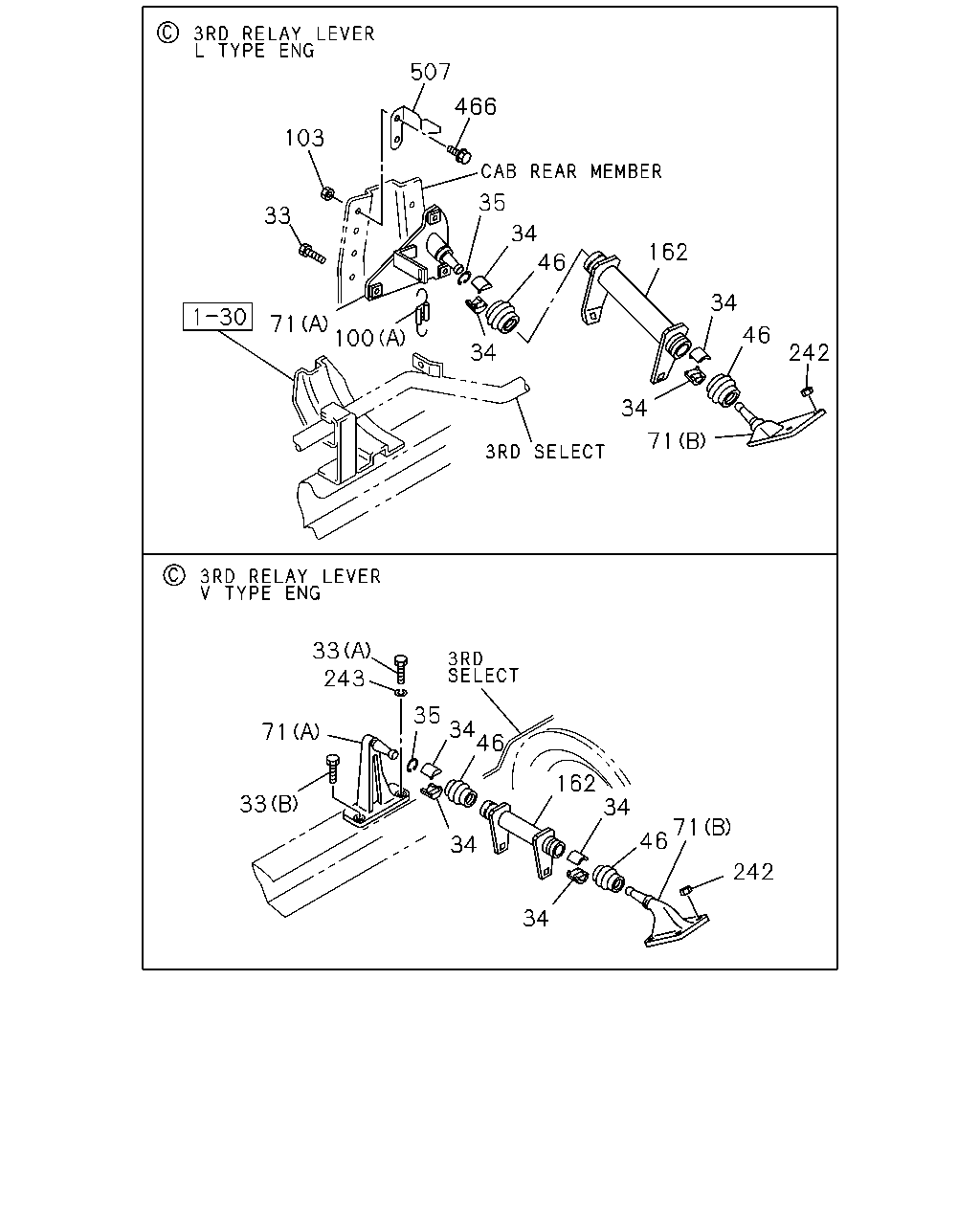

507 466 103 35 33 34 162 46 34 71 100 46 34 242 34 71 33 243 35 34 46 71 162 34 33 71 46 34 242 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	BOLT; BRKT,3RD RELAY LEVER L TYPE ENG<90L> M10X30 W/LK WASHER	0-50041-030-0	03	1	9603-9606	●	●
33	BOLT; BRKT,3RD RELAY LEVER L TYPE ENG<90L> M10X30 FLANGE	0-28681-030-0	03	1	9607-9706	●	●
33	BOLT; BRKT,3RD RELAY LEVER L TYPE ENG<90L> M10X30 FLANGE	0-28681-030-0	03	1	9707-9804	●	●
33	BOLT; BRKT,3RD RELAY LEVER L TYPE ENG<90L> M10X30 FLANGE	0-28681-030-0	03	1	9905-	●	●
33	BOLT; BRKT,3RD RELAY LEVER V TYPE ENG<91L> (A) M14X45	0-20801-445-0	01	1	9603-9904	●	●
33	BOLT; BRKT,3RD RELAY LEVER V TYPE ENG<91L> (A) M14X45	0-20801-445-0	01	1	9905-	●	●
33	BOLT; BRKT,3RD RELAY LEVER V TYPE ENG<91L> (B) M10X40 W/LK WASHER	0-50041-040-0	01	1	9603-9904	●	●
33	BOLT; BRKT,3RD RELAY LEVER V TYPE ENG<91L> (B) M10X40 W/LK WASHER	0-50041-040-0	01	1	9905-	●	●
34	SEAT; BALL,RELAY LEVER L TYPE ENG<90L>	1-33659-165-0	04	1	9603-9804	●	●
34	SEAT; BALL,RELAY LEVER L TYPE ENG<90L>	1-33659-165-0	04	1	9805-9904	●	●
34	SEAT; BALL,RELAY LEVER L TYPE ENG<90L>	1-33659-165-0	04	1	9905-	●	●
34	SEAT; BALL,RELAY LEVER V TYPE ENG<91L>	1-33659-118-0	04	1	9603-9904	●	●
34	SEAT; BALL,RELAY LEVER V TYPE ENG<91L>	1-33659-118-0	04	1	9905-	●	●
35	RING; SNAP,RELAY LEVER L TYPE ENG<90L> OD=34.4	9-09180-132-0	01	1	9603-9804	●	●
35	RING; SNAP,RELAY LEVER L TYPE ENG<90L> OD=34.4	9-09180-132-0	01	1	9805-9904	●	●
35	RING; SNAP,RELAY LEVER L TYPE ENG<90L> OD=34.4	9-09180-132-0	01	1	9905-	●	●
35	RING; SNAP,RELAY LEVER V TYPE ENG<91L> OD=23.5	9-09180-122-0	01	1	9603-9904	●	●
35	RING; SNAP,RELAY LEVER V TYPE ENG<91L> OD=23.5	9-09180-122-0	01	1	9905-	●	●
46	SEAL; DUST,RELAY LEVER L TYPE ENG<90L>	1-33659-166-0	02	1	9603-9804	●	●
46	SEAL; DUST,RELAY LEVER L TYPE ENG<90L>	1-33659-166-0	02	1	9805-9904	●	●
46	SEAL; DUST,RELAY LEVER L TYPE ENG<90L>	1-33659-166-0	02	1	9905-	●	●
46	SEAL; DUST,RELAY LEVER V TYPE ENG<91L>	1-33659-172-0	02	1	9603-9904	●	●
46	SEAL; DUST,RELAY LEVER V TYPE ENG<91L>	1-33659-172-0	02	1	9905-	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME L TYPE ENG<90L> CAB UP +110MM<TGG> (A)	1-33657-657-1	01	1	9905-	●
71	BRACKET; 3RD RELAY LEVER,FRAME L TYPE ENG<90L> (B)	1-33657-481-0	01	1	9603-9804	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME L TYPE ENG<90L> (B)	1-33657-481-0	01	1	9805-9904	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME L TYPE ENG<90L> (B)	1-33657-481-0	01	1	9905-	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME L TYPE ENG<90L> (A)	1-33657-512-0	01	1	9603-9804	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME L TYPE ENG<90L> (A)	1-33657-512-0	01	1	9805-9904	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (A)	1-33657-512-0	01	1	9905-	●
71	BRACKET; 3RD RELAY LEVER,FRAME 10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> (B)	1-33657-478-0	01	1	9603-9904	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME V TYPE ENG<91L> FRAME ENG MTG SEPARATE TYPE<SGM> (B)	1-33657-478-0	01	1	9905-	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> (A)	1-33657-569-0	01	1	9603-9904	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME V TYPE ENG<91L> FRAME ENG MTG SEPARATE TYPE<SGM> (A)	1-33657-569-0	01	1	9905-	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 10PE1S(60L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B)	1-33657-188-0	01	1	9603-9904	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME V TYPE ENG<91L> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B)	1-33657-188-0	01	1	9905-	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 10PE1S(60L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A)	1-33657-568-0	01	1	9603-9904	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME V TYPE ENG<91L> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A)	1-33657-568-0	01	1	9905-	●	●
100	SPRING L TYPE ENG<90L> (B)	1-09583-218-0	01	1	9603-9904	●	●
100	SPRING L TYPE ENG<90L> (B)	1-09583-351-0	01	1	9905-	●	●
100	SPRING L TYPE ENG<90L> (A)	1-09583-319-0	01	1	9603-9804	●	●
100	SPRING L TYPE ENG<90L> (A)	1-09583-319-0	01	1	9805-9904	●	●
100	SPRING L TYPE ENG<90L> (A)	1-09583-319-0	01	1	9905-	●	●
103	NUT L TYPE ENG<90L> CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	01	1	9905-	●
162	LEVER; RELAY L TYPE ENG<90L>	1-33651-625-0	01	1	9603-9804	●	●
162	LEVER; RELAY L TYPE ENG<90L>	1-33651-625-0	01	1	9805-9904	●	●
162	LEVER; RELAY L TYPE ENG<90L>	1-33651-625-0	01	1	9905-	●	●
162	LEVER; RELAY V TYPE ENG<91L>	1-33651-622-1	01	1	9603-	●	●
242	NUT; FLANGE 3RD RELAY LEVER L TYPE ENG<90L> M12 FLANGE	0-91150-212-0	03	1	9603-9804	●	●
242	NUT; FLANGE 3RD RELAY LEVER L TYPE ENG<90L> M12 FLANGE	0-91150-212-0	03	1	9805-9904	●	●
242	NUT; FLANGE 3RD RELAY LEVER L TYPE ENG<90L> M12 FLANGE	0-91150-212-0	03	1	9905-	●	●
242	NUT; FLANGE 3RD RELAY LEVER 10PE1S(60L) M8 FLANGE	5-09440-005-0	04	1	9603-9904	●	●
242	NUT; FLANGE 3RD RELAY LEVER V TYPE ENG<91L> M8 FLANGE	5-09440-005-0	04	1	9905-	●	●
243	WASHER; LK,BRKT V TYPE ENG<91L> ID=14.2	9-09150-614-0	01	1	9603-9904	●	●
243	WASHER; LK,BRKT V TYPE ENG<91L> ID=14.2	9-09150-614-0	01	1	9905-	●	●
466	BOLT; FIX L TYPE ENG<90L> CAB UP +110MM<TGG> M8X20 FLANGE	0-28680-820-0	02	1	9905-	●
507	PROTECTOR; HEAT L TYPE ENG<90L> CAB UP +110MM<TGG>	1-14181-315-0	01	1	9905-	●

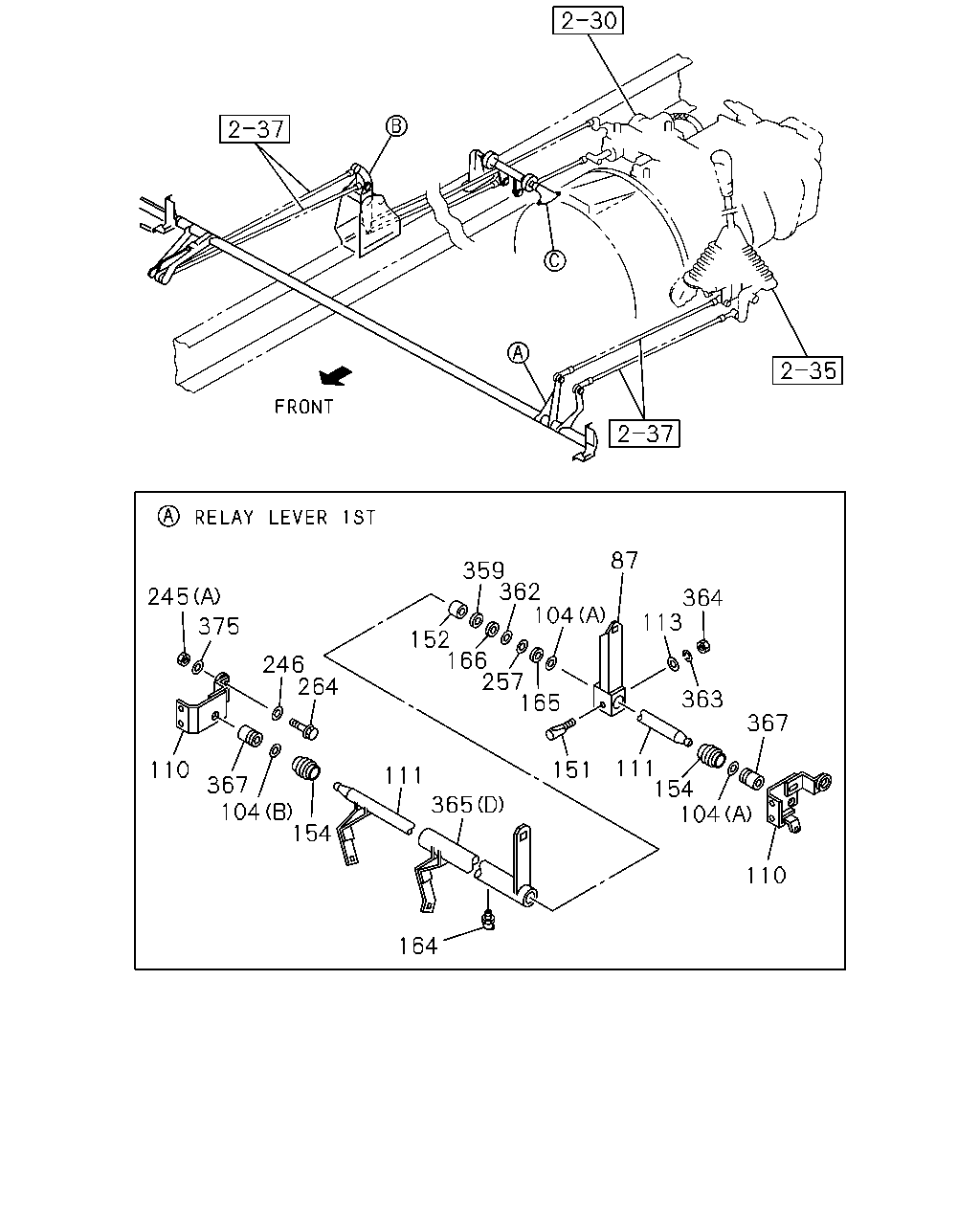

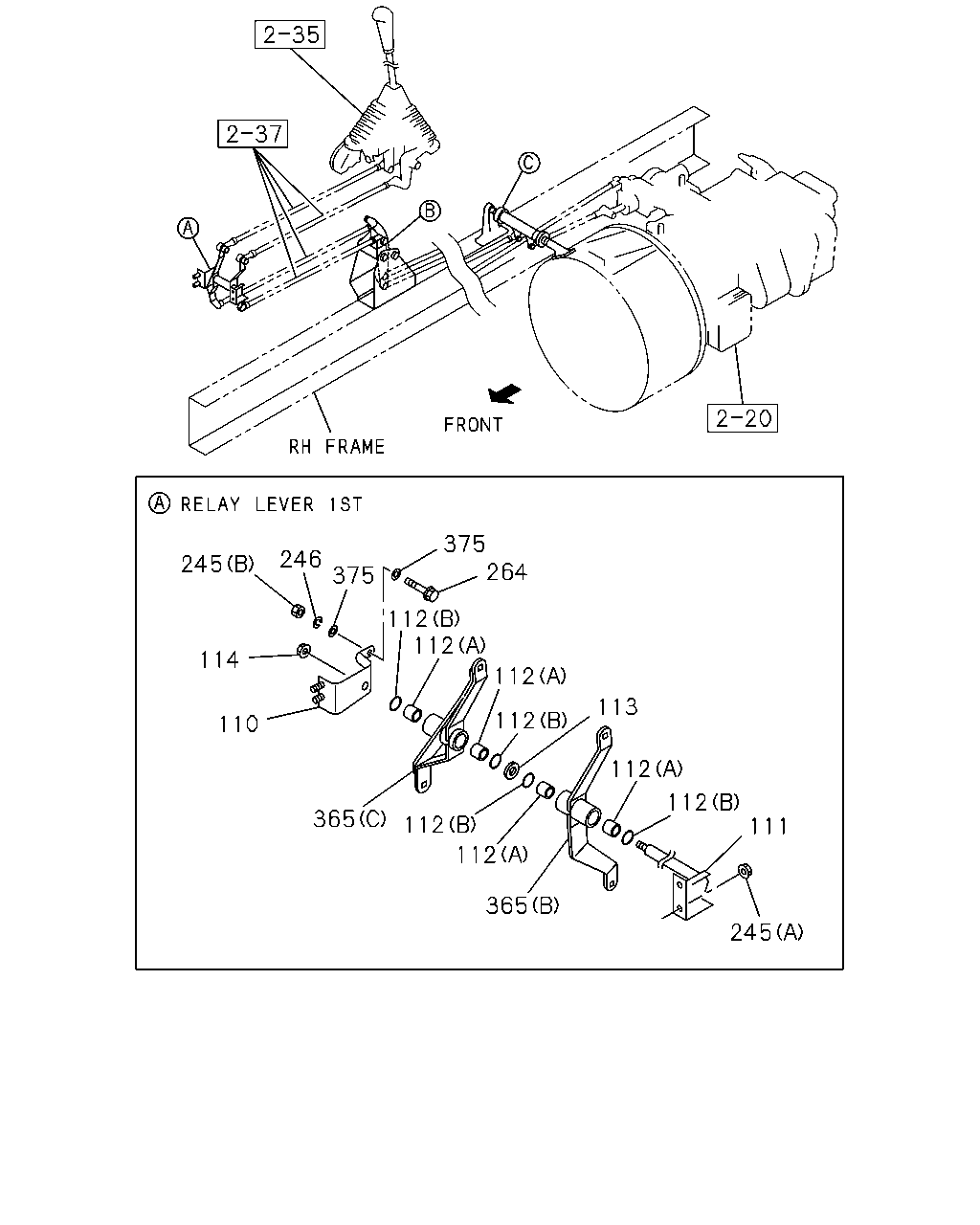

375 264 246 245 375 112 112 114 112 113 112 110 112 112 365 112 111 112 365 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
110	BRACKET; RELAY LEVER,1ST SHORT CHASSIS&RHD(EXZ5MC)	1-33657-598-0	01	1	9603-9904	●	●
110	BRACKET; RELAY LEVER,1ST SHORT CHASSIS&RHD(EXZ5MC)	1-33657-598-0	01	1	9905-	●	●
110	BRACKET; RELAY LEVER,1ST SHORT CHASSIS&RHD(EXZ5MC)	1-33657-598-0	01	1	9805-9904	●	●
110	BRACKET; RELAY LEVER,1ST SHORT CHASSIS&LHD(EXZ6MC)	1-33657-617-0	01	1	9603-9904	●	●
110	BRACKET; RELAY LEVER,1ST SHORT CHASSIS&LHD(EXZ6MC)	1-33657-617-0	01	1	9905-	●	●
110	BRACKET; RELAY LEVER,1ST SHORT CHASSIS&LHD(EXZ6MC)	1-33657-618-0	01	1	9603-9904	●	●
110	BRACKET; RELAY LEVER,1ST SHORT CHASSIS&LHD(EXZ6MC)	1-33657-618-0	01	1	9905-	●	●
111	SHAFT; RELAY LEVER,1ST SHORT CHASSIS&RHD(EXZ5MC)	1-33619-468-0	01	1	9603-9904	●	●
111	SHAFT; RELAY LEVER,1ST SHORT CHASSIS&RHD(EXZ5MC)	1-33619-468-0	01	1	9905-	●	●
111	SHAFT; RELAY LEVER,1ST SHORT CHASSIS&RHD(EXZ5MC)	1-33619-468-0	01	1	9805-9904	●	●
111	SHAFT; RELAY LEVER,1ST SHORT CHASSIS&LHD(EXZ6MC)	1-33659-200-0	01	1	9603-9904	●	●
111	SHAFT; RELAY LEVER,1ST SHORT CHASSIS&LHD(EXZ6MC)	1-33659-200-0	01	1	9905-	●	●
112	BUSHING; RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) (A)	1-09330-119-0	04	1	9603-9904	●	●
112	BUSHING; RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) (A)	1-09330-119-0	04	1	9905-	●	●
112	BUSHING; RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) (A)	1-09330-119-0	04	1	9805-9904	●	●
112	BUSHING; RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) (B)	1-09623-594-0	04	1	9603-9904	●	●
112	BUSHING; RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) (B)	1-09623-594-0	04	1	9905-	●	●
112	BUSHING; RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) (B)	1-09623-594-0	04	1	9805-9904	●	●
113	WASHER; RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) ID=17	9-09160-516-0	01	1	9603-9904	●	●
113	WASHER; RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) ID=17	9-09160-516-0	01	1	9905-	●	●
113	WASHER; RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) ID=17	9-09160-516-0	01	1	9805-9904	●	●
113	WASHER; RELAY LEVER SHORT CHASSIS&LHD(EXZ6MC) ID=10.5 OD=26	9-09160-710-0	01	1	9603-	●	●
114	NUT; RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) M10 FLANGE	0-91150-110-0	01	1	9603-9904	●	●
114	NUT; RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) M10 FLANGE	0-91150-110-0	01	1	9905-	●	●
114	NUT; RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) M10 FLANGE	0-91150-110-0	01	1	9805-9904	●	●
245	NUT; BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) (A) M10 FLANGE	0-91150-210-0	02	1	9603-9904	●	●
245	NUT; BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) (A) M10 FLANGE	0-91150-210-0	02	1	9905-	●	●
245	NUT; BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) (A) M10 FLANGE	0-91150-210-0	02	1	9805-9904	●	●
245	NUT; BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) (B) M10	1-09984-142-0	01	1	9603-9904	●	●
245	NUT; BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) (B) M10	1-09984-142-0	01	1	9905-	●	●
245	NUT; BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) (B) M10	1-09984-142-0	01	1	9805-9904	●	●
245	NUT; BRKT,RELAY LEVER SHORT CHASSIS&LHD(EXZ6MC) (B) M10	1-09984-142-0	02	1	9603-9904	●	●
245	NUT; BRKT,RELAY LEVER SHORT CHASSIS&LHD(EXZ6MC) (B) M10	1-09984-142-0	02	1	9905-	●	●
246	WASHER; LK,BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) ID=10	1-09985-185-0	01	1	9603-9904	●	●
246	WASHER; LK,BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) ID=10	1-09985-185-0	01	1	9905-	●	●
246	WASHER; LK,BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) ID=10	1-09985-185-0	01	1	9805-9904	●	●
246	WASHER; LK,BRKT,RELAY LEVER SHORT CHASSIS&LHD(EXZ6MC) ID=10	1-09985-185-0	02	1	9603-9904	●	●
246	WASHER; LK,BRKT,RELAY LEVER SHORT CHASSIS&LHD(EXZ6MC) ID=10	1-09985-185-0	02	1	9905-	●	●
264	BOLT; BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) M10X100	1-09980-547-0	01	1	9603-9904	●	●
264	BOLT; BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) M10X100	1-09980-547-0	01	1	9905-	●	●
264	BOLT; BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) M10X100	1-09980-547-0	01	1	9805-9904	●	●
264	BOLT; BRKT,RELAY LEVER SHORT CHASSIS&LHD(EXZ6MC) M10X30 FLANGE	0-28681-030-0	02	1	9603-9904	●	●
264	BOLT; BRKT,RELAY LEVER SHORT CHASSIS&LHD(EXZ6MC) M10X30 FLANGE	0-28681-030-0	02	1	9905-	●	●
264	BOLT; BRKT,RELAY LEVER SHORT CHASSIS&LHD(EXZ6MC) M10X100	1-09980-547-0	02	1	9603-9904	●	●
264	BOLT; BRKT,RELAY LEVER SHORT CHASSIS&LHD(EXZ6MC) M10X100	1-09980-547-0	02	1	9905-	●	●
365	LEVER; RELAY,SELECT L TYPE ENG<90L> (A)	1-33651-628-1	01	1	9603-9804	●	●
365	LEVER; RELAY,SELECT L TYPE ENG<90L> (A)	1-33651-628-1	01	1	9805-9904	●	●
365	LEVER; RELAY,SELECT L TYPE ENG<90L> (A)	1-33651-628-1	01	1	9905-	●	●
365	LEVER; RELAY,SELECT 10PE1S(60L) (A)	1-33651-627-1	01	1	9603-9904	●	●
365	LEVER; RELAY,SELECT V TYPE ENG<91L> (A)	1-33651-627-1	01	1	9905-	●	●
365	LEVER; RELAY,SELECT SHORT CHASSIS&RHD(EXZ5MC) (B)	1-33651-638-0	01	1	9603-9904	●	●
365	LEVER; RELAY,SELECT SHORT CHASSIS&RHD(EXZ5MC) (B)	1-33651-638-0	01	1	9905-	●	●
365	LEVER; RELAY,SELECT SHORT CHASSIS&RHD(EXZ5MC) (B)	1-33651-638-0	01	1	9805-9904	●	●
365	LEVER; RELAY,SELECT SHORT CHASSIS&RHD(EXZ5MC) (C)	1-33651-649-0	01	1	9603-9904	●	●
365	LEVER; RELAY,SELECT SHORT CHASSIS&RHD(EXZ5MC) (C)	1-33651-649-0	01	1	9905-	●	●
365	LEVER; RELAY,SELECT SHORT CHASSIS&RHD(EXZ5MC) (C)	1-33651-649-0	01	1	9805-9904	●	●
365	LEVER; RELAY,SELECT SHORT CHASSIS&LHD(EXZ6MC) (D)	1-33651-665-0	01	1	9603-9904	●	●
365	LEVER; RELAY,SELECT SHORT CHASSIS&LHD(EXZ6MC) (D)	1-33651-665-0	01	1	9905-	●	●
375	WASHER; PL,BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	9603-9904	●	●
375	WASHER; PL,BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	9905-	●	●
375	WASHER; PL,BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	9805-9904	●	●
375	WASHER; PL,BRKT,RELAY LEVER SHORT CHASSIS&LHD(EXZ6MC) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	9603-9904	●	●
375	WASHER; PL,BRKT,RELAY LEVER SHORT CHASSIS&LHD(EXZ6MC) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	9905-	●	●

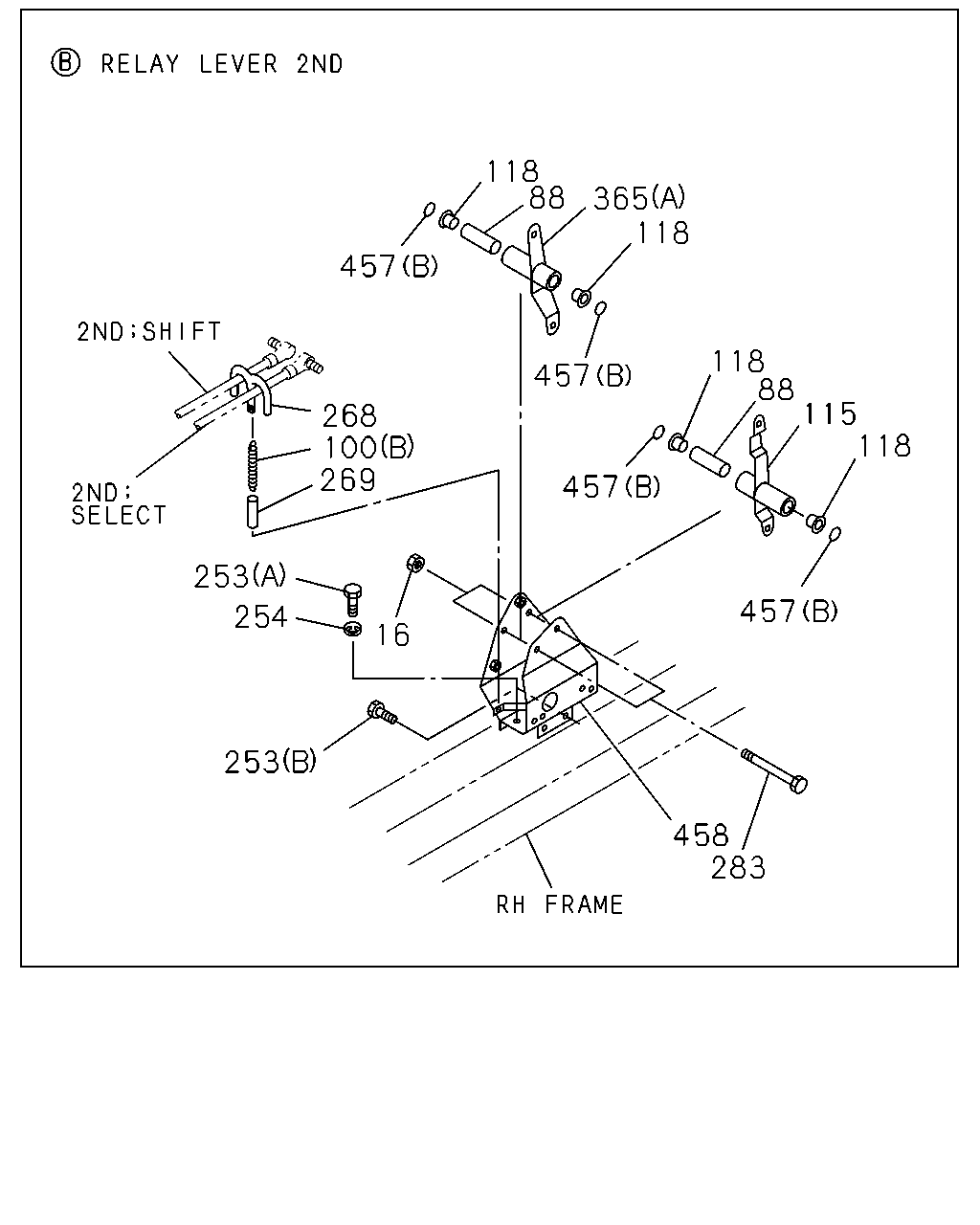

118 88 365 118 457 118 88 115 118 457 268 100 269 457 253 457 254 16 253 458 283

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	02	1	9603-9804	●	●
16	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	02	1	9805-9904	●	●
16	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	02	1	9905-	●	●
88	COLLAR; RELAY LEVER	1-33659-191-1	02	1	9603-9804	●	●
88	COLLAR; RELAY LEVER	1-33659-191-1	02	1	9805-9904	●	●
88	COLLAR; RELAY LEVER	1-33659-191-1	02	1	9905-	●	●
100	SPRING L TYPE ENG<90L> (B)	1-09583-218-0	01	1	9603-9904	●	●
100	SPRING L TYPE ENG<90L> (B)	1-09583-351-0	01	1	9905-	●	●
100	SPRING L TYPE ENG<90L> (A)	1-09583-319-0	01	1	9603-9804	●	●
100	SPRING L TYPE ENG<90L> (A)	1-09583-319-0	01	1	9805-9904	●	●
100	SPRING L TYPE ENG<90L> (A)	1-09583-319-0	01	1	9905-	●	●
115	LEVER; RELAY,2ND SHIFT	1-33651-626-0	01	1	9603-9804	●	●
115	LEVER; RELAY,2ND SHIFT	1-33651-626-0	01	1	9805-9904	●	●
115	LEVER; RELAY,2ND SHIFT	1-33651-626-0	01	1	9905-	●	●
118	BUSHING; RELAY LEVER	1-09330-119-0	04	1	9603-9804	●	●
118	BUSHING; RELAY LEVER	1-09330-119-0	04	1	9805-9904	●	●
118	BUSHING; RELAY LEVER	1-09330-119-0	04	1	9905-	●	●
253	BOLT; BRKT,2ND RELAY LEVER (A) M14X45	0-20801-445-0	02	1	9603-9904	●	●
253	BOLT; BRKT,2ND RELAY LEVER (A) M14X45	0-20801-445-0	02	1	9905-	●	●
253	BOLT; BRKT,2ND RELAY LEVER (A) M14X45	0-20801-445-0	02	1	9805-9904	●	●
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9603-9606	●	●
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X35 FLANGE	0-28681-035-0	02	1	9805-9904	●	●
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X35 FLANGE	0-28681-035-0	02	1	9905-	●	●
254	WASHER; LK,RELAY LEVER ID=14.2	9-09150-614-0	02	1	9603-9904	●	●
254	WASHER; LK,RELAY LEVER ID=14.2	9-09150-614-0	02	1	9905-	●	●
254	WASHER; LK,RELAY LEVER ID=14.2	9-09150-614-0	02	1	9805-9904	●	●
268	BRACKET; LINK ROD L TYPE ENG<90L>	1-33657-216-0	01	1	9603-9904	●	●
268	BRACKET; LINK ROD L TYPE ENG<90L>	1-33657-216-0	01	1	9905-	●	●
269	COVER; SPR L TYPE ENG<90L>	1-15669-002-0	01	1	9603-9904	●	●
283	BOLT; RELAY LEVER M10X110	9-09801-316-1	02	1	9603-9804	●	●
283	BOLT; RELAY LEVER M10X110	9-09801-316-1	02	1	9805-9904	●	●
283	BOLT; RELAY LEVER M10X110	9-09801-316-1	02	1	9905-	●	●
365	LEVER; RELAY,SELECT L TYPE ENG<90L> (A)	1-33651-628-1	01	1	9603-9804	●	●
365	LEVER; RELAY,SELECT L TYPE ENG<90L> (A)	1-33651-628-1	01	1	9805-9904	●	●
365	LEVER; RELAY,SELECT L TYPE ENG<90L> (A)	1-33651-628-1	01	1	9905-	●	●
365	LEVER; RELAY,SELECT 10PE1S(60L) (A)	1-33651-627-1	01	1	9603-9904	●	●
365	LEVER; RELAY,SELECT V TYPE ENG<91L> (A)	1-33651-627-1	01	1	9905-	●	●
365	LEVER; RELAY,SELECT SHORT CHASSIS&RHD(EXZ5MC) (B)	1-33651-638-0	01	1	9603-9904	●	●
365	LEVER; RELAY,SELECT SHORT CHASSIS&RHD(EXZ5MC) (B)	1-33651-638-0	01	1	9905-	●	●
365	LEVER; RELAY,SELECT SHORT CHASSIS&RHD(EXZ5MC) (B)	1-33651-638-0	01	1	9805-9904	●	●
365	LEVER; RELAY,SELECT SHORT CHASSIS&RHD(EXZ5MC) (C)	1-33651-649-0	01	1	9603-9904	●	●
365	LEVER; RELAY,SELECT SHORT CHASSIS&RHD(EXZ5MC) (C)	1-33651-649-0	01	1	9905-	●	●
365	LEVER; RELAY,SELECT SHORT CHASSIS&RHD(EXZ5MC) (C)	1-33651-649-0	01	1	9805-9904	●	●
365	LEVER; RELAY,SELECT SHORT CHASSIS&LHD(EXZ6MC) (D)	1-33651-665-0	01	1	9603-9904	●	●
365	LEVER; RELAY,SELECT SHORT CHASSIS&LHD(EXZ6MC) (D)	1-33651-665-0	01	1	9905-	●	●
457	GASKET (B)	1-09623-594-0	04	1	9603-9804	●	●
457	GASKET (B)	1-09623-594-0	04	1	9805-9904	●	●
457	GASKET (B)	1-09623-594-0	04	1	9905-	●	●
458	BRACKET; 2ND RELAY LEVER L TYPE ENG<90L> EXC. CAB UP +110MM<TGG>	1-33657-583-1	01	1	9905-	●
458	BRACKET; 2ND RELAY LEVER L TYPE ENG<90L>	1-33657-573-2	01	1	9603-9804	●	●
458	BRACKET; 2ND RELAY LEVER L TYPE ENG<90L>	1-33657-573-2	01	1	9805-9904	●	●
458	BRACKET; 2ND RELAY LEVER L TYPE ENG<90L> CAB UP +110MM<TGG>	1-33657-664-1	01	1	9905-	●
458	BRACKET; 2ND RELAY LEVER 10PE1S(60L)	1-33657-572-2	01	1	9603-9904	●	●
458	BRACKET; 2ND RELAY LEVER V TYPE ENG<91L>	1-33657-572-2	01	1	9905-	●	●

87 359 362 104 245 364 113 375 152 166 257 165 246 264 363 367 111 154 104 110 151 111 367 104 154 365 110 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
87	LEVER; RELAY,SELECT SHORT CHASSIS&LHD(EXZ6MC)	1-33651-666-0	01	1	9603-9904	●	●
87	LEVER; RELAY,SELECT SHORT CHASSIS&LHD(EXZ6MC)	1-33651-666-0	01	1	9905-	●	●
104	RING; SNAP SHORT CHASSIS&LHD(EXZ6MC) (A) ID=32.2	9-09180-035-0	02	1	9603-9904	●	●
104	RING; SNAP SHORT CHASSIS&LHD(EXZ6MC) (A) ID=32.2	9-09180-035-0	02	1	9905-	●	●
104	RING; SNAP SHORT CHASSIS&LHD(EXZ6MC) (B) OD=23.5	9-09180-122-0	01	1	9603-9904	●	●
104	RING; SNAP SHORT CHASSIS&LHD(EXZ6MC) (B) OD=23.5	9-09180-122-0	01	1	9905-	●	●
110	BRACKET; RELAY LEVER,1ST SHORT CHASSIS&RHD(EXZ5MC)	1-33657-598-0	01	1	9603-9904	●	●
110	BRACKET; RELAY LEVER,1ST SHORT CHASSIS&RHD(EXZ5MC)	1-33657-598-0	01	1	9905-	●	●
110	BRACKET; RELAY LEVER,1ST SHORT CHASSIS&RHD(EXZ5MC)	1-33657-598-0	01	1	9805-9904	●	●
110	BRACKET; RELAY LEVER,1ST SHORT CHASSIS&LHD(EXZ6MC)	1-33657-617-0	01	1	9603-9904	●	●
110	BRACKET; RELAY LEVER,1ST SHORT CHASSIS&LHD(EXZ6MC)	1-33657-617-0	01	1	9905-	●	●
110	BRACKET; RELAY LEVER,1ST SHORT CHASSIS&LHD(EXZ6MC)	1-33657-618-0	01	1	9603-9904	●	●
110	BRACKET; RELAY LEVER,1ST SHORT CHASSIS&LHD(EXZ6MC)	1-33657-618-0	01	1	9905-	●	●
111	SHAFT; RELAY LEVER,1ST SHORT CHASSIS&RHD(EXZ5MC)	1-33619-468-0	01	1	9603-9904	●	●
111	SHAFT; RELAY LEVER,1ST SHORT CHASSIS&RHD(EXZ5MC)	1-33619-468-0	01	1	9905-	●	●
111	SHAFT; RELAY LEVER,1ST SHORT CHASSIS&RHD(EXZ5MC)	1-33619-468-0	01	1	9805-9904	●	●
111	SHAFT; RELAY LEVER,1ST SHORT CHASSIS&LHD(EXZ6MC)	1-33659-200-0	01	1	9603-9904	●	●
111	SHAFT; RELAY LEVER,1ST SHORT CHASSIS&LHD(EXZ6MC)	1-33659-200-0	01	1	9905-	●	●
113	WASHER; RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) ID=17	9-09160-516-0	01	1	9603-9904	●	●
113	WASHER; RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) ID=17	9-09160-516-0	01	1	9905-	●	●
113	WASHER; RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) ID=17	9-09160-516-0	01	1	9805-9904	●	●
113	WASHER; RELAY LEVER SHORT CHASSIS&LHD(EXZ6MC) ID=10.5 OD=26	9-09160-710-0	01	1	9603-	●	●
151	BOLT; KEY,RELAY LEVER SHORT CHASSIS&LHD(EXZ6MC)	1-33659-063-0	01	1	9603-9904	●	●
151	BOLT; KEY,RELAY LEVER SHORT CHASSIS&LHD(EXZ6MC)	1-33659-063-0	01	1	9905-	●	●
152	BEARING; NEEDLE,RELAY LEVER SHORT CHASSIS&LHD(EXZ6MC)	1-09811-328-0	02	1	9603-9904	●	●
152	BEARING; NEEDLE,RELAY LEVER SHORT CHASSIS&LHD(EXZ6MC)	1-09811-328-0	02	1	9905-	●	●
154	COVER; DUST,RELAY LEVER SHORT CHASSIS&LHD(EXZ6MC)	1-33659-068-0	02	1	9603-9904	●	●
154	COVER; DUST,RELAY LEVER SHORT CHASSIS&LHD(EXZ6MC)	1-33659-068-0	02	1	9905-	●	●
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD SHORT CHASSIS&LHD(EXZ6MC) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9603-9904	●	●
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD SHORT CHASSIS&LHD(EXZ6MC) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9905-	●	●
165	WASHER; RELAY LEVER SHORT CHASSIS&LHD(EXZ6MC)	1-09503-148-0	AR	1	9603-9904	●	●
165	WASHER; RELAY LEVER SHORT CHASSIS&LHD(EXZ6MC)	1-09503-148-0	AR	1	9905-	●	●
166	WASHER; NYLON,RELAY LEVER SHORT CHASSIS&LHD(EXZ6MC)	1-09509-040-0	02	1	9603-9904	●	●
166	WASHER; NYLON,RELAY LEVER SHORT CHASSIS&LHD(EXZ6MC)	1-09509-040-0	02	1	9905-	●	●
245	NUT; BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) (A) M10 FLANGE	0-91150-210-0	02	1	9603-9904	●	●
245	NUT; BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) (A) M10 FLANGE	0-91150-210-0	02	1	9905-	●	●
245	NUT; BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) (A) M10 FLANGE	0-91150-210-0	02	1	9805-9904	●	●
245	NUT; BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) (B) M10	1-09984-142-0	01	1	9603-9904	●	●
245	NUT; BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) (B) M10	1-09984-142-0	01	1	9905-	●	●
245	NUT; BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) (B) M10	1-09984-142-0	01	1	9805-9904	●	●
245	NUT; BRKT,RELAY LEVER SHORT CHASSIS&LHD(EXZ6MC) (B) M10	1-09984-142-0	02	1	9603-9904	●	●
245	NUT; BRKT,RELAY LEVER SHORT CHASSIS&LHD(EXZ6MC) (B) M10	1-09984-142-0	02	1	9905-	●	●
246	WASHER; LK,BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) ID=10	1-09985-185-0	01	1	9603-9904	●	●
246	WASHER; LK,BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) ID=10	1-09985-185-0	01	1	9905-	●	●
246	WASHER; LK,BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) ID=10	1-09985-185-0	01	1	9805-9904	●	●
246	WASHER; LK,BRKT,RELAY LEVER SHORT CHASSIS&LHD(EXZ6MC) ID=10	1-09985-185-0	02	1	9603-9904	●	●
246	WASHER; LK,BRKT,RELAY LEVER SHORT CHASSIS&LHD(EXZ6MC) ID=10	1-09985-185-0	02	1	9905-	●	●
257	PIECE; DIST,RELAY LEVER SHORT CHASSIS&LHD(EXZ6MC)	1-09503-198-0	AR	1	9603-9904	●	●
257	PIECE; DIST,RELAY LEVER SHORT CHASSIS&LHD(EXZ6MC)	1-09503-198-0	AR	1	9905-	●	●
264	BOLT; BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) M10X100	1-09980-547-0	01	1	9603-9904	●	●
264	BOLT; BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) M10X100	1-09980-547-0	01	1	9905-	●	●
264	BOLT; BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) M10X100	1-09980-547-0	01	1	9805-9904	●	●
264	BOLT; BRKT,RELAY LEVER SHORT CHASSIS&LHD(EXZ6MC) M10X30 FLANGE	0-28681-030-0	02	1	9603-9904	●	●
264	BOLT; BRKT,RELAY LEVER SHORT CHASSIS&LHD(EXZ6MC) M10X30 FLANGE	0-28681-030-0	02	1	9905-	●	●
264	BOLT; BRKT,RELAY LEVER SHORT CHASSIS&LHD(EXZ6MC) M10X100	1-09980-547-0	02	1	9603-9904	●	●
264	BOLT; BRKT,RELAY LEVER SHORT CHASSIS&LHD(EXZ6MC) M10X100	1-09980-547-0	02	1	9905-	●	●
359	SEAL; RUBBER,RELAY LEVER SHORT CHASSIS&LHD(EXZ6MC)	1-09625-005-1	02	1	9603-9904	●	●
359	SEAL; RUBBER,RELAY LEVER SHORT CHASSIS&LHD(EXZ6MC)	1-09625-005-1	02	1	9905-	●	●
362	SHIM SHORT CHASSIS&LHD(EXZ6MC)	1-09503-172-0	AR	1	9603-9904	●	●
362	SHIM SHORT CHASSIS&LHD(EXZ6MC)	1-09503-172-0	AR	1	9905-	●	●
363	WASHER; LK,KEY BOLT SHORT CHASSIS&LHD(EXZ6MC) ID=10.2	9-09150-510-0	01	1	9603-9904	●	●
363	WASHER; LK,KEY BOLT SHORT CHASSIS&LHD(EXZ6MC) ID=10.2	9-09150-510-0	01	1	9905-	●	●
364	NUT; KEY BOLT SHORT CHASSIS&LHD(EXZ6MC) M10	9-09111-410-0	01	1	9603-9904	●	●
364	NUT; KEY BOLT SHORT CHASSIS&LHD(EXZ6MC) M10	9-09111-410-0	01	1	9905-	●	●
365	LEVER; RELAY,SELECT L TYPE ENG<90L> (A)	1-33651-628-1	01	1	9603-9804	●	●
365	LEVER; RELAY,SELECT L TYPE ENG<90L> (A)	1-33651-628-1	01	1	9805-9904	●	●
365	LEVER; RELAY,SELECT L TYPE ENG<90L> (A)	1-33651-628-1	01	1	9905-	●	●
365	LEVER; RELAY,SELECT 10PE1S(60L) (A)	1-33651-627-1	01	1	9603-9904	●	●
365	LEVER; RELAY,SELECT V TYPE ENG<91L> (A)	1-33651-627-1	01	1	9905-	●	●
365	LEVER; RELAY,SELECT SHORT CHASSIS&RHD(EXZ5MC) (B)	1-33651-638-0	01	1	9603-9904	●	●
365	LEVER; RELAY,SELECT SHORT CHASSIS&RHD(EXZ5MC) (B)	1-33651-638-0	01	1	9905-	●	●
365	LEVER; RELAY,SELECT SHORT CHASSIS&RHD(EXZ5MC) (B)	1-33651-638-0	01	1	9805-9904	●	●
365	LEVER; RELAY,SELECT SHORT CHASSIS&RHD(EXZ5MC) (C)	1-33651-649-0	01	1	9603-9904	●	●
365	LEVER; RELAY,SELECT SHORT CHASSIS&RHD(EXZ5MC) (C)	1-33651-649-0	01	1	9905-	●	●
365	LEVER; RELAY,SELECT SHORT CHASSIS&RHD(EXZ5MC) (C)	1-33651-649-0	01	1	9805-9904	●	●
365	LEVER; RELAY,SELECT SHORT CHASSIS&LHD(EXZ6MC) (D)	1-33651-665-0	01	1	9603-9904	●	●
365	LEVER; RELAY,SELECT SHORT CHASSIS&LHD(EXZ6MC) (D)	1-33651-665-0	01	1	9905-	●	●
367	SEAT; BALL,CONT SHAFT SHORT CHASSIS&LHD(EXZ6MC)	1-33659-053-0	04	1	9603-9904	●	●
367	SEAT; BALL,CONT SHAFT SHORT CHASSIS&LHD(EXZ6MC)	1-33659-053-0	04	1	9905-	●	●
375	WASHER; PL,BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	9603-9904	●	●
375	WASHER; PL,BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	9905-	●	●
375	WASHER; PL,BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXZ5MC) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	9805-9904	●	●
375	WASHER; PL,BRKT,RELAY LEVER SHORT CHASSIS&LHD(EXZ6MC) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	9603-9904	●	●
375	WASHER; PL,BRKT,RELAY LEVER SHORT CHASSIS&LHD(EXZ6MC) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	9905-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
