2-05 — CLUTCH PIPING (#57703) — 102 parça

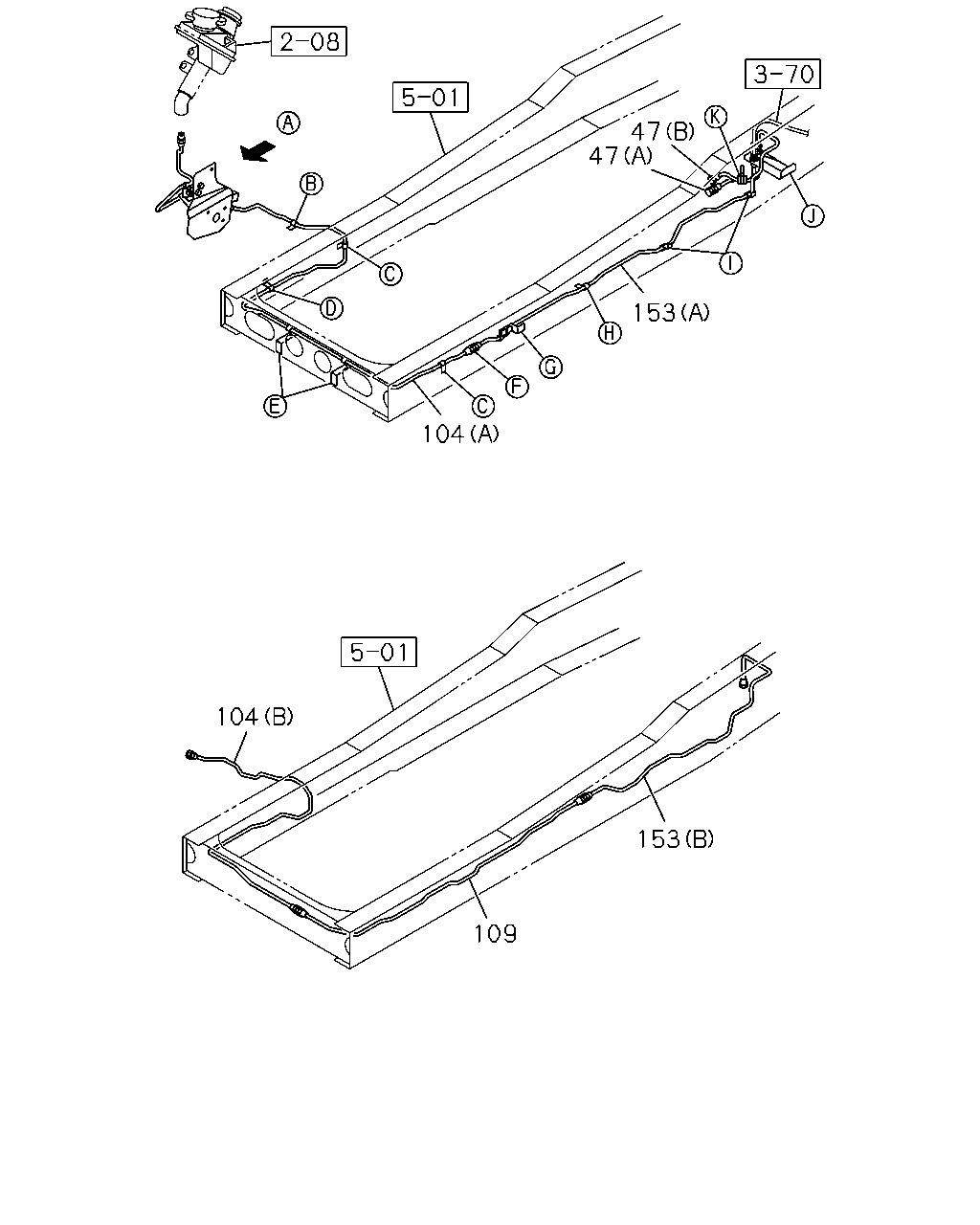

çizim 161203
47 47 153 104 104 153 109
BalonParca AdiParca NoAdetTipApplied Date
47 HOSE; FLEX,CLU CONT
(A) L=350 		1-09363-624-0 01 1 0801-
47 HOSE; FLEX,CLU CONT
(B) L=370 		8-98072-331-0 01 1 0801-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(A) L=2570 SERVICED BY L=2700 		1-47428-772-0 01 1 0801-0805
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=1747 SERVICED BY L=1800 		1-47428-768-0 01 1 0806-
109 PIPE; AIR,UNION TO UNION
L=1680 SERVICED BY L=1700 		1-47428-767-0 01 1 0806-
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=2038 SERVICED BY L=2150 		1-47428-770-0 01 1 0801-0805
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=1155 SERVICED BY L=1250 		1-47428-764-0 01 1 0806-

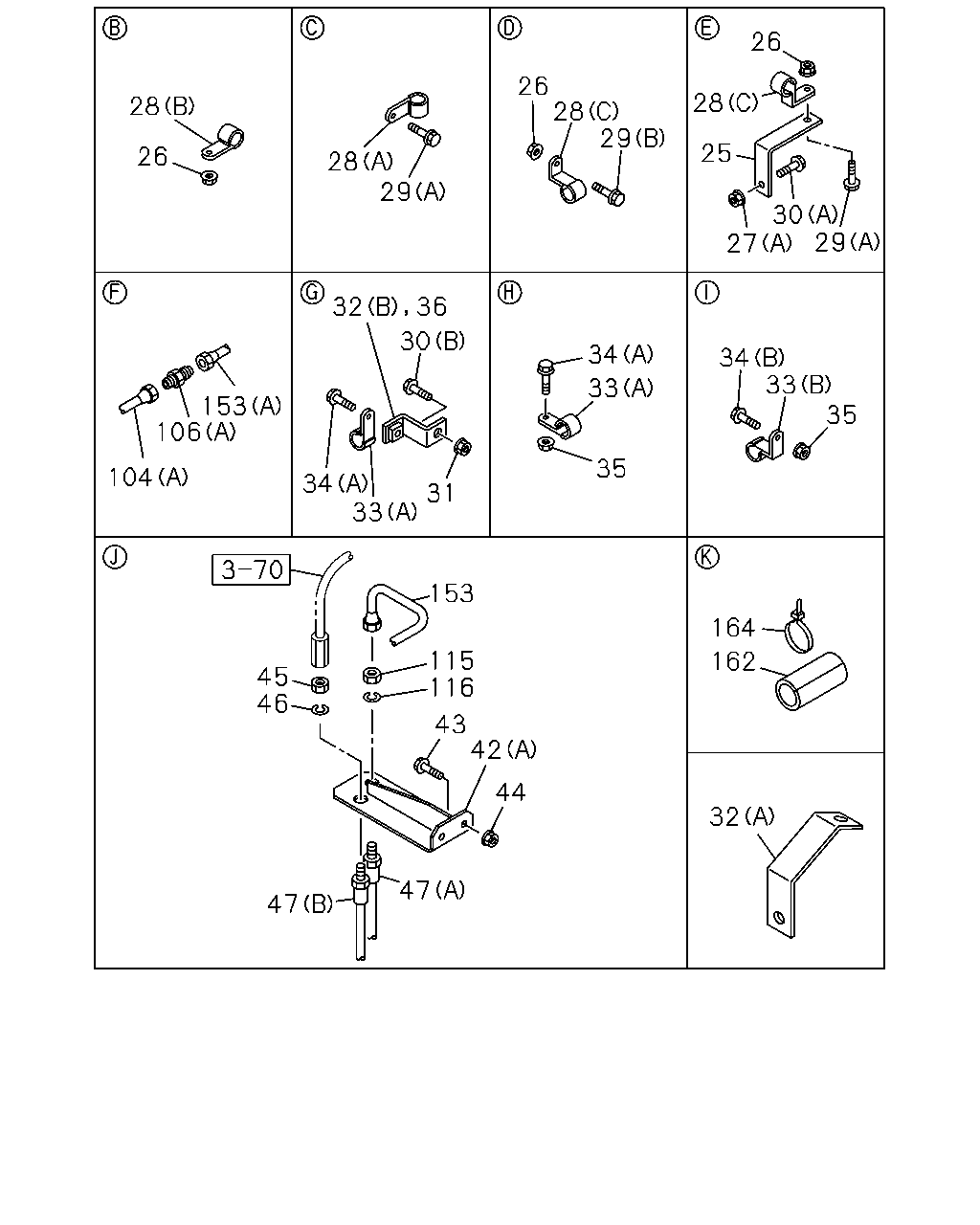

çizim 161352
26 26 28 29 28 28 25 26 28 29 30 30 34 34 33 35 33 153 106 35 104 34 33 31 153 164 115 116 162 45 46 43 42 44 32 47 47 27 29 32 36
BalonParca AdiParca NoAdetTipApplied Date
25 BRACKET; OIL PIPE 8-98105-075-0 02 1 0801-0805
25 BRACKET; OIL PIPE 8-98123-057-0 01 1 0806-
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 04 1 0801-0805
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 03 1 0806-
27 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0801-0805
27 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0806-
27 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 03 1 0801-
28 CLIP; OIL PIPE
(A) ID=9 L=20 		0-95234-835-0 02 1 0801-
28 CLIP; OIL PIPE
(B) ID=9 L=40 		0-95234-875-0 01 1 0801-
28 CLIP; OIL PIPE
(C) ID=8 H=20 L=20 		1-09700-604-0 03 1 0801-0805
28 CLIP; OIL PIPE
(C) ID=8 H=20 L=20 		1-09700-604-0 01 1 0806-
29 BOLT; CLIP,OIL PIPE
(A) M8X25 FLANGE 		0-28650-825-0 04 1 0801-0801
29 BOLT; CLIP,OIL PIPE
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0802-0805
29 BOLT; CLIP,OIL PIPE
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0806-
29 BOLT; CLIP,OIL PIPE
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0801-
30 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0801-
30 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0801-
30 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0801-
31 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0801-0805
31 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0806-
31 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0806-
32 BRACKET; CLIP OIL PIPE
(B) 		1-47479-482-0 01 1 0806-
32 BRACKET; CLIP OIL PIPE
(A) 		8-98123-057-0 01 1 0806-
33 CLIP; OIL PIPE
(A) ID=9 L=20 		0-95234-835-0 02 1 0801-0805
33 CLIP; OIL PIPE
(A) ID=9 L=20 		0-95234-835-0 04 1 0806-
33 CLIP; OIL PIPE
(B) ID=8 H=20 L=20 		1-09700-604-0 02 1 0801-0802
33 CLIP; OIL PIPE
(B) ID=8 H=20 L=20 		1-09700-604-0 03 1 0803-0803
33 CLIP; OIL PIPE
(B) ID=8 H=20 L=20 		1-09700-604-0 02 1 0804-
34 BOLT; PIPE CLIP
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0801-0801
34 BOLT; PIPE CLIP
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0802-0805
34 BOLT; PIPE CLIP
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0806-
34 BOLT; PIPE CLIP
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0801-0802
34 BOLT; PIPE CLIP
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0803-0803
34 BOLT; PIPE CLIP
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0804-
35 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 03 1 0801-0802
35 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 04 1 0803-0803
35 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 03 1 0804-0805
35 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 02 1 0806-
35 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 02 1 0806-
36 BRACKET; CLIP 1-47479-482-0 01 1 0801-0802
36 BRACKET; CLIP 8-97624-332-0 01 1 0803-0805
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47476-912-1 01 1 0801-
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-98091-266-1 01 1 0801-1402
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-98255-490-0 01 1 1403-
42 BRACKET; FLEX HOSE,CLU CONT
(C) 		8-98091-280-1 01 1 0801-1201
42 BRACKET; FLEX HOSE,CLU CONT
(D) 		8-98179-878-0 01 1 1202-
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28650-830-0 02 1 0801-
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91180-108-0 02 1 0801-
45 NUT; FLEX HOSE,CLU CONT
M12 		9-09840-280-0 01 1 0801-
46 WASHER; LK,FLEX HOSE,CLU CONT
ID=12.2 		0-91510-512-0 01 1 0801-
47 HOSE; FLEX,CLU CONT
(A) L=350 		1-09363-624-0 01 1 0801-
47 HOSE; FLEX,CLU CONT
(B) L=370 		8-98072-331-0 01 1 0801-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(A) L=2570 SERVICED BY L=2700 		1-47428-772-0 01 1 0801-0805
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=1747 SERVICED BY L=1800 		1-47428-768-0 01 1 0806-
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 0801-0805
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 0806-
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 0806-
106 UNION; OIL PIPE
(B) 		1-09654-191-1 01 1 0801-
115 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 0801-
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 0801-
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=2038 SERVICED BY L=2150 		1-47428-770-0 01 1 0801-0805
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=1155 SERVICED BY L=1250 		1-47428-764-0 01 1 0806-
162 COVER; RUBBER,FLEX HOSE
L=175 		1-09707-178-0 01 1 0801-
164 CLIP; BAND,FLEX HOSE
L=350 		1-09707-183-0 01 1 0801-

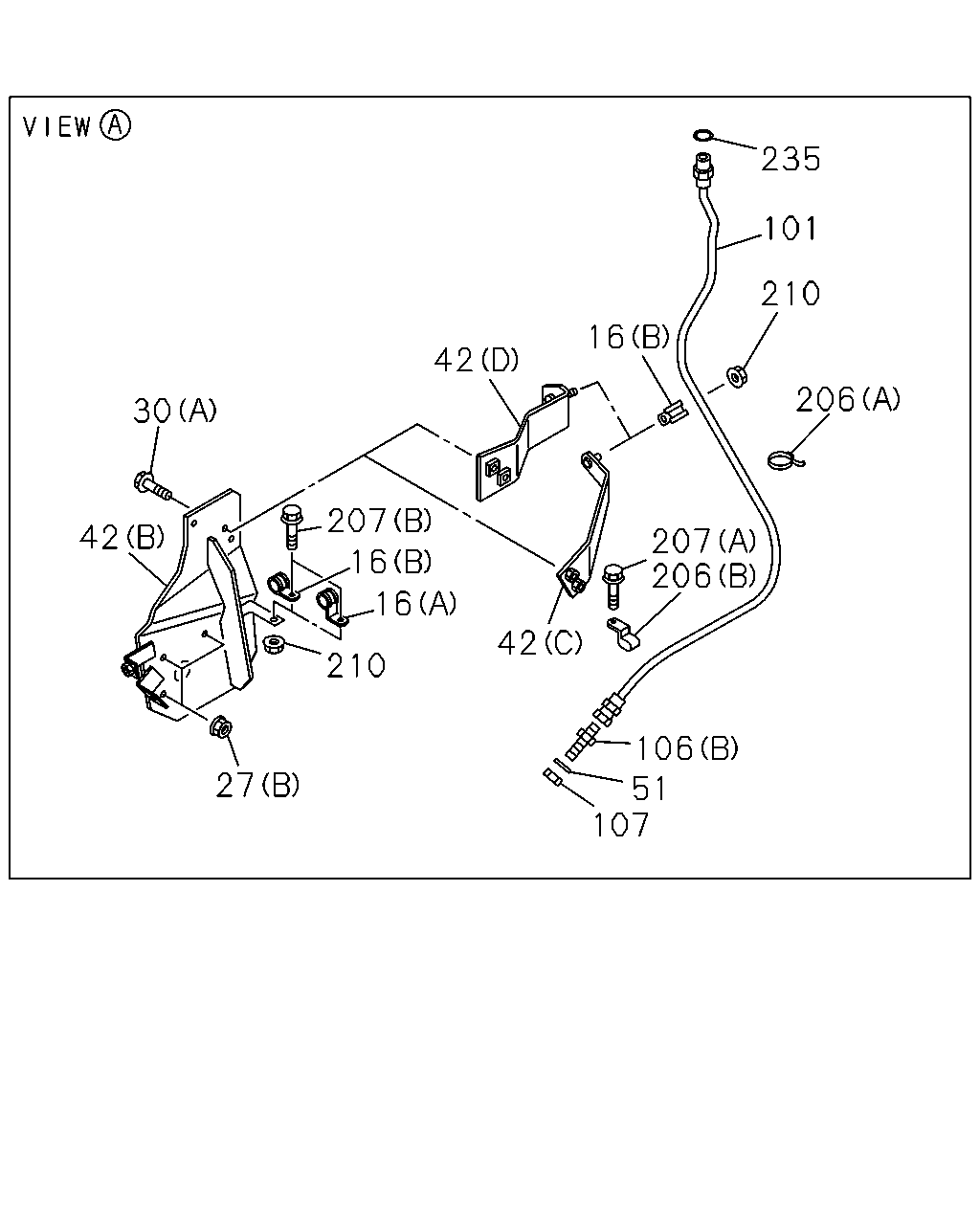

çizim 161469
235 101 210 16 42 206 30 207 42 207 206 16 16 42 210 106 51 107 27
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
(A) ID=18 L=28 H=30 		1-09701-110-0 01 1 0802-1201
16 CLIP; FLEX HOSE
(B) ID=16 L=28 		1-09700-872-0 02 1 0801-0801
16 CLIP; FLEX HOSE
(B) ID=16 L=28 		1-09700-872-0 01 1 0802-1201
16 CLIP; FLEX HOSE
(B) ID=16 L=28 		1-09700-872-0 03 1 1202-
27 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0801-0805
27 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0806-
27 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 03 1 0801-
30 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0801-
30 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0801-
30 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0801-
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47476-912-1 01 1 0801-
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-98091-266-1 01 1 0801-1402
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-98255-490-0 01 1 1403-
42 BRACKET; FLEX HOSE,CLU CONT
(C) 		8-98091-280-1 01 1 0801-1201
42 BRACKET; FLEX HOSE,CLU CONT
(D) 		8-98179-878-0 01 1 1202-
51 WASHER; LK
ID=14.2 		0-91510-514-0 01 1 0801-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE 8-98103-346-1 01 1 0801-1201
101 HOSE; FLEX,OIL PIPE TO OIL PIPE 8-98180-779-0 01 1 1202-
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 0801-0805
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 0806-
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 0806-
106 UNION; OIL PIPE
(B) 		1-09654-191-1 01 1 0801-
107 NUT; UNION,OIL PIPE
M14 		0-91111-514-0 01 1 0801-
206 CLIP; TUBE
(A) L=350 		1-09707-183-0 01 1 0801-
206 CLIP; TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 01 1 0801-
207 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0801-
207 BOLT; CLIP
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0801-
210 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0801-1201
210 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1202-
210 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0801-
235 GASKET; FLEX HOSE
ID=10.2 OD=16.0 		9-09571-410-0 01 1 0801-
