Isuzu WW
▶
TRUCKS
▶
FXM
▶
11144 - FXM EXC.EURO5
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-41 - FUEL PIPING; CHASSIS
▶
1-41 — FUEL PIPING; CHASSIS
(#57696) — 22 parça
◀

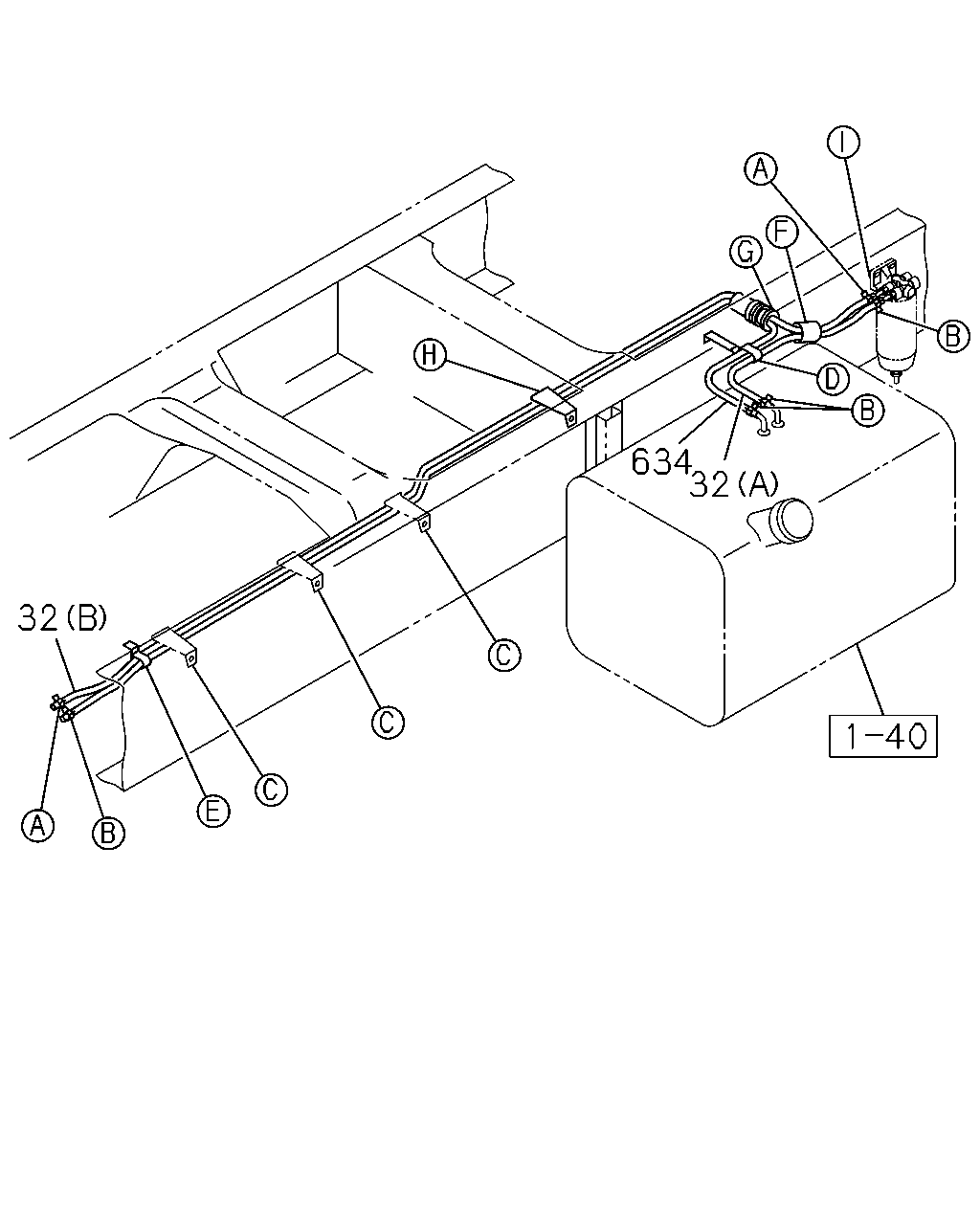

[141A] PIPING (3 parça)

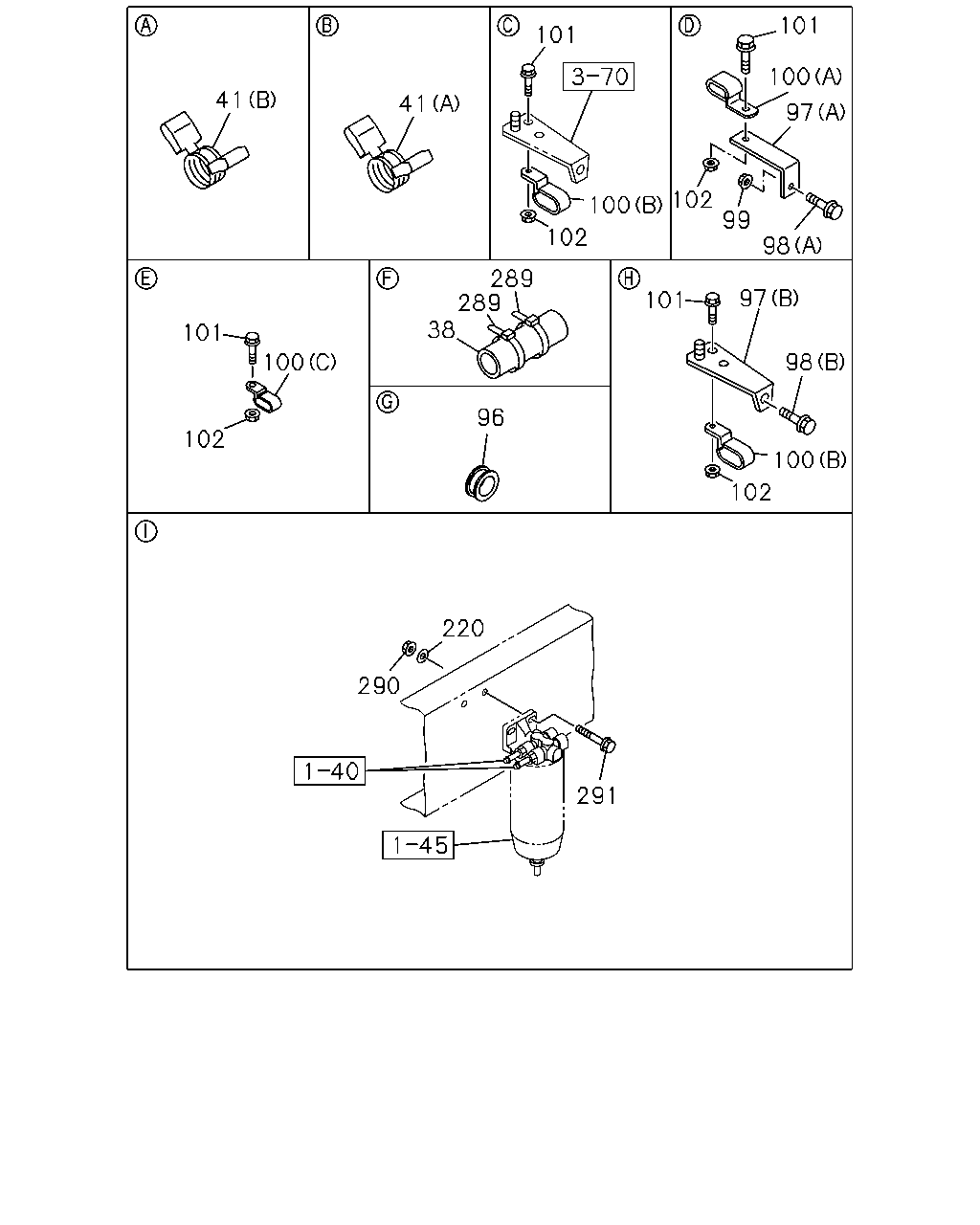

[141A] FUEL SEDIMENTER FIXING AND OTHER PARTS (19 parça)
▶
634
32
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
PIPE; DELIVERY,FUEL TANK
(A) L=900 SERVICED BY L=3000
0-01260-300-0
01
1
0801-
32
PIPE; DELIVERY,FUEL TANK
(B) L=2400 SERVICED BY L=3000
0-01262-300-0
01
1
0801-
634
HOSE; RUBBER RETURN
L=1800 SERVICED BY L=3000
0-01260-300-0
01
1
0801-
101
101
100
41
41
97
102
100
99
102
98
289
289
38
97
101
101
98
100
96
102
100
102
220
290
291
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
38
SLEEVE; RUBBER,RUBBER HOSE
L=150 SERVICED BY L=1300
1-09360-677-1
02
1
0801-
41
CLIP; FUEL PIPE,FUEL TANK
(A) ID=14
1-09704-102-0
04
1
0801-
41
CLIP; FUEL PIPE,FUEL TANK
(B) ID=19
8-94238-569-0
02
1
0801-
96
GROMMET; PIPE,FUEL TANK
ID=32 OD=40 T=18
1-09891-003-0
01
1
0801-
97
BRACKET; CLIP
(A)
1-47475-927-0
01
1
0801-1010
97
BRACKET; CLIP
(A) L=68
1-47475-525-0
01
1
1011-
97
BRACKET; CLIP
(B)
8-97609-096-0
01
1
0801-
98
BOLT; BRKT,FUEL PIPE
(A) M8X25 FLANGE
0-28650-825-0
01
1
0801-
98
BOLT; BRKT,FUEL PIPE
(B) M8X30 FLANGE
0-28650-830-0
01
1
0801-
99
NUT; BRKT,CLIP,FUEL TANK
M8 FLANGE
0-91180-108-0
01
1
0801-
100
CLIP; FUEL PIPE
(A) ID=14X29 H=15 L=20
1-09700-744-0
01
1
0801-
100
CLIP; FUEL PIPE
(B) ID=19X32 H=17.5 L=50.5
1-09701-320-0
04
1
0801-
100
CLIP; FUEL PIPE
(C) ID=19X32 H=17.5 L=22.5
1-09701-315-0
01
1
0801-
101
BOLT; CLIP,FUEL PIPE
M8X20 FLANGE
0-28650-820-0
05
1
0801-
102
NUT; CLIP,FUEL PIPE
M8 FLANGE
0-91180-108-0
06
1
0801-
220
WASHER; PL
ID=10.5 OD=26
0-91614-710-0
02
1
0801-
289
CLIP; BAND,HOSE
L=250
5-09707-030-1
04
1
0801-1302
290
NUT; FILTER TO BRKT
M10 FLANGE
0-91180-210-0
02
1
0801-
291
BOLT; FILER TO BRKT
M10X60 FLANGE
0-28051-060-0
02
1
0801-
