Isuzu WW
▶
TRUCKS
▶
FXM
▶
11144 - FXM EXC.EURO5
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶
0-28 — VENTILATION SYSTEM
(#57669) — 31 parça
◀

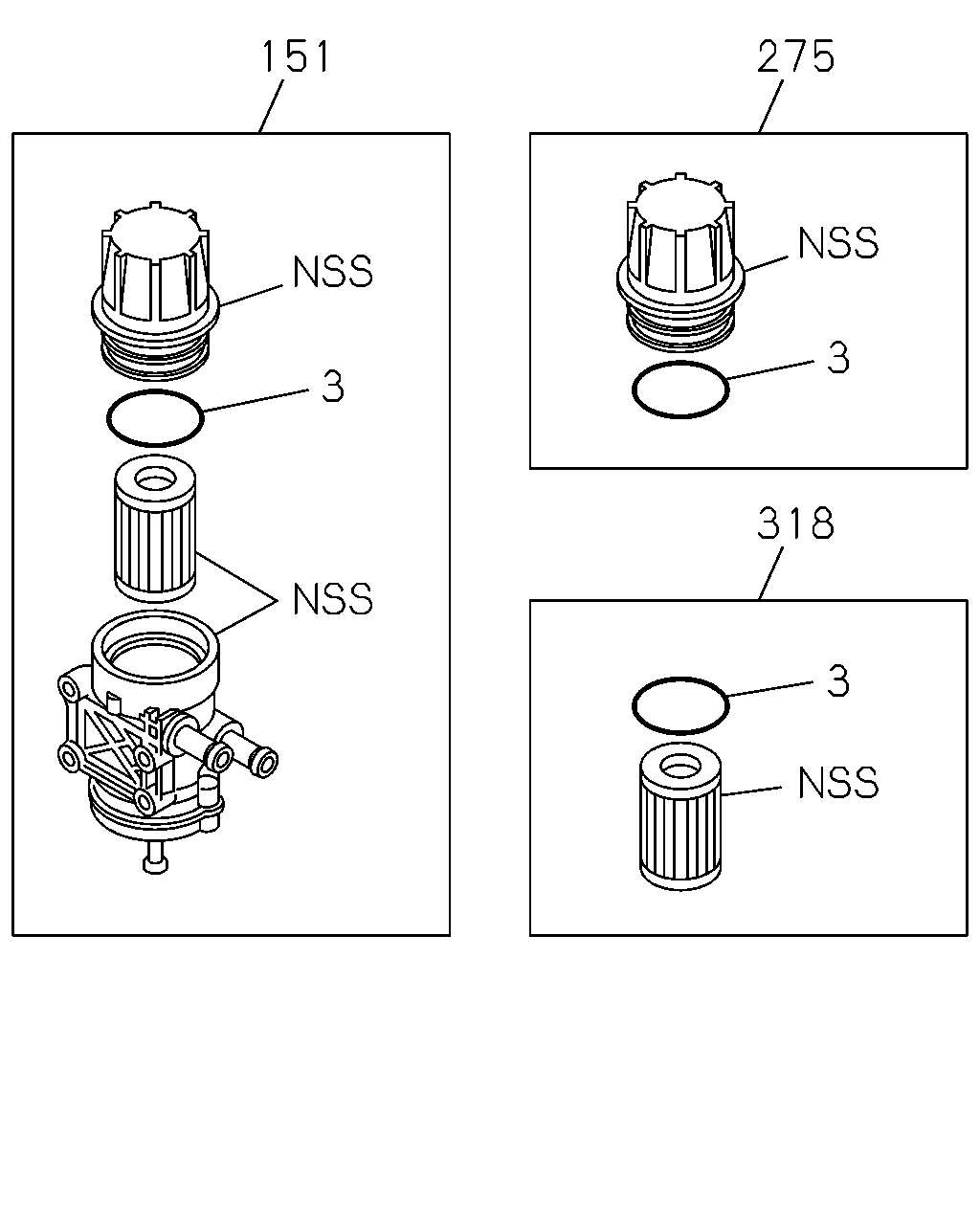

[028A] ELEMENT KIT;OIL SEPARATOR (4 parça)

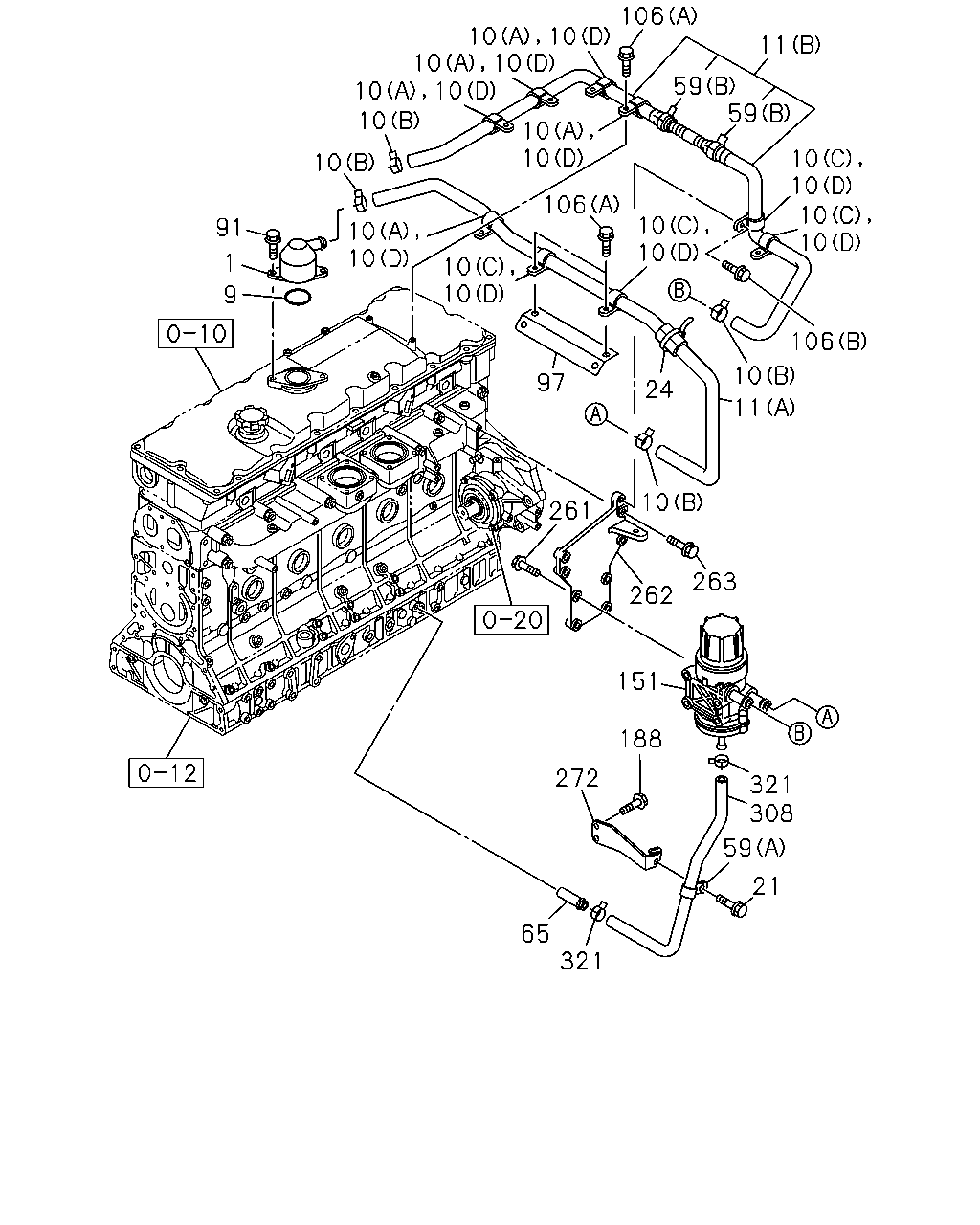

[028A] AIR BREATHER AND OIL SEPARATOR (27 parça)
▶
151
275
3
3
318
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
GASKET; BODY TO CAP
8-97385-921-0
01
1
0801-
151
SEPARATOR; OIL,PCV
1-11740-275-0
01
1
0801-
275
CAP; PCV
8-97385-918-0
01
1
0801-
318
ELEMENT KIT; PCV
8-97385-919-0
01
1
0801-
10
10
10
10
10
10
10
10
10
10
10
106
10
10
106
10
10
10
10
10
10
10
106
10
10
11
1
11
9
91
97
24
261
262
263
151
188
272
65
321
321
308
59
21
59
59
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BREATHER; AIR
1-11740-181-1
01
1
0801-
9
GASKET; AIR BREATHER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6
1-09623-565-0
01
1
0801-
10
CLIP; AIR BREATHER
(C) ID=31 L=30
1-09700-969-0
04
1
0801-1309
10
CLIP; AIR BREATHER
(D) ID=29 L=30
8-98225-679-0
09
1
1310-
10
CLIP; AIR BREATHER
(B) ID=28.5
1-09707-150-0
04
1
0801-
10
CLIP; AIR BREATHER
(A) ID=33 L=30
8-97619-250-0
05
1
0801-1309
11
HOSE; RUBBER,AIR
(B)
8-97605-319-4
01
1
0801-1309
11
HOSE; RUBBER,AIR
(B)
8-98246-565-0
01
1
1310-
11
HOSE; RUBBER,AIR
(A)
8-97615-916-2
01
1
0801-
21
BOLT; CLIP
M10X16 FLANGE
0-28051-016-0
01
1
0801-
24
CLIP; RUBBER HOSE,VENTILATOR
L=250
5-09707-030-1
01
1
0801-1205
24
CLIP; RUBBER HOSE,VENTILATOR
L=250
8-98216-430-0
01
1
1206-
59
CLIP; HOSE
(A) ID=13 L=20
1-09701-138-1
01
1
0801-
59
CLIP; HOSE
(B) ID=33.6
8-94362-518-0
02
1
0801-1309
65
PIPE; BREATHER
8-94176-713-0
01
1
0801-
91
BOLT; AIR BREATHER
M10X20 FLANGE
0-28151-020-0
02
1
0801-
97
BRACKET; HOSE
8-97615-917-0
01
1
0801-
106
BOLT; DRAIN PIPE
(A) M8X16 FLANGE
0-28050-816-0
07
1
0801-
106
BOLT; DRAIN PIPE
(B) M8X35 FLANGE
0-28650-835-0
02
1
0801-
151
SEPARATOR; OIL,PCV
1-11740-275-0
01
1
0801-
188
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
02
1
0801-
261
BOLT; SEPARETOR
M8X30 FLANGE
0-28050-830-0
04
1
0801-
262
BRACKET; OIL SEPARETOR
8-97605-196-0
01
1
0801-
263
BOLT; BRKT,OIL SEPARETOR
M10X30 FLANGE
0-28151-030-0
04
1
0801-
272
BRACKET; PIPE
8-98052-308-1
01
1
0801-
308
HOSE; RUBBER,OIL SEPARATOR TO C/BLOCK
8-97606-750-0
01
1
0801-
321
CLIP; HOSE,SEPARATOR
ID=14
1-09704-102-0
02
1
0801-
