Isuzu WW
▶
TRUCKS
▶
FXM
▶
11144 - FXM EXC.EURO5
▶
0 - Engine, Emission, Engine Electrical
▶
0-14 - CAMSHAFT AND VALVE
▶
0-14 — CAMSHAFT AND VALVE
(#57663) — 48 parça
◀

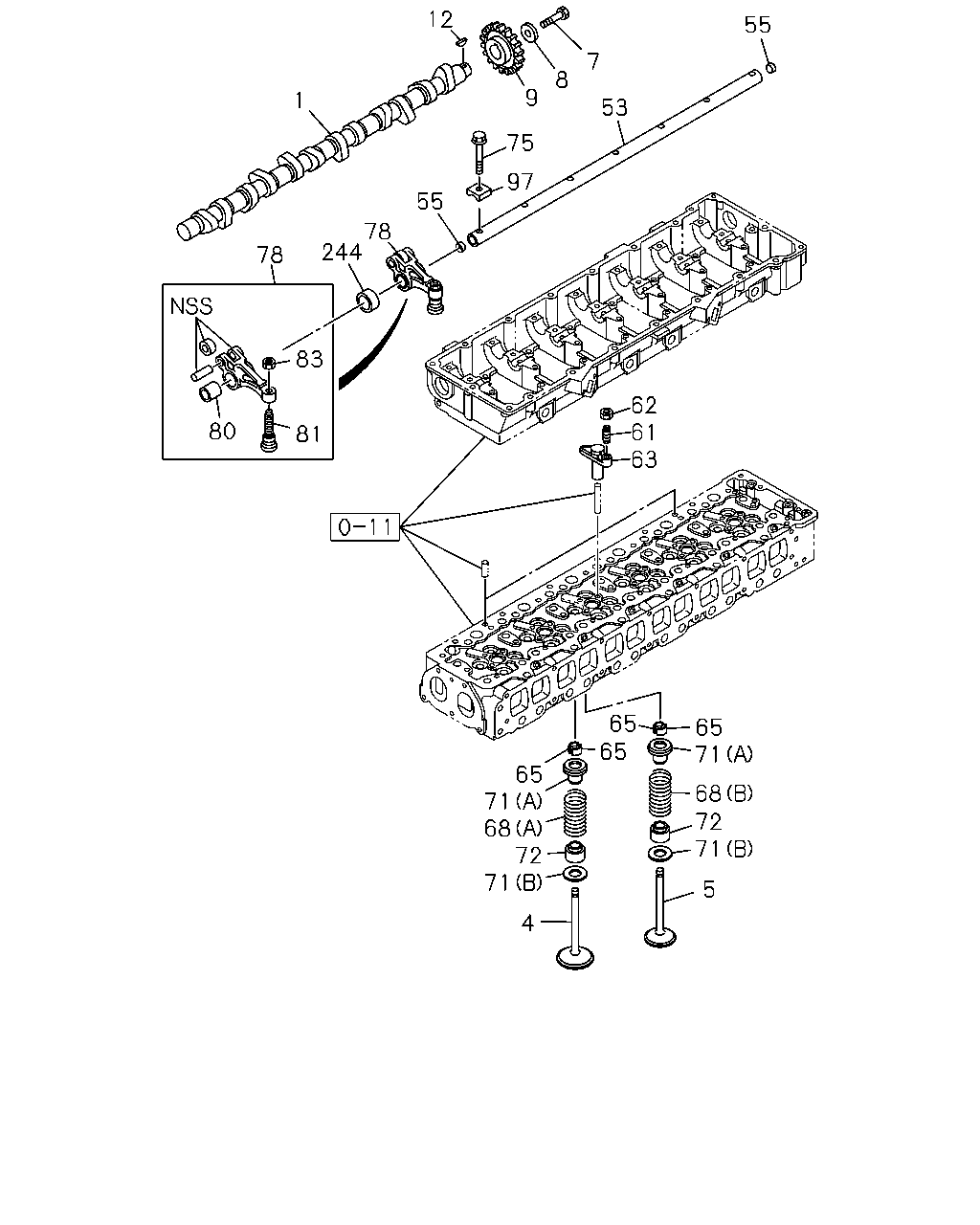

[014A] NO.1 (32 parça)
[014A] NO.2 (16 parça)
▶
12
55
7
8
9
1
53
75
97
55
78
244
78
83
62
61
63
80
81
65
65
65
71
65
71
68
72
71
68
72
71
5
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAMSHAFT
8-97603-050-0
01
1
0801-
4
VALVE; INL
8-97388-643-3
12
1
0801-
5
VALVE; EXH
8-97388-644-0
12
1
0801-
7
BOLT; CM/SHF GEAR
M14X28
9-92061-428-0
01
1
0801-
8
WASHER; CM/SHF GEAR
ID=14.5
9-09851-850-3
01
1
0801-
9
GEAR; CM/SHF
Z=36
8-98004-259-1
01
1
0801-
12
KEY; CAM GEAR SET
9-08055-516-0
01
1
0801-
53
SHAFT; ROCKER ARM
8-97603-189-1
01
1
0801-1506
53
SHAFT; ROCKER ARM
8-98298-764-0
01
1
1507-
55
PLUG; ROCKER SHAFT END
OD=18
9-11129-082-0
02
1
0801-
61
SCREW; ADJ,BRIDGE
M8X21
8-94394-803-0
12
1
0801-
62
NUT; ADJ SCREW LK BRIDGE
M8 FLANGE
9-09844-574-0
12
1
0801-
63
BRIDGE
8-98002-325-0
12
1
0801-
65
COLLAR; SPLIT
5-12565-004-0
48
1
0801-
68
SPRING; VLV
(A) INLET MARK WHITE
8-97603-260-0
12
1
0801-
68
SPRING; VLV
(B) EXHAUST
8-97603-261-0
12
1
0801-
71
SEAT; SPR
(A) UPPER OD=32.8 T=12.75
8-94390-783-2
24
1
0801-
71
SEAT; SPR
(B) LOWER ID=14.3 T=1.0
8-94391-468-0
24
1
0801-
72
SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97376-720-0
24
1
0801-
75
BOLT; BRKT
M12X70 FLANGE
0-28161-270-0
07
1
0801-
78
ARM; ROCKER
INLET
8-97603-184-1
06
1
0801-1506
78
ARM; ROCKER
INLET
8-98185-280-0
06
1
1507-
78
ARM; ROCKER
EXHAUST
8-97603-185-1
06
1
0801-1506
78
ARM; ROCKER
EXHAUST
8-98185-286-0
06
1
1507-
80
BUSHING; ROCKER ARM
8-97603-147-1
12
1
0801-1506
80
BUSHING; ROCKER ARM
8-98185-285-0
12
1
1507-
81
SCREW; ADJ,ROCKER ARM
8-97376-718-0
12
1
0801-1506
81
SCREW; ADJ,ROCKER ARM
8-98249-015-0
12
1
1507-
83
NUT; ADJ SCREW,LK
M10
0-91110-510-0
12
1
0801-
97
BRACKET; ROCKER SHAFT,RR
1-12628-094-0
07
1
0801-
244
TUBE; DISTANCE
8-97603-267-0
06
1
0801-1506
244
TUBE; DISTANCE
8-98298-767-0
06
1
1507-
114
101
111
101
107
112
101
10
107
112
111
112
107
101
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
PLATE; THRUST
ID=24.5 OD=62
1-12535-021-1
01
1
0801-
101
BOLT; THRUST COLLAR
(B) M14X16
1-09000-284-0
01
1
0801-
101
BOLT; THRUST COLLAR
(A) M12X57
1-09070-127-0
01
1
0801-
101
BOLT; THRUST COLLAR
(C) M14X80 FLANGE
1-09070-138-0
01
1
0801-
101
BOLT; THRUST COLLAR
(D) M8X14
8-97073-782-0
03
1
0801-
107
SHAFT; IDLE GEAR
(A)
1-12531-099-0
01
1
0801-
107
SHAFT; IDLE GEAR
(B)
1-12531-115-0
01
1
0801-1311
107
SHAFT; IDLE GEAR
(B)
8-98258-379-0
01
1
1312-
107
SHAFT; IDLE GEAR
(C)
8-97605-123-0
01
1
0801-
111
COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=59
1-12535-030-1
01
1
0801-
111
COLLAR; THRUST,IDLE GEAR
(B) ID=14.5 OD=46
8-97209-728-2
01
1
0801-
112
GEAR; IDLE
(B) Z=62
1-12523-347-0
01
1
0801-
112
GEAR; IDLE
(C) Z=45
8-97603-052-3
01
1
0801-1006
112
GEAR; IDLE
(C) Z=45
8-98158-634-0
01
1
1007-
112
GEAR; IDLE
(A) Z=69-27
8-98005-483-0
01
1
0801-
114
BOLT; IDLE GEAR
M12X45 FLANGE
0-28161-245-0
01
1
0801-
