9-01 — TOOLS (#57656) — 114 parça

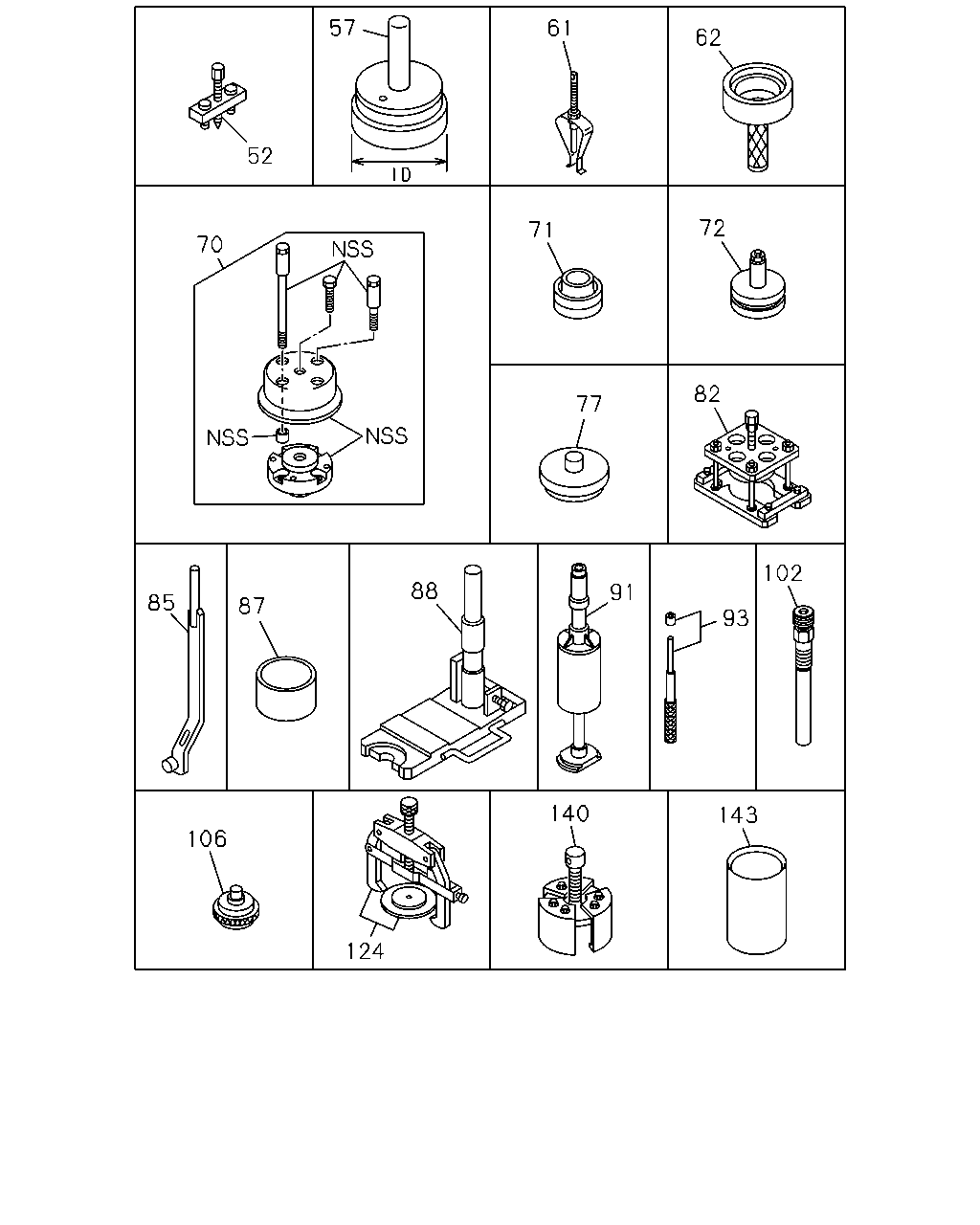

57 61 62 52 72 71 70 82 77 102 88 91 85 87 93 140 143 106 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
52	REMOVER; WATER PUMP	1-85210-047-0	01	1	0801-	●	●	●	●
57	TOOL; SETTING CRANK GEAR ID=144.5	1-85221-072-0	01	1	0801-	●	●	●	●
57	TOOL; SETTING CRANK GEAR ID=165.8	1-85221-075-0	01	1	0801-	●	●	●	●
61	PULLER ASM; PILOT BRG	1-85220-028-0	01	1	0801-	●	●	●	●
62	TOOL ASM; SETTING WEAR RING	1-85221-079-0	01	1	0801-	●	●	●	●
70	TOOL; SETTING,OIL SEAL	8-98194-607-0	01	1	1109-1302	●	●	●	●
70	TOOL; SETTING,OIL SEAL	8-98194-607-0	AR	1	1303-	●	●	●	●
71	TOOL; SETTING,OIL SEAL,FRT	1-85220-029-0	01	1	0801-1108	●	●	●	●
72	TOOL; SETTING,OIL SEAL,RR	1-85220-030-0	01	1	0801-1108	●	●	●	●
77	TOOL; SETTING,CYL LINER	1-85221-073-0	01	1	0801-	●	●	●	●
82	PULLER ASM; CR/SHF GEAR	1-85210-051-0	01	1	0801-	●	●	●	●
85	REPLACER ASM; VALVE SPR	1-85235-007-0	01	1	0801-	●	●	●	●
87	TOOL; PISTON	1-85221-082-0	01	1	0801-	●	●	●	●
88	TOOL; CONNROD BUSHING	1-85220-037-0	01	1	0801-	●	●	●	●
91	REPLACER ASM; CYL LINER	1-85231-021-0	01	1	0801-	●	●	●	●
93	SETTING KIT; VALVE GUIDE L=260	9-85231-202-0	01	1	0801-	●	●	●	●
102	ADAPTER; COMP GAGE	5-85317-001-0	01	1	0801-	●	●	●	●
106	TOOL; SETTING PILOT BRG	1-85221-080-0	01	1	0801-	●	●	●	●
124	PULLER ASM; BRG DIFF	9-85210-131-0	01	1	0801-1101			●
124	PULLER ASM; BRG DIFF	9-85210-131-0	01	1	1102-		●		●
140	REMOVER; WEAR RING	1-85210-053-0	01	1	0801-	●	●	●	●
143	GUIDE; BOOT,TIE ROD END EXC. FRONT AXLE MERITOR FG941(BFL)	1-85229-013-0	01	1	0801-		●
143	GUIDE; BOOT,TIE ROD END	1-85229-013-0	01	1	0801-				●

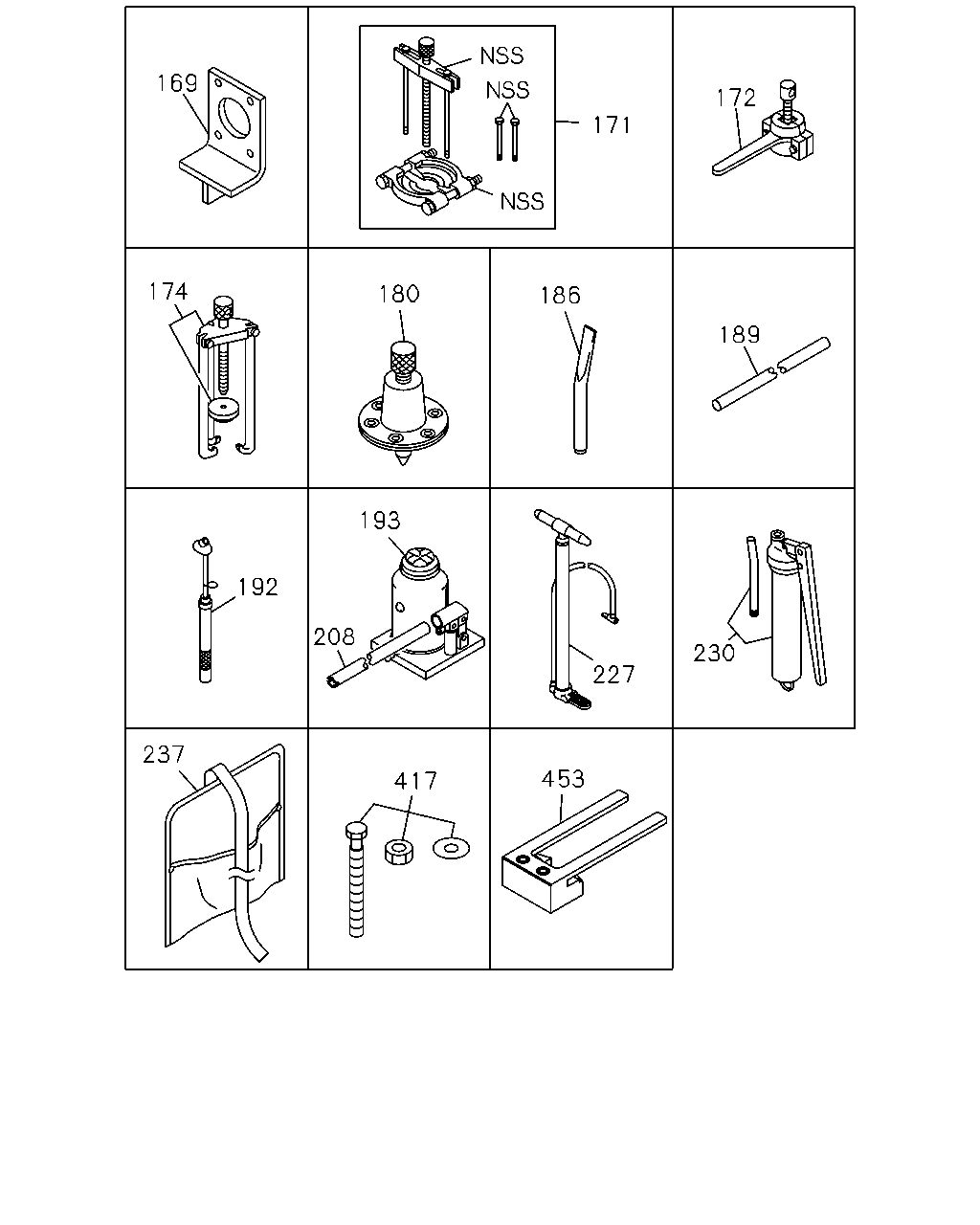

169 172 171 174 180 186 189 193 192 208 230 227 237 453 417

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
169	BRACKET; SPLINE YOKE	1-85221-317-0	01	1	0801-	●	●	●	●
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	0801-1101			●
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	1102-		●		●
172	PULLER ASM; BRG DIFF PILOT	9-85210-182-0	01	1	0801-1101			●
172	PULLER ASM; BRG DIFF PILOT	9-85210-182-0	01	1	1102-		●		●
174	PULLER ASM; MAIN CLU SHAFT	9-85210-148-0	01	1	0801-1303			●
174	PULLER ASM; MAIN CLU SHAFT	9-85210-148-0	01	1	1304-	●	●	●	●
180	PULLER; FRT & RR HUB EXC. FRONT AXLE MERITOR FG941(BFL)	1-85210-002-0	01	1	0801-1210		●
180	PULLER; FRT & RR HUB	1-85210-002-0	01	1	0801-1210				●
186	ADJUSTER; BRAKE REAR AXLE R130<B5V>	1-85269-008-0	01	1	0801-		●
186	ADJUSTER; BRAKE	1-85269-008-0	01	1	0801-				●
189	TUBE; AIR BREATHER TOOL B KIT<SL1> L=460	9-85291-414-0	01	1	0801-	●	●	●	●
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	0801-	●	●	●	●
193	JACK ASM TOOL B KIT<SL1> 15TON	1-85510-019-2	01	1	0801-	●	●	●	●
208	HANDLE; JACK TOOL B KIT<SL1> L=600	1-85515-009-0	01	1	0801-1107	●	●	●	●
208	HANDLE; JACK TOOL B KIT<SL1> L=600	8-98181-437-0	01	1	1108-	●	●	●	●
227	PUMP ASM; TIRE	9-85521-132-0	01	1	0801-	●	●	●	●
230	PUMP; GREASE TOOL B KIT<SL1>	1-85556-007-5	01	1	0801-	●	●	●	●
237	BAG; TOOL TOOL B KIT<SL1>	8-97130-902-1	01	1	0801-	●	●	●	●
417	BOLT; CHAMBER RELEASE 1/2-13 UNC L=124 4-SETS	1-85576-331-1	01	1	0808-				●
417	BOLT; CHAMBER RELEASE REAR AXLE R130<B5V> 1/2-13 UNC L=124 2-SETS	1-85576-329-1	01	1	0801-0807		●
417	BOLT; CHAMBER RELEASE 1/2-13 UNC L=124 2-SETS	1-85576-329-1	01	1	0801-0807				●
417	BOLT; CHAMBER RELEASE REAR AXLE R130<B5V> 1/2-13 UNC L=124 2-SETS	1-85576-329-1	01	1	0808-		●
453	TOOL; SETTING,COUPLING	8-97620-813-0	01	1	0801-	●	●	●	●

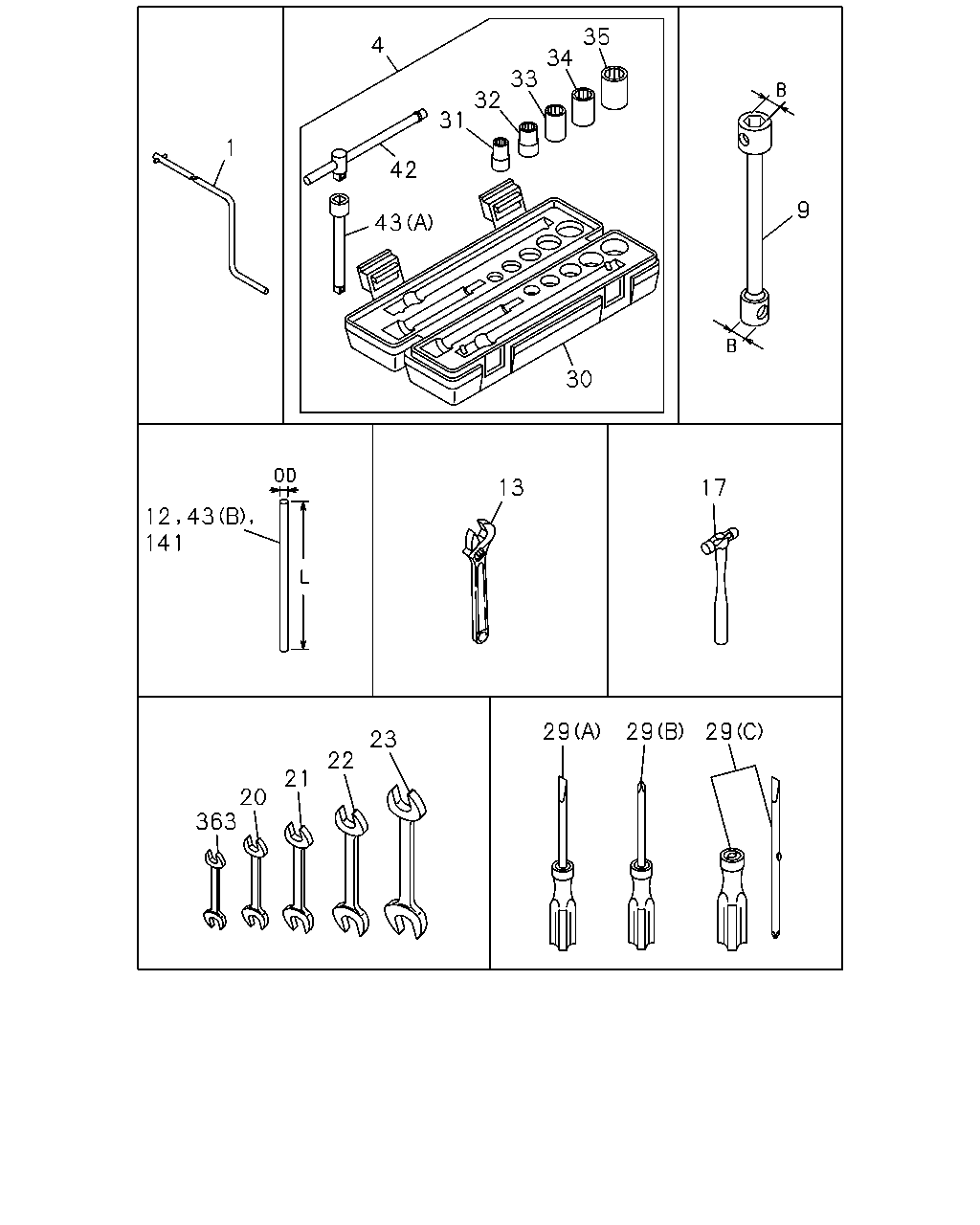

12 43 141 13 17 29 29 29 363 23 22 21 20 30 9 35 34 33 32 31 4 42 43 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME REAR<P10>	9-23110-018-0	01	1	0801-	●	●
4	WRENCH KIT; SOCKET TOOL B KIT<SL1>	1-85000-491-0	01	1	0801-	●	●	●	●
9	WRENCH; WHEEL PIN TOOL B KIT<SL1> B=33X30 L=450	1-85111-033-1	01	1	0801-	●		●
9	WRENCH; WHEEL PIN INTERNATIONAL STANDARD ISO 10STUD<B3V> TOOL B KIT<SL1> B=33X30 L=450	1-85111-033-1	01	1	0801-		●		●
9	WRENCH; WHEEL PIN TOOL B KIT<SL1> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> B=41X21 L=440	1-85113-015-1	01	1	0801-		●		●
12	HANDLE; WRENCH,WHEEL PIN TOOL B KIT<SL1> OD=25 L=480	1-85116-011-0	01	1	0801-1501	●	●	●	●
12	HANDLE; WRENCH,WHEEL PIN TOOL B KIT<SL1> OD=25 L=480	8-98257-407-0	01	1	1502-	●	●	●	●
13	WRENCH; MONKEY TOOL B KIT<SL1> L=255	1-85117-002-1	01	1	0801-0907	●	●	●	●
13	WRENCH; MONKEY TOOL B KIT<SL1> L=247	1-85117-006-0	01	1	0908-1407	●	●	●	●
13	WRENCH; MONKEY TOOL B KIT<SL1> L=255	8-98270-303-0	01	1	1408-	●	●	●	●
17	HAMMER TOOL B KIT<SL1>	9-85121-406-0	01	1	0801-	●	●	●	●
20	WRENCH; 10X12 TOOL B KIT<SL1> 10X12	0-95902-510-0	01	1	0801-	●	●	●	●
21	WRENCH; 14X17 TOOL B KIT<SL1> 14X17	0-95902-514-0	01	1	0801-	●	●	●	●
22	WRENCH; 19X22 TOOL B KIT<SL1> 19X22	0-95902-519-0	01	1	0801-	●	●	●	●
23	WRENCH; 24X27 TOOL B KIT<SL1> 24X27	0-95902-524-0	01	1	0801-	●	●	●	●
29	DRIVER; SCREW TOOL B KIT<SL1> (A) <-> L=285	1-85151-004-0	01	1	0801-	●	●	●	●
29	DRIVER; SCREW TOOL B KIT<SL1> (C) <+>,<-> L=160	8-94242-798-1	01	1	0801-	●	●	●	●
29	DRIVER; SCREW TOOL B KIT<SL1> (B) <+> L=275	9-09595-023-0	01	1	0801-	●	●	●	●
30	BOX; SOCKET WRENCH TOOL B KIT<SL1>	1-85000-492-0	01	1	0801-	●	●	●	●
31	WRENCH; 12 TOOL B KIT<SL1>	1-85000-495-0	01	1	0801-	●	●	●	●
32	WRENCH; 14 TOOL B KIT<SL1>	1-85000-496-0	01	1	0801-	●	●	●	●
33	WRENCH; 17 TOOL B KIT<SL1>	1-85000-497-0	01	1	0801-	●	●	●	●
34	WRENCH; 19 TOOL B KIT<SL1>	1-85000-498-0	01	1	0801-	●	●	●	●
35	WRENCH; 22 TOOL B KIT<SL1>	1-85000-499-0	01	1	0801-	●	●	●	●
42	HANDLE; SLIDING TOOL B KIT<SL1>	1-85000-500-0	01	1	0801-	●	●	●	●
43	BAR; EXTENSION,SOCKET WRENCH TOOL B KIT<SL1> (B) OD=25 L=480	8-98257-407-0	01	1	1502-	●	●	●	●
43	BAR; EXTENSION,SOCKET WRENCH TOOL B KIT<SL1> (A)	1-85000-501-0	01	1	0801-	●	●	●	●
141	HANDLE; WRENCH TOOL B KIT<SL1> OD=25 L=480	1-85116-011-0	01	1	0801-0910	●	●	●	●
141	HANDLE; WRENCH TOOL B KIT<SL1> OD=16 L=200	9-85111-934-0	01	1	0801-	●	●	●	●
363	WRENCH; OPEN END 8X10 TOOL B KIT<SL1> 8X10	0-95902-508-0	01	1	0801-	●	●	●	●

127 125 126 115 130 151 144 135 129 153 156 154 162 160 162 161 164 158 163

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
115	PLIER TOOL B KIT<SL1>	5-85171-002-0	01	1	0801-1410	●	●	●	●
115	PLIER TOOL B KIT<SL1>	8-98282-845-0	01	1	1411-	●	●	●	●
125	PULLER ASM; KING PIN EXC. FRONT AXLE MERITOR FG941(BFL) L=450	1-85210-009-0	01	1	0801-		●
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	0801-				●
126	WRENCH; FRT HUB BRG NUT EXC. FRONT AXLE MERITOR FG941(BFL) L=350 B=75	1-85110-002-1	01	1	0801-		●
126	WRENCH; FRT HUB BRG NUT L=350 B=75	1-85110-002-1	01	1	0801-				●
127	WRENCH ASM; HUB BRG NUT EXC. AUSTRALIA EQUIPMENT(RR3) L=400 B=116	9-85113-524-0	01	1	0801-0808		●
127	WRENCH ASM; HUB BRG NUT L=400 B=116	9-85113-524-0	01	1	0801-0808				●
127	WRENCH ASM; HUB BRG NUT EXC. AUSTRALIA EQUIPMENT(RR3) L=400 B=116	8-98119-000-1	01	1	0809-		●
127	WRENCH ASM; HUB BRG NUT L=400 B=116	8-98119-000-1	01	1	0809-				●
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	0801-	●	●	●	●
130	WRENCH; BOX TOOL B KIT<SL1> B=63	9-85111-368-0	01	1	0801-	●	●	●	●
135	COVER; ENG MTG,FRT TOOL B KIT<SL1>	9-85595-016-0	02	1	0801-	●	●	●	●
144	BASE; BOOT GUIDE,TIE ROD END EXC. FRONT AXLE MERITOR FG941(BFL)	1-85229-009-0	01	1	0801-1210		●
144	BASE; BOOT GUIDE,TIE ROD END	1-85229-009-0	01	1	0801-1210				●
151	REMOVER; OIL BRK,FRT RETURN SPR REAR AXLE R130<B5V> ID=16	1-85237-002-0	01	1	0801-		●
151	REMOVER; OIL BRK,FRT RETURN SPR ID=16	1-85237-002-0	01	1	0801-				●
153	DRIVER; WASHER,THRUST WASHER EXC. FRONT AXLE MERITOR FG941(BFL)	1-85238-002-0	01	1	0801-		●
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	0801-				●
154	SLEEPER; KING PIN EXC. FRONT AXLE MERITOR FG941(BFL)	1-85238-003-0	01	1	0801-		●
154	SLEEPER; KING PIN	1-85238-003-0	01	1	0801-				●
156	PULLER; ANCHOR PIN REAR AXLE R130<B5V>	1-85210-025-0	01	1	0801-		●
156	PULLER; ANCHOR PIN	1-85210-025-0	01	1	0801-				●
158	SETTING TOOL; RETURN SPR REAR AXLE R130<B5V>	9-85221-231-0	01	1	0801-0909		●
158	SETTING TOOL; RETURN SPR	9-85221-231-0	01	1	0801-0909				●
160	REMOVER; NEEDLE BRG EXC. FRONT AXLE MERITOR FG941(BFL) L=220	1-85238-001-0	01	1	0801-		●
160	REMOVER; NEEDLE BRG L=220	1-85238-001-0	01	1	0801-				●
161	REMOVER; TIE ROD ARM EXC. FRONT AXLE MERITOR FG941(BFL)	1-85176-001-0	01	1	0801-0909		●
161	REMOVER; TIE ROD ARM	1-85176-001-0	01	1	0801-0909				●
162	SETTING TOOL; NEEDLE BRG EXC. FRONT AXLE MERITOR FG941(BFL) (A) L=181	1-85238-008-0	01	1	0801-1210		●
162	SETTING TOOL; NEEDLE BRG (A) L=181	1-85238-008-0	01	1	0801-1210				●
162	SETTING TOOL; NEEDLE BRG EXC. FRONT AXLE MERITOR FG941(BFL) (B) L=213	1-85238-009-0	01	1	0801-1210		●
162	SETTING TOOL; NEEDLE BRG (B) L=213	1-85238-009-0	01	1	0801-1210				●
163	TOOL; SETTING REAR AXLE R130<B5V>	9-85221-231-0	01	1	0910-		●
163	TOOL; SETTING	9-85221-231-0	01	1	0910-				●
164	GUIDE; SNAP RING PILOT BRG EXC. FRONT AXLE MERITOR FG941(BFL)	1-85176-001-0	01	1	0910-1210		●
164	GUIDE; SNAP RING PILOT BRG	1-85176-001-0	01	1	0910-1210				●
