8-73 — BLOWER UNIT (#57652) — 83 parça

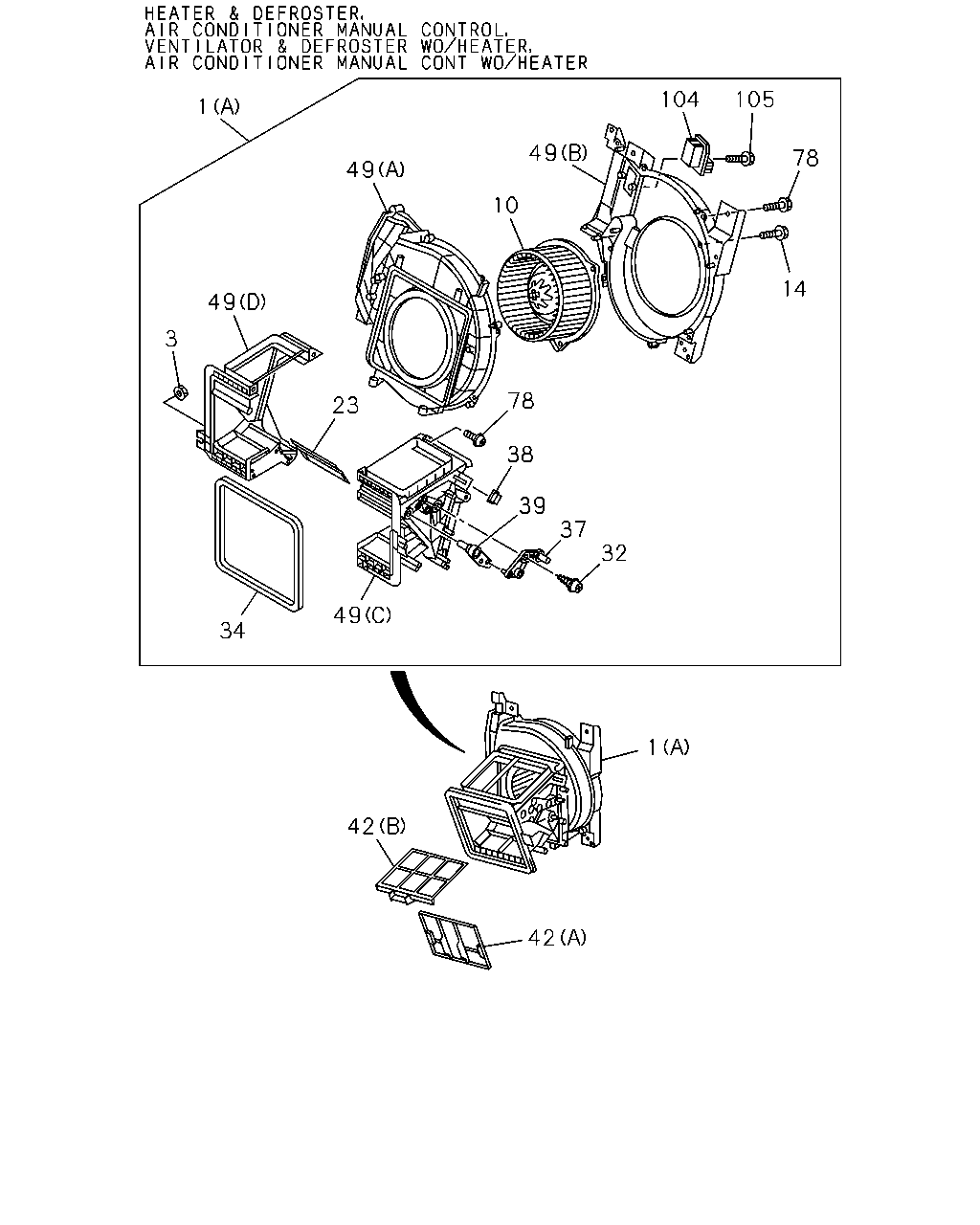

çizim 160948
104 105 1 49 78 49 10 14 49 3 78 23 38 39 37 32 49 34 1 42 42
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 BLOWER ASM
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98171-720-0 01 1 1101- ●
1 BLOWER ASM
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98041-323-1 01 1 0801-0812 ● ● ●
1 BLOWER ASM
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98041-323-1 01 1 0801-0812 ●
1 BLOWER ASM
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98041-323-1 01 1 0901-1012 ● ● ●
1 BLOWER ASM
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98041-323-1 01 1 0901-1012 ●
1 BLOWER ASM
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98183-596-0 01 1 1101-1302 ● ● ●
1 BLOWER ASM
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98183-596-0 01 1 1303- ● ● ●
1 BLOWER ASM
FULLAUTO AIR CONDITIONER(C68) (B) 		8-98041-324-1 01 1 0801-1012 ● ● ●
1 BLOWER ASM
FULLAUTO AIR CONDITIONER(C68) (B) 		8-98183-597-0 01 1 1101- ● ● ●
3 NUT; CASE
M6 		1-83539-354-0 02 1 0801- ● ● ● ●
10 MOTOR ASM; FAN,BLOWER UNIT 8-98047-767-0 01 1 0801-1012 ● ● ● ●
10 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98183-924-0 01 1 1101-1302 ● ● ●
10 MOTOR ASM; FAN,BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98183-924-0 01 1 1101-1302 ●
10 MOTOR ASM; FAN,BLOWER UNIT 8-98183-924-0 01 1 1303- ● ● ● ●
14 SCREW; COVER TO CASE
M5X16 		8-98047-448-0 03 1 0801- ● ● ● ●
23 SHUTTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98171-863-0 01 1 1101- ●
23 SHUTTER; BLOWER UNIT 8-98047-437-0 01 1 0801-1012 ● ● ● ●
23 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-437-0 01 1 1101-1302 ● ● ●
23 SHUTTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98047-437-0 01 1 1303- ● ● ●
32 SCREW; LEVER
M4X16 		8-98047-416-0 01 1 0801- ● ● ● ●
34 LINING; BLOWER UNIT 8-98096-453-0 01 1 0801- ● ● ● ●
37 LEVER; MODE LEVER 8-98047-436-0 01 1 0801- ● ● ● ●
38 CLIP; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-417-0 01 1 0801-0812 ● ● ●
38 CLIP; BLOWER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-417-0 01 1 0801-0812 ●
38 CLIP; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-417-0 01 1 0901-1302 ● ● ●
38 CLIP; BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-417-0 01 1 0901-1302 ●
38 CLIP; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-417-0 01 1 1303- ● ● ●
38 CLIP; BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-417-0 01 1 1303- ●
39 LEVER; SHUTTER,BLOWER UNIT 8-98047-435-0 01 1 0801- ● ● ● ●
42 FILTER; BLOWER UNIT
(B) 		8-98025-006-1 01 1 0801- ● ● ● ●
42 FILTER; BLOWER UNIT
(A) 		8-98041-327-0 01 1 0801- ● ● ● ●
49 CASE; BLOWER UNIT
(B) 		8-98047-440-0 01 1 0801- ● ● ● ●
49 CASE; BLOWER UNIT
(A) 		8-98047-441-0 01 1 0801- ● ● ● ●
49 CASE; BLOWER UNIT
(D) 		8-98077-413-0 01 1 0801- ● ● ● ●
49 CASE; BLOWER UNIT
(C) 		8-98077-414-0 01 1 0801- ● ● ● ●
78 SCREW; CASE TO CASE
M4X16 TAPPING 		8-97957-708-0 15 1 0801- ● ● ● ●
104 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98074-113-0 01 1 0801-0812 ● ● ●
104 RESISTOR; BLOWER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98074-113-0 01 1 0801-0812 ●
104 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98074-113-0 01 1 0901-1302 ● ● ●
104 RESISTOR; BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98074-113-0 01 1 0901-1302 ●
104 RESISTOR; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98074-113-0 01 1 1303- ● ● ●
104 RESISTOR; BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98074-113-0 01 1 1303- ●
105 SCREW; RESISTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING 		8-97957-708-0 02 1 0801-0812 ● ● ●
105 SCREW; RESISTOR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING 		8-97957-708-0 02 1 0801-0812 ●
105 SCREW; RESISTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING 		8-97957-708-0 02 1 0901-1302 ● ● ●
105 SCREW; RESISTOR
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING 		8-97957-708-0 02 1 0901-1302 ●
105 SCREW; RESISTOR
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING 		8-97957-708-0 02 1 1303- ● ● ●
105 SCREW; RESISTOR
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING 		8-97957-708-0 02 1 1303- ●

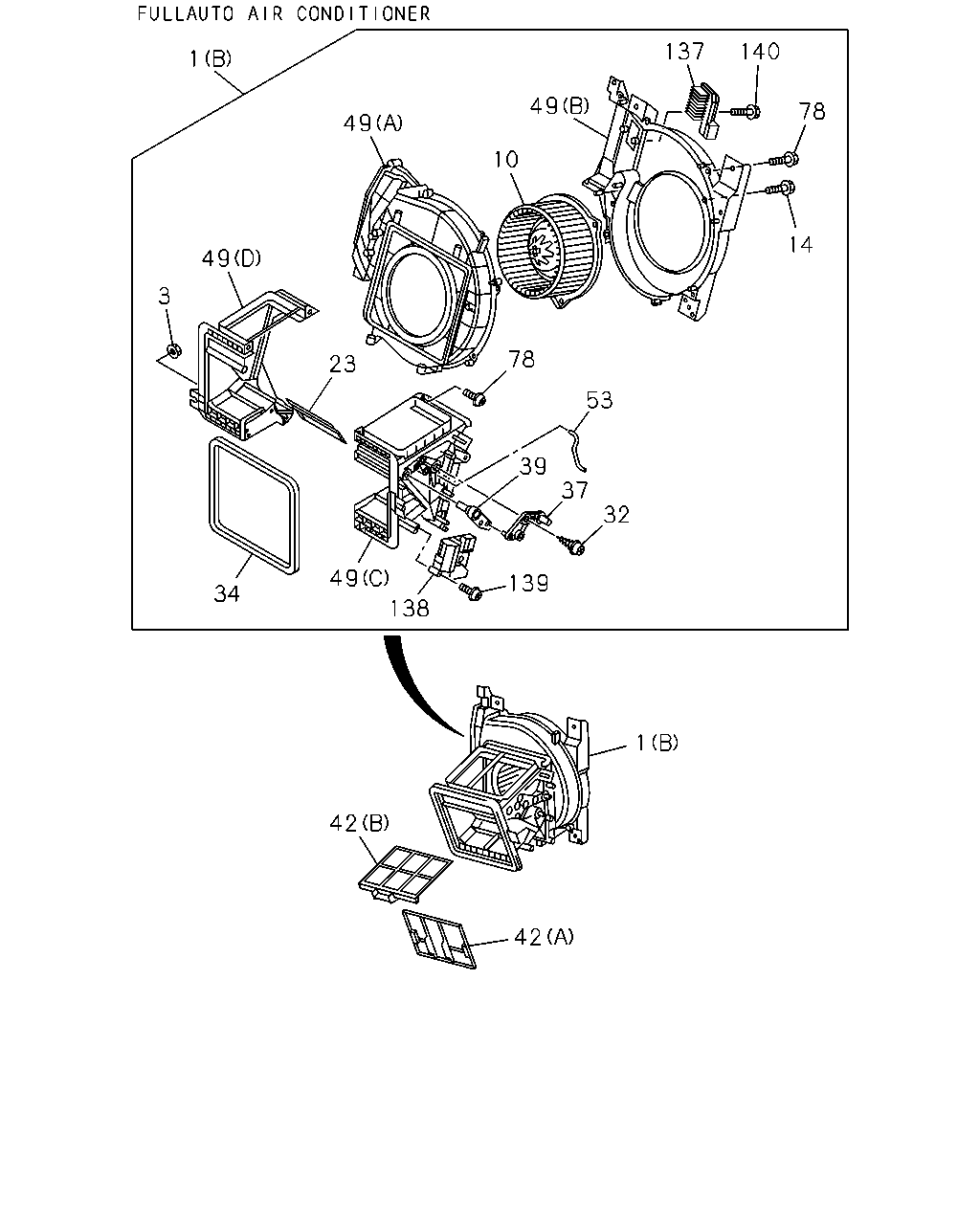

çizim 160953
137 140 1 49 78 49 10 14 49 3 78 23 53 39 37 32 49 139 34 138 1 42 42
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 BLOWER ASM
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98171-720-0 01 1 1101- ●
1 BLOWER ASM
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98041-323-1 01 1 0801-0812 ● ● ●
1 BLOWER ASM
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98041-323-1 01 1 0801-0812 ●
1 BLOWER ASM
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98041-323-1 01 1 0901-1012 ● ● ●
1 BLOWER ASM
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98041-323-1 01 1 0901-1012 ●
1 BLOWER ASM
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98183-596-0 01 1 1101-1302 ● ● ●
1 BLOWER ASM
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98183-596-0 01 1 1303- ● ● ●
1 BLOWER ASM
FULLAUTO AIR CONDITIONER(C68) (B) 		8-98041-324-1 01 1 0801-1012 ● ● ●
1 BLOWER ASM
FULLAUTO AIR CONDITIONER(C68) (B) 		8-98183-597-0 01 1 1101- ● ● ●
3 NUT; CASE
M6 		1-83539-354-0 02 1 0801- ● ● ● ●
10 MOTOR ASM; FAN,BLOWER UNIT 8-98047-767-0 01 1 0801-1012 ● ● ● ●
10 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98183-924-0 01 1 1101-1302 ● ● ●
10 MOTOR ASM; FAN,BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98183-924-0 01 1 1101-1302 ●
10 MOTOR ASM; FAN,BLOWER UNIT 8-98183-924-0 01 1 1303- ● ● ● ●
14 SCREW; COVER TO CASE
M5X16 		8-98047-448-0 03 1 0801- ● ● ● ●
23 SHUTTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98171-863-0 01 1 1101- ●
23 SHUTTER; BLOWER UNIT 8-98047-437-0 01 1 0801-1012 ● ● ● ●
23 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-437-0 01 1 1101-1302 ● ● ●
23 SHUTTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98047-437-0 01 1 1303- ● ● ●
32 SCREW; LEVER
M4X16 		8-98047-416-0 01 1 0801- ● ● ● ●
34 LINING; BLOWER UNIT 8-98096-453-0 01 1 0801- ● ● ● ●
37 LEVER; MODE LEVER 8-98047-436-0 01 1 0801- ● ● ● ●
39 LEVER; SHUTTER,BLOWER UNIT 8-98047-435-0 01 1 0801- ● ● ● ●
42 FILTER; BLOWER UNIT
(B) 		8-98025-006-1 01 1 0801- ● ● ● ●
42 FILTER; BLOWER UNIT
(A) 		8-98041-327-0 01 1 0801- ● ● ● ●
49 CASE; BLOWER UNIT
(B) 		8-98047-440-0 01 1 0801- ● ● ● ●
49 CASE; BLOWER UNIT
(A) 		8-98047-441-0 01 1 0801- ● ● ● ●
49 CASE; BLOWER UNIT
(D) 		8-98077-413-0 01 1 0801- ● ● ● ●
49 CASE; BLOWER UNIT
(C) 		8-98077-414-0 01 1 0801- ● ● ● ●
53 ROD; ACTUATOR,BLOWER UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-98047-456-0 01 1 0801- ● ● ●
78 SCREW; CASE TO CASE
M4X16 TAPPING 		8-97957-708-0 15 1 0801- ● ● ● ●
137 MODULE ASM; BLOWER
FULLAUTO AIR CONDITIONER(C68) 		8-98047-458-0 01 1 0801- ● ● ●
138 SERVO ASM; BLOWER
FULLAUTO AIR CONDITIONER(C68) 		8-98045-383-0 01 1 0801- ● ● ●
139 SCREW; SERVO
FULLAUTO AIR CONDITIONER(C68) M4X35 		8-98047-455-0 03 1 0801- ● ● ●
140 SCREW; MODULE
FULLAUTO AIR CONDITIONER(C68) M4X16 TAPPING 		8-97957-708-0 02 1 0801- ● ● ●
