◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11143 - FXR/GXR EXC.EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#57649) — 507 parça

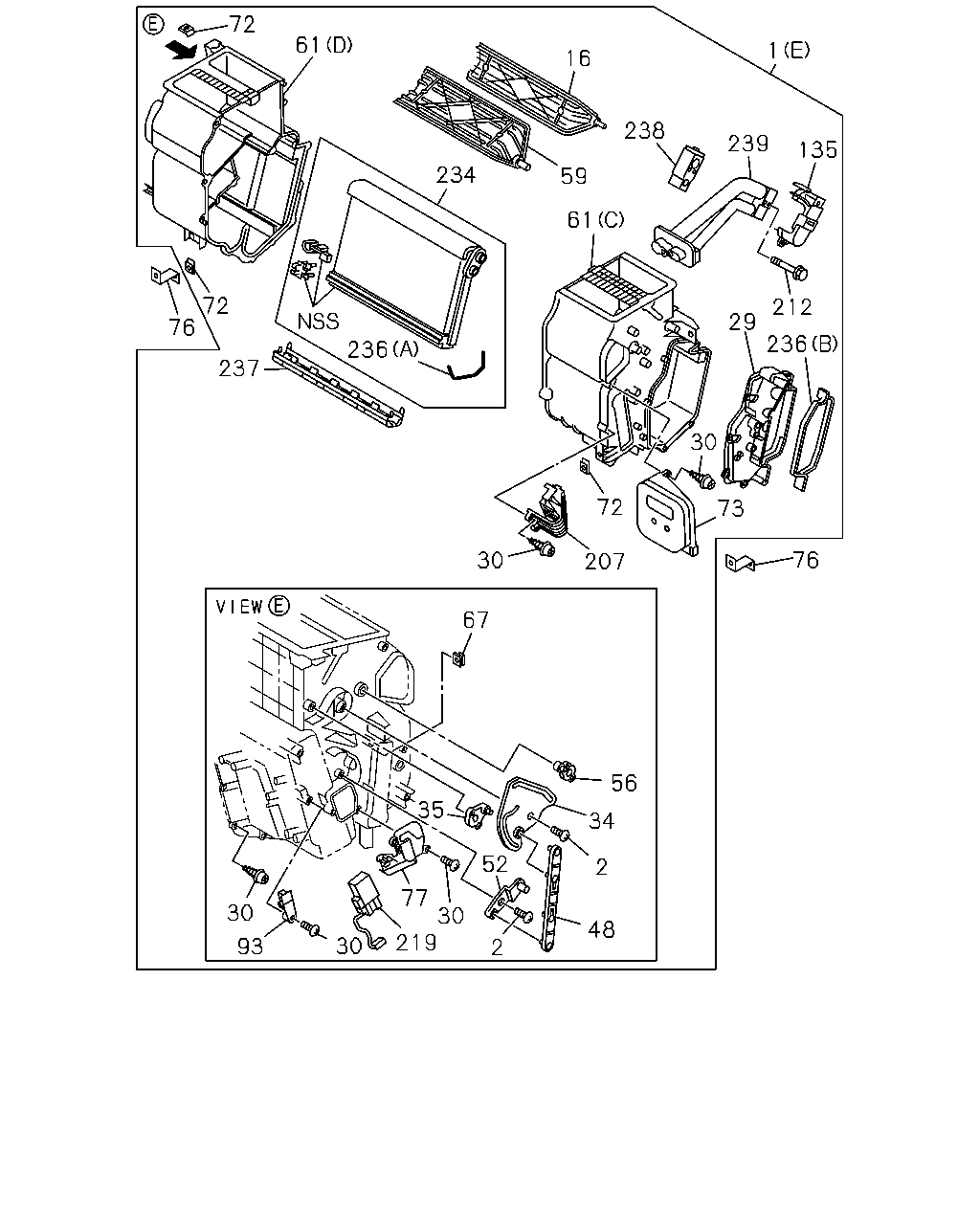

çizim 160945
72 61 1 16 238 239 135 234 59 61 72 76 212 29 236 236 237 30 72 73 76 30 207 67 56 35 34 52 2 77 30 30 219 48 30 93 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) (E) 		8-98057-980-2 01 1 0901- ●
1 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98062-756-1 01 1 0801-1302 ● ● ●
1 HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98021-972-4 01 1 0801- ● ● ●
1 HEATER UNIT
FULLAUTO AIR CONDITIONER(C68) (C) 		8-98021-973-4 01 1 0801- ● ● ●
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98062-757-1 01 1 0801-1301 ●
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98214-400-1 01 1 1302- ●
2 SCREW; LEVER
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) M4X16 		8-98047-416-0 02 1 0901- ●
2 SCREW; LEVER
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-98047-416-0 03 1 0801- ● ● ●
16 SHUTTER; HTR UNIT,CENTER UPR 8-98047-387-0 01 1 0801- ● ● ● ●
29 COVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98231-367-0 01 1 1302- ●
29 COVER; HTR UNIT 8-98074-119-0 01 1 0801-1301 ● ● ● ●
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98074-119-0 01 1 1302-1302 ● ● ●
29 COVER; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) 		8-98074-119-0 01 1 1302-1302 ●
29 COVER; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98074-119-0 01 1 1303- ● ● ●
29 COVER; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) 		8-98074-119-0 01 1 1303- ●
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING 		8-97957-708-0 20 1 1302- ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING 		8-97957-708-0 27 1 0801-0812 ● ● ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING 		8-97957-708-0 27 1 0901- ● ● ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) M4X16 TAPPING 		8-97957-708-0 27 1 0901- ●
30 SCREW; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) M4X16 TAPPING 		8-97957-708-0 31 1 0801- ● ● ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING 		8-97957-708-0 25 1 0801-1301 ● ● ●
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING 		8-97957-708-0 25 1 0801-1301 ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING 		8-97957-708-0 25 1 1302-1302 ● ● ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-389-0 01 1 0801-0812 ● ● ●
34 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-389-0 01 1 0801-0812 ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-389-0 01 1 0901-1302 ● ● ●
34 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-389-0 01 1 0901-1302 ●
34 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-389-0 01 1 1303- ● ● ●
34 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-389-0 01 1 1303- ●
34 LEVER; SHUTTER,HTR UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-98047-467-0 01 1 0801- ● ● ●
35 LEVER; SHUTTER,HTR UNIT 8-98047-392-0 01 1 0801- ● ● ● ●
48 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-391-0 01 1 0801-0812 ● ● ●
48 LEVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-391-0 01 1 0801-0812 ●
48 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-391-0 01 1 0901-1302 ● ● ●
48 LEVER; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-391-0 01 1 0901-1302 ●
48 LEVER; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-391-0 01 1 1303- ● ● ●
48 LEVER; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-391-0 01 1 1303- ●
48 LEVER; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-98047-468-0 01 1 0801- ● ● ●
52 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-390-0 01 1 0801-0812 ● ● ●
52 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-390-0 01 1 0801-0812 ●
52 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-390-0 01 1 0901-1302 ● ● ●
52 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-390-0 01 1 0901-1302 ●
52 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-390-0 01 1 1303- ● ● ●
52 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-390-0 01 1 1303- ●
56 LEVER; SHUTTER,HTR UNIT 8-98047-393-0 01 1 0801- ● ● ● ●
59 SHUTTER; HTR UNIT,SIDE 8-98047-386-0 01 1 0801- ● ● ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-375-0 01 1 0801-1302 ● ● ●
61 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-375-0 01 1 1303- ● ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98047-376-0 01 1 0801-1302 ● ● ●
61 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (A) 		8-98047-376-0 01 1 1303- ● ● ●
61 CASE; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (B) 		8-98047-465-0 01 1 0801- ● ● ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98077-422-0 01 1 0801-0812 ●
61 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98077-422-0 01 1 0901- ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98077-423-0 01 1 0801-0812 ●
61 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98077-423-0 01 1 0901- ●
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-417-0 02 1 0801-1302 ● ● ●
67 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-417-0 02 1 1303- ● ● ●
67 CLIP; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-417-0 01 1 0801-0812 ●
67 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-417-0 01 1 0901- ●
72 NUT; CASE,HTR UNIT
M6 		8-98047-428-0 03 1 0801- ● ● ● ●
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) 		8-98077-420-0 01 1 0901- ●
73 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98072-542-0 01 1 0801-1302 ● ● ●
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98074-118-0 01 1 0801- ● ● ●
73 PLATE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98077-419-0 01 1 0801-1301 ●
76 BRACKET; HTR UNIT 8-98009-742-1 02 1 0801- ● ● ● ●
77 COVER; HTR CASE 8-98047-414-0 01 1 0801- ● ● ● ●
93 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-427-0 01 1 0801-0812 ● ● ●
93 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-427-0 01 1 0901- ● ● ●
93 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) 		8-98047-427-0 01 1 0901- ●
135 COVER; HTR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98047-384-0 01 1 0801-0812 ● ● ●
135 COVER; HTR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98047-384-0 01 1 0901- ● ● ●
135 COVER; HTR
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) 		8-98047-384-0 01 1 0901- ●
207 CLAMP; HTR UNIT 8-98047-379-0 01 1 0801-1301 ● ● ● ●
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-379-0 01 1 1302-1302 ● ● ●
207 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) 		8-98047-379-0 01 1 1302-1302 ●
207 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98047-379-0 01 1 1303- ● ● ●
207 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) 		8-98047-379-0 01 1 1303- ●
212 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) M5X61 		8-98047-415-0 02 1 0801-0812 ● ● ●
212 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) M5X61 		8-98047-415-0 02 1 0901- ● ● ●
212 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) M5X61 		8-98047-415-0 02 1 0901- ●
219 AMPLIFIER; HEATER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) 		8-98064-733-0 01 1 0901- ●
219 AMPLIFIER; HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-429-0 01 1 0801- ● ● ●
234 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98074-116-1 01 1 0801-0812 ● ● ●
234 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98074-116-1 01 1 0901- ● ● ●
234 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) 		8-98074-116-1 01 1 0901- ●
236 GASKET; HEATER
(A) 		8-98047-420-0 01 1 0801- ● ● ● ●
236 GASKET; HEATER
(B) 		8-98047-421-0 01 1 0801- ● ● ● ●
237 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98047-382-0 01 1 0801-0812 ● ● ●
237 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98047-382-0 01 1 0901- ● ● ●
237 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) 		8-98047-382-0 01 1 0901- ●
238 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98047-383-0 01 1 0801-0812 ● ● ●
238 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98047-383-0 01 1 0901- ● ● ●
238 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) 		8-98047-383-0 01 1 0901- ●
239 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98074-115-0 01 1 0801-0812 ● ● ●
239 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98074-115-0 01 1 0901- ● ● ●
239 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) 		8-98074-115-0 01 1 0901- ●

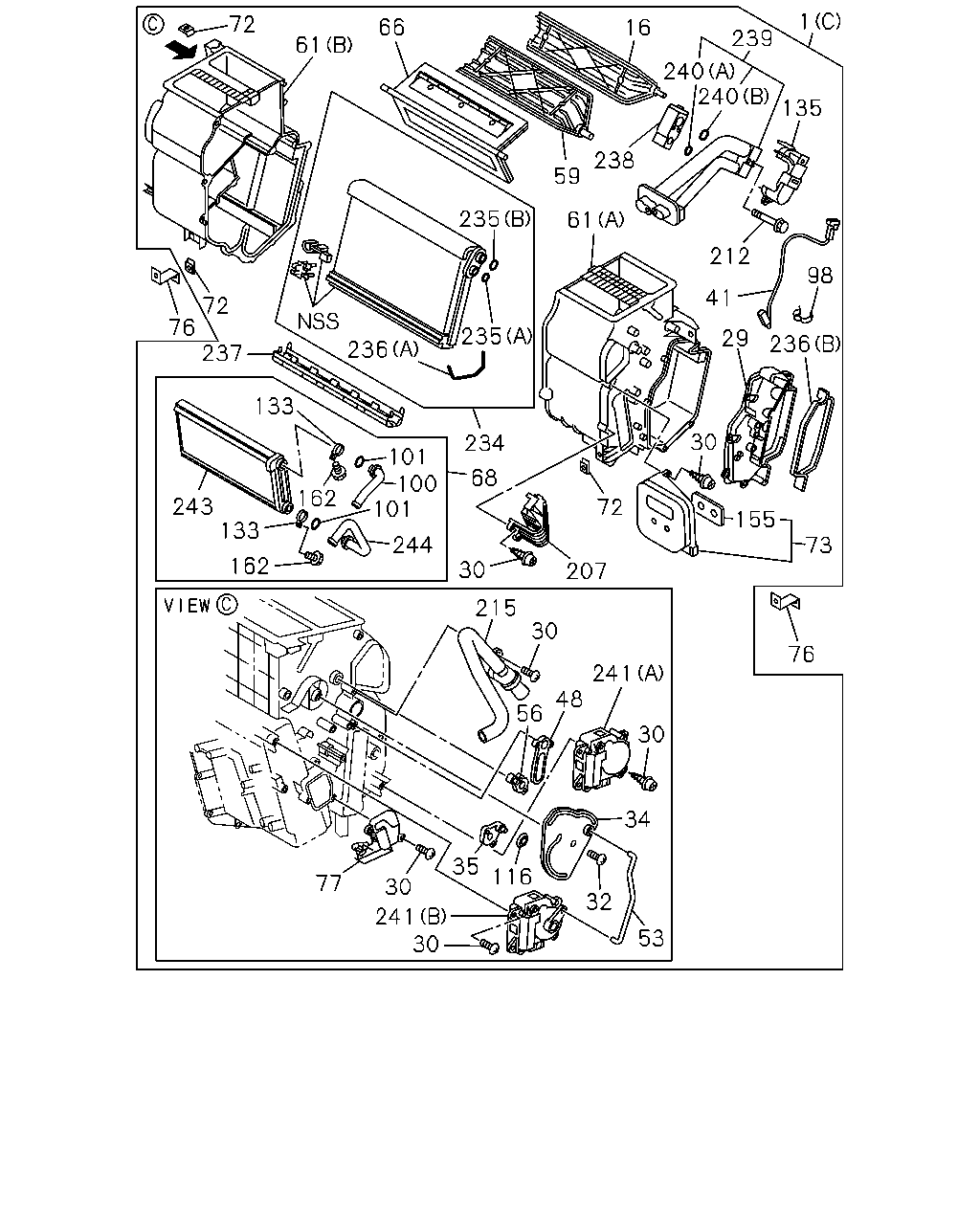

çizim 160949
1 72 66 16 239 61 240 240 135 238 59 235 61 212 98 41 72 76 237 235 29 236 236 133 30 234 100 101 68 162 243 133 72 155 244 73 162 30 207 215 30 76 241 48 56 30 34 35 116 77 30 32 241 30 53 101
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) (E) 		8-98057-980-2 01 1 0901- ●
1 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98062-756-1 01 1 0801-1302 ● ● ●
1 HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98021-972-4 01 1 0801- ● ● ●
1 HEATER UNIT
FULLAUTO AIR CONDITIONER(C68) (C) 		8-98021-973-4 01 1 0801- ● ● ●
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98062-757-1 01 1 0801-1301 ●
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98214-400-1 01 1 1302- ●
16 SHUTTER; HTR UNIT,CENTER UPR 8-98047-387-0 01 1 0801- ● ● ● ●
29 COVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98231-367-0 01 1 1302- ●
29 COVER; HTR UNIT 8-98074-119-0 01 1 0801-1301 ● ● ● ●
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98074-119-0 01 1 1302-1302 ● ● ●
29 COVER; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) 		8-98074-119-0 01 1 1302-1302 ●
29 COVER; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98074-119-0 01 1 1303- ● ● ●
29 COVER; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) 		8-98074-119-0 01 1 1303- ●
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING 		8-97957-708-0 20 1 1302- ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING 		8-97957-708-0 27 1 0801-0812 ● ● ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING 		8-97957-708-0 27 1 0901- ● ● ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) M4X16 TAPPING 		8-97957-708-0 27 1 0901- ●
30 SCREW; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) M4X16 TAPPING 		8-97957-708-0 31 1 0801- ● ● ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING 		8-97957-708-0 25 1 0801-1301 ● ● ●
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING 		8-97957-708-0 25 1 0801-1301 ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING 		8-97957-708-0 25 1 1302-1302 ● ● ●
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 		8-98047-416-0 03 1 0801-1302 ● ● ●
32 SCREW; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) M4X16 		8-98047-416-0 01 1 0801- ● ● ●
32 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-98047-416-0 02 1 0801- ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-389-0 01 1 0801-0812 ● ● ●
34 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-389-0 01 1 0801-0812 ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-389-0 01 1 0901-1302 ● ● ●
34 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-389-0 01 1 0901-1302 ●
34 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-389-0 01 1 1303- ● ● ●
34 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-389-0 01 1 1303- ●
34 LEVER; SHUTTER,HTR UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-98047-467-0 01 1 0801- ● ● ●
35 LEVER; SHUTTER,HTR UNIT 8-98047-392-0 01 1 0801- ● ● ● ●
41 THERMOSTAT; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-98047-475-0 01 1 0801- ● ● ●
48 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-391-0 01 1 0801-0812 ● ● ●
48 LEVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-391-0 01 1 0801-0812 ●
48 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-391-0 01 1 0901-1302 ● ● ●
48 LEVER; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-391-0 01 1 0901-1302 ●
48 LEVER; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-391-0 01 1 1303- ● ● ●
48 LEVER; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-391-0 01 1 1303- ●
48 LEVER; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-98047-468-0 01 1 0801- ● ● ●
53 ROD; SHUTTER LEVER
FULLAUTO AIR CONDITIONER(C68) 		8-98047-469-0 01 1 0801- ● ● ●
56 LEVER; SHUTTER,HTR UNIT 8-98047-393-0 01 1 0801- ● ● ● ●
59 SHUTTER; HTR UNIT,SIDE 8-98047-386-0 01 1 0801- ● ● ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-375-0 01 1 0801-1302 ● ● ●
61 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-375-0 01 1 1303- ● ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98047-376-0 01 1 0801-1302 ● ● ●
61 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (A) 		8-98047-376-0 01 1 1303- ● ● ●
61 CASE; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (B) 		8-98047-465-0 01 1 0801- ● ● ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98077-422-0 01 1 0801-0812 ●
61 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98077-422-0 01 1 0901- ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98077-423-0 01 1 0801-0812 ●
61 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98077-423-0 01 1 0901- ●
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-385-0 01 1 0801-1302 ● ● ●
66 SHUTTER; HTR UNIT,CENTER LWR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98047-385-0 01 1 1303- ● ● ●
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-380-0 01 1 0801-1302 ● ● ●
68 CORE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98047-380-0 01 1 1303- ● ● ●
72 NUT; CASE,HTR UNIT
M6 		8-98047-428-0 03 1 0801- ● ● ● ●
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) 		8-98077-420-0 01 1 0901- ●
73 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98072-542-0 01 1 0801-1302 ● ● ●
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98074-118-0 01 1 0801- ● ● ●
73 PLATE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98077-419-0 01 1 0801-1301 ●
76 BRACKET; HTR UNIT 8-98009-742-1 02 1 0801- ● ● ● ●
77 COVER; HTR CASE 8-98047-414-0 01 1 0801- ● ● ● ●
98 CLIP; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-98047-477-0 01 1 0801- ● ● ●
100 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98072-528-0 01 1 0801-1302 ● ● ●
100 PIPE; CORE,HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98072-528-0 01 1 1303- ● ● ●
101 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98072-531-0 02 1 0801-1302 ● ● ●
101 GASKET; CORE,HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98072-531-0 02 1 1303- ● ● ●
116 BUSHING; LEVER
FULLAUTO AIR CONDITIONER(C68) 		8-98045-897-0 01 1 0801- ● ● ●
133 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98072-530-0 02 1 0801-1302 ● ● ●
133 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98072-530-0 02 1 1303- ● ● ●
135 COVER; HTR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98047-384-0 01 1 0801-0812 ● ● ●
135 COVER; HTR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98047-384-0 01 1 0901- ● ● ●
135 COVER; HTR
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) 		8-98047-384-0 01 1 0901- ●
155 GROMMET; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98047-431-0 01 1 0801- ● ● ●
162 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98072-529-0 02 1 0801-1302 ● ● ●
162 SCREW; CLIP FIX
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98072-529-0 02 1 1303- ● ● ●
207 CLAMP; HTR UNIT 8-98047-379-0 01 1 0801-1301 ● ● ● ●
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-379-0 01 1 1302-1302 ● ● ●
207 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) 		8-98047-379-0 01 1 1302-1302 ●
207 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98047-379-0 01 1 1303- ● ● ●
207 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) 		8-98047-379-0 01 1 1303- ●
212 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) M5X61 		8-98047-415-0 02 1 0801-0812 ● ● ●
212 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) M5X61 		8-98047-415-0 02 1 0901- ● ● ●
212 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) M5X61 		8-98047-415-0 02 1 0901- ●
215 DUCT ASM; SUB
FULLAUTO AIR CONDITIONER(C68) 		8-98047-476-0 01 1 0801- ● ● ●
234 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98074-116-1 01 1 0801-0812 ● ● ●
234 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98074-116-1 01 1 0901- ● ● ●
234 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) 		8-98074-116-1 01 1 0901- ●
235 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (A) ID=11.7 		8-97095-907-0 01 1 0801- ● ● ●
235 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (B) ID=14.5 		8-97095-908-0 01 1 0801- ● ● ●
236 GASKET; HEATER
(A) 		8-98047-420-0 01 1 0801- ● ● ● ●
236 GASKET; HEATER
(B) 		8-98047-421-0 01 1 0801- ● ● ● ●
237 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98047-382-0 01 1 0801-0812 ● ● ●
237 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98047-382-0 01 1 0901- ● ● ●
237 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) 		8-98047-382-0 01 1 0901- ●
238 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98047-383-0 01 1 0801-0812 ● ● ●
238 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98047-383-0 01 1 0901- ● ● ●
238 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) 		8-98047-383-0 01 1 0901- ●
239 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98074-115-0 01 1 0801-0812 ● ● ●
239 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98074-115-0 01 1 0901- ● ● ●
239 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) 		8-98074-115-0 01 1 0901- ●
240 GASKET; HEATER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (A) ID=7.4 		8-97095-906-0 01 1 0801- ● ● ●
240 GASKET; HEATER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (B) ID=14.5 		8-97095-908-0 01 1 0801- ● ● ●
241 MOTOR ASM; SERVO
FULLAUTO AIR CONDITIONER(C68) (A) 		8-98047-473-0 01 1 0801- ● ● ●
241 MOTOR ASM; SERVO
FULLAUTO AIR CONDITIONER(C68) (B) 		8-98047-474-0 01 1 0801- ● ● ●
243 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98048-508-0 01 1 0801-1302 ● ● ●
243 CORE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98048-508-0 01 1 1303- ● ● ●
244 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98048-510-0 01 1 0801-1302 ● ● ●
244 PIPE; INLET
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98048-510-0 01 1 1303- ● ● ●

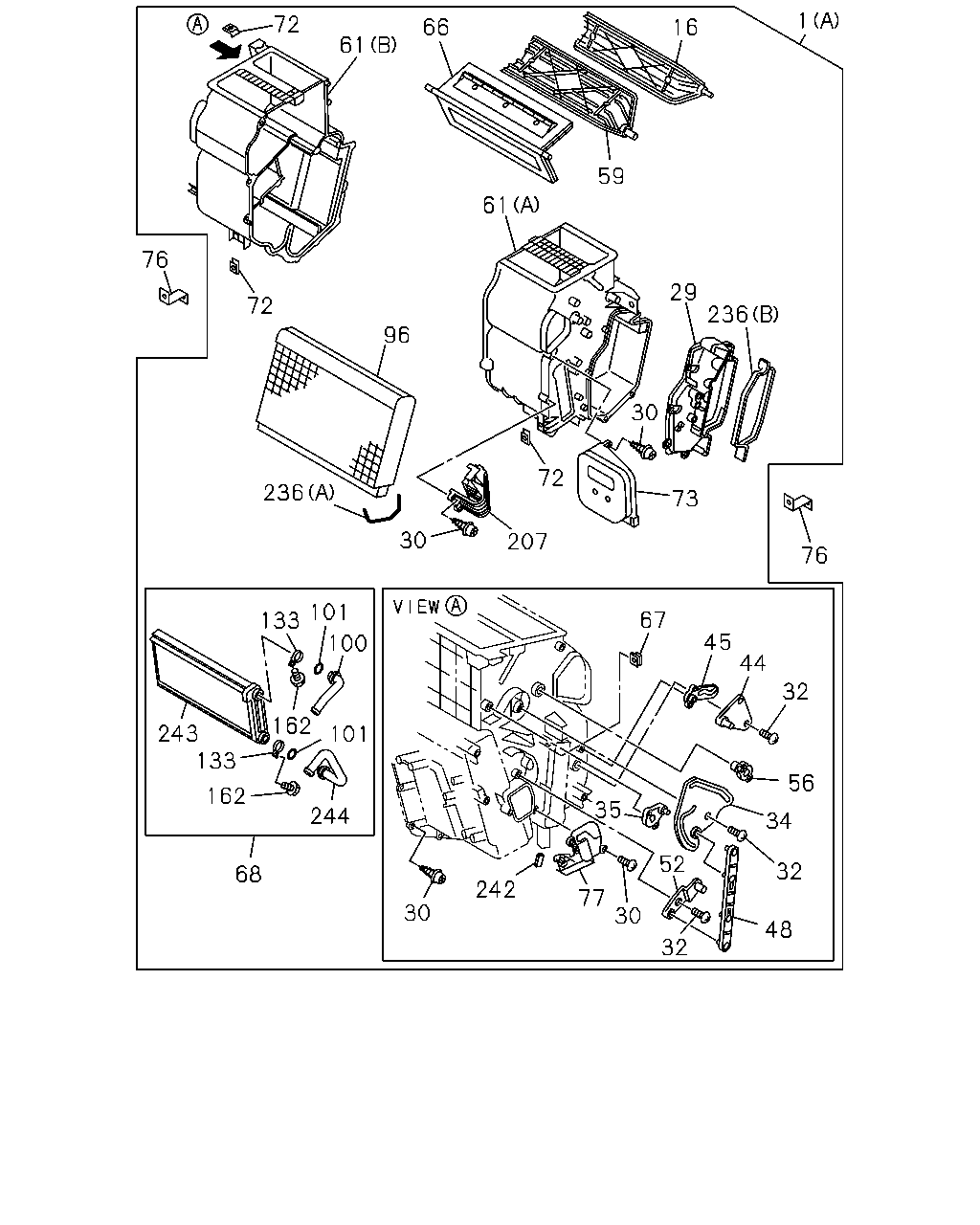

çizim 161140
1 72 66 16 61 59 61 76 29 72 236 96 30 72 236 73 30 207 76 101 67 133 45 44 100 32 162 243 133 101 56 162 35 244 34 52 32 68 242 77 30 30 48 32
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) (E) 		8-98057-980-2 01 1 0901- ●
1 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98062-756-1 01 1 0801-1302 ● ● ●
1 HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98021-972-4 01 1 0801- ● ● ●
1 HEATER UNIT
FULLAUTO AIR CONDITIONER(C68) (C) 		8-98021-973-4 01 1 0801- ● ● ●
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98062-757-1 01 1 0801-1301 ●
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98214-400-1 01 1 1302- ●
16 SHUTTER; HTR UNIT,CENTER UPR 8-98047-387-0 01 1 0801- ● ● ● ●
29 COVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98231-367-0 01 1 1302- ●
29 COVER; HTR UNIT 8-98074-119-0 01 1 0801-1301 ● ● ● ●
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98074-119-0 01 1 1302-1302 ● ● ●
29 COVER; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) 		8-98074-119-0 01 1 1302-1302 ●
29 COVER; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98074-119-0 01 1 1303- ● ● ●
29 COVER; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) 		8-98074-119-0 01 1 1303- ●
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING 		8-97957-708-0 20 1 1302- ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING 		8-97957-708-0 27 1 0801-0812 ● ● ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING 		8-97957-708-0 27 1 0901- ● ● ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) M4X16 TAPPING 		8-97957-708-0 27 1 0901- ●
30 SCREW; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) M4X16 TAPPING 		8-97957-708-0 31 1 0801- ● ● ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING 		8-97957-708-0 25 1 0801-1301 ● ● ●
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING 		8-97957-708-0 25 1 0801-1301 ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING 		8-97957-708-0 25 1 1302-1302 ● ● ●
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 		8-98047-416-0 03 1 0801-1302 ● ● ●
32 SCREW; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) M4X16 		8-98047-416-0 01 1 0801- ● ● ●
32 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-98047-416-0 02 1 0801- ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-389-0 01 1 0801-0812 ● ● ●
34 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-389-0 01 1 0801-0812 ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-389-0 01 1 0901-1302 ● ● ●
34 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-389-0 01 1 0901-1302 ●
34 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-389-0 01 1 1303- ● ● ●
34 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-389-0 01 1 1303- ●
34 LEVER; SHUTTER,HTR UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-98047-467-0 01 1 0801- ● ● ●
35 LEVER; SHUTTER,HTR UNIT 8-98047-392-0 01 1 0801- ● ● ● ●
44 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-394-0 01 1 0801-1302 ● ● ●
44 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-394-0 01 1 1303- ● ● ●
45 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-395-0 01 1 0801-1302 ● ● ●
45 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-395-0 01 1 1303- ● ● ●
48 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-391-0 01 1 0801-0812 ● ● ●
48 LEVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-391-0 01 1 0801-0812 ●
48 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-391-0 01 1 0901-1302 ● ● ●
48 LEVER; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-391-0 01 1 0901-1302 ●
48 LEVER; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-391-0 01 1 1303- ● ● ●
48 LEVER; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-391-0 01 1 1303- ●
48 LEVER; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-98047-468-0 01 1 0801- ● ● ●
52 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-390-0 01 1 0801-0812 ● ● ●
52 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-390-0 01 1 0801-0812 ●
52 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-390-0 01 1 0901-1302 ● ● ●
52 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-390-0 01 1 0901-1302 ●
52 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-390-0 01 1 1303- ● ● ●
52 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-390-0 01 1 1303- ●
56 LEVER; SHUTTER,HTR UNIT 8-98047-393-0 01 1 0801- ● ● ● ●
59 SHUTTER; HTR UNIT,SIDE 8-98047-386-0 01 1 0801- ● ● ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-375-0 01 1 0801-1302 ● ● ●
61 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-375-0 01 1 1303- ● ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98047-376-0 01 1 0801-1302 ● ● ●
61 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (A) 		8-98047-376-0 01 1 1303- ● ● ●
61 CASE; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (B) 		8-98047-465-0 01 1 0801- ● ● ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98077-422-0 01 1 0801-0812 ●
61 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98077-422-0 01 1 0901- ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98077-423-0 01 1 0801-0812 ●
61 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98077-423-0 01 1 0901- ●
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-385-0 01 1 0801-1302 ● ● ●
66 SHUTTER; HTR UNIT,CENTER LWR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98047-385-0 01 1 1303- ● ● ●
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-417-0 02 1 0801-1302 ● ● ●
67 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-417-0 02 1 1303- ● ● ●
67 CLIP; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-417-0 01 1 0801-0812 ●
67 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-417-0 01 1 0901- ●
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-380-0 01 1 0801-1302 ● ● ●
68 CORE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98047-380-0 01 1 1303- ● ● ●
72 NUT; CASE,HTR UNIT
M6 		8-98047-428-0 03 1 0801- ● ● ● ●
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) 		8-98077-420-0 01 1 0901- ●
73 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98072-542-0 01 1 0801-1302 ● ● ●
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98074-118-0 01 1 0801- ● ● ●
73 PLATE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98077-419-0 01 1 0801-1301 ●
76 BRACKET; HTR UNIT 8-98009-742-1 02 1 0801- ● ● ● ●
77 COVER; HTR CASE 8-98047-414-0 01 1 0801- ● ● ● ●
96 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 0801-1301 ● ● ●
96 PLATE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98048-815-0 01 1 0801-1301 ●
96 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 1302-1302 ● ● ●
100 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98072-528-0 01 1 0801-1302 ● ● ●
100 PIPE; CORE,HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98072-528-0 01 1 1303- ● ● ●
101 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98072-531-0 02 1 0801-1302 ● ● ●
101 GASKET; CORE,HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98072-531-0 02 1 1303- ● ● ●
133 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98072-530-0 02 1 0801-1302 ● ● ●
133 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98072-530-0 02 1 1303- ● ● ●
162 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98072-529-0 02 1 0801-1302 ● ● ●
162 SCREW; CLIP FIX
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98072-529-0 02 1 1303- ● ● ●
207 CLAMP; HTR UNIT 8-98047-379-0 01 1 0801-1301 ● ● ● ●
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-379-0 01 1 1302-1302 ● ● ●
207 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) 		8-98047-379-0 01 1 1302-1302 ●
207 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98047-379-0 01 1 1303- ● ● ●
207 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) 		8-98047-379-0 01 1 1303- ●
236 GASKET; HEATER
(A) 		8-98047-420-0 01 1 0801- ● ● ● ●
236 GASKET; HEATER
(B) 		8-98047-421-0 01 1 0801- ● ● ● ●
242 GASKET; CASE
HEATER & DEFROSTER(C41) 		8-98048-816-0 01 1 0801-1302 ● ● ●
242 GASKET; CASE
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98048-816-0 01 1 0801-1302 ●
242 GASKET; CASE
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98048-816-0 01 1 1303-1411 ●
243 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98048-508-0 01 1 0801-1302 ● ● ●
243 CORE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98048-508-0 01 1 1303- ● ● ●
244 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98048-510-0 01 1 0801-1302 ● ● ●
244 PIPE; INLET
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98048-510-0 01 1 1303- ● ● ●

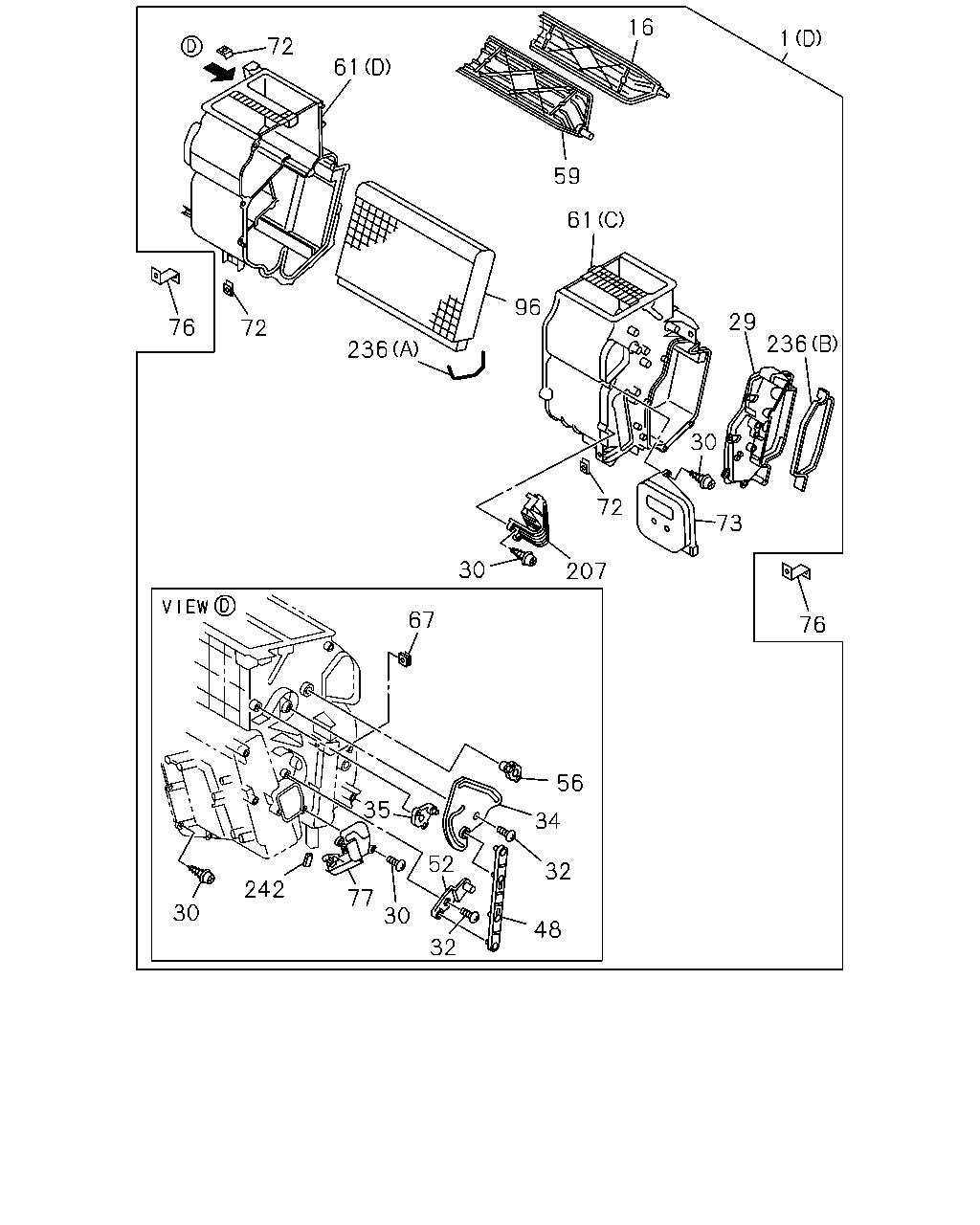

çizim 161160
16 1 72 61 59 61 96 29 76 72 236 236 30 72 73 30 207 67 76 56 35 34 52 32 242 77 30 30 48 32
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) (E) 		8-98057-980-2 01 1 0901- ●
1 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98062-756-1 01 1 0801-1302 ● ● ●
1 HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98021-972-4 01 1 0801- ● ● ●
1 HEATER UNIT
FULLAUTO AIR CONDITIONER(C68) (C) 		8-98021-973-4 01 1 0801- ● ● ●
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98062-757-1 01 1 0801-1301 ●
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98214-400-1 01 1 1302- ●
16 SHUTTER; HTR UNIT,CENTER UPR 8-98047-387-0 01 1 0801- ● ● ● ●
29 COVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98231-367-0 01 1 1302- ●
29 COVER; HTR UNIT 8-98074-119-0 01 1 0801-1301 ● ● ● ●
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98074-119-0 01 1 1302-1302 ● ● ●
29 COVER; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) 		8-98074-119-0 01 1 1302-1302 ●
29 COVER; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98074-119-0 01 1 1303- ● ● ●
29 COVER; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) 		8-98074-119-0 01 1 1303- ●
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING 		8-97957-708-0 20 1 1302- ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING 		8-97957-708-0 27 1 0801-0812 ● ● ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING 		8-97957-708-0 27 1 0901- ● ● ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) M4X16 TAPPING 		8-97957-708-0 27 1 0901- ●
30 SCREW; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) M4X16 TAPPING 		8-97957-708-0 31 1 0801- ● ● ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING 		8-97957-708-0 25 1 0801-1301 ● ● ●
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING 		8-97957-708-0 25 1 0801-1301 ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING 		8-97957-708-0 25 1 1302-1302 ● ● ●
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 		8-98047-416-0 03 1 0801-1302 ● ● ●
32 SCREW; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) M4X16 		8-98047-416-0 01 1 0801- ● ● ●
32 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-98047-416-0 02 1 0801- ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-389-0 01 1 0801-0812 ● ● ●
34 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-389-0 01 1 0801-0812 ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-389-0 01 1 0901-1302 ● ● ●
34 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-389-0 01 1 0901-1302 ●
34 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-389-0 01 1 1303- ● ● ●
34 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-389-0 01 1 1303- ●
34 LEVER; SHUTTER,HTR UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-98047-467-0 01 1 0801- ● ● ●
35 LEVER; SHUTTER,HTR UNIT 8-98047-392-0 01 1 0801- ● ● ● ●
48 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-391-0 01 1 0801-0812 ● ● ●
48 LEVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-391-0 01 1 0801-0812 ●
48 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-391-0 01 1 0901-1302 ● ● ●
48 LEVER; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-391-0 01 1 0901-1302 ●
48 LEVER; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-391-0 01 1 1303- ● ● ●
48 LEVER; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-391-0 01 1 1303- ●
48 LEVER; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-98047-468-0 01 1 0801- ● ● ●
52 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-390-0 01 1 0801-0812 ● ● ●
52 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-390-0 01 1 0801-0812 ●
52 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-390-0 01 1 0901-1302 ● ● ●
52 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-390-0 01 1 0901-1302 ●
52 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-390-0 01 1 1303- ● ● ●
52 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-390-0 01 1 1303- ●
56 LEVER; SHUTTER,HTR UNIT 8-98047-393-0 01 1 0801- ● ● ● ●
59 SHUTTER; HTR UNIT,SIDE 8-98047-386-0 01 1 0801- ● ● ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-375-0 01 1 0801-1302 ● ● ●
61 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-375-0 01 1 1303- ● ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98047-376-0 01 1 0801-1302 ● ● ●
61 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (A) 		8-98047-376-0 01 1 1303- ● ● ●
61 CASE; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (B) 		8-98047-465-0 01 1 0801- ● ● ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98077-422-0 01 1 0801-0812 ●
61 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98077-422-0 01 1 0901- ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98077-423-0 01 1 0801-0812 ●
61 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98077-423-0 01 1 0901- ●
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-417-0 02 1 0801-1302 ● ● ●
67 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-417-0 02 1 1303- ● ● ●
67 CLIP; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-417-0 01 1 0801-0812 ●
67 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-417-0 01 1 0901- ●
72 NUT; CASE,HTR UNIT
M6 		8-98047-428-0 03 1 0801- ● ● ● ●
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) 		8-98077-420-0 01 1 0901- ●
73 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98072-542-0 01 1 0801-1302 ● ● ●
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98074-118-0 01 1 0801- ● ● ●
73 PLATE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98077-419-0 01 1 0801-1301 ●
76 BRACKET; HTR UNIT 8-98009-742-1 02 1 0801- ● ● ● ●
77 COVER; HTR CASE 8-98047-414-0 01 1 0801- ● ● ● ●
96 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 0801-1301 ● ● ●
96 PLATE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98048-815-0 01 1 0801-1301 ●
96 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 1302-1302 ● ● ●
207 CLAMP; HTR UNIT 8-98047-379-0 01 1 0801-1301 ● ● ● ●
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-379-0 01 1 1302-1302 ● ● ●
207 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) 		8-98047-379-0 01 1 1302-1302 ●
207 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98047-379-0 01 1 1303- ● ● ●
207 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) 		8-98047-379-0 01 1 1303- ●
236 GASKET; HEATER
(A) 		8-98047-420-0 01 1 0801- ● ● ● ●
236 GASKET; HEATER
(B) 		8-98047-421-0 01 1 0801- ● ● ● ●
242 GASKET; CASE
HEATER & DEFROSTER(C41) 		8-98048-816-0 01 1 0801-1302 ● ● ●
242 GASKET; CASE
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98048-816-0 01 1 0801-1302 ●
242 GASKET; CASE
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98048-816-0 01 1 1303-1411 ●

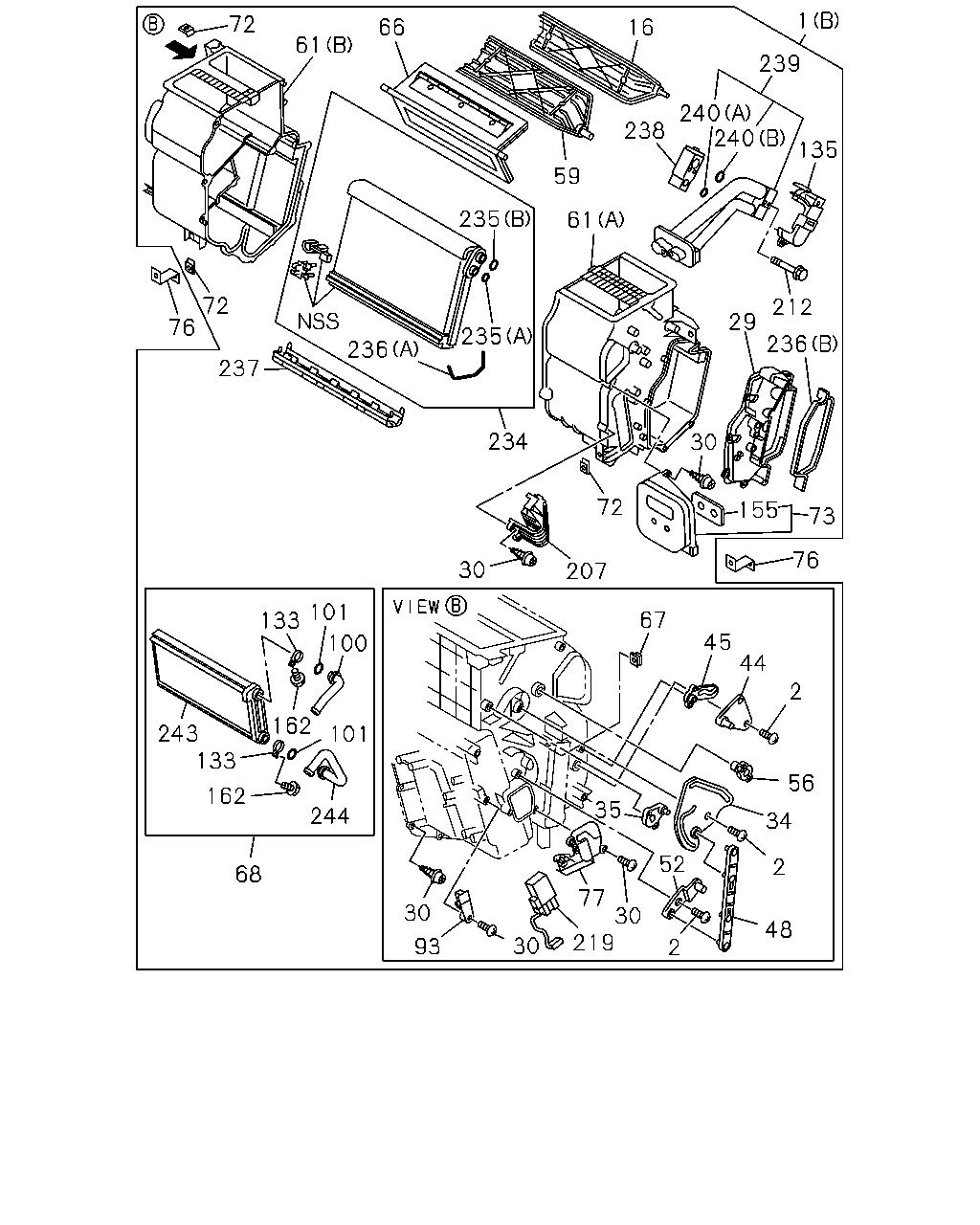

çizim 161165
1 72 66 16 61 239 240 240 238 135 59 235 61 72 76 212 29 235 236 236 237 30 234 72 155 73 76 30 207 101 67 133 45 44 100 2 162 243 133 101 56 162 35 244 34 52 2 68 77 30 30 219 48 30 93 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) (E) 		8-98057-980-2 01 1 0901- ●
1 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98062-756-1 01 1 0801-1302 ● ● ●
1 HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98021-972-4 01 1 0801- ● ● ●
1 HEATER UNIT
FULLAUTO AIR CONDITIONER(C68) (C) 		8-98021-973-4 01 1 0801- ● ● ●
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98062-757-1 01 1 0801-1301 ●
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98214-400-1 01 1 1302- ●
2 SCREW; LEVER
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) M4X16 		8-98047-416-0 02 1 0901- ●
2 SCREW; LEVER
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-98047-416-0 03 1 0801- ● ● ●
16 SHUTTER; HTR UNIT,CENTER UPR 8-98047-387-0 01 1 0801- ● ● ● ●
29 COVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98231-367-0 01 1 1302- ●
29 COVER; HTR UNIT 8-98074-119-0 01 1 0801-1301 ● ● ● ●
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98074-119-0 01 1 1302-1302 ● ● ●
29 COVER; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) 		8-98074-119-0 01 1 1302-1302 ●
29 COVER; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98074-119-0 01 1 1303- ● ● ●
29 COVER; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) 		8-98074-119-0 01 1 1303- ●
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING 		8-97957-708-0 20 1 1302- ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING 		8-97957-708-0 27 1 0801-0812 ● ● ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING 		8-97957-708-0 27 1 0901- ● ● ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) M4X16 TAPPING 		8-97957-708-0 27 1 0901- ●
30 SCREW; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) M4X16 TAPPING 		8-97957-708-0 31 1 0801- ● ● ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING 		8-97957-708-0 25 1 0801-1301 ● ● ●
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING 		8-97957-708-0 25 1 0801-1301 ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING 		8-97957-708-0 25 1 1302-1302 ● ● ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-389-0 01 1 0801-0812 ● ● ●
34 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-389-0 01 1 0801-0812 ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-389-0 01 1 0901-1302 ● ● ●
34 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-389-0 01 1 0901-1302 ●
34 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-389-0 01 1 1303- ● ● ●
34 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-389-0 01 1 1303- ●
34 LEVER; SHUTTER,HTR UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-98047-467-0 01 1 0801- ● ● ●
35 LEVER; SHUTTER,HTR UNIT 8-98047-392-0 01 1 0801- ● ● ● ●
44 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-394-0 01 1 0801-1302 ● ● ●
44 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-394-0 01 1 1303- ● ● ●
45 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-395-0 01 1 0801-1302 ● ● ●
45 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-395-0 01 1 1303- ● ● ●
48 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-391-0 01 1 0801-0812 ● ● ●
48 LEVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-391-0 01 1 0801-0812 ●
48 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-391-0 01 1 0901-1302 ● ● ●
48 LEVER; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-391-0 01 1 0901-1302 ●
48 LEVER; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-391-0 01 1 1303- ● ● ●
48 LEVER; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-391-0 01 1 1303- ●
48 LEVER; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-98047-468-0 01 1 0801- ● ● ●
52 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-390-0 01 1 0801-0812 ● ● ●
52 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-390-0 01 1 0801-0812 ●
52 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-390-0 01 1 0901-1302 ● ● ●
52 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-390-0 01 1 0901-1302 ●
52 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-390-0 01 1 1303- ● ● ●
52 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-390-0 01 1 1303- ●
56 LEVER; SHUTTER,HTR UNIT 8-98047-393-0 01 1 0801- ● ● ● ●
59 SHUTTER; HTR UNIT,SIDE 8-98047-386-0 01 1 0801- ● ● ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-375-0 01 1 0801-1302 ● ● ●
61 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-375-0 01 1 1303- ● ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98047-376-0 01 1 0801-1302 ● ● ●
61 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (A) 		8-98047-376-0 01 1 1303- ● ● ●
61 CASE; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (B) 		8-98047-465-0 01 1 0801- ● ● ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98077-422-0 01 1 0801-0812 ●
61 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98077-422-0 01 1 0901- ●
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98077-423-0 01 1 0801-0812 ●
61 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98077-423-0 01 1 0901- ●
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-385-0 01 1 0801-1302 ● ● ●
66 SHUTTER; HTR UNIT,CENTER LWR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98047-385-0 01 1 1303- ● ● ●
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-417-0 02 1 0801-1302 ● ● ●
67 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-417-0 02 1 1303- ● ● ●
67 CLIP; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-417-0 01 1 0801-0812 ●
67 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98047-417-0 01 1 0901- ●
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-380-0 01 1 0801-1302 ● ● ●
68 CORE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98047-380-0 01 1 1303- ● ● ●
72 NUT; CASE,HTR UNIT
M6 		8-98047-428-0 03 1 0801- ● ● ● ●
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) 		8-98077-420-0 01 1 0901- ●
73 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98072-542-0 01 1 0801-1302 ● ● ●
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98074-118-0 01 1 0801- ● ● ●
73 PLATE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98077-419-0 01 1 0801-1301 ●
76 BRACKET; HTR UNIT 8-98009-742-1 02 1 0801- ● ● ● ●
77 COVER; HTR CASE 8-98047-414-0 01 1 0801- ● ● ● ●
93 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-427-0 01 1 0801-0812 ● ● ●
93 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-427-0 01 1 0901- ● ● ●
93 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) 		8-98047-427-0 01 1 0901- ●
100 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98072-528-0 01 1 0801-1302 ● ● ●
100 PIPE; CORE,HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98072-528-0 01 1 1303- ● ● ●
101 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98072-531-0 02 1 0801-1302 ● ● ●
101 GASKET; CORE,HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98072-531-0 02 1 1303- ● ● ●
133 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98072-530-0 02 1 0801-1302 ● ● ●
133 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98072-530-0 02 1 1303- ● ● ●
135 COVER; HTR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98047-384-0 01 1 0801-0812 ● ● ●
135 COVER; HTR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98047-384-0 01 1 0901- ● ● ●
135 COVER; HTR
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) 		8-98047-384-0 01 1 0901- ●
155 GROMMET; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98047-431-0 01 1 0801- ● ● ●
162 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98072-529-0 02 1 0801-1302 ● ● ●
162 SCREW; CLIP FIX
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98072-529-0 02 1 1303- ● ● ●
207 CLAMP; HTR UNIT 8-98047-379-0 01 1 0801-1301 ● ● ● ●
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-379-0 01 1 1302-1302 ● ● ●
207 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) 		8-98047-379-0 01 1 1302-1302 ●
207 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98047-379-0 01 1 1303- ● ● ●
207 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) 		8-98047-379-0 01 1 1303- ●
212 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) M5X61 		8-98047-415-0 02 1 0801-0812 ● ● ●
212 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) M5X61 		8-98047-415-0 02 1 0901- ● ● ●
212 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) M5X61 		8-98047-415-0 02 1 0901- ●
219 AMPLIFIER; HEATER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) 		8-98064-733-0 01 1 0901- ●
219 AMPLIFIER; HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-429-0 01 1 0801- ● ● ●
234 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98074-116-1 01 1 0801-0812 ● ● ●
234 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98074-116-1 01 1 0901- ● ● ●
234 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) 		8-98074-116-1 01 1 0901- ●
235 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (A) ID=11.7 		8-97095-907-0 01 1 0801- ● ● ●
235 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (B) ID=14.5 		8-97095-908-0 01 1 0801- ● ● ●
236 GASKET; HEATER
(A) 		8-98047-420-0 01 1 0801- ● ● ● ●
236 GASKET; HEATER
(B) 		8-98047-421-0 01 1 0801- ● ● ● ●
237 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98047-382-0 01 1 0801-0812 ● ● ●
237 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98047-382-0 01 1 0901- ● ● ●
237 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) 		8-98047-382-0 01 1 0901- ●
238 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98047-383-0 01 1 0801-0812 ● ● ●
238 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98047-383-0 01 1 0901- ● ● ●
238 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) 		8-98047-383-0 01 1 0901- ●
239 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98074-115-0 01 1 0801-0812 ● ● ●
239 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98074-115-0 01 1 0901- ● ● ●
239 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) 		8-98074-115-0 01 1 0901- ●
240 GASKET; HEATER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (A) ID=7.4 		8-97095-906-0 01 1 0801- ● ● ●
240 GASKET; HEATER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (B) ID=14.5 		8-97095-908-0 01 1 0801- ● ● ●
243 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98048-508-0 01 1 0801-1302 ● ● ●
243 CORE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98048-508-0 01 1 1303- ● ● ●
244 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98048-510-0 01 1 0801-1302 ● ● ●
244 PIPE; INLET
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) 		8-98048-510-0 01 1 1303- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
