Sayfa 8-52 - Isuzu EPC

8-52 — PIPING; AIR CONDITIONING (#57648) — 122 parça

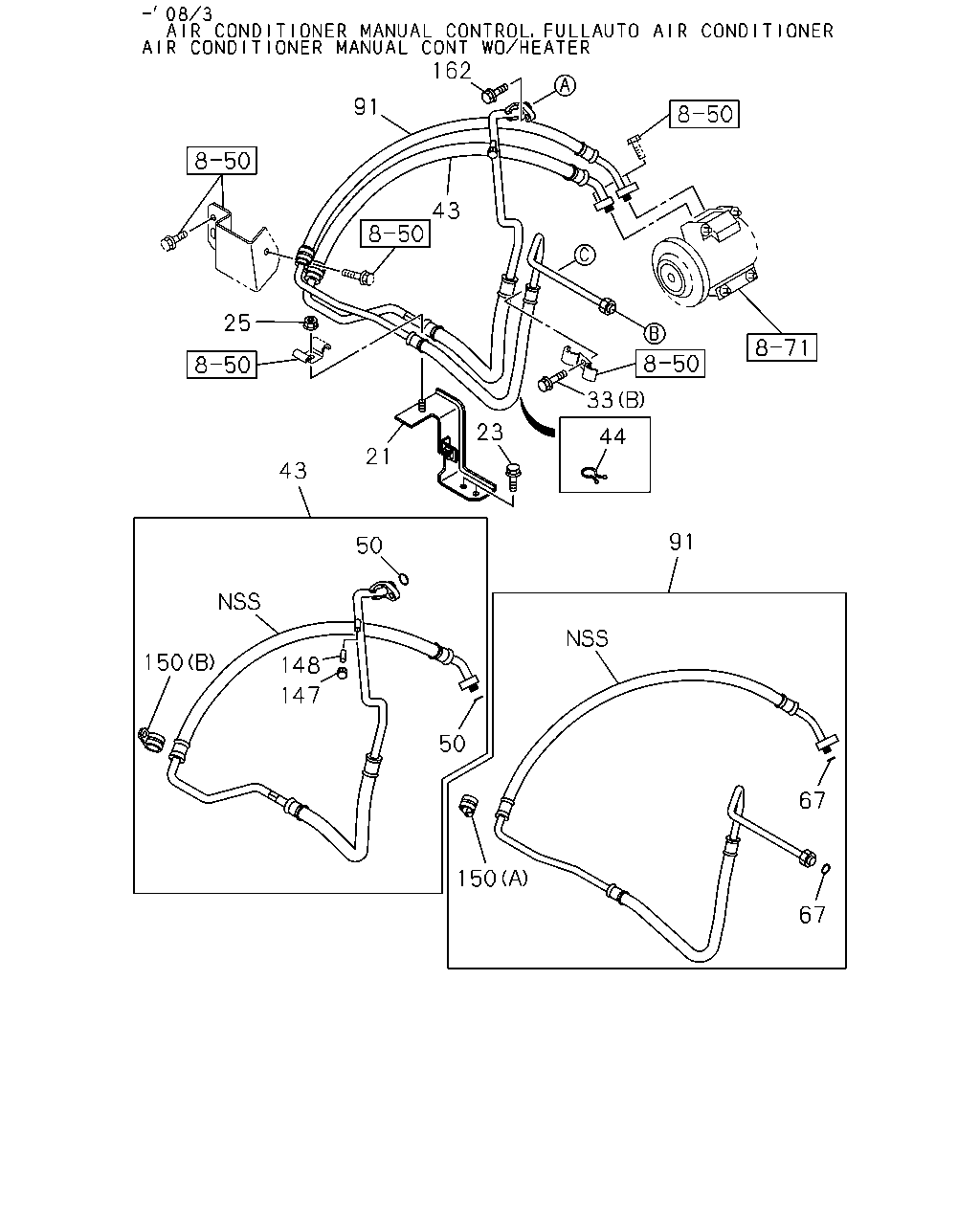

162 91 43 25 33 23 44 21 43 91 50 150 148 147 50 67 150 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68)	8-98032-504-0	01	1	0801-0802	●	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68)	8-98114-846-0	01	1	0803-0812	●	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68)	8-98114-846-0	01	1	0901-	●	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONT WO/HEATER(C65)	8-98114-846-0	01	1	0901-				●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) M8X20 FLANGE	0-28650-820-0	02	1	0801-0812	●	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) M8X20 FLANGE	0-28650-820-0	02	1	0901-	●	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONT WO/HEATER(C65) M8X20 FLANGE	0-28650-820-0	02	1	0901-				●
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) M8 FLANGE	0-91180-108-0	01	1	0801-0812	●	●	●
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) M8 FLANGE	0-91180-108-0	01	1	0901-	●	●	●
25	NUT; BRKT AIR CONDITIONER MANUAL CONT WO/HEATER(C65) M8 FLANGE	0-91180-108-0	01	1	0901-				●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (A) M6X16 FLANGE	0-28650-616-0	02	1	0801-0812	●	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (A) M6X16 FLANGE	0-28650-616-0	02	1	0901-	●	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT WO/HEATER(C65) (A) M6X16 FLANGE	0-28650-616-0	02	1	0901-				●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (B) M8X20 FLANGE	0-28650-820-0	01	1	0801-0812	●	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (B) M8X20 FLANGE	0-28650-820-0	01	1	0901-	●	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT WO/HEATER(C65) (B) M8X20 FLANGE	0-28650-820-0	01	1	0901-				●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT WO/HEATER(C65) SUCTION	8-98052-619-1	01	1	0901-				●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) SUCTION	8-98052-619-1	01	1	0801-0803	●	●	●
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) ID=30	8-94315-423-0	01	1	0801-0812	●	●	●
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) ID=30	8-94315-423-0	01	1	0901-	●	●	●
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT WO/HEATER(C65) ID=30	8-94315-423-0	01	1	0901-				●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT WO/HEATER(C65) ID=14.5	8-97095-908-0	02	1	0901-				●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) ID=14.5	8-97095-908-0	02	1	0801-0803	●	●	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT WO/HEATER(C65) ID=11.7	8-97095-907-0	02	1	0901-				●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) ID=11.7	8-97095-907-0	02	1	0801-0803	●	●	●
91	HOSE; FLEX,CMPR AIR CONDITIONER MANUAL CONT WO/HEATER(C65) DISCHARGE	8-98052-620-1	01	1	0901-				●
91	HOSE; FLEX,CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) DISCHARGE	8-98052-620-1	01	1	0801-0803	●	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) CAP MARK L	1-83539-331-0	01	1	0801-0812	●	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) CAP MARK L	1-83539-331-0	01	1	0901-	●	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT WO/HEATER(C65) CAP MARK L	1-83539-331-0	01	1	0901-				●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68)	8-97095-909-0	01	1	0801-0812	●	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68)	8-97095-909-0	01	1	0901-	●	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT WO/HEATER(C65)	8-97095-909-0	01	1	0901-				●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (B)	1-83574-249-0	01	1	0801-0812	●	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (B)	1-83574-249-0	01	1	0901-	●	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONT WO/HEATER(C65) (B)	1-83574-249-0	01	1	0901-				●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (A)	1-83574-264-0	01	1	0801-0812	●	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (A)	1-83574-264-0	01	1	0901-	●	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONT WO/HEATER(C65) (A)	1-83574-264-0	01	1	0901-				●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) M6X25 FLANGE	0-28050-625-0	01	1	0801-0812	●	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) M6X25 FLANGE	0-28050-625-0	01	1	0901-	●	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT WO/HEATER(C65) M6X25 FLANGE	0-28050-625-0	01	1	0901-				●

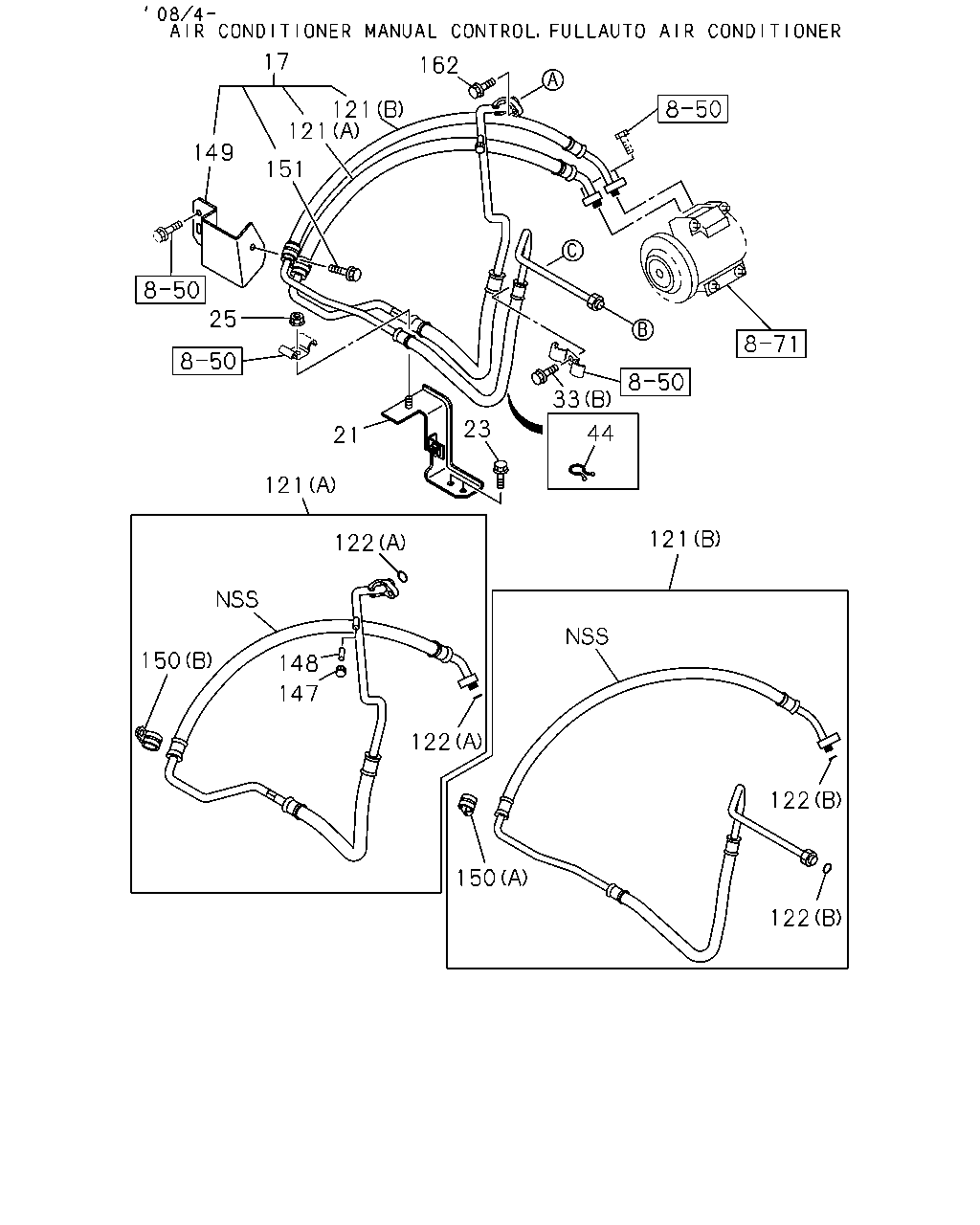

17 162 121 121 149 151 25 33 23 44 21 121 121 122 150 148 147 122 122 150 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68)	8-98111-523-0	01	1	0804-	●	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68)	8-98032-504-0	01	1	0801-0802	●	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68)	8-98114-846-0	01	1	0803-0812	●	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68)	8-98114-846-0	01	1	0901-	●	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONT WO/HEATER(C65)	8-98114-846-0	01	1	0901-				●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) M8X20 FLANGE	0-28650-820-0	02	1	0801-0812	●	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) M8X20 FLANGE	0-28650-820-0	02	1	0901-	●	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONT WO/HEATER(C65) M8X20 FLANGE	0-28650-820-0	02	1	0901-				●
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) M8 FLANGE	0-91180-108-0	01	1	0801-0812	●	●	●
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) M8 FLANGE	0-91180-108-0	01	1	0901-	●	●	●
25	NUT; BRKT AIR CONDITIONER MANUAL CONT WO/HEATER(C65) M8 FLANGE	0-91180-108-0	01	1	0901-				●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (A) M6X16 FLANGE	0-28650-616-0	02	1	0801-0812	●	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (A) M6X16 FLANGE	0-28650-616-0	02	1	0901-	●	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT WO/HEATER(C65) (A) M6X16 FLANGE	0-28650-616-0	02	1	0901-				●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (B) M8X20 FLANGE	0-28650-820-0	01	1	0801-0812	●	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (B) M8X20 FLANGE	0-28650-820-0	01	1	0901-	●	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT WO/HEATER(C65) (B) M8X20 FLANGE	0-28650-820-0	01	1	0901-				●
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) ID=30	8-94315-423-0	01	1	0801-0812	●	●	●
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) ID=30	8-94315-423-0	01	1	0901-	●	●	●
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT WO/HEATER(C65) ID=30	8-94315-423-0	01	1	0901-				●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (A)	8-98052-619-1	01	1	0804-	●	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (B)	8-98052-620-1	01	1	0804-	●	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (B) ID=11.7	8-97095-907-0	02	1	0804-	●	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (A) ID=14.5	8-97095-908-0	02	1	0804-	●	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) CAP MARK L	1-83539-331-0	01	1	0801-0812	●	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) CAP MARK L	1-83539-331-0	01	1	0901-	●	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT WO/HEATER(C65) CAP MARK L	1-83539-331-0	01	1	0901-				●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68)	8-97095-909-0	01	1	0801-0812	●	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68)	8-97095-909-0	01	1	0901-	●	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT WO/HEATER(C65)	8-97095-909-0	01	1	0901-				●
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68)	8-98055-465-0	01	1	0804-	●	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (B)	1-83574-249-0	01	1	0801-0812	●	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (B)	1-83574-249-0	01	1	0901-	●	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONT WO/HEATER(C65) (B)	1-83574-249-0	01	1	0901-				●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (A)	1-83574-264-0	01	1	0801-0812	●	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (A)	1-83574-264-0	01	1	0901-	●	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONT WO/HEATER(C65) (A)	1-83574-264-0	01	1	0901-				●
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) M8X20 FLANGE	1-83539-326-0	01	1	0804-	●	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) M6X25 FLANGE	0-28050-625-0	01	1	0801-0812	●	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) M6X25 FLANGE	0-28050-625-0	01	1	0901-	●	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT WO/HEATER(C65) M6X25 FLANGE	0-28050-625-0	01	1	0901-				●

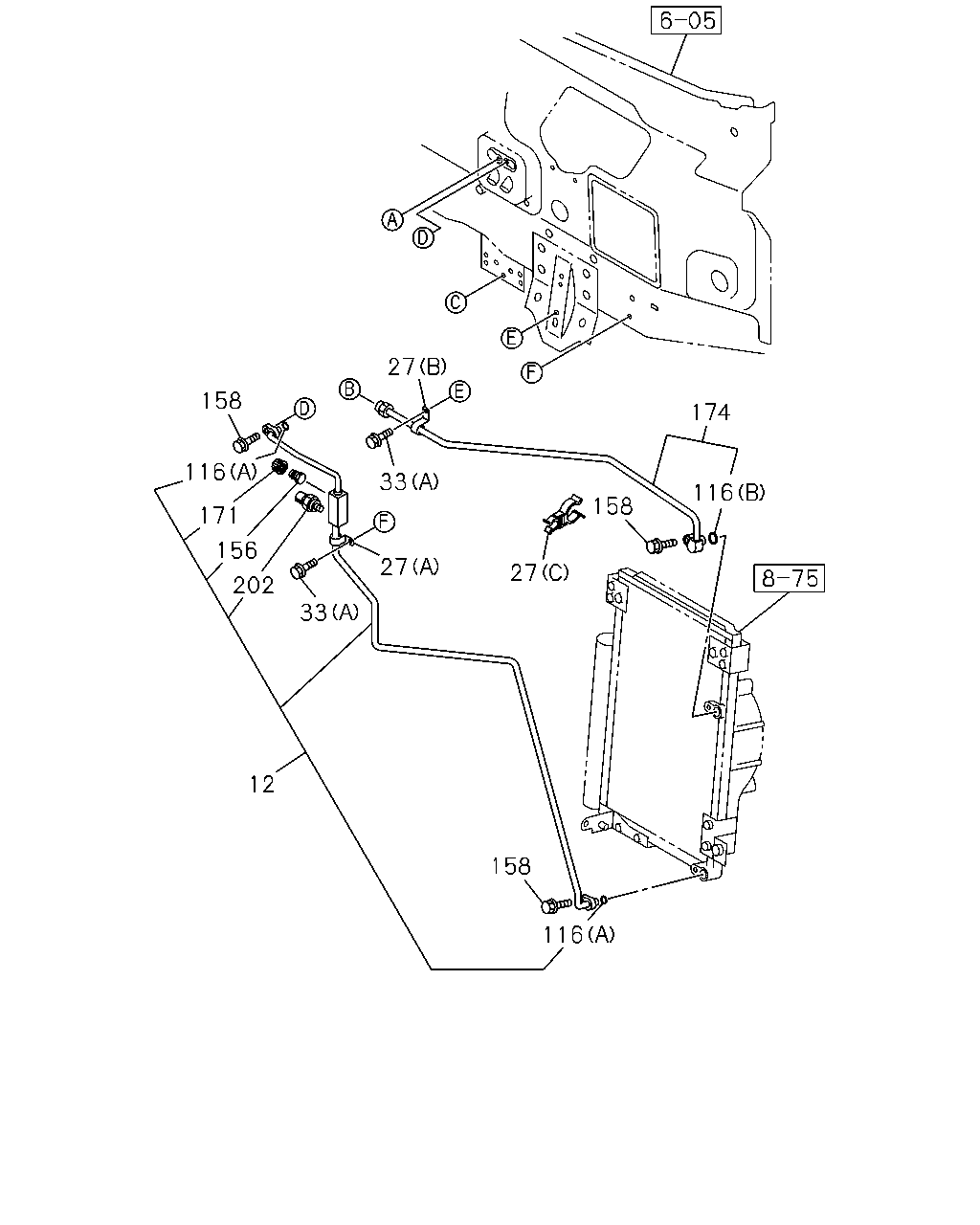

27 158 174 116 33 116 158 171 156 27 27 202 33 12 158 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68)	8-98052-610-0	01	1	0801-0812	●	●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68)	8-98052-610-0	01	1	0901-	●	●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONT WO/HEATER(C65)	8-98052-610-0	01	1	0901-				●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (A) ID=9 H=20 L=20	0-95207-308-0	01	1	0801-0812	●	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (A) ID=9 H=20 L=20	0-95207-308-0	01	1	0901-	●	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONT WO/HEATER(C65) (A) ID=9 H=20 L=20	0-95207-308-0	01	1	0901-				●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (B) ID=16 H=24 L=20	0-95207-315-0	01	1	0801-0812	●	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (B) ID=16 H=24 L=20	0-95207-315-0	01	1	0901-	●	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONT WO/HEATER(C65) (B) ID=16 H=24 L=20	0-95207-315-0	01	1	0901-				●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (C) ID=11.8 & 7.5	1-09709-182-0	01	1	0801-0812	●	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (C) ID=11.8 & 7.5	1-09709-182-0	01	1	0901-	●	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONT WO/HEATER(C65) (C) ID=11.8 & 7.5	1-09709-182-0	01	1	0901-				●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (A) M6X16 FLANGE	0-28650-616-0	02	1	0801-0812	●	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (A) M6X16 FLANGE	0-28650-616-0	02	1	0901-	●	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT WO/HEATER(C65) (A) M6X16 FLANGE	0-28650-616-0	02	1	0901-				●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (B) M8X20 FLANGE	0-28650-820-0	01	1	0801-0812	●	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (B) M8X20 FLANGE	0-28650-820-0	01	1	0901-	●	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT WO/HEATER(C65) (B) M8X20 FLANGE	0-28650-820-0	01	1	0901-				●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (A) ID=7.4	8-97095-906-0	02	1	0801-0812	●	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (A) ID=7.4	8-97095-906-0	02	1	0901-	●	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONT WO/HEATER(C65) (A) ID=7.4	8-97095-906-0	02	1	0901-				●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (B) ID=11.7	8-97095-907-0	01	1	0801-0812	●	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (B) ID=11.7	8-97095-907-0	01	1	0901-	●	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONT WO/HEATER(C65) (B) ID=11.7	8-97095-907-0	01	1	0901-				●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68)	8-98151-702-0	01	1	0801-0812	●	●	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68)	8-98151-702-0	01	1	0901-	●	●	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONT WO/HEATER(C65)	8-98151-702-0	01	1	0901-				●
158	BOLT; PIPE FIX AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) M6X25 FLANGE	0-28050-625-0	03	1	0801-0812	●	●	●
158	BOLT; PIPE FIX AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) M6X25 FLANGE	0-28050-625-0	03	1	0901-	●	●	●
158	BOLT; PIPE FIX AIR CONDITIONER MANUAL CONT WO/HEATER(C65) M6X25 FLANGE	0-28050-625-0	03	1	0901-				●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) CAP MARK H	8-97095-911-0	01	1	0801-0812	●	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) CAP MARK H	8-97095-911-0	01	1	0901-	●	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONT WO/HEATER(C65) CAP MARK H	8-97095-911-0	01	1	0901-				●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68)	8-98041-330-0	01	1	0801-0812	●	●	●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68)	8-98041-330-0	01	1	0901-	●	●	●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONT WO/HEATER(C65)	8-98041-330-0	01	1	0901-				●
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68)	1-83564-391-0	01	1	0801-0812	●	●	●
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68)	1-83564-391-0	01	1	0901-	●	●	●
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONT WO/HEATER(C65)	1-83564-391-0	01	1	0901-				●
