8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#57642) — 92 parça

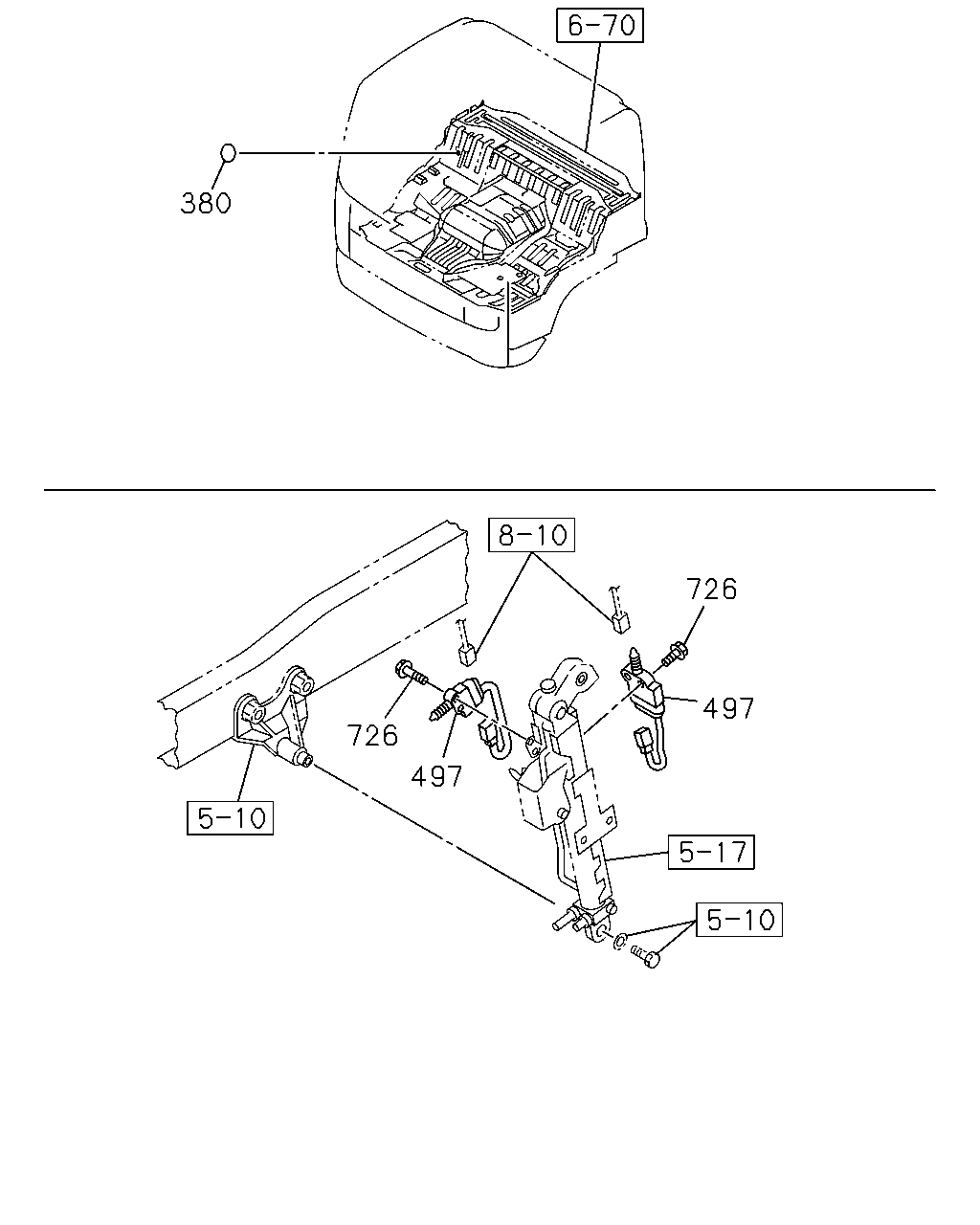

çizim 160914
380 726 497 726 497
BalonParca AdiParca NoAdetTipApplied Date A B C D
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 0801- ● ● ● ●
497 SWITCH; CAB TILT
STAMP NO 		1-82380-172-1 02 1 0801- ● ● ● ●
726 BOLT; SW,CAB TILT
M6X25 FLANGE 		0-28050-625-0 04 1 0801- ● ● ● ●

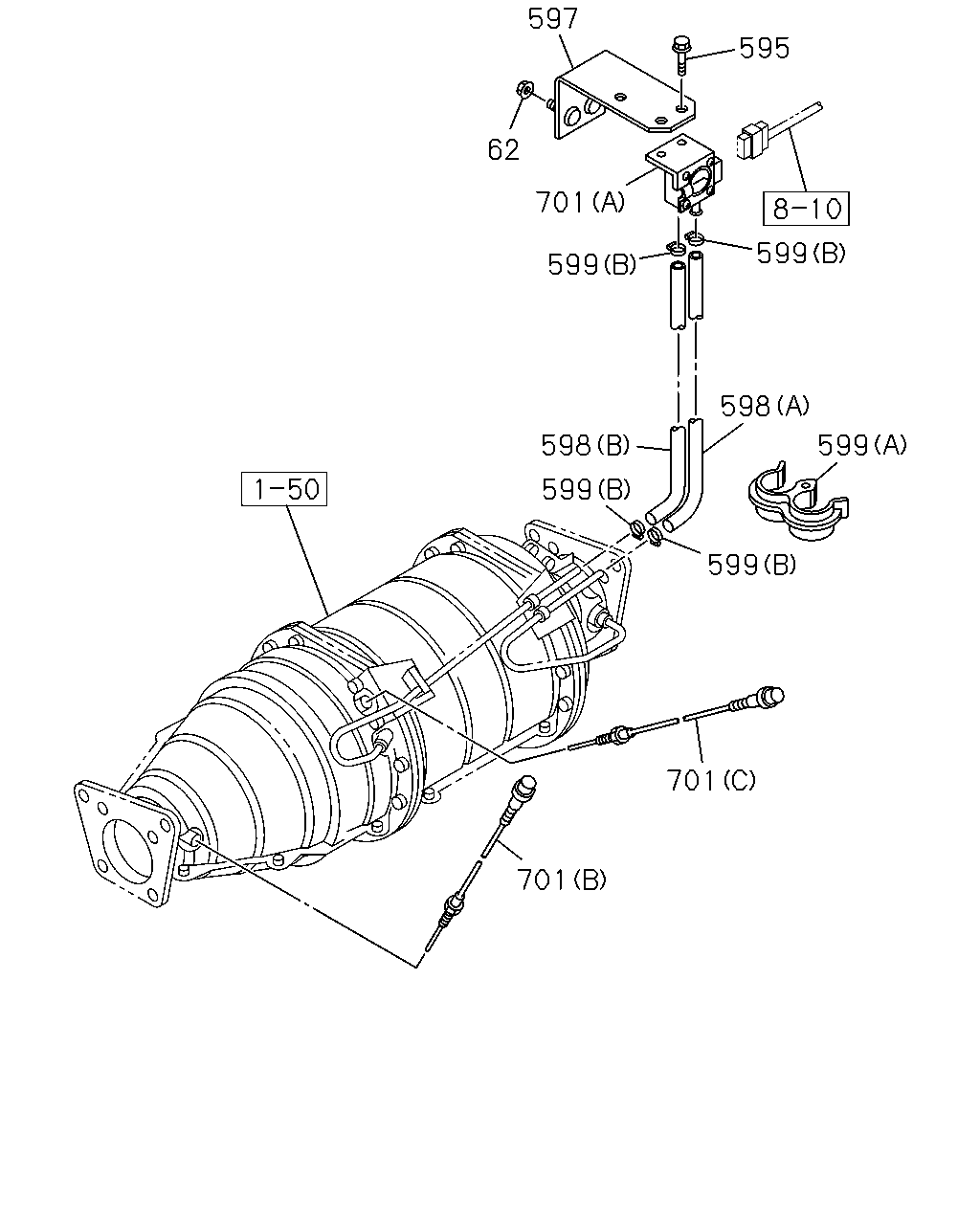

çizim 160915
597 595 62 701 599 599 598 598 599 599 599 701 701
BalonParca AdiParca NoAdetTipApplied Date A B C D
62 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0801- ● ● ●
595 BOLT; SENSOR
M8X20 FLANGE 		0-28650-820-0 02 1 0801- ● ● ●
597 BRACKET; SENSOR 8-97621-279-0 01 1 0801- ● ● ●
598 HOSE; RUBBER,SENSOR
(A) L=340 SERVICED BY L=3000 		0-01558-300-0 01 1 0801- ● ● ●
598 HOSE; RUBBER,SENSOR
(B) L=410 SERVICED BY L=3000 		0-01558-300-0 01 1 0801- ● ● ●
599 CLIP; HOSE
(A) 		8-97173-119-0 02 1 0801- ● ● ●
599 CLIP; HOSE
(B) ID=13 		8-97329-627-0 04 1 0801- ● ● ●
701 SENSOR; DPD
(A) 		8-97359-985-2 01 1 0801- ● ● ●
701 SENSOR; DPD
(B) 		8-98004-329-0 01 1 0801- ● ● ●
701 SENSOR; DPD
(C) 		8-98004-330-0 01 1 0801- ● ● ●

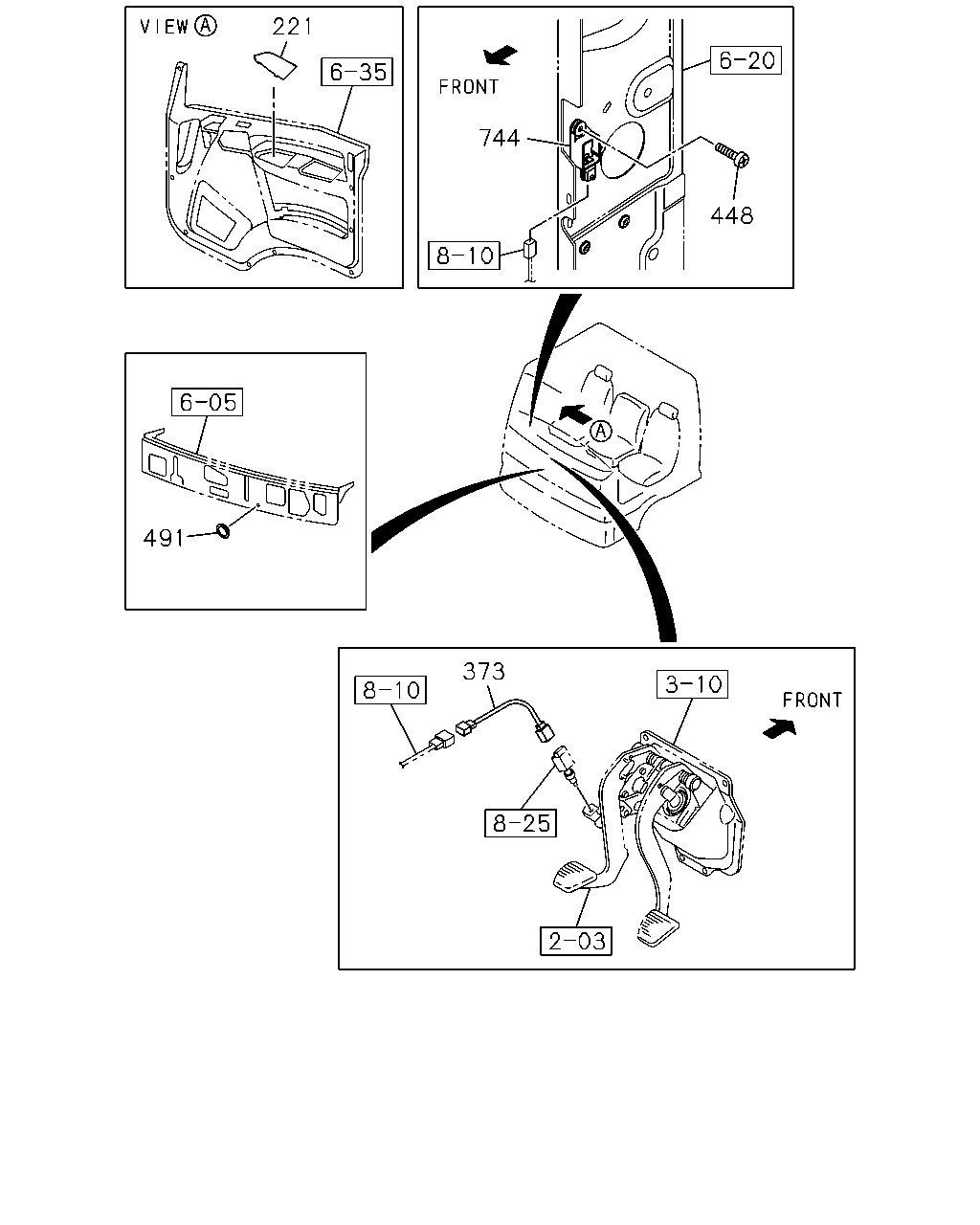

çizim 160926
221 744 448 491 373
BalonParca AdiParca NoAdetTipApplied Date A B C D
221 COVER; HOLE,DOOR LOCK SW 8-98029-915-2 01 1 0801- ●
221 COVER; HOLE,DOOR LOCK SW 8-98029-916-2 01 1 0801- ●
373 HARNESS; CLU SWITCH 8-98059-419-2 01 1 0801- ● ● ● ●
448 BOLT; SENSOR
M6X18 W/PL WASHER 		8-97105-796-1 02 1 0801- ● ●
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3) M6X18 W/PL WASHER 		8-97105-796-1 02 1 0801- ●
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 0801- ● ● ● ●
744 SENSOR; AIR BAG 8-97386-841-2 01 1 0801- ● ●
744 SENSOR; AIR BAG
AIR BAG DRIVER(AJ3) 		8-97386-841-2 01 1 0801- ●

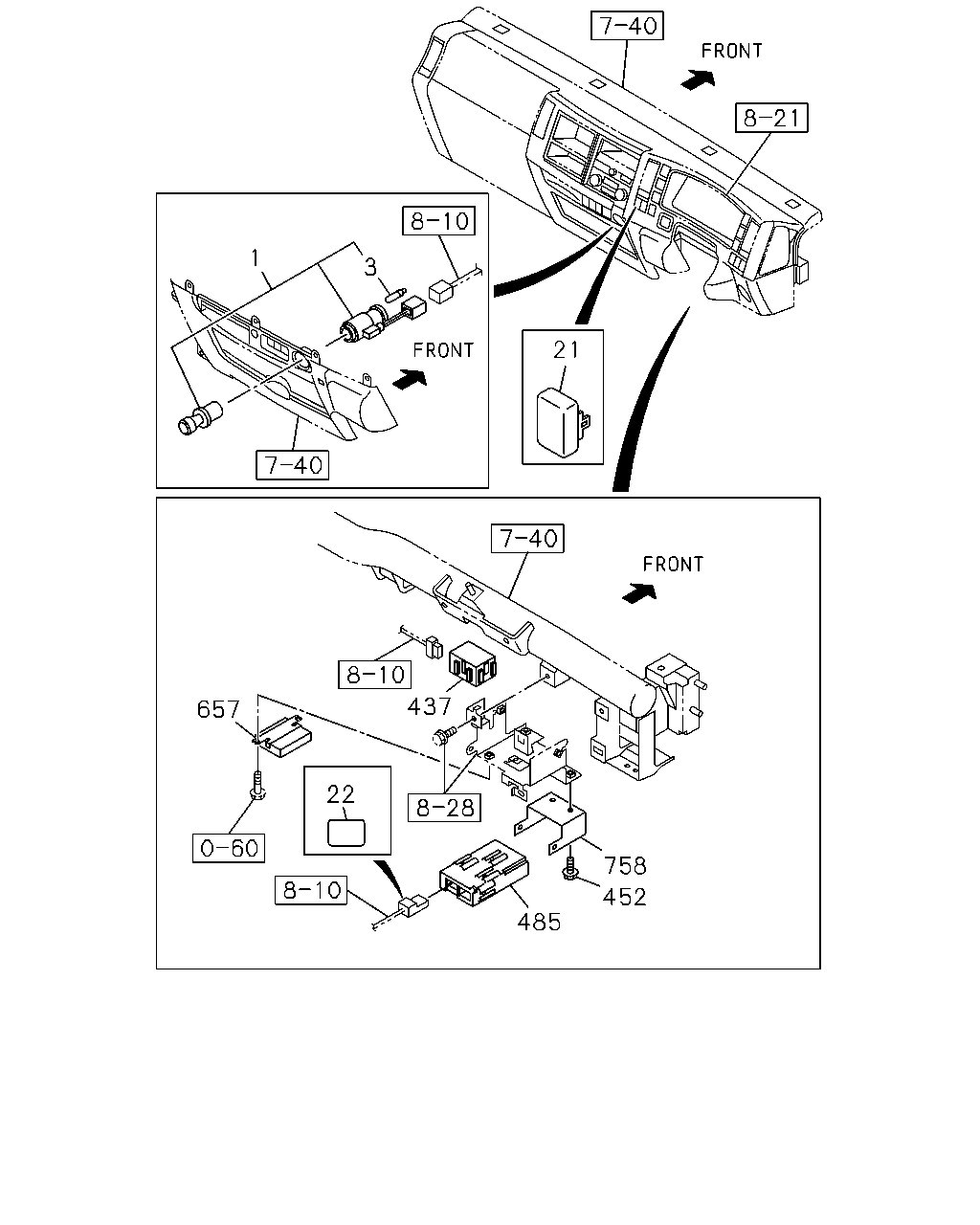

çizim 160930
1 3 21 657 22 485 758 452 437
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 LIGHTER; CIGAR 8-98076-255-0 01 1 0801- ● ● ● ●
3 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0801- ● ● ● ●
21 COVER; HOLE 8-98025-954-1 01 1 0801- ● ● ● ●
22 SEAL; TAPE 1-80199-006-0 01 1 0801-1212 ● ●
22 SEAL; TAPE
SPEED LIMITER 100KM(NMU) 		1-80199-006-0 01 1 0801-1212 ●
22 SEAL; TAPE 8-98166-639-0 01 1 1301- ● ●
22 SEAL; TAPE
SPEED LIMITER 100KM(NMU) 		8-98166-639-0 01 1 1301- ●
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO 		8-97359-129-0 01 1 0801- ● ● ● ●
452 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 02 1 0801- ● ● ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-063-0 01 1 0801- ● ● ● ●
657 CONTROL UNIT; MIMAMORI 8-98013-144-8 01 1 0801-1401 ●
657 CONTROL UNIT; MIMAMORI 8-98260-912-0 01 1 1402- ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR 8-98048-743-1 01 1 0801- ● ● ● ●

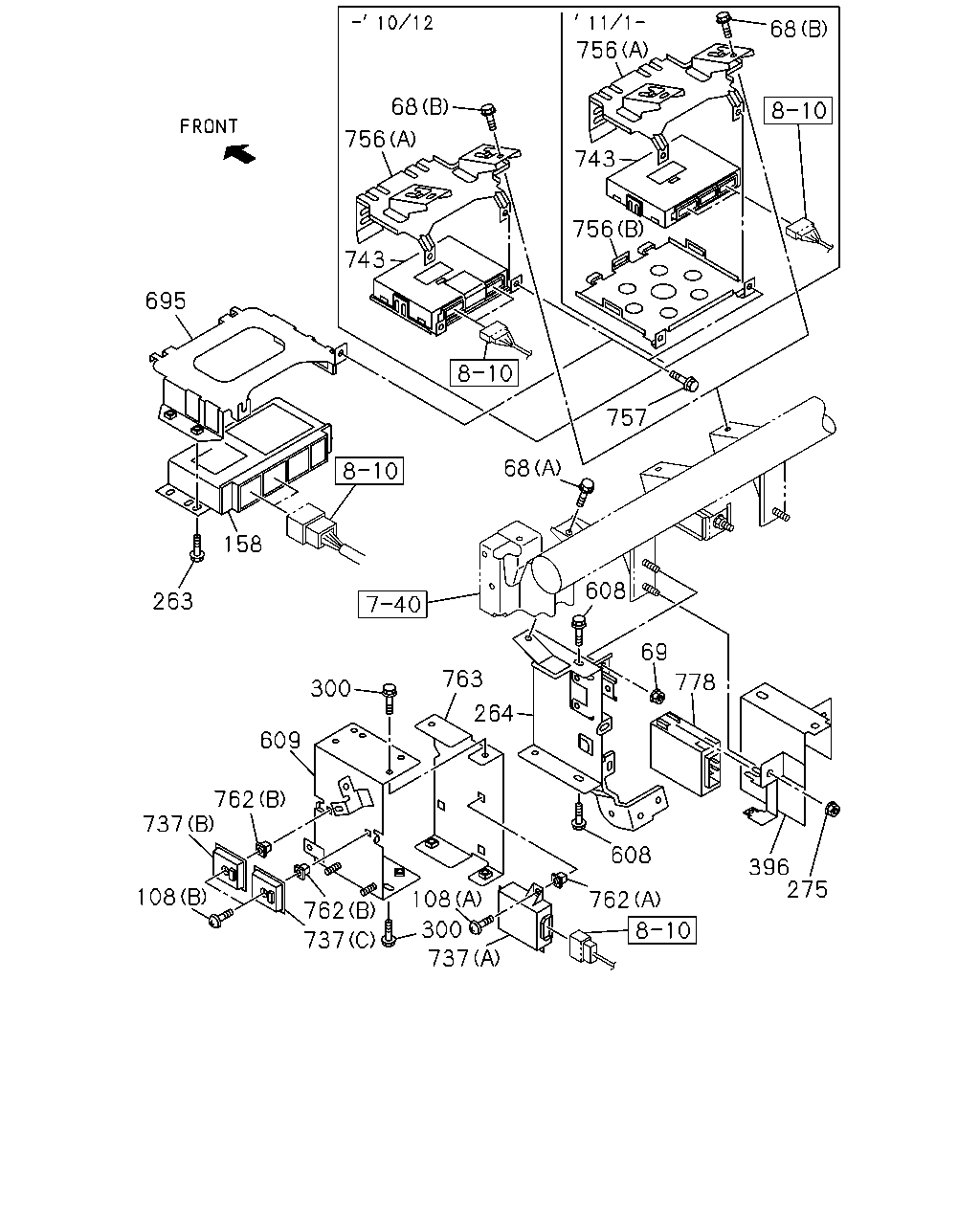

çizim 160956
68 756 68 756 743 756 743 695 757 68 158 608 263 69 763 778 300 264 609 762 737 608 396 275 108 108 762 762 300 737 737
BalonParca AdiParca NoAdetTipApplied Date A B C D
68 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0801-0802 ● ● ●
68 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0801-0802 ● ● ●
68 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0803- ● ● ● ●
68 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0803- ● ● ●
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 0801- ● ● ● ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0801- ● ● ● ●
108 BOLT; TRANS CONT MODULE
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0801- ● ● ●
108 BOLT; TRANS CONT MODULE
(B) M4X25 TAPPING 		0-74160-425-0 02 1 0801- ● ● ●
158 CONTROLLER; ABS
TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) ANTILOCK BRAKE SYSTEM(BFA) 		1-80119-261-0 01 1 0801-0802 ● ●
158 CONTROLLER; ABS
TIRE FRT 11R22.5-16 RIB RR 11R22.5-16 LUG(20X), TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) ANTILOCK BRAKE SYSTEM(BFA) 		1-80119-261-0 01 1 0801-0802 ●
158 CONTROLLER; ABS
TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) ANTILOCK BRAKE SYSTEM(BFA) 		1-80119-261-0 01 1 0803-1201 ● ●
158 CONTROLLER; ABS
TIRE FRT 11R22.5-16 RIB RR 11R22.5-16 LUG(20X), TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) ANTILOCK BRAKE SYSTEM(BFA) 		1-80119-261-0 01 1 0803-1201 ●
158 CONTROLLER; ABS
TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 11.00R-22.5-16 RIB(55N) ANTILOCK BRAKE SYSTEM(BFA) 		1-80119-261-0 01 1 0803-1201 ●
158 CONTROLLER; ABS
TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) ANTILOCK BRAKE SYSTEM(BFA) 		8-98170-648-0 01 1 1202- ● ●
158 CONTROLLER; ABS
TIRE FRT 11R22.5-16 RIB RR 11R22.5-16 LUG(20X), TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) ANTILOCK BRAKE SYSTEM(BFA) 		8-98170-648-0 01 1 1202- ●
158 CONTROLLER; ABS
TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 11.00R-22.5-16 RIB(55N) ANTILOCK BRAKE SYSTEM(BFA) 		8-98170-648-0 01 1 1202- ●
158 CONTROLLER; ABS
TIRE 275/70R22.5 SPECIAL AUSTRALIA(84N) ANTILOCK BRAKE SYSTEM(BFA) 		1-80119-229-2 01 1 0801-1201 ●
158 CONTROLLER; ABS
TIRE 275/70R22.5 SPECIAL AUSTRALIA(84N) ANTILOCK BRAKE SYSTEM(BFA) 		8-98170-647-0 01 1 1202- ●
263 BOLT; CONT UNIT
ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE 		0-28650-616-0 04 1 0801-0802 ● ● ●
263 BOLT; CONT UNIT
ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE 		0-28650-616-0 04 1 0803- ● ● ● ●
264 BRACKET; CONT UNIT 8-97609-985-9 01 1 0801- ● ● ● ●
275 NUT; BRKT
AUTO CRUISE<K30> M6 FLANGE 		0-91180-106-0 02 1 0801- ● ● ●
300 BOLT; CONT UNIT BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 0801- ● ● ●
396 BRACKET
AUTO CRUISE<K30> 		8-98084-467-4 01 1 0801- ● ● ●
608 BOLT; CONT UNIT,AIR SUS
SHIFT PATTERN SINGLE-H<EDY> M6X16 FLANGE 		0-28650-616-0 05 1 0801-0802 ● ●
608 BOLT; CONT UNIT,AIR SUS
ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE 		0-28650-616-0 05 1 0801-0802 ●
608 BOLT; CONT UNIT,AIR SUS
SHIFT PATTERN SINGLE-H<EDY> M6X16 FLANGE 		0-28650-616-0 05 1 0803- ● ●
608 BOLT; CONT UNIT,AIR SUS
ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE 		0-28650-616-0 05 1 0803- ● ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
SHIFT PATTERN SINGLE-H<EDY> 		8-98095-337-0 01 1 0801-0802 ● ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ANTILOCK BRAKE SYSTEM(BFA) 		8-98095-337-0 01 1 0801-0802 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
SHIFT PATTERN SINGLE-H<EDY> 		8-98095-337-0 01 1 0803-1308 ● ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ANTILOCK BRAKE SYSTEM(BFA) 		8-98095-337-0 01 1 0803-1308 ● ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
SHIFT PATTERN SINGLE-H<EDY> 		8-98169-737-1 01 1 1309- ● ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ANTILOCK BRAKE SYSTEM(BFA) 		8-98169-737-1 01 1 1309- ● ●
695 BRACKET; CONT UNIT,ABS
ANTILOCK BRAKE SYSTEM(BFA) 		8-98045-016-1 01 1 0801-0802 ● ● ●
695 BRACKET; CONT UNIT,ABS
ANTILOCK BRAKE SYSTEM(BFA) 		8-98045-016-1 01 1 0803- ● ● ● ●
737 CONTROL UNIT; TRANSMISSION
(A) 		1-80111-271-0 01 1 0801- ● ● ●
737 CONTROL UNIT; TRANSMISSION
(B) 		8-98095-040-0 01 1 0801- ● ● ●
737 CONTROL UNIT; TRANSMISSION
(C) 		8-98095-041-0 01 1 0801- ● ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98089-297-0 01 1 0801-0802 ● ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98102-484-0 01 1 0803-0901 ● ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98125-904-0 01 1 0902-1005 ● ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98155-169-1 01 1 1006-1007 ● ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98176-213-0 01 1 1008-1012 ● ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98182-026-3 01 1 1101- ● ● ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (B) 		8-98111-836-1 01 1 1101- ● ● ●
756 BRACKET; ECU,BCM
ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98056-411-3 01 1 0801-0802 ● ● ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98056-411-3 01 1 0801-0802 ● ● ●
756 BRACKET; ECU,BCM
ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98056-411-3 01 1 0803- ● ● ● ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98056-411-3 01 1 0803- ● ● ●
757 BOLT; BRKT,BCM
ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE 		0-28650-616-0 02 1 0801-0802 ● ● ●
757 BOLT; BRKT,BCM
MULTI INFORMATION DISPLAY<7NY> EXC. ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE 		0-28650-616-0 02 1 0801-0802 ● ● ●
757 BOLT; BRKT,BCM
ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE 		0-28650-616-0 02 1 0803- ● ● ● ●
757 BOLT; BRKT,BCM
MULTI INFORMATION DISPLAY<7NY> EXC. ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE 		0-28650-616-0 02 1 0803- ● ● ●
762 GROMMET; TRANS CONT MODULE
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 03 1 0801- ● ● ●
762 GROMMET; TRANS CONT MODULE
(B) D=7.5X7.5 L=7 		8-94430-147-0 02 1 0801- ● ● ●
763 BRACKET; TRANS CONT MODULE 8-98085-587-0 01 1 0801- ● ● ●
778 MODULE; CRUISE CONT
AUTO CRUISE<K30> 		8-97620-055-0 01 1 0801- ● ● ●
