8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#57641) — 161 parça

237 236 482 667 397 666

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
236	BRACKET; AXLE HARNESS,RR ANTILOCK BRAKE SYSTEM(BFA)	1-82698-614-0	01	1	0801-0801	●
236	BRACKET; AXLE HARNESS,RR ANTILOCK BRAKE SYSTEM(BFA)	1-82698-614-0	01	1	0802-	●	●
237	NUT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	01	1	0801-0801	●	●
237	NUT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	01	1	0802-0803			●
237	NUT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	01	1	0804-			●	●
237	NUT M8 FLANGE	0-91180-108-0	04	1	0801-0801		●	●
237	NUT M8 FLANGE	0-91180-108-0	04	1	0802-	●	●	●	●
397	NUT; BRKT FIX ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	01	1	0801-0801	●
397	NUT; BRKT FIX ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	01	1	0802-	●	●
482	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M8X30 FLANGE	0-28650-830-0	01	1	0801-0801	●
482	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M8X30 FLANGE	0-28650-830-0	01	1	0802-0802	●	●
666	CLIP; AXLE HARNESS ANTILOCK BRAKE SYSTEM(BFA) ID=11X2 L=20	1-09700-871-0	01	1	0801-0802	●	●	●
666	CLIP; AXLE HARNESS ANTILOCK BRAKE SYSTEM(BFA) ID=11X2 L=20	1-09700-871-0	01	1	0803-0804	●	●	●	●
666	CLIP; AXLE HARNESS ANTILOCK BRAKE SYSTEM(BFA) ID=11X2 L=16	0-95325-025-0	01	1	0805-	●	●	●	●
667	BOLT; CLIP ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE	0-28650-820-0	04	1	0801-0801	●
667	BOLT; CLIP ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE	0-28650-820-0	01	1	0801-0802	●	●	●
667	BOLT; CLIP ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE	0-28650-820-0	01	1	0803-	●	●	●	●

1 8 263 3 10 21 8 263 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	SWITCH; COMB EXC. AUTO CRUISE<K30>	8-98064-764-1	01	1	0801-0905	●	●
1	SWITCH; COMB AIR BAG DRIVER(AJ3) EXC. AUTO CRUISE<K30>	8-98064-764-1	01	1	0801-0905			●
1	SWITCH; COMB EXC. AUTO CRUISE<K30>	8-98146-618-0	01	1	0906-1210	●	●
1	SWITCH; COMB AIR BAG DRIVER(AJ3) EXC. AUTO CRUISE<K30>	8-98146-618-0	01	1	0906-1210			●
1	SWITCH; COMB EXC. AUTO CRUISE<K30>	8-98217-820-0	01	1	1211-1310	●	●
1	SWITCH; COMB AIR BAG DRIVER(AJ3) EXC. AUTO CRUISE<K30>	8-98217-820-0	01	1	1211-1310			●
1	SWITCH; COMB EXC. AUTO CRUISE<K30>	8-98243-691-0	01	1	1311-	●	●
1	SWITCH; COMB AIR BAG DRIVER(AJ3) EXC. AUTO CRUISE<K30>	8-98243-691-0	01	1	1311-			●
1	SWITCH; COMB AUTO CRUISE<K30>	8-98064-763-1	01	1	0801-0905	●	●
1	SWITCH; COMB AIR BAG DRIVER(AJ3) AUTO CRUISE<K30>	8-98064-763-1	01	1	0801-0905			●
1	SWITCH; COMB AUTO CRUISE<K30>	8-98146-619-0	01	1	0906-1210	●	●
1	SWITCH; COMB AIR BAG DRIVER(AJ3) AUTO CRUISE<K30>	8-98146-619-0	01	1	0906-1210			●
1	SWITCH; COMB AUTO CRUISE<K30>	8-98217-821-0	01	1	1211-1310	●	●
1	SWITCH; COMB AIR BAG DRIVER(AJ3) AUTO CRUISE<K30>	8-98217-821-0	01	1	1211-1310			●
1	SWITCH; COMB AUTO CRUISE<K30>	8-98243-692-0	01	1	1311-	●	●
1	SWITCH; COMB AIR BAG DRIVER(AJ3) AUTO CRUISE<K30>	8-98243-692-0	01	1	1311-			●
1	SWITCH; COMB EXC. AIR BAG DRIVER(AJ3)	8-98060-302-1	01	1	0801-1101			●
1	SWITCH; COMB	8-98060-302-1	01	1	0801-1101				●
1	SWITCH; COMB EXC. AIR BAG DRIVER(AJ3),AUTO CRUISE<K30>	8-98060-302-1	01	1	1102-1310			●
1	SWITCH; COMB	8-98060-302-1	01	1	1102-1310				●
1	SWITCH; COMB EXC. AIR BAG DRIVER(AJ3),AUTO CRUISE<K30>	8-98243-704-0	01	1	1311-			●
1	SWITCH; COMB	8-98243-704-0	01	1	1311-				●
3	SCREW; COMB SW M5X20 W/PL WASHER&TORQUES	8-98061-743-0	02	1	0801-	●	●	●	●
8	SWITCH; POWER WINDOW PASSENGER	8-97387-034-2	01	1	0801-	●	●	●
8	SWITCH; POWER WINDOW DRIVER	8-98003-785-1	01	1	0801-0809	●	●	●
8	SWITCH; POWER WINDOW DRIVER	8-98129-844-0	01	1	0810-1001	●	●	●
8	SWITCH; POWER WINDOW DRIVER	8-98159-543-0	01	1	1002-	●	●	●
10	SCREW; POWER WINDOW SW	8-98153-865-0	03	1	0801-	●	●	●
21	SWITCH; CLU	8-97358-248-0	01	1	0801-	●	●	●	●
263	COVER; SW DRIVER	8-98153-836-0	01	1	0801-	●	●	●
263	COVER; SW PASSENGER	8-98153-841-0	01	1	0801-	●	●	●

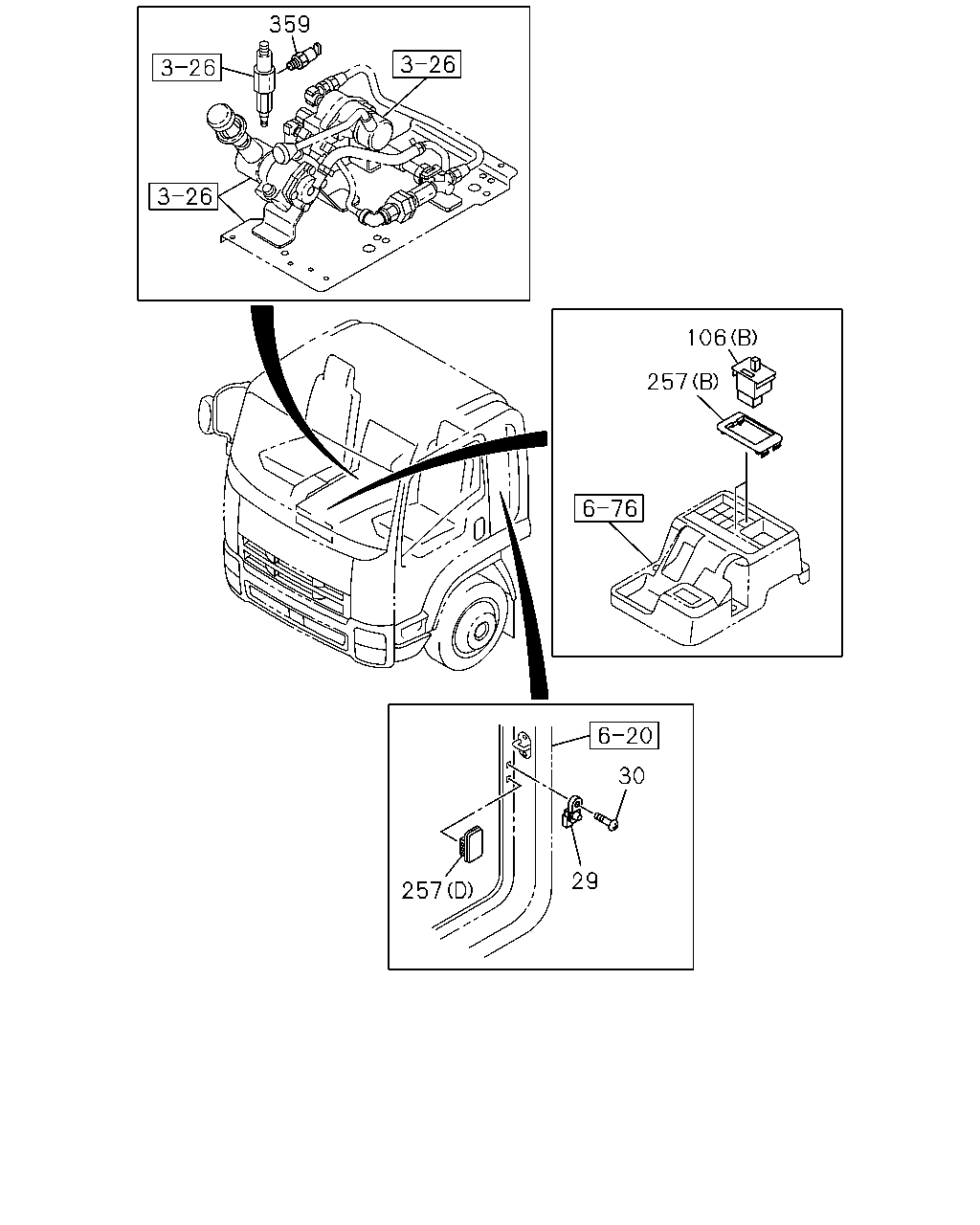

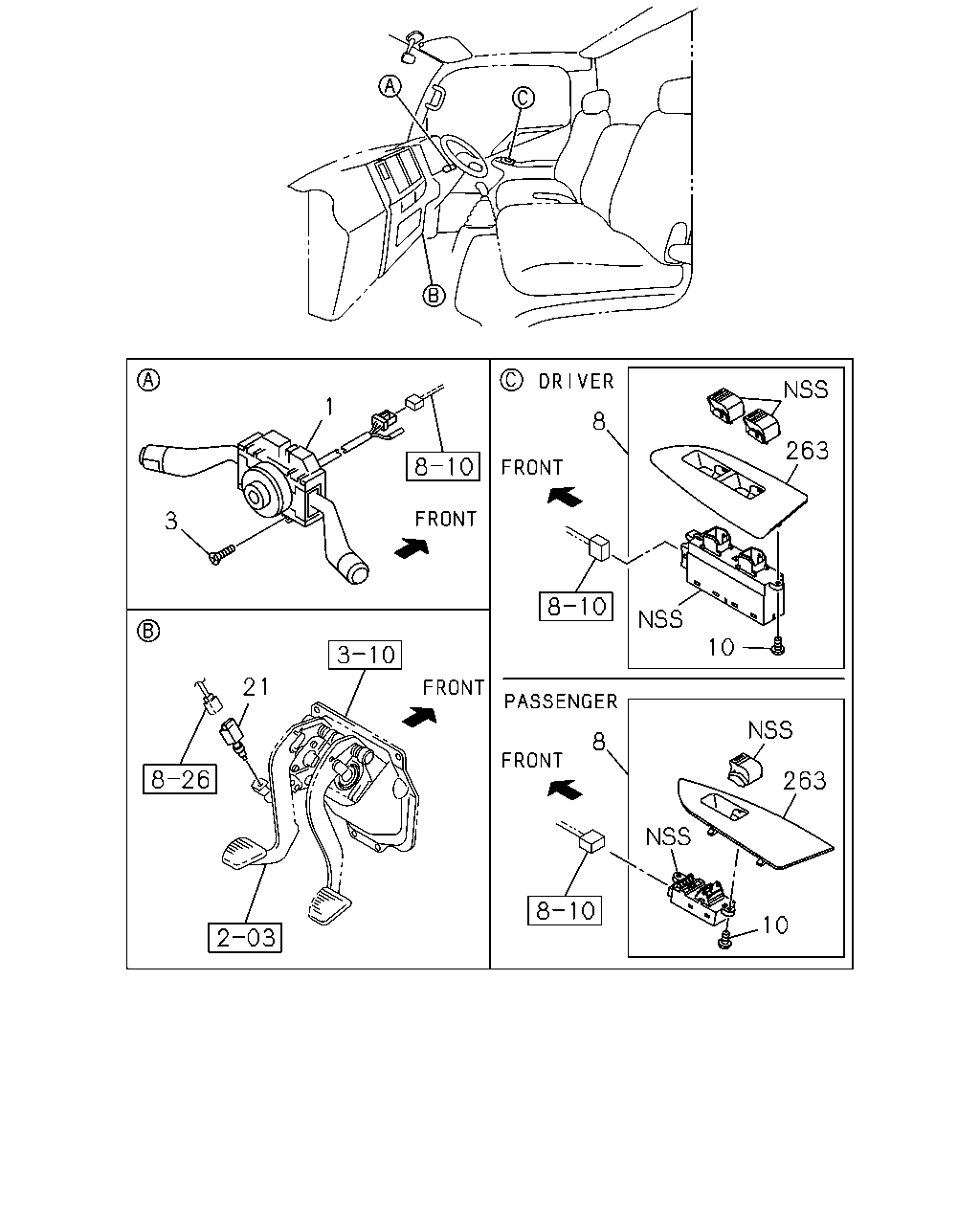

359 106 257 30 29 257

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
29	SWITCH; DOOR BLACK	8-98022-211-0	01	1	0801-	●	●	●	●
29	SWITCH; DOOR BLACK	8-98022-211-0	01	1	0801-	●	●	●
30	SCREW; DOOR SW M5X18	8-98047-201-0	01	1	0801-	●	●	●	●
30	SCREW; DOOR SW M5X18	8-98047-201-0	01	1	0801-	●	●	●
106	SWITCH; REMOTE CONT MIRROR (B)	1-82350-223-0	02	1	0801-	●	●
106	SWITCH; REMOTE CONT MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> AUSTRALIA EQUIPMENT(RR3) (B)	1-82350-223-0	02	1	0801-			●
106	SWITCH; REMOTE CONT MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-97173-294-1	01	1	0801-			●
106	SWITCH; REMOTE CONT MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-97173-294-1	01	1	0801-				●
257	COVER; HOLE,SW (B)	8-97619-254-1	01	1	0801-	●
257	COVER; HOLE,SW (A)	8-98025-954-1	04	1	0801-1101	●	●	●	●
257	COVER; HOLE,SW (A)	8-98025-954-1	03	1	1102-	●	●	●	●
257	COVER; HOLE,SW (B)	8-97619-254-1	02	1	0801-		●
257	COVER; HOLE,SW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> AUSTRALIA EQUIPMENT(RR3) (B)	8-97619-254-1	02	1	0801-			●
257	COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C)	8-98029-914-1	01	1	0801-0801			●	●
257	COVER; HOLE,SW (C)	8-98029-914-1	01	1	0802-	●	●
257	COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C)	8-98029-914-1	01	1	0802-			●	●
257	COVER; HOLE,SW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> AUSTRALIA EQUIPMENT(RR3) (C)	8-98029-914-1	01	1	0802-			●
257	COVER; HOLE,SW (D)	8-98029-917-0	01	1	0801-				●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	0801-0808	●	●	●	●
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A)	8-98025-954-1	01	1	0801-0808	●	●	●	●
257	COVER; HOLE,SW EXC. CATALYSIS CONTROL WITH DPD<8JM> (A)	8-98025-954-1	01	1	0801-0808	●	●	●
257	COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98025-954-1	01	1	0801-0808			●	●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	0801-0808				●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	0801-0808				●
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A)	8-98025-954-1	01	1	0809-1101	●	●	●	●
257	COVER; HOLE,SW EXC. CATALYSIS CONTROL WITH DPD<8JM> (A)	8-98025-954-1	01	1	0809-1101	●	●	●
257	COVER; HOLE,SW EXC. DIFF LOCK<C3N> (A)	8-98025-954-1	01	1	0809-1101	●	●	●
257	COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98025-954-1	01	1	0809-1101			●	●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	0809-1101				●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	0809-1101				●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	0809-1101				●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	1102-	●	●	●	●
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A)	8-98025-954-1	01	1	1102-	●	●	●	●
257	COVER; HOLE,SW EXC. CATALYSIS CONTROL WITH DPD<8JM> (A)	8-98025-954-1	01	1	1102-	●	●	●
257	COVER; HOLE,SW EXC. DIFF LOCK<C3N> (A)	8-98025-954-1	01	1	1102-	●	●	●
257	COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98025-954-1	01	1	1102-			●	●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	1102-				●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	1102-				●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	1102-				●
359	SWITCH; TRAILER BRAKE STAMP 0.3	8-98010-857-0	01	1	0801-	●			●

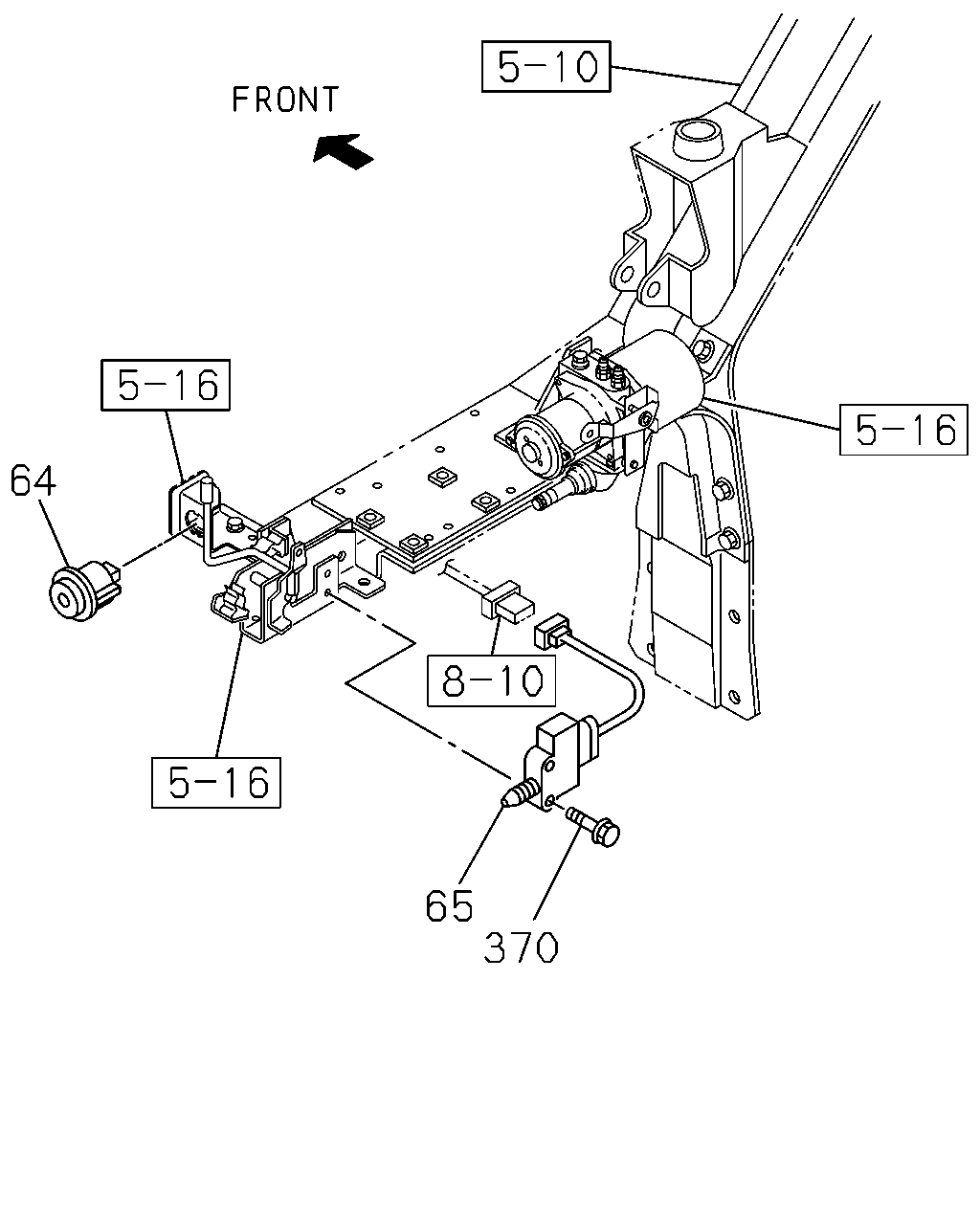

64 65 370

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
64	SWITCH; CAB TILT MAIN	1-82380-173-2	01	1	0801-	●	●	●	●
65	SWITCH; CAB TILT LK STAMP NO	1-82380-172-1	01	1	0801-	●	●	●	●
370	BOLT; SW M6X30 FLANGE	0-28650-630-0	02	1	0801-	●	●	●	●

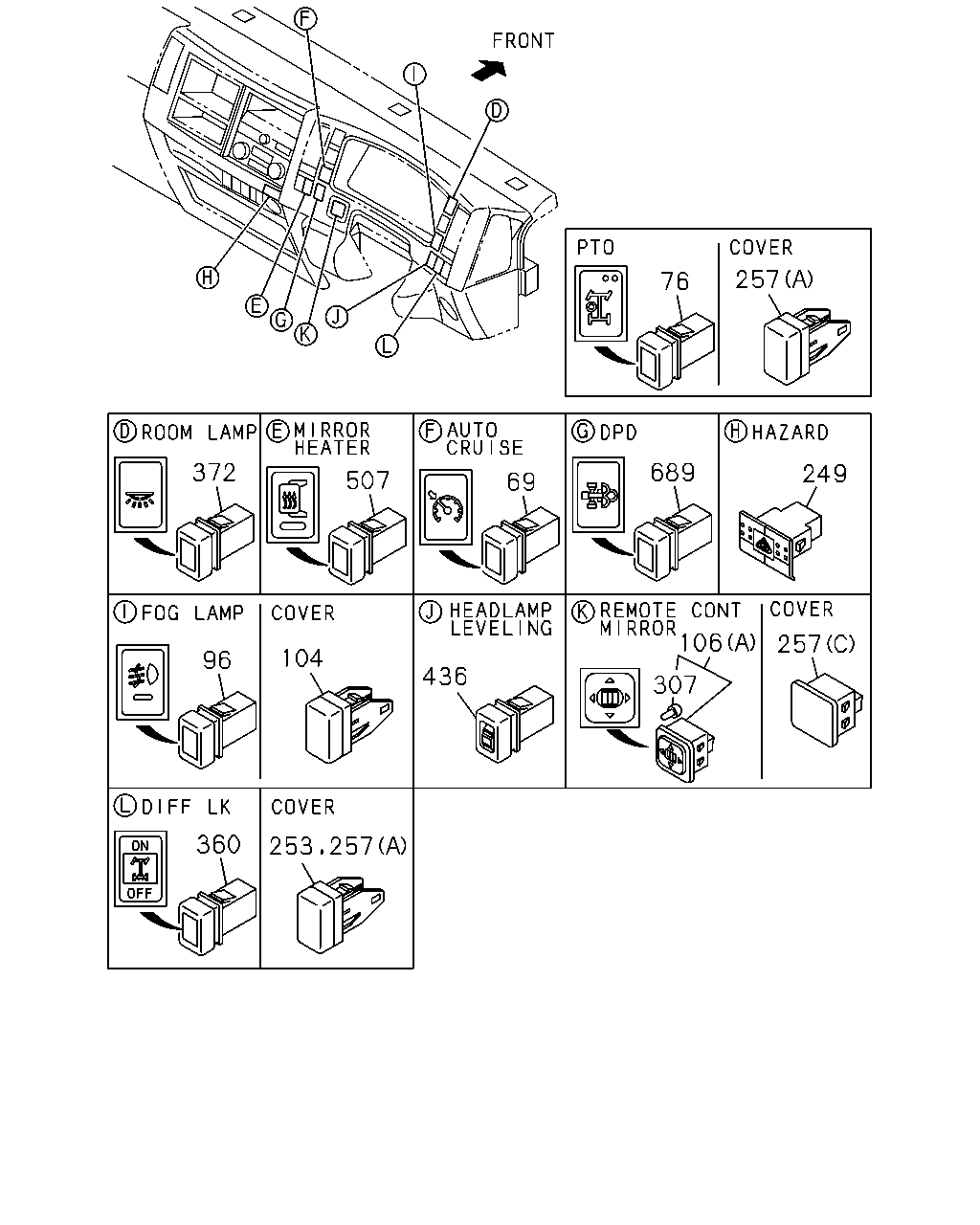

76 257 249 689 69 507 372 96 104 436 307 257 106 257 253 360

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
69	SWITCH; AUTO CRUISE AUTO CRUISE<K30>	8-98011-344-1	01	1	0801-	●	●	●
76	SWITCH ASM; PTO	8-97386-993-4	01	1	1005-	●	●	●	●
96	SWITCH; FOG LAMP FOG LAMP<T96>	8-97387-031-4	01	1	0801-	●	●	●	●
104	COVER; SW HOLE,FOG LAMP EXC. FOG LAMP<T96>	8-98025-954-1	01	1	0801-	●	●	●	●
106	SWITCH; REMOTE CONT MIRROR (B)	1-82350-223-0	02	1	0801-	●	●
106	SWITCH; REMOTE CONT MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> AUSTRALIA EQUIPMENT(RR3) (B)	1-82350-223-0	02	1	0801-			●
106	SWITCH; REMOTE CONT MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-97173-294-1	01	1	0801-			●
106	SWITCH; REMOTE CONT MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-97173-294-1	01	1	0801-				●
249	SWITCH; HAZARD	8-97386-922-1	01	1	0801-	●	●	●	●
253	COVER; SW HOLE	8-98025-954-1	01	1	0801-	●	●	●	●
253	COVER; SW HOLE EXC. AUTO CRUISE<K30>	8-98025-954-1	01	1	0801-	●	●	●
253	COVER; SW HOLE	8-98025-954-1	01	1	0801-				●
253	COVER; SW HOLE	8-98025-954-1	02	1	0801-	●	●	●	●
257	COVER; HOLE,SW (B)	8-97619-254-1	01	1	0801-	●
257	COVER; HOLE,SW (A)	8-98025-954-1	04	1	0801-1101	●	●	●	●
257	COVER; HOLE,SW (A)	8-98025-954-1	03	1	1102-	●	●	●	●
257	COVER; HOLE,SW (B)	8-97619-254-1	02	1	0801-		●
257	COVER; HOLE,SW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> AUSTRALIA EQUIPMENT(RR3) (B)	8-97619-254-1	02	1	0801-			●
257	COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C)	8-98029-914-1	01	1	0801-0801			●	●
257	COVER; HOLE,SW (C)	8-98029-914-1	01	1	0802-	●	●
257	COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C)	8-98029-914-1	01	1	0802-			●	●
257	COVER; HOLE,SW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> AUSTRALIA EQUIPMENT(RR3) (C)	8-98029-914-1	01	1	0802-			●
257	COVER; HOLE,SW (D)	8-98029-917-0	01	1	0801-				●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	0801-0808	●	●	●	●
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A)	8-98025-954-1	01	1	0801-0808	●	●	●	●
257	COVER; HOLE,SW EXC. CATALYSIS CONTROL WITH DPD<8JM> (A)	8-98025-954-1	01	1	0801-0808	●	●	●
257	COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98025-954-1	01	1	0801-0808			●	●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	0801-0808				●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	0801-0808				●
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A)	8-98025-954-1	01	1	0809-1101	●	●	●	●
257	COVER; HOLE,SW EXC. CATALYSIS CONTROL WITH DPD<8JM> (A)	8-98025-954-1	01	1	0809-1101	●	●	●
257	COVER; HOLE,SW EXC. DIFF LOCK<C3N> (A)	8-98025-954-1	01	1	0809-1101	●	●	●
257	COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98025-954-1	01	1	0809-1101			●	●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	0809-1101				●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	0809-1101				●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	0809-1101				●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	1102-	●	●	●	●
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A)	8-98025-954-1	01	1	1102-	●	●	●	●
257	COVER; HOLE,SW EXC. CATALYSIS CONTROL WITH DPD<8JM> (A)	8-98025-954-1	01	1	1102-	●	●	●
257	COVER; HOLE,SW EXC. DIFF LOCK<C3N> (A)	8-98025-954-1	01	1	1102-	●	●	●
257	COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)	8-98025-954-1	01	1	1102-			●	●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	1102-				●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	1102-				●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	1102-				●
307	BULB ASM; SW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. AUSTRALIA EQUIPMENT(RR3) 24V	8-98226-896-0	01	1	0801-			●
307	BULB ASM; SW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 24V	8-98226-896-0	01	1	0801-				●
360	SWITCH ASM; DIFF LK DIFF LOCK<C3N>	8-97613-963-2	01	1	0809-	●	●	●
372	SWITCH; ROOM LAMP	8-97386-917-2	01	1	0801-	●	●	●
436	SWITCH; HEADLAMP LEVELING HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-97386-981-2	01	1	0801-	●	●	●	●
507	SWITCH; MIRROR HEATER	8-97386-924-3	01	1	0801-	●	●
507	SWITCH; MIRROR HEATER O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-97386-924-3	01	1	0801-			●	●
689	SWITCH; DPD CATALYSIS CONTROL WITH DPD<8JM>	8-97386-921-2	01	1	0801-	●	●	●

164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0801-0901	●	●	●
164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0902-	●	●	●
164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONT WO/HEATER(C65) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0902-				●
164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0801-0901	●	●	●
164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0902-	●	●	●
164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONT WO/HEATER(C65) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0902-				●

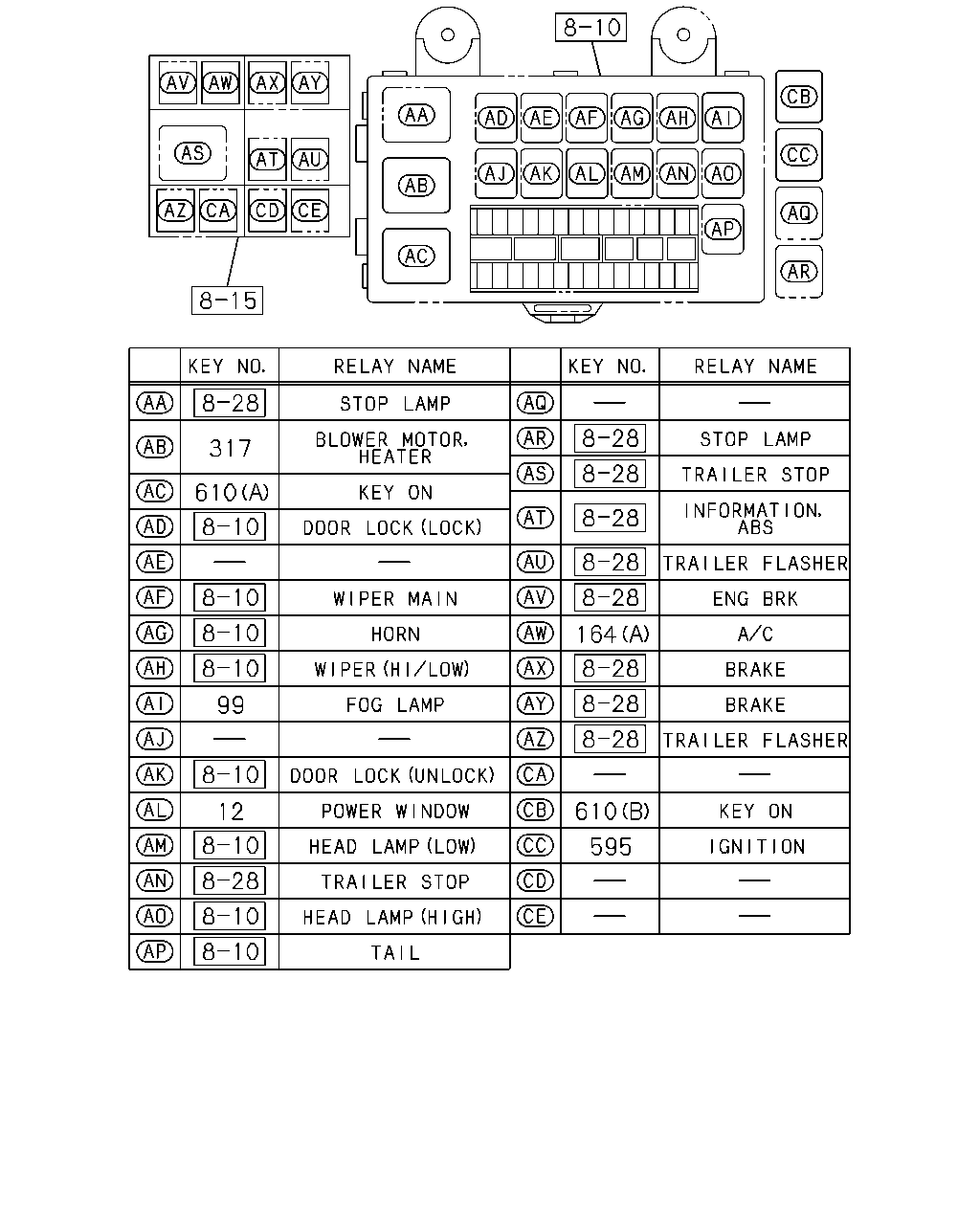

317 610 99 12 610 595 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
12	RELAY; POWER WINDOW 24V 10A PANASONIC	8-97173-035-1	01	1	0801-	●	●	●
99	RELAY; FOG LAMP FOG LAMP<T96> 24V 10A PANASONIC	8-97173-035-1	01	1	0801-	●	●	●	●
164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0801-0901	●	●	●
164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0902-	●	●	●
164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONT WO/HEATER(C65) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0902-				●
164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0801-0901	●	●	●
164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0902-	●	●	●
164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONT WO/HEATER(C65) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0902-				●
317	RELAY; BLOWER MOTOR,HTR 24V 12.5A PANASONIC	8-97262-933-0	01	1	0801-	●	●	●	●
595	RELAY; IGNITION 24V 10A PANASONIC	8-97173-035-1	01	1	1208-				●
610	RELAY; KEY ON (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1208-				●
610	RELAY; KEY ON (A) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0801-	●	●	●	●
