◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11143 - FXR/GXR EXC.EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#57640) — 80 parça

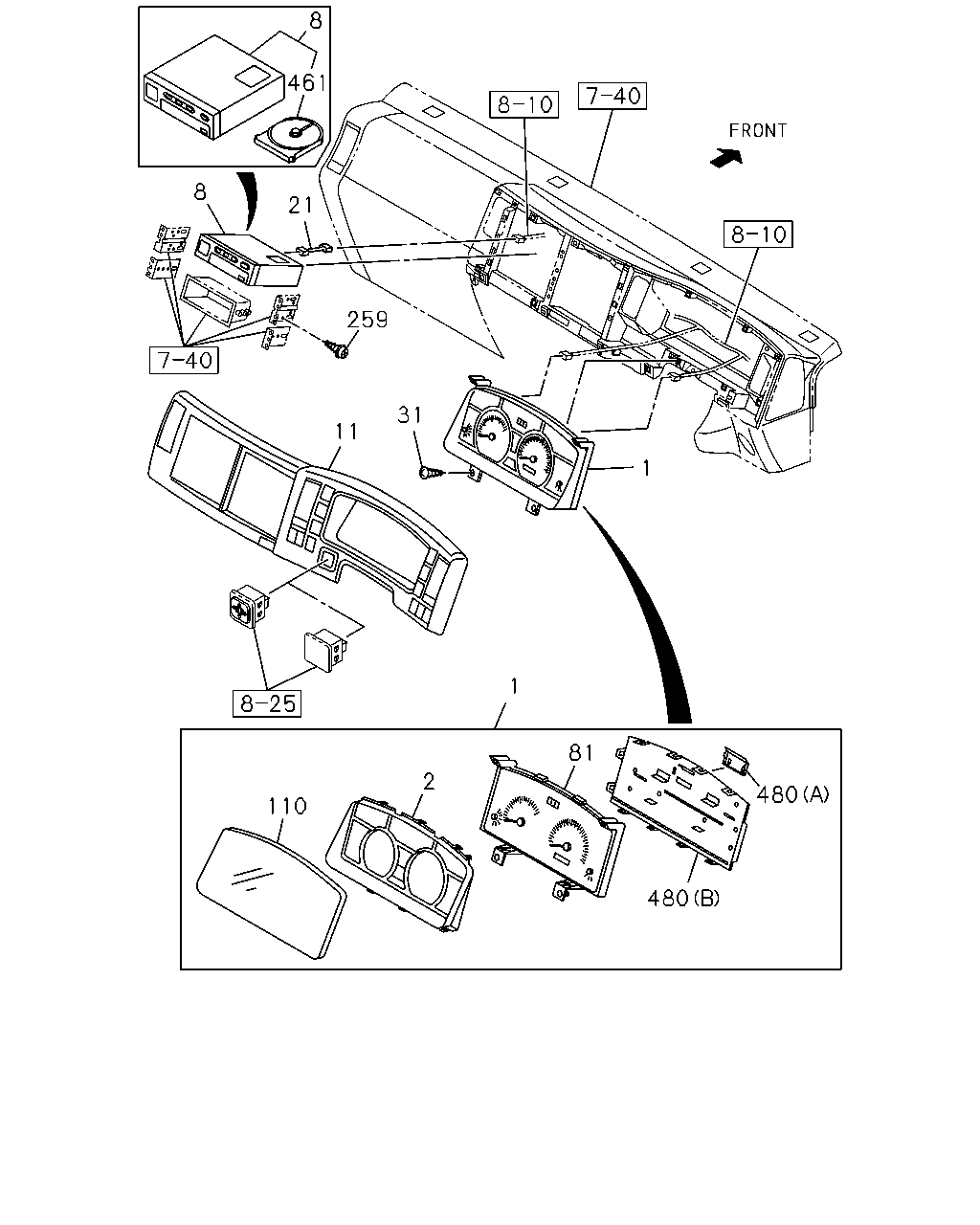

çizim 160923
8 461 8 21 259 31 11 1 1 81 2 480 110 480
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 METER COMPL; CLUSTER
6UZ1 TC-N(1C9) MULTI INFORMATION DISPLAY<7NY> 		8-98075-594-5 01 1 0801-1101 ● ●
1 METER COMPL; CLUSTER
6UZ1 TC-N(1C9) MULTI INFORMATION DISPLAY<7NY> EXC. ENGINE OVERRUN BUZZER<SK4> 		8-98075-594-5 01 1 0801-1101 ●
1 METER COMPL; CLUSTER
6UZ1 TC-N(1C9) MULTI INFORMATION DISPLAY<7NY> 		8-98179-474-1 01 1 1102- ● ●
1 METER COMPL; CLUSTER
6UZ1 TC-N(1C9) MULTI INFORMATION DISPLAY<7NY> EXC. ENGINE OVERRUN BUZZER<SK4> 		8-98179-474-1 01 1 1102- ●
1 METER COMPL; CLUSTER
6UZ1 TC-N(1C9) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98075-591-4 01 1 0801-1101 ● ●
1 METER COMPL; CLUSTER
6UZ1 TC-N(1C9) EXC. ENGINE OVERRUN BUZZER<SK4>,MULTI INFORMATION DISPLAY<7NY> 		8-98075-591-4 01 1 0801-1101 ●
1 METER COMPL; CLUSTER
6UZ1 TC-C(1E1) 		8-98075-591-4 01 1 0801-1101 ●
1 METER COMPL; CLUSTER
6UZ1 TC-N(1C9) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98179-472-2 01 1 1102- ● ●
1 METER COMPL; CLUSTER
6UZ1 TC-N(1C9) EXC. ENGINE OVERRUN BUZZER<SK4>,MULTI INFORMATION DISPLAY<7NY> 		8-98179-472-2 01 1 1102- ●
1 METER COMPL; CLUSTER
6UZ1 TC-C(1E1) 		8-98179-472-2 01 1 1102- ●
1 METER COMPL; CLUSTER
6UZ1 TC-N(1C9) ENGINE OVERRUN BUZZER<SK4> MULTI INFORMATION DISPLAY<7NY> 		8-98075-596-5 01 1 0801-1101 ●
1 METER COMPL; CLUSTER
6UZ1 TC-N(1C9) ENGINE OVERRUN BUZZER<SK4> MULTI INFORMATION DISPLAY<7NY> 		8-98179-475-1 01 1 1102- ●
1 METER COMPL; CLUSTER
6UZ1 TC-N(1C9) ENGINE OVERRUN BUZZER<SK4> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98075-593-5 01 1 0801-1101 ●
1 METER COMPL; CLUSTER
6UZ1 TC-N(1C9) ENGINE OVERRUN BUZZER<SK4> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98179-473-2 01 1 1102- ●
2 PANEL; CLUSTER 8-98054-432-0 01 1 0801- ● ● ● ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		8-97387-082-2 01 1 0808- ●
11 CLUSTER ASM; METER
TACHOGRAPH DIGITAL<EBB> DARK GRAY 		8-97414-681-1 01 1 0801-0905 ● ● ●
11 CLUSTER ASM; METER
EXC. TACHOGRAPH DIGITAL<EBB> DARK GRAY 		8-97405-350-6 01 1 0801-0905 ● ● ●
11 CLUSTER ASM; METER
DARK GRAY 		8-97405-350-6 01 1 0801-0905 ●
11 CLUSTER ASM; METER
DARK GRAY 		8-97405-350-6 01 1 0906- ● ● ● ●
21 HARNESS; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB> 		8-98074-078-0 01 1 0801-0905 ● ● ●
21 HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		8-98074-077-0 01 1 0801- ●
31 SCREW; METER,INST PANEL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0801- ● ● ● ●
81 METER SUB ASM
6UZ1 TC-N(1C9) MULTI INFORMATION DISPLAY<7NY> 		8-98079-698-0 01 1 0801-1101 ● ●
81 METER SUB ASM
6UZ1 TC-N(1C9) MULTI INFORMATION DISPLAY<7NY> EXC. ENGINE OVERRUN BUZZER<SK4> 		8-98079-698-0 01 1 0801-1101 ●
81 METER SUB ASM
6UZ1 TC-N(1C9) MULTI INFORMATION DISPLAY<7NY> 		8-98179-482-0 01 1 1102- ● ●
81 METER SUB ASM
6UZ1 TC-N(1C9) MULTI INFORMATION DISPLAY<7NY> EXC. ENGINE OVERRUN BUZZER<SK4> 		8-98179-482-0 01 1 1102- ●
81 METER SUB ASM
6UZ1 TC-N(1C9) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98079-684-0 01 1 0801-1101 ● ●
81 METER SUB ASM
6UZ1 TC-N(1C9) EXC. ENGINE OVERRUN BUZZER<SK4>,MULTI INFORMATION DISPLAY<7NY> 		8-98079-684-0 01 1 0801-1101 ●
81 METER SUB ASM
6UZ1 TC-C(1E1) 		8-98079-684-0 01 1 0801-1101 ●
81 METER SUB ASM
6UZ1 TC-N(1C9) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98179-480-0 01 1 1102- ● ●
81 METER SUB ASM
6UZ1 TC-N(1C9) EXC. ENGINE OVERRUN BUZZER<SK4>,MULTI INFORMATION DISPLAY<7NY> 		8-98179-480-0 01 1 1102- ●
81 METER SUB ASM
6UZ1 TC-C(1E1) 		8-98179-480-0 01 1 1102- ●
81 METER SUB ASM
6UZ1 TC-N(1C9) ENGINE OVERRUN BUZZER<SK4> MULTI INFORMATION DISPLAY<7NY> 		8-98079-700-0 01 1 0801-1101 ●
81 METER SUB ASM
6UZ1 TC-N(1C9) ENGINE OVERRUN BUZZER<SK4> MULTI INFORMATION DISPLAY<7NY> 		8-98179-483-0 01 1 1102- ●
81 METER SUB ASM
6UZ1 TC-N(1C9) ENGINE OVERRUN BUZZER<SK4> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98079-685-0 01 1 0801-1101 ●
81 METER SUB ASM
6UZ1 TC-N(1C9) ENGINE OVERRUN BUZZER<SK4> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98179-481-0 01 1 1102- ●
110 GLASS; CLUSTER METER
MULTI INFORMATION DISPLAY<7NY> 		8-98054-642-0 01 1 0801- ● ● ●
110 GLASS; CLUSTER METER
EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98054-431-0 01 1 0801- ● ● ●
110 GLASS; CLUSTER METER 8-98054-431-0 01 1 0801- ●
259 SCREW; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 0808- ●
461 CARTRIDGE ASM; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		1-83129-433-0 01 1 0808- ●
480 COVER; METER
(B) BLACK 		8-98054-433-0 01 1 0801- ● ● ● ●
480 COVER; METER
MULTI INFORMATION DISPLAY<7NY> (A) BLACK DOT MATRIX FOR FPC PROTECTION 		8-98054-881-0 01 1 0801- ● ● ●

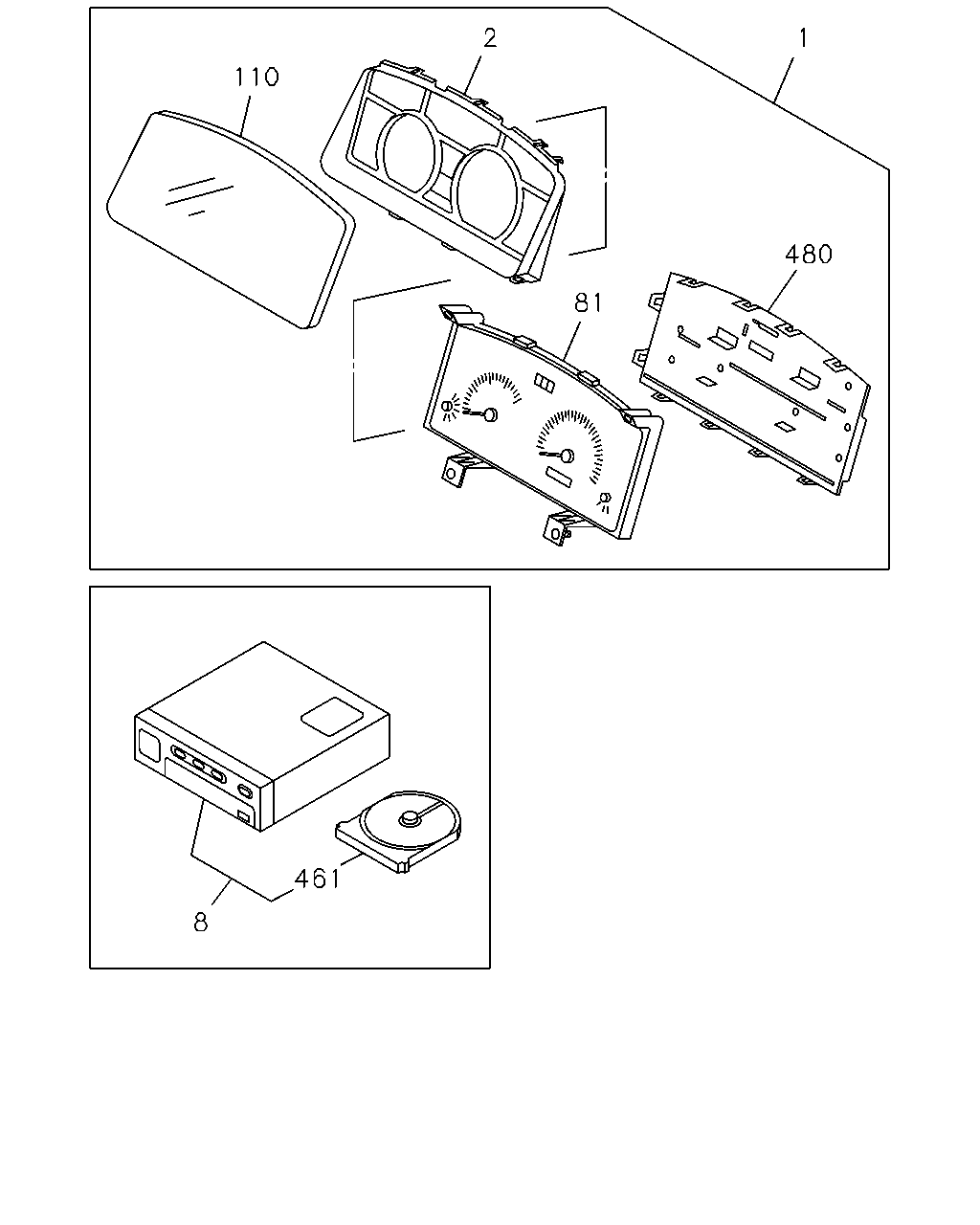

çizim 160938
2 1 110 480 81 461 8
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 METER COMPL; CLUSTER
6UZ1 TC-N(1C9) MULTI INFORMATION DISPLAY<7NY> 		8-98075-594-5 01 1 0801-1101 ● ●
1 METER COMPL; CLUSTER
6UZ1 TC-N(1C9) MULTI INFORMATION DISPLAY<7NY> EXC. ENGINE OVERRUN BUZZER<SK4> 		8-98075-594-5 01 1 0801-1101 ●
1 METER COMPL; CLUSTER
6UZ1 TC-N(1C9) MULTI INFORMATION DISPLAY<7NY> 		8-98179-474-1 01 1 1102- ● ●
1 METER COMPL; CLUSTER
6UZ1 TC-N(1C9) MULTI INFORMATION DISPLAY<7NY> EXC. ENGINE OVERRUN BUZZER<SK4> 		8-98179-474-1 01 1 1102- ●
1 METER COMPL; CLUSTER
6UZ1 TC-N(1C9) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98075-591-4 01 1 0801-1101 ● ●
1 METER COMPL; CLUSTER
6UZ1 TC-N(1C9) EXC. ENGINE OVERRUN BUZZER<SK4>,MULTI INFORMATION DISPLAY<7NY> 		8-98075-591-4 01 1 0801-1101 ●
1 METER COMPL; CLUSTER
6UZ1 TC-C(1E1) 		8-98075-591-4 01 1 0801-1101 ●
1 METER COMPL; CLUSTER
6UZ1 TC-N(1C9) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98179-472-2 01 1 1102- ● ●
1 METER COMPL; CLUSTER
6UZ1 TC-N(1C9) EXC. ENGINE OVERRUN BUZZER<SK4>,MULTI INFORMATION DISPLAY<7NY> 		8-98179-472-2 01 1 1102- ●
1 METER COMPL; CLUSTER
6UZ1 TC-C(1E1) 		8-98179-472-2 01 1 1102- ●
1 METER COMPL; CLUSTER
6UZ1 TC-N(1C9) ENGINE OVERRUN BUZZER<SK4> MULTI INFORMATION DISPLAY<7NY> 		8-98075-596-5 01 1 0801-1101 ●
1 METER COMPL; CLUSTER
6UZ1 TC-N(1C9) ENGINE OVERRUN BUZZER<SK4> MULTI INFORMATION DISPLAY<7NY> 		8-98179-475-1 01 1 1102- ●
1 METER COMPL; CLUSTER
6UZ1 TC-N(1C9) ENGINE OVERRUN BUZZER<SK4> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98075-593-5 01 1 0801-1101 ●
1 METER COMPL; CLUSTER
6UZ1 TC-N(1C9) ENGINE OVERRUN BUZZER<SK4> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98179-473-2 01 1 1102- ●
2 PANEL; CLUSTER 8-98054-432-0 01 1 0801- ● ● ● ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		8-97387-082-2 01 1 0808- ●
81 METER SUB ASM
6UZ1 TC-N(1C9) MULTI INFORMATION DISPLAY<7NY> 		8-98079-698-0 01 1 0801-1101 ● ●
81 METER SUB ASM
6UZ1 TC-N(1C9) MULTI INFORMATION DISPLAY<7NY> EXC. ENGINE OVERRUN BUZZER<SK4> 		8-98079-698-0 01 1 0801-1101 ●
81 METER SUB ASM
6UZ1 TC-N(1C9) MULTI INFORMATION DISPLAY<7NY> 		8-98179-482-0 01 1 1102- ● ●
81 METER SUB ASM
6UZ1 TC-N(1C9) MULTI INFORMATION DISPLAY<7NY> EXC. ENGINE OVERRUN BUZZER<SK4> 		8-98179-482-0 01 1 1102- ●
81 METER SUB ASM
6UZ1 TC-N(1C9) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98079-684-0 01 1 0801-1101 ● ●
81 METER SUB ASM
6UZ1 TC-N(1C9) EXC. ENGINE OVERRUN BUZZER<SK4>,MULTI INFORMATION DISPLAY<7NY> 		8-98079-684-0 01 1 0801-1101 ●
81 METER SUB ASM
6UZ1 TC-C(1E1) 		8-98079-684-0 01 1 0801-1101 ●
81 METER SUB ASM
6UZ1 TC-N(1C9) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98179-480-0 01 1 1102- ● ●
81 METER SUB ASM
6UZ1 TC-N(1C9) EXC. ENGINE OVERRUN BUZZER<SK4>,MULTI INFORMATION DISPLAY<7NY> 		8-98179-480-0 01 1 1102- ●
81 METER SUB ASM
6UZ1 TC-C(1E1) 		8-98179-480-0 01 1 1102- ●
81 METER SUB ASM
6UZ1 TC-N(1C9) ENGINE OVERRUN BUZZER<SK4> MULTI INFORMATION DISPLAY<7NY> 		8-98079-700-0 01 1 0801-1101 ●
81 METER SUB ASM
6UZ1 TC-N(1C9) ENGINE OVERRUN BUZZER<SK4> MULTI INFORMATION DISPLAY<7NY> 		8-98179-483-0 01 1 1102- ●
81 METER SUB ASM
6UZ1 TC-N(1C9) ENGINE OVERRUN BUZZER<SK4> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98079-685-0 01 1 0801-1101 ●
81 METER SUB ASM
6UZ1 TC-N(1C9) ENGINE OVERRUN BUZZER<SK4> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98179-481-0 01 1 1102- ●
110 GLASS; CLUSTER METER
MULTI INFORMATION DISPLAY<7NY> 		8-98054-642-0 01 1 0801- ● ● ●
110 GLASS; CLUSTER METER
EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98054-431-0 01 1 0801- ● ● ●
110 GLASS; CLUSTER METER 8-98054-431-0 01 1 0801- ●
461 CARTRIDGE ASM; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		1-83129-433-0 01 1 0808- ●
480 COVER; METER
(B) BLACK 		8-98054-433-0 01 1 0801- ● ● ● ●
480 COVER; METER
MULTI INFORMATION DISPLAY<7NY> (A) BLACK DOT MATRIX FOR FPC PROTECTION 		8-98054-881-0 01 1 0801- ● ● ●
