◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11143 - FXR/GXR EXC.EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-20 - METER CABLE ▶
8-20 — METER CABLE (#57639) — 31 parça

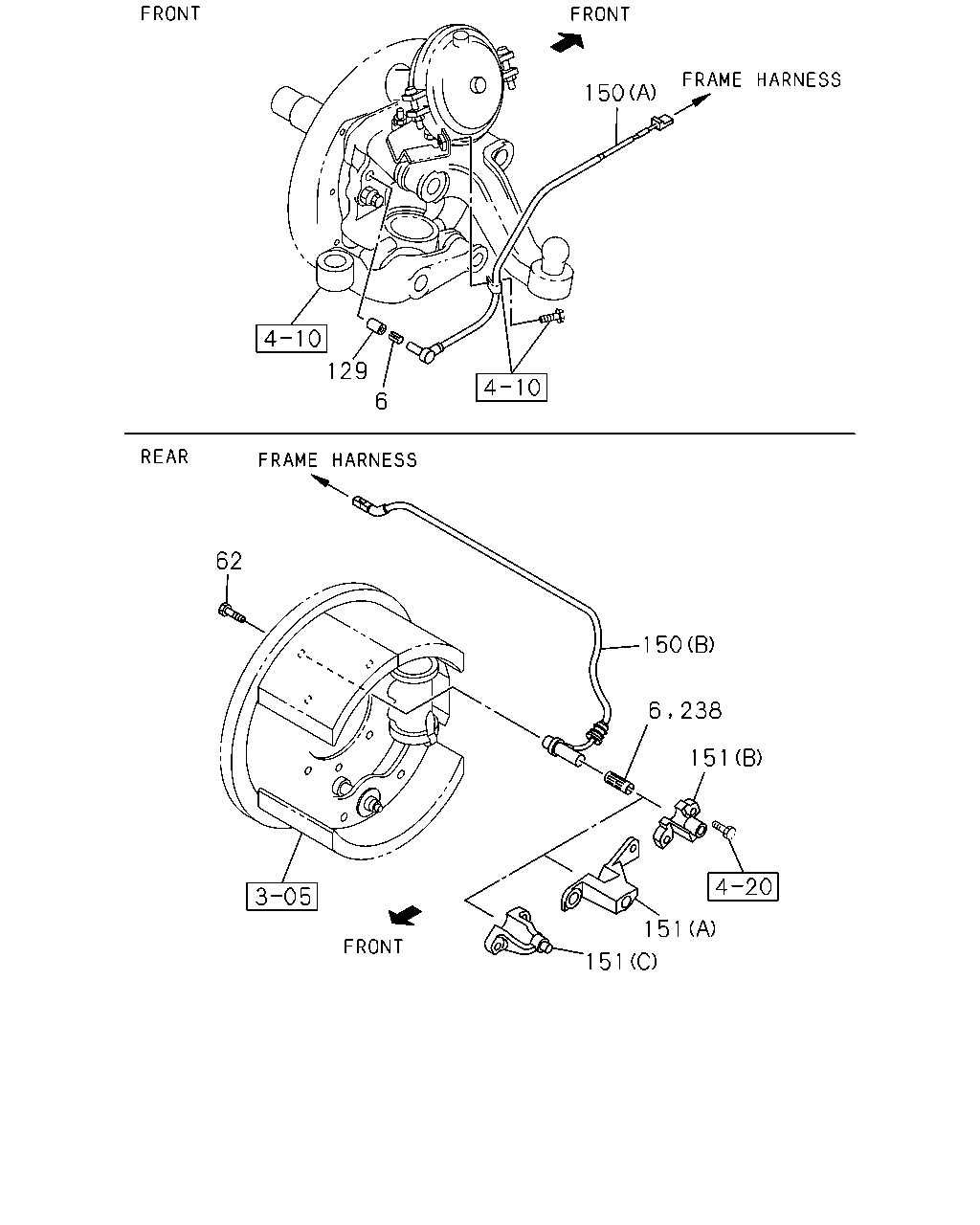

çizim 160902
150 129 6 62 151 151 151 6 238 150
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 0801-0803 ●
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 0801-0803 ●
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 0804- ● ●
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 0804- ●
62 BOLT; SENSOR
FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) M8X16 		9-05820-816-0 02 1 0801-1506 ●
62 BOLT; SENSOR
FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) M8X16 HEX SOCKET 		0-58330-816-0 02 1 1507- ●
129 COLLAR
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-83129-471-0 02 1 0801-0803 ●
129 COLLAR
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) 		1-83129-471-0 02 1 0804- ●
129 COLLAR 1-83129-471-0 02 1 0804- ●
150 SENSOR; SPEED,ABS
ANTILOCK BRAKE SYSTEM(BFA) (B) 		8-98107-826-0 01 1 0809- ●
150 SENSOR; SPEED,ABS
ANTILOCK BRAKE SYSTEM(BFA) (B) 		8-98107-827-0 01 1 0809- ●
150 SENSOR; SPEED,ABS
(A) 		1-83127-961-1 02 1 0804- ●
150 SENSOR; SPEED,ABS
FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (B) 		8-98049-812-0 01 1 0801- ●
150 SENSOR; SPEED,ABS
FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (B) 		8-98049-813-0 01 1 0801- ●
150 SENSOR; SPEED,ABS
FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) 		8-98089-383-0 01 1 0801- ●
150 SENSOR; SPEED,ABS
FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) 		8-98089-384-0 01 1 0801- ●
150 SENSOR; SPEED,ABS
(A) 		1-83227-037-1 02 1 0801- ● ●
150 SENSOR; SPEED,ABS
FRONT AXLE MERITOR FG941(BFL) (A) 		1-83227-037-1 02 1 0801- ●
150 SENSOR; SPEED,ABS
(B) 		8-98076-288-1 01 1 0801- ● ●
150 SENSOR; SPEED,ABS
(B) 		8-98076-289-1 01 1 0801- ● ●
150 SENSOR; SPEED,ABS
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (A) 		1-83127-853-3 02 1 0801- ●
151 BRACKET; SPD SENSOR
(A) 		1-42319-211-0 01 1 0801-1306 ● ●
151 BRACKET; SPD SENSOR
FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A) 		1-42319-211-0 01 1 0801-1306 ●
151 BRACKET; SPD SENSOR
(A) 		1-42319-210-0 01 1 0801-1306 ● ●
151 BRACKET; SPD SENSOR
FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) (A) 		1-42319-210-0 01 1 0801-1306 ●
151 BRACKET; SPD SENSOR
FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) 		1-83129-405-0 01 1 0801-1504 ●
151 BRACKET; SPD SENSOR
FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (C) 		8-98299-398-0 01 1 1505- ●
151 BRACKET; SPD SENSOR
FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B) 		1-83129-406-0 01 1 0801-1504 ●
151 BRACKET; SPD SENSOR
FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (C) 		8-98299-399-0 01 1 1505- ●
238 BUSHING; BRKT 1-42319-213-0 02 1 0801- ● ●
238 BUSHING; BRKT
FINAL GEAR 44/9 18" ROCKWELL(W5Z),FINAL GEAR 43/10 18" ROCKWELL(W6R),FINAL GEAR 41/9 18" ROCKWELL(W8C) 		1-42319-213-0 02 1 0801- ●
