◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11143 - FXR/GXR EXC.EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#57638) — 745 parça

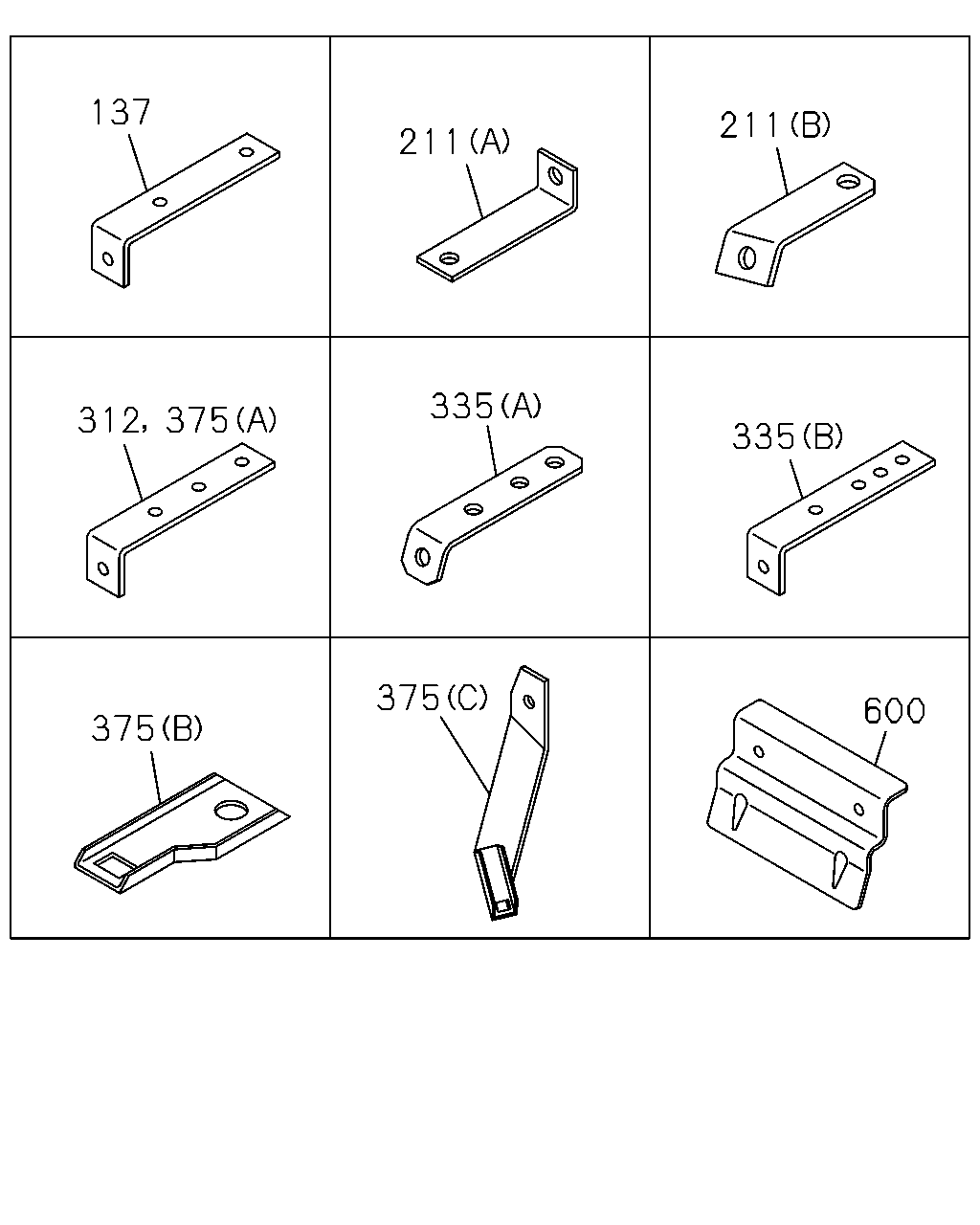

çizim 160906
137 211 211 312 375 335 335 600 375 375
BalonParca AdiParca NoAdetTipApplied Date A B C D
137 BRACKET; HARNESS CLAMP
ANTILOCK BRAKE SYSTEM(BFA) 		1-82698-140-0 01 1 0801- ●
211 BRACKET; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) L=95 		1-82699-085-0 02 1 0804- ●
211 BRACKET; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) 		8-97621-352-1 01 1 0801-0802 ● ● ●
211 BRACKET; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) 		8-97621-352-1 01 1 0803-0803 ● ● ● ●
211 BRACKET; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) 		8-97621-352-1 01 1 0804- ● ● ●
211 BRACKET; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) 		8-97621-353-1 01 1 0801-0802 ● ● ●
211 BRACKET; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) 		8-97621-353-1 01 1 0803-0803 ● ● ● ●
211 BRACKET; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) 		8-97621-353-1 01 1 0804- ● ● ●
312 BRACKET; CLIP HARNESS
L=120 		8-97619-440-0 01 1 0801- ● ● ● ●
335 BRACKET; CONNECTOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-82698-167-0 01 1 0801-0802 ● ● ●
335 BRACKET; CONNECTOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-82698-167-0 01 1 0803- ● ● ● ●
335 BRACKET; CONNECTOR
(B) 		1-82698-358-0 01 1 0801- ● ● ● ●
375 BRACKET; AC GEN HARNESS CLIP
(A) L=120 H=35 		1-82698-088-0 01 1 0801- ● ● ● ●
375 BRACKET; AC GEN HARNESS CLIP
(B) 		1-82698-569-0 01 1 0801- ● ● ● ●
375 BRACKET; AC GEN HARNESS CLIP
(C) 		1-82698-583-1 01 1 0801- ● ● ● ●
600 PROTECTOR; HEAT 8-97608-456-0 01 1 0801- ● ● ● ●

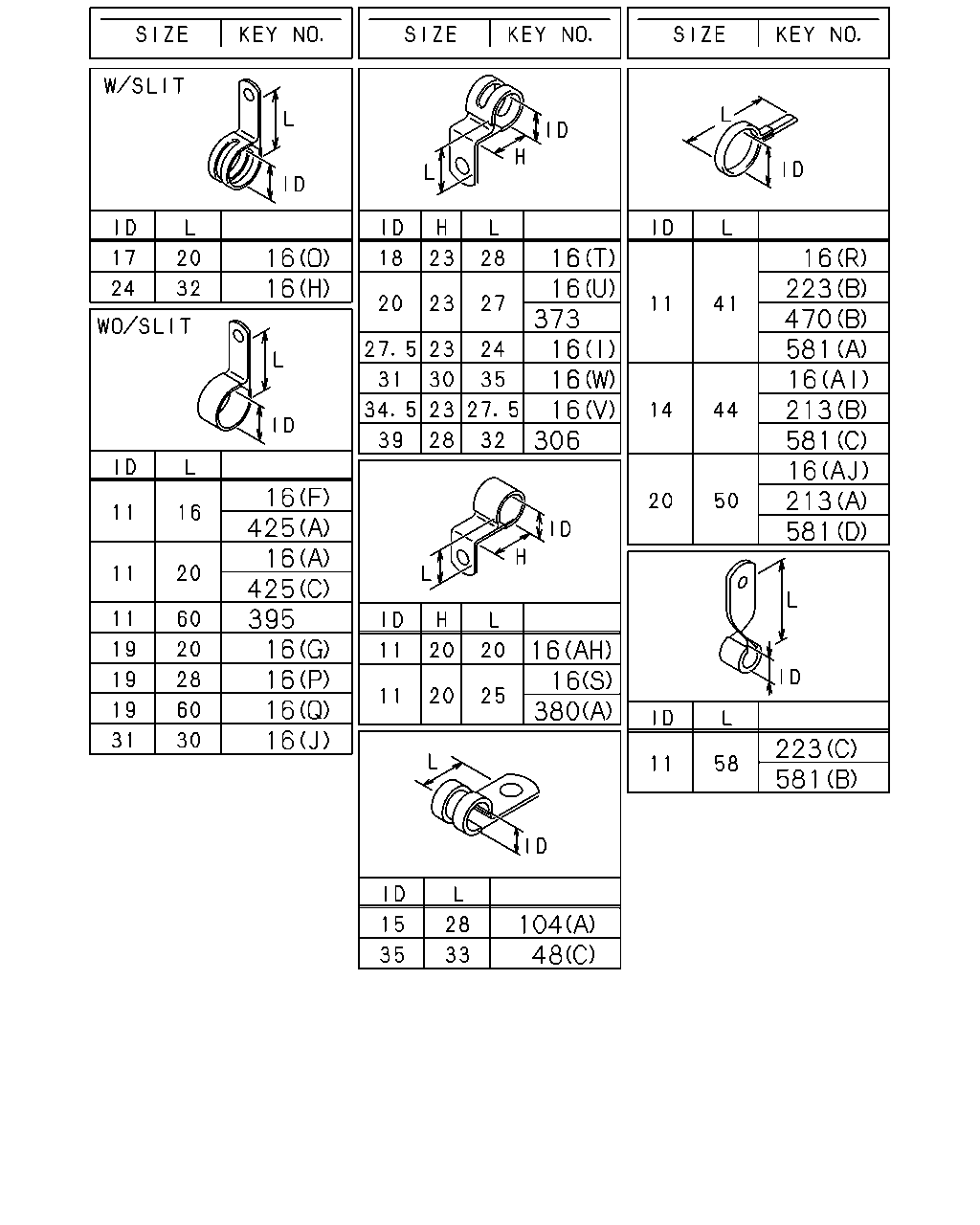

çizim 160910
16 16 16 425 16 425 395 16 16 16 16 16 16 373 16 16 16 306 16 16 380 104 48 16 223 470 581 16 213 581 16 213 581 223 581
BalonParca AdiParca NoAdetTipApplied Date A B C D
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 03 1 1102-1107 ● ● ● ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 02 1 1108- ● ● ● ●
16 CLIP; HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 03 1 0812- ●
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 05 1 0810- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AS) L=250 		1-09707-126-0 01 1 0809- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AQ) L=175 		1-09707-176-1 01 1 0803-1004 ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AQ) L=175 		1-09707-176-1 01 1 1005- ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AD) L=250 		5-09707-030-1 04 1 0803-0803 ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AD) L=250 		5-09707-030-1 05 1 0804-1004 ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AD) L=250 		5-09707-030-1 05 1 1005- ● ●
16 CLIP; HARNESS
(D) ID=18-24 L=18 		1-09709-294-0 01 1 0804- ●
16 CLIP; HARNESS
(E) ID=18-24 L=22 		1-09709-295-0 01 1 0804- ●
16 CLIP; HARNESS
(AJ) ID=20 L=50 		9-09917-430-0 01 1 0804- ●
16 CLIP; HARNESS
(AB) ID=20 & 16.5 		8-94486-835-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 04 1 0801-0812 ●
16 CLIP; HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) ID=11 L=20 		0-95235-035-0 04 1 0901- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) ID=5-12 L=22 		1-09709-288-0 01 1 0801-0808 ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) ID=5-12 L=22 		1-09709-288-0 01 1 0809- ● ●
16 CLIP; HARNESS
DIFF LOCK<C3N> (B) ID=5-12 L=22 		1-09709-288-0 01 1 0809- ● ●
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 06 1 0801- ●
16 CLIP; HARNESS
(D) ID=18-24 L=18 		1-09709-294-0 09 1 0801- ●
16 CLIP; HARNESS
(E) ID=18-24 L=22 		1-09709-295-0 04 1 0801-0801 ●
16 CLIP; HARNESS
(E) ID=18-24 L=22 		1-09709-295-0 04 1 0802- ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (F) ID=11 L=16 		0-95235-025-0 02 1 0801-0802 ● ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (F) ID=11 L=16 		0-95235-025-0 02 1 0803- ● ● ● ●
16 CLIP; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=11 L=20 		0-95235-035-0 05 1 0801-1302 ● ● ●
16 CLIP; HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (A) ID=11 L=20 		0-95235-035-0 05 1 1303- ● ● ●
16 CLIP; HARNESS
(G) ID=19 L=20 		0-95235-836-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(H) ID=24 L=32 		1-09700-766-1 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(J) ID=31 L=30 		1-09700-969-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(K) OD=9 H=6 		1-09709-178-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(L) ID=21 L=47.5 		8-94178-108-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(M) L=36 		8-94224-891-1 02 1 0801- ● ● ● ●
16 CLIP; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (N) L=150 		8-97355-273-0 01 1 0801-1302 ● ● ●
16 CLIP; HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (N) L=150 		8-97355-273-0 01 1 1303- ● ● ●
16 CLIP; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (O) ID=17 L=20 		8-97619-251-0 04 1 0801-1302 ● ● ●
16 CLIP; HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (O) ID=17 L=20 		8-97619-251-0 04 1 1303- ● ● ●
16 CLIP; HARNESS
(F) ID=11 L=16 		0-95235-025-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(P) ID=19 L=28 		0-95235-856-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(Q) ID=19 L=60 		0-95235-896-0 02 1 0801- ● ● ● ●
16 CLIP; HARNESS
(R) ID=11 L=41 		1-09700-403-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(S) ID=11 H=20 L=25 		1-09700-848-0 01 1 0801-0801 ● ● ● ●
16 CLIP; HARNESS
(T) ID=18 H=23 L=28 		1-09700-860-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(V) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 0801- ● ● ● ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 09 1 0801-0801 ● ● ● ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 08 1 0802-0805 ● ● ● ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 07 1 0806-1101 ● ● ● ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 04 1 1102- ● ● ● ●
16 CLIP; HARNESS
(Y) ID=10 & 15 		1-09709-279-1 01 1 0801-0801 ● ● ● ●
16 CLIP; HARNESS
(Y) ID=10 & 15 		1-09709-279-1 01 1 0802- ● ●
16 CLIP; HARNESS
(Z) ID=5-12 L=18 		1-09709-287-0 02 1 0801-0811 ● ● ● ●
16 CLIP; HARNESS
(Z) ID=5-12 L=18 		1-09709-287-0 02 1 0812- ● ● ●
16 CLIP; HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 02 1 0801-0811 ● ● ● ●
16 CLIP; HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 02 1 0812- ● ● ●
16 CLIP; HARNESS
(AA) ID=13-18 L=14.5 		1-09709-290-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 06 1 0801- ● ● ● ●
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 02 1 0801-0802 ● ● ● ●
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 02 1 0803- ● ● ● ●
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 02 1 0803- ● ●
16 CLIP; HARNESS
EMISSION REGULATION NEW LONG TERM<JBG> (AD) L=250 		5-09707-030-1 02 1 0803- ●
16 CLIP; HARNESS
(AE) L=140 		5-09707-031-1 04 1 0801- ● ● ● ●
16 CLIP; HARNESS
(AF) ID=10 & 16 		8-94413-325-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 03 1 0801-1105 ● ● ● ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 02 1 1106- ● ● ● ●
16 CLIP; HARNESS
(AH) ID=11 H=20 L=20 		8-98033-780-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(AI) ID=14 L=44 		9-09917-427-0 04 1 0801-0801 ● ● ● ●
16 CLIP; HARNESS
(AI) ID=14 L=44 		9-09917-427-0 03 1 0802- ● ● ● ●
16 CLIP; HARNESS
(AJ) ID=20 L=50 		9-09917-430-0 02 1 0801- ● ● ● ●
16 CLIP; HARNESS
(AK) L=60 		8-94449-165-0 02 1 0801-0802 ● ● ●
16 CLIP; HARNESS
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (AK) L=60 		8-94449-165-0 02 1 0801-0802 ●
16 CLIP; HARNESS
(AR) L=40.6 		8-97229-357-0 02 1 0803- ● ● ●
16 CLIP; HARNESS
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (AR) L=40.6 		8-97229-357-0 02 1 0803- ●
16 CLIP; HARNESS
(AL) L=36.5 		8-97019-892-0 02 1 0801-0802 ● ● ●
16 CLIP; HARNESS
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (AL) L=36.5 		8-97019-892-0 02 1 0801-0802 ●
16 CLIP; HARNESS
(AM) L=155 		8-97173-307-0 18 1 0801- ● ● ●
16 CLIP; HARNESS
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (AM) L=155 		8-97173-307-0 18 1 0801- ●
16 CLIP; HARNESS
(AG) 		8-98052-679-0 02 1 0801- ● ● ●
16 CLIP; HARNESS
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (AG) 		8-98052-679-0 02 1 0801- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AN) ID=11X2 L=16 		0-95325-025-0 01 1 0801- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (X) L=350 		1-09707-183-0 01 1 0801-0801 ● ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (X) L=350 		1-09707-183-0 01 1 0802-0808 ● ● ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 01 1 0802-0808 ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (X) L=350 		1-09707-183-0 01 1 0809- ● ● ●
16 CLIP; HARNESS
DIFF LOCK<C3N> (X) L=350 		1-09707-183-0 01 1 0809- ● ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 01 1 0809- ●
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 07 1 0801-0809 ●
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 02 1 0810- ●
16 CLIP; HARNESS
(AP) ID=13-18 L=22 		1-09709-292-0 01 1 0801- ●
16 CLIP; HARNESS
(D) ID=18-24 L=18 		1-09709-294-0 12 1 0801- ●
16 CLIP; HARNESS
(E) ID=18-24 L=22 		1-09709-295-0 02 1 0801- ●
16 CLIP; HARNESS
(Z) ID=5-12 L=18 		1-09709-287-0 01 1 0801-0802 ●
16 CLIP; HARNESS
(Z) ID=5-12 L=18 		1-09709-287-0 01 1 0803-0811 ● ●
16 CLIP; HARNESS
(Z) ID=5-12 L=18 		1-09709-287-0 01 1 0812- ● ● ●
16 CLIP; HARNESS
(Z) ID=5-12 L=18 		1-09709-287-0 03 1 0801-0802 ●
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 01 1 0803- ●
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 01 1 0803- ●
16 CLIP; HARNESS
(D) ID=18-24 L=18 		1-09709-294-0 01 1 0801-0801 ●
16 CLIP; HARNESS
(D) ID=18-24 L=18 		1-09709-294-0 02 1 0802- ●
16 CLIP; HARNESS
(E) ID=18-24 L=22 		1-09709-295-0 05 1 0801-0801 ●
16 CLIP; HARNESS
(AO) W/SPONGE RUBBER 		1-09709-150-0 01 1 0801- ● ●
48 CLIP; FRAME HARNESS
(F) ID=18-24 L=18 		1-09709-294-0 01 1 0805- ● ● ● ●
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 16 1 0801-0801 ● ● ● ●
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 14 1 0802- ● ● ● ●
48 CLIP; FRAME HARNESS
(B) ID=13-18 L=14.5 		1-09709-290-0 01 1 0801-0802 ● ● ● ●
48 CLIP; FRAME HARNESS
(E) ID=5-12 L=14.5 		1-09987-221-0 01 1 0803-0804 ● ● ● ●
48 CLIP; FRAME HARNESS
(G) ID=5-12 L=18 		1-09709-287-0 01 1 0805- ● ● ● ●
48 CLIP; FRAME HARNESS
(C) ID=35 L=33 		1-09700-945-0 04 1 0801- ● ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=18-24 L=22 		1-09709-295-0 02 1 0801-1201 ● ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=18-24 L=22 		1-09709-295-0 02 1 1202- ● ● ● ●
104 CLIP; HEADLAMP HARNESS
(B) L=350 		1-09707-183-0 01 1 1202- ● ● ● ●
104 CLIP; HEADLAMP HARNESS
(A) ID=15 L=28 		1-09701-216-0 02 1 0801-0801 ● ● ● ●
104 CLIP; HEADLAMP HARNESS
(A) ID=15 L=28 		1-09701-216-0 01 1 0802- ● ● ● ●
104 CLIP; HEADLAMP HARNESS
(B) L=350 		1-09707-183-0 03 1 0801-1201 ● ● ● ●
104 CLIP; HEADLAMP HARNESS
(B) L=350 		1-09707-183-0 02 1 1202- ● ● ● ●
104 CLIP; HEADLAMP HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 0801- ● ● ● ●
104 CLIP; HEADLAMP HARNESS
(D) OD=9 H=9.5 		1-09709-179-0 01 1 0801- ● ● ● ●
104 CLIP; HEADLAMP HARNESS
(E) ID=13-18 L=14.5 		1-09709-290-0 02 1 0801- ● ● ● ●
213 CLIP; END CROSS HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0804-0808 ●
213 CLIP; END CROSS HARNESS
DIFF LOCK<C3N> (A) ID=20 L=50 		9-09917-430-0 03 1 0809- ●
213 CLIP; END CROSS HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 0809- ●
213 CLIP; END CROSS HARNESS
(B) ID=14 L=44 		9-09917-427-0 03 1 0801-0803 ● ● ● ●
213 CLIP; END CROSS HARNESS
(B) ID=14 L=44 		9-09917-427-0 03 1 0804-0808 ● ● ●
213 CLIP; END CROSS HARNESS
(B) ID=14 L=44 		9-09917-427-0 03 1 0809- ● ●
213 CLIP; END CROSS HARNESS
EXC. DIFF LOCK<C3N> (B) ID=14 L=44 		9-09917-427-0 03 1 0809- ●
223 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 01 1 0801-1201 ● ● ● ●
223 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 01 1 1202- ● ● ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0801-0801 ● ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0802-0803 ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0804- ●
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=58 		9-09917-135-2 01 1 0801-0803 ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=58 		9-09917-135-2 01 1 0804- ● ● ●
306 CLIP; HARNESS,ELEC GOV
ID=39 H=28 L=32 		1-09701-263-0 03 1 0801- ● ● ● ●
373 CLIP; BAND,GEN HARNESS
ID=20 H=23 L=27 		1-09700-861-0 02 1 0801- ● ● ● ●
380 CLIP; EARTH HARNESS
(A) ID=11 H=20 L=25 		1-09700-848-0 02 1 0801- ● ● ● ●
380 CLIP; EARTH HARNESS
(B) L=350 		1-09707-183-0 02 1 0801-0802 ● ● ● ●
380 CLIP; EARTH HARNESS
(B) L=350 		1-09707-183-0 03 1 0803- ● ● ● ●
395 CLIP; WIPER HARNESS
ID=11 L=60 		0-95235-096-0 01 1 0801-0807 ● ● ● ●
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) ID=11 L=16 		0-95235-025-0 01 1 0801-0802 ● ● ●
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (C) ID=11 L=20 		0-95235-035-0 01 1 0803-0803 ● ● ● ●
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (B) L=350 		1-09707-183-0 03 1 0801-0802 ● ● ●
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (B) L=350 		1-09707-183-0 02 1 0803-0805 ● ● ● ●
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (B) L=350 		1-09707-183-0 03 1 0806- ● ● ● ●
470 CLIP; HARNESS,LICENSE LAMP
(C) L=350 		1-09707-183-0 01 1 0801-0803 ●
470 CLIP; HARNESS,LICENSE LAMP
(C) L=350 		1-09707-183-0 01 1 0804- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 0801-0801 ● ●
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 0802- ● ● ● ●
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 0801-1201 ● ● ● ●
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 1202- ● ● ● ●
581 CLIP; HARNESS,REAR SUSP
(C) ID=14 L=44 		9-09917-427-0 01 1 0804- ●
581 CLIP; HARNESS,REAR SUSP
(A) ID=11 L=41 		1-09700-403-0 03 1 0801- ●
581 CLIP; HARNESS,REAR SUSP
(B) ID=11 L=58 		9-09917-135-2 01 1 0801-0801 ● ●
581 CLIP; HARNESS,REAR SUSP
(B) ID=11 L=58 		9-09917-135-2 01 1 0802- ●
581 CLIP; HARNESS,REAR SUSP
(C) ID=14 L=44 		9-09917-427-0 01 1 0801-0801 ●
581 CLIP; HARNESS,REAR SUSP
(D) ID=20 L=50 		9-09917-430-0 02 1 0801-0801 ●
581 CLIP; HARNESS,REAR SUSP
(D) ID=20 L=50 		9-09917-430-0 03 1 0802- ●
581 CLIP; HARNESS,REAR SUSP
ANTILOCK BRAKE SYSTEM(BFA) (A) ID=11 L=41 		1-09700-403-0 01 1 0801- ● ●
581 CLIP; HARNESS,REAR SUSP
ANTILOCK BRAKE SYSTEM(BFA) (D) ID=20 L=50 		9-09917-430-0 01 1 0801- ● ●

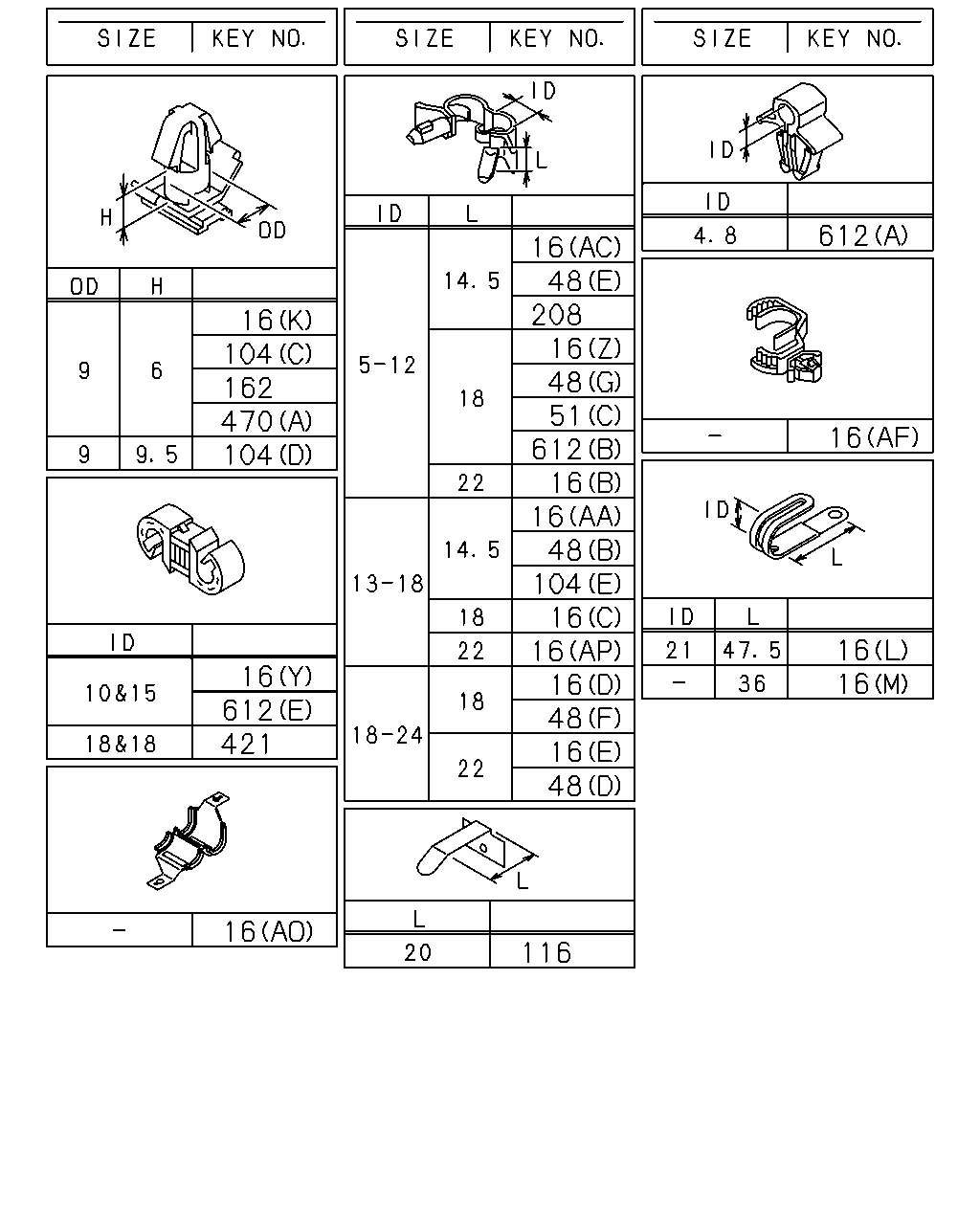

çizim 160918
612 16 48 208 16 48 51 612 16 16 48 104 16 16 16 48 16 48 16 104 162 470 104 16 16 16 16 612 421 16 116
BalonParca AdiParca NoAdetTipApplied Date A B C D
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 03 1 1102-1107 ● ● ● ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 02 1 1108- ● ● ● ●
16 CLIP; HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 03 1 0812- ●
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 05 1 0810- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AS) L=250 		1-09707-126-0 01 1 0809- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AQ) L=175 		1-09707-176-1 01 1 0803-1004 ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AQ) L=175 		1-09707-176-1 01 1 1005- ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AD) L=250 		5-09707-030-1 04 1 0803-0803 ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AD) L=250 		5-09707-030-1 05 1 0804-1004 ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AD) L=250 		5-09707-030-1 05 1 1005- ● ●
16 CLIP; HARNESS
(D) ID=18-24 L=18 		1-09709-294-0 01 1 0804- ●
16 CLIP; HARNESS
(E) ID=18-24 L=22 		1-09709-295-0 01 1 0804- ●
16 CLIP; HARNESS
(AJ) ID=20 L=50 		9-09917-430-0 01 1 0804- ●
16 CLIP; HARNESS
(AB) ID=20 & 16.5 		8-94486-835-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 04 1 0801-0812 ●
16 CLIP; HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) ID=11 L=20 		0-95235-035-0 04 1 0901- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) ID=5-12 L=22 		1-09709-288-0 01 1 0801-0808 ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) ID=5-12 L=22 		1-09709-288-0 01 1 0809- ● ●
16 CLIP; HARNESS
DIFF LOCK<C3N> (B) ID=5-12 L=22 		1-09709-288-0 01 1 0809- ● ●
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 06 1 0801- ●
16 CLIP; HARNESS
(D) ID=18-24 L=18 		1-09709-294-0 09 1 0801- ●
16 CLIP; HARNESS
(E) ID=18-24 L=22 		1-09709-295-0 04 1 0801-0801 ●
16 CLIP; HARNESS
(E) ID=18-24 L=22 		1-09709-295-0 04 1 0802- ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (F) ID=11 L=16 		0-95235-025-0 02 1 0801-0802 ● ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (F) ID=11 L=16 		0-95235-025-0 02 1 0803- ● ● ● ●
16 CLIP; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=11 L=20 		0-95235-035-0 05 1 0801-1302 ● ● ●
16 CLIP; HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (A) ID=11 L=20 		0-95235-035-0 05 1 1303- ● ● ●
16 CLIP; HARNESS
(G) ID=19 L=20 		0-95235-836-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(H) ID=24 L=32 		1-09700-766-1 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(J) ID=31 L=30 		1-09700-969-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(K) OD=9 H=6 		1-09709-178-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(L) ID=21 L=47.5 		8-94178-108-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(M) L=36 		8-94224-891-1 02 1 0801- ● ● ● ●
16 CLIP; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (N) L=150 		8-97355-273-0 01 1 0801-1302 ● ● ●
16 CLIP; HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (N) L=150 		8-97355-273-0 01 1 1303- ● ● ●
16 CLIP; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (O) ID=17 L=20 		8-97619-251-0 04 1 0801-1302 ● ● ●
16 CLIP; HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (O) ID=17 L=20 		8-97619-251-0 04 1 1303- ● ● ●
16 CLIP; HARNESS
(F) ID=11 L=16 		0-95235-025-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(P) ID=19 L=28 		0-95235-856-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(Q) ID=19 L=60 		0-95235-896-0 02 1 0801- ● ● ● ●
16 CLIP; HARNESS
(R) ID=11 L=41 		1-09700-403-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(S) ID=11 H=20 L=25 		1-09700-848-0 01 1 0801-0801 ● ● ● ●
16 CLIP; HARNESS
(T) ID=18 H=23 L=28 		1-09700-860-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(V) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 0801- ● ● ● ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 09 1 0801-0801 ● ● ● ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 08 1 0802-0805 ● ● ● ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 07 1 0806-1101 ● ● ● ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 04 1 1102- ● ● ● ●
16 CLIP; HARNESS
(Y) ID=10 & 15 		1-09709-279-1 01 1 0801-0801 ● ● ● ●
16 CLIP; HARNESS
(Y) ID=10 & 15 		1-09709-279-1 01 1 0802- ● ●
16 CLIP; HARNESS
(Z) ID=5-12 L=18 		1-09709-287-0 02 1 0801-0811 ● ● ● ●
16 CLIP; HARNESS
(Z) ID=5-12 L=18 		1-09709-287-0 02 1 0812- ● ● ●
16 CLIP; HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 02 1 0801-0811 ● ● ● ●
16 CLIP; HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 02 1 0812- ● ● ●
16 CLIP; HARNESS
(AA) ID=13-18 L=14.5 		1-09709-290-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 06 1 0801- ● ● ● ●
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 02 1 0801-0802 ● ● ● ●
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 02 1 0803- ● ● ● ●
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 02 1 0803- ● ●
16 CLIP; HARNESS
EMISSION REGULATION NEW LONG TERM<JBG> (AD) L=250 		5-09707-030-1 02 1 0803- ●
16 CLIP; HARNESS
(AE) L=140 		5-09707-031-1 04 1 0801- ● ● ● ●
16 CLIP; HARNESS
(AF) ID=10 & 16 		8-94413-325-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 03 1 0801-1105 ● ● ● ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 02 1 1106- ● ● ● ●
16 CLIP; HARNESS
(AH) ID=11 H=20 L=20 		8-98033-780-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(AI) ID=14 L=44 		9-09917-427-0 04 1 0801-0801 ● ● ● ●
16 CLIP; HARNESS
(AI) ID=14 L=44 		9-09917-427-0 03 1 0802- ● ● ● ●
16 CLIP; HARNESS
(AJ) ID=20 L=50 		9-09917-430-0 02 1 0801- ● ● ● ●
16 CLIP; HARNESS
(AK) L=60 		8-94449-165-0 02 1 0801-0802 ● ● ●
16 CLIP; HARNESS
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (AK) L=60 		8-94449-165-0 02 1 0801-0802 ●
16 CLIP; HARNESS
(AR) L=40.6 		8-97229-357-0 02 1 0803- ● ● ●
16 CLIP; HARNESS
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (AR) L=40.6 		8-97229-357-0 02 1 0803- ●
16 CLIP; HARNESS
(AL) L=36.5 		8-97019-892-0 02 1 0801-0802 ● ● ●
16 CLIP; HARNESS
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (AL) L=36.5 		8-97019-892-0 02 1 0801-0802 ●
16 CLIP; HARNESS
(AM) L=155 		8-97173-307-0 18 1 0801- ● ● ●
16 CLIP; HARNESS
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (AM) L=155 		8-97173-307-0 18 1 0801- ●
16 CLIP; HARNESS
(AG) 		8-98052-679-0 02 1 0801- ● ● ●
16 CLIP; HARNESS
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (AG) 		8-98052-679-0 02 1 0801- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AN) ID=11X2 L=16 		0-95325-025-0 01 1 0801- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (X) L=350 		1-09707-183-0 01 1 0801-0801 ● ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (X) L=350 		1-09707-183-0 01 1 0802-0808 ● ● ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 01 1 0802-0808 ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (X) L=350 		1-09707-183-0 01 1 0809- ● ● ●
16 CLIP; HARNESS
DIFF LOCK<C3N> (X) L=350 		1-09707-183-0 01 1 0809- ● ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 01 1 0809- ●
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 07 1 0801-0809 ●
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 02 1 0810- ●
16 CLIP; HARNESS
(AP) ID=13-18 L=22 		1-09709-292-0 01 1 0801- ●
16 CLIP; HARNESS
(D) ID=18-24 L=18 		1-09709-294-0 12 1 0801- ●
16 CLIP; HARNESS
(E) ID=18-24 L=22 		1-09709-295-0 02 1 0801- ●
16 CLIP; HARNESS
(Z) ID=5-12 L=18 		1-09709-287-0 01 1 0801-0802 ●
16 CLIP; HARNESS
(Z) ID=5-12 L=18 		1-09709-287-0 01 1 0803-0811 ● ●
16 CLIP; HARNESS
(Z) ID=5-12 L=18 		1-09709-287-0 01 1 0812- ● ● ●
16 CLIP; HARNESS
(Z) ID=5-12 L=18 		1-09709-287-0 03 1 0801-0802 ●
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 01 1 0803- ●
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 01 1 0803- ●
16 CLIP; HARNESS
(D) ID=18-24 L=18 		1-09709-294-0 01 1 0801-0801 ●
16 CLIP; HARNESS
(D) ID=18-24 L=18 		1-09709-294-0 02 1 0802- ●
16 CLIP; HARNESS
(E) ID=18-24 L=22 		1-09709-295-0 05 1 0801-0801 ●
16 CLIP; HARNESS
(AO) W/SPONGE RUBBER 		1-09709-150-0 01 1 0801- ● ●
48 CLIP; FRAME HARNESS
(F) ID=18-24 L=18 		1-09709-294-0 01 1 0805- ● ● ● ●
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 16 1 0801-0801 ● ● ● ●
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 14 1 0802- ● ● ● ●
48 CLIP; FRAME HARNESS
(B) ID=13-18 L=14.5 		1-09709-290-0 01 1 0801-0802 ● ● ● ●
48 CLIP; FRAME HARNESS
(E) ID=5-12 L=14.5 		1-09987-221-0 01 1 0803-0804 ● ● ● ●
48 CLIP; FRAME HARNESS
(G) ID=5-12 L=18 		1-09709-287-0 01 1 0805- ● ● ● ●
48 CLIP; FRAME HARNESS
(C) ID=35 L=33 		1-09700-945-0 04 1 0801- ● ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=18-24 L=22 		1-09709-295-0 02 1 0801-1201 ● ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=18-24 L=22 		1-09709-295-0 02 1 1202- ● ● ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (A) L=180 		1-09707-162-1 01 1 0801-0812 ● ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (A) L=180 		1-09707-162-1 01 1 0901- ● ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) (A) L=180 		1-09707-162-1 01 1 0901- ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (B) L=350 		1-09707-183-0 01 1 0801-0812 ● ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (B) L=350 		1-09707-183-0 01 1 0901- ● ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) (B) L=350 		1-09707-183-0 01 1 0901- ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (C) ID=5-12 L=18 		1-09709-287-0 01 1 0801-0812 ● ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (C) ID=5-12 L=18 		1-09709-287-0 01 1 0901- ● ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) (C) ID=5-12 L=18 		1-09709-287-0 01 1 0901- ●
104 CLIP; HEADLAMP HARNESS
(B) L=350 		1-09707-183-0 01 1 1202- ● ● ● ●
104 CLIP; HEADLAMP HARNESS
(A) ID=15 L=28 		1-09701-216-0 02 1 0801-0801 ● ● ● ●
104 CLIP; HEADLAMP HARNESS
(A) ID=15 L=28 		1-09701-216-0 01 1 0802- ● ● ● ●
104 CLIP; HEADLAMP HARNESS
(B) L=350 		1-09707-183-0 03 1 0801-1201 ● ● ● ●
104 CLIP; HEADLAMP HARNESS
(B) L=350 		1-09707-183-0 02 1 1202- ● ● ● ●
104 CLIP; HEADLAMP HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 0801- ● ● ● ●
104 CLIP; HEADLAMP HARNESS
(D) OD=9 H=9.5 		1-09709-179-0 01 1 0801- ● ● ● ●
104 CLIP; HEADLAMP HARNESS
(E) ID=13-18 L=14.5 		1-09709-290-0 02 1 0801- ● ● ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 01 1 0801- ● ●
116 CLIP; ROOF HARNESS
LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE 		1-09987-246-2 01 1 0801- ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 03 1 0801- ● ● ● ●
162 CLIP; SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0801- ● ● ● ●
208 CLIP; HARNESS,MAG VLV
ID=5-12 L=14.5 		1-09987-221-0 01 1 0801-0805 ● ● ● ●
421 CLIP; FLOOR HARNESS
ID=18 & 18 		8-94323-068-0 02 1 0806- ● ● ● ●
470 CLIP; HARNESS,LICENSE LAMP
(C) L=350 		1-09707-183-0 01 1 0801-0803 ●
470 CLIP; HARNESS,LICENSE LAMP
(C) L=350 		1-09707-183-0 01 1 0804- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 0801-0801 ● ●
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 0802- ● ● ● ●
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 0801-1201 ● ● ● ●
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 1202- ● ● ● ●
612 CLIP; HARNESS DPD
(A) ID=4.8 		1-09701-218-0 03 1 0801- ● ● ●
612 CLIP; HARNESS DPD
(B) ID=5-12 L=18 		1-09709-287-0 01 1 0801-0801 ● ● ●
612 CLIP; HARNESS DPD
(C) L=250 		5-09707-030-1 01 1 0801- ● ● ●
612 CLIP; HARNESS DPD
(D) L=350 		1-09707-183-0 02 1 0801-0803 ● ● ● ●
612 CLIP; HARNESS DPD
(D) L=350 		1-09707-183-0 02 1 0804- ● ● ●
612 CLIP; HARNESS DPD
(E) ID=10 & 15 		1-09709-279-1 01 1 0801-0803 ● ● ● ●
612 CLIP; HARNESS DPD
(E) ID=10 & 15 		1-09709-279-1 01 1 0804- ● ● ●

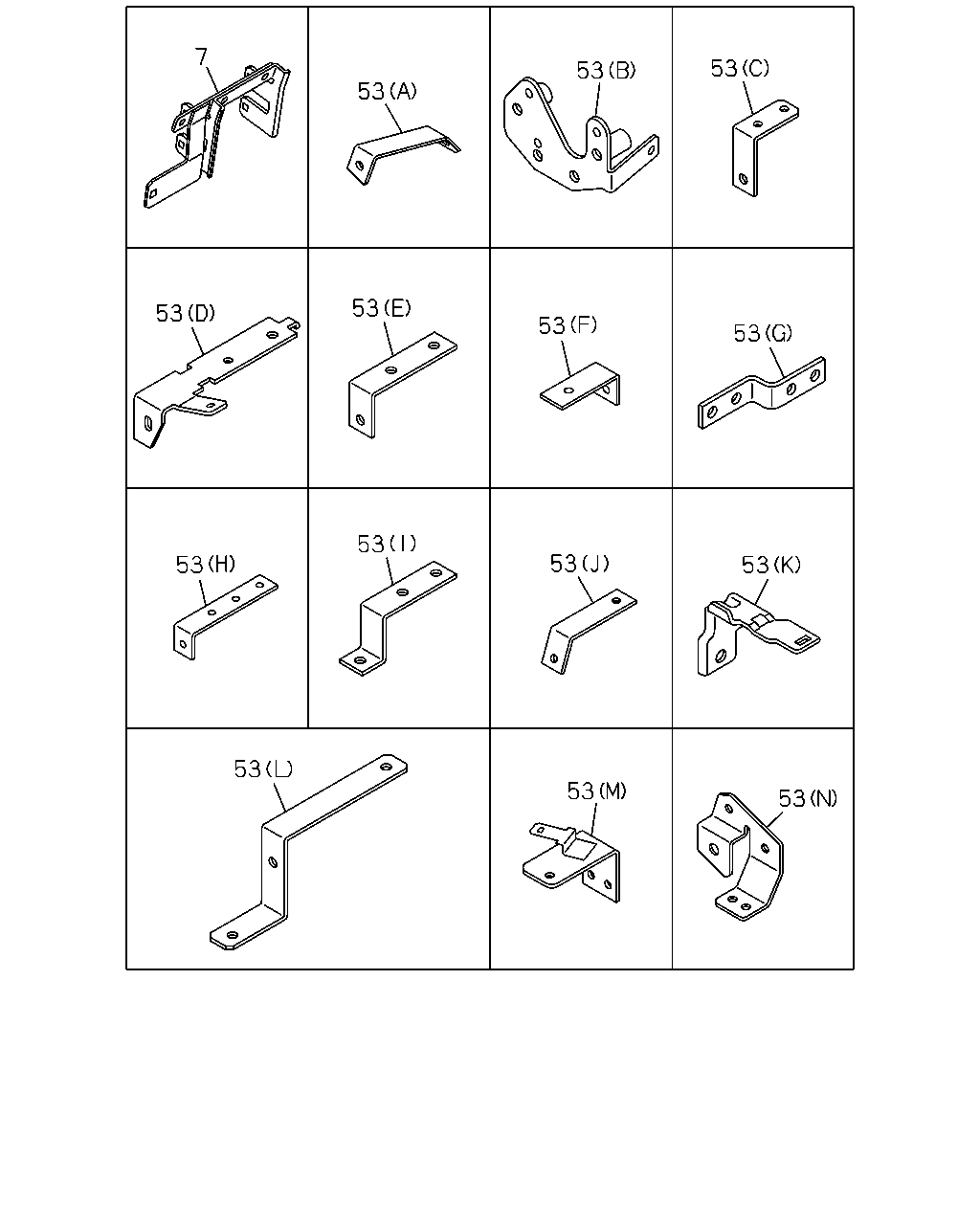

çizim 160957
7 53 53 53 53 53 53 53 53 53 53 53 53 53 53
BalonParca AdiParca NoAdetTipApplied Date A B C D
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 0801- ● ● ● ●
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (N) 		8-98084-590-0 01 1 0801-0901 ● ● ●
53 BRACKET; HARNESS
EXC. VENTILATOR & DEFROSTER WO/HEATER(SAZ) (N) 		8-98084-590-0 01 1 0801-0901 ●
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (N) 		8-98084-590-0 01 1 0902-1301 ● ● ●
53 BRACKET; HARNESS
EXC. AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (N) 		8-98084-590-0 01 1 0902-1301 ●
53 BRACKET; HARNESS
(A) 		1-47479-537-0 14 1 0801- ● ● ● ●
53 BRACKET; HARNESS
(B) 		8-97611-413-0 01 1 0801- ● ● ● ●
53 BRACKET; HARNESS
(C) 		8-98053-669-0 01 1 0801-0801 ● ●
53 BRACKET; HARNESS
(C) 		8-98053-669-0 01 1 0802- ● ● ●
53 BRACKET; HARNESS
(D) 		8-98098-974-0 01 1 0801- ● ● ●
53 BRACKET; HARNESS
(E) L=82 B=20 		1-47478-420-0 01 1 0801-1404 ● ● ● ●
53 BRACKET; HARNESS
(E) L=82 B=20 		8-98259-390-0 01 1 1405- ● ● ● ●
53 BRACKET; HARNESS
(F) L=65 		1-47479-064-1 01 1 0801- ● ● ● ●
53 BRACKET; HARNESS
(G) 		1-82569-278-0 01 1 0801- ● ● ● ●
53 BRACKET; HARNESS
(H) L=120 H=35 		1-82698-088-0 01 1 0801- ● ● ● ●
53 BRACKET; HARNESS
(I) 		1-82698-382-0 01 1 0801- ● ● ● ●
53 BRACKET; HARNESS
(J) 		1-82698-514-0 01 1 0801- ● ● ● ●
53 BRACKET; HARNESS
(K) 		8-98052-458-0 01 1 0801- ● ● ● ●
53 BRACKET; HARNESS
(L) 		8-98078-801-0 01 1 0801- ● ● ● ●
53 BRACKET; HARNESS
(M) 		8-98102-490-0 01 1 0801- ● ● ● ●

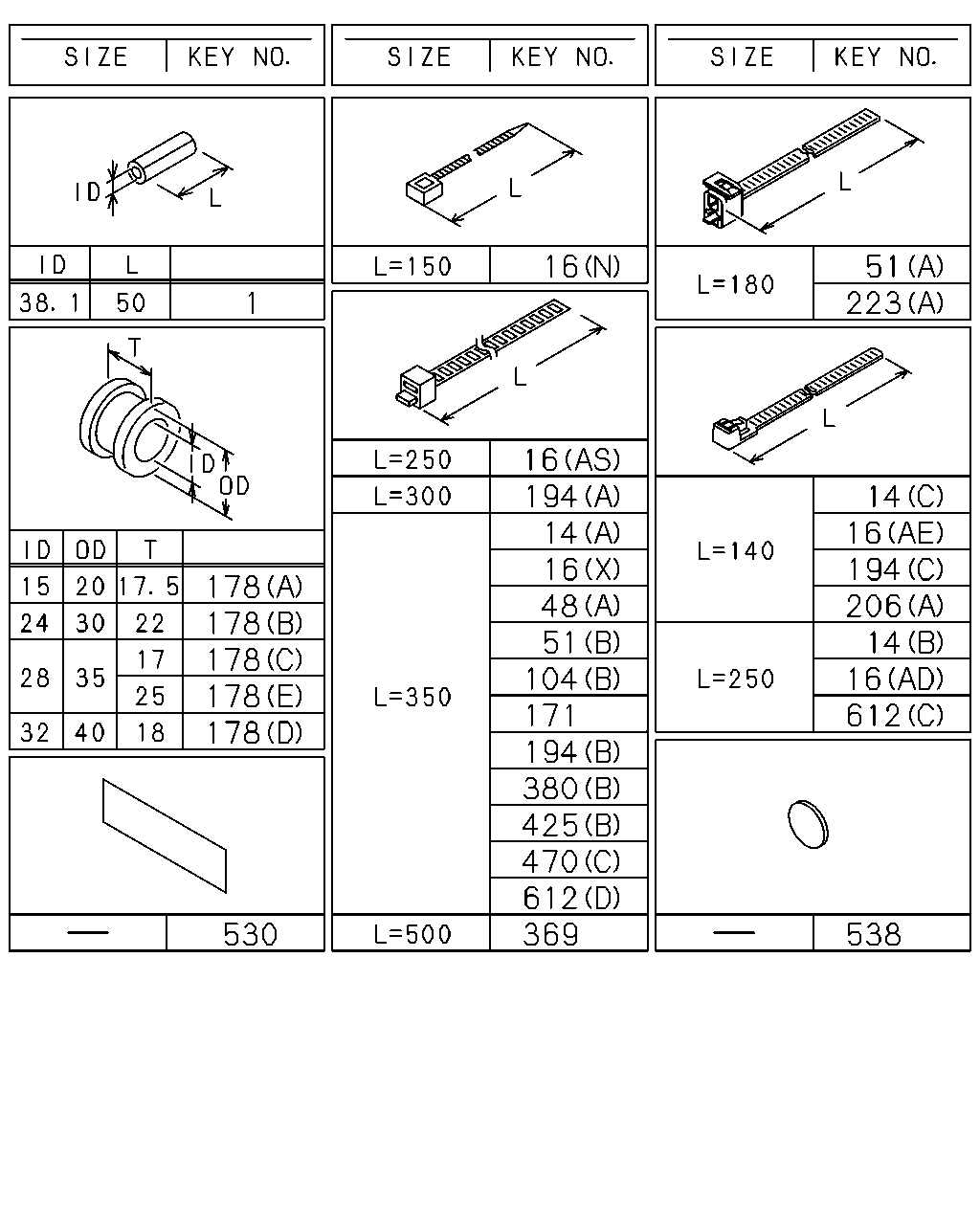

çizim 161124
16 51 223 1 16 194 14 16 48 51 104 171 194 380 425 470 612 369 14 16 194 206 14 16 612 178 178 178 178 178 530 538
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) ID=38.1 L=50 		5-09360-835-0 01 1 0801-0812 ● ● ●
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) ID=38.1 L=50 		5-09360-835-0 01 1 0901- ● ● ●
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) ID=38.1 L=50 		5-09360-835-0 01 1 0901- ●
14 CLIP; BAND,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) L=140 		5-09707-031-1 01 1 0809- ●
14 CLIP; BAND,HARNESS
(A) L=350 		1-09707-183-0 01 1 0802- ● ● ● ●
14 CLIP; BAND,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) L=350 		1-09707-183-0 04 1 0804-1101 ●
14 CLIP; BAND,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) L=350 		1-09707-183-0 02 1 0801-0802 ● ● ●
14 CLIP; BAND,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) L=350 		1-09707-183-0 02 1 0803-0803 ● ● ● ●
14 CLIP; BAND,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) L=350 		1-09707-183-0 02 1 0804- ● ● ●
14 CLIP; BAND,HARNESS
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) L=250 		1-09707-126-0 02 1 0801-0803 ●
14 CLIP; BAND,HARNESS
FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (B) L=250 		1-09707-126-0 02 1 0804- ●
14 CLIP; BAND,HARNESS
(B) L=250 		1-09707-126-0 02 1 0804- ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 03 1 1102-1107 ● ● ● ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 02 1 1108- ● ● ● ●
16 CLIP; HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 03 1 0812- ●
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 05 1 0810- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AS) L=250 		1-09707-126-0 01 1 0809- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AQ) L=175 		1-09707-176-1 01 1 0803-1004 ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AQ) L=175 		1-09707-176-1 01 1 1005- ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AD) L=250 		5-09707-030-1 04 1 0803-0803 ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AD) L=250 		5-09707-030-1 05 1 0804-1004 ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AD) L=250 		5-09707-030-1 05 1 1005- ● ●
16 CLIP; HARNESS
(D) ID=18-24 L=18 		1-09709-294-0 01 1 0804- ●
16 CLIP; HARNESS
(E) ID=18-24 L=22 		1-09709-295-0 01 1 0804- ●
16 CLIP; HARNESS
(AJ) ID=20 L=50 		9-09917-430-0 01 1 0804- ●
16 CLIP; HARNESS
(AB) ID=20 & 16.5 		8-94486-835-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 04 1 0801-0812 ●
16 CLIP; HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) ID=11 L=20 		0-95235-035-0 04 1 0901- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) ID=5-12 L=22 		1-09709-288-0 01 1 0801-0808 ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) ID=5-12 L=22 		1-09709-288-0 01 1 0809- ● ●
16 CLIP; HARNESS
DIFF LOCK<C3N> (B) ID=5-12 L=22 		1-09709-288-0 01 1 0809- ● ●
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 06 1 0801- ●
16 CLIP; HARNESS
(D) ID=18-24 L=18 		1-09709-294-0 09 1 0801- ●
16 CLIP; HARNESS
(E) ID=18-24 L=22 		1-09709-295-0 04 1 0801-0801 ●
16 CLIP; HARNESS
(E) ID=18-24 L=22 		1-09709-295-0 04 1 0802- ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (F) ID=11 L=16 		0-95235-025-0 02 1 0801-0802 ● ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (F) ID=11 L=16 		0-95235-025-0 02 1 0803- ● ● ● ●
16 CLIP; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=11 L=20 		0-95235-035-0 05 1 0801-1302 ● ● ●
16 CLIP; HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (A) ID=11 L=20 		0-95235-035-0 05 1 1303- ● ● ●
16 CLIP; HARNESS
(G) ID=19 L=20 		0-95235-836-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(H) ID=24 L=32 		1-09700-766-1 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(J) ID=31 L=30 		1-09700-969-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(K) OD=9 H=6 		1-09709-178-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(L) ID=21 L=47.5 		8-94178-108-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(M) L=36 		8-94224-891-1 02 1 0801- ● ● ● ●
16 CLIP; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (N) L=150 		8-97355-273-0 01 1 0801-1302 ● ● ●
16 CLIP; HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (N) L=150 		8-97355-273-0 01 1 1303- ● ● ●
16 CLIP; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (O) ID=17 L=20 		8-97619-251-0 04 1 0801-1302 ● ● ●
16 CLIP; HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (O) ID=17 L=20 		8-97619-251-0 04 1 1303- ● ● ●
16 CLIP; HARNESS
(F) ID=11 L=16 		0-95235-025-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(P) ID=19 L=28 		0-95235-856-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(Q) ID=19 L=60 		0-95235-896-0 02 1 0801- ● ● ● ●
16 CLIP; HARNESS
(R) ID=11 L=41 		1-09700-403-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(S) ID=11 H=20 L=25 		1-09700-848-0 01 1 0801-0801 ● ● ● ●
16 CLIP; HARNESS
(T) ID=18 H=23 L=28 		1-09700-860-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(V) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 0801- ● ● ● ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 09 1 0801-0801 ● ● ● ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 08 1 0802-0805 ● ● ● ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 07 1 0806-1101 ● ● ● ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 04 1 1102- ● ● ● ●
16 CLIP; HARNESS
(Y) ID=10 & 15 		1-09709-279-1 01 1 0801-0801 ● ● ● ●
16 CLIP; HARNESS
(Y) ID=10 & 15 		1-09709-279-1 01 1 0802- ● ●
16 CLIP; HARNESS
(Z) ID=5-12 L=18 		1-09709-287-0 02 1 0801-0811 ● ● ● ●
16 CLIP; HARNESS
(Z) ID=5-12 L=18 		1-09709-287-0 02 1 0812- ● ● ●
16 CLIP; HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 02 1 0801-0811 ● ● ● ●
16 CLIP; HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 02 1 0812- ● ● ●
16 CLIP; HARNESS
(AA) ID=13-18 L=14.5 		1-09709-290-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 06 1 0801- ● ● ● ●
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 02 1 0801-0802 ● ● ● ●
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 02 1 0803- ● ● ● ●
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 02 1 0803- ● ●
16 CLIP; HARNESS
EMISSION REGULATION NEW LONG TERM<JBG> (AD) L=250 		5-09707-030-1 02 1 0803- ●
16 CLIP; HARNESS
(AE) L=140 		5-09707-031-1 04 1 0801- ● ● ● ●
16 CLIP; HARNESS
(AF) ID=10 & 16 		8-94413-325-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 03 1 0801-1105 ● ● ● ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 02 1 1106- ● ● ● ●
16 CLIP; HARNESS
(AH) ID=11 H=20 L=20 		8-98033-780-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(AI) ID=14 L=44 		9-09917-427-0 04 1 0801-0801 ● ● ● ●
16 CLIP; HARNESS
(AI) ID=14 L=44 		9-09917-427-0 03 1 0802- ● ● ● ●
16 CLIP; HARNESS
(AJ) ID=20 L=50 		9-09917-430-0 02 1 0801- ● ● ● ●
16 CLIP; HARNESS
(AK) L=60 		8-94449-165-0 02 1 0801-0802 ● ● ●
16 CLIP; HARNESS
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (AK) L=60 		8-94449-165-0 02 1 0801-0802 ●
16 CLIP; HARNESS
(AR) L=40.6 		8-97229-357-0 02 1 0803- ● ● ●
16 CLIP; HARNESS
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (AR) L=40.6 		8-97229-357-0 02 1 0803- ●
16 CLIP; HARNESS
(AL) L=36.5 		8-97019-892-0 02 1 0801-0802 ● ● ●
16 CLIP; HARNESS
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (AL) L=36.5 		8-97019-892-0 02 1 0801-0802 ●
16 CLIP; HARNESS
(AM) L=155 		8-97173-307-0 18 1 0801- ● ● ●
16 CLIP; HARNESS
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (AM) L=155 		8-97173-307-0 18 1 0801- ●
16 CLIP; HARNESS
(AG) 		8-98052-679-0 02 1 0801- ● ● ●
16 CLIP; HARNESS
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (AG) 		8-98052-679-0 02 1 0801- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AN) ID=11X2 L=16 		0-95325-025-0 01 1 0801- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (X) L=350 		1-09707-183-0 01 1 0801-0801 ● ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (X) L=350 		1-09707-183-0 01 1 0802-0808 ● ● ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 01 1 0802-0808 ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (X) L=350 		1-09707-183-0 01 1 0809- ● ● ●
16 CLIP; HARNESS
DIFF LOCK<C3N> (X) L=350 		1-09707-183-0 01 1 0809- ● ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 01 1 0809- ●
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 07 1 0801-0809 ●
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 02 1 0810- ●
16 CLIP; HARNESS
(AP) ID=13-18 L=22 		1-09709-292-0 01 1 0801- ●
16 CLIP; HARNESS
(D) ID=18-24 L=18 		1-09709-294-0 12 1 0801- ●
16 CLIP; HARNESS
(E) ID=18-24 L=22 		1-09709-295-0 02 1 0801- ●
16 CLIP; HARNESS
(Z) ID=5-12 L=18 		1-09709-287-0 01 1 0801-0802 ●
16 CLIP; HARNESS
(Z) ID=5-12 L=18 		1-09709-287-0 01 1 0803-0811 ● ●
16 CLIP; HARNESS
(Z) ID=5-12 L=18 		1-09709-287-0 01 1 0812- ● ● ●
16 CLIP; HARNESS
(Z) ID=5-12 L=18 		1-09709-287-0 03 1 0801-0802 ●
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 01 1 0803- ●
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 01 1 0803- ●
16 CLIP; HARNESS
(D) ID=18-24 L=18 		1-09709-294-0 01 1 0801-0801 ●
16 CLIP; HARNESS
(D) ID=18-24 L=18 		1-09709-294-0 02 1 0802- ●
16 CLIP; HARNESS
(E) ID=18-24 L=22 		1-09709-295-0 05 1 0801-0801 ●
16 CLIP; HARNESS
(AO) W/SPONGE RUBBER 		1-09709-150-0 01 1 0801- ● ●
48 CLIP; FRAME HARNESS
(F) ID=18-24 L=18 		1-09709-294-0 01 1 0805- ● ● ● ●
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 16 1 0801-0801 ● ● ● ●
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 14 1 0802- ● ● ● ●
48 CLIP; FRAME HARNESS
(B) ID=13-18 L=14.5 		1-09709-290-0 01 1 0801-0802 ● ● ● ●
48 CLIP; FRAME HARNESS
(E) ID=5-12 L=14.5 		1-09987-221-0 01 1 0803-0804 ● ● ● ●
48 CLIP; FRAME HARNESS
(G) ID=5-12 L=18 		1-09709-287-0 01 1 0805- ● ● ● ●
48 CLIP; FRAME HARNESS
(C) ID=35 L=33 		1-09700-945-0 04 1 0801- ● ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=18-24 L=22 		1-09709-295-0 02 1 0801-1201 ● ● ● ●
48 CLIP; FRAME HARNESS
(D) ID=18-24 L=22 		1-09709-295-0 02 1 1202- ● ● ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (A) L=180 		1-09707-162-1 01 1 0801-0812 ● ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (A) L=180 		1-09707-162-1 01 1 0901- ● ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) (A) L=180 		1-09707-162-1 01 1 0901- ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (B) L=350 		1-09707-183-0 01 1 0801-0812 ● ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (B) L=350 		1-09707-183-0 01 1 0901- ● ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) (B) L=350 		1-09707-183-0 01 1 0901- ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (C) ID=5-12 L=18 		1-09709-287-0 01 1 0801-0812 ● ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (C) ID=5-12 L=18 		1-09709-287-0 01 1 0901- ● ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) (C) ID=5-12 L=18 		1-09709-287-0 01 1 0901- ●
104 CLIP; HEADLAMP HARNESS
(B) L=350 		1-09707-183-0 01 1 1202- ● ● ● ●
104 CLIP; HEADLAMP HARNESS
(A) ID=15 L=28 		1-09701-216-0 02 1 0801-0801 ● ● ● ●
104 CLIP; HEADLAMP HARNESS
(A) ID=15 L=28 		1-09701-216-0 01 1 0802- ● ● ● ●
104 CLIP; HEADLAMP HARNESS
(B) L=350 		1-09707-183-0 03 1 0801-1201 ● ● ● ●
104 CLIP; HEADLAMP HARNESS
(B) L=350 		1-09707-183-0 02 1 1202- ● ● ● ●
104 CLIP; HEADLAMP HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 0801- ● ● ● ●
104 CLIP; HEADLAMP HARNESS
(D) OD=9 H=9.5 		1-09709-179-0 01 1 0801- ● ● ● ●
104 CLIP; HEADLAMP HARNESS
(E) ID=13-18 L=14.5 		1-09709-290-0 02 1 0801- ● ● ● ●
171 CLIP; STARTER HARNESS
L=350 		1-09707-183-0 03 1 0801- ● ● ● ●
178 GROMMET; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (E) ID=28 OD=35 T=25 		1-09332-011-1 03 1 0801-0802 ● ● ●
178 GROMMET; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (E) ID=28 OD=35 T=25 		1-09332-011-1 03 1 0803- ● ● ● ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=22 		1-09332-104-0 01 1 0801-1201 ● ● ● ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=22 		1-09332-104-0 01 1 1202- ● ● ● ●
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 0801- ● ● ● ●
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0801- ● ● ● ●
178 GROMMET; HARNESS
(D) ID=32 OD=40 T=18 		1-09891-003-0 02 1 0801- ● ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 05 1 0801-0802 ● ● ● ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 06 1 0803- ● ● ● ●
194 CLIP; BAND
(C) L=140 		5-09707-031-1 02 1 0801- ● ● ● ●
194 CLIP; BAND
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (A) L=300 		1-09707-001-1 02 1 0801-0812 ● ● ●
194 CLIP; BAND
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (A) L=300 		1-09707-001-1 02 1 0901- ● ● ●
194 CLIP; BAND
AIR CONDITIONER MANUAL CONT WO/HEATER(C65) (A) L=300 		1-09707-001-1 02 1 0901- ●
206 CLIP; FUEL TANK HARNESS
(A) L=140 		5-09707-031-1 02 1 0801- ● ● ● ●
206 CLIP; FUEL TANK HARNESS
(B) ID=8.3 & 10 		8-94176-792-0 01 1 0801- ● ● ● ●
223 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 01 1 0801-1201 ● ● ● ●
223 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 01 1 1202- ● ● ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0801-0801 ● ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0802-0803 ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0804- ●
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=58 		9-09917-135-2 01 1 0801-0803 ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=58 		9-09917-135-2 01 1 0804- ● ● ●
369 CLIP; BAND EDS HARNESS
L=500 		1-09707-082-1 01 1 0804- ● ● ● ●
380 CLIP; EARTH HARNESS
(A) ID=11 H=20 L=25 		1-09700-848-0 02 1 0801- ● ● ● ●
380 CLIP; EARTH HARNESS
(B) L=350 		1-09707-183-0 02 1 0801-0802 ● ● ● ●
380 CLIP; EARTH HARNESS
(B) L=350 		1-09707-183-0 03 1 0803- ● ● ● ●
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) ID=11 L=16 		0-95235-025-0 01 1 0801-0802 ● ● ●
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (C) ID=11 L=20 		0-95235-035-0 01 1 0803-0803 ● ● ● ●
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (B) L=350 		1-09707-183-0 03 1 0801-0802 ● ● ●
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (B) L=350 		1-09707-183-0 02 1 0803-0805 ● ● ● ●
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (B) L=350 		1-09707-183-0 03 1 0806- ● ● ● ●
470 CLIP; HARNESS,LICENSE LAMP
(C) L=350 		1-09707-183-0 01 1 0801-0803 ●
470 CLIP; HARNESS,LICENSE LAMP
(C) L=350 		1-09707-183-0 01 1 0804- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 0801-0801 ● ●
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 0802- ● ● ● ●
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 0801-1201 ● ● ● ●
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 1202- ● ● ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 23 1 0801- ● ● ● ●
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1001- ● ● ● ●
612 CLIP; HARNESS DPD
(A) ID=4.8 		1-09701-218-0 03 1 0801- ● ● ●
612 CLIP; HARNESS DPD
(B) ID=5-12 L=18 		1-09709-287-0 01 1 0801-0801 ● ● ●
612 CLIP; HARNESS DPD
(C) L=250 		5-09707-030-1 01 1 0801- ● ● ●
612 CLIP; HARNESS DPD
(D) L=350 		1-09707-183-0 02 1 0801-0803 ● ● ● ●
612 CLIP; HARNESS DPD
(D) L=350 		1-09707-183-0 02 1 0804- ● ● ●
612 CLIP; HARNESS DPD
(E) ID=10 & 15 		1-09709-279-1 01 1 0801-0803 ● ● ● ●
612 CLIP; HARNESS DPD
(E) ID=10 & 15 		1-09709-279-1 01 1 0804- ● ● ●

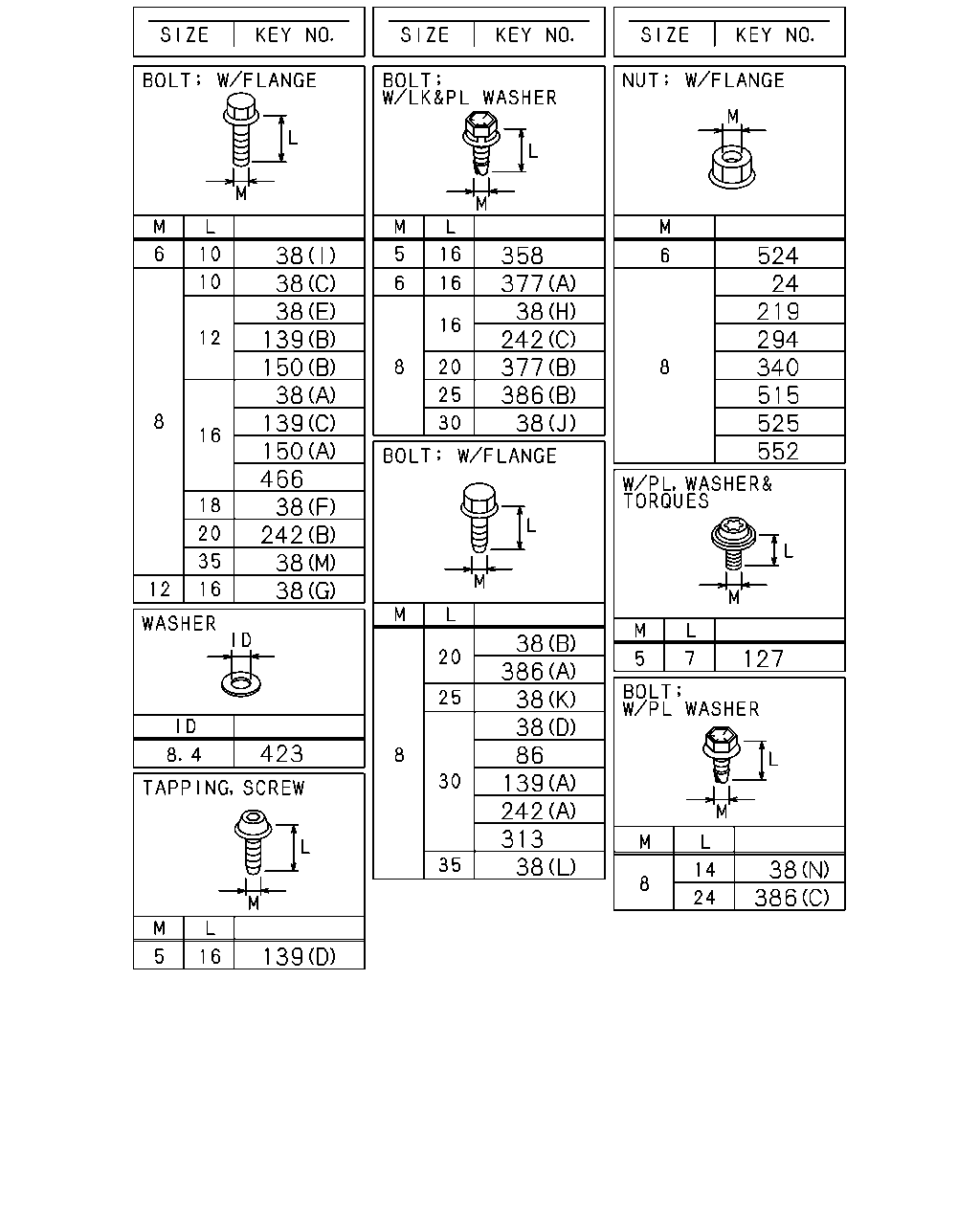

çizim 161129
38 38 38 139 150 38 139 150 466 38 242 38 38 358 377 38 242 377 386 38 524 24 219 294 340 515 525 552 38 386 38 38 86 139 242 313 38 127 423 38 386 139
BalonParca AdiParca NoAdetTipApplied Date A B C D
24 NUT; HARNESS
M8 FLANGE 		0-91180-108-0 02 1 0801-0801 ● ● ● ●
38 BOLT; CLIP,HARNESS
(M) M8X35 FLANGE 		0-28050-835-0 03 1 1212- ● ● ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 04 1 1212- ● ● ● ●
38 BOLT; CLIP,HARNESS
(M) M8X35 FLANGE 		0-28050-835-0 04 1 0804-1211 ● ● ● ●
38 BOLT; CLIP,HARNESS
(M) M8X35 FLANGE 		0-28050-835-0 01 1 1212- ● ● ● ●
38 BOLT; CLIP,HARNESS
(L) M8X35 FLANGE 		0-28650-835-0 02 1 0803- ● ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 05 1 0801-0801 ● ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 08 1 0802-0802 ● ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 06 1 0803-0804 ● ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 07 1 0805-1201 ● ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 05 1 1202- ● ● ● ●
38 BOLT; CLIP,HARNESS
(K) M8X25 FLANGE 		0-28650-825-0 03 1 0801- ● ● ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 11 1 0801-0801 ● ● ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 12 1 0802-0803 ● ● ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 08 1 0804-0804 ● ● ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 07 1 0805-1201 ● ● ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 06 1 1202-1211 ● ● ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 02 1 1212- ● ● ● ●
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0801-0802 ● ● ●
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0803-0803 ● ● ● ●
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) M8X20 FLANGE 		0-28650-820-0 02 1 0801-0802 ● ● ●
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) M8X20 FLANGE 		0-28650-820-0 02 1 0803-1201 ● ● ● ●
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1202- ● ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1202- ● ● ● ●
38 BOLT; CLIP,HARNESS
GENERATOR 24V90A(K44) (C) M8X10 FLANGE 		0-28050-810-0 01 1 0801- ● ● ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 04 1 0801-0801 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0802-0802 ● ●
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) M8X20 FLANGE 		0-28650-820-0 01 1 0802-0802 ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0802- ● ● ● ●
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) M8X20 FLANGE 		0-28650-820-0 01 1 0802- ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0802- ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 01 1 0801-0801 ● ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 01 1 0801-0801 ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 01 1 0802-0803 ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 01 1 0804-1201 ● ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 01 1 1202- ● ● ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 01 1 1202- ● ● ●
38 BOLT; CLIP,HARNESS
(E) M8X12 FLANGE 		0-28050-812-0 02 1 0801- ● ● ● ●
38 BOLT; CLIP,HARNESS
(F) M8X18 FLANGE 		0-28080-818-0 01 1 0801-0801 ● ● ● ●
38 BOLT; CLIP,HARNESS
(G) M12X16 FLANGE 		1-09044-079-0 01 1 0801-1105 ● ● ● ●
38 BOLT; CLIP,HARNESS
(G) M12X16 FLANGE 		0-28051-216-0 01 1 1106- ● ● ● ●
38 BOLT; CLIP,HARNESS
(H) M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 0801-1201 ● ● ● ●
38 BOLT; CLIP,HARNESS
(N) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1202- ● ● ● ●
38 BOLT; CLIP,HARNESS
EXC. GENERATOR 24V90A(K44) (I) M6X10 FLANGE 		0-28050-610-0 01 1 0801- ● ● ● ●
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) M8X20 FLANGE 		0-28650-820-0 01 1 0801-0801 ●
38 BOLT; CLIP,HARNESS
(J) M8X30 W/LK&PL WASHER 		0-50640-830-0 01 1 0801- ● ●
86 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0801- ● ● ● ●
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 0801-0801 ● ●
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 0802- ● ● ● ●
139 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 08 1 1202- ● ● ● ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801-0901 ● ● ●
139 BOLT; BRKT
EXC. VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801-0901 ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0902-1301 ● ● ●
139 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0902-1301 ●
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 FLANGE 		0-28650-830-0 03 1 0801-0802 ● ● ●
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 FLANGE 		0-28650-830-0 03 1 0803- ● ● ● ●
139 BOLT; BRKT
(B) M8X12 FLANGE 		0-28050-812-0 01 1 0801- ● ● ● ●
139 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 09 1 0801-1201 ● ● ● ●
139 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1202- ● ● ● ●
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (C) M8X16 FLANGE 		0-28050-816-0 02 1 0801- ●
150 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 07 1 0801-1005 ●
150 BOLT; CLIP
(B) M8X12 FLANGE 		0-28050-812-0 02 1 0801- ● ● ● ●
150 BOLT; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M8X16 FLANGE 		0-28050-816-0 08 1 0801-1302 ● ● ●
150 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (A) M8X16 FLANGE 		0-28050-816-0 08 1 1303- ● ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 09 1 0801-0801 ● ● ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 10 1 0802-1201 ● ● ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 05 1 1202- ● ● ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 05 1 1202- ● ● ● ●
219 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 0801-0801 ● ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0801-0801 ● ●
219 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 0802-0802 ● ● ●
219 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 0803- ● ● ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0801-0801 ● ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0801-0801 ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0802-0802 ● ● ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0802-0802 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0802-0803 ● ● ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0802-0803 ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0804- ● ● ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0804- ● ●
242 BOLT; BRKT,HARNESS
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0801- ● ● ●
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28050-820-0 01 1 0801- ● ● ● ●
242 BOLT; BRKT,HARNESS
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0801- ● ● ● ●
242 BOLT; BRKT,HARNESS
(C) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0801- ● ● ● ●
294 NUT
M8 FLANGE 		0-91180-108-0 06 1 1202- ● ● ● ●
294 NUT
M8 FLANGE 		0-91180-108-0 08 1 0801-1201 ● ● ● ●
294 NUT
M8 FLANGE 		0-91180-108-0 02 1 1202- ● ● ● ●
294 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 03 1 0801-0802 ● ● ●
294 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 03 1 0803- ● ● ● ●
313 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 08 1 0801- ● ● ● ●
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91180-108-0 03 1 0801- ● ● ● ●
358 BOLT; EARTH
M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0801- ● ● ● ●
377 BOLT; CAB EARTH
(A) M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 0801- ● ● ● ●
377 BOLT; CAB EARTH
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0801- ● ● ● ●
386 BOLT; GRAND HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0801- ● ● ● ●
386 BOLT; GRAND HARNESS
(B) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0801-1202 ● ● ● ●
386 BOLT; GRAND HARNESS
(C) M8X24 W/PL WASHER 		8-98141-256-1 02 1 1203- ● ● ● ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 03 1 0801- ● ● ● ●
466 BOLT; HEAT PROTECTOR
M8X16 FLANGE 		0-28050-816-0 02 1 0801- ● ● ● ●
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 07 1 1202- ● ● ● ●
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 0801-1201 ● ● ● ●
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1202- ● ● ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 0801- ● ● ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0801-1211 ● ● ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1212- ● ● ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1212- ● ● ● ●
552 NUT; BRKT,HARNESS
M8 FLANGE 		0-91180-108-0 01 1 0801- ● ● ●
çizim 161130
16 16 206 16 16 16 16 16 142 16
BalonParca AdiParca NoAdetTipApplied Date A B C D
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 03 1 1102-1107 ● ● ● ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 02 1 1108- ● ● ● ●
16 CLIP; HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 03 1 0812- ●
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 05 1 0810- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AS) L=250 		1-09707-126-0 01 1 0809- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AQ) L=175 		1-09707-176-1 01 1 0803-1004 ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AQ) L=175 		1-09707-176-1 01 1 1005- ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AD) L=250 		5-09707-030-1 04 1 0803-0803 ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AD) L=250 		5-09707-030-1 05 1 0804-1004 ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AD) L=250 		5-09707-030-1 05 1 1005- ● ●
16 CLIP; HARNESS
(D) ID=18-24 L=18 		1-09709-294-0 01 1 0804- ●
16 CLIP; HARNESS
(E) ID=18-24 L=22 		1-09709-295-0 01 1 0804- ●
16 CLIP; HARNESS
(AJ) ID=20 L=50 		9-09917-430-0 01 1 0804- ●
16 CLIP; HARNESS
(AB) ID=20 & 16.5 		8-94486-835-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 04 1 0801-0812 ●
16 CLIP; HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) ID=11 L=20 		0-95235-035-0 04 1 0901- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) ID=5-12 L=22 		1-09709-288-0 01 1 0801-0808 ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) ID=5-12 L=22 		1-09709-288-0 01 1 0809- ● ●
16 CLIP; HARNESS
DIFF LOCK<C3N> (B) ID=5-12 L=22 		1-09709-288-0 01 1 0809- ● ●
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 06 1 0801- ●
16 CLIP; HARNESS
(D) ID=18-24 L=18 		1-09709-294-0 09 1 0801- ●
16 CLIP; HARNESS
(E) ID=18-24 L=22 		1-09709-295-0 04 1 0801-0801 ●
16 CLIP; HARNESS
(E) ID=18-24 L=22 		1-09709-295-0 04 1 0802- ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (F) ID=11 L=16 		0-95235-025-0 02 1 0801-0802 ● ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (F) ID=11 L=16 		0-95235-025-0 02 1 0803- ● ● ● ●
16 CLIP; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=11 L=20 		0-95235-035-0 05 1 0801-1302 ● ● ●
16 CLIP; HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (A) ID=11 L=20 		0-95235-035-0 05 1 1303- ● ● ●
16 CLIP; HARNESS
(G) ID=19 L=20 		0-95235-836-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(H) ID=24 L=32 		1-09700-766-1 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(J) ID=31 L=30 		1-09700-969-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(K) OD=9 H=6 		1-09709-178-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(L) ID=21 L=47.5 		8-94178-108-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(M) L=36 		8-94224-891-1 02 1 0801- ● ● ● ●
16 CLIP; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (N) L=150 		8-97355-273-0 01 1 0801-1302 ● ● ●
16 CLIP; HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (N) L=150 		8-97355-273-0 01 1 1303- ● ● ●
16 CLIP; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (O) ID=17 L=20 		8-97619-251-0 04 1 0801-1302 ● ● ●
16 CLIP; HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIRCONDITIONER(C68) (O) ID=17 L=20 		8-97619-251-0 04 1 1303- ● ● ●
16 CLIP; HARNESS
(F) ID=11 L=16 		0-95235-025-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(P) ID=19 L=28 		0-95235-856-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(Q) ID=19 L=60 		0-95235-896-0 02 1 0801- ● ● ● ●
16 CLIP; HARNESS
(R) ID=11 L=41 		1-09700-403-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(S) ID=11 H=20 L=25 		1-09700-848-0 01 1 0801-0801 ● ● ● ●
16 CLIP; HARNESS
(T) ID=18 H=23 L=28 		1-09700-860-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(V) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 0801- ● ● ● ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 09 1 0801-0801 ● ● ● ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 08 1 0802-0805 ● ● ● ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 07 1 0806-1101 ● ● ● ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 04 1 1102- ● ● ● ●
16 CLIP; HARNESS
(Y) ID=10 & 15 		1-09709-279-1 01 1 0801-0801 ● ● ● ●
16 CLIP; HARNESS
(Y) ID=10 & 15 		1-09709-279-1 01 1 0802- ● ●
16 CLIP; HARNESS
(Z) ID=5-12 L=18 		1-09709-287-0 02 1 0801-0811 ● ● ● ●
16 CLIP; HARNESS
(Z) ID=5-12 L=18 		1-09709-287-0 02 1 0812- ● ● ●
16 CLIP; HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 02 1 0801-0811 ● ● ● ●
16 CLIP; HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 02 1 0812- ● ● ●
16 CLIP; HARNESS
(AA) ID=13-18 L=14.5 		1-09709-290-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 06 1 0801- ● ● ● ●
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 02 1 0801-0802 ● ● ● ●
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 02 1 0803- ● ● ● ●
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 02 1 0803- ● ●
16 CLIP; HARNESS
EMISSION REGULATION NEW LONG TERM<JBG> (AD) L=250 		5-09707-030-1 02 1 0803- ●
16 CLIP; HARNESS
(AE) L=140 		5-09707-031-1 04 1 0801- ● ● ● ●
16 CLIP; HARNESS
(AF) ID=10 & 16 		8-94413-325-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 03 1 0801-1105 ● ● ● ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 02 1 1106- ● ● ● ●
16 CLIP; HARNESS
(AH) ID=11 H=20 L=20 		8-98033-780-0 01 1 0801- ● ● ● ●
16 CLIP; HARNESS
(AI) ID=14 L=44 		9-09917-427-0 04 1 0801-0801 ● ● ● ●
16 CLIP; HARNESS
(AI) ID=14 L=44 		9-09917-427-0 03 1 0802- ● ● ● ●
16 CLIP; HARNESS
(AJ) ID=20 L=50 		9-09917-430-0 02 1 0801- ● ● ● ●
16 CLIP; HARNESS
(AK) L=60 		8-94449-165-0 02 1 0801-0802 ● ● ●
16 CLIP; HARNESS
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (AK) L=60 		8-94449-165-0 02 1 0801-0802 ●
16 CLIP; HARNESS
(AR) L=40.6 		8-97229-357-0 02 1 0803- ● ● ●
16 CLIP; HARNESS
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (AR) L=40.6 		8-97229-357-0 02 1 0803- ●
16 CLIP; HARNESS
(AL) L=36.5 		8-97019-892-0 02 1 0801-0802 ● ● ●
16 CLIP; HARNESS
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (AL) L=36.5 		8-97019-892-0 02 1 0801-0802 ●
16 CLIP; HARNESS
(AM) L=155 		8-97173-307-0 18 1 0801- ● ● ●
16 CLIP; HARNESS
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (AM) L=155 		8-97173-307-0 18 1 0801- ●
16 CLIP; HARNESS
(AG) 		8-98052-679-0 02 1 0801- ● ● ●
16 CLIP; HARNESS
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (AG) 		8-98052-679-0 02 1 0801- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AN) ID=11X2 L=16 		0-95325-025-0 01 1 0801- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (X) L=350 		1-09707-183-0 01 1 0801-0801 ● ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (X) L=350 		1-09707-183-0 01 1 0802-0808 ● ● ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 01 1 0802-0808 ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (X) L=350 		1-09707-183-0 01 1 0809- ● ● ●
16 CLIP; HARNESS
DIFF LOCK<C3N> (X) L=350 		1-09707-183-0 01 1 0809- ● ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 01 1 0809- ●
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 07 1 0801-0809 ●
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 02 1 0810- ●
16 CLIP; HARNESS
(AP) ID=13-18 L=22 		1-09709-292-0 01 1 0801- ●
16 CLIP; HARNESS
(D) ID=18-24 L=18 		1-09709-294-0 12 1 0801- ●
16 CLIP; HARNESS
(E) ID=18-24 L=22 		1-09709-295-0 02 1 0801- ●
16 CLIP; HARNESS
(Z) ID=5-12 L=18 		1-09709-287-0 01 1 0801-0802 ●
16 CLIP; HARNESS
(Z) ID=5-12 L=18 		1-09709-287-0 01 1 0803-0811 ● ●
16 CLIP; HARNESS
(Z) ID=5-12 L=18 		1-09709-287-0 01 1 0812- ● ● ●
16 CLIP; HARNESS
(Z) ID=5-12 L=18 		1-09709-287-0 03 1 0801-0802 ●
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 01 1 0803- ●
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 01 1 0803- ●
16 CLIP; HARNESS
(D) ID=18-24 L=18 		1-09709-294-0 01 1 0801-0801 ●
16 CLIP; HARNESS
(D) ID=18-24 L=18 		1-09709-294-0 02 1 0802- ●
16 CLIP; HARNESS
(E) ID=18-24 L=22 		1-09709-295-0 05 1 0801-0801 ●
16 CLIP; HARNESS
(AO) W/SPONGE RUBBER 		1-09709-150-0 01 1 0801- ● ●
142 CLIP; HARNESS,ENG
L=170.3 		8-97209-720-0 01 1 0801- ● ● ● ●
206 CLIP; FUEL TANK HARNESS
(A) L=140 		5-09707-031-1 02 1 0801- ● ● ● ●
206 CLIP; FUEL TANK HARNESS
(B) ID=8.3 & 10 		8-94176-792-0 01 1 0801- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
