◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11143 - FXR/GXR EXC.EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#57634) — 124 parça

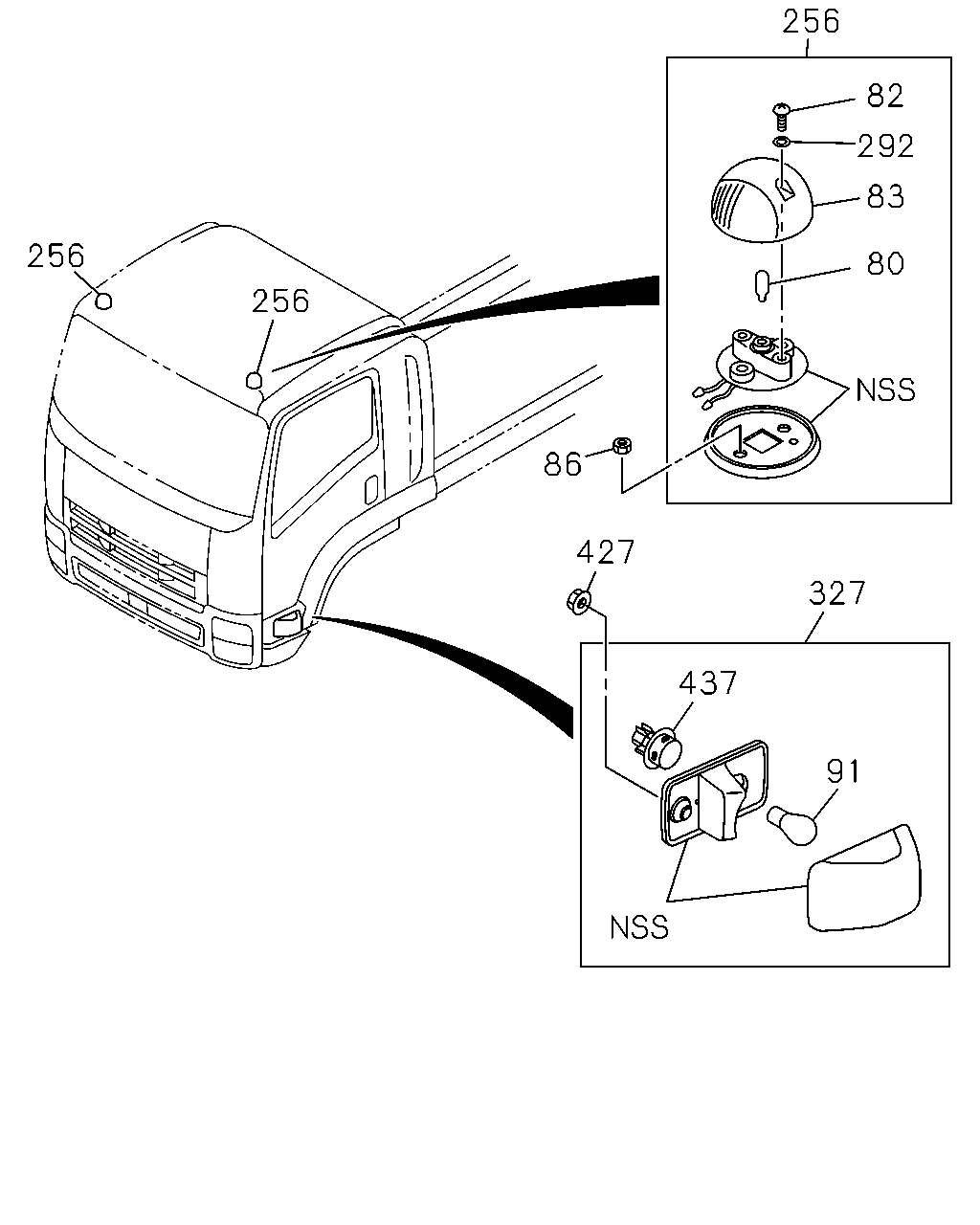

çizim 160900
256 82 292 83 256 80 256 86 427 327 437 91
BalonParca AdiParca NoAdetTipApplied Date A B C D
80 BULB; MARKER LAMP
24V 5W 		8-94135-397-0 02 1 0801- ● ●
80 BULB; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> 24V 5W 		8-94135-397-0 02 1 0801- ●
82 SCREW; MARKER LAMP 1-82219-011-0 04 1 0801- ● ●
82 SCREW; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> 		1-82219-011-0 04 1 0801- ●
83 LENS; MARKER LAMP 8-98057-958-0 02 1 0801- ● ●
83 LENS; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> 		8-98057-958-0 02 1 0801- ●
86 NUT; MARKER LAMP
M6 FLANGE 		0-91180-106-0 04 1 0801- ● ●
86 NUT; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> M6 FLANGE 		0-91180-106-0 04 1 0801- ●
91 BULB; SIDE TURN SIGNAL
24V 21W 		8-98051-495-0 02 1 0801- ● ● ● ●
256 LAMP; MARKER 8-98097-466-3 01 1 0801- ● ●
256 LAMP; MARKER
LAMPS TWO ROOF MARKER<TEC> 		8-98097-466-3 01 1 0801- ●
256 LAMP; MARKER 8-98097-467-3 01 1 0801- ● ●
256 LAMP; MARKER
LAMPS TWO ROOF MARKER<TEC> 		8-98097-467-3 01 1 0801- ●
292 WASHER; MARKER LAMP 1-82219-012-0 04 1 0801- ● ●
292 WASHER; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> 		1-82219-012-0 04 1 0801- ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-180-4 01 1 0801- ● ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-181-3 01 1 0801- ● ● ● ●
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 0801- ● ● ● ●
437 SOCKET; SIDE,TURN 8-98051-390-0 02 1 0801- ● ● ● ●

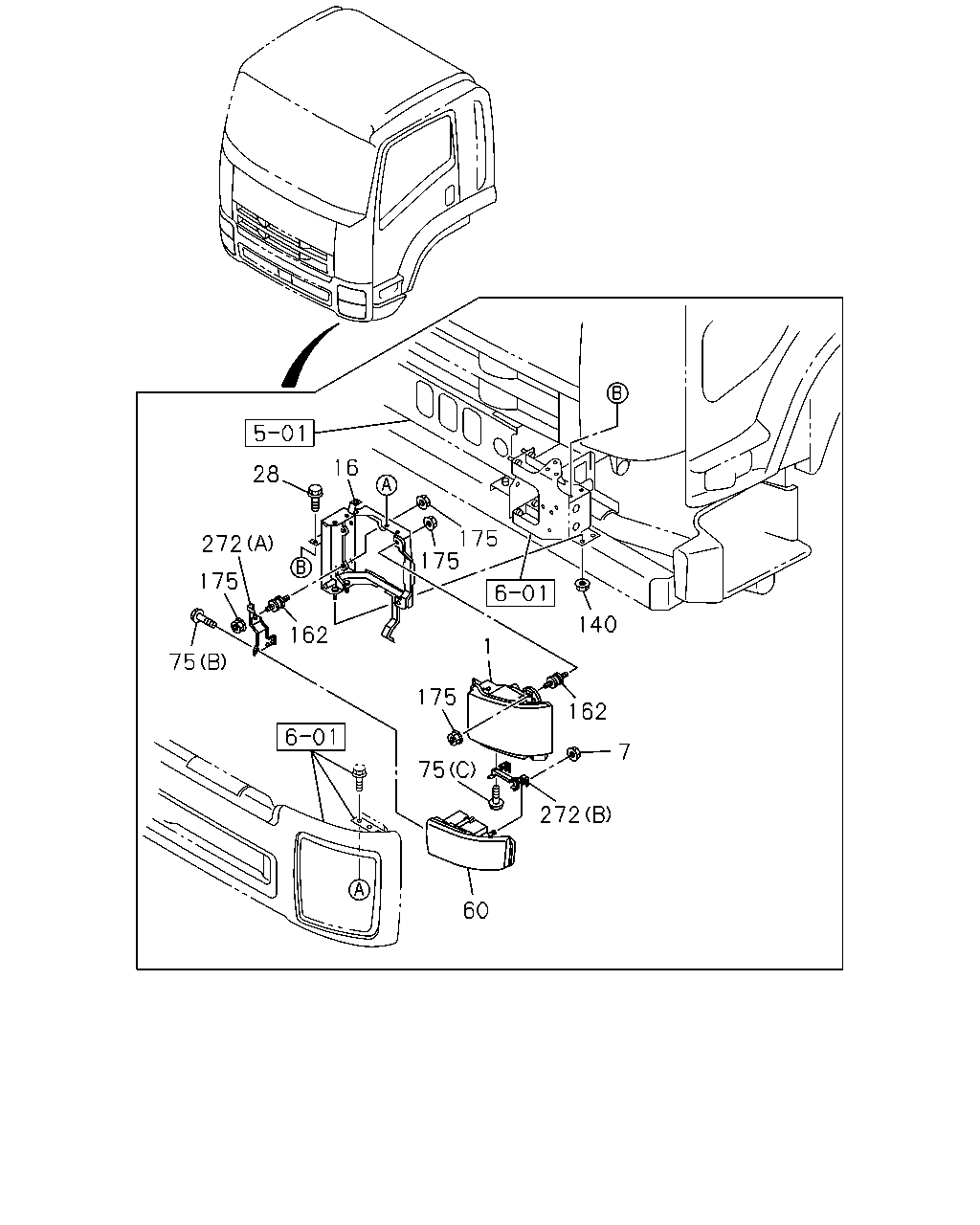

çizim 160901
16 28 175 175 272 175 140 162 1 75 175 162 7 75 272 60
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98098-477-1 01 1 0801-1108 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98193-579-0 01 1 1109-1208 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98225-620-0 01 1 1209-1305 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98241-312-0 01 1 1306- ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98098-478-1 01 1 0801-1108 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98193-580-0 01 1 1109-1208 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98225-621-0 01 1 1209-1305 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98241-313-0 01 1 1306- ● ● ● ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-479-1 01 1 0801-1108 ● ● ● ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-581-0 01 1 1109-1208 ● ● ● ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-618-0 01 1 1209-1305 ● ● ● ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-310-0 01 1 1306- ● ● ● ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-480-1 01 1 0801-1108 ● ● ● ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-582-0 01 1 1109-1208 ● ● ● ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-619-0 01 1 1209-1305 ● ● ● ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-311-0 01 1 1306- ● ● ● ●
7 NUT; FRT COMB LAMP
M6 FLANGE 		0-91180-106-0 04 1 0801- ● ● ● ●
16 BRACKET; HEADLAMP 8-98013-015-2 01 1 0801- ● ● ● ●
16 BRACKET; HEADLAMP 8-98013-016-2 01 1 0801- ● ● ● ●
28 BOLT; HEADLAMP
M10X25 FLANGE 		0-28651-025-0 04 1 0801- ● ● ● ●
60 LAMP ASM; FRT COMB 8-98047-052-2 01 1 0801-1302 ● ● ● ●
60 LAMP ASM; FRT COMB 8-98238-630-0 01 1 1303- ● ● ● ●
60 LAMP ASM; FRT COMB 8-98047-053-2 01 1 0801-1302 ● ● ● ●
60 LAMP ASM; FRT COMB 8-98238-631-0 01 1 1303- ● ● ● ●
75 SCREW; FRT COMB LAMP
(B) M6X16 FLANGE 		0-28650-616-0 04 1 0801- ● ● ● ●
75 SCREW; FRT COMB LAMP
(C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 06 1 0801- ● ● ● ●
75 SCREW; FRT COMB LAMP
(A) 		8-98074-439-0 02 1 0801- ● ● ● ●
140 NUT
M10 FLANGE 		0-91180-210-0 04 1 0801- ● ● ● ●
162 RUBBER; CUSHION UPR 1-82117-086-0 08 1 0801- ● ● ● ●
175 NUT; BRKT CUSHION RUBBER
M8 FLANGE 		0-91180-108-0 16 1 0801- ● ● ● ●
272 BRACKET; FRT COMB LAMP
(A) 		8-98051-934-0 01 1 0801- ● ● ● ●
272 BRACKET; FRT COMB LAMP
(A) 		8-98051-935-0 01 1 0801- ● ● ● ●
272 BRACKET; FRT COMB LAMP
(B) 		8-98051-937-0 01 1 0801- ● ● ● ●
272 BRACKET; FRT COMB LAMP
(B) 		8-98051-938-0 01 1 0801- ● ● ● ●

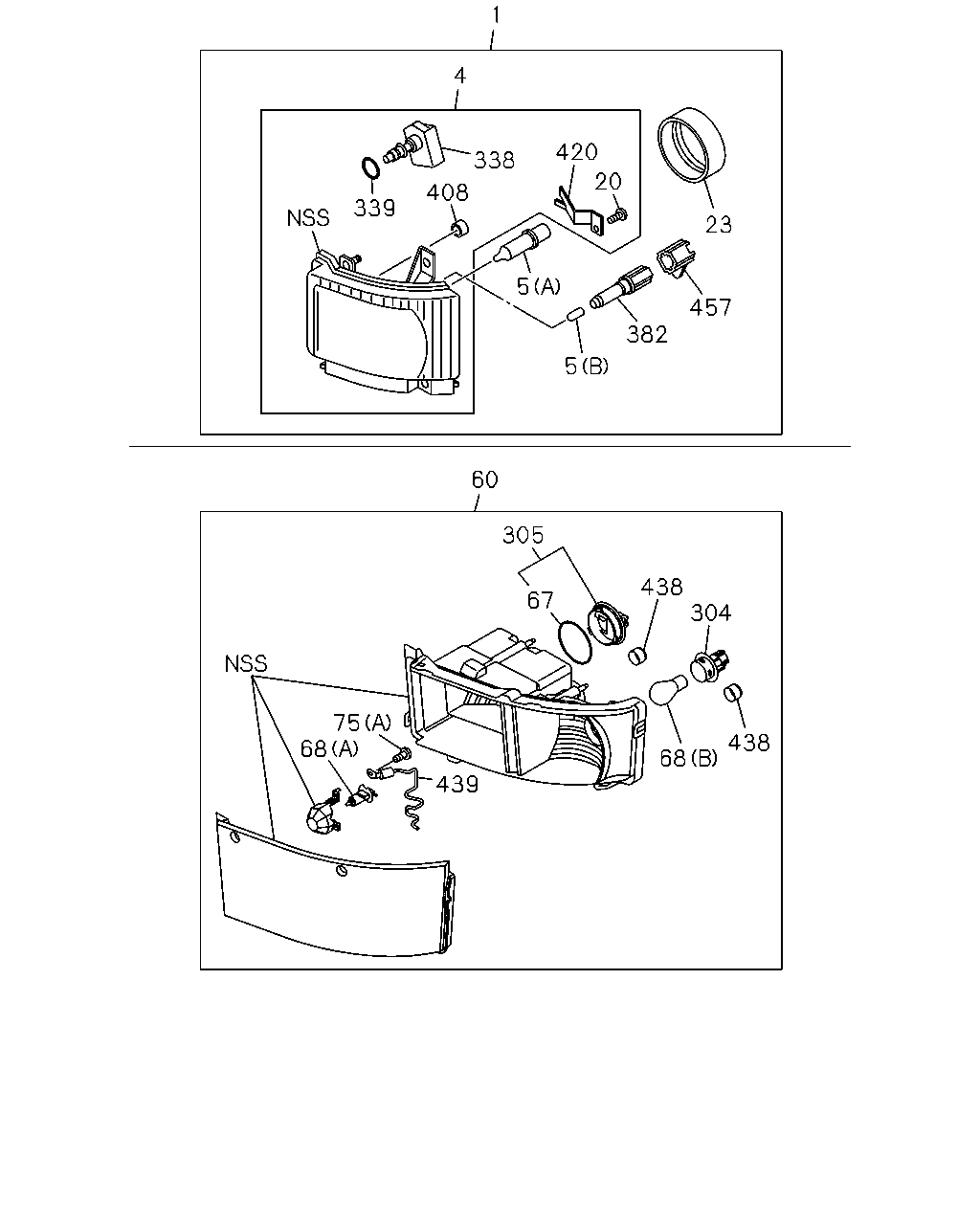

çizim 161108
1 4 338 408 339 5 5 382 457 23 20 420 60 305 67 438 304 438 68 439 75 68
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98098-477-1 01 1 0801-1108 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98193-579-0 01 1 1109-1208 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98225-620-0 01 1 1209-1305 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98241-312-0 01 1 1306- ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98098-478-1 01 1 0801-1108 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98193-580-0 01 1 1109-1208 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98225-621-0 01 1 1209-1305 ● ● ● ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98241-313-0 01 1 1306- ● ● ● ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-479-1 01 1 0801-1108 ● ● ● ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-581-0 01 1 1109-1208 ● ● ● ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-618-0 01 1 1209-1305 ● ● ● ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-310-0 01 1 1306- ● ● ● ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-480-1 01 1 0801-1108 ● ● ● ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-582-0 01 1 1109-1208 ● ● ● ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-619-0 01 1 1209-1305 ● ● ● ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-311-0 01 1 1306- ● ● ● ●
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98051-398-0 01 1 0801-1108 ● ● ● ●
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98199-566-0 01 1 1109- ● ● ● ●
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98051-399-0 01 1 0801-1108 ● ● ● ●
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98199-567-0 01 1 1109- ● ● ● ●
4 HEADLAMP UNIT
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98051-400-0 01 1 0801-1108 ● ● ● ●
4 HEADLAMP UNIT
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98199-564-0 01 1 1109- ● ● ● ●
4 HEADLAMP UNIT
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98051-401-0 01 1 0801-1108 ● ● ● ●
4 HEADLAMP UNIT
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98199-565-0 01 1 1109- ● ● ● ●
5 BULB; HEADLAMP
HALOGEN HEADLAMPS<TT5> (B) 24V 5W 		1-82194-042-0 02 1 0801- ● ● ● ●
5 BULB; HEADLAMP
HALOGEN HEADLAMPS<TT5> (A) 24V 75/70W 		1-82194-063-0 02 1 0801- ● ● ● ●
20 SCREW; HEADLAMP
HALOGEN HEADLAMPS<TT5> 		8-97378-871-0 06 1 0801- ● ● ● ●
23 COVER; BULB,HEADLAMP
HALOGEN HEADLAMPS<TT5> 		8-97232-491-0 02 1 0801- ● ● ● ●
60 LAMP ASM; FRT COMB 8-98047-052-2 01 1 0801-1302 ● ● ● ●
60 LAMP ASM; FRT COMB 8-98238-630-0 01 1 1303- ● ● ● ●
60 LAMP ASM; FRT COMB 8-98047-053-2 01 1 0801-1302 ● ● ● ●
60 LAMP ASM; FRT COMB 8-98238-631-0 01 1 1303- ● ● ● ●
67 GASKET; FRT COMB LAMP 8-98238-656-0 02 1 1303- ● ● ● ●
68 BULB; FRT COMB LAMP
(A) 24V 70W 		1-82194-106-0 02 1 0801- ● ● ● ●
68 BULB; FRT COMB LAMP
(B) 24V 21W 		8-98051-495-0 02 1 0801- ● ● ● ●
75 SCREW; FRT COMB LAMP
(B) M6X16 FLANGE 		0-28650-616-0 04 1 0801- ● ● ● ●
75 SCREW; FRT COMB LAMP
(C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 06 1 0801- ● ● ● ●
75 SCREW; FRT COMB LAMP
(A) 		8-98074-439-0 02 1 0801- ● ● ● ●
304 PLUG; SOCKET,FRT COMB LAMP 8-98051-390-0 02 1 0801- ● ● ● ●
305 COVER; FRT COMB LAMP 8-98074-440-0 02 1 0801-1302 ● ● ● ●
305 COVER; FRT COMB LAMP 8-98240-559-0 02 1 1303- ● ● ● ●
338 LEVELING; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98010-256-0 02 1 1109- ● ● ● ●
339 GASKET; LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		1-86830-158-0 02 1 1109- ● ● ● ●
382 PLUG; SOCKET,HEADLAMP
HALOGEN HEADLAMPS<TT5> 		8-98069-364-0 02 1 0801-1208 ● ● ● ●
382 PLUG; SOCKET,HEADLAMP
HALOGEN HEADLAMPS<TT5> 		8-98225-685-0 02 1 1209- ● ● ● ●
408 CAP; BREATHER,HEADLAMP
HALOGEN HEADLAMPS<TT5> 		8-97378-874-0 02 1 0801- ● ● ● ●
420 SPRING; BULB,HEADLAMP
HALOGEN HEADLAMPS<TT5> 		8-97378-875-0 02 1 0801-1208 ● ● ● ●
420 SPRING; BULB,HEADLAMP
HALOGEN HEADLAMPS<TT5> 		8-98218-601-0 02 1 1209- ● ● ● ●
438 CAP; BREATHER,FRT COMB LAMP 8-97378-874-0 04 1 0801-1302 ● ● ● ●
438 CAP; BREATHER,FRT COMB LAMP 8-97378-874-0 02 1 1303- ● ● ● ●
439 SPRING SET; COMB LAMP 8-98075-644-0 02 1 0801- ● ● ● ●
457 GRIP; HEADLAMP
HALOGEN HEADLAMPS<TT5> 		8-98241-354-0 02 1 1306- ● ● ● ●
çizim 161121
427 327 437 91 256 82 292 83 80 86 84
BalonParca AdiParca NoAdetTipApplied Date A B C D
80 BULB; MARKER LAMP
24V 5W 		8-94135-397-0 02 1 0801- ● ●
80 BULB; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> 24V 5W 		8-94135-397-0 02 1 0801- ●
82 SCREW; MARKER LAMP 1-82219-011-0 04 1 0801- ● ●
82 SCREW; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> 		1-82219-011-0 04 1 0801- ●
83 LENS; MARKER LAMP 8-98057-958-0 02 1 0801- ● ●
83 LENS; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> 		8-98057-958-0 02 1 0801- ●
86 NUT; MARKER LAMP
M6 FLANGE 		0-91180-106-0 04 1 0801- ● ●
86 NUT; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> M6 FLANGE 		0-91180-106-0 04 1 0801- ●
91 BULB; SIDE TURN SIGNAL
24V 21W 		8-98051-495-0 02 1 0801- ● ● ● ●
256 LAMP; MARKER 8-98097-466-3 01 1 0801- ● ●
256 LAMP; MARKER
LAMPS TWO ROOF MARKER<TEC> 		8-98097-466-3 01 1 0801- ●
256 LAMP; MARKER 8-98097-467-3 01 1 0801- ● ●
256 LAMP; MARKER
LAMPS TWO ROOF MARKER<TEC> 		8-98097-467-3 01 1 0801- ●
292 WASHER; MARKER LAMP 1-82219-012-0 04 1 0801- ● ●
292 WASHER; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> 		1-82219-012-0 04 1 0801- ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-180-4 01 1 0801- ● ● ● ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-181-3 01 1 0801- ● ● ● ●
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 0801- ● ● ● ●
437 SOCKET; SIDE,TURN 8-98051-390-0 02 1 0801- ● ● ● ●
