◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11143 - FXR/GXR EXC.EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-70 - SEPARATER AND BED ▶
7-70 — SEPARATER AND BED (#57633) — 22 parça

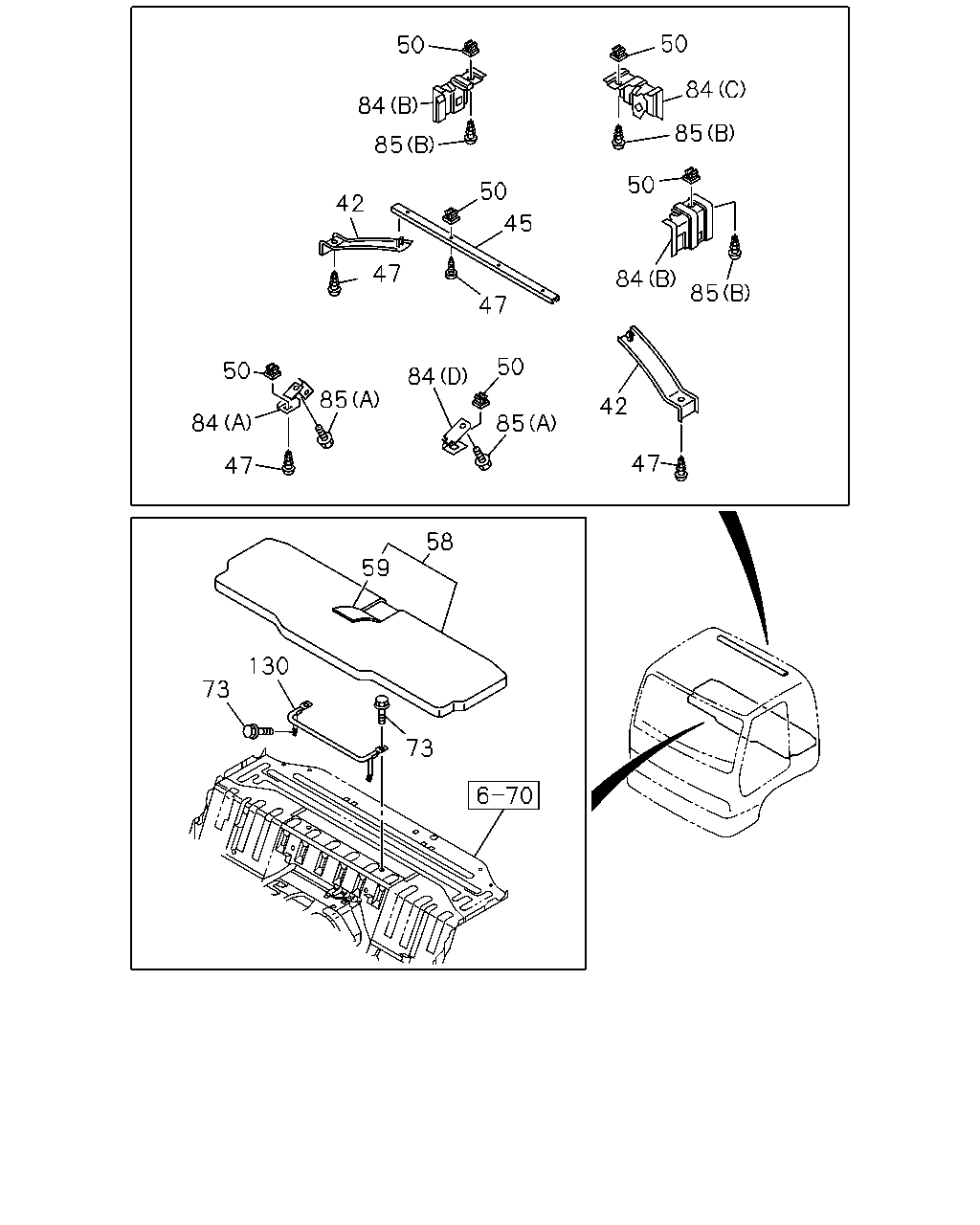

çizim 161142
50 50 84 84 85 85 50 50 42 45 47 84 85 47 50 50 84 85 42 84 85 47 47 58 59 130 73 73
BalonParca AdiParca NoAdetTipApplied Date A B C D
42 STOPPER; CURTAIN RAIL
DARK GRAY 		8-97407-499-2 01 1 0801- ● ● ● ●
42 STOPPER; CURTAIN RAIL
DARK GRAY 		8-97407-972-2 01 1 0801- ● ● ● ●
45 RAIL; CURTAIN,FRT
DARK GRAY 		8-97407-486-0 01 1 0801- ● ● ● ●
47 SCREW; CURTAIN RAIL
M5X20 		5-09981-059-0 06 1 0801- ● ● ● ●
50 GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5 		8-94279-078-0 10 1 0801-1405 ● ● ● ●
50 GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5 		8-94279-078-0 08 1 1406- ● ● ● ●
58 BED; MAT
MATTRESS SLEEPER CAB<E40> DARK GRAY 		8-97409-894-1 01 1 0801-1112 ● ● ● ●
58 BED; MAT
MATTRESS SLEEPER CAB<E40> DARK GRAY 		8-97409-894-1 01 1 1201- ● ● ●
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> DARK GRAY 		8-97414-135-0 01 1 0801-1112 ● ● ● ●
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> DARK GRAY 		8-97414-135-0 01 1 1201- ● ● ●
73 BOLT; GUARD PIPE
MATTRESS SLEEPER CAB<E40> M8X20 FLANGE 		0-28450-820-0 04 1 0801-1112 ● ● ● ●
73 BOLT; GUARD PIPE
MATTRESS SLEEPER CAB<E40> M8X20 FLANGE 		0-28450-820-0 04 1 1201- ● ● ●
84 BRACKET; CURTAIN RAIL
(C) 		8-98028-326-1 02 1 0801-1405 ● ● ● ●
84 BRACKET; CURTAIN RAIL
(B) 		8-98042-152-0 02 1 0801- ● ● ● ●
84 BRACKET; CURTAIN RAIL
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) 		8-98049-290-1 01 1 0801- ● ● ● ●
84 BRACKET; CURTAIN RAIL
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (D) 		8-98074-740-0 01 1 0801- ● ● ● ●
85 SCREW; BRKT
(B) M5X20 		5-09981-059-0 04 1 0801-1405 ● ● ● ●
85 SCREW; BRKT
(B) M5X20 		5-09981-059-0 02 1 1406- ● ● ● ●
85 SCREW; BRKT
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE 		0-28450-612-0 02 1 0801-0810 ● ● ● ●
85 SCREW; BRKT
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE 		8-97108-669-0 02 1 0811- ● ● ● ●
130 PIPE; GUARD,BED
MATTRESS SLEEPER CAB<E40> 		8-98014-968-0 01 1 0801-1112 ● ● ● ●
130 PIPE; GUARD,BED
MATTRESS SLEEPER CAB<E40> 		8-98014-968-0 01 1 1201- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
