◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11143 - FXR/GXR EXC.EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#57631) — 334 parça

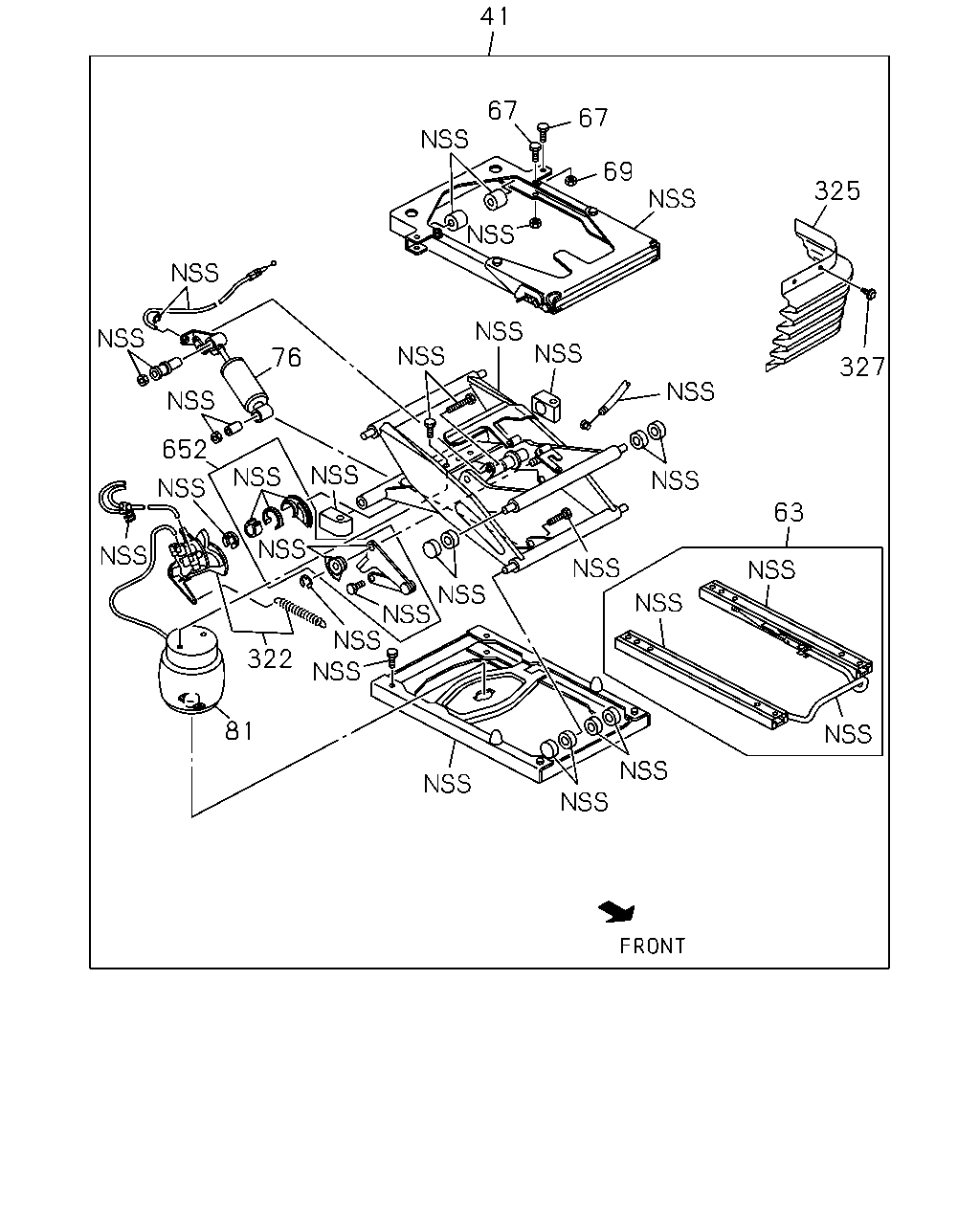

çizim 160904
81 322 76 652 67 67 69 41 325 327 63
BalonParca AdiParca NoAdetTipApplied Date A B C D
41 SEAT ASM; DRIVER 8-98046-984-2 01 1 0801-1212 ● ●
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98046-984-2 01 1 0801-1212 ●
41 SEAT ASM; DRIVER 8-98195-063-0 01 1 1301- ● ●
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98195-063-0 01 1 1301- ●
63 ADJUSTER; SEAT SLIDE 8-98098-005-0 01 1 0801- ● ●
63 ADJUSTER; SEAT SLIDE
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98098-005-0 01 1 0801- ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 0801- ● ● ● ●
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 0801- ● ● ● ●
76 DAMPER; AIR SUSP 8-98097-999-0 01 1 0801- ● ●
76 DAMPER; AIR SUSP
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98097-999-0 01 1 0801- ●
81 SPRING; AIR 8-98098-000-0 01 1 0801- ● ●
81 SPRING; AIR
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98098-000-0 01 1 0801- ●
322 VALVE; AIR SPRING 8-98098-001-0 01 1 0801- ● ●
322 VALVE; AIR SPRING
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98098-001-0 01 1 0801- ●
325 COVER; SUSPENSION DEVICE 8-98098-003-0 01 1 0801- ● ●
325 COVER; SUSPENSION DEVICE
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98098-003-0 01 1 0801- ●
327 CLIP; COVER 8-98098-004-0 01 1 0801- ● ●
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98098-004-0 01 1 0801- ●
652 LOCK ASM; HEIGHT 8-98098-002-0 01 1 0801- ● ●
652 LOCK ASM; HEIGHT
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98098-002-0 01 1 0801- ●

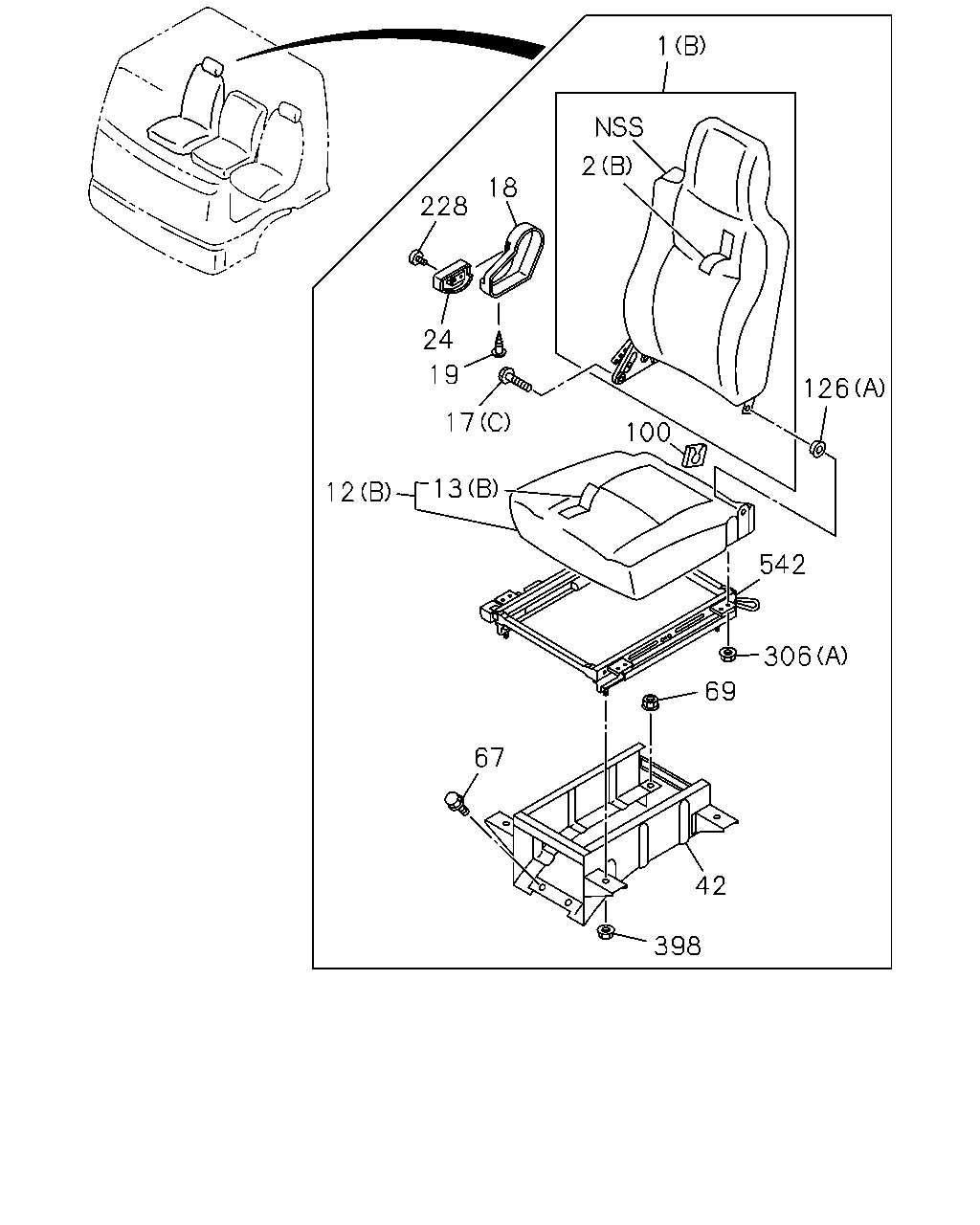

çizim 160909
1 2 18 228 24 17 19 12 100 13 126 542 69 306 42 398 67
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 BACK ASM; SEAT
(A) 		8-98097-964-0 01 1 0801- ● ●
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98097-964-0 01 1 0801- ●
1 BACK ASM; SEAT
(B) DARK GRAY 		8-97409-955-5 01 1 0801- ●
2 COVER; TRIM,FRT SEAT,BACK
(A) 		8-98097-966-0 01 1 0801-1212 ● ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98097-966-0 01 1 0801-1212 ●
2 COVER; TRIM,FRT SEAT,BACK
(A) 		8-98232-353-0 01 1 1301- ● ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98232-353-0 01 1 1301- ●
2 COVER; TRIM,FRT SEAT,BACK
(B) DARK GRAY 		8-97411-910-2 01 1 0801- ●
12 CUSHION; SEAT,FRT
(A) 		8-98098-006-0 01 1 0801- ● ●
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98098-006-0 01 1 0801- ●
12 CUSHION; SEAT,FRT
(B) DARK GRAY 		8-97409-954-2 01 1 0801- ●
13 COVER; TRIM,FRT SEAT,CUSHION
(A) 		8-98098-007-0 01 1 0801- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98098-007-0 01 1 0801- ●
13 COVER; TRIM,FRT SEAT,CUSHION
(B) DARK GRAY 		8-97411-909-1 01 1 0801- ●
17 BOLT; RECLINING
(B) 		8-98097-974-0 02 1 0801- ● ●
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT(SJA) (B) 		8-98097-974-0 02 1 0801- ●
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 02 1 0801-1203 ● ● ● ●
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 02 1 1204- ● ● ● ●
17 BOLT; RECLINING
(C) M10X20 		8-98062-661-0 02 1 0801- ●
18 COVER; RECLINING
GRAY 		8-97409-332-0 01 1 0801- ●
19 SCREW; COVER
M5 		8-98062-663-0 01 1 0801- ●
24 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-333-0 01 1 0801- ●
42 STAND; DRIVER SEAT 8-98106-346-0 01 1 0801- ● ●
42 STAND; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98106-346-0 01 1 0801- ●
42 STAND; DRIVER SEAT 1-75558-604-2 01 1 0801- ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 0801- ● ● ● ●
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 0801- ● ● ● ●
100 COVER; HINGE 8-98203-070-0 01 1 1110- ●
126 BUSHING; HINGE,RECLINING
CENTER SEAT(SA1) (B) 		8-97854-900-0 01 1 1105-1109 ●
126 BUSHING; HINGE,RECLINING
CENTER SEAT(SA1) (B) 		8-97854-900-0 01 1 0801-1104 ● ● ● ●
126 BUSHING; HINGE,RECLINING
CENTER SEAT(SA1) (B) 		8-97854-900-0 01 1 1105-1109 ● ● ●
126 BUSHING; HINGE,RECLINING
CENTER SEAT(SA1) (B) 		8-97854-900-0 01 1 1110- ● ● ● ●
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 0801- ●
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 0801- ●
306 NUT; SEAT ADJ
(A) M8 FLANGE 		1-75538-207-0 08 1 0801- ●
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 0801- ● ● ● ●
398 NUT; STAND
M8 FLANGE 		1-75538-207-0 04 1 0801- ●
542 ADJUSTER ASM; SEAT SLIDE 8-98093-310-0 01 1 0801-1502 ●
542 ADJUSTER ASM; SEAT SLIDE 8-98291-653-0 01 1 1503- ●

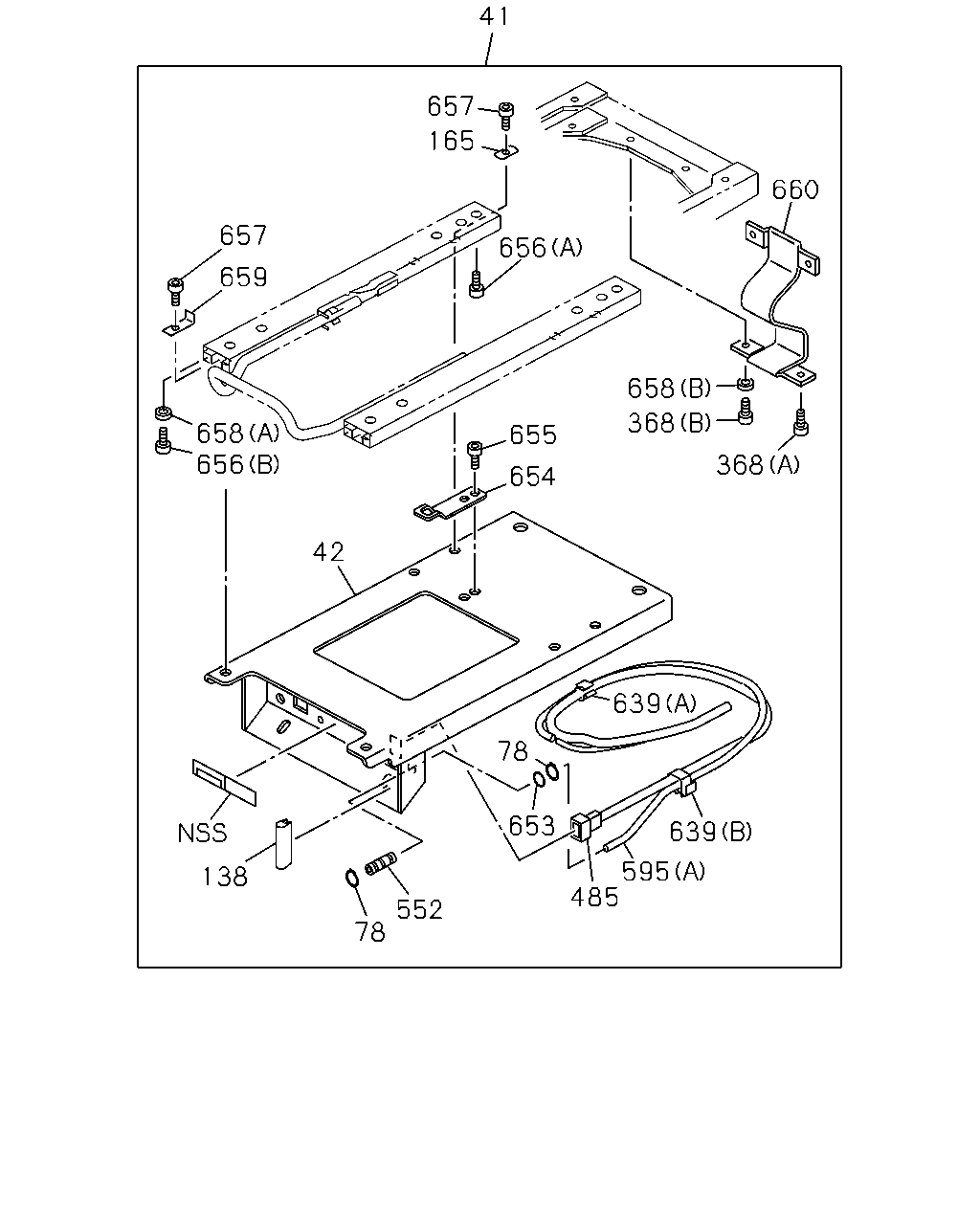

çizim 161101
660 368 658 656 165 657 41 659 657 656 658 42 654 655 368 639 78 639 595 485 653 552 78 138
BalonParca AdiParca NoAdetTipApplied Date A B C D
41 SEAT ASM; DRIVER 8-98046-984-2 01 1 0801-1212 ● ●
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98046-984-2 01 1 0801-1212 ●
41 SEAT ASM; DRIVER 8-98195-063-0 01 1 1301- ● ●
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98195-063-0 01 1 1301- ●
42 STAND; DRIVER SEAT 8-98106-346-0 01 1 0801- ● ●
42 STAND; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98106-346-0 01 1 0801- ●
42 STAND; DRIVER SEAT 1-75558-604-2 01 1 0801- ●
78 RING; SNAP 8-98101-900-0 02 1 0801- ● ●
78 RING; SNAP
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98101-900-0 02 1 0801- ●
138 PROTECTOR; SEAT STAND 8-98106-351-0 01 1 0801- ● ●
138 PROTECTOR; SEAT STAND
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98106-351-0 01 1 0801- ●
165 WASHER; PL 1-75590-086-0 04 1 0801- ● ●
165 WASHER; PL
DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75590-086-0 04 1 0801- ●
368 BOLT; SEAT
(A) 		8-98106-353-0 03 1 0801- ● ●
368 BOLT; SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98106-353-0 03 1 0801- ●
368 BOLT; SEAT
(B) 		8-98106-358-0 01 1 0801- ● ●
368 BOLT; SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (B) 		8-98106-358-0 01 1 0801- ●
485 HARNESS; FRT SEAT 8-98106-360-0 01 1 0801- ● ●
485 HARNESS; FRT SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98106-360-0 01 1 0801- ●
552 CONNECTOR 8-98101-902-0 01 1 0801- ● ●
552 CONNECTOR
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98101-902-0 01 1 0801- ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 0801- ● ●
595 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98106-348-0 01 1 0801- ●
595 TUBE; NYLON
(B) 		8-98067-762-0 01 1 0801- ● ●
595 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT(SJA) (B) 		8-98067-762-0 01 1 0801- ●
639 CLIP; SEAT
(A) 		8-98106-349-0 01 1 0801- ● ●
639 CLIP; SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98106-349-0 01 1 0801- ●
639 CLIP; SEAT
(B) 		8-98106-350-0 01 1 0801- ● ●
639 CLIP; SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (B) 		8-98106-350-0 01 1 0801- ●
653 GASKET 8-98101-901-0 01 1 0801- ● ●
653 GASKET
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98101-901-0 01 1 0801- ●
654 HOOK; STOPPER 8-98106-352-0 01 1 0801- ● ●
654 HOOK; STOPPER
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98106-352-0 01 1 0801- ●
655 BOLT; HOOK 8-98106-353-0 02 1 0801- ● ●
655 BOLT; HOOK
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98106-353-0 02 1 0801- ●
656 BOLT; SLIDER TO SEAT
(A) 		1-75590-085-0 04 1 0801- ● ●
656 BOLT; SLIDER TO SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		1-75590-085-0 04 1 0801- ●
656 BOLT; SLIDER TO SEAT
(B) 		8-98106-354-0 02 1 0801- ● ●
656 BOLT; SLIDER TO SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (B) 		8-98106-354-0 02 1 0801- ●
657 BOLT; SLIDER TO STAND 1-75590-085-0 06 1 0801- ● ●
657 BOLT; SLIDER TO STAND
DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75590-085-0 06 1 0801- ●
658 SPACER; BOLT
(A) 		8-98106-355-0 02 1 0801- ● ●
658 SPACER; BOLT
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98106-355-0 02 1 0801- ●
658 SPACER; BOLT
(B) 		8-98106-359-0 01 1 0801- ● ●
658 SPACER; BOLT
DRIVER ISRINGHAUSEN SEAT(SJA) (B) 		8-98106-359-0 01 1 0801- ●
659 STOPPER 8-98106-356-0 02 1 0801- ● ●
659 STOPPER
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98106-356-0 02 1 0801- ●
660 BELT; TETHER 8-98106-357-0 01 1 0801- ● ●
660 BELT; TETHER
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98106-357-0 01 1 0801- ●

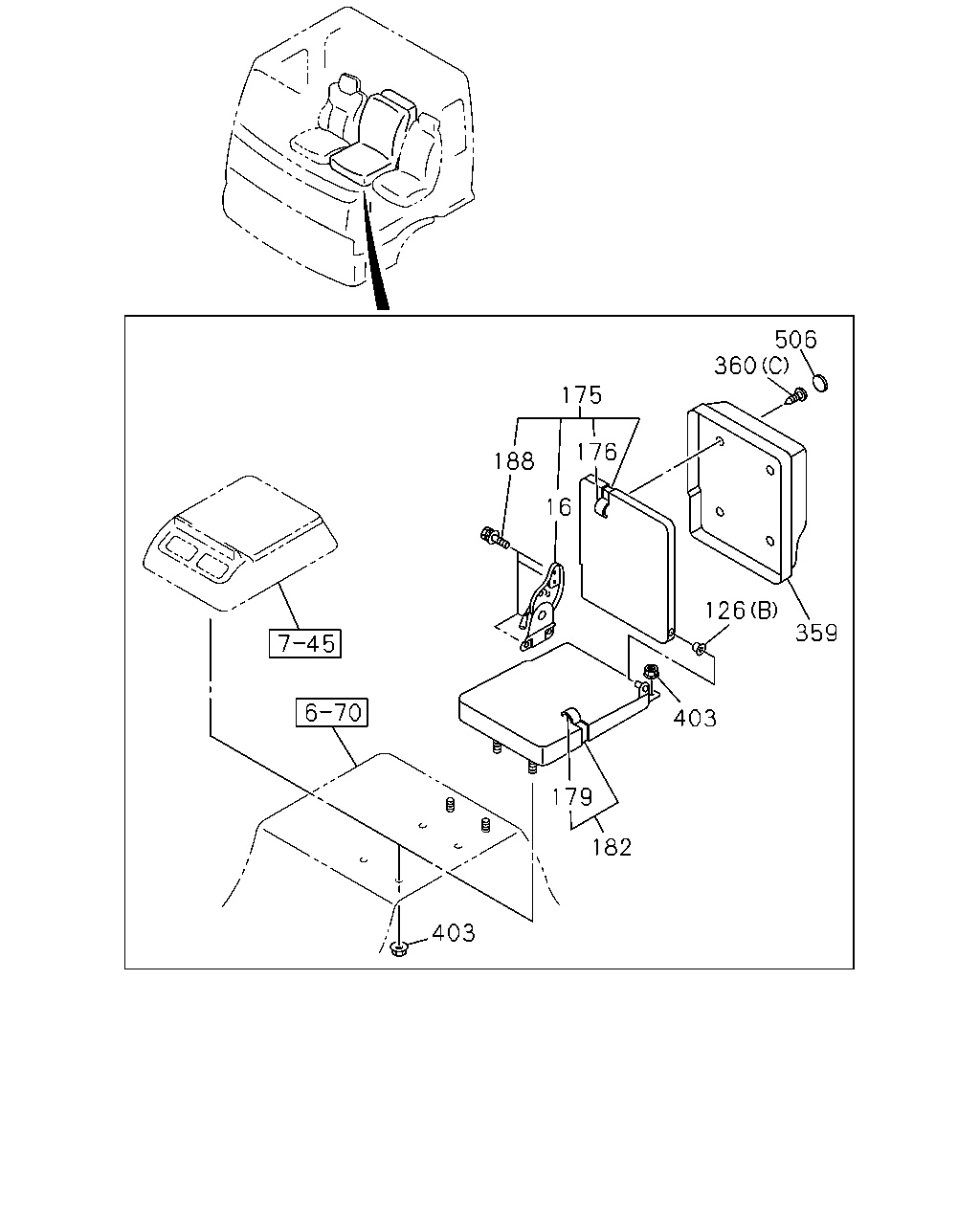

çizim 161103
175 176 188 16 360 506 359 126 403 179 182 403
BalonParca AdiParca NoAdetTipApplied Date A B C D
16 ADJUSTER ASM; RECLINING
CENTER SEAT(SA1) 		1-75418-062-1 01 1 1105-1109 ●
16 ADJUSTER ASM; RECLINING
CENTER SEAT(SA1) 		1-75418-062-1 01 1 0801-1104 ● ● ● ●
16 ADJUSTER ASM; RECLINING
CENTER SEAT(SA1) 		1-75418-062-1 01 1 1105-1109 ● ● ●
16 ADJUSTER ASM; RECLINING
CENTER SEAT(SA1) 		1-75418-062-1 01 1 1110- ● ● ● ●
126 BUSHING; HINGE,RECLINING
CENTER SEAT(SA1) (B) 		8-97854-900-0 01 1 1105-1109 ●
126 BUSHING; HINGE,RECLINING
CENTER SEAT(SA1) (B) 		8-97854-900-0 01 1 0801-1104 ● ● ● ●
126 BUSHING; HINGE,RECLINING
CENTER SEAT(SA1) (B) 		8-97854-900-0 01 1 1105-1109 ● ● ●
126 BUSHING; HINGE,RECLINING
CENTER SEAT(SA1) (B) 		8-97854-900-0 01 1 1110- ● ● ● ●
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 0801- ●
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT(SA1) DARK GRAY 		8-97409-984-0 01 1 0801-0902 ● ● ●
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT(SA1) DARK GRAY 		8-97416-233-0 01 1 0903-1009 ● ● ●
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT(SA1) DARK GRAY 		8-97421-434-1 01 1 1010- ● ● ●
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT(SA1) DARK GRAY 		8-97409-975-1 01 1 0801- ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT(SA1) DARK GRAY 		8-97409-985-0 01 1 0801-0902 ● ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT(SA1) DARK GRAY 		8-97416-234-0 01 1 0903-1009 ● ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT(SA1) DARK GRAY 		8-97421-435-1 01 1 1010- ● ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT(SA1) DARK GRAY 		8-97409-976-1 01 1 0801- ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT(SA1) DARK GRAY 		8-97409-974-1 01 1 1007- ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT(SA1) DARK GRAY 		8-97409-983-0 01 1 0801-0902 ● ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT(SA1) DARK GRAY 		8-97416-237-0 01 1 0903-1009 ● ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT(SA1) DARK GRAY 		8-97421-432-1 01 1 1010- ● ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT(SA1) DARK GRAY 		8-97409-974-0 01 1 0801-0909 ●
182 CUSHION ASM; CENTER SEAT
CENTER SEAT(SA1) DARK GRAY 		8-97409-982-0 01 1 0801-0902 ● ● ●
182 CUSHION ASM; CENTER SEAT
CENTER SEAT(SA1) DARK GRAY 		8-97416-235-0 01 1 0903-1009 ● ● ●
182 CUSHION ASM; CENTER SEAT
CENTER SEAT(SA1) DARK GRAY 		8-97421-430-3 01 1 1010- ● ● ●
182 CUSHION ASM; CENTER SEAT
CENTER SEAT(SA1) DARK GRAY 		8-97409-973-3 01 1 0801- ●
188 BOLT; BACK TO CUSHION
CENTER SEAT(SA1) M10X16 FLANGE 		1-75198-053-0 04 1 1105-1109 ●
188 BOLT; BACK TO CUSHION
CENTER SEAT(SA1) M10X16 FLANGE 		1-75198-053-0 04 1 0801-1104 ● ● ● ●
188 BOLT; BACK TO CUSHION
CENTER SEAT(SA1) M10X16 FLANGE 		1-75198-053-0 04 1 1105-1109 ● ● ●
188 BOLT; BACK TO CUSHION
CENTER SEAT(SA1) M10X16 FLANGE 		1-75198-053-0 04 1 1110- ● ● ● ●
359 BOX; PARCEL
CENTER SEAT(SA1) GRAY 		8-97409-977-2 01 1 0801-1006 ● ● ● ●
359 BOX; PARCEL
CENTER SEAT(SA1) GRAY 		8-97417-261-0 01 1 1007- ● ● ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 1105-1109 ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1105-1109 ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0801-1009 ● ● ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1010-1104 ● ● ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1105-1109 ● ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1110- ● ● ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 0801-1104 ● ● ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 1105-1109 ● ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 1110- ● ● ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0801-1110 ● ● ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (C) M5 		8-98062-663-0 04 1 1111- ● ● ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (D) M5X20 		9-09829-324-1 02 1 0801-1009 ● ● ● ●
403 NUT; CENTER SEAT
CENTER SEAT(SA1) M8 FLANGE 		0-91180-108-0 04 1 0801- ● ● ● ●
506 CAP; PARCEL BOX
CENTER SEAT(SA1) GRAY 		8-97409-980-1 04 1 0801-1006 ● ● ● ●
506 CAP; PARCEL BOX
CENTER SEAT(SA1) GRAY 		8-97409-980-1 02 1 1007- ● ● ● ●

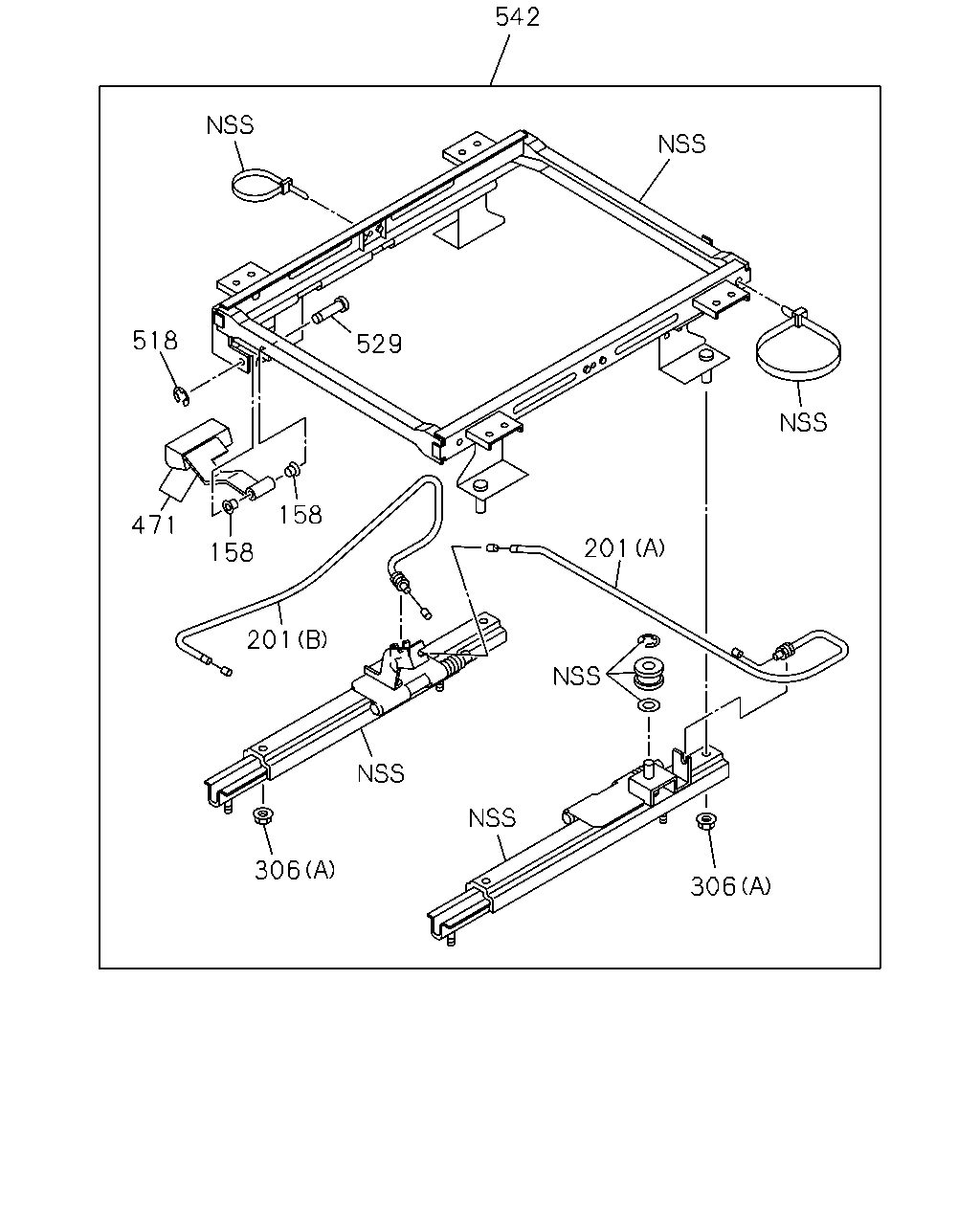

çizim 161117
542 518 529 471 158 158 201 201 306 306
BalonParca AdiParca NoAdetTipApplied Date A B C D
158 BUSHING; LINK ARM 1-75518-209-0 02 1 0801- ●
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 0801- ●
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 0801- ●
306 NUT; SEAT ADJ
(A) M8 FLANGE 		1-75538-207-0 08 1 0801- ●
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 0801- ● ● ● ●
471 LEVER; SEAT ADJ 8-98107-869-0 01 1 0801- ●
518 NUT; TILT ADJ 1-75518-263-0 01 1 0801- ●
529 PIN; LINK 1-75518-262-0 01 1 0801- ●
542 ADJUSTER ASM; SEAT SLIDE 8-98093-310-0 01 1 0801-1502 ●
542 ADJUSTER ASM; SEAT SLIDE 8-98291-653-0 01 1 1503- ●

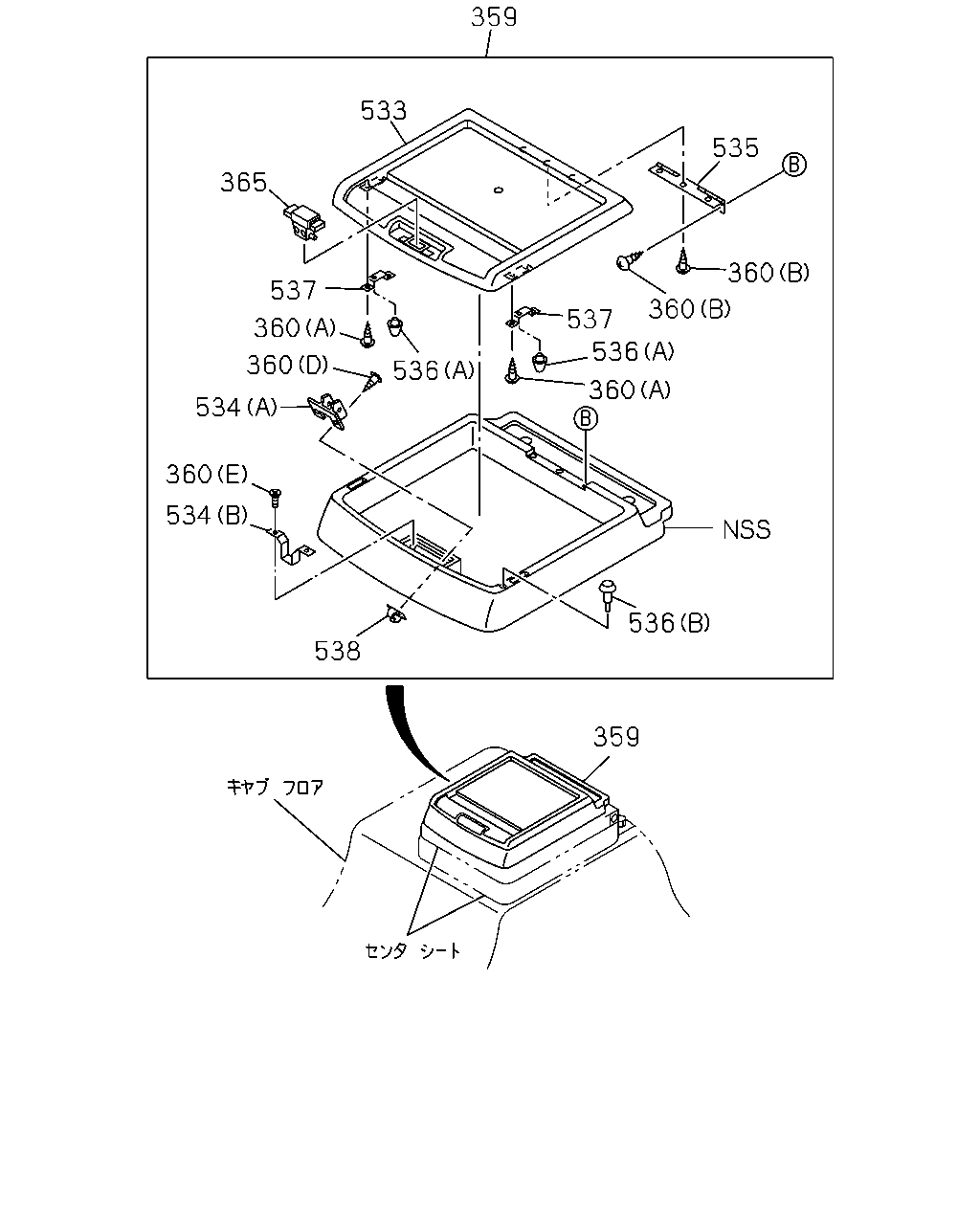

çizim 161122
359 533 365 537 360 360 534 360 534 538 536 359 536 360 536 537 360 360 535
BalonParca AdiParca NoAdetTipApplied Date A B C D
359 BOX; PARCEL
CENTER SEAT(SA1) GRAY 		8-97409-977-2 01 1 0801-1006 ● ● ● ●
359 BOX; PARCEL
CENTER SEAT(SA1) GRAY 		8-97417-261-0 01 1 1007- ● ● ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 1105-1109 ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1105-1109 ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0801-1009 ● ● ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1010-1104 ● ● ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1105-1109 ● ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1110- ● ● ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 0801-1104 ● ● ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 1105-1109 ● ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 1110- ● ● ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0801-1110 ● ● ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (C) M5 		8-98062-663-0 04 1 1111- ● ● ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (D) M5X20 		9-09829-324-1 02 1 0801-1009 ● ● ● ●
365 LOCK ASM; SEAT 8-98097-972-0 01 1 0801- ● ●
365 LOCK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98097-972-0 01 1 0801- ●
365 LOCK ASM; SEAT
CENTER SEAT(SA1) 		1-72538-312-0 01 1 1105-1109 ●
365 LOCK ASM; SEAT
CENTER SEAT(SA1) 		1-72538-312-0 01 1 0801-1104 ● ● ● ●
365 LOCK ASM; SEAT
CENTER SEAT(SA1) 		1-72538-312-0 01 1 1105-1109 ● ● ●
365 LOCK ASM; SEAT
CENTER SEAT(SA1) 		1-72538-312-0 01 1 1110- ● ● ● ●
533 LID; PARCEL BOX
CENTER SEAT(SA1) GRAY 		8-97409-979-1 01 1 0801-1006 ● ● ● ●
533 LID; PARCEL BOX
CENTER SEAT(SA1) GRAY 		8-97417-263-0 01 1 1007- ● ● ● ●
534 STRIKER; PARCEL BOX
CENTER SEAT(SA1) (B) 		1-72538-190-0 01 1 1105-1109 ●
534 STRIKER; PARCEL BOX
CENTER SEAT(SA1) (A) 		1-72538-181-0 01 1 0801-1009 ● ● ● ●
534 STRIKER; PARCEL BOX
CENTER SEAT(SA1) (B) 		1-72538-190-0 01 1 1010-1104 ● ● ● ●
534 STRIKER; PARCEL BOX
CENTER SEAT(SA1) (B) 		1-72538-190-0 01 1 1105-1109 ● ● ●
534 STRIKER; PARCEL BOX
CENTER SEAT(SA1) (B) 		1-72538-190-0 01 1 1110- ● ● ● ●
535 HINGE; PARCEL BOX
CENTER SEAT(SA1) 		1-72447-391-1 01 1 1105-1109 ●
535 HINGE; PARCEL BOX
CENTER SEAT(SA1) 		1-72447-391-1 01 1 0801-1104 ● ● ● ●
535 HINGE; PARCEL BOX
CENTER SEAT(SA1) 		1-72447-391-1 01 1 1105-1109 ● ● ●
535 HINGE; PARCEL BOX
CENTER SEAT(SA1) 		1-72447-391-1 01 1 1110- ● ● ● ●
536 RUBBER; CUSHION
CENTER SEAT(SA1) (B) 		1-72538-187-0 02 1 1105-1109 ●
536 RUBBER; CUSHION
CENTER SEAT(SA1) (A) 		5-09983-002-1 02 1 0801-1009 ● ● ● ●
536 RUBBER; CUSHION
CENTER SEAT(SA1) (B) 		1-72538-187-0 02 1 1010-1104 ● ● ● ●
536 RUBBER; CUSHION
CENTER SEAT(SA1) (B) 		1-72538-187-0 02 1 1105-1109 ● ● ●
536 RUBBER; CUSHION
CENTER SEAT(SA1) (B) 		1-72538-187-0 02 1 1110- ● ● ● ●
537 BRACKET; RUBBER
CENTER SEAT(SA1) 		1-72548-057-1 02 1 0801-1009 ● ● ● ●
538 GROMMET; SCREW
CENTER SEAT(SA1) 		1-09983-165-0 02 1 0801-1009 ● ● ● ●

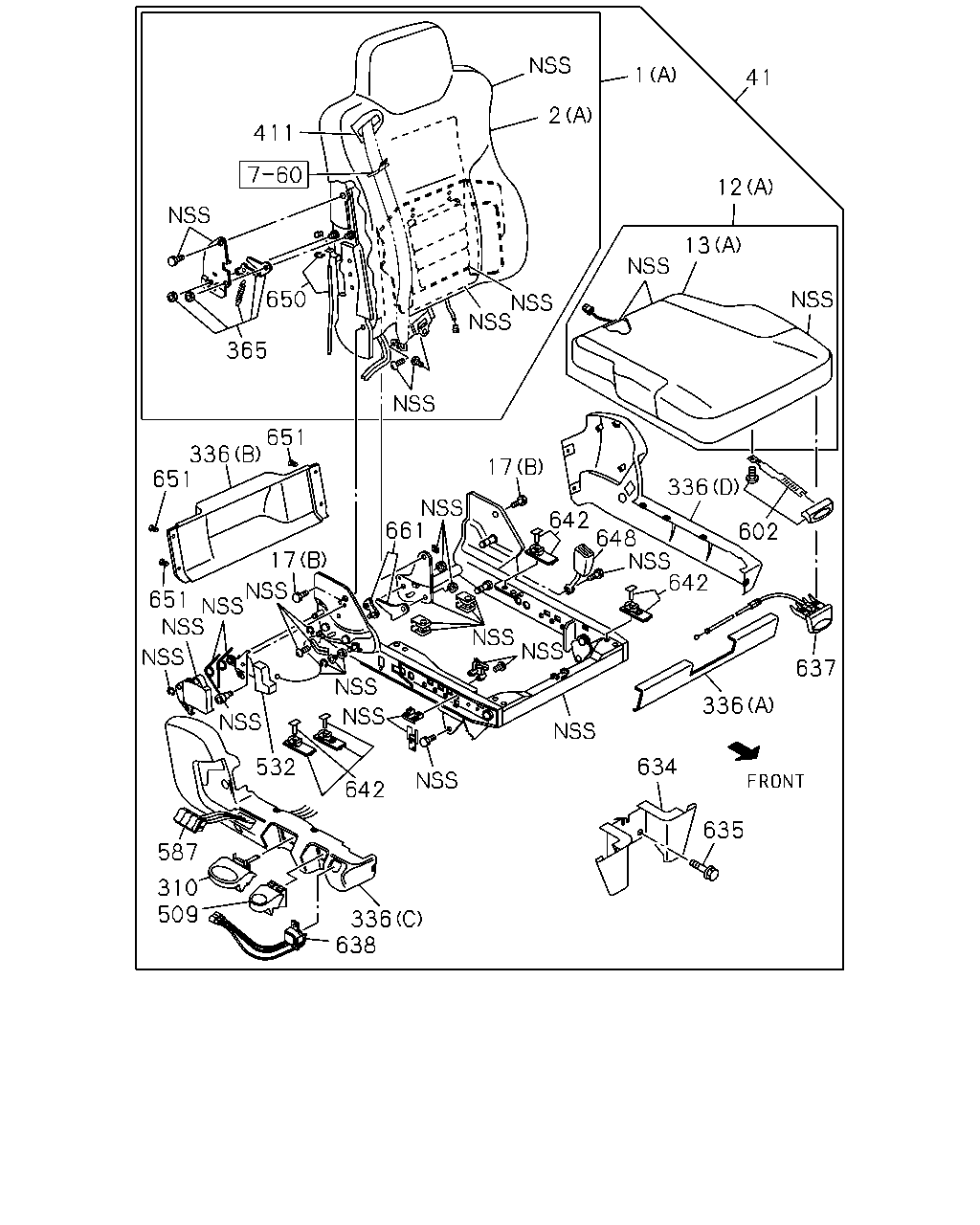

çizim 161123
41 1 12 13 2 336 602 642 637 336 634 635 642 648 17 411 650 365 651 336 651 17 661 651 532 642 336 587 310 638 509
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 BACK ASM; SEAT
(A) 		8-98097-964-0 01 1 0801- ● ●
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98097-964-0 01 1 0801- ●
1 BACK ASM; SEAT
(B) DARK GRAY 		8-97409-955-5 01 1 0801- ●
2 COVER; TRIM,FRT SEAT,BACK
(A) 		8-98097-966-0 01 1 0801-1212 ● ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98097-966-0 01 1 0801-1212 ●
2 COVER; TRIM,FRT SEAT,BACK
(A) 		8-98232-353-0 01 1 1301- ● ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98232-353-0 01 1 1301- ●
2 COVER; TRIM,FRT SEAT,BACK
(B) DARK GRAY 		8-97411-910-2 01 1 0801- ●
12 CUSHION; SEAT,FRT
(A) 		8-98098-006-0 01 1 0801- ● ●
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98098-006-0 01 1 0801- ●
12 CUSHION; SEAT,FRT
(B) DARK GRAY 		8-97409-954-2 01 1 0801- ●
13 COVER; TRIM,FRT SEAT,CUSHION
(A) 		8-98098-007-0 01 1 0801- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98098-007-0 01 1 0801- ●
13 COVER; TRIM,FRT SEAT,CUSHION
(B) DARK GRAY 		8-97411-909-1 01 1 0801- ●
17 BOLT; RECLINING
(B) 		8-98097-974-0 02 1 0801- ● ●
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT(SJA) (B) 		8-98097-974-0 02 1 0801- ●
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 02 1 0801-1203 ● ● ● ●
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 02 1 1204- ● ● ● ●
17 BOLT; RECLINING
(C) M10X20 		8-98062-661-0 02 1 0801- ●
41 SEAT ASM; DRIVER 8-98046-984-2 01 1 0801-1212 ● ●
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98046-984-2 01 1 0801-1212 ●
41 SEAT ASM; DRIVER 8-98195-063-0 01 1 1301- ● ●
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98195-063-0 01 1 1301- ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT 8-98097-992-0 01 1 0801- ● ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98097-992-0 01 1 0801- ●
336 COVER; DRIVER SEAT
(D) 		8-98097-978-0 01 1 0801- ● ●
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (D) 		8-98097-978-0 01 1 0801- ●
336 COVER; DRIVER SEAT
(C) 		8-98097-984-0 01 1 0801- ● ●
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (C) 		8-98097-984-0 01 1 0801- ●
336 COVER; DRIVER SEAT
(A) 		8-98097-995-0 01 1 0801- ● ●
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98097-995-0 01 1 0801- ●
336 COVER; DRIVER SEAT
(B) 		8-98097-996-0 01 1 0801- ● ●
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (B) 		8-98097-996-0 01 1 0801- ●
365 LOCK ASM; SEAT 8-98097-972-0 01 1 0801- ● ●
365 LOCK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98097-972-0 01 1 0801- ●
365 LOCK ASM; SEAT
CENTER SEAT(SA1) 		1-72538-312-0 01 1 1105-1109 ●
365 LOCK ASM; SEAT
CENTER SEAT(SA1) 		1-72538-312-0 01 1 0801-1104 ● ● ● ●
365 LOCK ASM; SEAT
CENTER SEAT(SA1) 		1-72538-312-0 01 1 1105-1109 ● ● ●
365 LOCK ASM; SEAT
CENTER SEAT(SA1) 		1-72538-312-0 01 1 1110- ● ● ● ●
411 GUIDE; SEAT BELT 8-98097-967-0 01 1 0801- ● ●
411 GUIDE; SEAT BELT
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98097-967-0 01 1 0801- ●
509 LEVER; DAMPER 8-98097-988-0 01 1 0801- ● ●
509 LEVER; DAMPER
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98097-988-0 01 1 0801- ●
532 LEVER ASM; TILT 8-98097-982-0 01 1 0801- ● ●
532 LEVER ASM; TILT
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98097-982-0 01 1 0801- ●
587 VALVE; LUMBAR SUPPORT 8-98097-986-0 01 1 0801- ● ●
587 VALVE; LUMBAR SUPPORT
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98097-986-0 01 1 0801- ●
602 KNOB; ADJ,SEAT 8-98098-008-0 01 1 0801- ● ●
602 KNOB; ADJ,SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98098-008-0 01 1 0801- ●
634 COVER; CONNECTOR,SEAT 8-98088-279-0 01 1 0801- ● ●
634 COVER; CONNECTOR,SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98088-279-0 01 1 0801- ●
635 BOLT; COVER
M6X16 		0-52000-616-0 02 1 0801- ● ●
635 BOLT; COVER
DRIVER ISRINGHAUSEN SEAT(SJA) M6X16 		0-52000-616-0 02 1 0801- ●
637 LEVER; SLOPE ADJ 8-98097-989-0 01 1 0801- ● ●
637 LEVER; SLOPE ADJ
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98097-989-0 01 1 0801- ●
638 VALVE; LOWERING 8-98097-994-0 01 1 0801- ● ●
638 VALVE; LOWERING
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98097-994-0 01 1 0801- ●
642 SLIDER; CUSHION 8-98192-932-0 04 1 0801- ● ●
642 SLIDER; CUSHION
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98192-932-0 04 1 0801- ●
648 BUCKLE; SEAT BELT 8-98097-976-0 01 1 0801- ● ●
648 BUCKLE; SEAT BELT
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98097-976-0 01 1 0801- ●
650 CABLE 8-98097-973-0 01 1 0801-1212 ● ●
650 CABLE
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98097-973-0 01 1 0801-1212 ●
650 CABLE 8-98232-354-0 01 1 1301- ● ●
650 CABLE
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98232-354-0 01 1 1301- ●
651 RIVET 8-98194-075-0 04 1 0801- ● ●
651 RIVET
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98194-075-0 04 1 0801- ●
661 LOCK ASM; RECLINING 8-98097-980-0 01 1 0801- ● ●
661 LOCK ASM; RECLINING
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98097-980-0 01 1 0801- ●

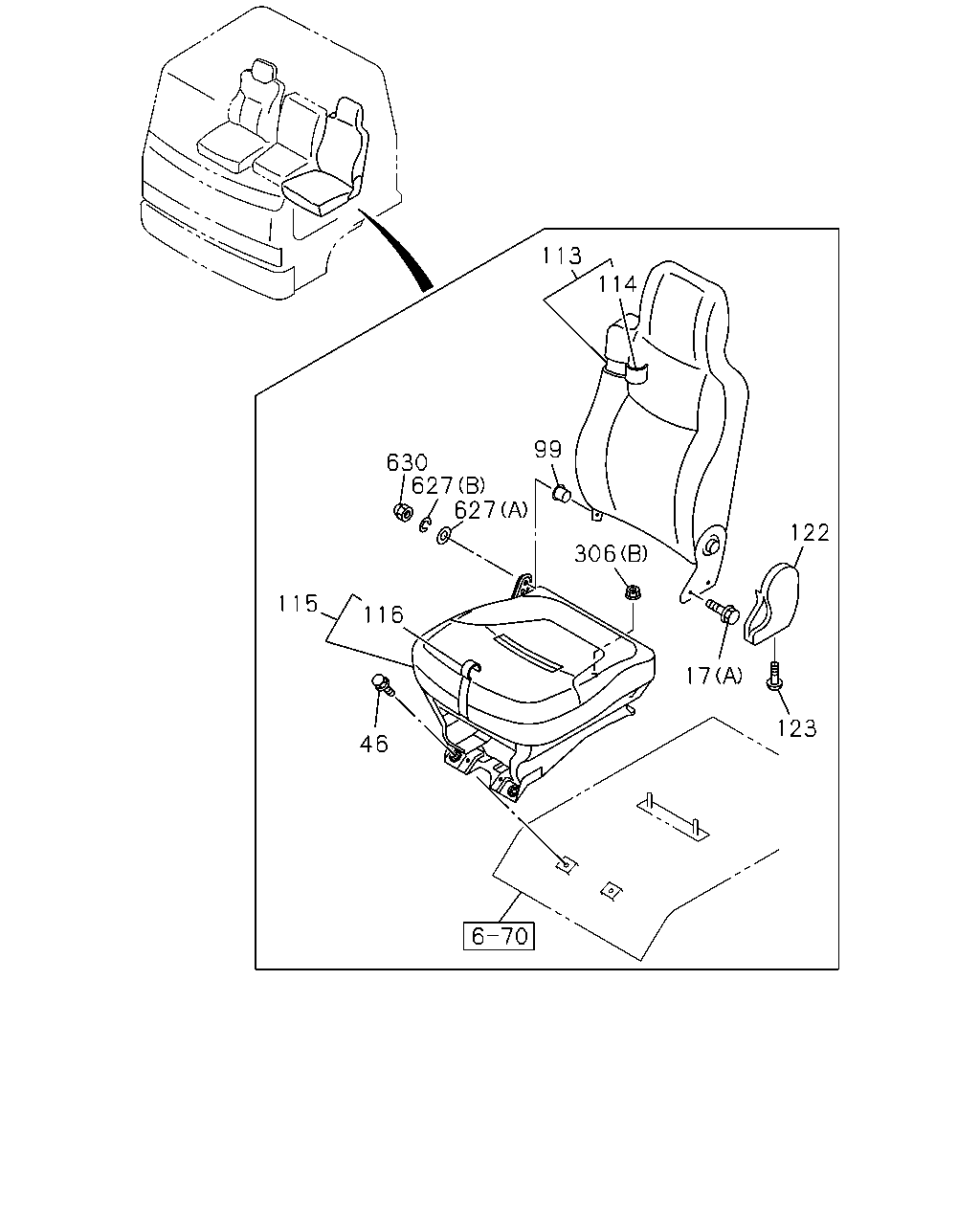

çizim 161126
113 114 122 17 123 306 99 627 627 630 116 115 46
BalonParca AdiParca NoAdetTipApplied Date A B C D
17 BOLT; RECLINING
(B) 		8-98097-974-0 02 1 0801- ● ●
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT(SJA) (B) 		8-98097-974-0 02 1 0801- ●
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 02 1 0801-1203 ● ● ● ●
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 02 1 1204- ● ● ● ●
17 BOLT; RECLINING
(C) M10X20 		8-98062-661-0 02 1 0801- ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0801- ● ● ● ●
99 BUSHING; SEAT BACK 8-98063-219-0 01 1 0801-1009 ● ● ● ●
99 BUSHING; SEAT BACK 8-98112-751-0 01 1 1010- ● ● ● ●
113 BACK ASM; SEAT
DARK GRAY 		8-97409-969-0 01 1 0801-0902 ● ● ●
113 BACK ASM; SEAT
DARK GRAY 		8-97416-221-0 01 1 0903-1009 ● ● ●
113 BACK ASM; SEAT
DARK GRAY 		8-97421-422-0 01 1 1010- ● ● ●
113 BACK ASM; SEAT
DARK GRAY 		8-97409-966-1 01 1 0801- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97411-914-0 01 1 0801-0902 ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97416-223-0 01 1 0903-1009 ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97421-424-0 01 1 1010- ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97411-916-0 01 1 0801- ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97409-968-0 01 1 0801-0902 ● ● ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97416-225-0 01 1 0903-1009 ● ● ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97421-418-1 01 1 1010- ● ● ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97409-965-1 01 1 0801- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97411-913-0 01 1 0801-0902 ● ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97416-227-0 01 1 0903-1009 ● ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97421-420-0 01 1 1010- ● ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97411-915-0 01 1 0801- ●
122 COVER; ADJ,RECLINING
GRAY 		8-97409-967-0 01 1 0801-0902 ● ● ●
122 COVER; ADJ,RECLINING
GRAY 		8-97409-967-0 01 1 0903- ● ● ● ●
122 COVER; ADJ,RECLINING
GRAY 		8-97409-967-0 01 1 0801-0902 ●
123 SCREW; COVER,RECLINING 8-98070-026-0 01 1 0801- ● ● ● ●
306 NUT; SEAT ADJ
(A) M8 FLANGE 		1-75538-207-0 08 1 0801- ●
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 0801- ● ● ● ●
627 WASHER; FRT SEAT
(C) 		8-98099-007-0 02 1 0801-1003 ● ●
627 WASHER; FRT SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (C) 		8-98099-007-0 02 1 0801-1003 ●
627 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 0801- ● ● ● ●
627 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 0801- ● ● ● ●
630 NUT; CAP
M8 		8-98063-225-0 01 1 0801- ● ● ● ●

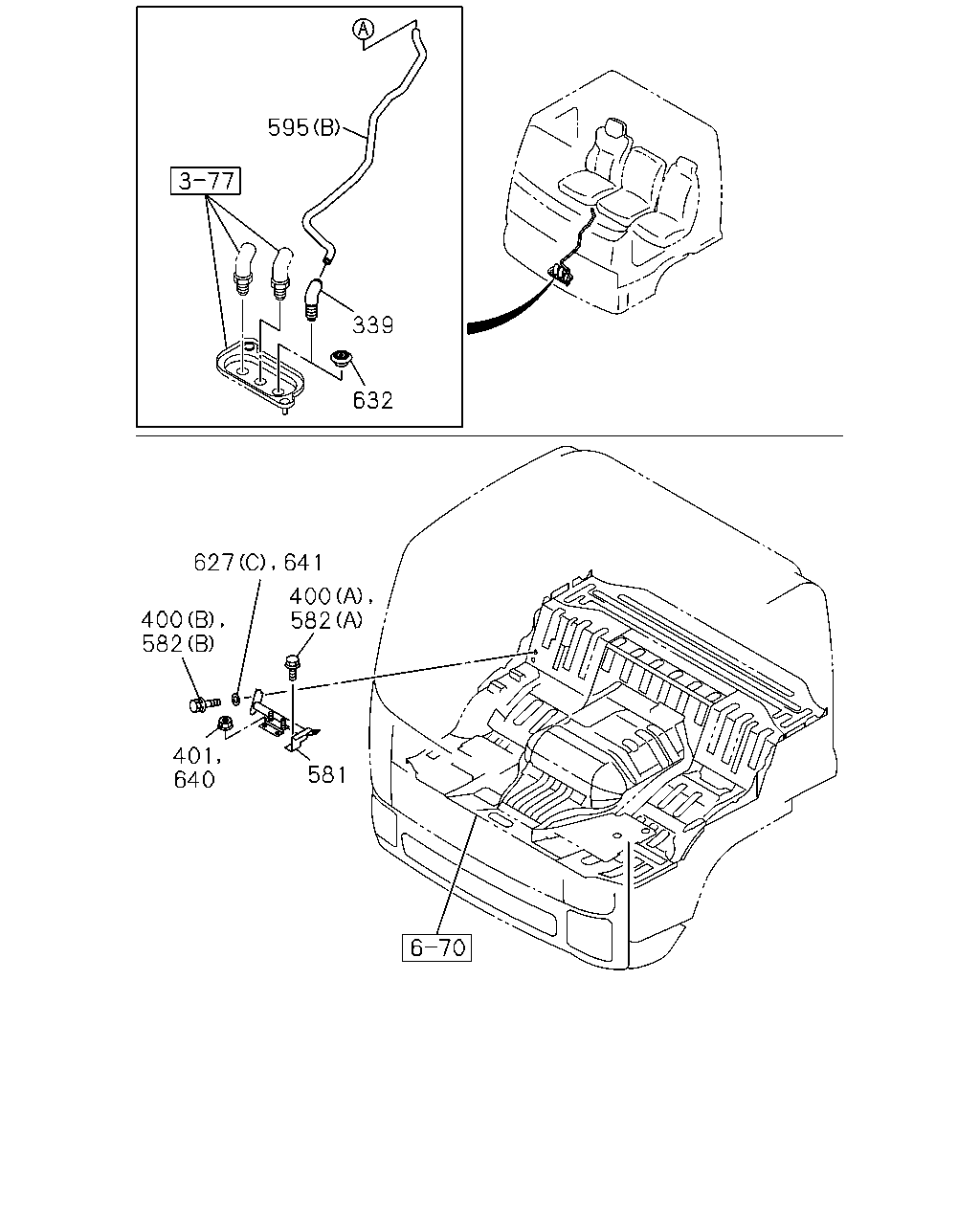

çizim 320084
595 339 632 627 641 582 400 400 582 401 640 581
BalonParca AdiParca NoAdetTipApplied Date A B C D
339 UNION; DRIVER SEAT 8-98014-971-0 01 1 0801- ● ●
339 UNION; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98014-971-0 01 1 0801- ●
400 BOLT; SUPPORT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1004- ● ●
400 BOLT; SUPPORT
DRIVER ISRINGHAUSEN SEAT(SJA) (A) M8X20 FLANGE 		0-28650-820-0 01 1 1004- ●
400 BOLT; SUPPORT
(B) 		8-98098-996-0 02 1 1004- ● ●
400 BOLT; SUPPORT
DRIVER ISRINGHAUSEN SEAT(SJA) (B) 		8-98098-996-0 02 1 1004- ●
401 NUT; SUPPORT
M10 FLANGE 		0-91180-110-0 02 1 1004- ● ●
401 NUT; SUPPORT
DRIVER ISRINGHAUSEN SEAT(SJA) M10 FLANGE 		0-91180-110-0 02 1 1004- ●
581 PIPE; SEAT 8-97589-692-3 01 1 0801- ● ●
581 PIPE; SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-97589-692-3 01 1 0801- ●
582 BOLT; PIPE,SEAT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0801-1003 ● ●
582 BOLT; PIPE,SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0801-1003 ●
582 BOLT; PIPE,SEAT
(B) 		8-98098-996-0 02 1 0801-1003 ● ●
582 BOLT; PIPE,SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (B) 		8-98098-996-0 02 1 0801-1003 ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 0801- ● ●
595 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98106-348-0 01 1 0801- ●
595 TUBE; NYLON
(B) 		8-98067-762-0 01 1 0801- ● ●
595 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT(SJA) (B) 		8-98067-762-0 01 1 0801- ●
627 WASHER; FRT SEAT
(C) 		8-98099-007-0 02 1 0801-1003 ● ●
627 WASHER; FRT SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (C) 		8-98099-007-0 02 1 0801-1003 ●
627 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 0801- ● ● ● ●
627 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 0801- ● ● ● ●
632 GROMMET
OD=24 		8-94119-796-0 01 1 0801- ●
640 NUT
M10 FLANGE 		0-91180-110-0 02 1 0801-1003 ● ●
640 NUT
DRIVER ISRINGHAUSEN SEAT(SJA) M10 FLANGE 		0-91180-110-0 02 1 0801-1003 ●
641 WASHER; SUPPORT 8-98099-007-0 02 1 1004- ● ●
641 WASHER; SUPPORT
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98099-007-0 02 1 1004- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
