7-40 — INSTRUMENT PANEL AND BOX (#57627) — 163 parça

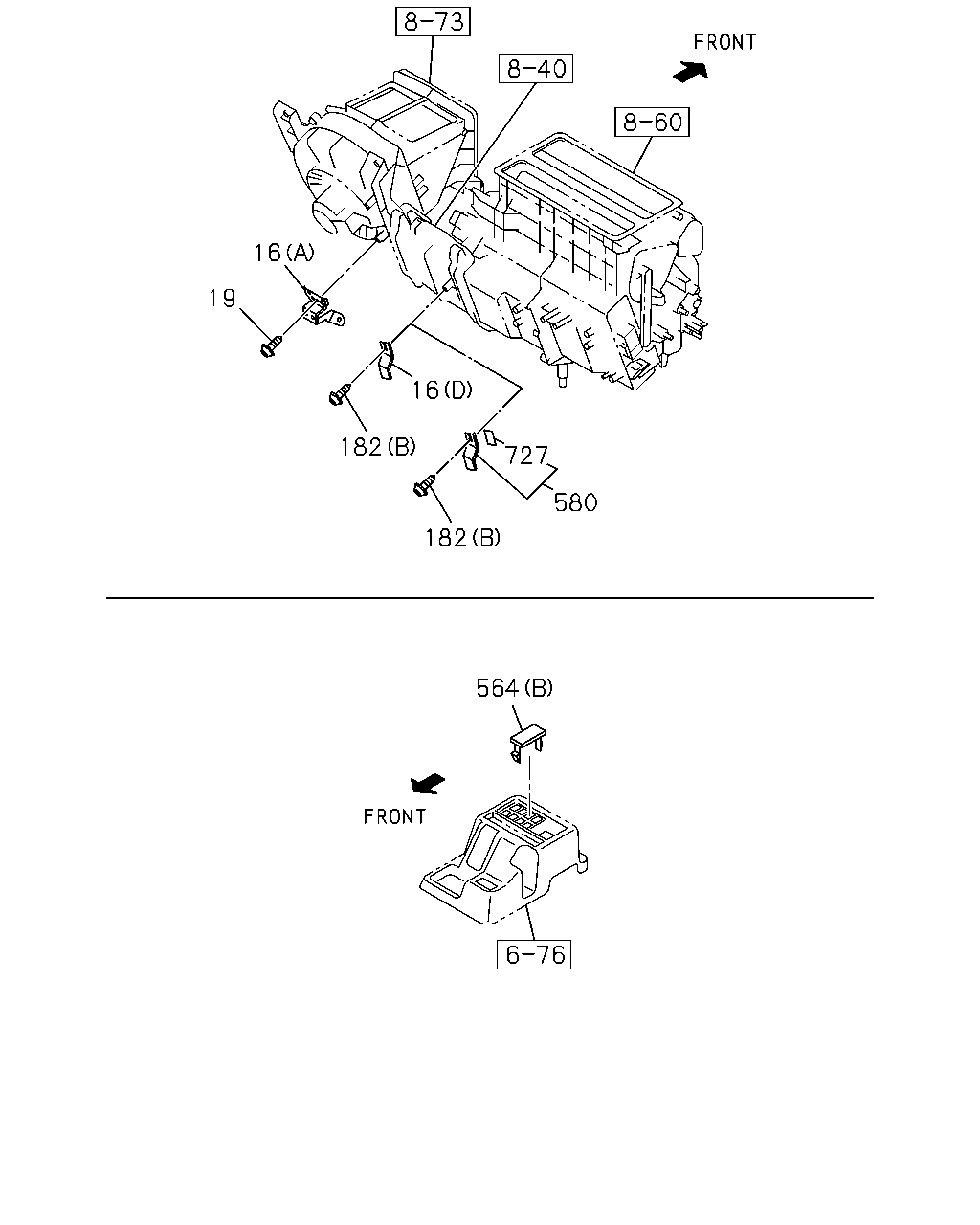

çizim 160905
16 19 16 182 727 580 182 564
BalonParca AdiParca NoAdetTipApplied Date A B C D
16 BRACKET; INST PNL
(A) 		8-97585-612-2 01 1 0801- ● ● ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0801- ● ● ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0801- ● ● ● ●
16 BRACKET; INST PNL
(D) 		8-98017-528-0 01 1 0801-1105 ● ● ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0801- ● ● ● ●
19 SCREW; BRKT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801- ● ● ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 0801- ● ● ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 0801-1111 ● ● ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112- ● ● ● ●
182 BOLT; BRKT,INST PANEL
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801- ● ● ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0801- ● ● ● ●
564 COVER; SW
(B) 		8-97043-732-1 02 1 0801- ●
564 COVER; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> AUSTRALIA EQUIPMENT(RR3) (B) 		8-97043-732-1 02 1 0801- ●
564 COVER; SW
AUSTRALIA EQUIPMENT(RR3) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) 		1-82359-069-2 06 1 0801- ●
564 COVER; SW
EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		8-97043-732-1 06 1 0801- ●
564 COVER; SW
(B) 		8-97043-732-1 01 1 0801- ●
564 COVER; SW
(B) 		8-97043-732-1 04 1 0801- ●
580 BRACKET; COVER 8-98017-528-1 01 1 1106- ● ● ● ●
707 SHAFT; TRAY INST LID 8-98035-730-1 02 1 0801-1311 ● ● ● ●
707 SHAFT; TRAY INST LID 8-97926-393-0 02 1 1312- ● ● ● ●
727 SEAL; BRACKET 8-98186-934-0 01 1 1106- ● ● ● ●

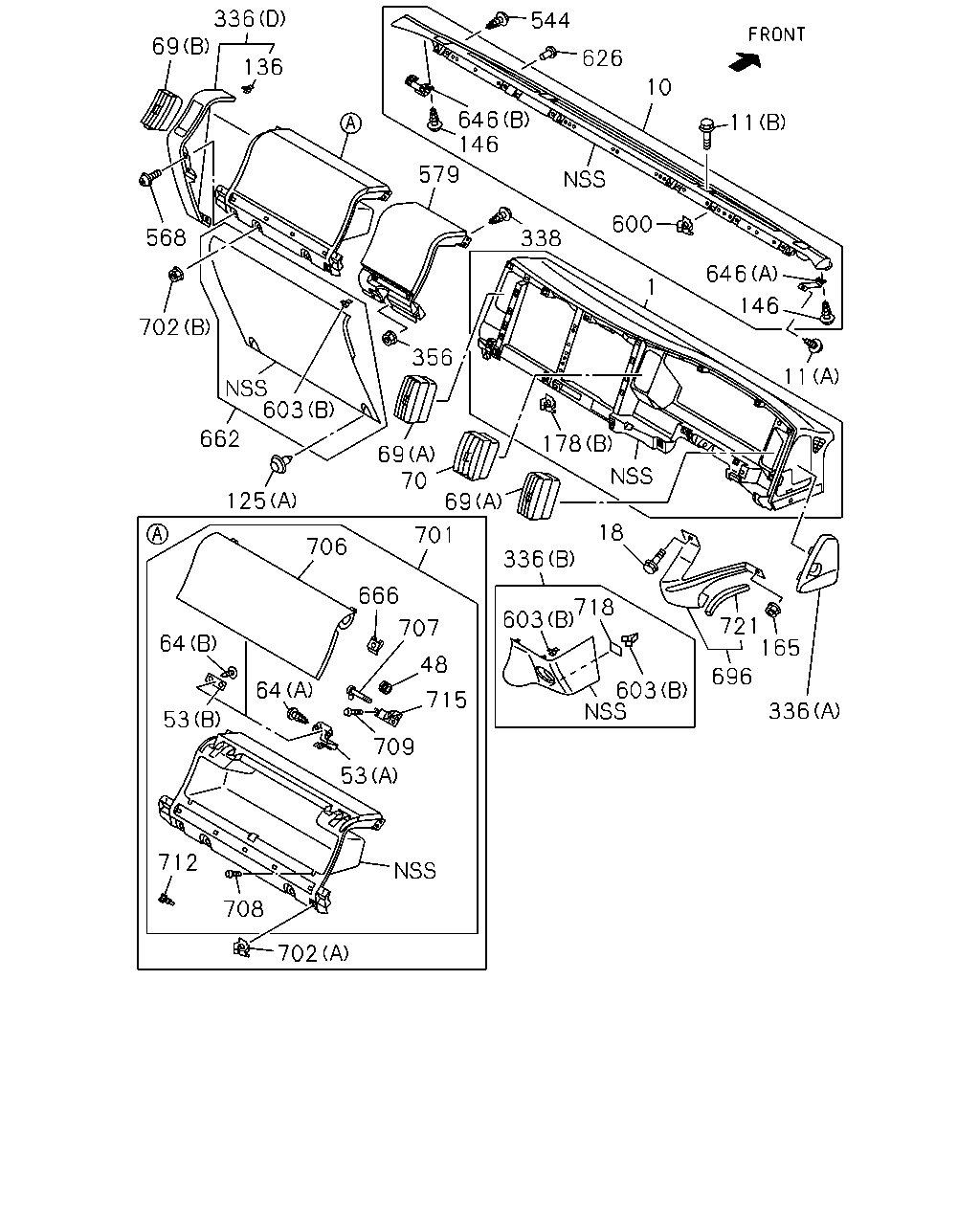

çizim 160971
336 136 69 568 702 603 662 125 69 69 356 579 146 646 544 10 626 11 600 646 1 338 146 11 70 178 336 18 603 603 718 721 165 336 696 701 706 666 704 48 715 709 53 702 708 712 53 64 64
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PANEL; INST
GRAY 		8-97407-418-8 01 1 0801- ● ● ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97414-686-0 01 1 0801-1008 ● ● ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97422-097-1 01 1 1009- ● ● ● ●
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0801- ● ● ● ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0801- ● ● ● ●
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 0801- ● ● ● ●
48 SPRING; GLOVE BOX LID 8-98034-986-0 01 1 0801-1311 ● ● ● ●
48 SPRING; GLOVE BOX LID 8-97926-410-0 01 1 1312-1405 ● ● ● ●
48 SPRING; GLOVE BOX LID 8-98270-763-0 01 1 1406- ● ● ● ●
48 SPRING; GLOVE BOX LID 8-98034-987-0 01 1 0801-1311 ● ● ● ●
48 SPRING; GLOVE BOX LID 8-97926-411-0 01 1 1312-1405 ● ● ● ●
48 SPRING; GLOVE BOX LID 8-98270-764-0 01 1 1406- ● ● ● ●
53 STRIKER; GLOVE BOX
(A) 		8-98108-913-0 01 1 0805-1405 ● ● ● ●
53 STRIKER; GLOVE BOX
(B) 		8-98270-765-0 01 1 1406- ● ● ● ●
64 SCREW; STRIKER
(A) 		8-98108-915-0 01 1 0805-1405 ● ● ● ●
64 SCREW; STRIKER
(B) M4X85 		8-97926-404-0 02 1 1406- ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 0801- ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 0801- ● ● ● ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 0801- ● ● ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0801-1007 ● ● ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008- ● ● ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0801- ● ● ● ●
136 CLIP; INST COVER 8-98076-254-0 02 1 0801- ● ● ● ●
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0801- ● ● ● ●
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 0801- ● ● ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 0801- ● ● ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0801- ● ● ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 0801- ● ● ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 0801-1012 ● ● ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1101- ● ● ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 0801- ● ● ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 0801- ● ● ● ●
338 SCREW; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0801- ● ● ● ●
356 NUT; COVER
M6 FLANGE 		0-91180-106-0 01 1 0801- ● ● ● ●
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0801- ● ● ● ●
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801- ● ● ● ●
579 COVER; INST PNL
GRAY 		8-97409-853-2 01 1 0801- ● ● ● ●
600 NUT; PANEL 8-98037-629-0 02 1 0801-1008 ● ● ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0801- ● ● ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 09 1 0801- ● ● ● ●
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 0801- ● ● ● ●
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 0801- ● ● ● ●
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 0801- ● ● ● ●
662 COVER; LWR,INST PANEL
GRAY 		8-97407-429-3 01 1 0801- ● ● ● ●
666 INSERT; INST PANEL 8-98038-450-0 04 1 0801-1311 ● ● ● ●
666 INSERT; INST PANEL
M5 		8-97926-400-0 04 1 1312- ● ● ● ●
696 BRACKET; KNEE 8-98066-085-1 01 1 0801- ● ● ● ●
701 TRAY; INST
GRAY 		8-97412-913-0 01 1 0801-0804 ● ● ● ●
701 TRAY; INST
GRAY 		8-97415-540-6 01 1 0805-1405 ● ● ● ●
701 TRAY; INST
GRAY 		8-97429-703-1 01 1 1406- ● ● ● ●
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 0801- ● ● ● ●
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 0801- ● ● ● ●
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 0801- ● ● ● ●
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 0801- ● ● ● ●
706 LID; TRAY INST
GRAY 		8-97405-372-2 01 1 0801-0804 ● ● ● ●
706 LID; TRAY INST
GRAY 		8-97415-541-0 01 1 0805-1405 ● ● ● ●
706 LID; TRAY INST
GRAY 		8-97429-992-0 01 1 1406- ● ● ● ●
707 SHAFT; TRAY INST LID 8-98035-730-1 02 1 0801-1311 ● ● ● ●
707 SHAFT; TRAY INST LID 8-97926-393-0 02 1 1312- ● ● ● ●
708 STOPPER; TRAY INST LID 8-98010-867-1 02 1 0801- ● ● ● ●
709 SCREW; TRAY INST
M5X16 TAPPING 		0-71040-516-0 04 1 0801- ● ● ● ●
712 LOCK; TRAY INST LID 8-98031-846-0 01 1 0801- ● ● ● ●
715 SUPPORT; TRAY,HINGE 8-98034-928-0 01 1 0801-1311 ● ● ● ●
715 SUPPORT; TRAY,HINGE 8-97926-396-0 01 1 1312- ● ● ● ●
715 SUPPORT; TRAY,HINGE 8-98034-929-0 01 1 0801-1311 ● ● ● ●
715 SUPPORT; TRAY,HINGE 8-97926-397-0 01 1 1312- ● ● ● ●
718 SEAL; COVER
7X31 		8-98061-777-0 01 1 0801- ● ● ● ●
721 FINISHER; BRKT,KNEE
L=140 		8-97892-742-0 01 1 0801- ● ● ● ●

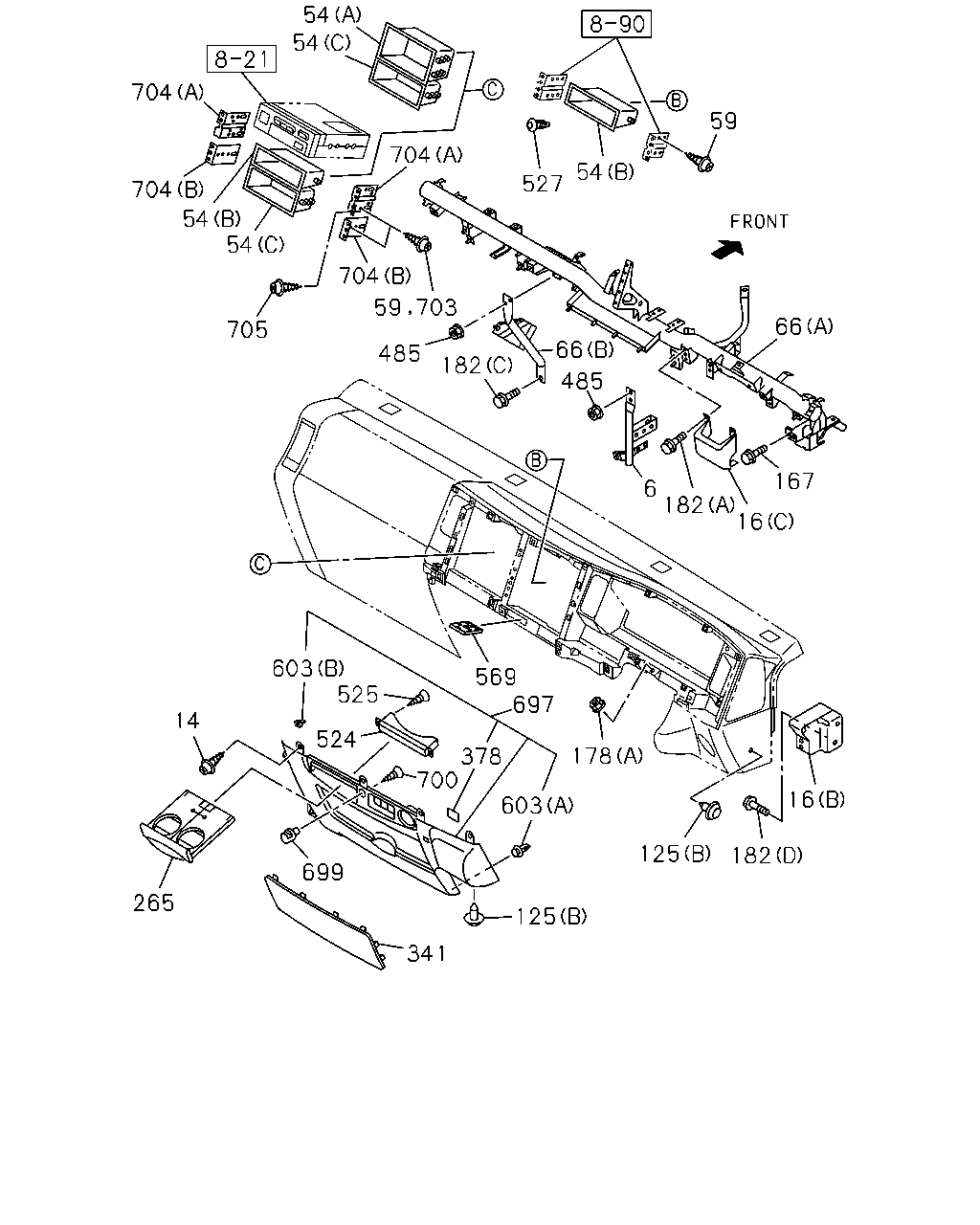

çizim 161087
54 54 704 704 54 54 705 704 704 59 703 485 182 66 527 54 59 66 167 16 182 6 485 16 182 125 178 697 569 603 125 341 699 700 378 524 525 603 14 265
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 SUPPORT; INST PANEL 8-98088-312-0 01 1 0801-1109 ● ● ● ●
6 SUPPORT; INST PANEL 8-98196-255-0 01 1 1110- ● ● ● ●
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0801- ● ● ● ●
16 BRACKET; INST PNL
(A) 		8-97585-612-2 01 1 0801- ● ● ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0801- ● ● ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0801- ● ● ● ●
16 BRACKET; INST PNL
(D) 		8-98017-528-0 01 1 0801-1105 ● ● ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0801- ● ● ● ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 0801- ● ●
54 POCKET; CENTER CLUSTER
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) H=58.4 BLACK 		8-97408-864-3 01 1 0801- ●
54 POCKET; CENTER CLUSTER
TACHOGRAPH 140KM/H<WC7> (B) H=58.4 BLACK 		8-97408-864-3 01 1 0801- ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-2 02 1 0801- ● ● ● ●
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 0801- ● ● ● ●
54 POCKET; CENTER CLUSTER
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) H=108.4 BLACK 		8-97407-129-3 01 1 0801- ●
54 POCKET; CENTER CLUSTER
EXC. TACHOGRAPH 140KM/H<WC7> (A) H=108.4 BLACK 		8-97407-129-3 01 1 0801- ●
59 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0801- ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0801- ● ● ● ●
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-580-2 01 1 0911- ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER(AJ3) (B) 		8-97585-580-2 01 1 0911- ●
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-580-2 01 1 0801-0909 ● ● ● ●
66 REINFORCEMENT; INST PANEL
(B) 		8-98151-167-0 01 1 0910-0910 ● ● ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER(AJ3) (B) 		8-98151-167-0 01 1 0911- ●
66 REINFORCEMENT; INST PANEL
(B) 		8-98151-167-0 01 1 0911- ●
66 REINFORCEMENT; INST PANEL
(A) 		8-98081-322-5 01 1 0801-1111 ● ● ● ●
66 REINFORCEMENT; INST PANEL
(A) 		8-98174-904-1 01 1 1112-1406 ● ● ● ●
66 REINFORCEMENT; INST PANEL
(A) 		8-98240-609-0 01 1 1407- ● ● ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0801-1007 ● ● ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008- ● ● ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0801- ● ● ● ●
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 0801- ● ● ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 0801- ● ● ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0801- ● ● ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 0801- ● ● ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 0801-1111 ● ● ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112- ● ● ● ●
182 BOLT; BRKT,INST PANEL
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801- ● ● ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0801- ● ● ● ●
265 HOLDER; CUP
GRAY 		8-97407-897-2 01 1 0801-0909 ● ● ● ●
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 0910- ● ● ● ●
341 LID; FUSE BOX
GRAY 		8-97407-419-3 01 1 0801-1010 ● ● ● ●
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1011- ● ● ● ●
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1011- ● ● ● ●
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 0801- ● ● ● ●
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 0801- ● ● ● ●
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0801- ● ● ● ●
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) DARK GRAY 		8-97098-326-0 01 1 0902-1211 ● ● ●
527 CLIP; INST CLUSTER
EXC. AIR CONDITIONER MANUAL CONT WO/HEATER(C65), VENTILATOR & DEFROSTER WO/HEATER(SAZ) DARK GRAY 		8-97098-326-0 01 1 0902-1211 ●
569 HOLDER; CARD 8-97410-276-1 01 1 0801- ● ● ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0801- ● ● ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 09 1 0801- ● ● ● ●
697 PANEL; INST CENTER
GRAY 		8-97413-127-0 01 1 0801-1010 ● ● ● ●
697 PANEL; INST CENTER
GRAY 		8-97422-207-1 01 1 1011- ● ● ● ●
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 0801- ● ● ● ●
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801- ● ● ● ●
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0801- ● ● ●
703 SCREW; CENTER POCKET
EXC. TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0801- ●
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 0801- ● ● ● ●
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 0801- ● ● ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 0801- ● ● ● ●
707 SHAFT; TRAY INST LID 8-98035-730-1 02 1 0801-1311 ● ● ● ●
707 SHAFT; TRAY INST LID 8-97926-393-0 02 1 1312- ● ● ● ●

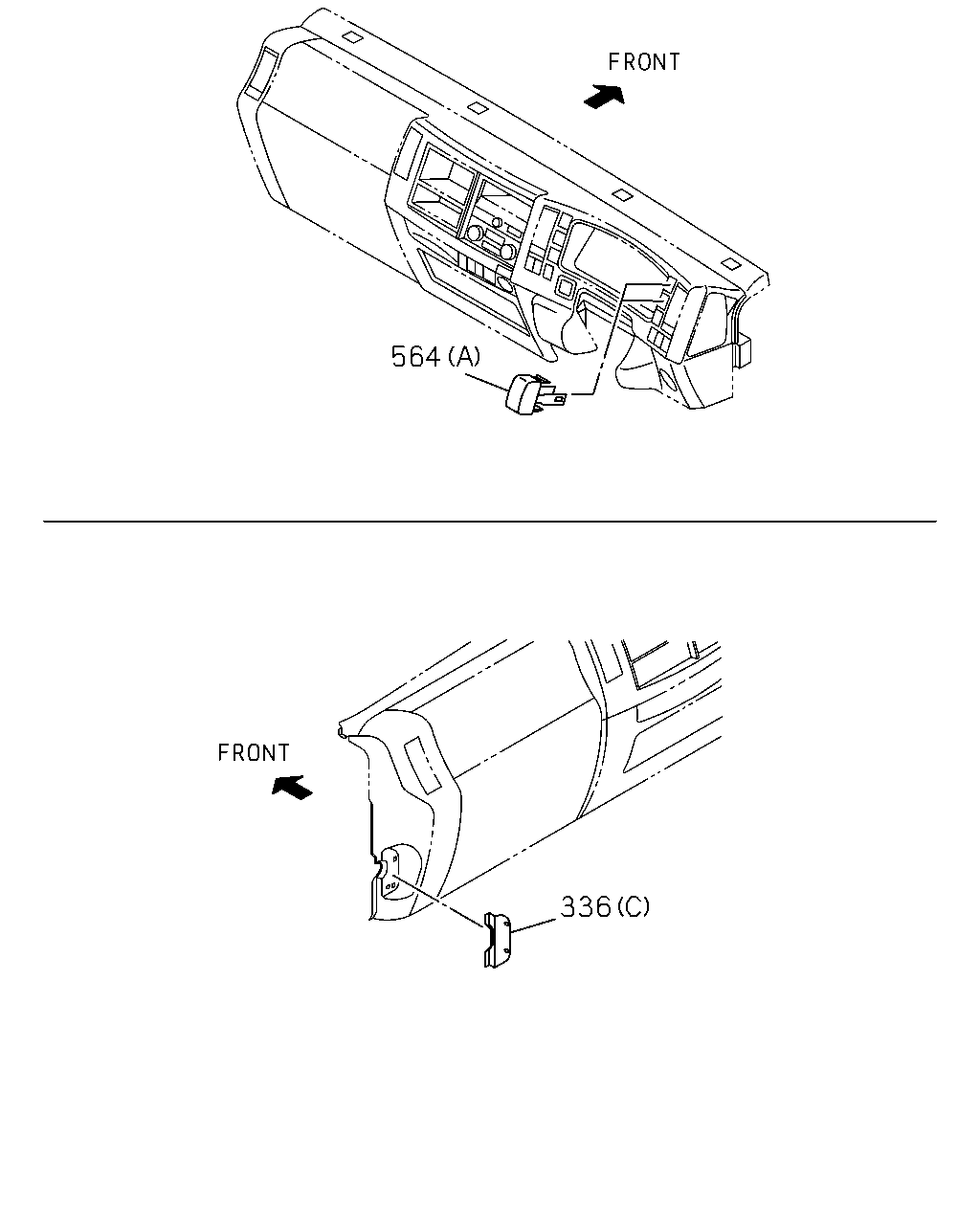

çizim 161098
564 336
BalonParca AdiParca NoAdetTipApplied Date A B C D
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 0801- ● ● ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 0801-1012 ● ● ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1101- ● ● ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 0801- ● ● ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 0801- ● ● ● ●
564 COVER; SW
(B) 		8-97043-732-1 02 1 0801- ●
564 COVER; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> AUSTRALIA EQUIPMENT(RR3) (B) 		8-97043-732-1 02 1 0801- ●
564 COVER; SW
AUSTRALIA EQUIPMENT(RR3) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) 		1-82359-069-2 06 1 0801- ●
564 COVER; SW
EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		8-97043-732-1 06 1 0801- ●
564 COVER; SW
(B) 		8-97043-732-1 01 1 0801- ●
564 COVER; SW
(B) 		8-97043-732-1 04 1 0801- ●
707 SHAFT; TRAY INST LID 8-98035-730-1 02 1 0801-1311 ● ● ● ●
707 SHAFT; TRAY INST LID 8-97926-393-0 02 1 1312- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
