◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11143 - FXR/GXR EXC.EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#57625) — 315 parça

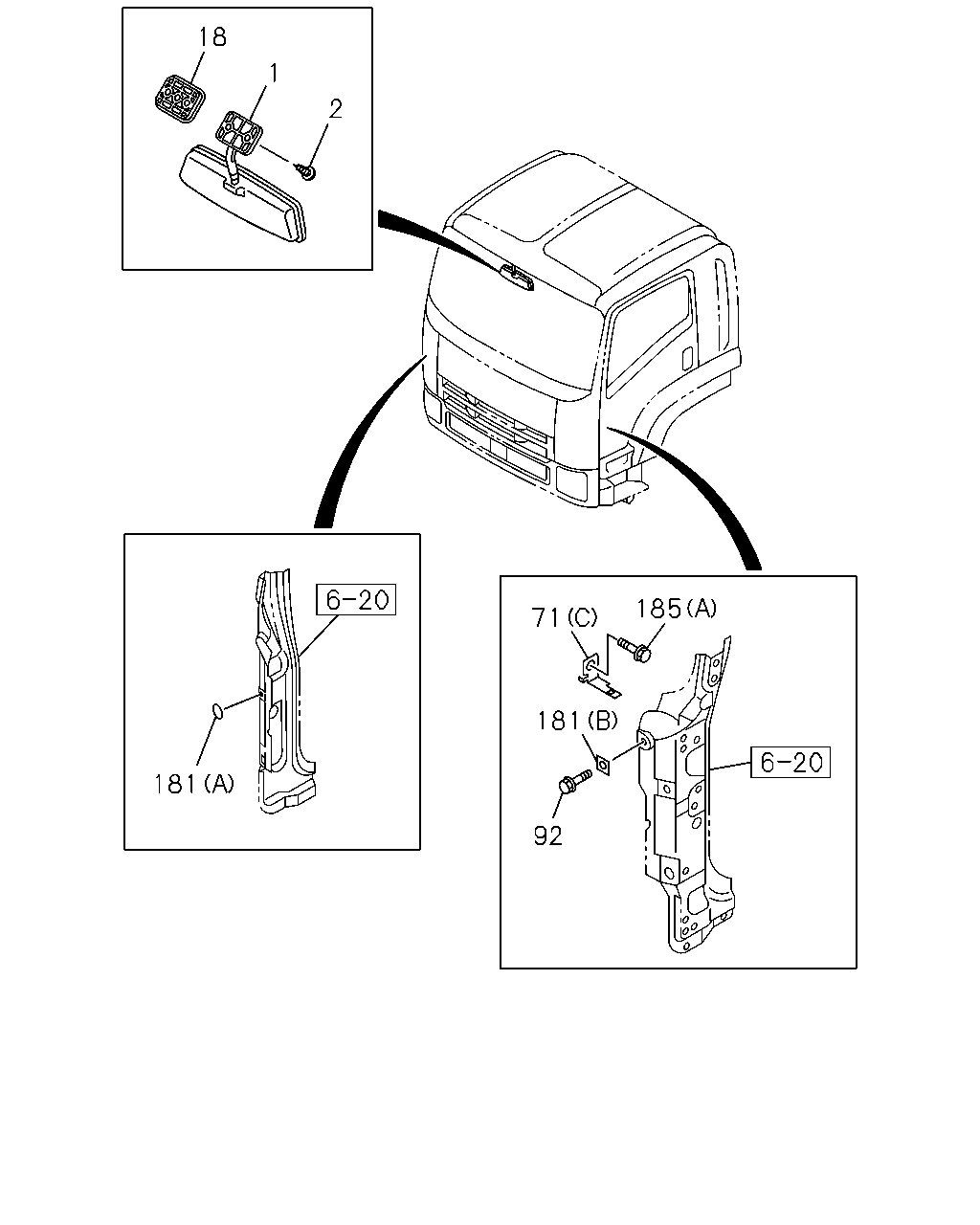

çizim 161076
18 1 2 185 71 181 181 92
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 MIRROR; ROOM
DARK GRAY 		8-97405-193-1 01 1 0801-0802 ● ● ● ●
1 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 0803- ● ● ● ●
2 SCREW; MIRROR TO BODY
M6X26 		8-98033-674-0 02 1 0801- ● ● ● ●
18 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 0801- ● ● ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 0801- ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98039-277-2 02 1 0801- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 0801- ● ● ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 0801- ● ● ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 0801- ● ● ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98060-240-0 01 1 0801- ● ● ● ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-492-3 01 1 0801- ● ● ● ●
92 BOLT; STAY BRKT,MIRROR
M8X16 FLANGE 		8-98076-109-0 01 1 0801- ● ● ● ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 02 1 0801-0807 ● ● ● ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 01 1 0808- ● ● ● ●
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 0801- ● ● ● ●
185 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0801- ● ●
185 BOLT; BRKT
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) M8X16 FLANGE 		0-28050-816-0 02 1 0801- ● ●
185 BOLT; BRKT
(B) M8X23 		8-97310-216-1 08 1 0801-0807 ● ● ● ●

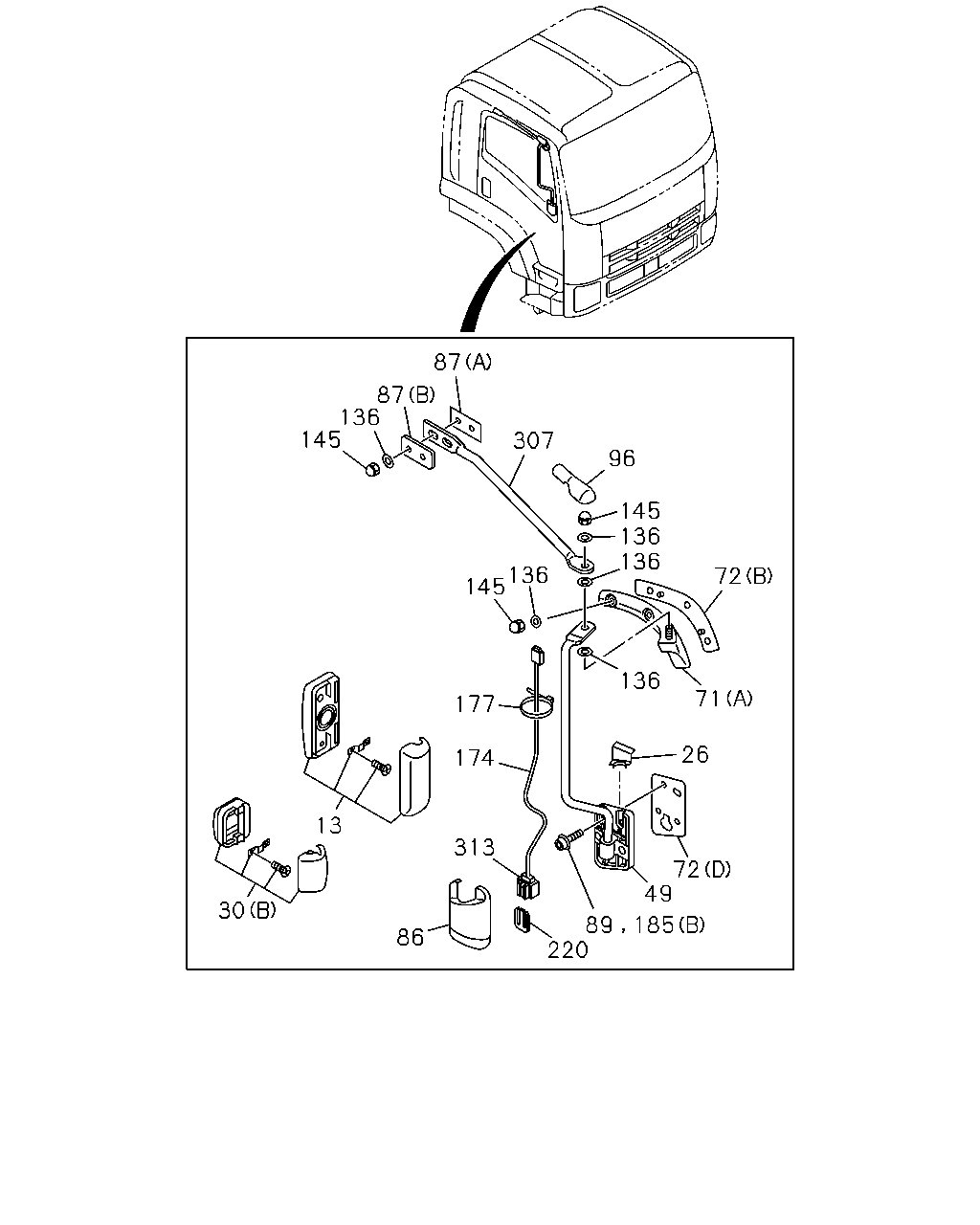

çizim 161086
87 87 136 145 307 96 145 136 136 136 145 72 136 71 177 26 174 13 313 72 49 30 89 220 185 86
BalonParca AdiParca NoAdetTipApplied Date A B C D
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98043-060-1 01 1 0801-0903 ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98043-060-1 01 1 0801-0903 ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> NEW ZEALAND EQUIPMENT(PK5) EXC. O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98043-060-1 01 1 0904-1505 ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98043-060-1 01 1 0904-1505 ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98043-060-1 01 1 1506- ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98043-060-1 01 1 1506- ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98043-176-1 01 1 0801-0903 ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98043-176-1 01 1 0801-0903 ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> NEW ZEALAND EQUIPMENT(PK5) EXC. O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98043-176-1 01 1 0904-1505 ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98043-176-1 01 1 0904-1505 ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98043-176-1 01 1 1506- ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98043-176-1 01 1 1506- ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98055-991-1 01 1 0801- ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98055-991-1 01 1 0801- ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98055-992-1 01 1 0801- ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98055-992-1 01 1 0801- ●
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 0801- ● ● ● ●
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 0801- ● ● ● ●
30 MIRROR; UNDER
(A) 		8-98043-065-0 01 1 0801- ● ● ● ●
30 MIRROR; UNDER
(C) 		8-98055-994-0 01 1 0801-1504 ● ● ● ●
30 MIRROR; UNDER
(C) 		8-98309-725-0 01 1 1505- ● ● ● ●
30 MIRROR; UNDER
EXC. O/SIDE MIRROR RR VIEW FLAT<YS1> (B) 		8-98043-061-0 02 1 0801- ●
30 MIRROR; UNDER
(B) 		8-98043-061-0 02 1 0801- ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98064-780-1 01 1 0801-1202 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98064-780-1 01 1 0801-1202 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98166-198-0 01 1 1203- ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-198-0 01 1 1203- ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98064-781-1 01 1 0801-1202 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98064-781-1 01 1 0801-1202 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98166-199-0 01 1 1203- ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-199-0 01 1 1203- ●
49 STAY; MIRROR SIDE 8-98064-778-0 01 1 0801-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98064-778-0 01 1 0801-1202 ●
49 STAY; MIRROR SIDE 8-98166-200-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98166-200-0 01 1 1203- ●
49 STAY; MIRROR SIDE 8-98064-779-0 01 1 0801-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98064-779-0 01 1 0801-1202 ●
49 STAY; MIRROR SIDE 8-98166-201-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98166-201-0 01 1 1203- ●
49 STAY; MIRROR SIDE
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98060-218-1 01 1 0801-1101 ●
49 STAY; MIRROR SIDE
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98060-218-1 01 1 0801-1101 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98060-218-1 01 1 1102-1202 ●
49 STAY; MIRROR SIDE
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98060-218-1 01 1 1102-1202 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98166-195-0 01 1 1203- ●
49 STAY; MIRROR SIDE
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-195-0 01 1 1203- ●
49 STAY; MIRROR SIDE
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98064-777-1 01 1 0801-1101 ●
49 STAY; MIRROR SIDE
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98064-777-1 01 1 0801-1101 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98064-777-1 01 1 1102-1202 ●
49 STAY; MIRROR SIDE
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98064-777-1 01 1 1102-1202 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98166-194-0 01 1 1203- ●
49 STAY; MIRROR SIDE
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-194-0 01 1 1203- ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 0801- ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98039-277-2 02 1 0801- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 0801- ● ● ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 0801- ● ● ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 0801- ● ● ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98060-240-0 01 1 0801- ● ● ● ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-492-3 01 1 0801- ● ● ● ●
72 SHEET
(D) 		8-98101-865-0 01 1 0805-0807 ● ●
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98101-865-0 01 1 0805-0807 ● ●
72 SHEET
(D) 		8-98101-865-0 01 1 0808-1008 ● ●
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW FLAT<YS1> (D) 		8-98101-865-0 01 1 0808-1008 ●
72 SHEET
EXC. O/SIDE MIRROR RR VIEW FLAT<YS1> (D) 		8-98101-865-0 01 1 0808-1008 ●
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98101-865-0 01 1 0808-1008 ●
72 SHEET
(D) 		8-98101-865-0 01 1 1009-1101 ● ●
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98101-865-0 01 1 1009-1101 ● ●
72 SHEET
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW FLAT<YS1> (D) 		8-98101-865-0 01 1 1009-1101 ●
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98101-865-0 01 1 1102-1202 ● ● ● ●
72 SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW FLAT<YS1> (D) 		8-98101-865-0 01 1 1102-1202 ●
72 SHEET
(D) 		8-98101-865-0 01 1 1203- ● ●
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (D) 		8-98101-865-0 01 1 1203- ●
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98101-865-0 01 1 1203- ●
72 SHEET
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW FLAT<YS1> (D) 		8-98116-604-0 01 1 0805-0807 ●
72 SHEET
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98116-604-0 01 1 0805-0807 ●
72 SHEET
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98116-604-0 01 1 0808-1202 ●
72 SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW FLAT<YS1> (D) 		8-98116-604-0 01 1 1203- ●
72 SHEET
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98116-604-0 01 1 1203- ●
72 SHEET
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW FLAT<YS1> (D) 		8-98116-605-0 01 1 0805-0807 ●
72 SHEET
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98116-605-0 01 1 0805-0807 ●
72 SHEET
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98116-605-0 01 1 0808-1202 ●
72 SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW FLAT<YS1> (D) 		8-98116-605-0 01 1 1203- ●
72 SHEET
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98116-605-0 01 1 1203- ●
72 SHEET
(B) 		8-98031-796-0 01 1 0801- ● ● ● ●
72 SHEET
(C) 		8-98031-797-0 01 1 0801- ● ● ● ●
72 SHEET
(E) 		8-98060-245-1 01 1 0801- ● ● ● ●
72 SHEET
(A) 		8-98064-776-0 01 1 0801- ● ● ● ●
72 SHEET
(D) 		8-98080-418-0 02 1 0801-0804 ● ● ● ●
72 SHEET
(D) 		8-98101-864-0 01 1 0805-0807 ● ●
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98101-864-0 01 1 0805-0807 ● ●
72 SHEET
(D) 		8-98101-864-0 01 1 0808-1008 ● ●
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW FLAT<YS1> (D) 		8-98101-864-0 01 1 0808-1008 ●
72 SHEET
EXC. O/SIDE MIRROR RR VIEW FLAT<YS1> (D) 		8-98101-864-0 01 1 0808-1008 ●
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98101-864-0 01 1 0808-1008 ●
72 SHEET
(D) 		8-98101-864-0 01 1 1009-1101 ● ●
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98101-864-0 01 1 1009-1101 ● ●
72 SHEET
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW FLAT<YS1> (D) 		8-98101-864-0 01 1 1009-1101 ●
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98101-864-0 01 1 1102-1202 ● ● ● ●
72 SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW FLAT<YS1> (D) 		8-98101-864-0 01 1 1102-1202 ●
72 SHEET
(D) 		8-98101-864-0 01 1 1203- ● ●
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (D) 		8-98101-864-0 01 1 1203- ●
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98101-864-0 01 1 1203- ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 0801- ● ● ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 0801- ● ● ● ●
87 SPACER
(A) 		8-98063-786-0 02 1 0801- ● ● ● ●
87 SPACER
(B) 		8-98063-789-0 01 1 0801- ● ● ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 0808- ● ● ● ●
96 CAP; MIRROR STAY 8-98080-173-0 02 1 0801- ● ● ● ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 0801- ● ● ● ●
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 0801- ● ● ● ●
174 HARNESS; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98125-653-0 02 1 0904-1101 ●
174 HARNESS; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98125-653-0 02 1 1102- ● ● ● ●
174 HARNESS; MIRROR
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98125-653-0 02 1 1102- ●
174 HARNESS; MIRROR 8-98137-139-0 02 1 0902-1101 ● ●
174 HARNESS; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98137-139-0 02 1 0902-1101 ●
174 HARNESS; MIRROR 8-98137-139-0 02 1 1102- ● ●
174 HARNESS; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98137-139-0 02 1 1102- ●
177 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 0902-1101 ● ●
177 CLIP; HARNESS
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW FLAT<YS1> L=140 		5-09707-031-1 02 1 0902-1101 ●
177 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 1102- ● ●
177 CLIP; HARNESS
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW FLAT<YS1> L=140 		5-09707-031-1 02 1 1102- ●
185 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0801- ● ●
185 BOLT; BRKT
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) M8X16 FLANGE 		0-28050-816-0 02 1 0801- ● ●
185 BOLT; BRKT
(B) M8X23 		8-97310-216-1 08 1 0801-0807 ● ● ● ●
220 HOLDER; CONNECTOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-94447-536-0 02 1 0904-1101 ●
220 HOLDER; CONNECTOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-94447-536-0 02 1 1102- ● ● ● ●
220 HOLDER; CONNECTOR
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-94447-536-0 02 1 1102- ●
220 HOLDER; CONNECTOR 8-94479-375-0 02 1 0902-1101 ● ●
220 HOLDER; CONNECTOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-94479-375-0 02 1 0902-1101 ●
220 HOLDER; CONNECTOR 8-94479-375-0 02 1 1102- ● ●
220 HOLDER; CONNECTOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-94479-375-0 02 1 1102- ●
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 0801- ● ● ● ●
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 0801- ● ● ● ●
313 CONNECTOR; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-94447-532-0 02 1 0904-1101 ●
313 CONNECTOR; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-94447-532-0 02 1 1102- ● ● ● ●
313 CONNECTOR; MIRROR
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-94447-532-0 02 1 1102- ●
313 CONNECTOR; MIRROR 8-94479-370-0 02 1 0902-1101 ● ●
313 CONNECTOR; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-94479-370-0 02 1 0902-1101 ●
313 CONNECTOR; MIRROR 8-94479-370-0 02 1 1102- ● ●
313 CONNECTOR; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-94479-370-0 02 1 1102- ●

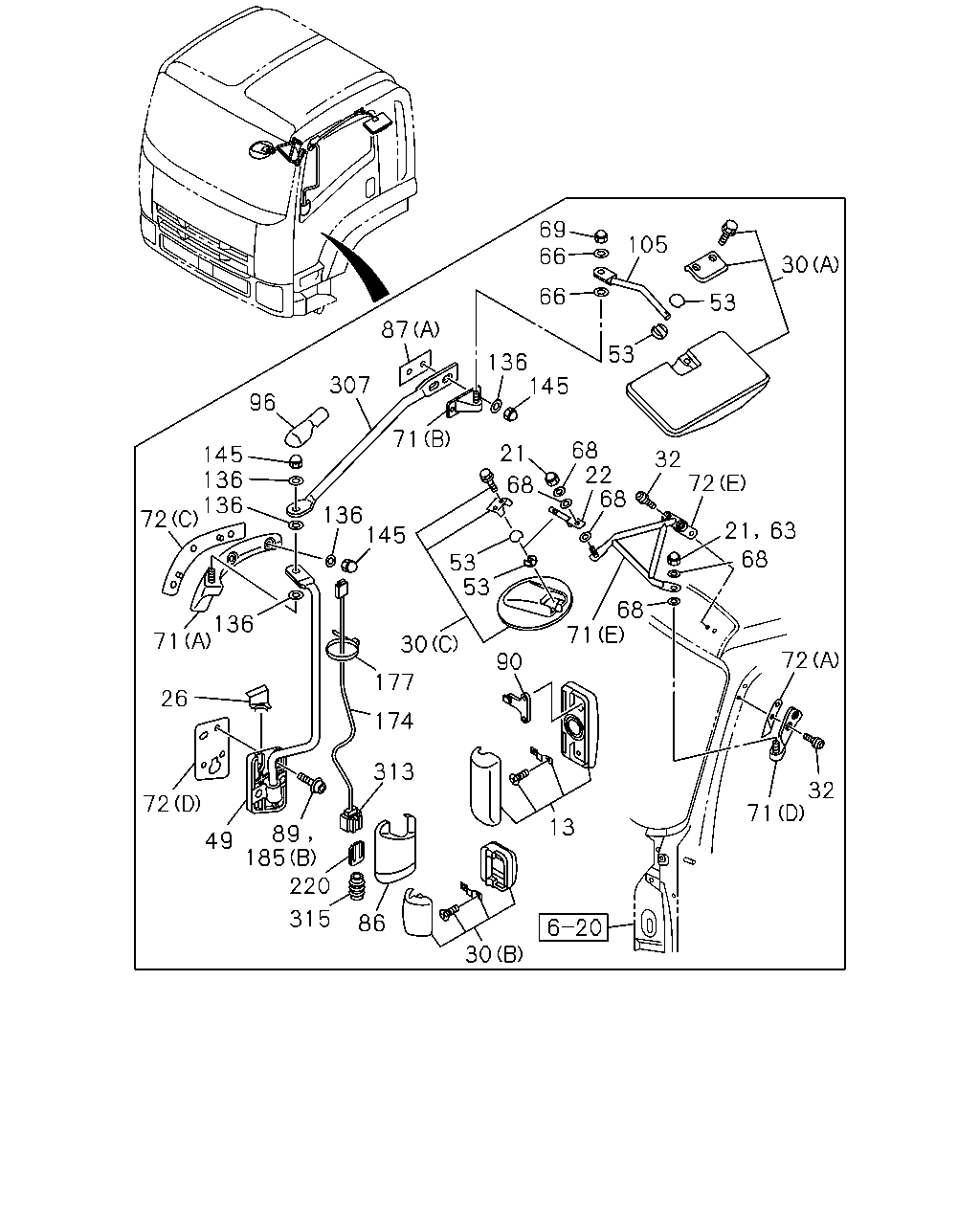

çizim 161089
69 66 105 30 66 53 87 53 136 145 307 96 71 68 22 68 21 145 136 136 72 32 72 68 136 145 21 63 68 53 53 68 71 136 71 30 72 90 177 26 174 313 32 71 72 13 89 185 49 220 315 86 30
BalonParca AdiParca NoAdetTipApplied Date A B C D
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98043-060-1 01 1 0801-0903 ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98043-060-1 01 1 0801-0903 ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> NEW ZEALAND EQUIPMENT(PK5) EXC. O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98043-060-1 01 1 0904-1505 ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98043-060-1 01 1 0904-1505 ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98043-060-1 01 1 1506- ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98043-060-1 01 1 1506- ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98043-176-1 01 1 0801-0903 ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98043-176-1 01 1 0801-0903 ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> NEW ZEALAND EQUIPMENT(PK5) EXC. O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98043-176-1 01 1 0904-1505 ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98043-176-1 01 1 0904-1505 ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98043-176-1 01 1 1506- ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98043-176-1 01 1 1506- ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98055-991-1 01 1 0801- ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98055-991-1 01 1 0801- ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98055-992-1 01 1 0801- ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98055-992-1 01 1 0801- ●
21 NUT; MIRROR
M10 CAP NUT 		1-09984-134-0 04 1 0801-1101 ● ● ● ●
21 NUT; MIRROR
M10 CAP NUT 		1-09984-134-0 02 1 1102- ● ● ● ●
22 STAY; OUTSIDE MIRROR 8-98092-493-0 01 1 0801- ● ● ● ●
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 0801- ● ● ● ●
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 0801- ● ● ● ●
30 MIRROR; UNDER
(A) 		8-98043-065-0 01 1 0801- ● ● ● ●
30 MIRROR; UNDER
(C) 		8-98055-994-0 01 1 0801-1504 ● ● ● ●
30 MIRROR; UNDER
(C) 		8-98309-725-0 01 1 1505- ● ● ● ●
30 MIRROR; UNDER
EXC. O/SIDE MIRROR RR VIEW FLAT<YS1> (B) 		8-98043-061-0 02 1 0801- ●
30 MIRROR; UNDER
(B) 		8-98043-061-0 02 1 0801- ●
32 SCREW; UNDER MIRROR
M8X26 W/PL WASHER 		8-98067-249-2 04 1 0801- ● ● ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98064-780-1 01 1 0801-1202 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98064-780-1 01 1 0801-1202 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98166-198-0 01 1 1203- ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-198-0 01 1 1203- ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98064-781-1 01 1 0801-1202 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98064-781-1 01 1 0801-1202 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98166-199-0 01 1 1203- ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-199-0 01 1 1203- ●
49 STAY; MIRROR SIDE 8-98064-778-0 01 1 0801-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98064-778-0 01 1 0801-1202 ●
49 STAY; MIRROR SIDE 8-98166-200-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98166-200-0 01 1 1203- ●
49 STAY; MIRROR SIDE 8-98064-779-0 01 1 0801-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98064-779-0 01 1 0801-1202 ●
49 STAY; MIRROR SIDE 8-98166-201-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98166-201-0 01 1 1203- ●
49 STAY; MIRROR SIDE
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98060-218-1 01 1 0801-1101 ●
49 STAY; MIRROR SIDE
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98060-218-1 01 1 0801-1101 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98060-218-1 01 1 1102-1202 ●
49 STAY; MIRROR SIDE
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98060-218-1 01 1 1102-1202 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98166-195-0 01 1 1203- ●
49 STAY; MIRROR SIDE
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-195-0 01 1 1203- ●
49 STAY; MIRROR SIDE
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98064-777-1 01 1 0801-1101 ●
49 STAY; MIRROR SIDE
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98064-777-1 01 1 0801-1101 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98064-777-1 01 1 1102-1202 ●
49 STAY; MIRROR SIDE
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98064-777-1 01 1 1102-1202 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98166-194-0 01 1 1203- ●
49 STAY; MIRROR SIDE
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-194-0 01 1 1203- ●
53 PIVOT; SIDE MIRROR
ID=19.1 		1-71737-633-2 04 1 0801- ● ● ● ●
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 1102- ● ● ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 0801-1101 ● ● ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 08 1 1102- ● ● ● ●
68 WASHER; STAY
ID=10.5 OD=26 T=2.6 		1-09985-204-0 11 1 0801-0805 ● ● ● ●
68 WASHER; STAY
ID=10.5 OD=26 T=2.6 		1-09985-204-0 10 1 0806-1101 ● ● ● ●
68 WASHER; STAY
ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1102- ● ● ● ●
69 NUT; CAP
M10 CAP NUT 		1-09984-134-0 01 1 0801- ● ● ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 0801- ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98039-277-2 02 1 0801- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 0801- ● ● ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 0801- ● ● ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 0801- ● ● ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98060-240-0 01 1 0801- ● ● ● ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-492-3 01 1 0801- ● ● ● ●
72 SHEET
(D) 		8-98101-865-0 01 1 0805-0807 ● ●
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98101-865-0 01 1 0805-0807 ● ●
72 SHEET
(D) 		8-98101-865-0 01 1 0808-1008 ● ●
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW FLAT<YS1> (D) 		8-98101-865-0 01 1 0808-1008 ●
72 SHEET
EXC. O/SIDE MIRROR RR VIEW FLAT<YS1> (D) 		8-98101-865-0 01 1 0808-1008 ●
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98101-865-0 01 1 0808-1008 ●
72 SHEET
(D) 		8-98101-865-0 01 1 1009-1101 ● ●
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98101-865-0 01 1 1009-1101 ● ●
72 SHEET
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW FLAT<YS1> (D) 		8-98101-865-0 01 1 1009-1101 ●
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98101-865-0 01 1 1102-1202 ● ● ● ●
72 SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW FLAT<YS1> (D) 		8-98101-865-0 01 1 1102-1202 ●
72 SHEET
(D) 		8-98101-865-0 01 1 1203- ● ●
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (D) 		8-98101-865-0 01 1 1203- ●
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98101-865-0 01 1 1203- ●
72 SHEET
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW FLAT<YS1> (D) 		8-98116-604-0 01 1 0805-0807 ●
72 SHEET
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98116-604-0 01 1 0805-0807 ●
72 SHEET
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98116-604-0 01 1 0808-1202 ●
72 SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW FLAT<YS1> (D) 		8-98116-604-0 01 1 1203- ●
72 SHEET
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98116-604-0 01 1 1203- ●
72 SHEET
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW FLAT<YS1> (D) 		8-98116-605-0 01 1 0805-0807 ●
72 SHEET
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98116-605-0 01 1 0805-0807 ●
72 SHEET
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98116-605-0 01 1 0808-1202 ●
72 SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW FLAT<YS1> (D) 		8-98116-605-0 01 1 1203- ●
72 SHEET
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98116-605-0 01 1 1203- ●
72 SHEET
(B) 		8-98031-796-0 01 1 0801- ● ● ● ●
72 SHEET
(C) 		8-98031-797-0 01 1 0801- ● ● ● ●
72 SHEET
(E) 		8-98060-245-1 01 1 0801- ● ● ● ●
72 SHEET
(A) 		8-98064-776-0 01 1 0801- ● ● ● ●
72 SHEET
(D) 		8-98080-418-0 02 1 0801-0804 ● ● ● ●
72 SHEET
(D) 		8-98101-864-0 01 1 0805-0807 ● ●
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98101-864-0 01 1 0805-0807 ● ●
72 SHEET
(D) 		8-98101-864-0 01 1 0808-1008 ● ●
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW FLAT<YS1> (D) 		8-98101-864-0 01 1 0808-1008 ●
72 SHEET
EXC. O/SIDE MIRROR RR VIEW FLAT<YS1> (D) 		8-98101-864-0 01 1 0808-1008 ●
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98101-864-0 01 1 0808-1008 ●
72 SHEET
(D) 		8-98101-864-0 01 1 1009-1101 ● ●
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98101-864-0 01 1 1009-1101 ● ●
72 SHEET
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW FLAT<YS1> (D) 		8-98101-864-0 01 1 1009-1101 ●
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98101-864-0 01 1 1102-1202 ● ● ● ●
72 SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW FLAT<YS1> (D) 		8-98101-864-0 01 1 1102-1202 ●
72 SHEET
(D) 		8-98101-864-0 01 1 1203- ● ●
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (D) 		8-98101-864-0 01 1 1203- ●
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98101-864-0 01 1 1203- ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 0801- ● ● ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 0801- ● ● ● ●
87 SPACER
(A) 		8-98063-786-0 02 1 0801- ● ● ● ●
87 SPACER
(B) 		8-98063-789-0 01 1 0801- ● ● ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 0808- ● ● ● ●
90 BRACKET; MIRROR STAY
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> NEW ZEALAND EQUIPMENT(PK5) EXC. O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98129-822-0 02 1 0904-1505 ●
90 BRACKET; MIRROR STAY
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98129-822-0 02 1 1506- ●
90 BRACKET; MIRROR STAY
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98129-822-0 02 1 1506- ●
96 CAP; MIRROR STAY 8-98080-173-0 02 1 0801- ● ● ● ●
105 STAY; SUB UNDER MIRROR 8-98080-109-2 01 1 0801- ● ● ● ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 0801- ● ● ● ●
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 0801- ● ● ● ●
174 HARNESS; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98125-653-0 02 1 0904-1101 ●
174 HARNESS; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98125-653-0 02 1 1102- ● ● ● ●
174 HARNESS; MIRROR
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98125-653-0 02 1 1102- ●
174 HARNESS; MIRROR 8-98137-139-0 02 1 0902-1101 ● ●
174 HARNESS; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98137-139-0 02 1 0902-1101 ●
174 HARNESS; MIRROR 8-98137-139-0 02 1 1102- ● ●
174 HARNESS; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98137-139-0 02 1 1102- ●
177 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 0902-1101 ● ●
177 CLIP; HARNESS
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW FLAT<YS1> L=140 		5-09707-031-1 02 1 0902-1101 ●
177 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 1102- ● ●
177 CLIP; HARNESS
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW FLAT<YS1> L=140 		5-09707-031-1 02 1 1102- ●
185 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0801- ● ●
185 BOLT; BRKT
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) M8X16 FLANGE 		0-28050-816-0 02 1 0801- ● ●
185 BOLT; BRKT
(B) M8X23 		8-97310-216-1 08 1 0801-0807 ● ● ● ●
220 HOLDER; CONNECTOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-94447-536-0 02 1 0904-1101 ●
220 HOLDER; CONNECTOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-94447-536-0 02 1 1102- ● ● ● ●
220 HOLDER; CONNECTOR
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-94447-536-0 02 1 1102- ●
220 HOLDER; CONNECTOR 8-94479-375-0 02 1 0902-1101 ● ●
220 HOLDER; CONNECTOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-94479-375-0 02 1 0902-1101 ●
220 HOLDER; CONNECTOR 8-94479-375-0 02 1 1102- ● ●
220 HOLDER; CONNECTOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-94479-375-0 02 1 1102- ●
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 0801- ● ● ● ●
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 0801- ● ● ● ●
313 CONNECTOR; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-94447-532-0 02 1 0904-1101 ●
313 CONNECTOR; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-94447-532-0 02 1 1102- ● ● ● ●
313 CONNECTOR; MIRROR
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-94447-532-0 02 1 1102- ●
313 CONNECTOR; MIRROR 8-94479-370-0 02 1 0902-1101 ● ●
313 CONNECTOR; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-94479-370-0 02 1 0902-1101 ●
313 CONNECTOR; MIRROR 8-94479-370-0 02 1 1102- ● ●
313 CONNECTOR; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-94479-370-0 02 1 1102- ●
315 RUBBER ASM; CONNECTOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW FLAT<YS1> 		1-82691-026-0 02 1 0904-1101 ●
315 RUBBER ASM; CONNECTOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		1-82691-026-0 02 1 1102- ● ● ● ●
315 RUBBER ASM; CONNECTOR
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW FLAT<YS1> 		1-82691-026-0 02 1 1102- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
