◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11143 - FXR/GXR EXC.EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#57624) — 16 parça

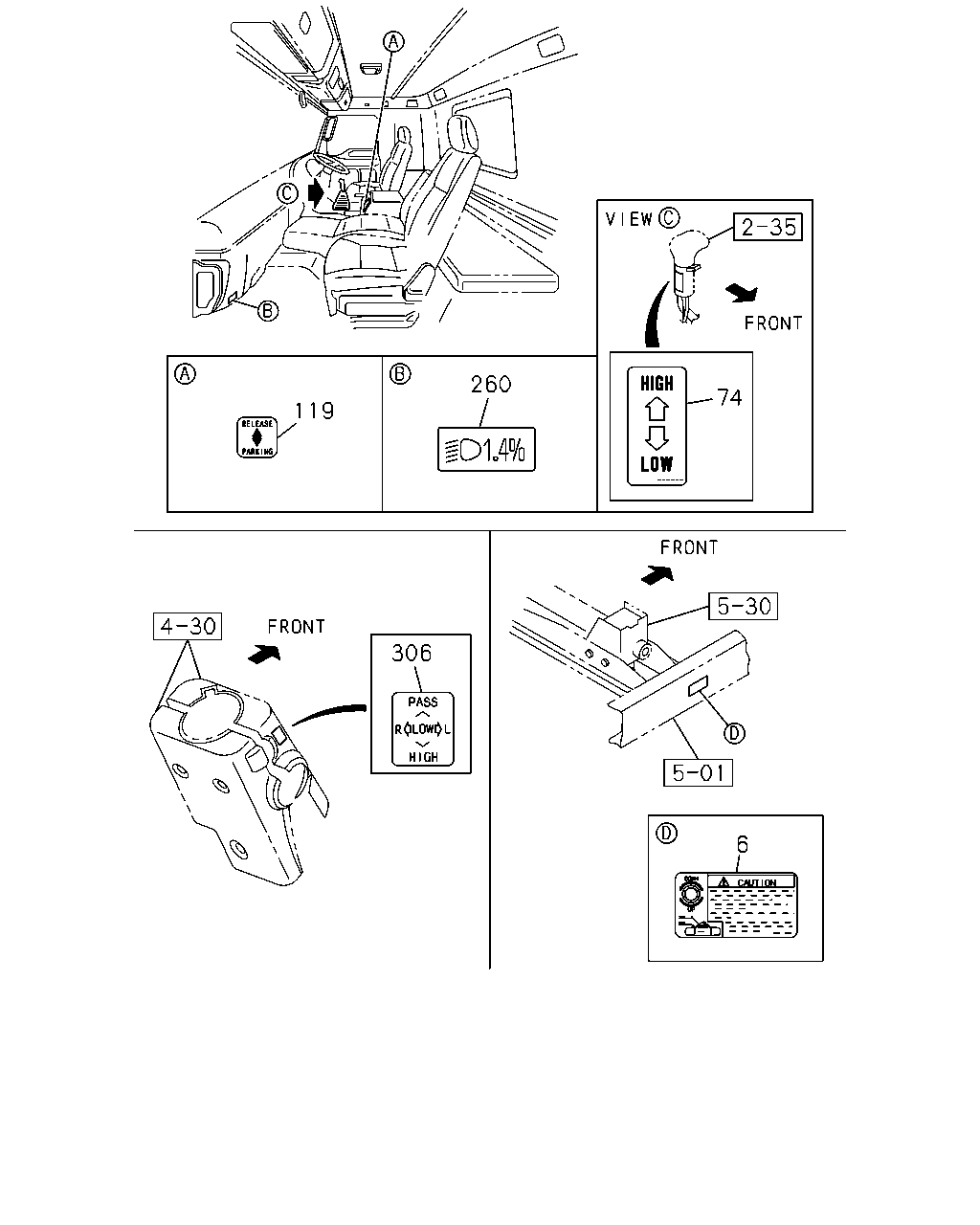

çizim 160939
260 74 119 306 6
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> 		8-98082-437-0 01 1 0801- ● ●
74 PLATE; CAUTION,CHANGE LEV 1-85881-736-1 01 1 0801-0805 ● ● ●
74 PLATE; CAUTION,CHANGE LEV 8-98118-493-0 01 1 0806- ● ● ●
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 0801- ● ● ● ●
260 PLATE; CAUTION,HEAD LAMP LEVELING 8-98008-779-0 01 1 0801- ● ● ● ●
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 0801- ● ● ● ●
çizim 161074
4 4 181
BalonParca AdiParca NoAdetTipApplied Date A B C D
4 LABEL; ENG MAINTENANCE
(A) 		8-98164-931-0 01 1 1002-1004 ●
4 LABEL; ENG MAINTENANCE
(A) 		8-98164-931-1 01 1 1005- ● ● ● ●
4 LABEL; ENG MAINTENANCE
(B) 		8-94391-524-0 01 1 0801- ● ● ● ●
4 LABEL; ENG MAINTENANCE
(A) 		8-97618-112-1 01 1 0801-1001 ● ● ● ●
4 LABEL; ENG MAINTENANCE
(A) 		8-97618-112-1 01 1 1002-1004 ● ● ●
181 PLATE; CAUTION,AIR CLEANER 1-85886-796-1 01 1 0801- ● ● ● ●

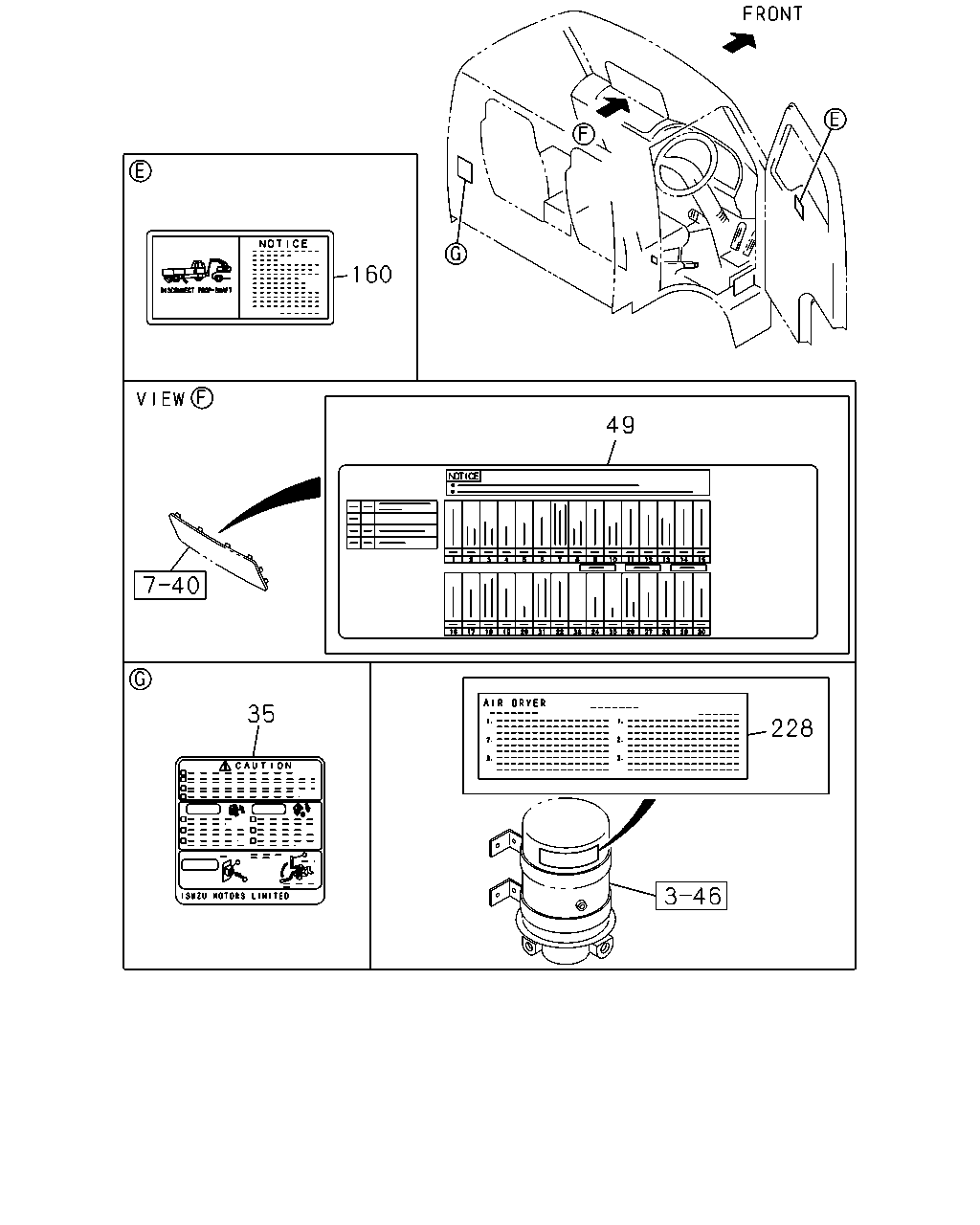

çizim 161085
160 49 35 228
BalonParca AdiParca NoAdetTipApplied Date A B C D
35 PLATE; CAUTION,CAB 8-98017-667-1 01 1 0801- ● ● ● ●
49 PLATE; CAUTION,FUSE BOX 8-98076-221-0 01 1 0801- ● ● ● ●
160 PLATE; CAUTION,TOWING 1-85888-737-1 01 1 0801- ● ● ● ●
228 PLATE; CAUTION,AIR DRYER 1-85887-934-0 01 1 0801-1001 ● ● ● ●
