Sayfa 2-26A - Isuzu EPC

2-26A — MANUAL TRANSMISSION GEAR (#5762) — 229 parça

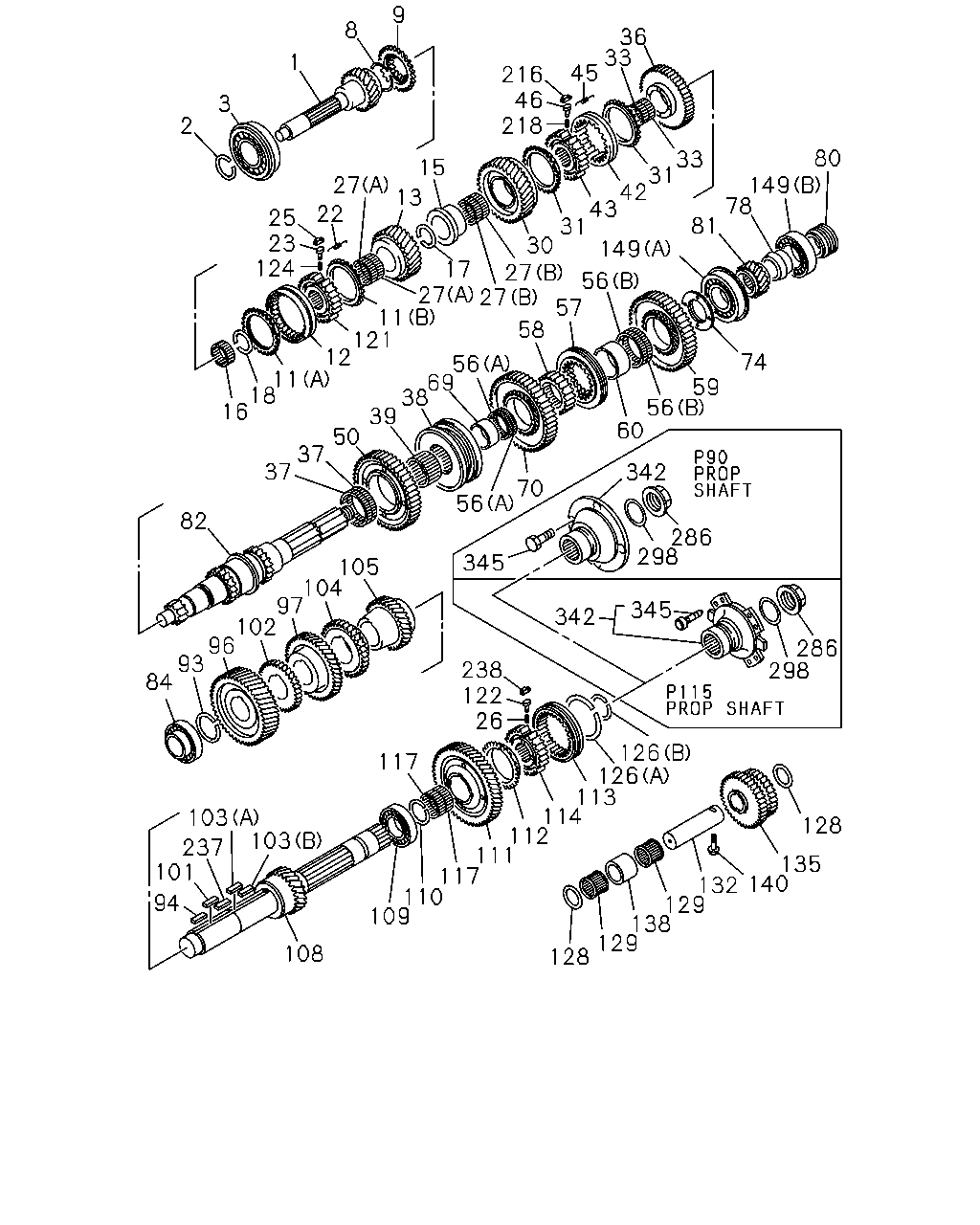

9 8 36 33 45 1 216 46 218 3 2 80 149 78 33 31 42 43 31 30 17 27 27 27 11 121 12 15 27 13 22 25 23 124 81 149 56 57 58 74 56 69 38 39 50 37 37 11 18 16 59 56 60 342 70 56 82 286 298 345 105 104 97 102 96 93 84 345 342 286 298 238 122 26 126 126 113 114 112 111 117 110 109 117 103 103 128 237 101 135 140 132 129 18 129 94 108 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=23	1-33211-612-1	01	1	9603-9802	●
1	SHAFT; TOP GEAR,TRANS EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) Z=23	1-33211-612-1	01	1	9803-	●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-610-1	01	1	9603-		●
1	SHAFT; TOP GEAR,TRANS CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) Z=23	1-33211-739-1	01	1	9905-	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	9603-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	9603-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	9603-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	9603-	●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	9603-	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	9603-	●	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	9603-	●	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	9603-	●	●
11	RING; BLOCK,5TH & 6TH (A) Z=54	1-33265-290-7	01	1	9603-	●	●
11	RING; BLOCK,5TH & 6TH (B)	1-33265-426-0	01	1	9603-9908	●	●
11	RING; BLOCK,5TH & 6TH (B) Z=54	1-33265-544-0	01	1	9909-	●	●
12	SLEEVE; 5TH & 6TH	1-33262-120-1	01	1	9603-	●	●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-418-0	01	1	9603-	●
13	GEAR; 5TH,MAINSHAFT Z=26	1-33253-397-1	01	1	9603-		●
15	COLLAR; 4TH GEAR	1-33234-053-2	01	1	9603-	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	9603-	●	●
17	RING; SNAP,4TH GEAR ID=74.5	1-09588-118-0	01	1	9603-	●	●
18	RING; SNAP,CLU HUB ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9603-	●	●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	9603-	●	●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9603-	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	9603-	●	●
26	SPRING; BLOCK,INSERT D=6.2	1-09580-091-1	03	1	9603-	●
27	BEARING; 4TH GEAR (B) NSK	1-09811-353-0	02	1	9603-9711	●	●
27	BEARING; 4TH GEAR (B) NSK	1-09811-411-0	02	1	9712-	●	●
27	BEARING; 4TH GEAR (A) NSK	1-09811-360-0	02	1	9603-	●	●
27	BEARING; 4TH GEAR (A) NTN	1-09811-391-0	02	1	9603-	●	●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-395-2	01	1	9603-9705	●	●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-635-0	01	1	9706-	●	●
31	RING; BLOCK,3RD & 4TH Z=66	1-33265-376-3	02	1	9603-9608	●	●
31	RING; BLOCK,3RD & 4TH	1-33265-429-0	02	1	9609-9908	●	●
31	RING; BLOCK,3RD & 4TH Z=66	1-33265-545-0	02	1	9909-	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-351-0	02	1	9603-9711	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-409-0	02	1	9712-	●	●
36	GEAR; 3RD,MAINSHAFT Z=40	1-33252-266-2	01	1	9603-	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-352-1	02	1	9603-9711	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-410-0	02	1	9712-	●	●
38	SYNCHRONIZER; LOW & 2ND	1-33260-111-1	01	1	9603-	●	●
39	HUB; CLU,LOW & 2ND	1-33261-163-1	01	1	9603-	●	●
42	SLEEVE	1-33262-133-2	01	1	9603-0010	●	●
42	SLEEVE	1-33262-222-0	01	1	0011-	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=66	1-33261-178-2	01	1	9603-9608	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=66	1-33261-241-0	01	1	9609-	●	●
45	SPRING; BLOCK INSERT	1-09583-171-0	03	1	9603-	●	●
46	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9603-	●	●
50	GEAR; 2ND,MAINSHAFT Z=49	1-33251-204-0	01	1	9603-	●	●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-351-0	02	1	9603-9711	●	●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-409-0	02	1	9712-	●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-352-1	02	1	9603-9711	●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-410-0	02	1	9712-	●	●
57	SLEEVE; REV	1-33262-112-1	01	1	9603-	●	●
58	HUB; CLU,REV	1-33261-164-1	01	1	9603-	●	●
59	GEAR; REV MAINSHAFT Z=38-38	1-33257-044-0	01	1	9603-	●	●
60	COLLAR; REV MAIN	1-33234-078-0	01	1	9603-	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-077-0	01	1	9603-	●	●
70	GEAR; 1ST,MAINSHAFT Z=48	1-33255-043-2	01	1	9603-	●	●
74	WASHER; THRUST,REV GEAR	1-33239-093-1	01	1	9603-	●	●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-069-2	01	1	9603-	●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-070-0	01	1	9603-		●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	9603-	●	●
81	GEAR; 7TH,MAIN Z=22-24	1-33254-008-0	01	1	9603-	●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-209-4	01	1	9603-	●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-210-3	01	1	9603-		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-118-0	01	1	9603-9901	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	9902-	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	9603-	●	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	9603-	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	9603-	●	●
96	GEAR; COUNTER DRIVE Z=45	1-33331-179-0	01	1	9603-	●
96	GEAR; COUNTER DRIVE Z=47	1-33331-175-2	01	1	9603-		●
97	GEAR; 5TH,COUNTER Z=40	1-33338-232-0	01	1	9603-	●
97	GEAR; 5TH,COUNTER Z=42	1-33338-219-1	01	1	9603-		●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	9603-	●	●
102	GEAR; PTO DRIVE,COUNTER Z=38	1-33337-019-0	01	1	9603-	●	●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	01	1	9603-	●	●
103	KEY; COUNTER GEAR (B) L=75.3	1-09735-042-0	01	1	9603-	●	●
104	GEAR; 4TH,COUNTER Z=35	1-33338-218-2	01	1	9603-	●	●
105	GEAR; 3RD,COUNTER Z=29	1-33333-110-1	01	1	9603-	●	●
108	SHAFT; COUNTER Z=21-12	1-33311-222-0	01	1	9603-	●
108	SHAFT; COUNTER Z=21-12	1-33311-180-1	01	1	9603-		●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-021-1	01	1	9603-	●	●
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-163-0	01	1	9603-	●	●
110	RING; SNAP,COUNTER BRG	1-09588-155-0	01	1	9603-	●	●
111	GEAR; 7TH COUNTER SHAFT Z=58	1-33338-225-1	01	1	9603-	●
112	RING; BLOCK,7TH SYN Z=54	1-33265-356-0	01	1	9603-	●
113	SLEEVE; 7TH COUNTER SHAFT	1-33262-121-2	01	1	9603-	●
114	HUB; CLU,7TH	1-33261-177-2	01	1	9603-	●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NSK	1-09811-355-0	02	1	9603-	●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NTN	1-09811-402-0	02	1	9603-	●
121	HUB; CLU,6TH	1-33261-186-2	01	1	9603-	●	●
122	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9603-	●
124	SPRING; PLUNGER,CLU HUB D=6.2	1-09580-091-1	03	1	9603-	●	●
126	RING; SNAP,CLU HUB (A) ID=130 T=2.5	1-09588-040-0	01	1	9603-	●
126	RING; SNAP,CLU HUB (B) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9603-	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	9603-	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-297-0	02	1	9603-	●	●
132	SHAFT; REV	1-33351-016-2	01	1	9603-	●	●
135	GEAR; REV IDLER Z=26-31	1-33361-047-0	01	1	9603-	●	●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	9603-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	9603-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	9603-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	9603-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	9603-	●	●
216	INSERT; CLU HUB,2ND TO 3RD	1-33263-025-2	03	1	9603-	●	●
218	SPRING; INSERT,CLU HUB,2ND TO 3RD D=6.2	1-09580-091-1	03	1	9603-	●	●
237	KEY; 5TH GEAR L=50.0	1-09735-010-0	01	1	9603-	●	●
238	INSERT	1-33263-025-2	03	1	9603-	●
286	NUT; LK,MAINSHAFT M46	1-09449-062-0	01	1	9603-	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	9603-	●	●
342	FLANGE; OUTPUT	1-37243-171-4	01	1	9603-9802	●
342	FLANGE; OUTPUT EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-37243-171-4	01	1	9803-	●
342	FLANGE; OUTPUT CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-37243-203-0	01	1	9603-	●
342	FLANGE; OUTPUT	1-37243-203-0	01	1	9603-		●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	9603-9802	●
345	BOLT; FLANGE TO YOKE EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M16X51 W/MARK	1-46219-086-0	04	1	9803-	●
345	BOLT; FLANGE TO YOKE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-46219-069-0	04	1	9603-	●
345	BOLT; FLANGE TO YOKE	1-46219-069-0	04	1	9603-		●

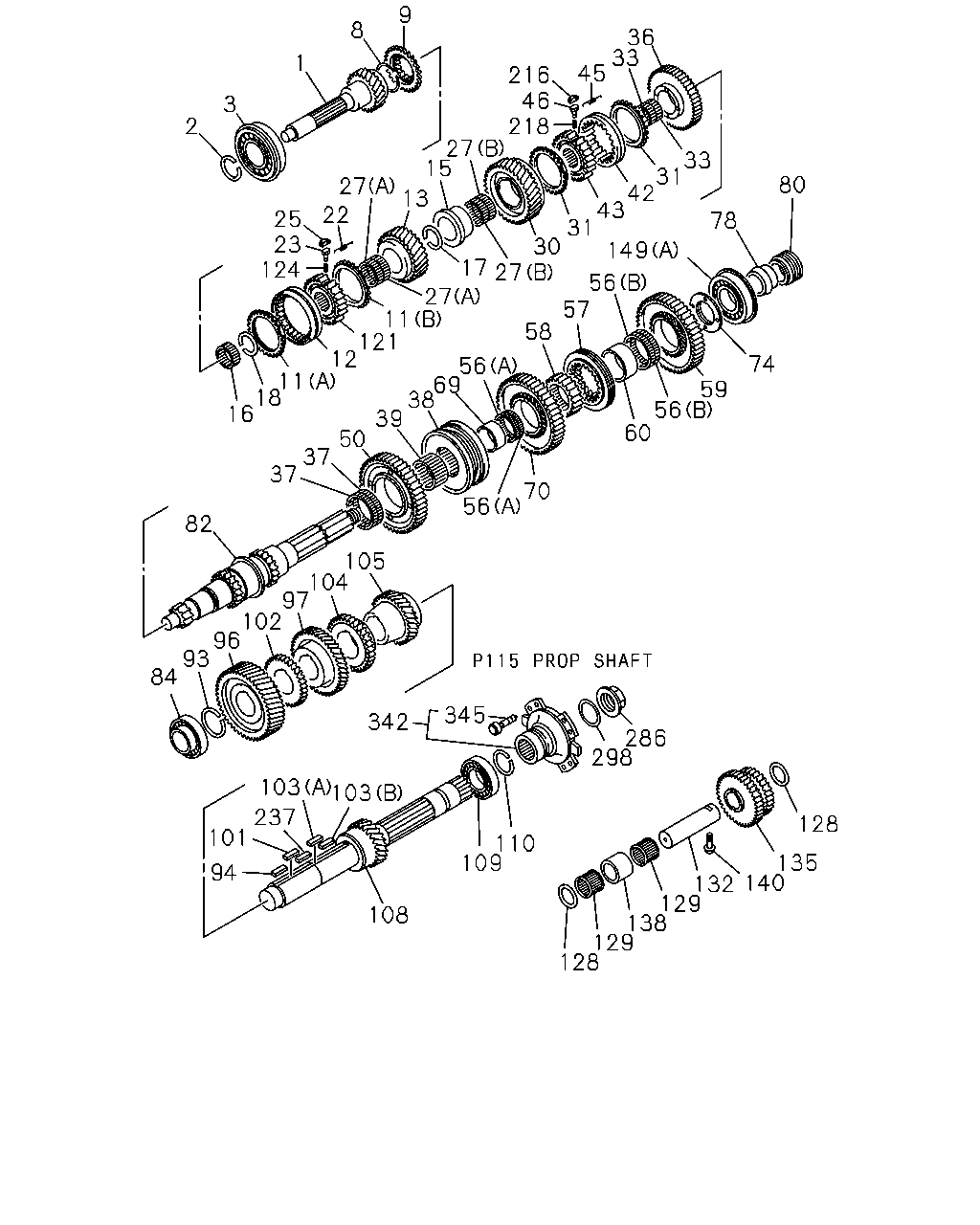

9 8 36 33 45 1 216 46 218 27 15 3 2 33 31 42 43 31 30 17 27 80 27 13 22 25 23 124 78 149 56 57 27 11 121 12 58 74 56 69 38 39 50 37 37 11 18 16 59 56 60 70 56 82 105 104 97 102 96 93 84 345 342 286 298 103 103 237 128 101 110 109 135 140 94 132 129 138 129 128 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=23	1-33211-612-1	01	1	9603-9802	●
1	SHAFT; TOP GEAR,TRANS EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) Z=23	1-33211-612-1	01	1	9803-	●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-610-1	01	1	9603-		●
1	SHAFT; TOP GEAR,TRANS CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) Z=23	1-33211-739-1	01	1	9905-	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	9603-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	9603-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	9603-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	9603-	●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	9603-	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	9603-	●	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	9603-	●	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	9603-	●	●
11	RING; BLOCK,5TH & 6TH (A) Z=54	1-33265-290-7	01	1	9603-	●	●
11	RING; BLOCK,5TH & 6TH (B)	1-33265-426-0	01	1	9603-9908	●	●
11	RING; BLOCK,5TH & 6TH (B) Z=54	1-33265-544-0	01	1	9909-	●	●
12	SLEEVE; 5TH & 6TH	1-33262-120-1	01	1	9603-	●	●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-418-0	01	1	9603-	●
13	GEAR; 5TH,MAINSHAFT Z=26	1-33253-397-1	01	1	9603-		●
15	COLLAR; 4TH GEAR	1-33234-053-2	01	1	9603-	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	9603-	●	●
17	RING; SNAP,4TH GEAR ID=74.5	1-09588-118-0	01	1	9603-	●	●
18	RING; SNAP,CLU HUB ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9603-	●	●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	9603-	●	●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9603-	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	9603-	●	●
27	BEARING; 4TH GEAR (B) NSK	1-09811-353-0	02	1	9603-9711	●	●
27	BEARING; 4TH GEAR (B) NSK	1-09811-411-0	02	1	9712-	●	●
27	BEARING; 4TH GEAR (A) NSK	1-09811-360-0	02	1	9603-	●	●
27	BEARING; 4TH GEAR (A) NTN	1-09811-391-0	02	1	9603-	●	●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-395-2	01	1	9603-9705	●	●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-635-0	01	1	9706-	●	●
31	RING; BLOCK,3RD & 4TH Z=66	1-33265-376-3	02	1	9603-9608	●	●
31	RING; BLOCK,3RD & 4TH	1-33265-429-0	02	1	9609-9908	●	●
31	RING; BLOCK,3RD & 4TH Z=66	1-33265-545-0	02	1	9909-	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-351-0	02	1	9603-9711	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-409-0	02	1	9712-	●	●
36	GEAR; 3RD,MAINSHAFT Z=40	1-33252-266-2	01	1	9603-	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-352-1	02	1	9603-9711	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-410-0	02	1	9712-	●	●
38	SYNCHRONIZER; LOW & 2ND	1-33260-111-1	01	1	9603-	●	●
39	HUB; CLU,LOW & 2ND	1-33261-163-1	01	1	9603-	●	●
42	SLEEVE	1-33262-133-2	01	1	9603-0010	●	●
42	SLEEVE	1-33262-222-0	01	1	0011-	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=66	1-33261-178-2	01	1	9603-9608	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=66	1-33261-241-0	01	1	9609-	●	●
45	SPRING; BLOCK INSERT	1-09583-171-0	03	1	9603-	●	●
46	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9603-	●	●
50	GEAR; 2ND,MAINSHAFT Z=49	1-33251-204-0	01	1	9603-	●	●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-351-0	02	1	9603-9711	●	●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-409-0	02	1	9712-	●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-352-1	02	1	9603-9711	●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-410-0	02	1	9712-	●	●
57	SLEEVE; REV	1-33262-112-1	01	1	9603-	●	●
58	HUB; CLU,REV	1-33261-164-1	01	1	9603-	●	●
59	GEAR; REV MAINSHAFT Z=38-38	1-33257-044-0	01	1	9603-	●	●
60	COLLAR; REV MAIN	1-33234-078-0	01	1	9603-	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-077-0	01	1	9603-	●	●
70	GEAR; 1ST,MAINSHAFT Z=48	1-33255-043-2	01	1	9603-	●	●
74	WASHER; THRUST,REV GEAR	1-33239-093-1	01	1	9603-	●	●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-069-2	01	1	9603-	●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-070-0	01	1	9603-		●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	9603-	●	●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-209-4	01	1	9603-	●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-210-3	01	1	9603-		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-118-0	01	1	9603-9901	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	9902-	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	9603-	●	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	9603-	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	9603-	●	●
96	GEAR; COUNTER DRIVE Z=45	1-33331-179-0	01	1	9603-	●
96	GEAR; COUNTER DRIVE Z=47	1-33331-175-2	01	1	9603-		●
97	GEAR; 5TH,COUNTER Z=40	1-33338-232-0	01	1	9603-	●
97	GEAR; 5TH,COUNTER Z=42	1-33338-219-1	01	1	9603-		●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	9603-	●	●
102	GEAR; PTO DRIVE,COUNTER Z=38	1-33337-019-0	01	1	9603-	●	●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	01	1	9603-	●	●
103	KEY; COUNTER GEAR (B) L=75.3	1-09735-042-0	01	1	9603-	●	●
104	GEAR; 4TH,COUNTER Z=35	1-33338-218-2	01	1	9603-	●	●
105	GEAR; 3RD,COUNTER Z=29	1-33333-110-1	01	1	9603-	●	●
108	SHAFT; COUNTER Z=21-12	1-33311-222-0	01	1	9603-	●
108	SHAFT; COUNTER Z=21-12	1-33311-180-1	01	1	9603-		●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-021-1	01	1	9603-	●	●
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-163-0	01	1	9603-	●	●
110	RING; SNAP,COUNTER BRG	1-09588-155-0	01	1	9603-	●	●
121	HUB; CLU,6TH	1-33261-186-2	01	1	9603-	●	●
124	SPRING; PLUNGER,CLU HUB D=6.2	1-09580-091-1	03	1	9603-	●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	9603-	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-297-0	02	1	9603-	●	●
132	SHAFT; REV	1-33351-016-2	01	1	9603-	●	●
135	GEAR; REV IDLER Z=26-31	1-33361-047-0	01	1	9603-	●	●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	9603-	●	●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	9603-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	9603-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	9603-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	9603-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	9603-	●	●
216	INSERT; CLU HUB,2ND TO 3RD	1-33263-025-2	03	1	9603-	●	●
218	SPRING; INSERT,CLU HUB,2ND TO 3RD D=6.2	1-09580-091-1	03	1	9603-	●	●
237	KEY; 5TH GEAR L=50.0	1-09735-010-0	01	1	9603-	●	●
286	NUT; LK,MAINSHAFT M46	1-09449-062-0	01	1	9603-	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	9603-	●	●
342	FLANGE; OUTPUT	1-37243-171-4	01	1	9603-9802	●
342	FLANGE; OUTPUT EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-37243-171-4	01	1	9803-	●
342	FLANGE; OUTPUT CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-37243-203-0	01	1	9603-	●
342	FLANGE; OUTPUT	1-37243-203-0	01	1	9603-		●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	9603-9802	●
345	BOLT; FLANGE TO YOKE EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M16X51 W/MARK	1-46219-086-0	04	1	9803-	●
345	BOLT; FLANGE TO YOKE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-46219-069-0	04	1	9603-	●
345	BOLT; FLANGE TO YOKE	1-46219-069-0	04	1	9603-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
