Sayfa 6-75 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11143 - FXR/GXR EXC.EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶

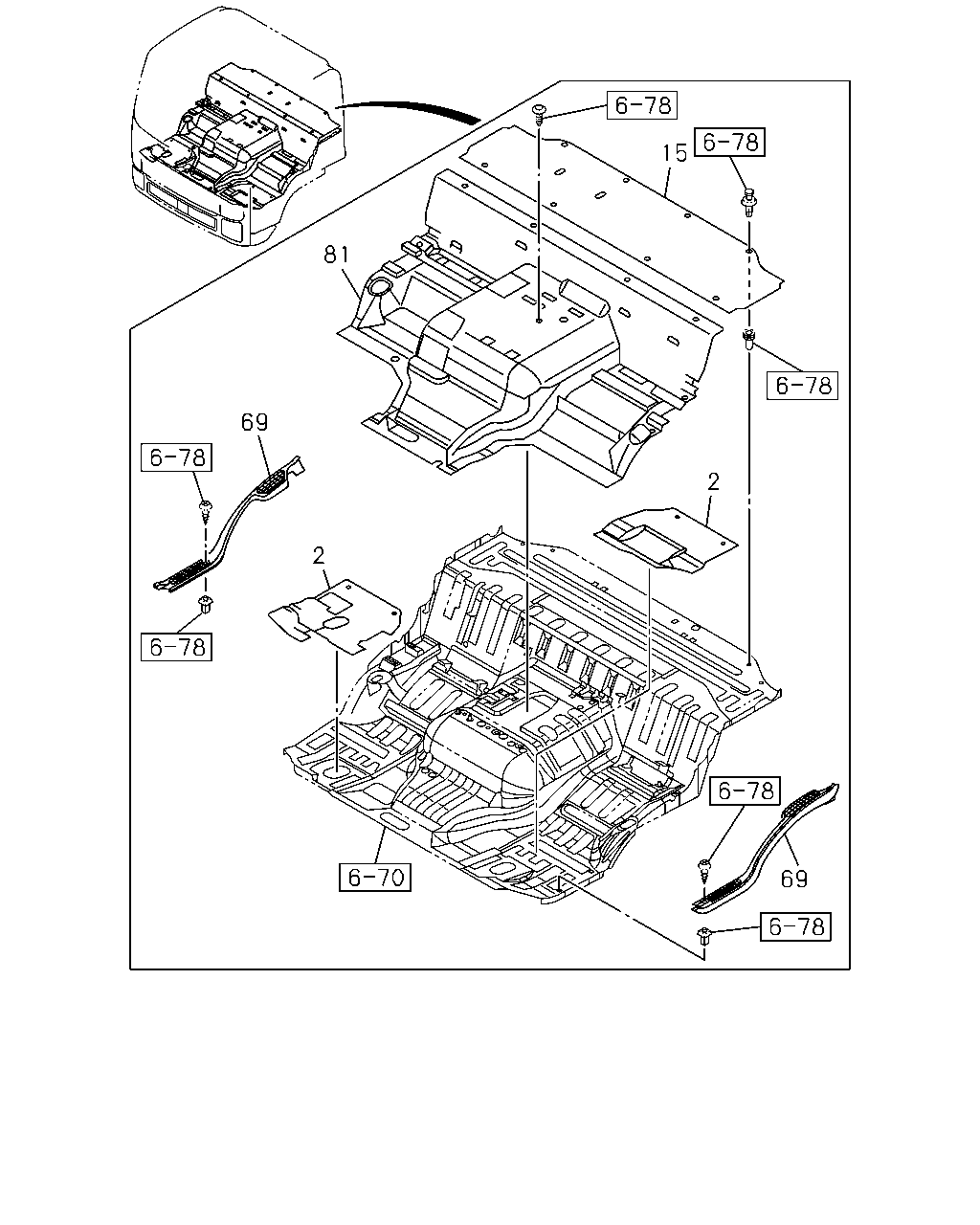

6-75 — MAT AND CARPET (#57616) — 33 parça

15 81 69 2 2 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	MAT; FLOOR GRAY	8-97413-108-1	01	1	0801-0801	●	●	●
2	MAT; FLOOR DELUXE CARPET<BF2> GRAY	8-97413-108-1	01	1	0802-1006	●	●	●	●
2	MAT; FLOOR DELUXE CARPET<BF2> DARK GRAY	8-97421-808-0	01	1	1007-	●	●	●	●
2	MAT; FLOOR GRAY	8-97413-109-1	01	1	0801-0801	●	●	●
2	MAT; FLOOR DELUXE CARPET<BF2> GRAY	8-97413-109-1	01	1	0802-1006	●	●	●	●
2	MAT; FLOOR DELUXE CARPET<BF2> DARK GRAY	8-97421-810-0	01	1	1007-	●	●	●	●
2	MAT; FLOOR GRAY	8-97413-132-2	01	1	0801-0801				●
2	MAT; FLOOR VINYL CARPET<B30> GRAY	8-97413-132-2	01	1	0802-	●	●	●	●
2	MAT; FLOOR GRAY	8-97413-133-1	01	1	0801-0801				●
2	MAT; FLOOR VINYL CARPET<B30> GRAY	8-97413-133-1	01	1	0802-	●	●	●	●
15	MAT; FLOOR REAR EXC. MATTRESS SLEEPER CAB<E40> GRAY	8-97407-397-0	01	1	0801-0801	●	●	●
15	MAT; FLOOR REAR DELUXE CARPET<BF2> EXC. MATTRESS SLEEPER CAB<E40> GRAY	8-97407-397-0	01	1	0802-1006	●	●	●	●
15	MAT; FLOOR REAR DELUXE CARPET<BF2> EXC. MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97418-951-0	01	1	1007-1112	●	●	●	●
15	MAT; FLOOR REAR DELUXE CARPET<BF2> EXC. MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97418-951-0	01	1	1201-	●	●	●
15	MAT; FLOOR REAR DELUXE CARPET<BF2> DARK GRAY	8-97418-951-0	01	1	1201-				●
15	MAT; FLOOR REAR EXC. MATTRESS SLEEPER CAB<E40> GRAY	8-97407-404-1	01	1	0801-0801				●
15	MAT; FLOOR REAR VINYL CARPET<B30> EXC. MATTRESS SLEEPER CAB<E40> GRAY	8-97407-404-1	01	1	0802-1112	●	●	●	●
15	MAT; FLOOR REAR VINYL CARPET<B30> EXC. MATTRESS SLEEPER CAB<E40> GRAY	8-97407-404-1	01	1	1201-	●	●	●
15	MAT; FLOOR REAR VINYL CARPET<B30> GRAY	8-97407-404-1	01	1	1201-				●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97407-412-1	01	1	0801-	●	●	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97407-413-1	01	1	0801-	●	●	●	●
81	MAT; FLOOR,CENTER VINYL CARPET<B30> GRAY	8-97413-083-6	01	1	0802-	●
81	MAT; FLOOR,CENTER VINYL CARPET<B30> DRIVER ISRINGHAUSEN SEAT(SJA) GRAY	8-97413-083-6	01	1	0802-		●
81	MAT; FLOOR,CENTER VINYL CARPET<B30> EXC. DRIVER ISRINGHAUSEN SEAT(SJA) GRAY	8-97413-081-6	01	1	0802-		●
81	MAT; FLOOR,CENTER VINYL CARPET<B30> GRAY	8-97413-084-5	01	1	0802-			●
81	MAT; FLOOR,CENTER GRAY	8-97413-079-4	01	1	0801-0801	●	●
81	MAT; FLOOR,CENTER DELUXE CARPET<BF2> GRAY	8-97413-079-4	01	1	0802-1006	●	●
81	MAT; FLOOR,CENTER DELUXE CARPET<BF2> DARK GRAY	8-97421-806-0	01	1	1007-	●	●
81	MAT; FLOOR,CENTER GRAY	8-97413-080-3	01	1	0801-0801			●
81	MAT; FLOOR,CENTER DELUXE CARPET<BF2> GRAY	8-97413-080-3	01	1	0802-1006			●	●
81	MAT; FLOOR,CENTER DELUXE CARPET<BF2>	8-97421-807-0	01	1	1007-			●	●
81	MAT; FLOOR,CENTER GRAY	8-97413-082-4	01	1	0801-0801				●
81	MAT; FLOOR,CENTER VINYL CARPET<B30> GRAY	8-97413-082-5	01	1	0802-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
