6-60 — ROOF PANEL (#57613) — 16 parça

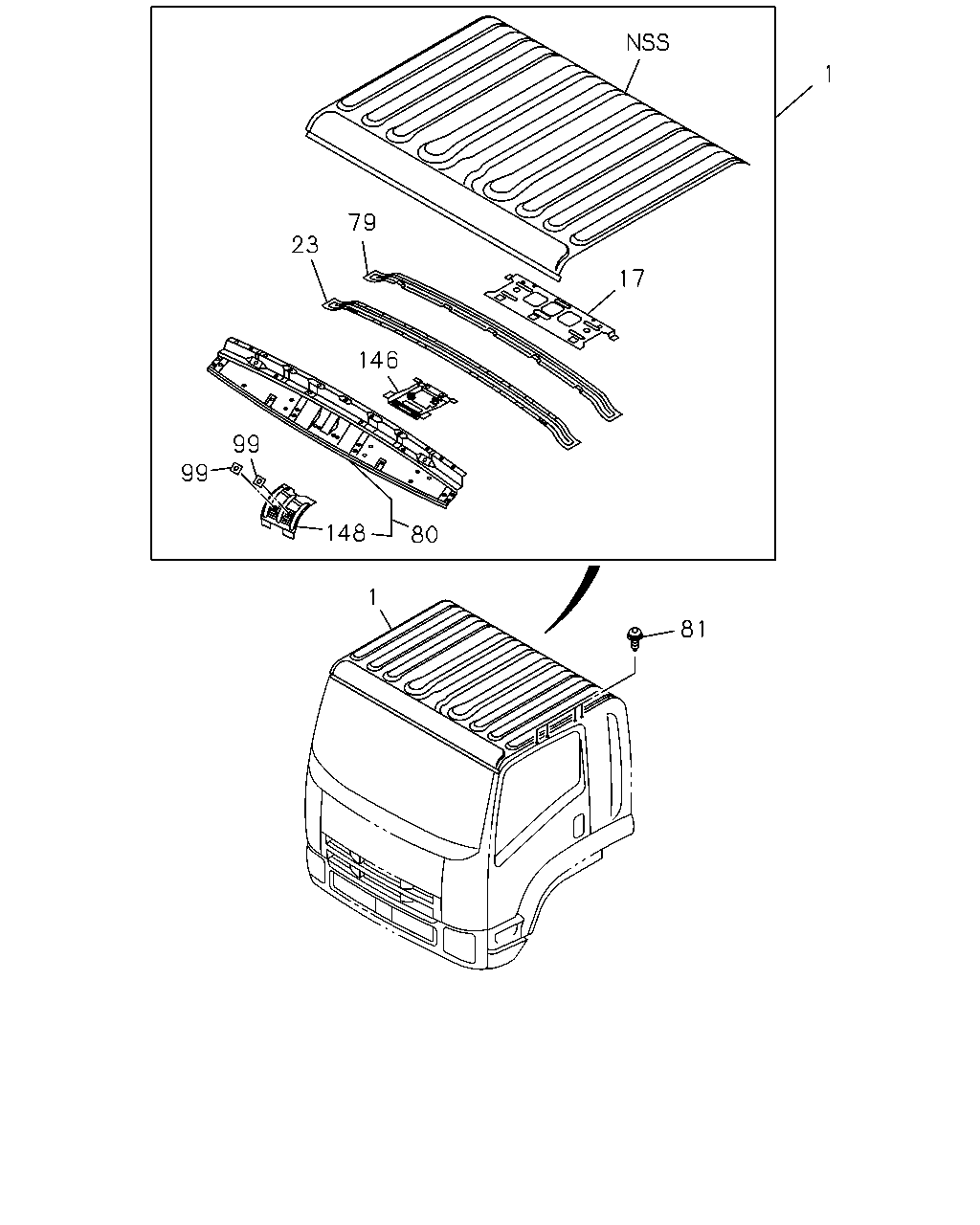

çizim 161064
1 79 23 17 146 99 99 148 80 1 81
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PANEL; ROOF 8-98152-805-0 01 1 1002-1308 ●
1 PANEL; ROOF 8-98246-477-0 01 1 1309- ●
1 PANEL; ROOF 8-97584-177-6 01 1 0801-1001 ● ● ● ●
1 PANEL; ROOF 8-97584-177-6 01 1 1002-1308 ● ● ●
1 PANEL; ROOF 8-98196-922-0 01 1 1309- ● ● ●
17 REINFORCEMENT; ROOF PNL CENTER 8-97584-203-5 01 1 0801-1001 ● ● ● ●
17 REINFORCEMENT; ROOF PNL CENTER 8-97584-203-5 01 1 1002- ● ● ●
23 REINFORCEMENT; ROOF PANEL,FRT 8-98019-316-0 01 1 0801- ● ● ● ●
79 REINFORCEMENT; ROOF PANEL,RR 8-97584-200-1 01 1 0801- ● ● ● ●
80 PANEL; HEADER,ROOF 8-97584-192-3 01 1 0801-1308 ● ● ● ●
80 PANEL; HEADER,ROOF 8-98196-921-0 01 1 1309- ● ● ● ●
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98028-744-0 08 1 0801-0910 ● ● ● ●
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98141-874-0 08 1 0911- ● ● ● ●
99 SEAL; BODY,METAL
30X30 ID=20 T=0.7 		1-61281-380-2 02 1 0801- ● ● ● ●
146 REINFORCEMENT; ROOM LAMP 8-98075-827-0 01 1 0801- ● ● ● ●
148 REINFORCEMENT; MIRROR 8-97411-015-1 01 1 0801- ● ● ● ●
