5-20 — BATTERY CARRIER (#5761) — 80 parça

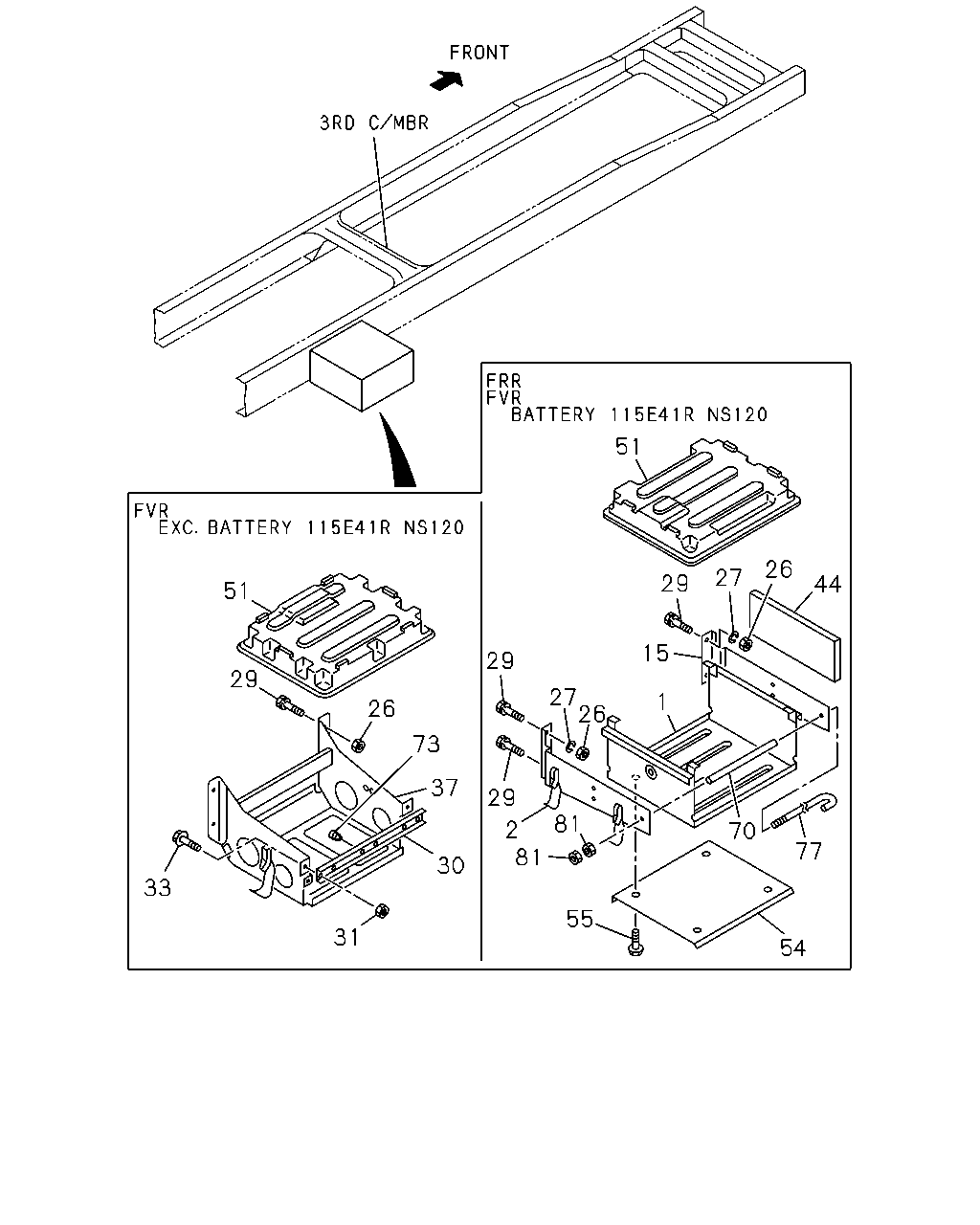

51 26 27 29 44 51 15 29 29 27 26 1 26 73 37 29 81 2 81 70 77 30 33 55 31 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CARRIER; BATTERY WB 4200MM(42W)	1-53613-507-0	01	1	0611-	●
1	CARRIER; BATTERY	9-53613-584-3	01	1	0611-0611	●	●
1	CARRIER; BATTERY WB 4800MM(48W),WB 5500MM(55W)	9-53613-584-3	01	1	0611-	●
1	CARRIER; BATTERY BAT 115E41R NS120<W73>	9-53613-584-3	01	1	0611-		●
2	BRACKET; BATTERY	1-53613-339-3	01	1	0611-	●
2	BRACKET; BATTERY BAT 115E41R NS120<W73>	1-53613-339-3	01	1	0611-		●
15	BRACKET; BATTERY	1-53613-340-3	01	1	0611-	●
15	BRACKET; BATTERY BAT 115E41R NS120<W73>	1-53613-340-3	01	1	0611-		●
26	NUT; BRKT EXC. BAT 115E41R NS120<W73> M10	0-91110-510-0	04	1	0611-		●
26	NUT; BRKT M10	9-09110-510-0	04	1	9811-0512	●	●
26	NUT; BRKT M10	0-91110-510-0	04	1	0601-0610	●	●
26	NUT; BRKT M14	0-91110-514-0	04	1	0611-	●
26	NUT; BRKT BAT 115E41R NS120<W73> M14	0-91110-514-0	04	1	0611-		●
27	WASHER; LK,BRKT ID=14.2	0-91510-514-0	04	1	0611-	●
27	WASHER; LK,BRKT BAT 115E41R NS120<W73> ID=14.2	0-91510-514-0	04	1	0611-		●
29	BOLT; BRKT TO FRAME EXC. BAT 115E41R NS120<W73> M10X35 FLANGE	0-28651-035-0	04	1	0611-		●
29	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28681-035-0	04	1	9811-0512	●	●
29	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28651-035-0	04	1	0601-0610	●	●
29	BOLT; BRKT TO FRAME M14X35	0-20851-435-0	04	1	0611-	●
29	BOLT; BRKT TO FRAME BAT 115E41R NS120<W73> M14X35	0-20851-435-0	04	1	0611-		●
30	PLATE; BATTERY	1-53616-046-3	01	1	9811-0610	●	●
30	PLATE; BATTERY EXC. BAT 115E41R NS120<W73>	1-53616-046-3	01	1	0611-		●
31	NUT; PLATE M8	9-09110-408-0	02	1	9811-0512	●	●
31	NUT; PLATE M8	0-91110-508-0	02	1	0601-0610	●	●
31	NUT; PLATE EXC. BAT 115E41R NS120<W73> M8	0-91110-508-0	02	1	0611-		●
33	BOLT; PLATE TO BRKT M8X20 FLANGE	0-28680-820-0	02	1	9811-0512	●	●
33	BOLT; PLATE TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-0610	●	●
33	BOLT; PLATE TO BRKT EXC. BAT 115E41R NS120<W73> M8X20 FLANGE	0-28650-820-0	02	1	0611-		●
37	BRACKET; BATTERY TAI	8-97530-381-0	01	1	9811-0610	●	●
37	BRACKET; BATTERY EXC. BAT 115E41R NS120<W73>	1-53613-508-0	01	1	0611-		●
44	SPACER; BATTERY	1-53619-006-0	02	1	0611-	●
44	SPACER; BATTERY BAT 115E41R NS120<W73>	1-53619-006-0	02	1	0611-		●
51	COVER; BATTERY EXC. BAT 115E41R NS120<W73>	1-53612-019-1	01	1	0611-		●
51	COVER; BATTERY TAI	8-97530-613-0	01	1	9811-0610	●	●
51	COVER; BATTERY	1-53612-029-1	01	1	0611-	●
51	COVER; BATTERY BAT 115E41R NS120<W73>	1-53612-029-1	01	1	0611-		●
54	PROTECTOR; HEAT,BATTERY TAI	8-97530-666-0	01	1	9811-0610		●
54	PROTECTOR; HEAT,BATTERY WB 4200MM(42W)	1-53619-140-1	01	1	0611-	●
55	BOLT; HEAT PROTECTOR M8X20 FLANGE	0-28680-820-0	02	1	9811-0512		●
55	BOLT; HEAT PROTECTOR M8X20 FLANGE	0-28650-820-0	02	1	0601-0610		●
55	BOLT; HEAT PROTECTOR WB 4200MM(42W) M8X10 FLANGE	0-28050-810-0	04	1	0611-	●
70	SPACER; BATTERY CARRIER	1-53619-023-0	01	1	0611-	●
70	SPACER; BATTERY CARRIER BAT 115E41R NS120<W73>	1-53619-023-0	01	1	0611-		●
73	RUBBER; CUSHION,PLATE	1-09337-002-0	04	1	9811-0610	●	●
73	RUBBER; CUSHION,PLATE EXC. BAT 115E41R NS120<W73>	1-09337-002-0	04	1	0611-		●
77	BOLT; BATTERY BRKT,FRT TO RR	1-53616-101-0	02	1	0611-	●
77	BOLT; BATTERY BRKT,FRT TO RR BAT 115E41R NS120<W73>	1-53616-101-0	02	1	0611-		●
81	NUT; BATTERY M8	0-91110-508-0	04	1	0611-	●
81	NUT; BATTERY BAT 115E41R NS120<W73> M8	0-91110-508-0	04	1	0611-		●

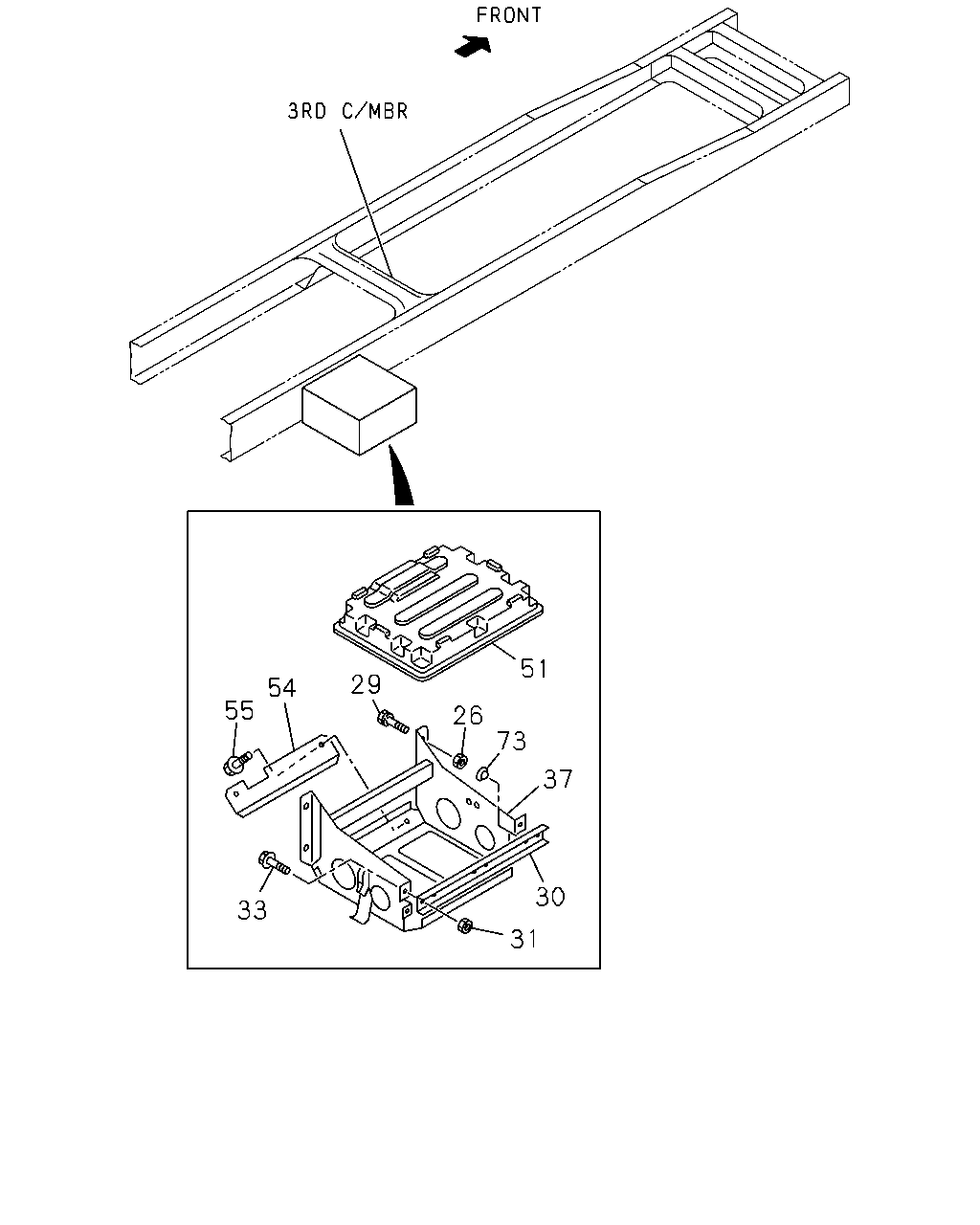

51 29 54 55 26 73 37 30 33 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	NUT; BRKT EXC. BAT 115E41R NS120<W73> M10	0-91110-510-0	04	1	0611-		●
26	NUT; BRKT M10	9-09110-510-0	04	1	9811-0512	●	●
26	NUT; BRKT M10	0-91110-510-0	04	1	0601-0610	●	●
26	NUT; BRKT M14	0-91110-514-0	04	1	0611-	●
26	NUT; BRKT BAT 115E41R NS120<W73> M14	0-91110-514-0	04	1	0611-		●
29	BOLT; BRKT TO FRAME EXC. BAT 115E41R NS120<W73> M10X35 FLANGE	0-28651-035-0	04	1	0611-		●
29	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28681-035-0	04	1	9811-0512	●	●
29	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28651-035-0	04	1	0601-0610	●	●
29	BOLT; BRKT TO FRAME M14X35	0-20851-435-0	04	1	0611-	●
29	BOLT; BRKT TO FRAME BAT 115E41R NS120<W73> M14X35	0-20851-435-0	04	1	0611-		●
30	PLATE; BATTERY	1-53616-046-3	01	1	9811-0610	●	●
30	PLATE; BATTERY EXC. BAT 115E41R NS120<W73>	1-53616-046-3	01	1	0611-		●
31	NUT; PLATE M8	9-09110-408-0	02	1	9811-0512	●	●
31	NUT; PLATE M8	0-91110-508-0	02	1	0601-0610	●	●
31	NUT; PLATE EXC. BAT 115E41R NS120<W73> M8	0-91110-508-0	02	1	0611-		●
33	BOLT; PLATE TO BRKT M8X20 FLANGE	0-28680-820-0	02	1	9811-0512	●	●
33	BOLT; PLATE TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-0610	●	●
33	BOLT; PLATE TO BRKT EXC. BAT 115E41R NS120<W73> M8X20 FLANGE	0-28650-820-0	02	1	0611-		●
37	BRACKET; BATTERY TAI	8-97530-381-0	01	1	9811-0610	●	●
37	BRACKET; BATTERY EXC. BAT 115E41R NS120<W73>	1-53613-508-0	01	1	0611-		●
51	COVER; BATTERY EXC. BAT 115E41R NS120<W73>	1-53612-019-1	01	1	0611-		●
51	COVER; BATTERY TAI	8-97530-613-0	01	1	9811-0610	●	●
51	COVER; BATTERY	1-53612-029-1	01	1	0611-	●
51	COVER; BATTERY BAT 115E41R NS120<W73>	1-53612-029-1	01	1	0611-		●
54	PROTECTOR; HEAT,BATTERY TAI	8-97530-666-0	01	1	9811-0610		●
54	PROTECTOR; HEAT,BATTERY WB 4200MM(42W)	1-53619-140-1	01	1	0611-	●
55	BOLT; HEAT PROTECTOR M8X20 FLANGE	0-28680-820-0	02	1	9811-0512		●
55	BOLT; HEAT PROTECTOR M8X20 FLANGE	0-28650-820-0	02	1	0601-0610		●
55	BOLT; HEAT PROTECTOR WB 4200MM(42W) M8X10 FLANGE	0-28050-810-0	04	1	0611-	●
73	RUBBER; CUSHION,PLATE	1-09337-002-0	04	1	9811-0610	●	●
73	RUBBER; CUSHION,PLATE EXC. BAT 115E41R NS120<W73>	1-09337-002-0	04	1	0611-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
