4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#57601) — 55 parça

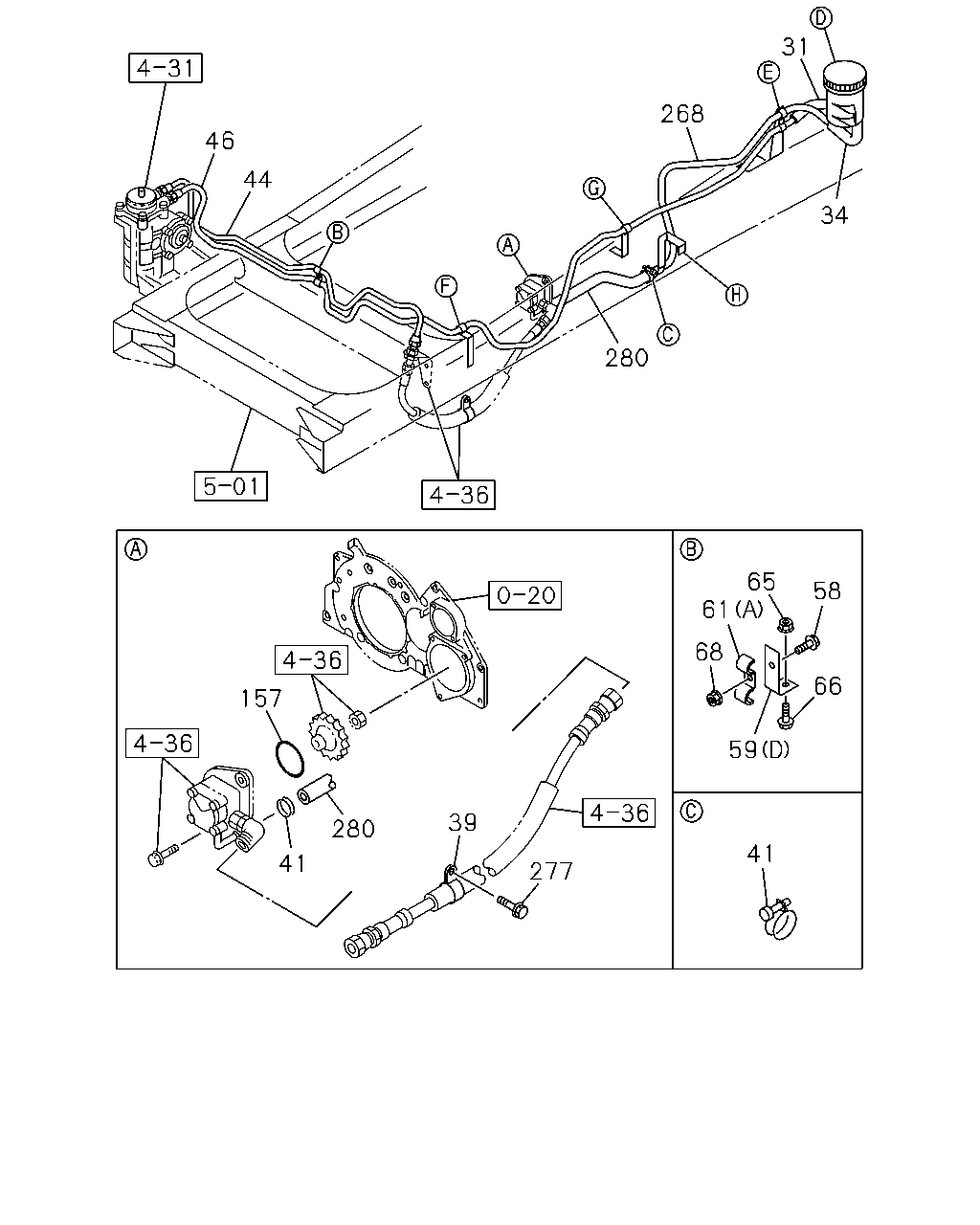

31 268 46 44 34 280 65 61 58 68 66 157 59 39 280 41 41 277

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	HOSE; P/S OIL TANK,INL	8-98093-500-0	01	1	1110-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1110-
39	CLIP; FLEX HOSE ID=40	8-94226-553-0	01	1	1110-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1110-
44	PIPE; OIL,P/S UNIT TO NIPPLE	8-98179-129-0	01	1	1110-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2697	8-98178-347-0	01	1	1110-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1110-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	1110-
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	1110-
59	BRACKET; CLIP,OIL PIPE (D)	1-47471-051-0	01	1	1110-
59	BRACKET; CLIP,OIL PIPE (B)	8-98144-992-1	01	1	1110-
59	BRACKET; CLIP,OIL PIPE (A)	8-98189-356-0	01	1	1110-
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1110-
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1110-
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	01	1	1110-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1110-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	1110-
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	1110-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1110-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	1110-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98199-731-0	01	1	1110-
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	01	1	1110-
280	HOSE; P/S OIL PUMP,INL	8-98094-167-0	01	1	1110-

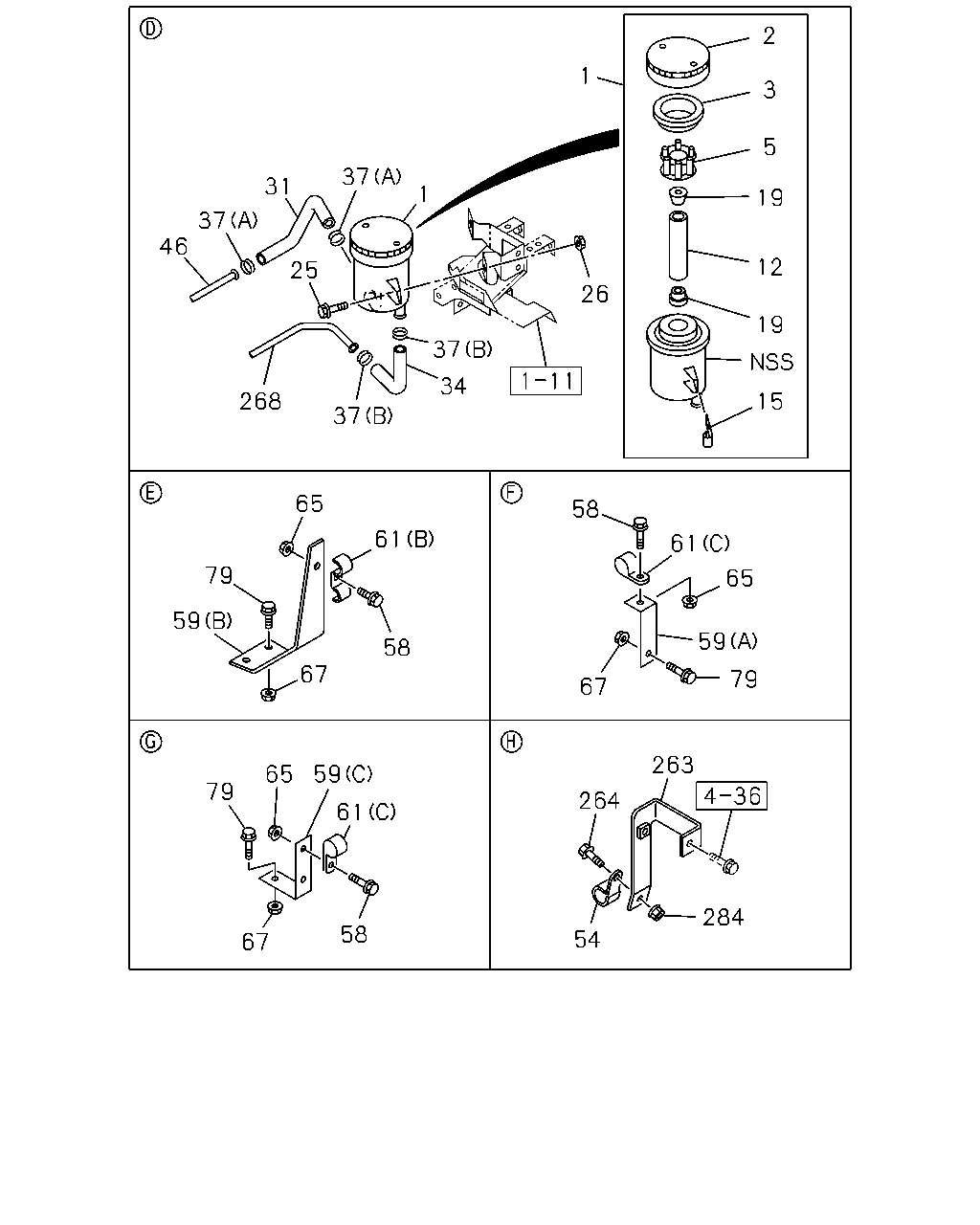

2 1 3 5 37 31 1 19 37 46 12 25 26 19 37 34 268 15 37 65 58 61 61 79 65 59 59 58 67 79 67 263 65 59 79 264 61 284 58 54 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1110-
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1110-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1110-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1110-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1110-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1110-
19	SEAT; OIL TANK	1-21249-004-0	02	1	1110-
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	1110-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1110-
31	HOSE; P/S OIL TANK,INL	8-98093-500-0	01	1	1110-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1110-
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1110-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1110-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2697	8-98178-347-0	01	1	1110-
54	CLIP; OIL PIPE ID=19 L=20	0-95235-836-0	01	1	1110-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1110-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	1110-
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	1110-
59	BRACKET; CLIP,OIL PIPE (D)	1-47471-051-0	01	1	1110-
59	BRACKET; CLIP,OIL PIPE (B)	8-98144-992-1	01	1	1110-
59	BRACKET; CLIP,OIL PIPE (A)	8-98189-356-0	01	1	1110-
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1110-
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1110-
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	01	1	1110-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1110-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	1110-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	1110-
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	1110-
263	BRACKET; P/S PIPE	8-98079-444-0	01	1	1110-
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	1110-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98199-731-0	01	1	1110-
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	1110-
