◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10775 - FRR/FVR(TAIWAN) ▶ 5 - Frame, Cab Mounting ▶ 5-15 - CAB MOUNTING; CAB SIDE ▶
5-15 — CAB MOUNTING; CAB SIDE (#5760) — 86 parça

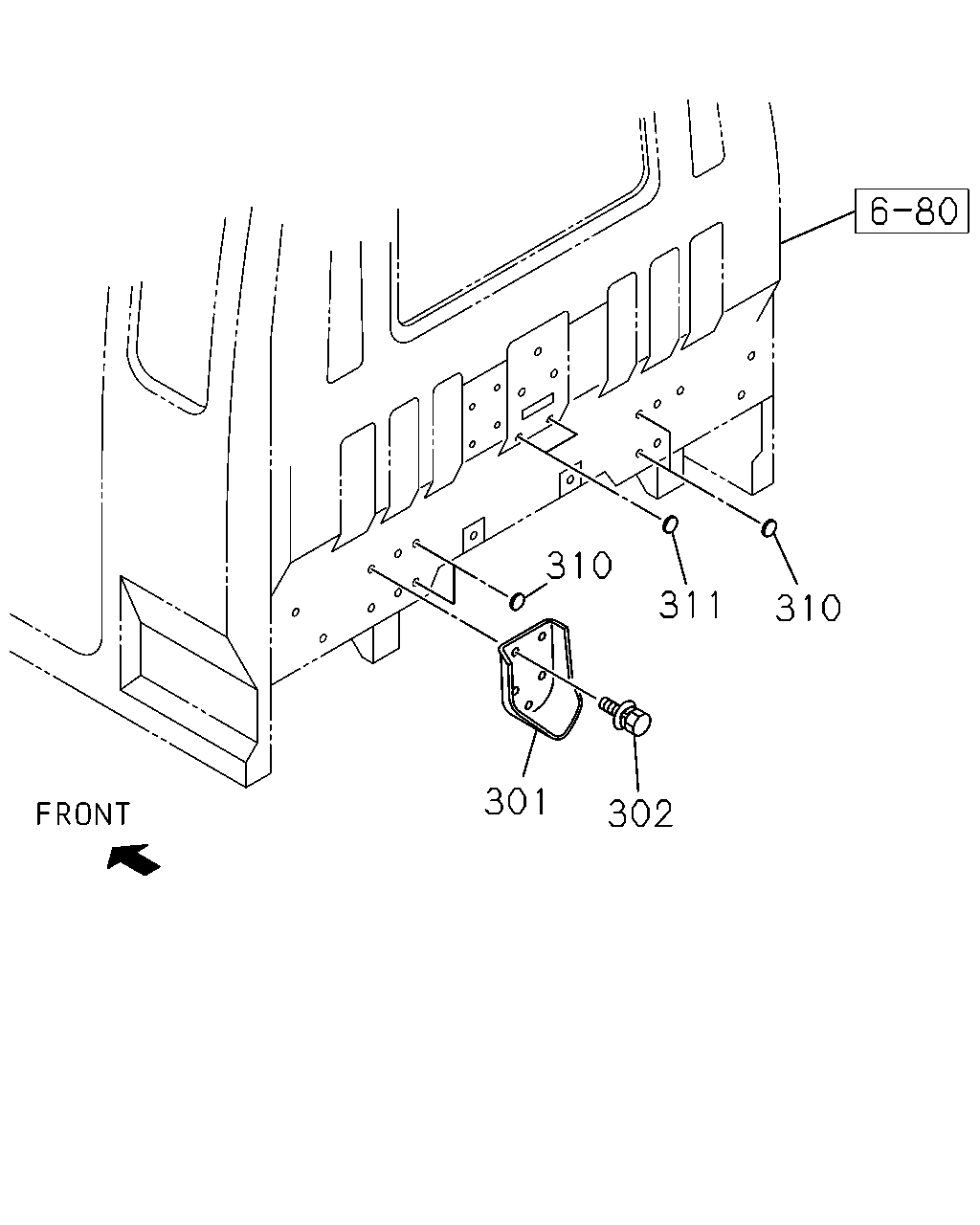

çizim 98662
310 311 310 301 302
BalonParca AdiParca NoAdetTipApplied Date A B
301 BRACKET; RR MTG,CAB 1-62580-234-2 02 1 9811-0012 ●
301 BRACKET; RR MTG,CAB 8-97865-122-0 02 1 0101- ●
301 BRACKET; RR MTG,CAB 1-62580-283-3 01 1 9811- ●
301 BRACKET; RR MTG,CAB 1-62580-282-3 01 1 9811- ●
302 BOLT; BRKT,CAB
M8X25 W/LK&PL WASHER TAI 		1-09980-526-0 10 1 9811-0012 ●
302 BOLT; BRKT,CAB
M8X25 W/LK&PL WASHER TAI 		1-09980-526-0 08 1 0101- ● ●
302 BOLT; BRKT,CAB
M10X25 W/LK&PL WASHER TAI 		1-09980-488-0 02 1 9811-0012 ●
302 BOLT; BRKT,CAB
M10X25 W/LK&PL WASHER TAI 		1-09980-488-0 02 1 0101- ● ●
302 BOLT; BRKT,CAB
M8X25 W/LK&PL WASHER TAI 		1-09980-526-0 08 1 9811-0012 ●
310 SEAL; BRKT
OD=30 BLACK TAI 		1-76798-035-0 04 1 9811- ●
311 SEAL; CAB LOCK
OD=30 BLACK TAI 		1-76798-035-0 02 1 9811- ● ●

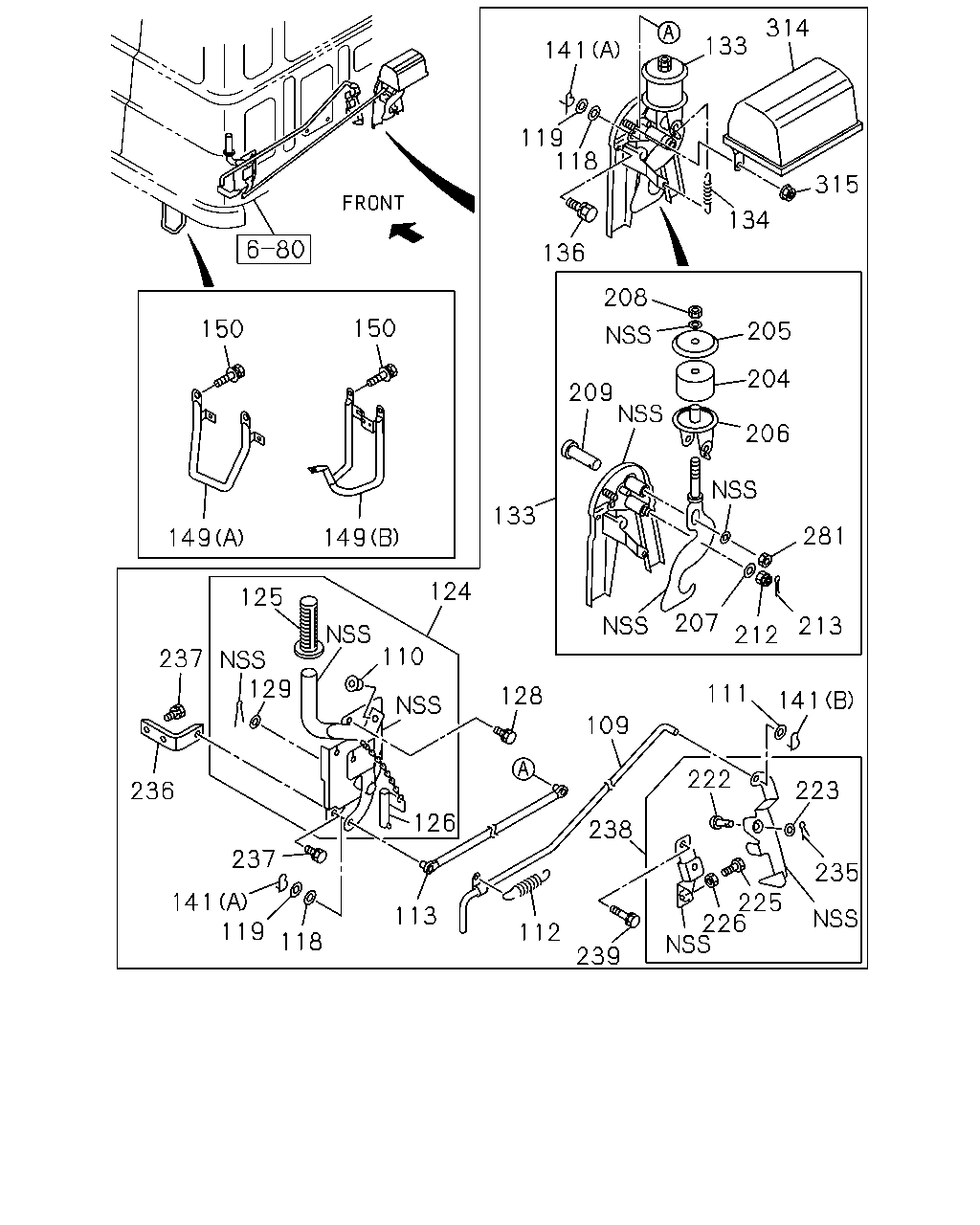

çizim 98665
314 133 141 119 118 315 134 136 208 150 150 205 204 209 206 133 281 149 149 124 125 207 213 212 110 237 129 111 128 141 109 222 223 236 126 238 237 235 141 119 225 226 113 112 118 239
BalonParca AdiParca NoAdetTipApplied Date A B
109 ROD; SAFETY,CAB LK
TAI 		1-79718-642-1 01 1 9811- ● ●
110 BUSHING; SAFETY ROD,CAB LOCK
TAI 		1-79718-319-1 01 1 9811- ● ●
111 WASHER; PL,SAFETY ROD
TAI 		1-09985-137-0 01 1 9811- ● ●
112 SPRING; RETURN,SAFETY ROD 1-79718-539-0 01 1 9811-9901 ● ●
112 SPRING; RETURN,SAFETY ROD
TAI 		1-79718-655-0 01 1 9902- ● ●
113 ROD; CONN,CAB LK
TAI 		1-79718-583-0 01 1 9811- ● ●
118 WASHER; PL,CONNROD
ID=10.5 TAI 		1-09985-107-0 02 1 9811- ● ●
119 WASHER; WAVE,CAB LOCK ROD
TAI 		1-09985-045-0 02 1 9811- ● ●
124 LEVER ASM; HAND,CAB LK 1-79718-585-4 01 1 9811- ● ●
125 GRIP; HAND LEVER,CAB LOCK 1-79718-303-2 01 1 9811- ● ●
126 PIN; LK,HAND LEVER
TAI 		1-79718-594-1 01 1 9811- ● ●
128 BOLT; BRKT
M8X24.5 W/LK&PL WASHER TAI 		8-94279-208-0 03 1 9811- ● ●
129 WASHER; PL,BRKT
ID=17 		1-09985-109-0 01 1 9811- ● ●
133 LOCK ASM; CAB 1-79718-553-4 01 1 9811-9905 ● ●
133 LOCK ASM; CAB
TAI 		1-79718-656-0 01 1 9906- ● ●
134 SPRING; CAB LK LEVER
TAI 		1-79718-538-1 01 1 9811- ● ●
136 BOLT; CAB LK
M10X25 W/LK&PL WASHER TAI 		1-09980-488-0 05 1 9811- ● ●
141 PIN; SNAP,CAB LOCK ROD
(B) L=27.7 TAI 		1-09987-141-0 01 1 9811- ● ●
141 PIN; SNAP,CAB LOCK ROD
(A) L=32.6 TAI 		1-09987-142-0 02 1 9811- ● ●
149 HANDLE; TILT
(A) 		1-71998-941-0 01 1 9811- ●
149 HANDLE; TILT
(B) 		1-71996-146-1 01 1 9811- ●
150 BOLT; TILT HANDLE
M6X20 W/LK&PL WASHER TAI 		8-94279-203-0 02 1 9811- ● ●
204 RUBBER; REBOUND,CAB LK
TAI 		1-79718-429-1 01 1 9811- ● ●
205 PLATE; SUPPORT,REBOUND RUBBER
TAI 		1-79718-129-1 01 1 9811- ● ●
206 SUPPORT; REBOUND RUBBER
TAI 		1-79718-434-0 01 1 9811- ● ●
207 WASHER; PL,SUPPORT PLATE
ID=19 OD=44 TAI 		1-09985-113-0 01 1 9811- ● ●
208 NUT; SUPPORT PLATE
M14 LOCK NUT W/FLANGE TAI 		1-79718-526-0 01 1 9811- ● ●
209 PIN; JOINT,SUPPORT
TAI 		1-79718-523-0 01 1 9811- ● ●
212 NUT; BRKT,CAB LOCK
M18 SLOTTED TAI 		1-09984-079-0 01 1 9811- ● ●
213 PIN; SPLIT,BRKT,CAB LK
OD=3.7 L=30 		9-08114-030-0 01 1 9811- ● ●
222 PIN; JOINT,SAFETY LK
TAI 		1-09987-159-0 01 1 9811- ● ●
223 WASHER; PL,SAFETY LK
ID=12.5 OD=22 T=1.6 TAI 		1-09985-108-0 01 1 9811- ● ●
225 BOLT; SAFETY LK
M8X30 TAI 		1-09980-277-0 01 1 9811- ● ●
226 NUT; SAFETY LK
M8 TAI 		1-09984-065-0 01 1 9811- ● ●
235 PIN; SNAP
TAI 		1-09987-158-1 01 1 9811- ● ●
236 SUPPORT ASM; HAND LEVER,CAB LOCK
TAI 		1-79718-493-0 01 1 9811- ● ●
237 BOLT; HAND LEVER SUPPORT,CAB LOCK
M8X20.5 W/LK&PL WASHER TAI 		8-94279-207-0 02 1 9811- ● ●
238 LOCK ASM; SAFETY,CAB TILT
TAI 		1-79718-612-1 01 1 9811- ● ●
239 BOLT; SAFETY LK
M8X25 W/PL WASHER TAI 		8-94279-166-0 02 1 9811-0304 ● ●
239 BOLT; SAFETY LK
M8X25 W/LK&PL WASHER TAI 		1-09980-526-0 02 1 0305- ● ●
281 NUT; SUPPORT
M12 LOCK NUT W/FLANGE TAI 		1-79718-524-1 01 1 9811- ● ●
314 COVER; CAB LOCK
TAI 		1-79718-575-1 01 1 9811- ● ●
315 NUT; COVER
M8 CUTTING NUT W/FLANGE TAI 		1-09985-340-0 02 1 9811- ● ●

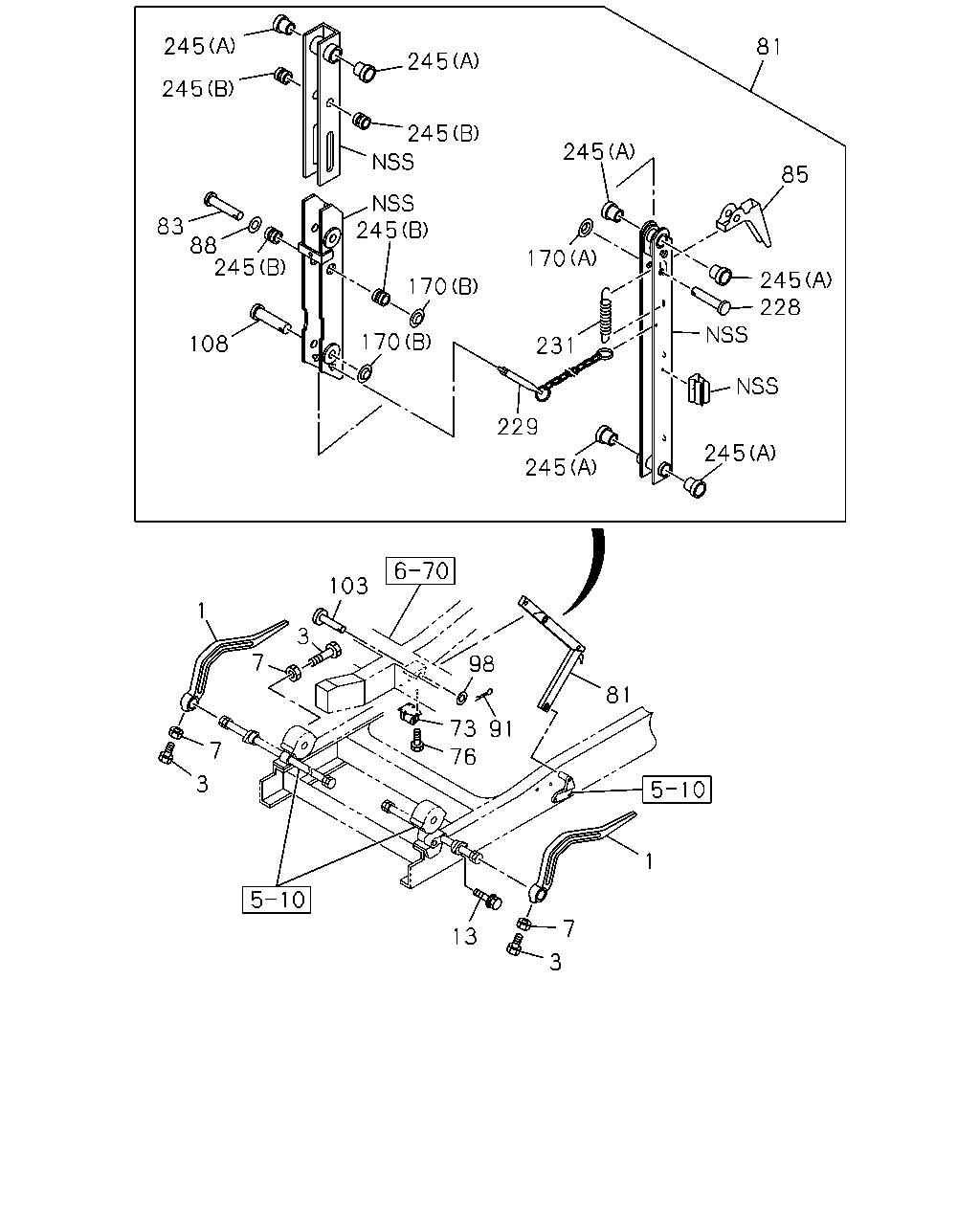

çizim 98725
245 81 245 245 245 245 85 245 83 88 245 170 245 228 170 170 108 231 229 245 245 103 1 3 7 98 81 73 91 7 76 3 1 7 13 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 LEVER; TORSION BAR
TAI 		8-97530-377-0 01 1 9811-0610 ● ●
1 LEVER; TORSION BAR
TAI 		1-53458-750-1 01 1 0611- ● ●
1 LEVER; TORSION BAR
TAI 		8-97530-376-0 01 1 9811-0610 ● ●
1 LEVER; TORSION BAR
TAI 		1-53458-617-1 01 1 0611- ● ●
3 BOLT; LEVER
M10X32 		1-09000-435-0 04 1 9811- ● ●
7 NUT; LK,LEVER
M10 		9-09110-510-0 04 1 9811-0512 ● ●
7 NUT; LK,LEVER
M10 		0-91110-510-0 04 1 0601- ● ●
13 BOLT; BUSHING,TORSION BAR
M6X12 FLANGE 		0-28080-612-0 02 1 9811-0512 ● ●
13 BOLT; BUSHING,TORSION BAR
M6X12 FLANGE 		0-28050-612-0 02 1 0601- ● ●
73 PAD; TORSION BAR 1-53459-790-1 02 1 9811- ● ●
76 BOLT; PAD
M10X30 W/LK&PL WASHER 		8-94279-213-0 06 1 9811- ● ●
81 STAY ASM; CAB TILT 1-62500-630-2 01 1 9811-9811 ●
81 STAY ASM; CAB TILT 1-62500-721-0 01 1 9812-9906 ●
81 STAY ASM; CAB TILT 1-62500-726-1 01 1 9907-0405 ●
81 STAY ASM; CAB TILT 1-62500-755-0 01 1 0406- ●
81 STAY ASM; CAB TILT 1-62500-646-2 01 1 9811-9811 ●
81 STAY ASM; CAB TILT 1-62500-720-1 01 1 9812-0405 ●
81 STAY ASM; CAB TILT 1-62500-761-0 01 1 0406- ●
83 PIN; JOINT,CAB STAY
OD=10 L=42 TAI 		1-09744-106-0 01 1 9811- ● ●
85 LEVER; LOCK,CAB STAY
TAI 		1-62500-503-0 01 1 9811- ● ●
88 WASHER; PL,CAB STAY PIN
ID=10.5 T=2.0 TAI 		1-09985-183-0 01 1 9811- ● ●
91 PIN; SPLIT,CAB STAY
TAI 		1-09746-021-0 01 1 9811- ● ●
98 WASHER; CAB STAY
ID=10.5 T=2.0 TAI 		1-09985-183-0 01 1 9811- ● ●
103 PIN; JOINT,CAB STAY
TAI 		1-09744-108-1 01 1 9811- ● ●
108 PIN; ADJ,CAB STAY
OD=10 L=42 TAI 		1-09744-106-0 01 1 9811- ● ●
170 NUT
(A) ID=7.9 PUSH NUT TAI 		8-97022-565-0 01 1 9811- ● ●
170 NUT
(B) ID=9.9 PUSH NUT TAI 		8-97022-566-0 02 1 9811- ● ●
228 PIN; SAFETY LOCK SPRING,CAB STAY
TAI 		1-09744-086-2 01 1 9811- ● ●
229 PIN ASM; SAFETY
TAI 		1-62500-517-1 01 1 9811- ● ●
231 SPRING; RETURN,LOCK LEVER,CAB STAY
TAI 		1-09583-244-0 01 1 9811- ● ●
245 BUSHING; CAB STAY
(A) TAI 		1-62500-587-0 06 1 9811- ● ●
245 BUSHING; CAB STAY
(B) TAI 		1-62500-588-0 04 1 9811- ● ●
