◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10585 - CXH RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#576) — 27 parça

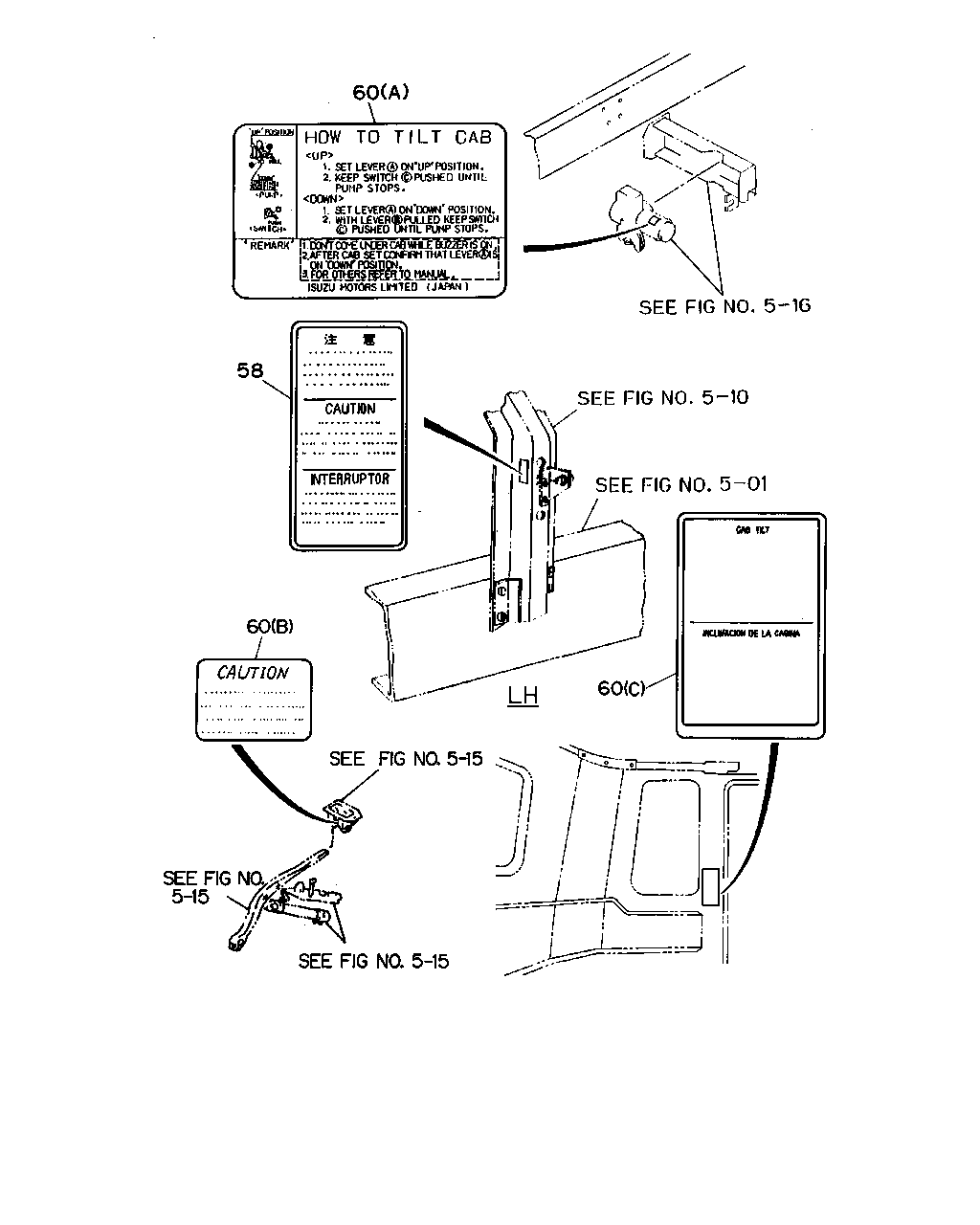

çizim 27151
60 58 60 60
BalonParca AdiParca NoAdetTipApplied Date
58 PLATE; CAUTION,ENG START 1-85887-457-0 01 1 9002-
60 PLATE; CAUTION,CAB TILT
(C) 		1-85881-511-0 01 1 9002-
60 PLATE; CAUTION,CAB TILT
AUTO CAB TILT<WV2> (A) 		1-85883-094-2 01 1 9002-
60 PLATE; CAUTION,CAB TILT
AUTO CAB TILT<WV2> (B) 		1-85883-097-0 02 1 9002-
çizim 94842
2 2 4
BalonParca AdiParca NoAdetTipApplied Date
2 LABEL; FUEL CAUTION
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),PAPUA NEW GUINEA EQUIPMENT(PV5) (B) 		1-85881-558-0 01 1 8712-9001
2 LABEL; FUEL CAUTION
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),PAPUA NEW GUINEA EQUIPMENT(PV5) (A) 		1-85883-103-0 01 1 8712-9001
4 LABEL; ENG MAINTENANCE
10PD1 STD ENG(40L) 		1-85886-634-0 01 1 9002-9501
4 LABEL; ENG MAINTENANCE
10PD1 STD ENG(40L) EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-85886-634-0 01 1 9502-
4 LABEL; ENG MAINTENANCE
10PD1 STD ENG(40L) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-85886-797-0 01 1 9502-

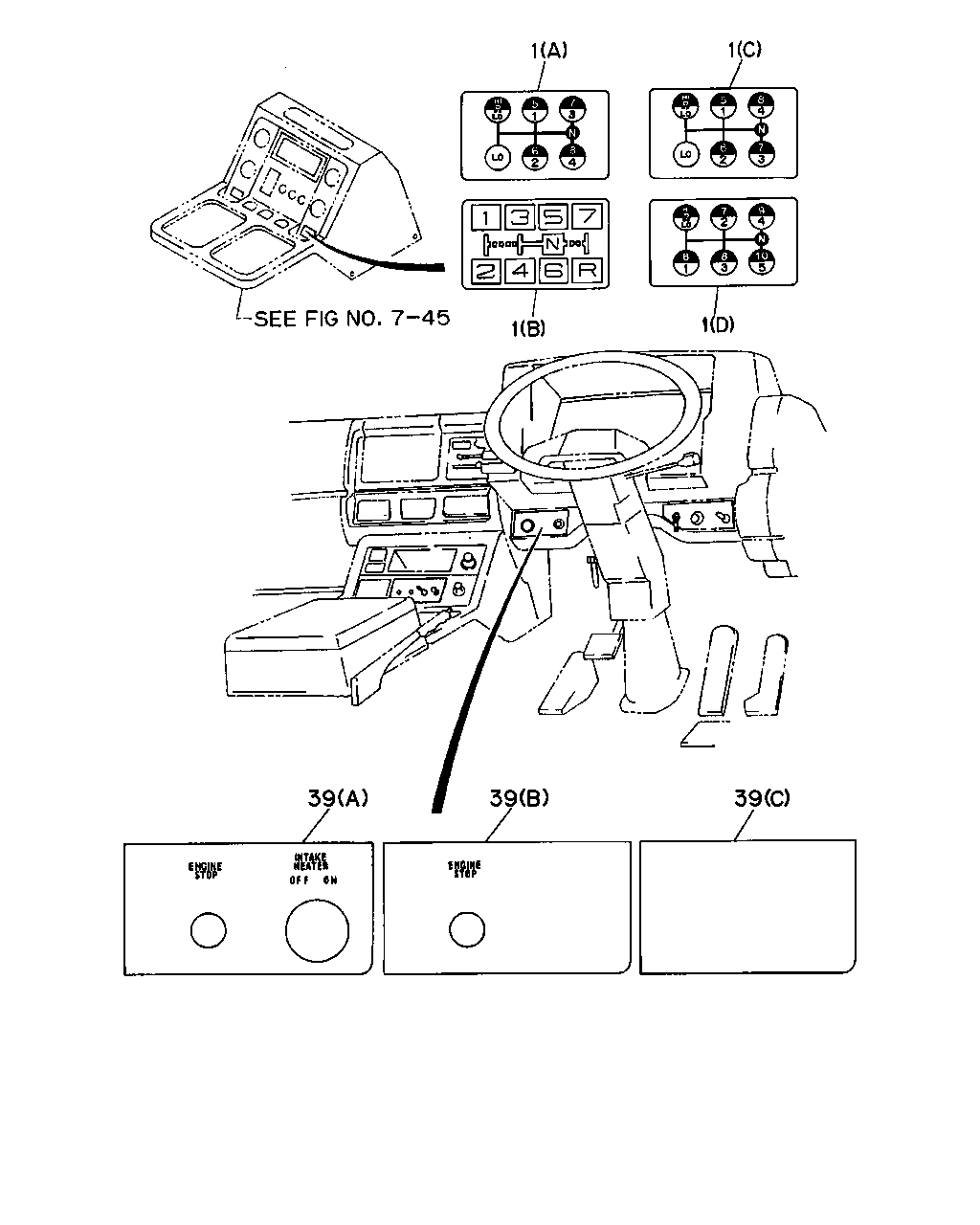

çizim 94892
1 1 1 1 39 39 39
BalonParca AdiParca NoAdetTipApplied Date
1 PLATE; CAUTION,SHIFT PATTERN
MJA7U M/T(X6G) (B) 		1-85881-578-0 01 1 8902-9001
1 PLATE; CAUTION,SHIFT PATTERN
RTO11613 M/T FULLER(MV6),RT11609A M/T FULLER(PQ4) (A) 		1-85881-519-0 01 1 8712-9001
1 PLATE; CAUTION,SHIFT PATTERN
RTO11613 M/T FULLER(MV6) (A) 		1-85881-519-0 01 1 9002-9205
1 PLATE; CAUTION,SHIFT PATTERN
RTO14613 M/T FULLER(MRU),RTO11613 M/T FULLER(MV6) (A) 		1-85881-519-0 01 1 9206-
1 PLATE; CAUTION,SHIFT PATTERN
RTO14613 M/T FULLER(MRU) (C) 		1-85881-521-1 01 1 9002-9205
1 PLATE; CAUTION,SHIFT PATTERN
RT14715 M/T FULLER(X8L) (D) 		1-85881-613-0 01 1 9002-9306
39 PLATE; CAUTION,ENG STOP
AUTO ENG SHUTOFF<KB6> (C) 		1-85877-308-0 01 1 9308-
39 PLATE; CAUTION,ENG STOP
INTAKE HEATER<SL2> (A) 		1-85877-230-0 01 1 9002-9306
39 PLATE; CAUTION,ENG STOP
EXC. INTAKE HEATER<SL2> (B) 		1-85877-199-0 01 1 9002-9306
39 PLATE; CAUTION,ENG STOP
(B) 		1-85877-199-0 01 1 9307-9307
39 PLATE; CAUTION,ENG STOP
EXC. AUTO ENG SHUTOFF<KB6> (B) 		1-85877-199-0 01 1 9308-
çizim 95725
74 51 51 5 49 63
BalonParca AdiParca NoAdetTipApplied Date
5 LABEL; TIRE AIR PRESSURE 1-85881-387-0 01 1 9002-9003
5 LABEL; TIRE AIR PRESSURE 1-85881-655-0 01 1 9004-
49 PLATE; CAUTION,FUSE BOX 1-85887-691-4 01 1 9002-
51 PLATE; CAUTION,WARNING
(A) 		1-85880-569-0 01 1 9002-
51 PLATE; CAUTION,WARNING
(B) 		1-85887-454-1 01 1 9002-
63 PLATE; CAUTION,SEAT AIR
SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) 		1-75537-199-0 01 1 9002-
74 PLATE; CAUTION,CHANGE LEV
COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> 		1-85881-617-0 01 1 9307-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
