4-25 — REAR FINAL DRIVE (#57597) — 145 parça

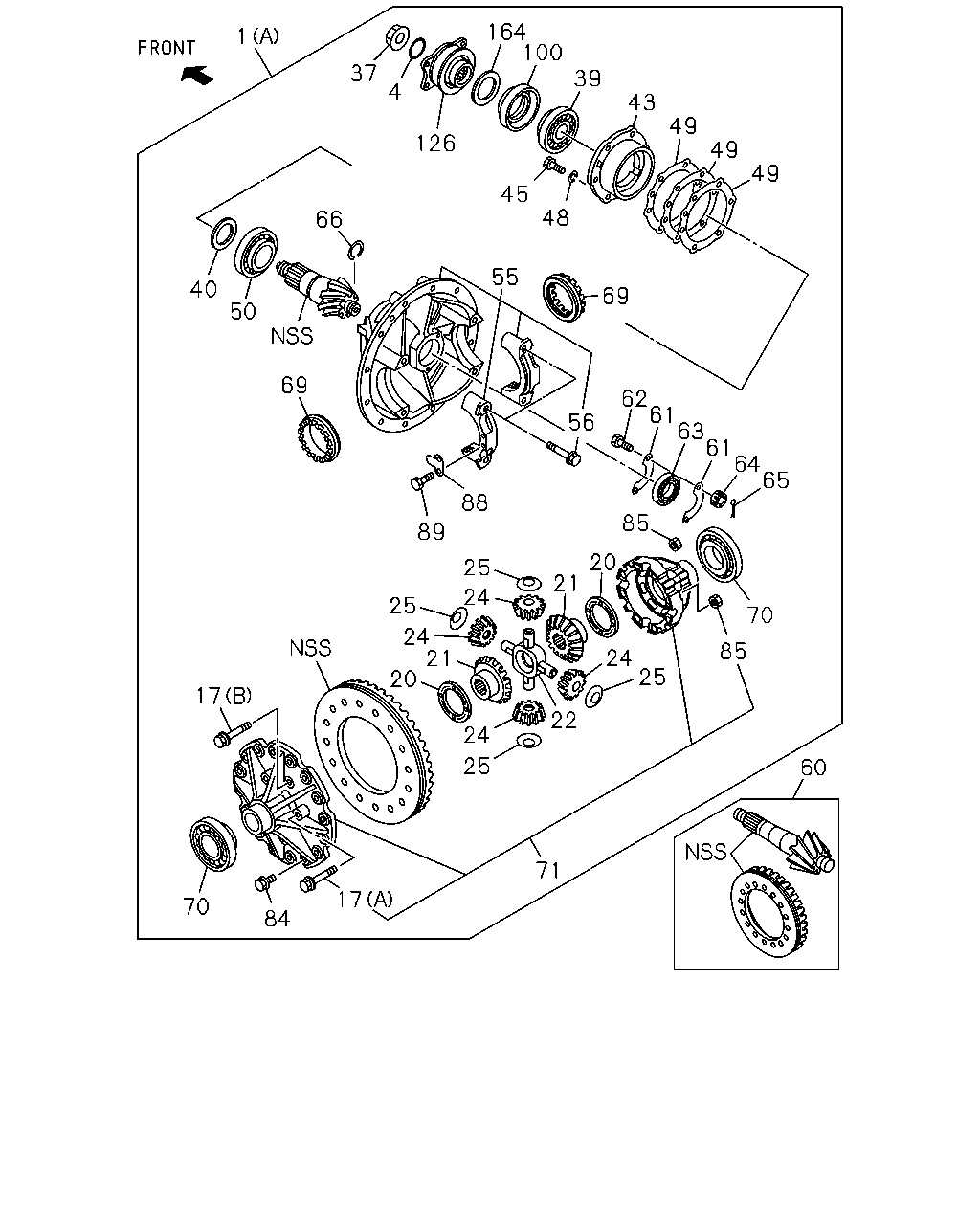

164 100 1 37 39 4 43 49 126 49 49 45 48 66 55 40 69 50 69 62 61 63 61 64 65 56 88 85 89 20 25 21 24 25 70 24 21 20 85 24 25 24 17 22 25 60 71 17 70 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2(G86) (B) 43/7	1-41003-388-0	01	1	1110-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2(G86) (A) 43/7	1-41003-256-0	01	1	1110-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2(G86) (B) 39/6	1-41003-306-0	01	1	1110-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2(G86) (A) 39/6	1-41003-303-0	01	1	1110-		●
4	GASKET; FLANGE,FINAL PINION ID=37.5 T=4	1-09623-582-0	01	1	1110-	●	●
17	BOLT; DIFF CAGE SETTING (A) M14X121 FLANGE	1-09044-006-0	04	1	1110-	●	●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	1110-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2(G86) T=2.80	1-41562-061-0	AR	1	1110-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2(G86) T=3.00	1-41562-062-0	AR	1	1110-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2(G86) T=3.20	1-41562-063-0	AR	1	1110-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2(G86) T=3.40	1-41562-064-0	AR	1	1110-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2(G86) T=2.90	1-41562-080-0	AR	1	1110-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2(G86) T=3.10	1-41562-081-0	AR	1	1110-	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2(G86) T=3.30	1-41562-082-0	AR	1	1110-	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR2(G86) Z=16	1-41561-149-0	02	1	1110-	●	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF VAR2(G86)	1-41521-050-2	01	1	1110-	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR2(G86) Z=10	1-41551-049-0	04	1	1110-	●	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF VAR2(G86) ID=29 OD=60	1-41562-119-0	04	1	1110-	●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-083-0	01	1	1110-	●	●
39	BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1110-	●	●
39	BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1110-	●	●
40	SHIM; FINAL PINION T=1.60	1-41229-179-0	AR	1	1110-	●	●
40	SHIM; FINAL PINION T=1.61	1-41229-180-0	AR	1	1110-	●	●
40	SHIM; FINAL PINION T=1.62	1-41229-181-0	AR	1	1110-	●	●
40	SHIM; FINAL PINION T=1.63	1-41229-182-0	AR	1	1110-	●	●
40	SHIM; FINAL PINION T=1.64	1-41229-183-0	AR	1	1110-	●	●
40	SHIM; FINAL PINION T=1.65	1-41229-184-0	AR	1	1110-	●	●
40	SHIM; FINAL PINION T=1.66	1-41229-185-0	AR	1	1110-	●	●
40	SHIM; FINAL PINION T=1.67	1-41229-186-0	AR	1	1110-	●	●
40	SHIM; FINAL PINION T=1.68	1-41229-187-0	AR	1	1110-	●	●
40	SHIM; FINAL PINION T=1.69	1-41229-188-0	AR	1	1110-	●	●
40	SHIM; FINAL PINION T=1.70	1-41229-189-0	AR	1	1110-	●	●
43	CAGE; FINAL PINION	1-41151-027-0	01	1	1110-	●	●
45	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	1110-	●	●
48	WASHER; LK,FINAL PINION ID=12.2	0-91510-812-0	06	1	1110-	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	1110-	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	1110-	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	1110-	●	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	1110-	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1110-	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1110-	●	●
55	CARRIER; DIFF	1-41110-129-0	01	1	1110-	●	●
56	BOLT; BRG CAP M16X100 FLANGE	1-09070-047-0	04	1	1110-	●	●
60	GEAR SET; FINAL DRIVE,RR 43/7	1-41210-392-2	01	1	1110-	●
60	GEAR SET; FINAL DRIVE,RR 39/6	1-41210-394-2	01	1	1110-		●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1110-	●	●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-046-0	02	1	1110-	●	●
63	BEARING; PINION PILOT NSK	1-09810-073-2	01	1	1110-	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-074-1	01	1	1110-	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1110-	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1110-	●	●
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-214-0	01	1	1110-	●	●
69	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	01	1	1110-	●	●
69	NUT; ADJ,DIFF CAGE M128 H=30	1-41121-015-0	01	1	1110-	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1110-	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1110-	●	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1110-	●	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1110-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-343-0	01	1	1110-	●	●
84	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	1110-	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	1110-	●	●
88	PLATE; LK,ADJ NUT T=2.3	9-41124-015-0	02	1	1110-	●	●
89	BOLT; LK PLATE M8X12 FLANGE	8-94479-696-1	04	1	1110-	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	1110-	●	●
100	SEAL; OIL,FINAL PINION TKK	1-09625-637-0	01	1	1110-	●	●
126	COUPLING; DRIVING PINION	1-37245-414-0	01	1	1110-	●	●
164	COLLAR; DIST,PINION T=10.70	1-36355-031-0	01	1	1110-	●	●
164	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	1110-	●	●
164	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	1110-	●	●
164	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	1110-	●	●
164	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	1110-	●	●
164	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	1110-	●	●
164	COLLAR; DIST,PINION T=11.90	1-36355-043-0	01	1	1110-	●	●
164	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	1110-	●	●
164	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	1110-	●	●

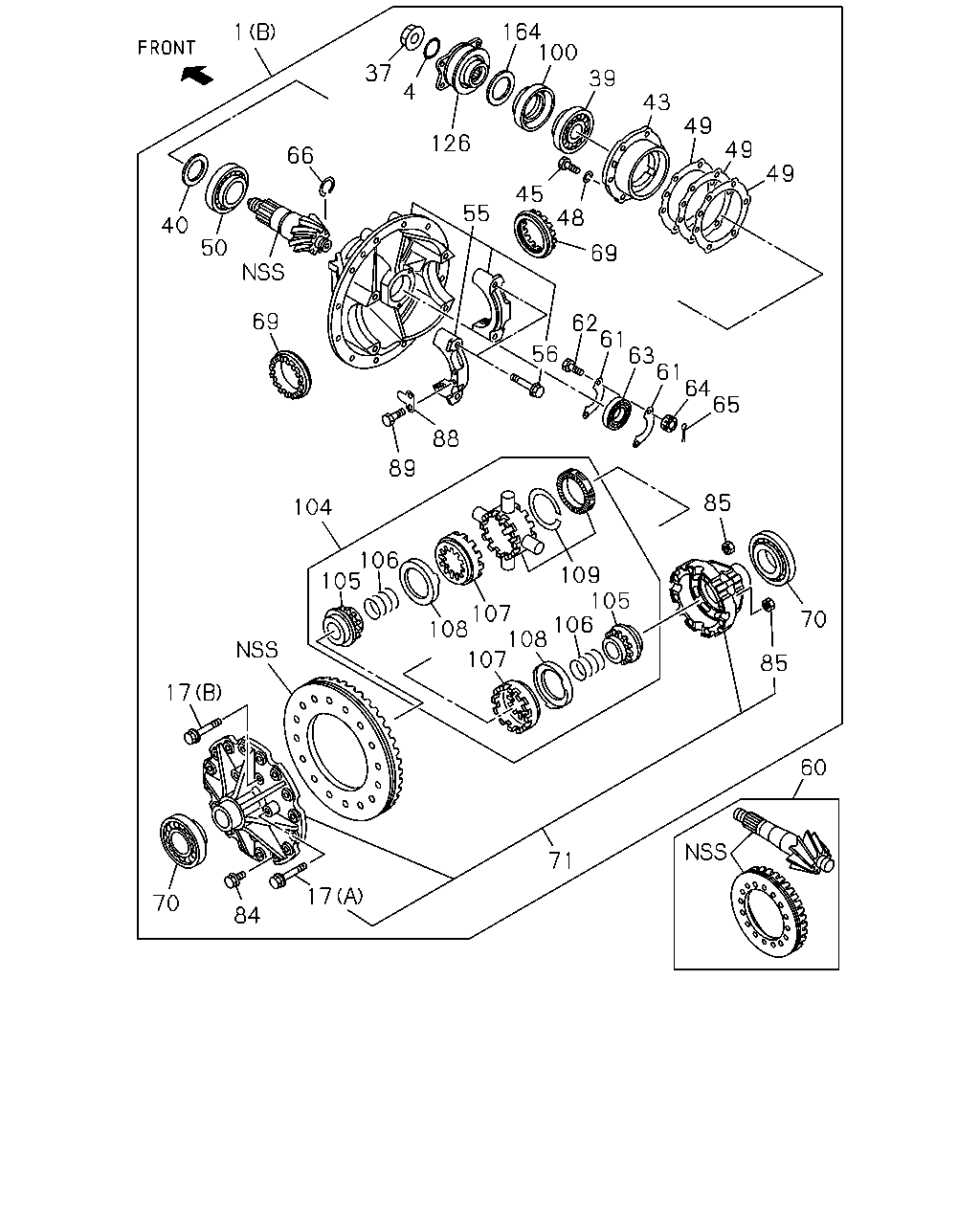

164 100 1 37 39 4 43 49 126 49 66 49 45 55 48 40 50 69 69 62 61 63 61 64 65 56 88 89 85 104 106 105 109 105 107 106 108 108 107 70 85 17 60 71 17 70 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2(G86) (B) 43/7	1-41003-388-0	01	1	1110-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2(G86) (A) 43/7	1-41003-256-0	01	1	1110-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2(G86) (B) 39/6	1-41003-306-0	01	1	1110-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2(G86) (A) 39/6	1-41003-303-0	01	1	1110-		●
4	GASKET; FLANGE,FINAL PINION ID=37.5 T=4	1-09623-582-0	01	1	1110-	●	●
17	BOLT; DIFF CAGE SETTING (A) M14X121 FLANGE	1-09044-006-0	04	1	1110-	●	●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	1110-	●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-083-0	01	1	1110-	●	●
39	BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1110-	●	●
39	BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1110-	●	●
40	SHIM; FINAL PINION T=1.60	1-41229-179-0	AR	1	1110-	●	●
40	SHIM; FINAL PINION T=1.61	1-41229-180-0	AR	1	1110-	●	●
40	SHIM; FINAL PINION T=1.62	1-41229-181-0	AR	1	1110-	●	●
40	SHIM; FINAL PINION T=1.63	1-41229-182-0	AR	1	1110-	●	●
40	SHIM; FINAL PINION T=1.64	1-41229-183-0	AR	1	1110-	●	●
40	SHIM; FINAL PINION T=1.65	1-41229-184-0	AR	1	1110-	●	●
40	SHIM; FINAL PINION T=1.66	1-41229-185-0	AR	1	1110-	●	●
40	SHIM; FINAL PINION T=1.67	1-41229-186-0	AR	1	1110-	●	●
40	SHIM; FINAL PINION T=1.68	1-41229-187-0	AR	1	1110-	●	●
40	SHIM; FINAL PINION T=1.69	1-41229-188-0	AR	1	1110-	●	●
40	SHIM; FINAL PINION T=1.70	1-41229-189-0	AR	1	1110-	●	●
43	CAGE; FINAL PINION	1-41151-027-0	01	1	1110-	●	●
45	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	1110-	●	●
48	WASHER; LK,FINAL PINION ID=12.2	0-91510-812-0	06	1	1110-	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	1110-	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	1110-	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	1110-	●	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	1110-	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1110-	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1110-	●	●
55	CARRIER; DIFF	1-41110-129-0	01	1	1110-	●	●
56	BOLT; BRG CAP M16X100 FLANGE	1-09070-047-0	04	1	1110-	●	●
60	GEAR SET; FINAL DRIVE,RR 43/7	1-41210-392-2	01	1	1110-	●
60	GEAR SET; FINAL DRIVE,RR 39/6	1-41210-394-2	01	1	1110-		●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1110-	●	●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-046-0	02	1	1110-	●	●
63	BEARING; PINION PILOT NSK	1-09810-073-2	01	1	1110-	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-074-1	01	1	1110-	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1110-	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1110-	●	●
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-214-0	01	1	1110-	●	●
69	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	01	1	1110-	●	●
69	NUT; ADJ,DIFF CAGE M128 H=30	1-41121-015-0	01	1	1110-	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1110-	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1110-	●	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1110-	●	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1110-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-343-0	01	1	1110-	●	●
84	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	1110-	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	1110-	●	●
88	PLATE; LK,ADJ NUT T=2.3	9-41124-015-0	02	1	1110-	●	●
89	BOLT; LK PLATE M8X12 FLANGE	8-94479-696-1	04	1	1110-	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	1110-	●	●
100	SEAL; OIL,FINAL PINION TKK	1-09625-637-0	01	1	1110-	●	●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR2(G86)	1-41530-053-0	01	1	1110-	●	●
105	GEAR; SIDE LIMITED SLIP DIFF VAR2(G86)	1-41539-043-0	02	1	1110-	●	●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF VAR2(G86)	1-41539-006-0	02	1	1110-	●	●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF VAR2(G86)	1-41539-003-0	02	1	1110-	●	●
108	RING; HOLD OUT LIMITED SLIP DIFF VAR2(G86)	1-41539-004-1	02	1	1110-	●	●
109	SPIDER; DIFF LIMITED SLIP DIFF VAR2(G86)	1-41539-014-0	01	1	1110-	●	●
126	COUPLING; DRIVING PINION	1-37245-414-0	01	1	1110-	●	●
164	COLLAR; DIST,PINION T=10.70	1-36355-031-0	01	1	1110-	●	●
164	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	1110-	●	●
164	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	1110-	●	●
164	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	1110-	●	●
164	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	1110-	●	●
164	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	1110-	●	●
164	COLLAR; DIST,PINION T=11.90	1-36355-043-0	01	1	1110-	●	●
164	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	1110-	●	●
164	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	1110-	●	●
