1 |

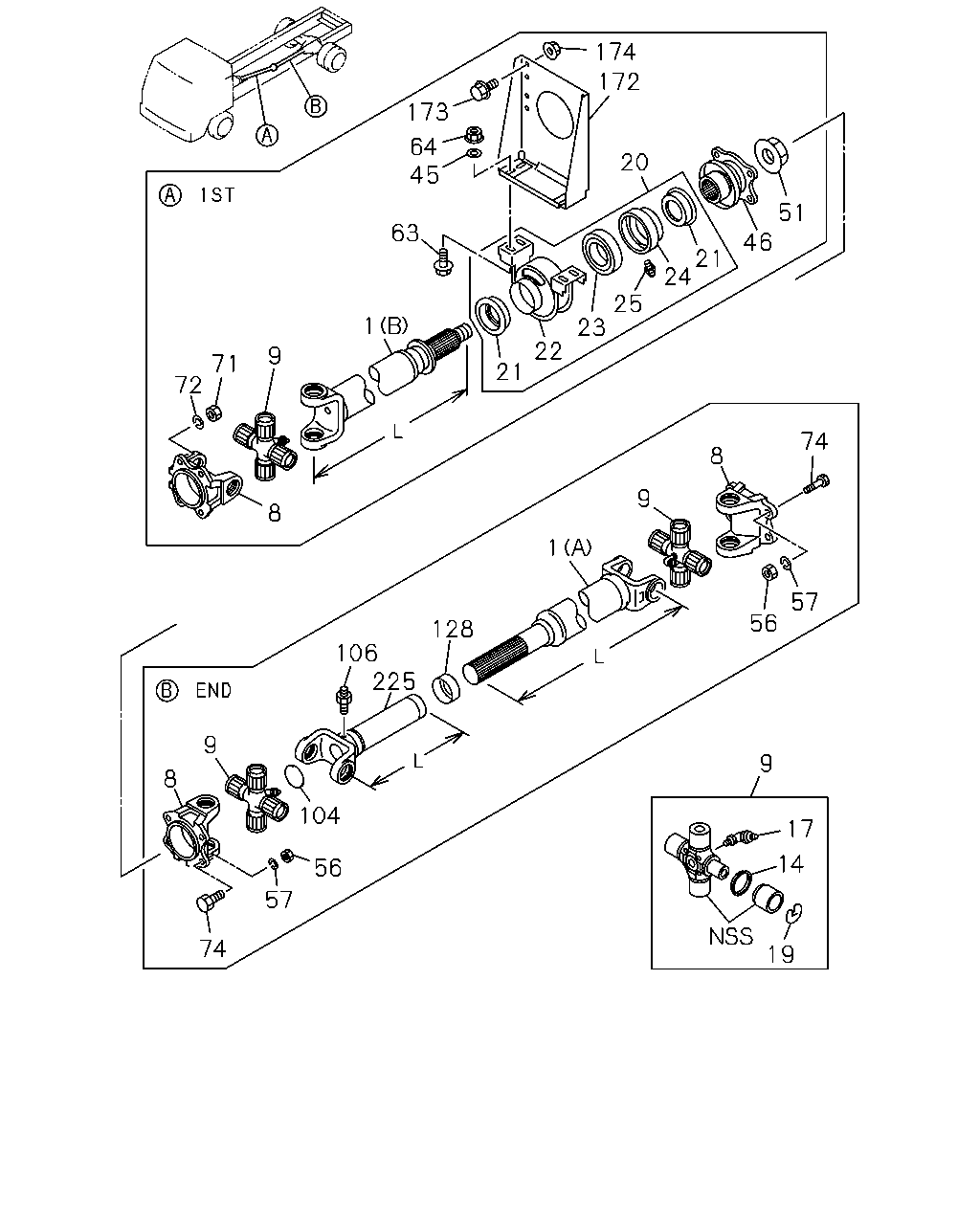

SHAFT; PROP
(B)
L=1216
|
1-37151-633-1 |
01 |
1 |
1110- |
| |
1 |
SHAFT; PROP
(A)
L=1236
|
8-98069-681-0 |
01 |
1 |
1110- |
| |
8 |
YOKE; FLANGE,PROP SHAFT
|
1-37211-056-3 |
01 |
1 |
1110- |
| |
8 |
YOKE; FLANGE,PROP SHAFT
|
1-37211-056-3 |
02 |
1 |
1110- |
| |
9 |
JOURNAL ASM; PROP SHAFT
|
8-98048-925-1 |
01 |
1 |
1110- |
| |
9 |
JOURNAL ASM; PROP SHAFT
|
8-98048-925-1 |
02 |
1 |
1110- |
| |
14 |
COVER; DUST,SPIDER
|
8-98020-800-0 |
04 |
1 |
1110- |
| |
14 |
COVER; DUST,SPIDER
|
8-98020-800-0 |
08 |
1 |
1110- |
| |
17 |
NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW
|
0-90301-610-0 |
01 |
1 |
1110- |
| |
17 |
NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW
|
0-90301-610-0 |
02 |
1 |
1110- |
| |
19 |
RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE
|
1-09587-086-0 |
04 |
1 |
1110- |
| |
19 |
RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE
|
1-09587-086-0 |
08 |
1 |
1110- |
| |
19 |
RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE
|
1-09587-087-2 |
04 |
1 |
1110- |
| |
19 |
RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE
|
1-09587-087-2 |
08 |
1 |
1110- |
| |
19 |
RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW
|
1-09587-088-1 |
04 |
1 |
1110- |
| |
19 |
RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW
|
1-09587-088-1 |
08 |
1 |
1110- |
| |
20 |
BEARING ASM; CTR,PROP SHAFT
|
8-98020-881-0 |
01 |
1 |
1110- |
| |
21 |
SEAL; OIL,CENTER BRG
ID=54
|
1-09625-161-0 |
02 |
1 |
1110- |
| |
22 |
RUBBER; CUSHION,CENTER BRG,1ST
|
1-37516-059-0 |
01 |
1 |
1110- |
| |
23 |
BEARING; CENTER,PROP SHAFT
|
9-00090-071-0 |
01 |
1 |
1110- |
| |
24 |
RETAINER; CENTER BRG,1ST
|
8-98020-882-0 |
01 |
1 |
1110- |
| |
25 |
NIPPLE; GREASE,CENTER BRG
|
8-98020-889-0 |
01 |
1 |
1110- |
| |
45 |
WASHER; PL,RET TO BRKT
ID=10.5 OD=22
|
0-91614-610-0 |
04 |
1 |
1110- |
| |
46 |
FLANGE; SPLINED,PROP SHAFT,1ST
|
8-98020-815-0 |
01 |
1 |
1110- |
| |
51 |
NUT; FLANGE,SPLINED
M30
|
8-97160-857-0 |
01 |
1 |
1110- |
| |
56 |
NUT; YOKE
M14
|
0-91110-514-0 |
08 |
1 |
1110- |
| |
57 |
WASHER; LK,YOKE
ID=14.2
|
0-91510-814-0 |
08 |
1 |
1110-1202 |
| |
57 |
WASHER; LK,YOKE
ID=14.2
|
0-91510-614-0 |
08 |
1 |
1203- |
| |
63 |
BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE
|
0-28651-035-0 |
04 |
1 |
1110- |
| |
64 |
NUT; RET TO BRKT
M10 FLANGE
|
0-91180-210-0 |
04 |
1 |
1110- |
| |
71 |
NUT; YOKE
M14
|
0-91110-514-0 |
04 |
1 |
1110- |
| |
72 |
WASHER; LK,YOKE
ID=14.2
|
0-91510-814-0 |
04 |
1 |
1110-1202 |
| |
72 |
WASHER; LK,YOKE
ID=14.2
|
0-91510-614-0 |
04 |
1 |
1203- |
| |
74 |
BOLT; YOKE,TRANS
M14X37
|
1-09000-121-0 |
08 |
1 |
1110- |
| |
104 |
PLUG; SLEEVE YOKE
|
1-09600-064-0 |
01 |
1 |
1110- |
| |
106 |
NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT
|
0-90301-406-0 |
01 |
1 |
1110- |
| |
128 |
SEAL; SLEEVE
|
1-37247-024-0 |
01 |
1 |
1110- |
| |
172 |
BRACKET; CENTER BRG
|
1-37515-121-0 |
01 |
1 |
1110- |
| |
173 |
BOLT; BRKT
M10X25 FLANGE
|
0-28651-025-0 |
04 |
1 |
1110- |
| |
174 |
NUT; BRKT
M10 FLANGE
|
0-91180-210-0 |
04 |
1 |
1110- |
| |
225 |
YOKE; SLEEVE,PROP SHAFT
L=254
|
8-98020-885-0 |
01 |
1 |
1110- |
